Winters GM 700R4 / 4L60 Shift Linkage Kit 4095
4095
The Winters Performance 4095 Shift Linkage Kit gives you the transmission-side parts needed to connect a Winters cable-operated shifter to a GM 700R4 or early non-electronic 4L60 automatic transmission. The linkage arm attaches to the transmission's shift shaft, while the cable bracket holds the shifter cable in the correct position so the shifter can move the transmission through its full gear range.
This is the kit to use when installing a Winters shifter on a 700R4 or 4L60, or when replacing missing or worn transmission-side linkage parts from an existing setup. Using the correct transmission-specific linkage is important because the bracket position and linkage arm determine how the shifter's cable movement translates into movement at the transmission. When properly installed and adjusted, the shifter should line up with the transmission's gear positions from Park through First without binding or running out of cable travel.

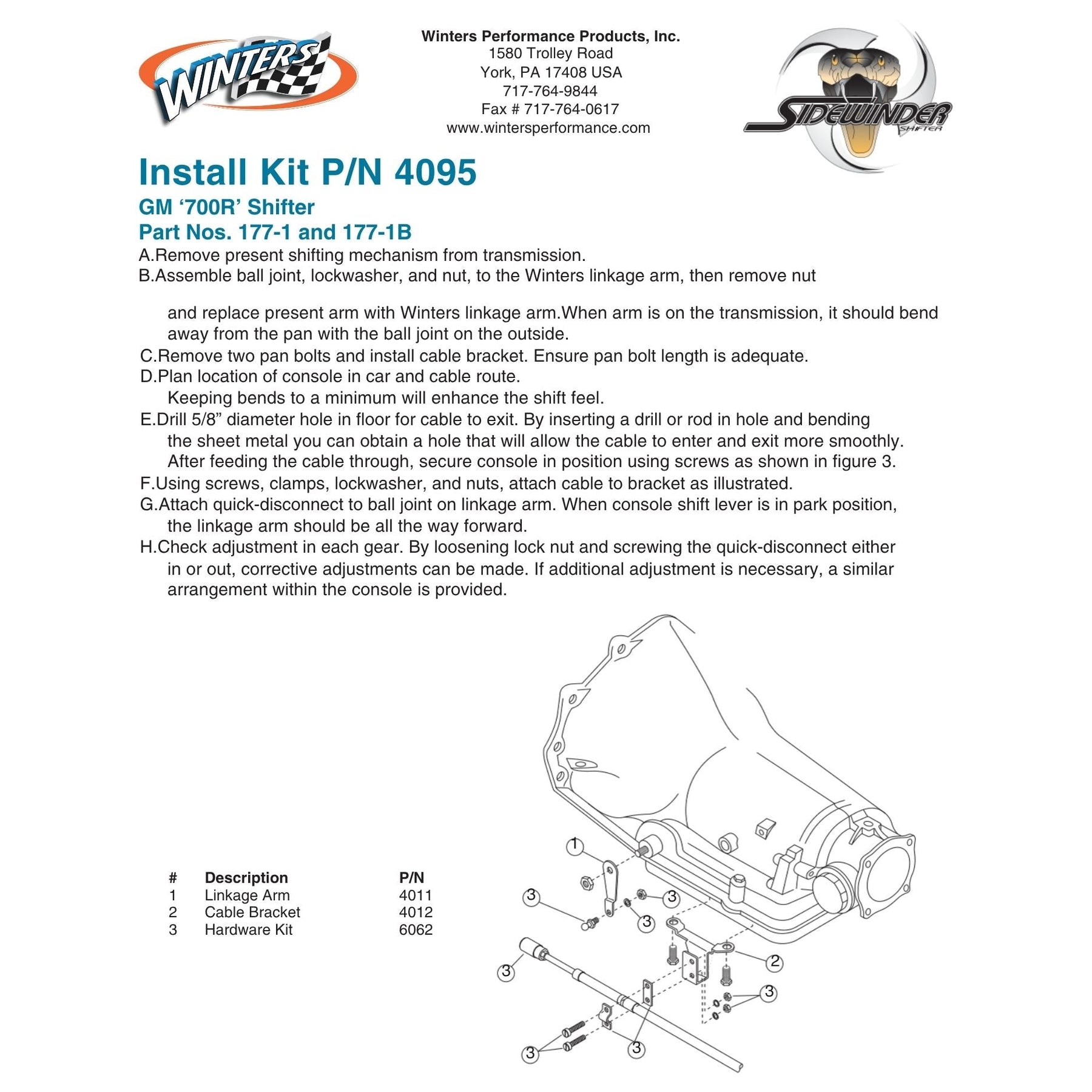

Includes:
- (1) Linkage Arm – P/N 4011
- (1) Cable Bracket – P/N 4012
- (1) Hardware Kit – P/N 6062
Specifications
- Manufacturer: Winters Performance
- Part Number: 4095
- Product Type: Transmission Shift Linkage Kit
- Transmission Compatibility: GM 700R4 / Early 4L60
- Shifter Type: Winters Cable-Operated Shifter
- Application: Transmission-Side Shifter Cable Linkage
Fitment
- GM 700R4 automatic transmissions
- Early GM 4L60 non-electronic automatic transmissions
- Designed for Winters cable-operated shifters
- Use for new shifter installations or replacement of existing transmission-side linkage components
Important: The early 4L60 is the renamed version of the hydraulically controlled 700R4. This linkage kit is not intended for the electronically controlled 4L60E transmission. Verify your transmission before ordering.
Tech Insight
Why does the linkage kit need to match the transmission?
The shifter cable only moves a certain distance between gear positions. The linkage arm and cable bracket convert that cable movement into the correct amount of movement at the 700R4 or 4L60 shift shaft. Using the correct linkage helps the shifter and transmission reach each gear position together.
How do I know if the linkage is adjusted correctly?
After installation, move the shifter through every gear position and verify that the transmission fully engages each detent. The cable should move smoothly without binding, excessive tension, or running out of adjustment at either end of the shift pattern.
Does this kit fit a 4L60E?
No. This kit is for the GM 700R4 and the early hydraulically controlled 4L60. The later electronically controlled 4L60E is a different transmission application.
Can I use this to replace missing Winters linkage parts?
Yes. The 4095 kit provides the transmission-side linkage arm, cable bracket, and mounting hardware shown for the 700R4/4L60 application, making it useful for both new installations and replacement of missing or worn linkage components.
