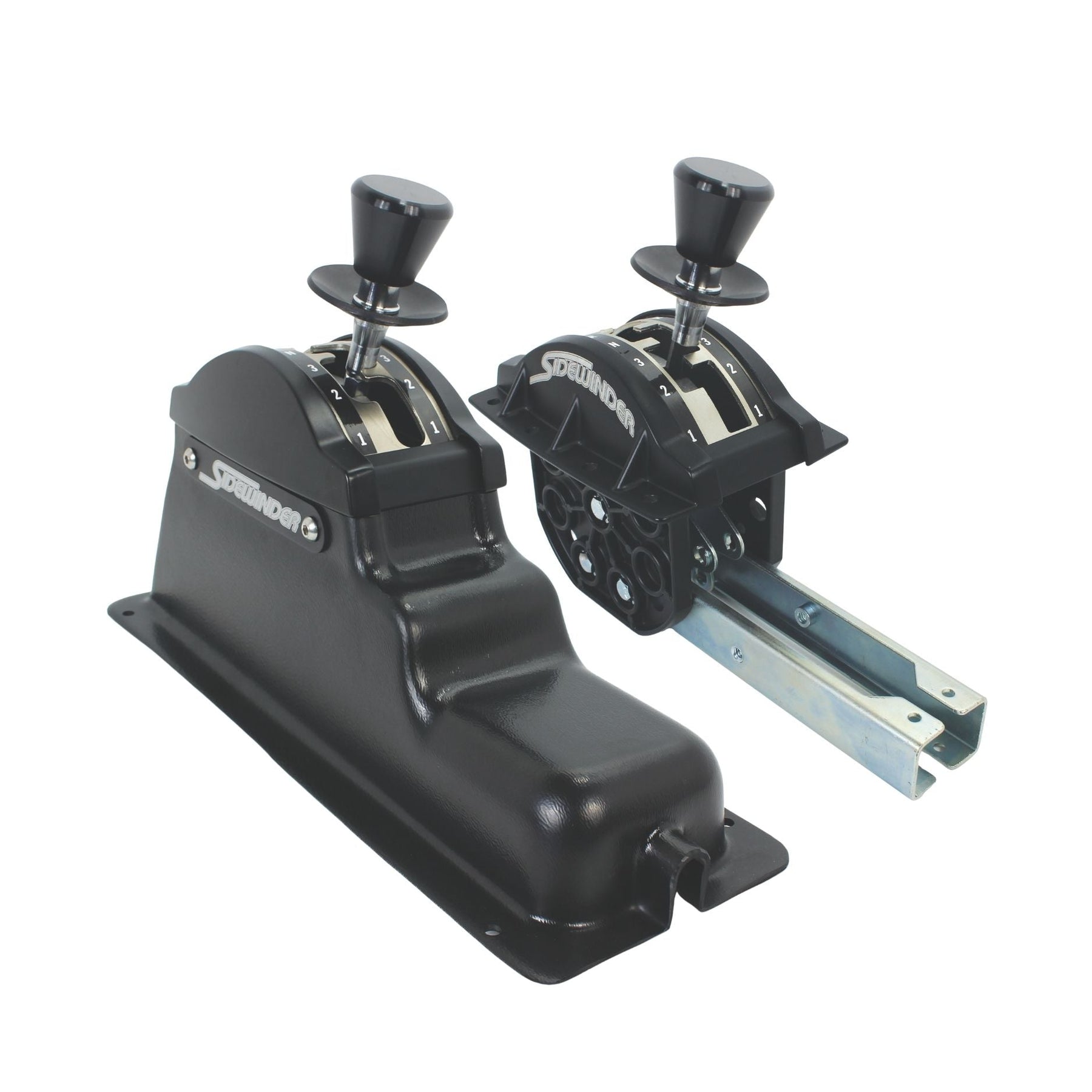

Winters SideWinder Lockout Shifter for Chrysler 727 Torqueflite
207-1B
The Art Carr / Winters SideWinder Lockout Shifter for Chrysler 727 Torqueflite delivers precise manual gear selection with a mechanical reverse lockout designed to prevent accidental shifts into reverse from a forward gear. Built for Chrysler 727 Torqueflite (TF-8) automatic transmissions and compatible American Motors applications, this heavy-duty shifter is ideal for rock crawlers, race buggies, drag racing, and high-performance off-road builds where positive gear engagement and driver control are essential.

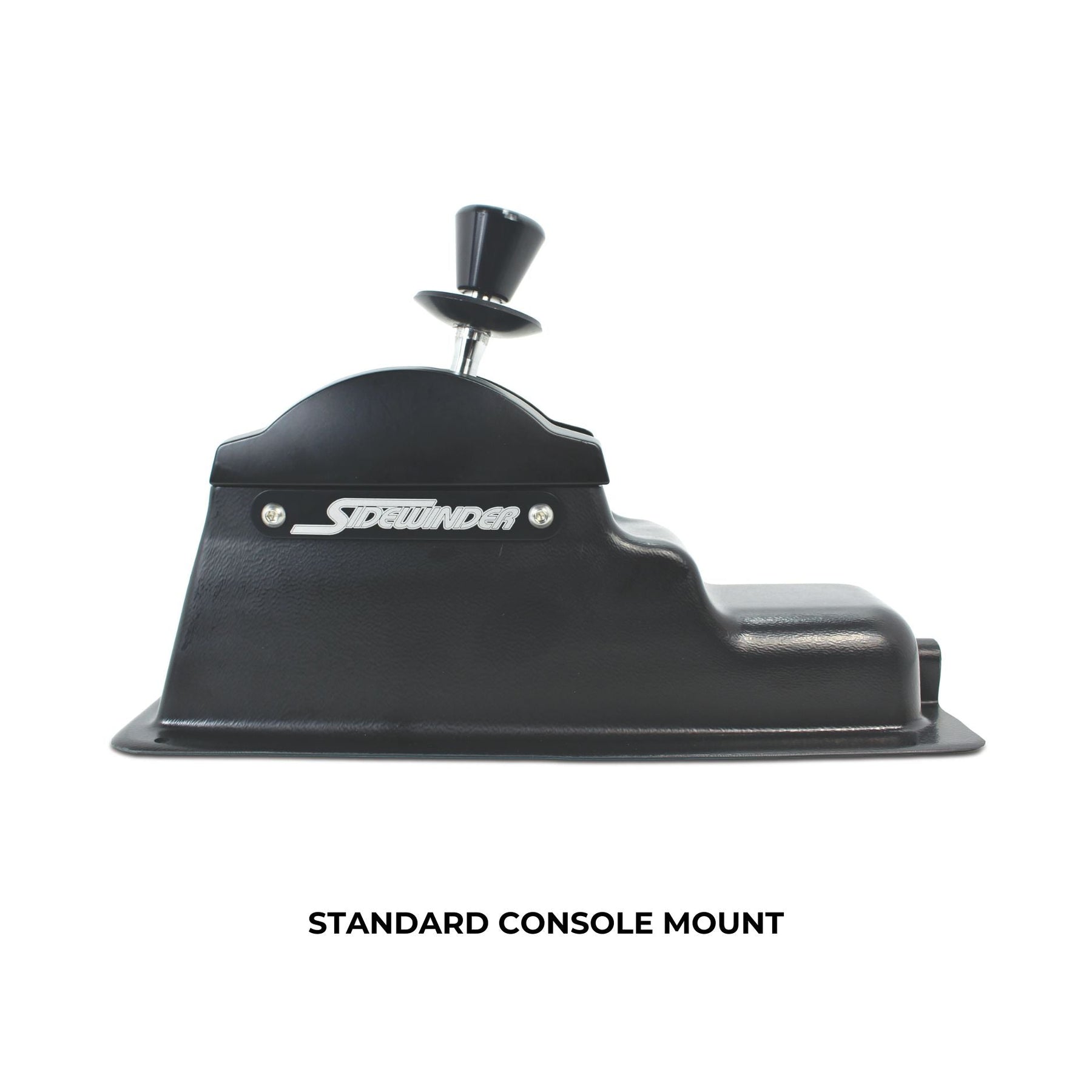

The SideWinder Lockout Shifter comes fully assembled in a standard Winters plastic console and includes a neutral safety switch for additional starting protection. Available in standard or reverse shift patterns, the shifter is typically supplied with a 5-foot, 3-inch-travel double-clip push-pull cable and mounting hardware, with a no-cable option for custom installations. Its mechanical lockout and durable construction make it a dependable choice for demanding racing and off-road environments.
Includes:
- (1) Art Carr / Winters SideWinder Lockout Shifter
- (1) Standard Winters Plastic Console
- (1) Mechanical Reverse Lockout Assembly
- (1) Neutral Safety Switch
- (1) 5-Foot, 3-Inch-Travel Double-Clip Push-Pull Cable (When Selected)
- Mounting Hardware
Important: Select the correct standard or reverse shift pattern for your transmission valve body. Cable-equipped configurations typically include a 5-foot cable; no-cable configurations are available for installations requiring a different length. Verify the selected configuration before ordering.
Specifications
| Manufacturer | Art Carr / Winters Performance |
|---|---|
| Product Series | SideWinder |
| Product Type | Automatic Transmission Lockout Shifter |
| Transmission Compatibility | Chrysler 727 Torqueflite / TF-8 |
| Additional Compatibility | Compatible American Motors 727-Based Automatic Transmissions |
| Transmission Type | 3-Speed Automatic |
| Shift Pattern | Standard or Reverse / Configuration Dependent |
| Shift Operation | Manual Cable-Operated |
| Reverse Lockout | Yes / Mechanical |
| Neutral Safety Switch | Included |
| Console Type | Standard Winters Plastic Console |
| Cable Type | Double-Clip Push-Pull |
| Standard Cable Length | 5 Feet / When Selected |
| Cable Travel | 3 Inches |
| Cable Options | Standard 5-Foot Cable or No Cable |

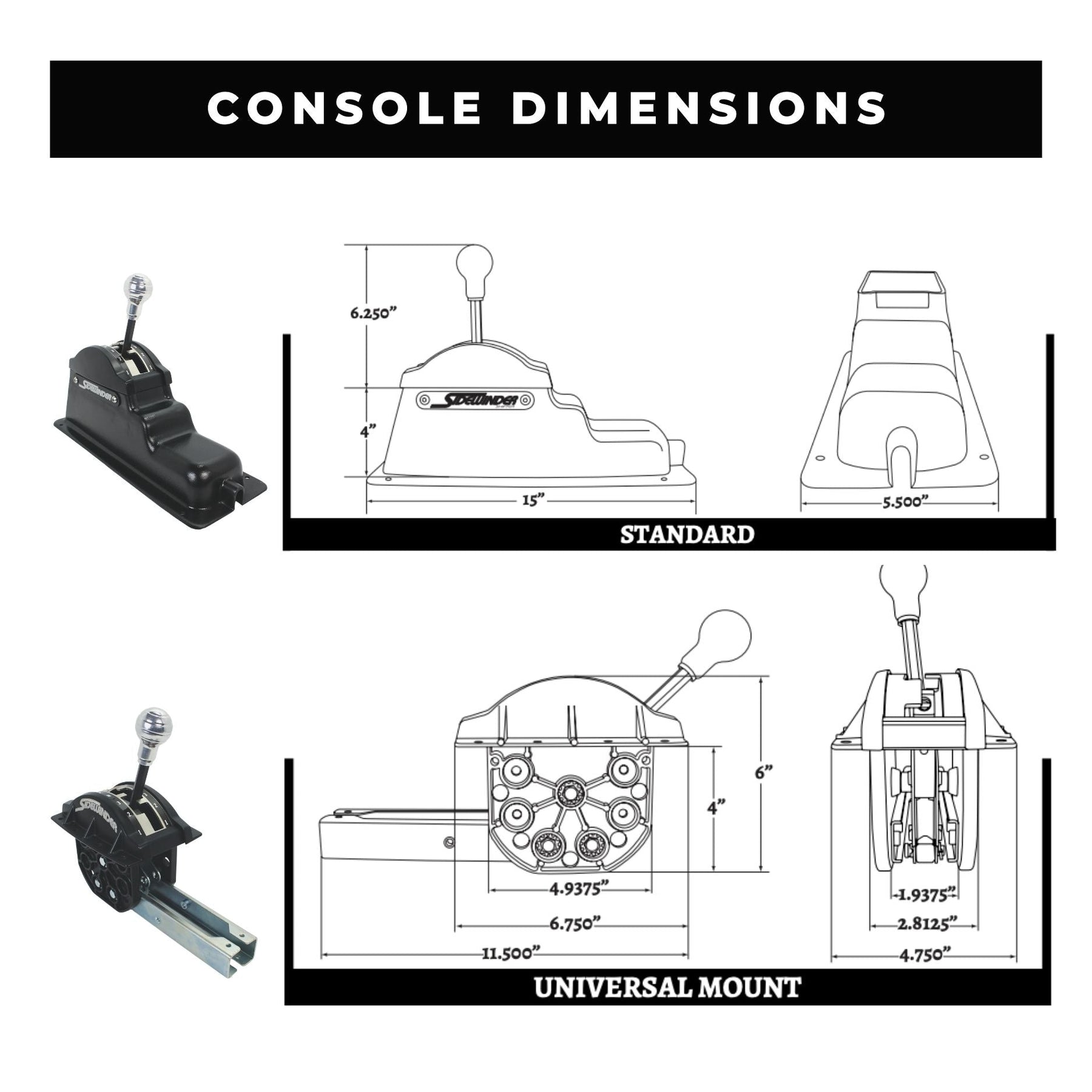

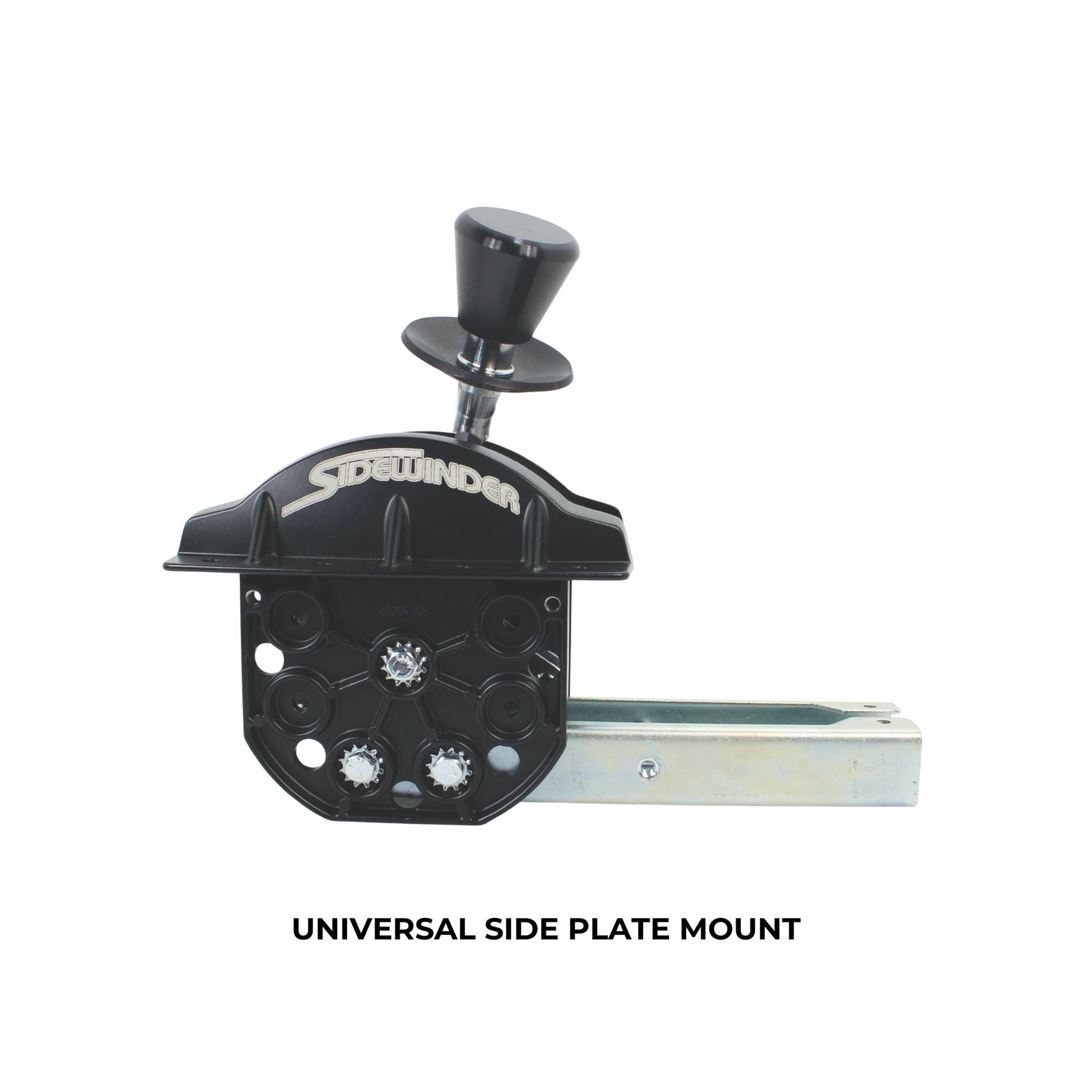

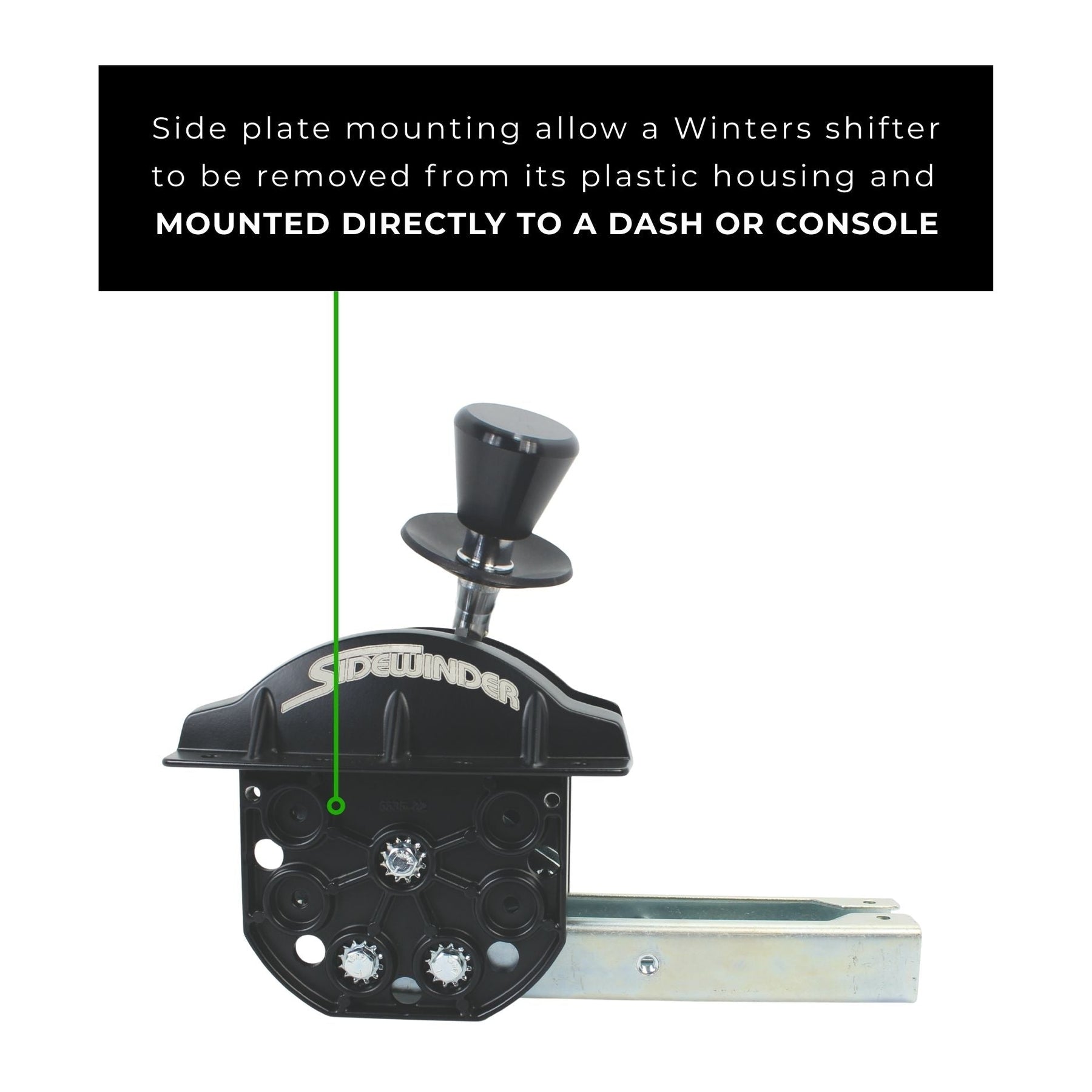

| Mounting Configuration | Console Mount / Flat Mount Capable |
| Mounting Hardware | Included |
| Installation Type | Floor / Console-Mounted Cable Shifter |
| Primary Application | Chrysler 727 Automatic Transmission Control for Racing, Rock Crawling & Performance Builds |
| Quantity | (1) Complete Shifter Assembly |
Key Features:
- Mechanical reverse lockout helps prevent accidental reverse engagement.
- Designed for Chrysler 727 Torqueflite and compatible AMC transmission applications.
- Available for standard and reverse-pattern valve bodies.
- Includes a neutral safety switch for starting circuit integration.
- Fully assembled in a standard Winters plastic console.
- Available with a 5-foot push-pull cable or without a cable.
- Designed for positive manual gear selection in high-vibration environments.
Fitment
Designed for Chrysler 727 Torqueflite automatic transmissions and compatible American Motors applications using the specified 727-based transmission configuration.
| Manufacturer | Transmission Model | Shift Pattern | Application |
|---|---|---|---|
| Chrysler / Mopar | 727 Torqueflite (TF-8) | Standard or Reverse | Automatic Transmission Shifter Replacement |
| American Motors | Compatible 727-Based Automatic | Standard or Reverse | AMC Performance & Off-Road Builds |
Best Suited For:
- Rock Crawlers & Rock Bouncers
- Ultra4 & Off-Road Race Vehicles
- Drag Racing & Street/Strip Builds
- Classic Mopar Performance Vehicles
- Custom Tube-Chassis Buggies
- AMC Builds Using Compatible 727 Transmissions
Fitment & Installation Notes:
- Designed for Chrysler 727 Torqueflite 3-speed automatic transmissions.
- Select the correct standard or reverse shift pattern for the installed valve body.
- Verify cable length and travel requirements before ordering.
- Available without a cable for custom-length installations.
- Proper cable routing and transmission shift lever geometry are required for full gear engagement.
- Neutral safety switch must be correctly wired and adjusted during installation.
- Confirm console clearance and mounting location before final installation.
- Not a universal shifter for all automatic transmissions.
Builder Note: Cable routing and shift lever geometry are critical when installing a SideWinder in a custom chassis. Position the shifter where it can be operated comfortably with harnesses fastened, maintain smooth cable routing, and verify every transmission detent before driving. The mechanical reverse lockout provides additional protection, but proper shifter adjustment remains essential.
Racing Compliance: Lockout shifters are commonly used in NHRA, IHRA, SCORE, BITD, Ultra4, and other motorsport applications. Specific equipment requirements vary by sanctioning body, racing class, and event. Always consult the current rulebook before installation.
FAQ
What transmissions does this Winters SideWinder Lockout Shifter fit?
This shifter is designed for Chrysler 727 Torqueflite (TF-8) automatic transmissions and compatible American Motors 727-based applications. Verify the installed transmission and shift pattern before ordering.
What is the difference between a standard and reverse shift pattern?

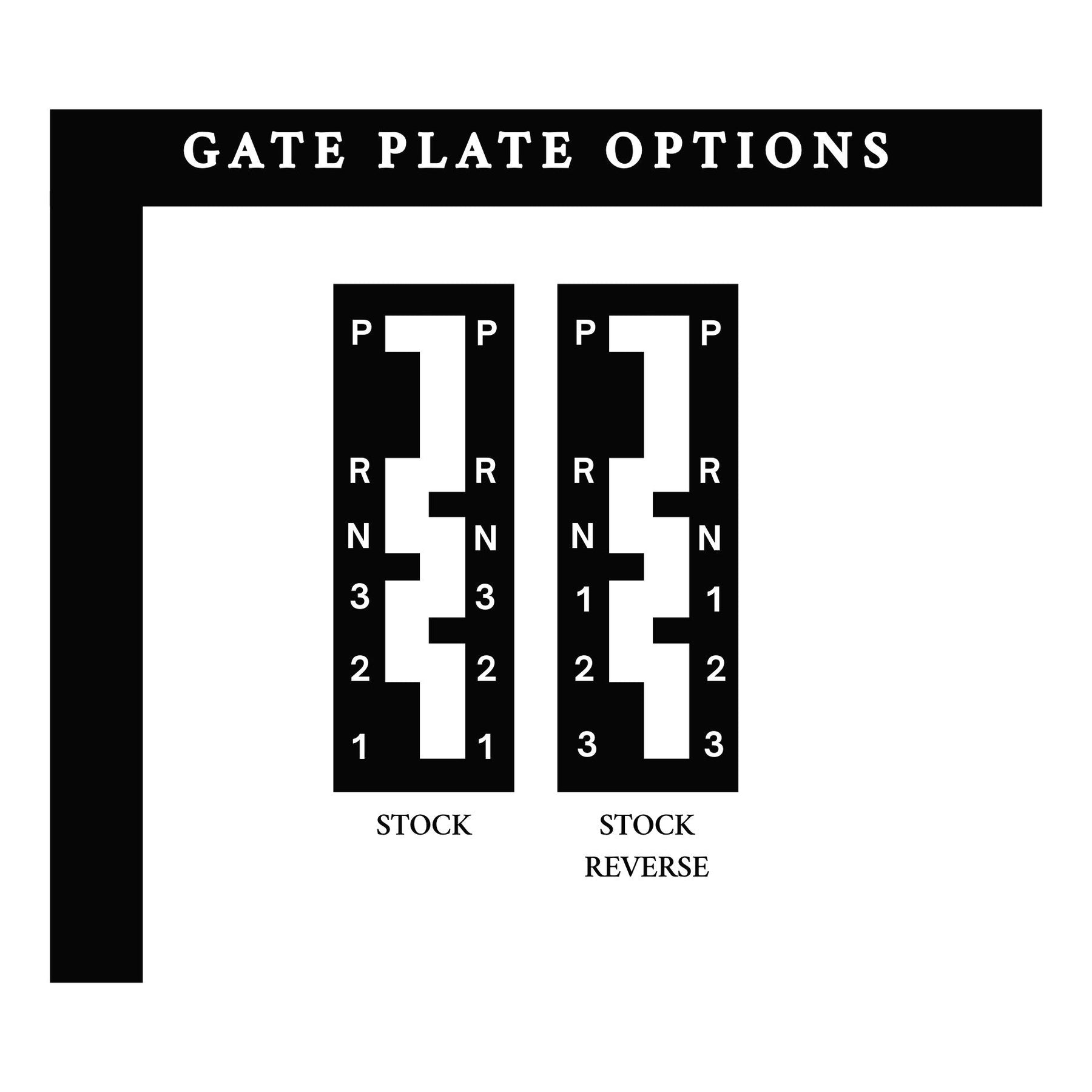

A standard-pattern transmission follows the conventional forward gear selection order, while a reverse-pattern manual valve body reverses the first and third gear positions. The shifter must be configured to match the transmission valve body for correct gear selection.
How does the mechanical reverse lockout work?

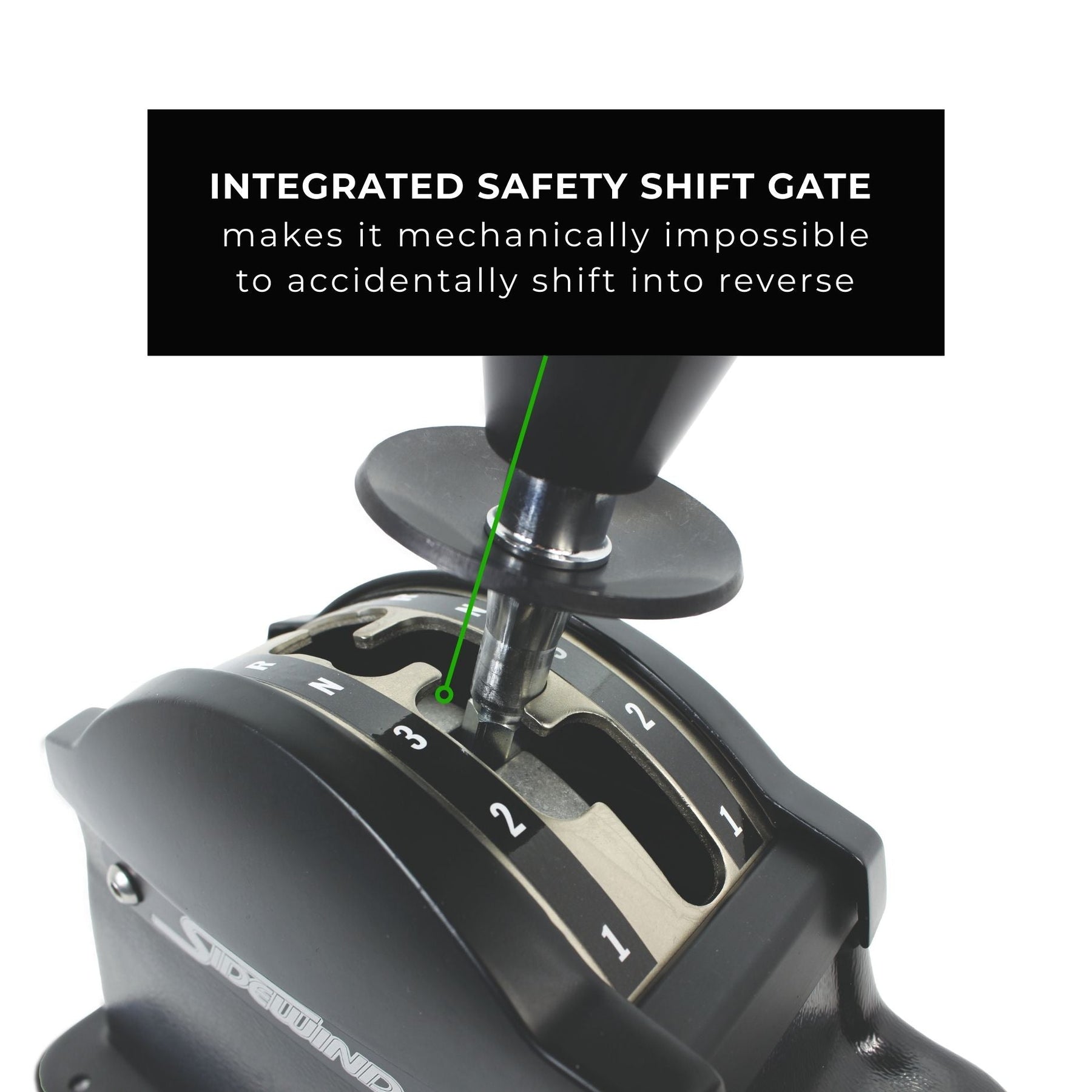

The SideWinder Lockout uses a mechanical mechanism that prevents the shifter from accidentally moving directly into reverse from a forward gear. This adds protection in high-vibration and demanding racing environments.
Does the Winters SideWinder Lockout Shifter include a neutral safety switch?
Yes. The lockout configuration includes a neutral safety switch that can be integrated into the vehicle's starting circuit. Proper wiring and adjustment are required to ensure the engine starts only in permitted transmission positions.
Does the shifter include a cable?
Cable-equipped configurations typically include a 5-foot, 3-inch-travel double-clip push-pull cable. A no-cable option is available for installations requiring a custom cable length.
Can I use this shifter in a rock crawler or Ultra4 buggy?
Yes. The SideWinder Lockout is well suited for compatible 727-equipped off-road vehicles where positive manual gear selection and mechanical reverse lockout protection are important.
Does the shifter come with a console?
Yes. The supplied configuration comes fully assembled in a standard Winters plastic console. Confirm mounting clearance and installation requirements before ordering.
Is the Winters SideWinder Lockout Shifter race legal?
Lockout shifters are used in many forms of motorsport, but acceptance depends on the sanctioning body's current technical regulations and vehicle class. Review the applicable rulebook before assuming compliance.
Can I install this shifter with a custom-length cable?
Yes. A no-cable configuration is available for builds requiring a different cable length. Confirm cable travel, end fittings, and transmission lever compatibility when selecting a replacement cable.
What should I check during installation?
Verify the transmission shift pattern, cable routing, shifter detent alignment, reverse lockout operation, and neutral safety switch function. Confirm that every gear position engages correctly before operating the vehicle.
