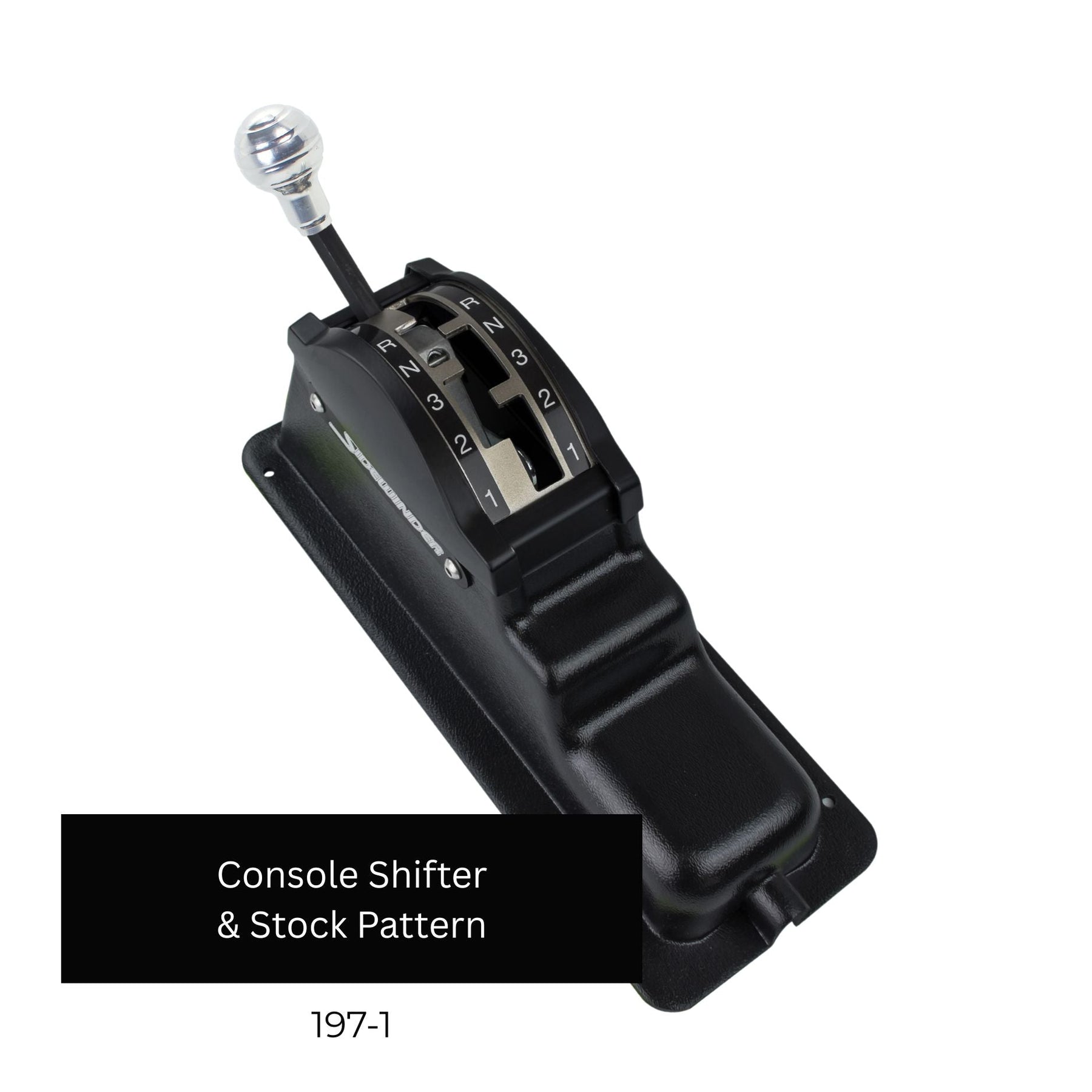

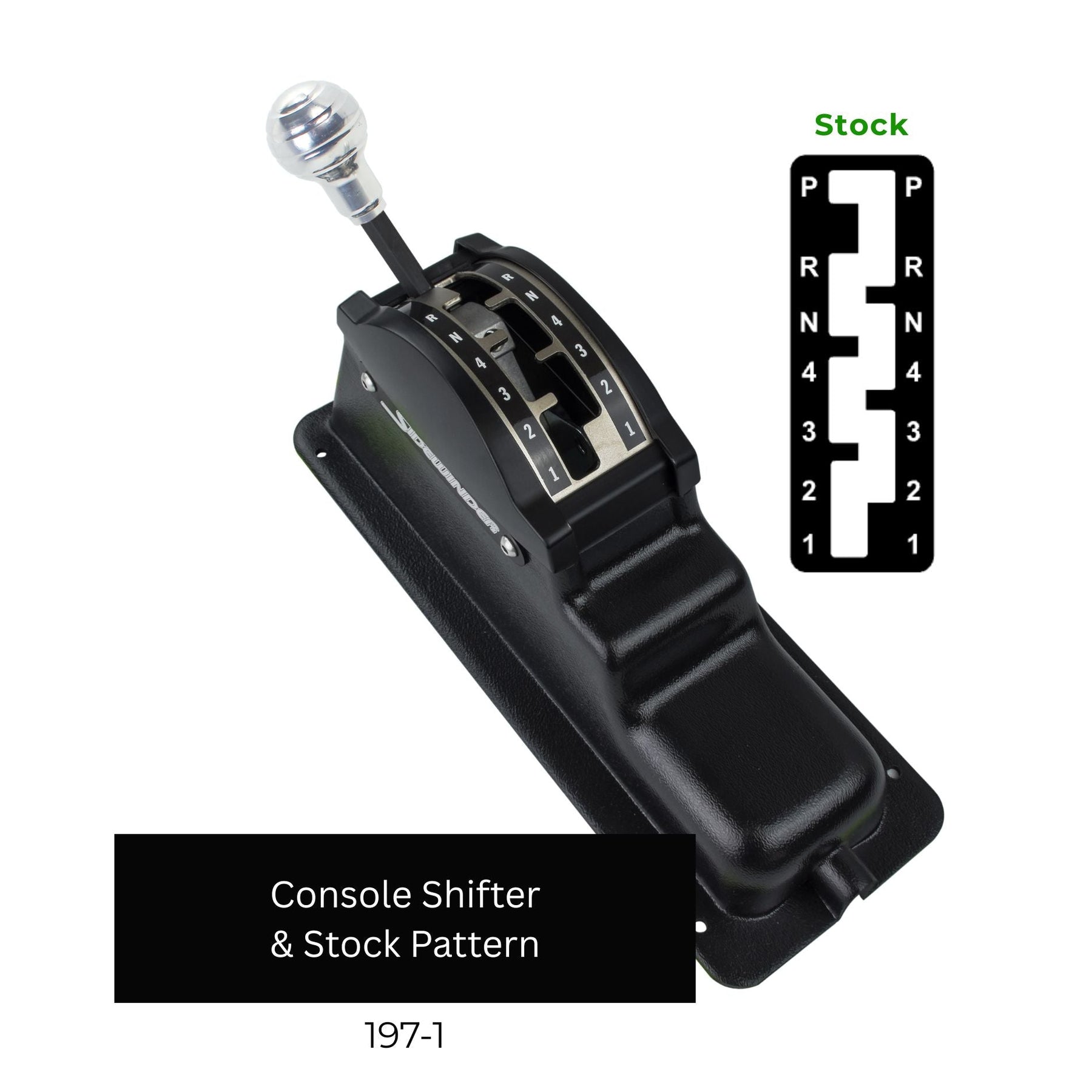

197-1

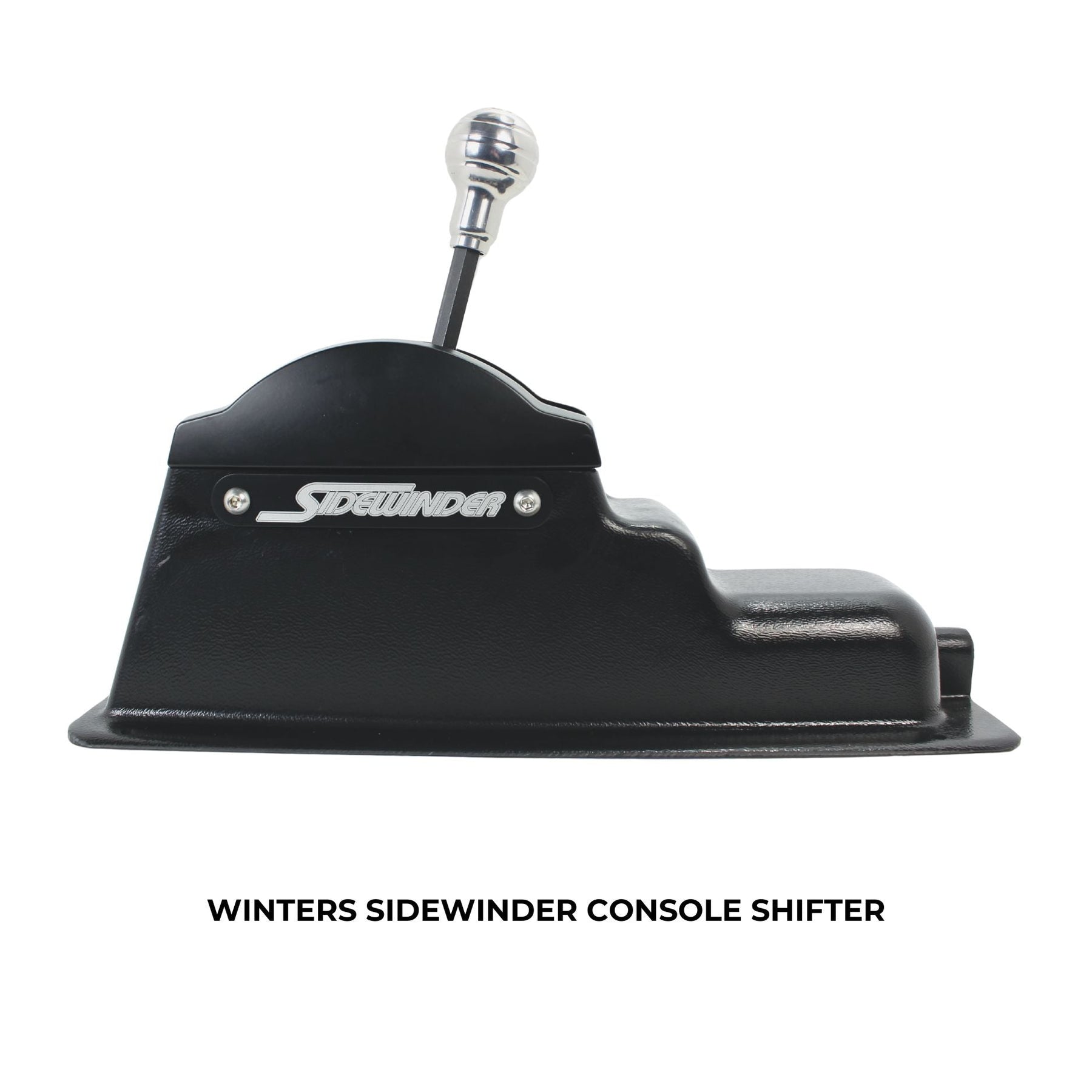

The Art Carr - Winters SideWinder Gated Shifter for Allison LCT 1000, 2000 & 2400 Transmissions uses a mechanical guard bar and stepped steel gate to provide positive, controlled gear selection. Unlike shifters that rely on spring-loaded levers, the SideWinder uses physical gate positions to guide each shift, reducing jam points and giving the driver a more direct, repeatable feel during street, trail, racing, and off-road use.

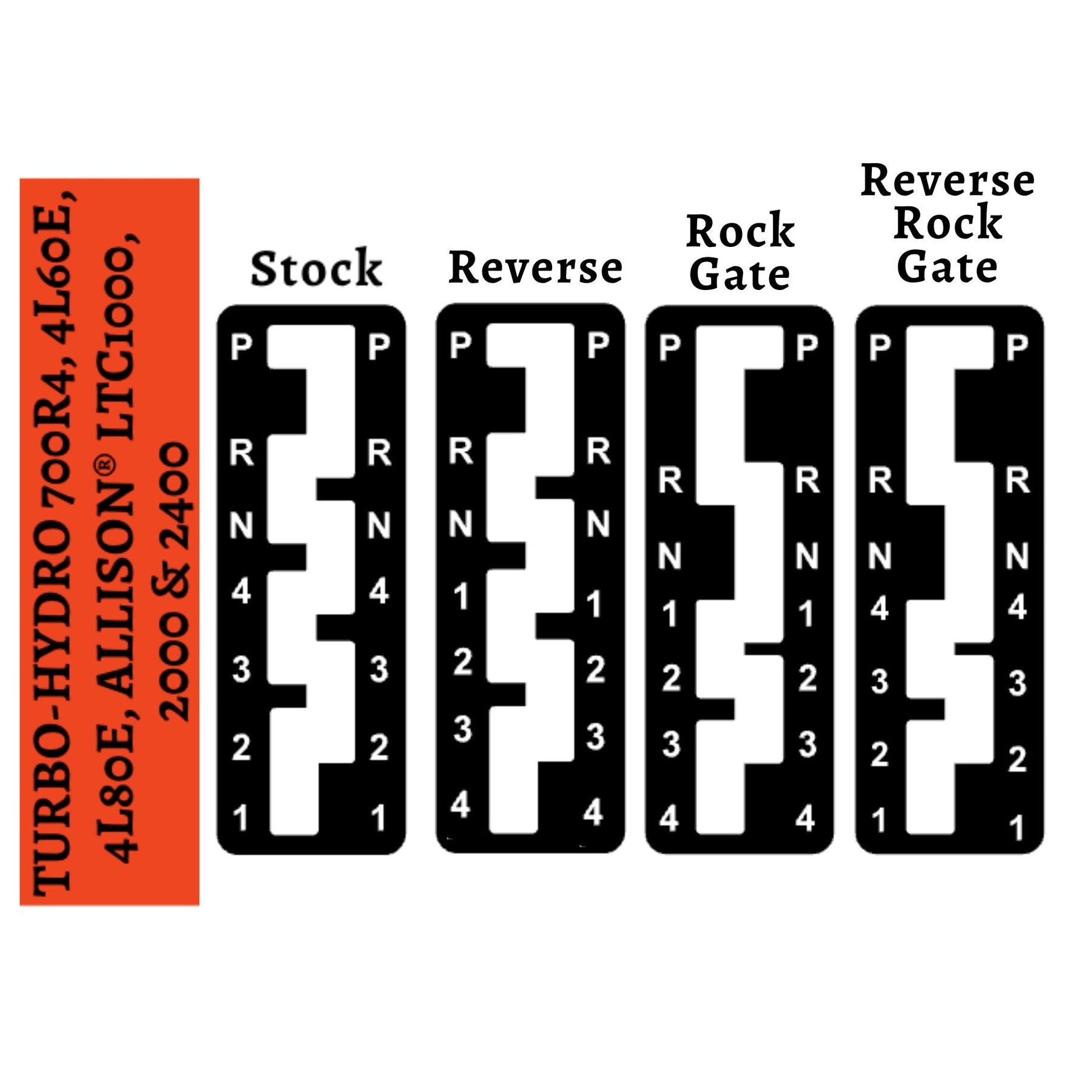

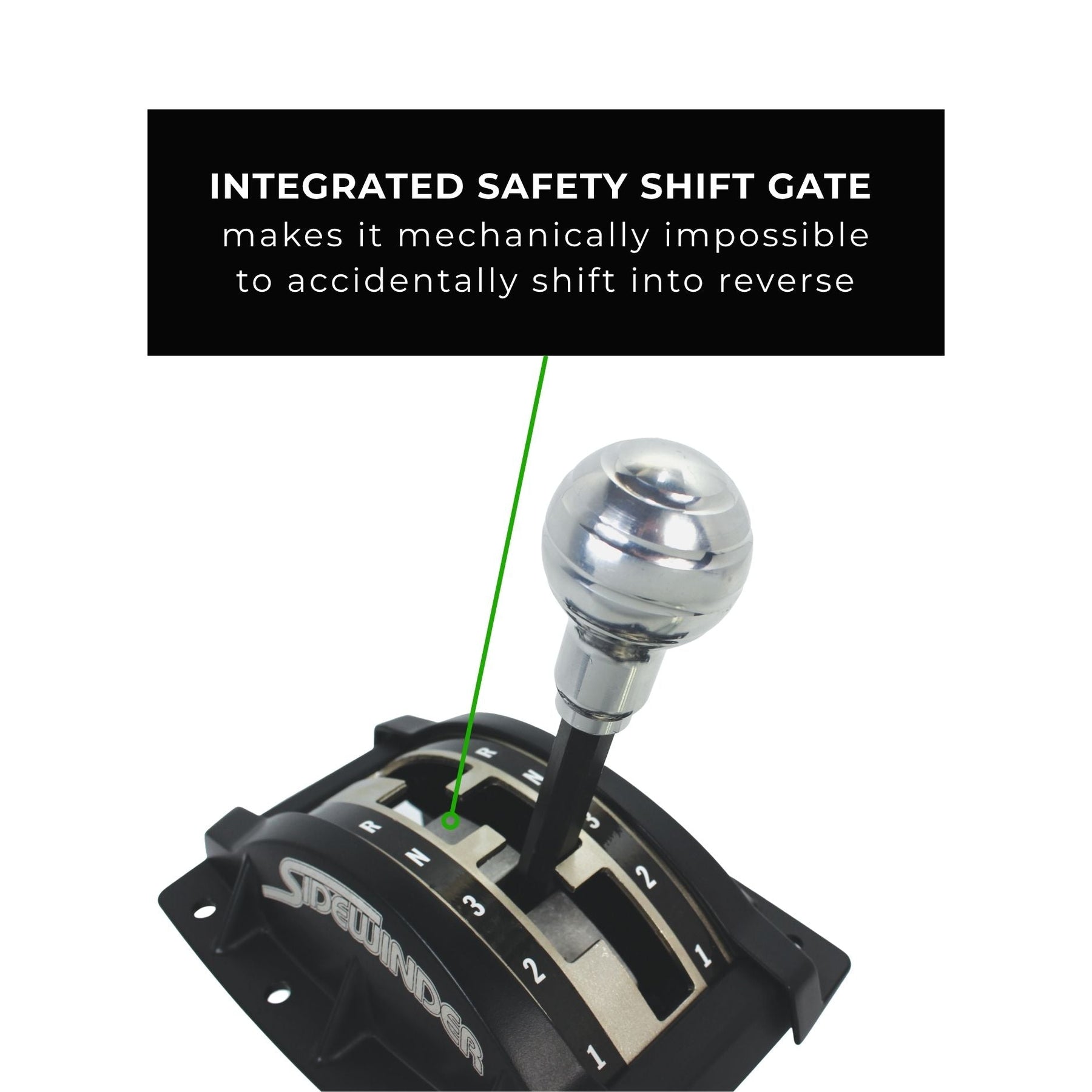

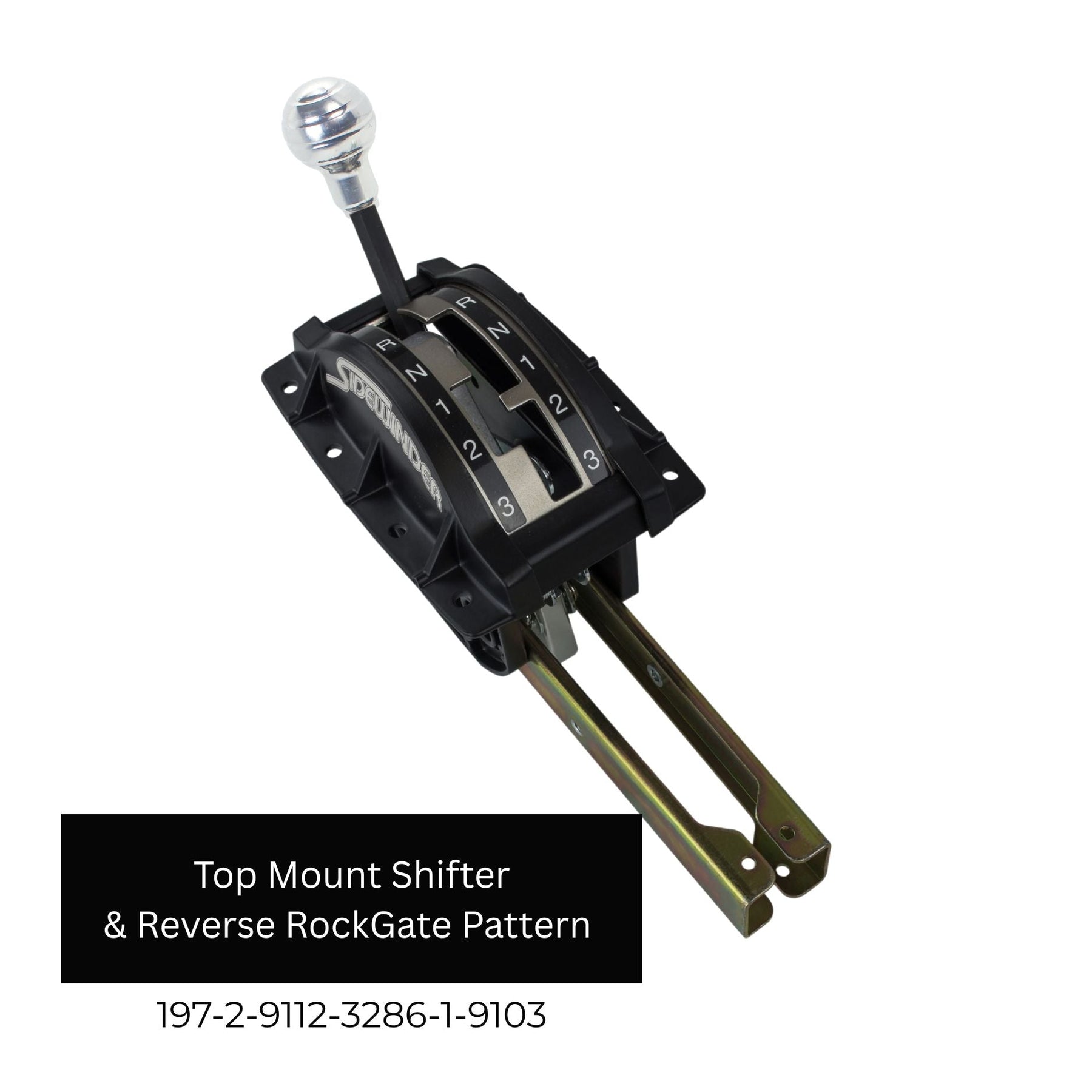

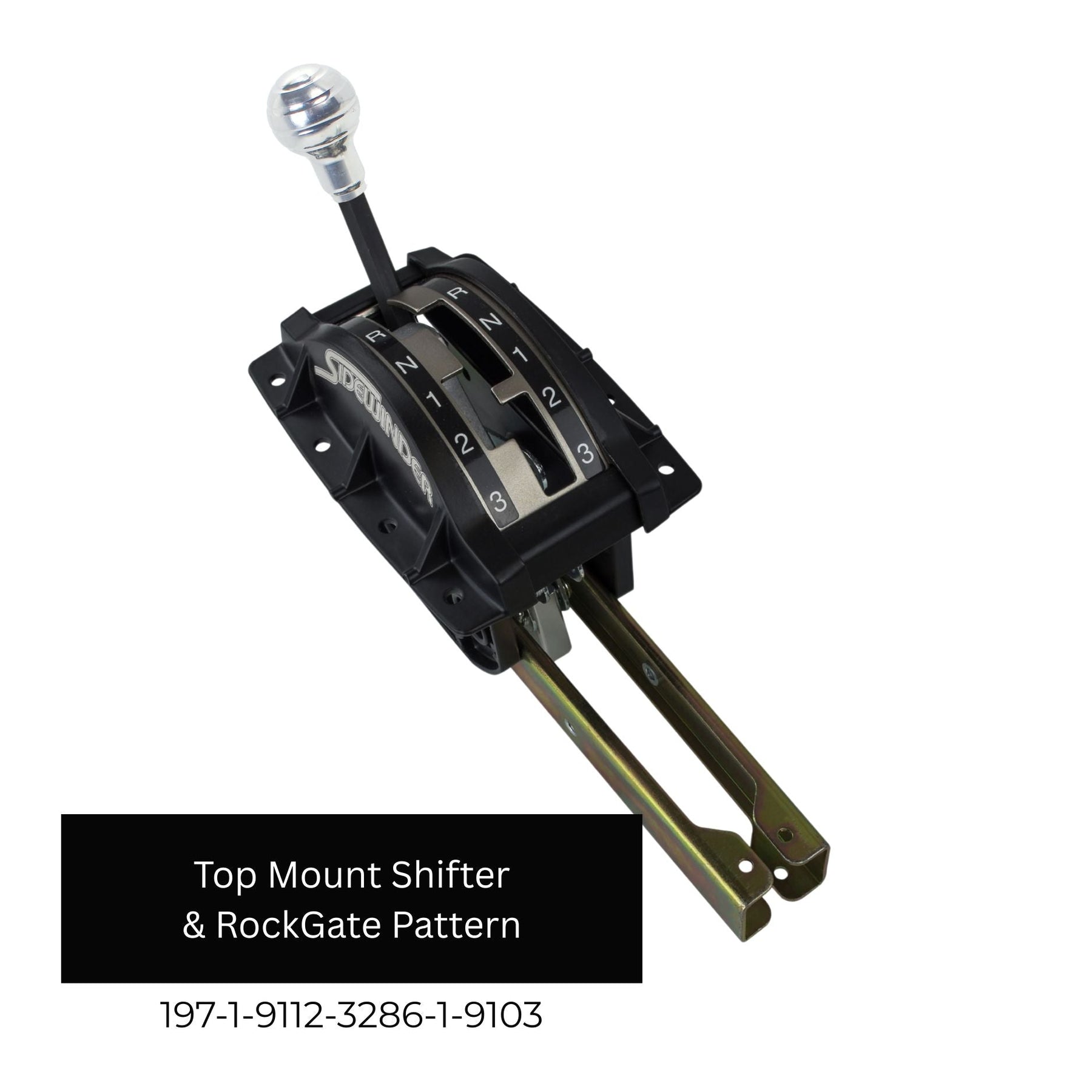

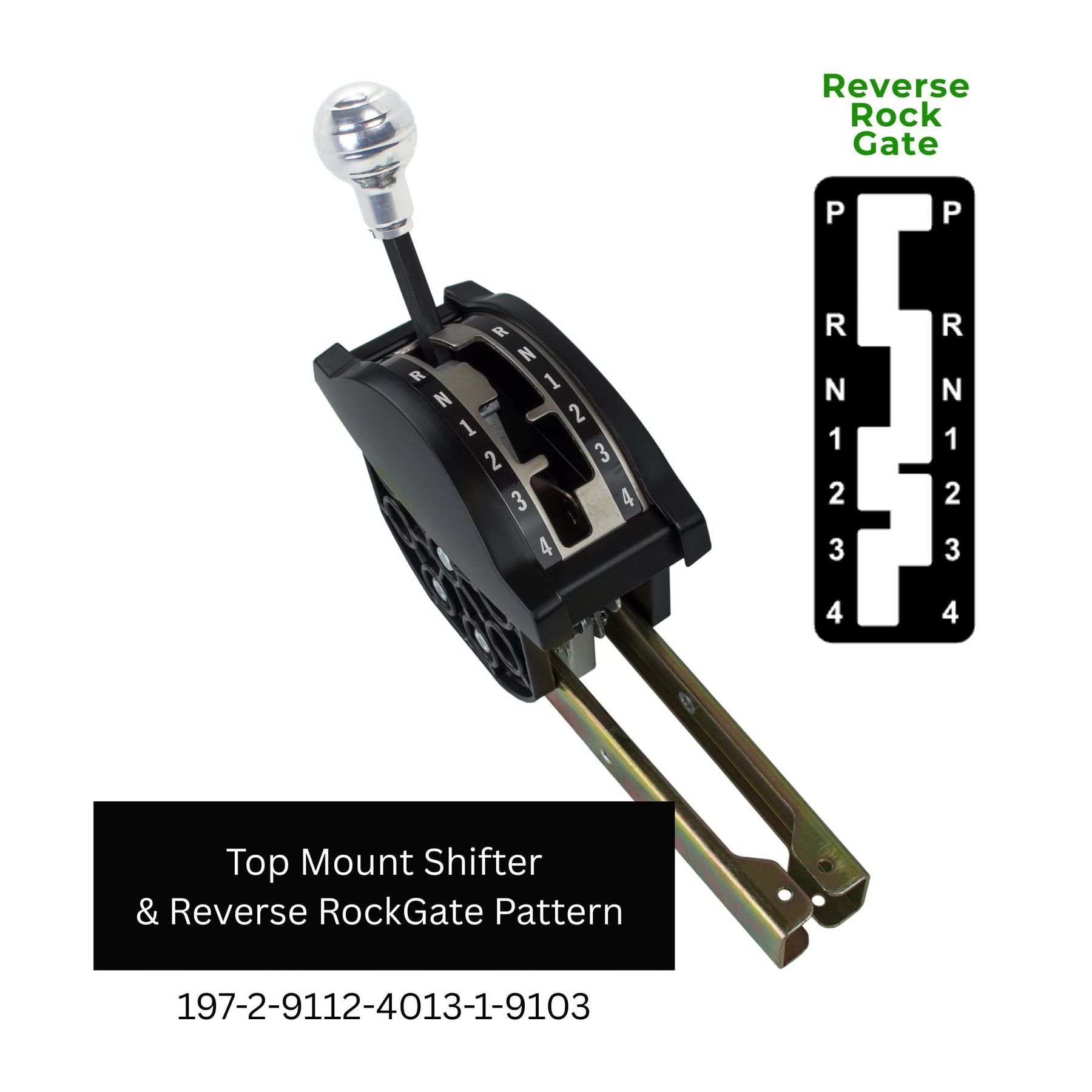

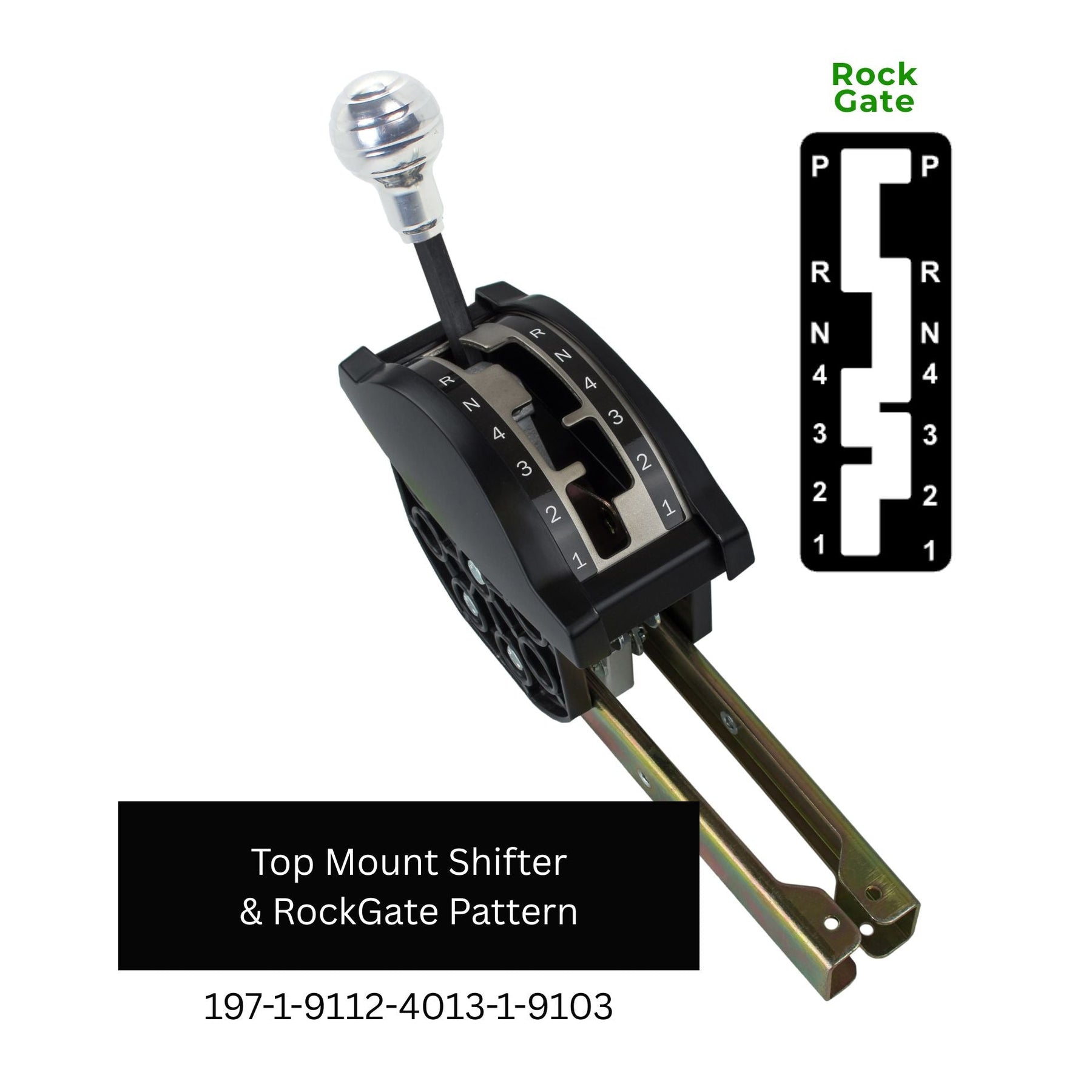

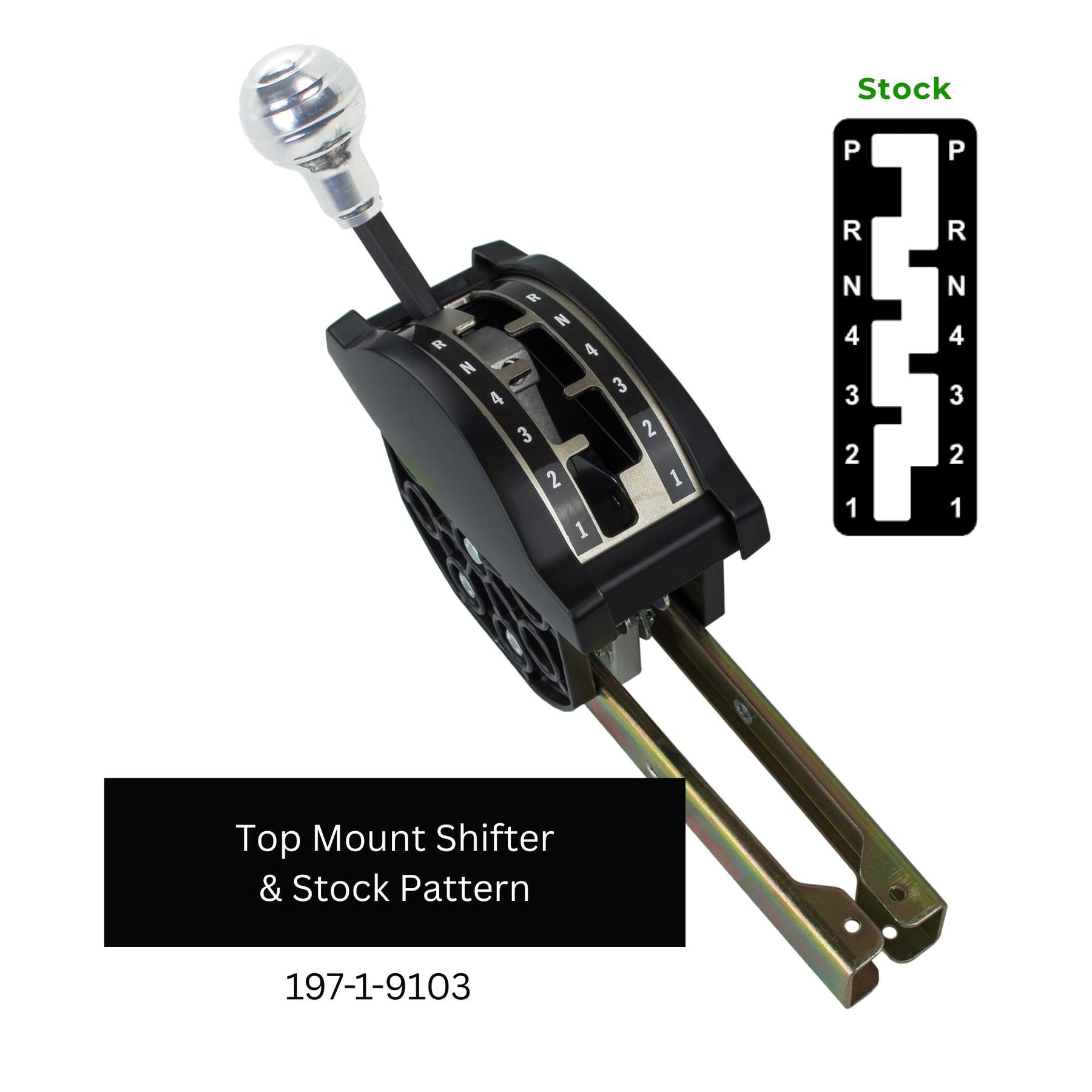

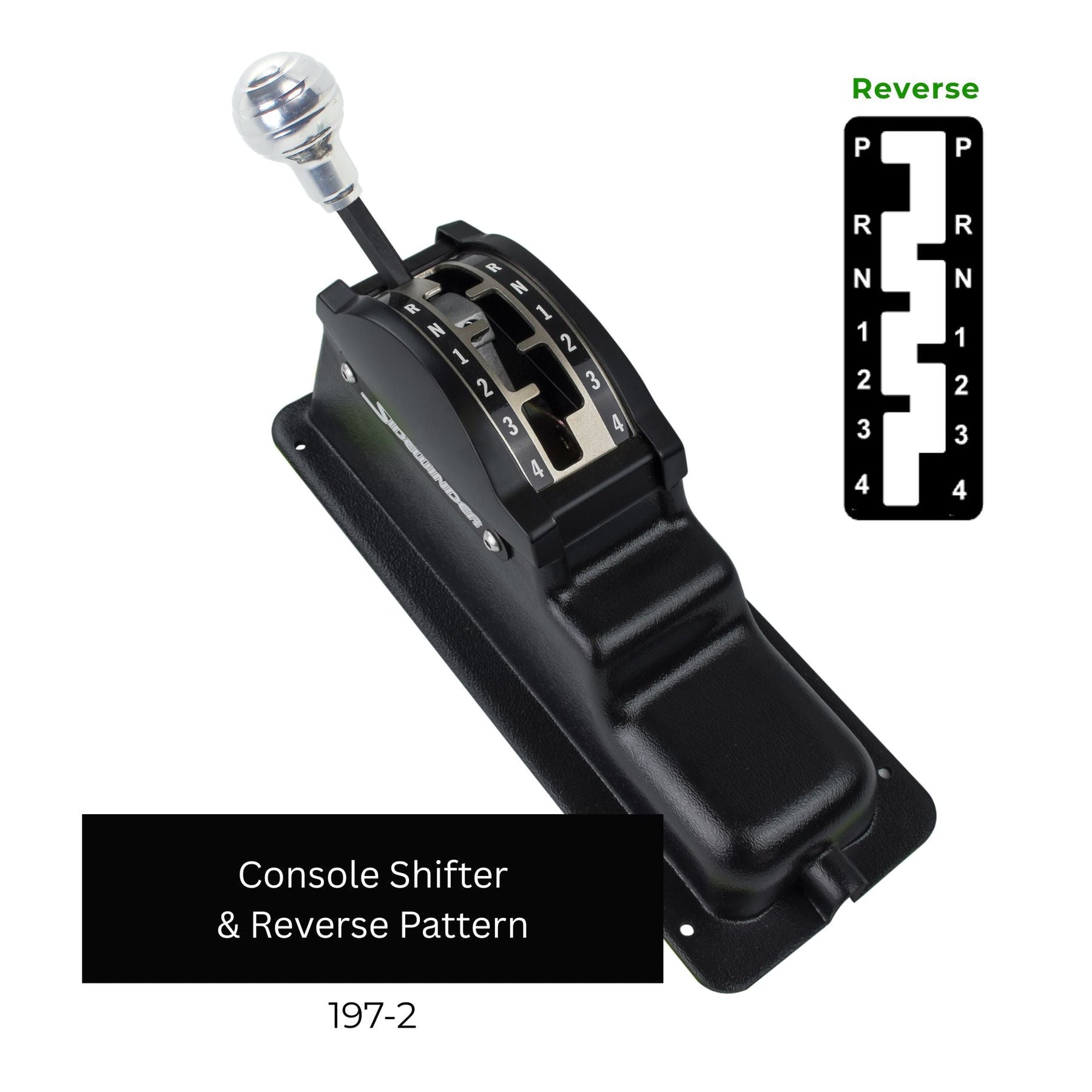

The gate incorporates a physical safety barrier that prevents the shift rod from moving directly into Reverse from a forward gear. Reverse must be intentionally selected through the proper gate path. With Stock, Reverse, RockGate, and Reverse RockGate patterns available, the SideWinder can be matched to the transmission setup and driving style rather than forcing every Allison application into the same shift pattern.
Includes:
| Specification | Details |
|---|---|
| Product Type | Gated Automatic Transmission Shifter |
| Shifter | Art Carr - Winters SideWinder |
| Transmission Compatibility | Allison LCT 1000, 2000 & 2400 |

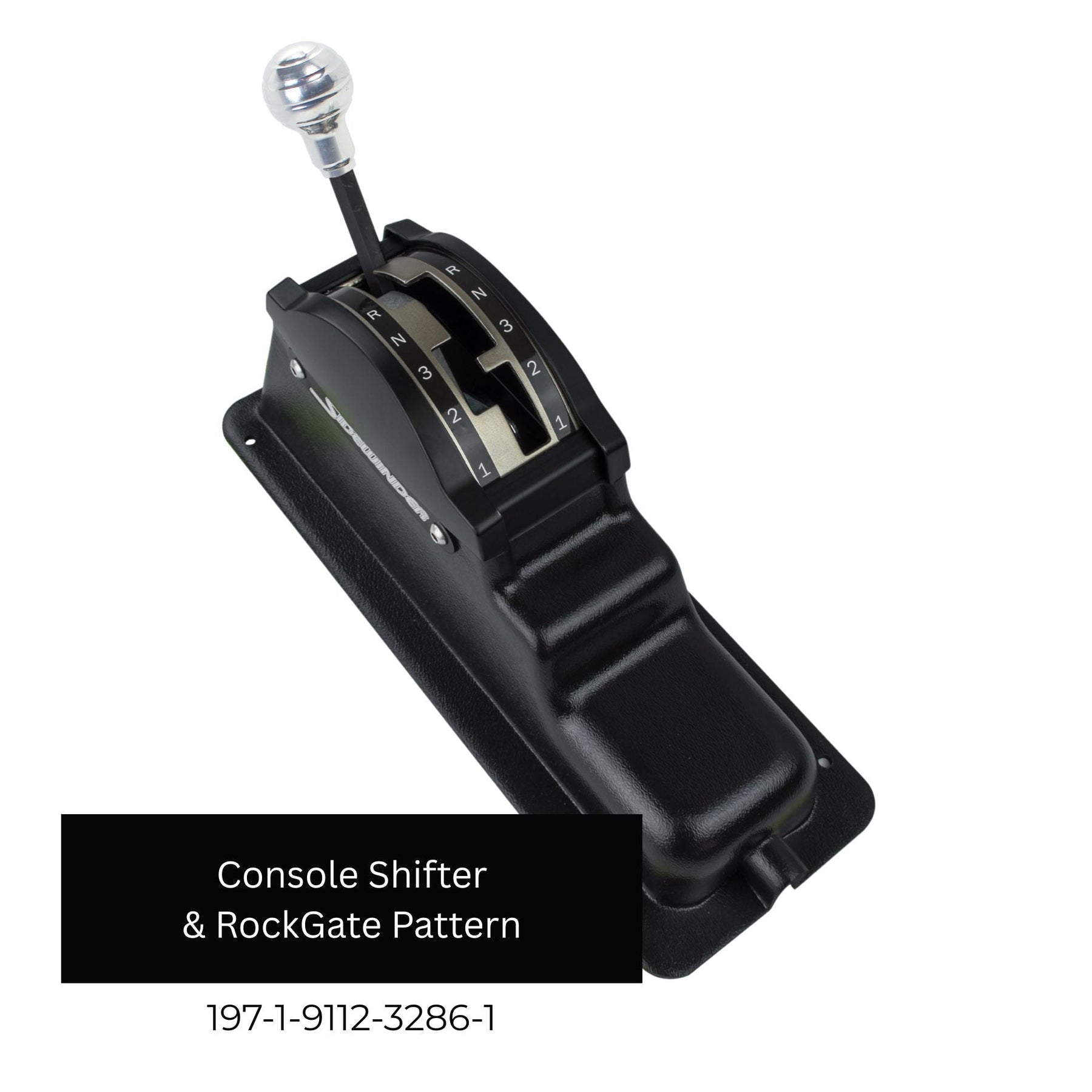

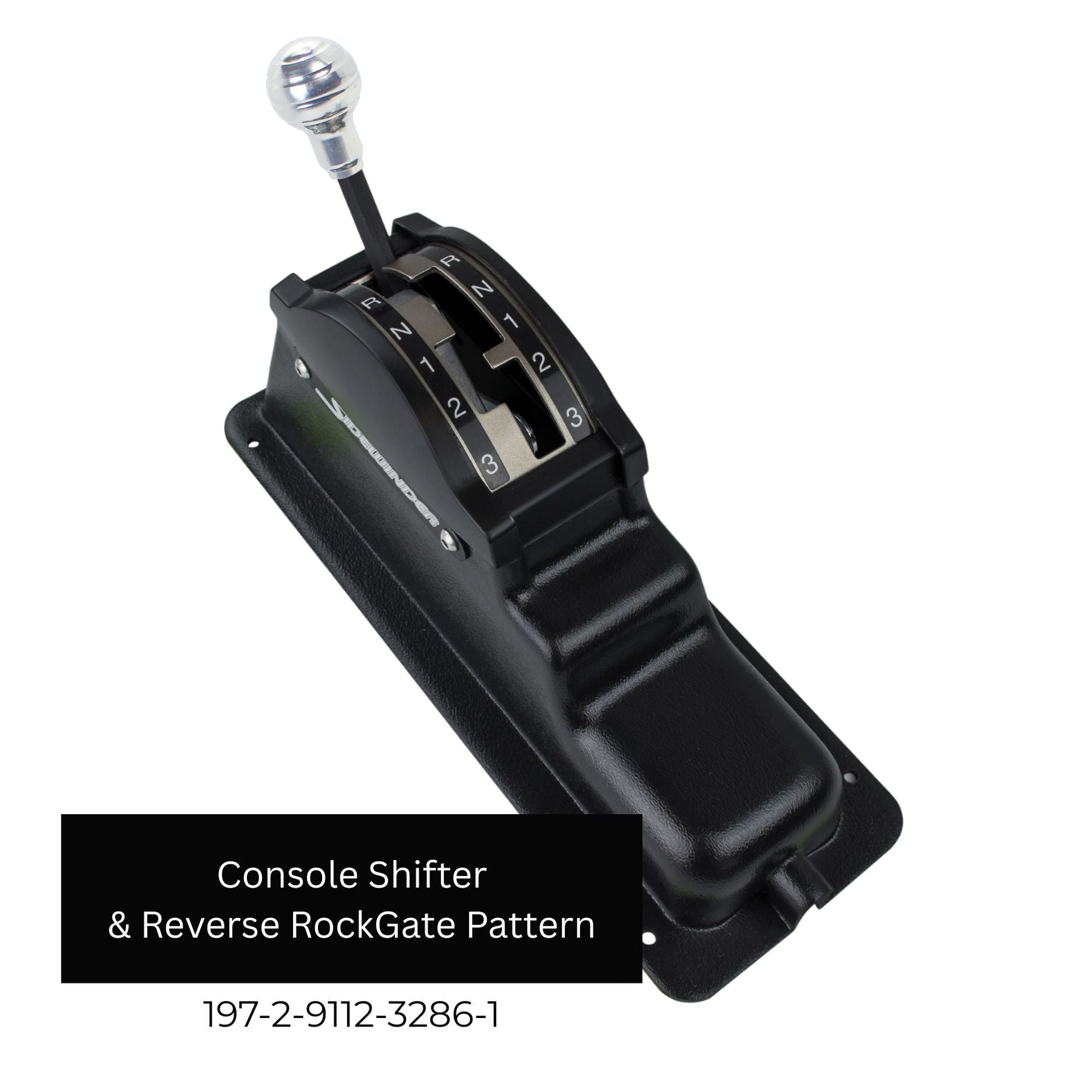

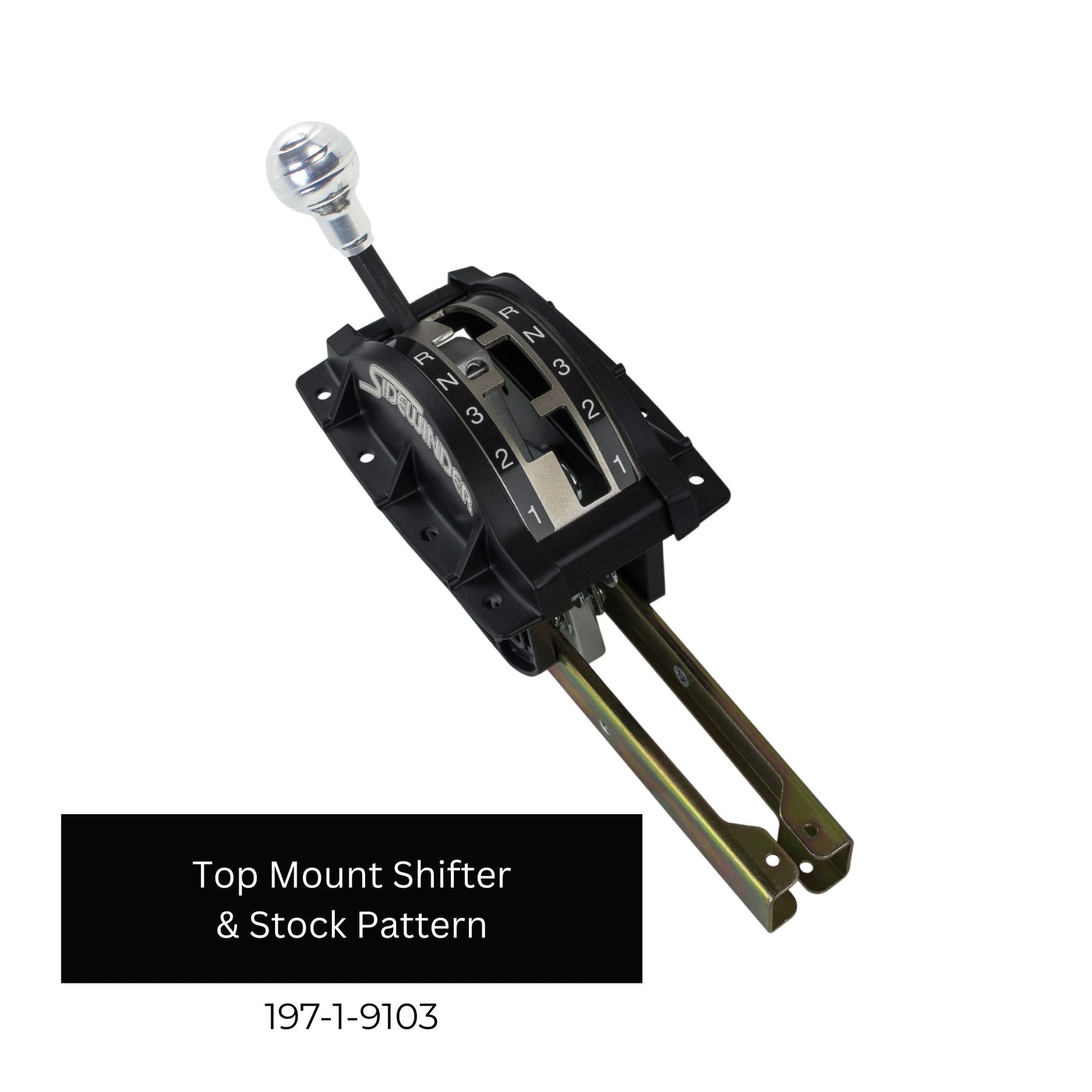

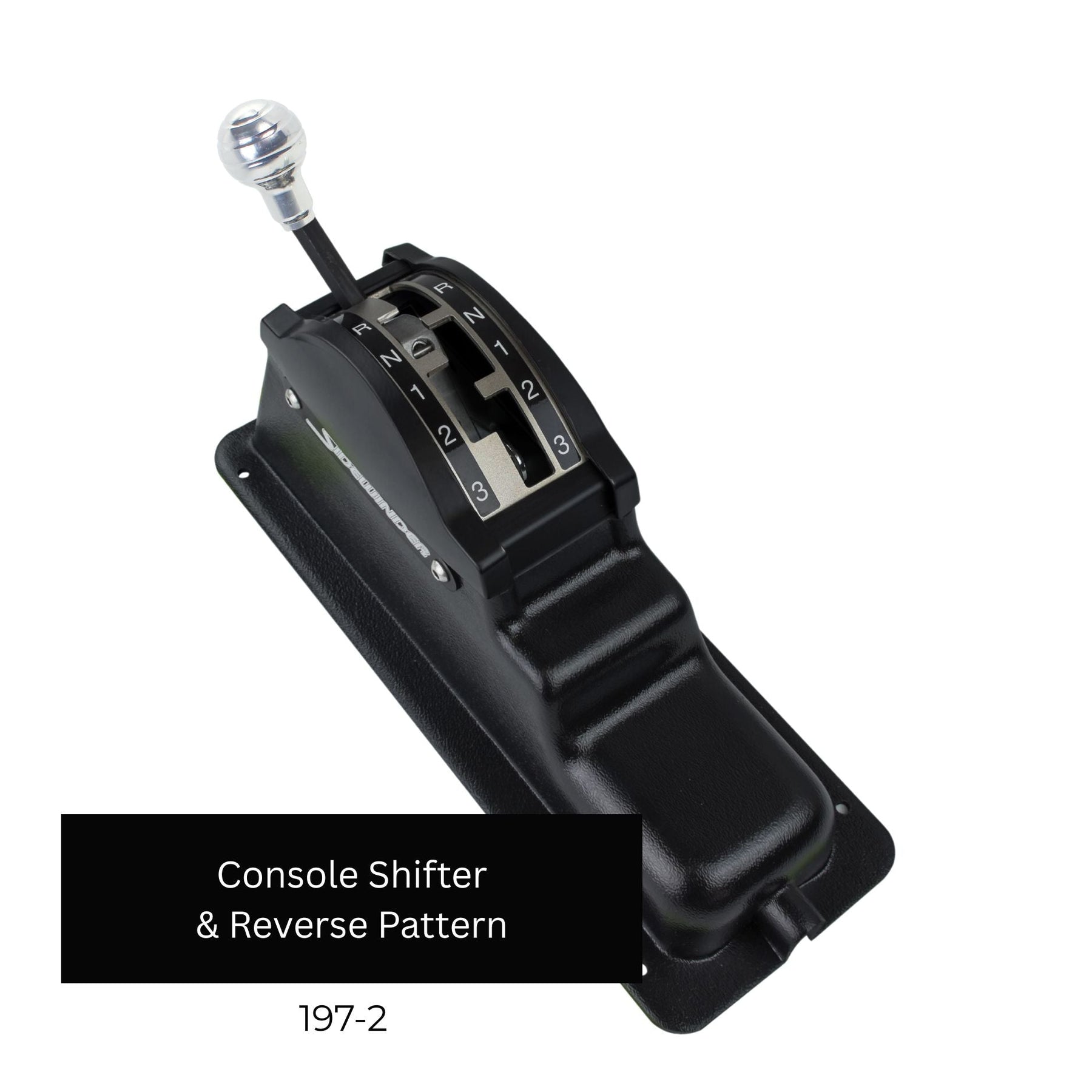

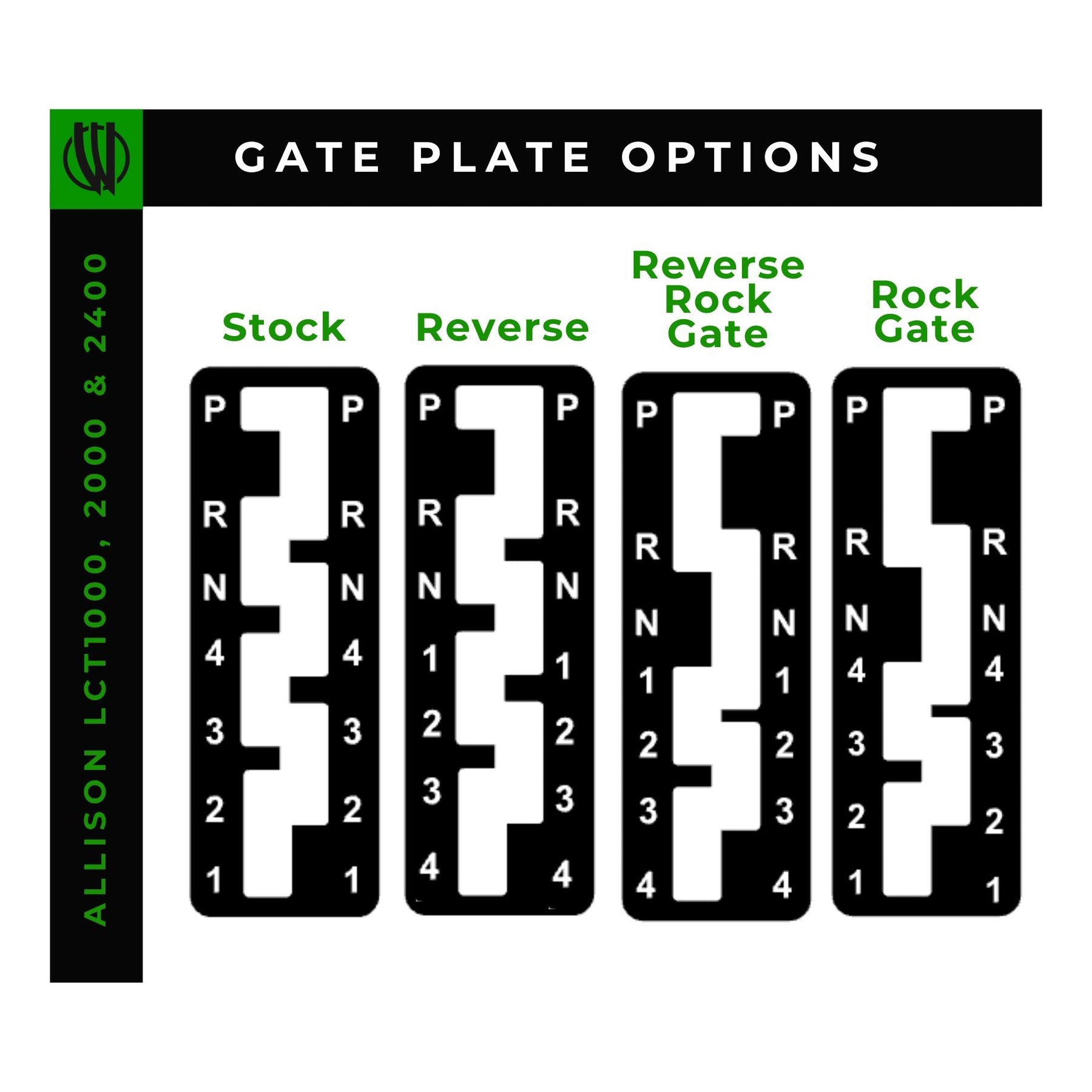

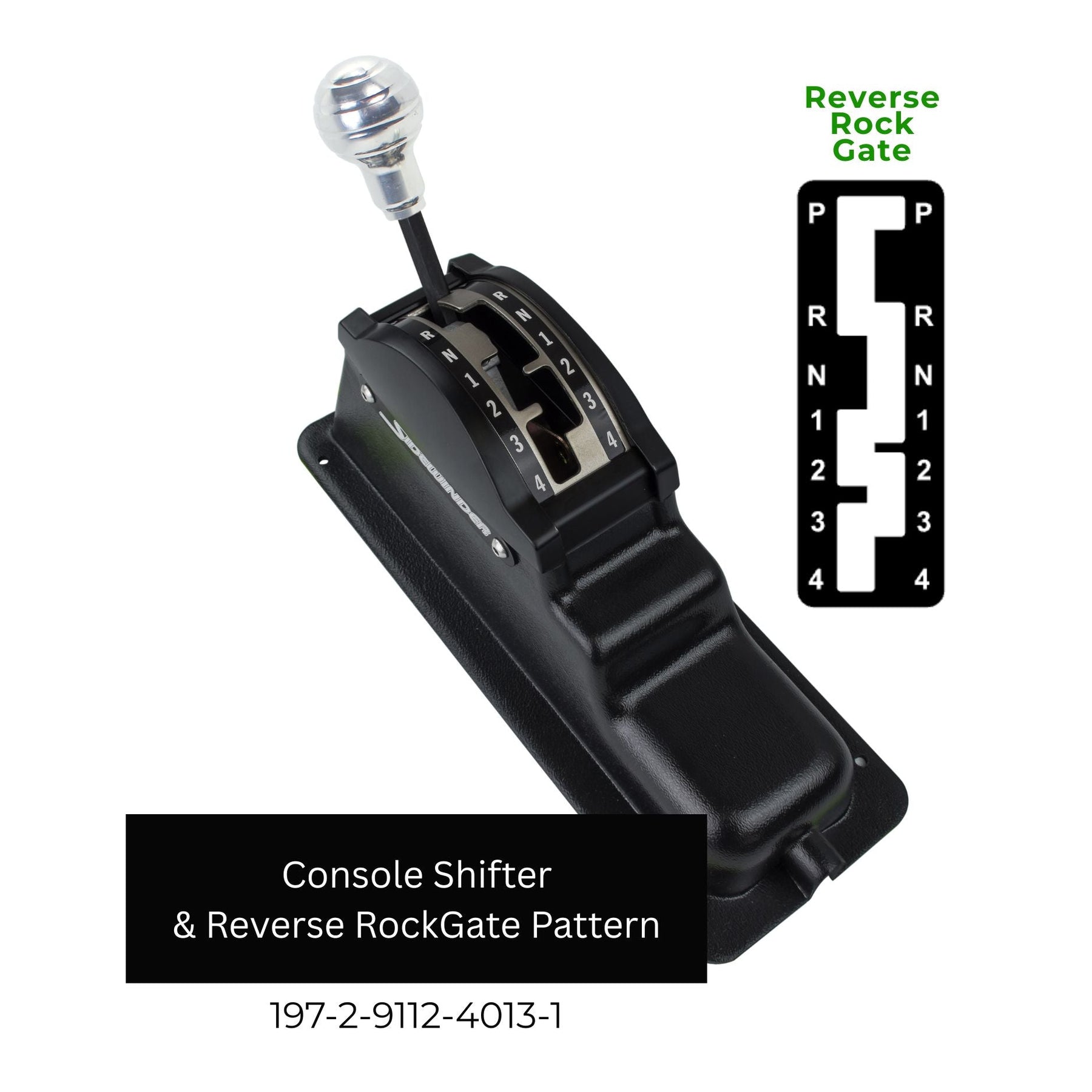

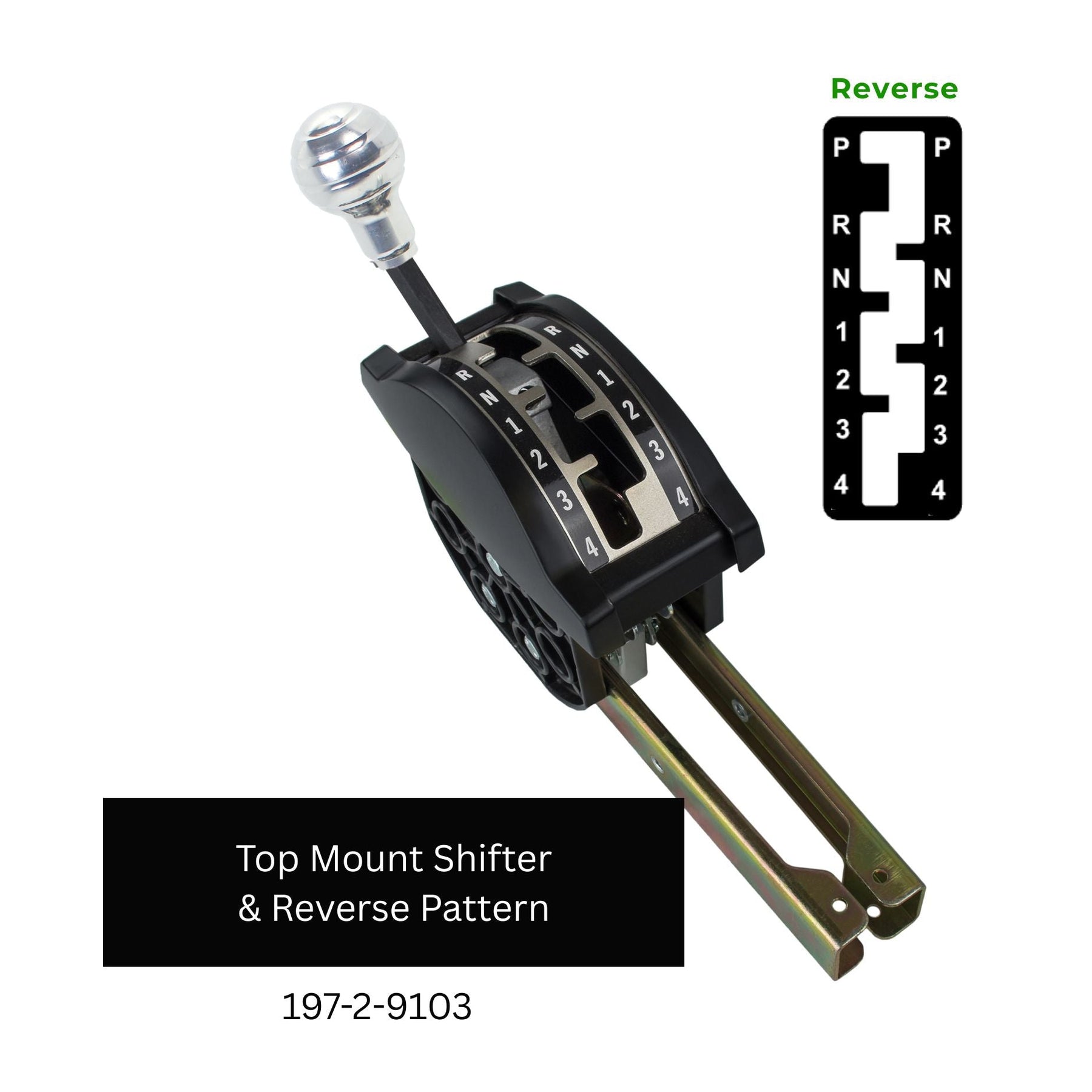

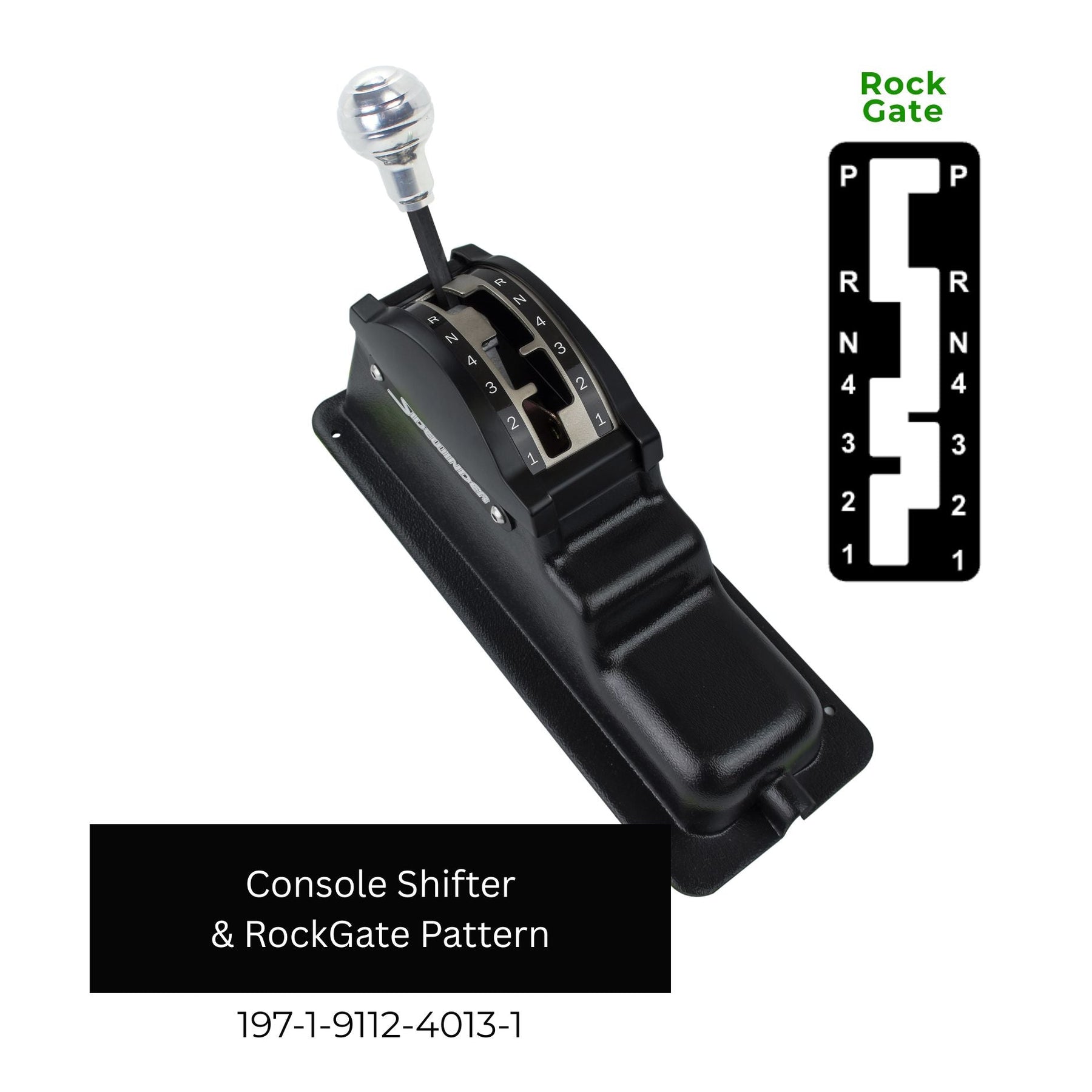

| Gate Options | Stock Pattern, Reverse Pattern, RockGate Pattern, or Reverse RockGate Pattern |
| Shift Mechanism | Mechanical Stepped Gate |
| Safety Guard | Mechanical Guard Bar |
| Cable Length | 5 ft. |
| Construction | Steel Safety Gate with Winters-Engineered Shift Mechanism |
| Operation | Positive Mechanical Gate Engagement |
| Installation | Shifter Cable & Linkage Hardware Included |
| Transmission | Application |
|---|---|
| Allison LCT 1000 | Compatible Gated Shifter Application |
| Allison LCT 2000 | Compatible Gated Shifter Application |
| Allison LCT 2400 | Compatible Gated Shifter Application |
Fitment Notes:
The correct gate depends on your transmission setup and how you want the shifter to operate. Choose the gate pattern that matches the transmission configuration before ordering.
Important: The gate plate must match the transmission configuration. If you are unsure which pattern your Allison requires, contact Wide Open Design before ordering.
The SideWinder provides positive mechanical gear selection through a stepped steel gate instead of relying on spring-loaded shift mechanisms. Physical gate positions give the driver a more direct and repeatable feel while helping reduce missed shifts in performance and off-road applications.
The gate incorporates a physical barrier between the forward gears and Reverse. The driver must intentionally move the shift rod through the proper gate path before Reverse can be selected, helping prevent accidental engagement during forward operation.
The shifter includes a 5-foot cable. This works for many installations, but custom tube chassis, unusual drivetrain layouts, or applications requiring complex cable routing should be measured before installation.

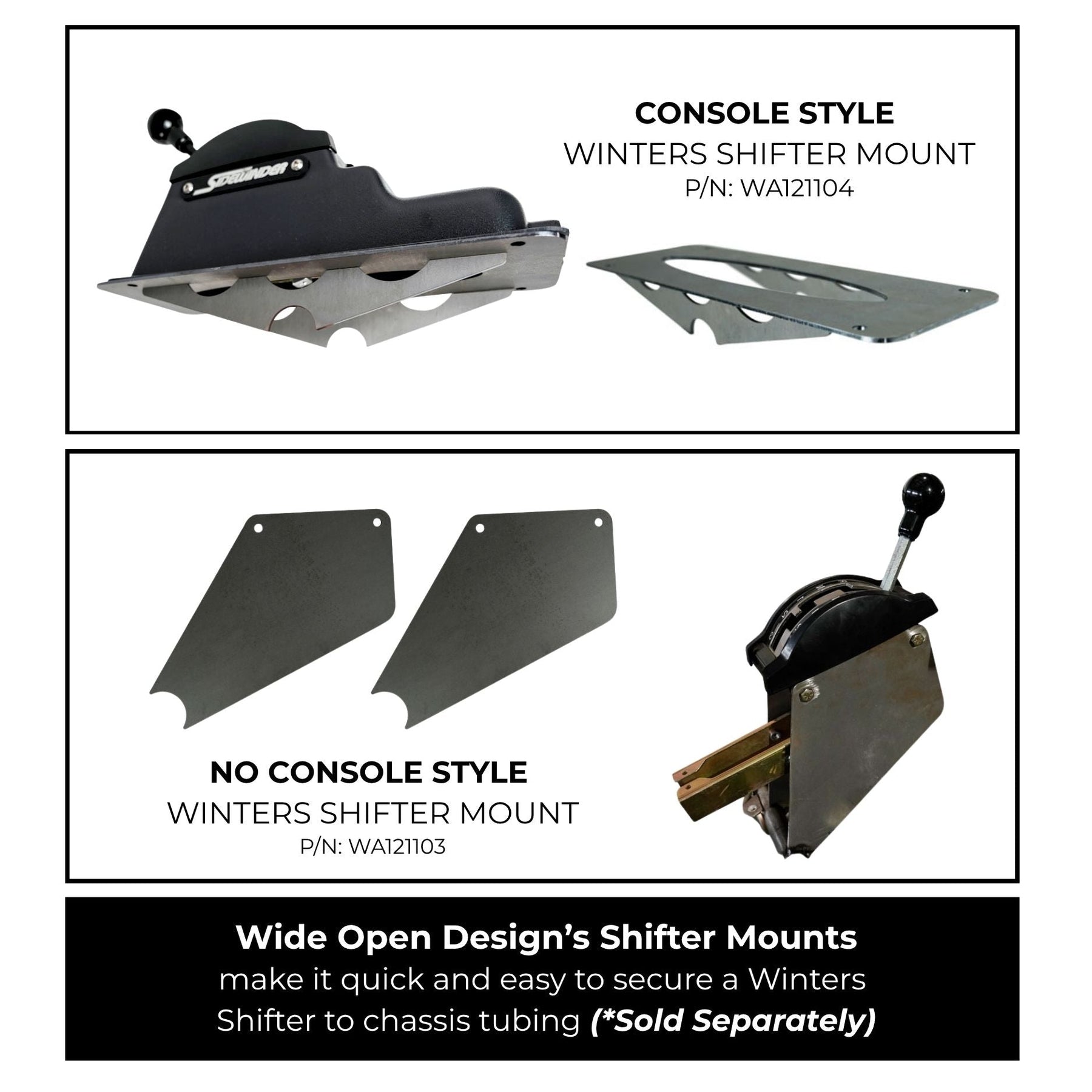

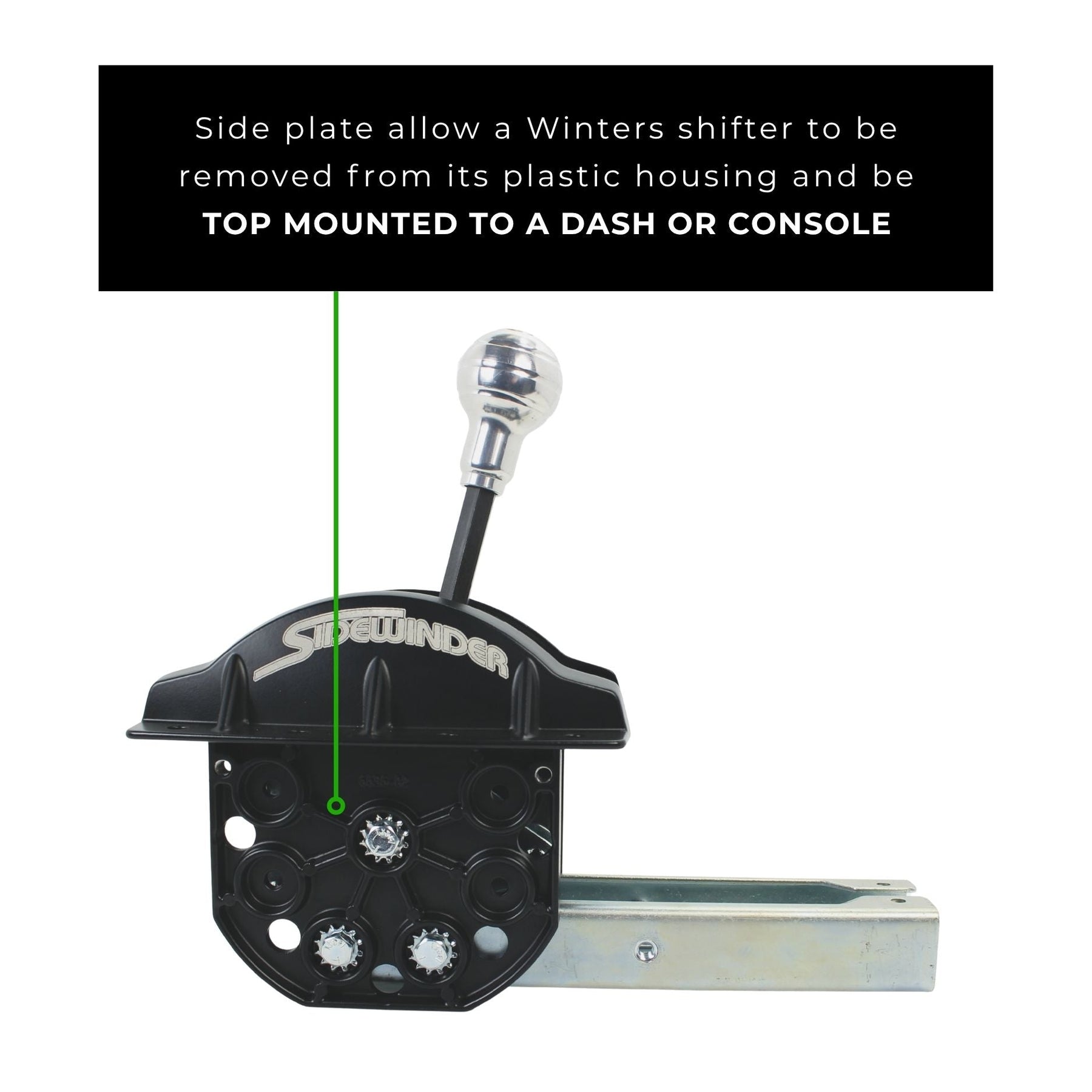

Yes. Because the SideWinder operates the transmission through a cable, builders have flexibility when positioning the shifter. The Wide Open Design No Console Style Shifter Mount provides a rigid mounting solution for custom chassis and fabricated interior applications.
