Winters Allison LCT 1000 / 2000 / 2400 Shift Linkage Kit 1195
1195
The Winters Allison LCT 1000 / 2000 / 2400 Shift Linkage Kit 1195 gives you the transmission-side parts needed to connect a Winters Sidewinder cable-operated shifter to an Allison LCT 1000, 2000, or 2400 automatic transmission. The linkage arm attaches to the transmission's shift shaft, while the transmission-specific cable bracket holds the shifter cable in the correct position so the shifter can move the transmission through its full gear range.
This is the kit to use when installing a compatible Winters Sidewinder shifter on an Allison transmission, or when replacing missing or worn transmission-side linkage components. Using the correct Allison linkage is important because the position of the cable bracket and linkage arm determines how movement at the Sidewinder translates into movement at the transmission. When properly installed and adjusted, the shifter and transmission should line up correctly through each available gear position without binding or running out of cable travel.

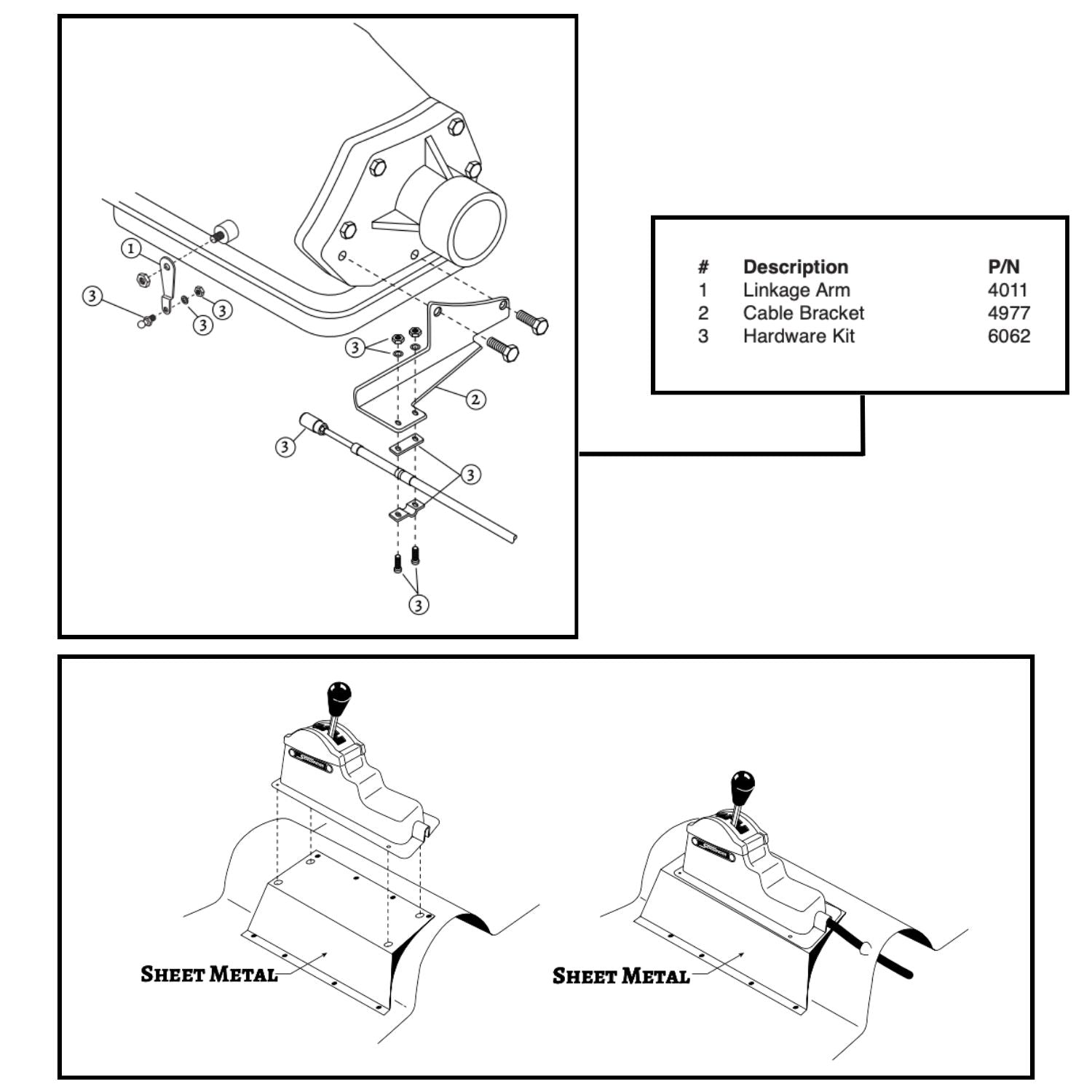

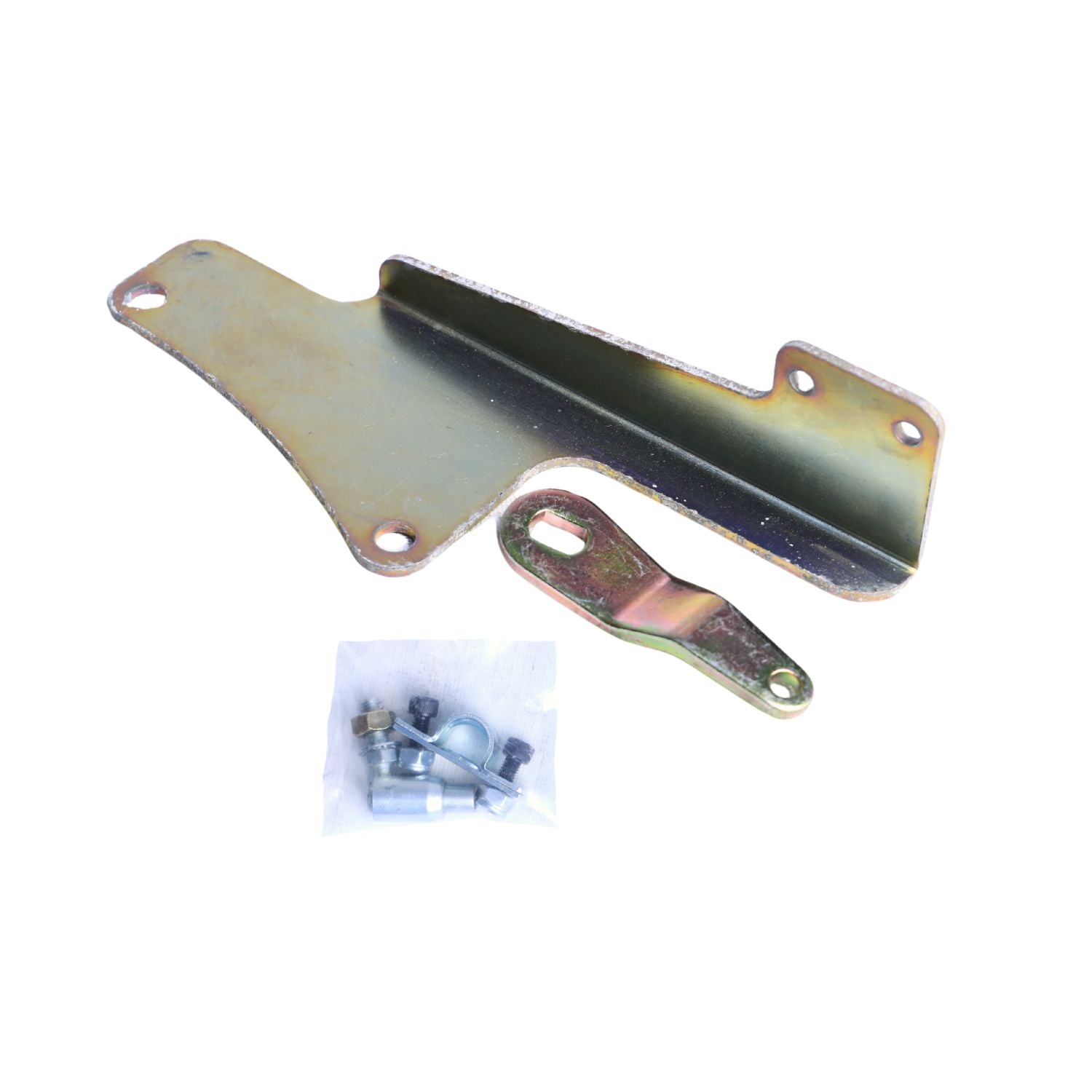

Includes:

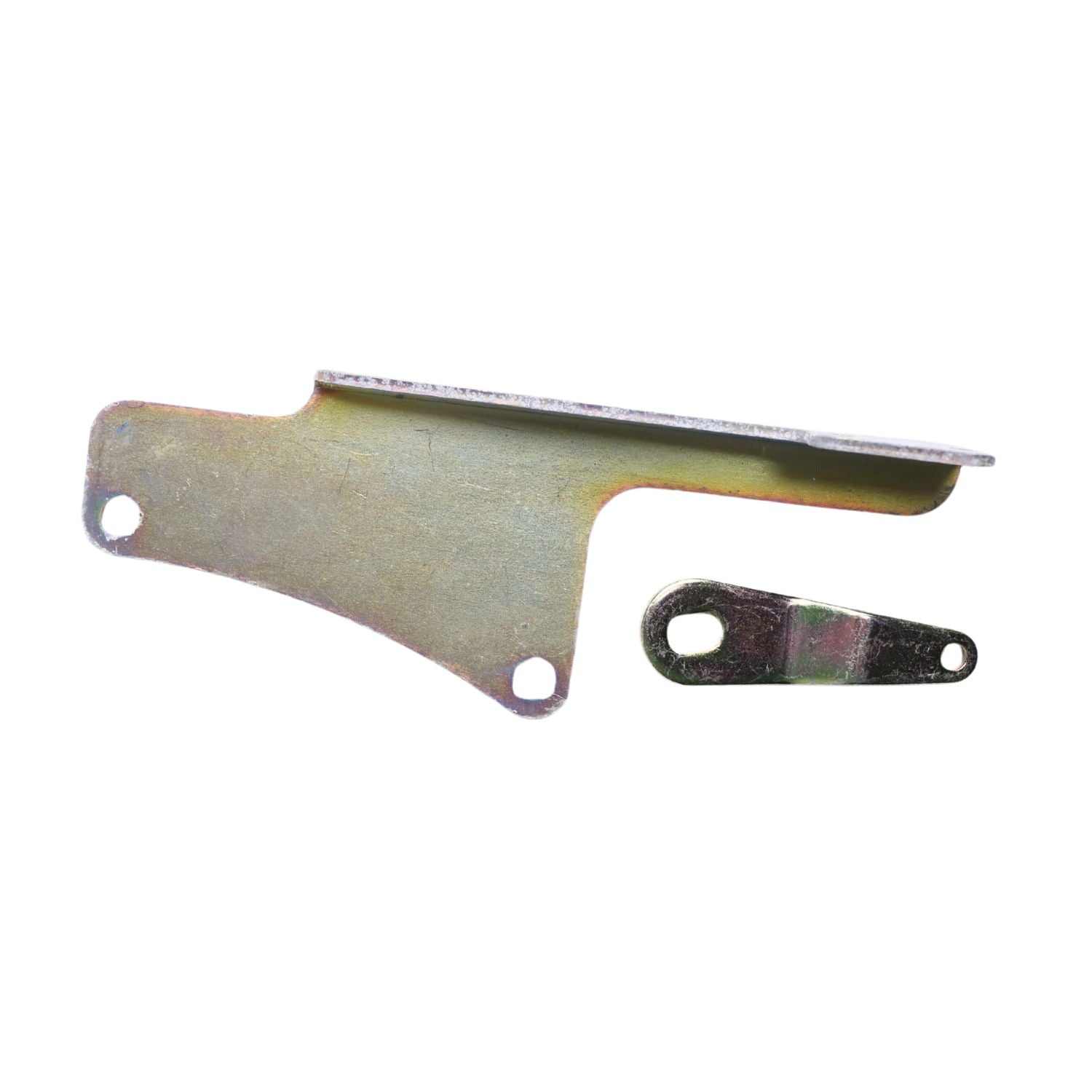

- (1) Linkage Arm – P/N 4011
- (1) Cable Bracket – P/N 4977
- (1) Hardware Kit – P/N 6062
Specifications
- Manufacturer: Winters Performance
- Part Number: 1195
- Product Type: Transmission Shift Linkage Kit
- Transmission Compatibility: Allison LCT 1000, 2000 & 2400
- Shifter Type: Winters Sidewinder Cable-Operated Shifter
- Application: Transmission-Side Shifter Cable Linkage
- Installation: Bolt-On Transmission Components
Fitment
Compatible Transmissions:
- Allison LCT 1000
- Allison LCT 2000
- Allison LCT 2400
Compatible Winters Shifters:
- Winters Sidewinder 197-1
- Winters Sidewinder 197-1B
Fitment Note: This kit provides the transmission-side linkage components required to connect the shifter cable to the Allison transmission. Verify your transmission and Sidewinder shifter configuration before ordering.
FAQ
What does the Allison linkage kit actually do?
The Sidewinder shifter operates through a cable, but that cable still needs to be correctly mounted and connected to the Allison transmission. The 1195 kit provides the linkage arm that moves the transmission shift shaft and the bracket that holds the cable in the correct position.
Why does the linkage kit need to match the transmission?
The shifter cable only moves a certain distance between gear positions. The linkage arm and cable bracket determine how that movement is transferred to the Allison transmission. Using the correct linkage helps the shifter and transmission reach the proper gear positions together.
How do I know if the linkage is adjusted correctly?
After installation, move the shifter through each gear position and verify that the transmission reaches the corresponding detent. The cable should move smoothly without binding, excessive tension, or running out of adjustment at either end of the shift range.
Does this kit make the Allison transmission mechanically controlled?
No. The Sidewinder uses a mechanical cable to select the transmission's gear position, but the Allison transmission may still require its normal electronic controls for proper operation. This kit only provides the mechanical connection between the Sidewinder shifter cable and the transmission.
