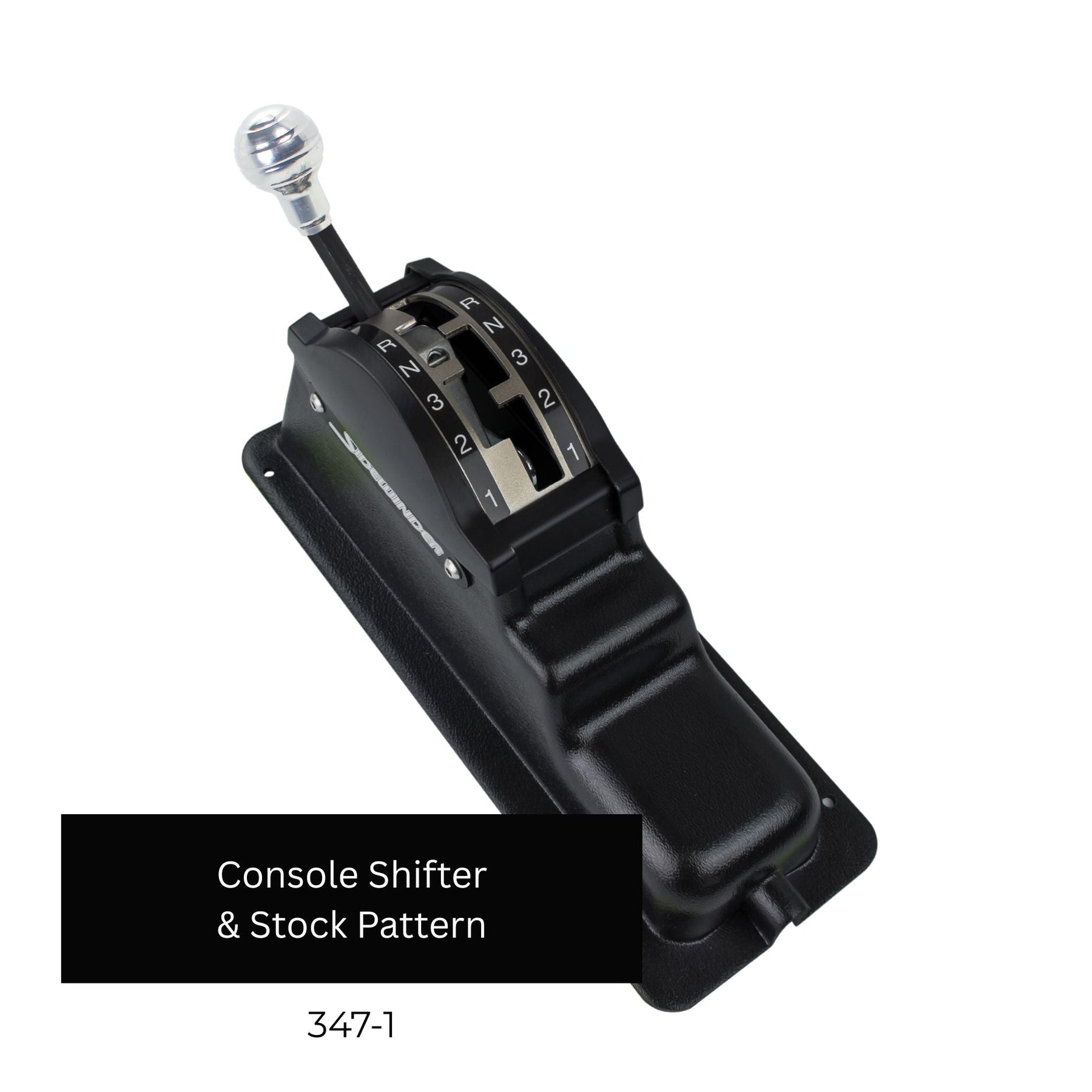

347-1

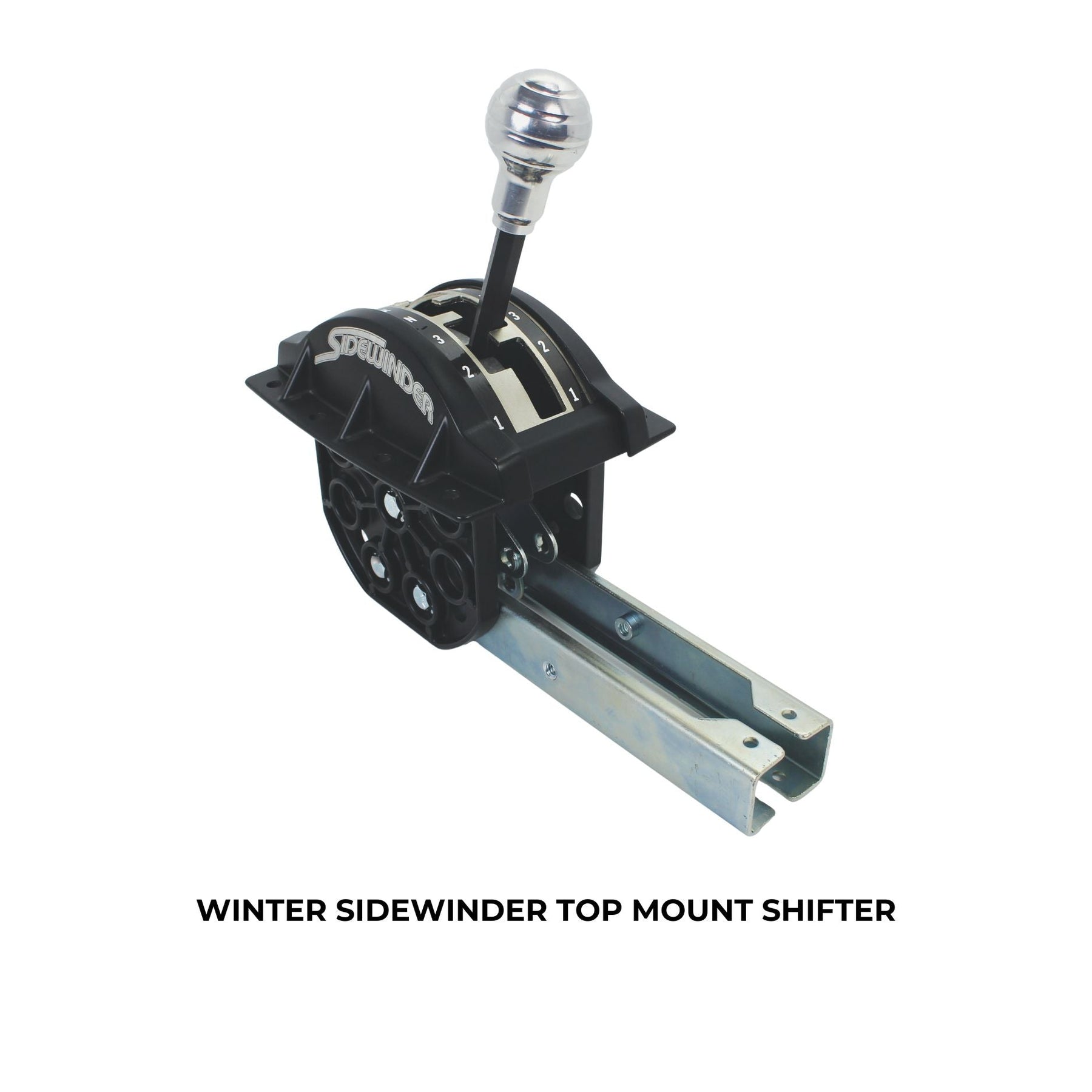

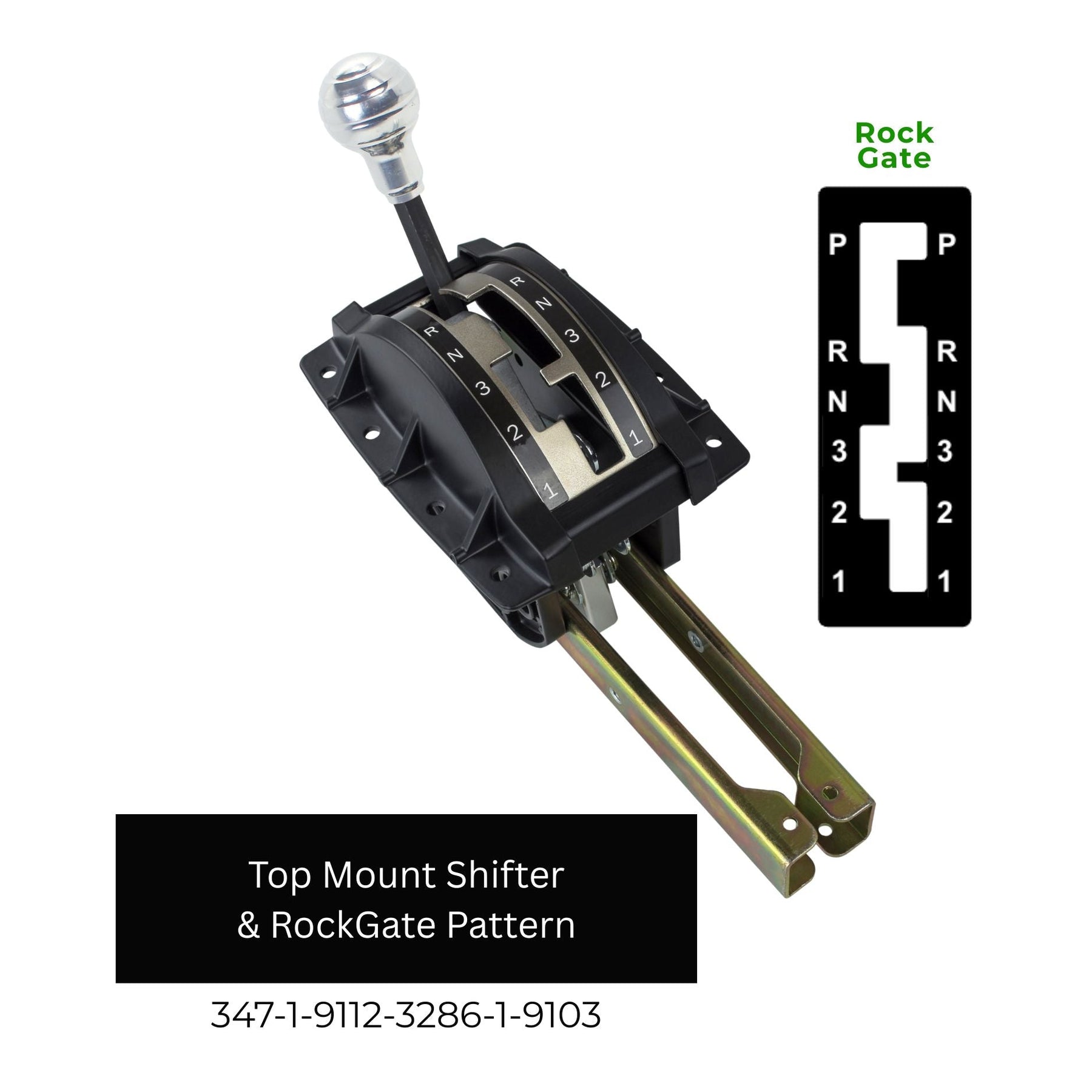

The Art Carr - Winters SideWinder Gated Shifter for Ford A4LD Transmissions uses a mechanical guard bar and stepped steel gate to provide positive, controlled gear selection. Unlike shifters that rely on spring-loaded levers, the SideWinder uses physical gate positions to guide each shift, reducing jam points and giving the driver a direct, repeatable feel during street, trail, and off-road use.
The steel gate incorporates a physical safety barrier that prevents the shift rod from moving directly into Reverse from a forward gear. Reaching Reverse requires the driver to intentionally navigate the shifter through the designated offset in the gate, helping prevent accidental Reverse engagement during forward operation. Each shifter arrives fully assembled in its own console with the cable and linkage hardware needed for installation.
Includes:
| Specification | Details |
|---|---|
| Product Type | Gated Automatic Transmission Shifter |
| Shifter | Art Carr - Winters SideWinder |
| Transmission Compatibility | Ford A4LD |
| Gate Options | Standard or Reverse Pattern |
| Shift Mechanism | Mechanical Stepped Gate |
| Safety Guard | Mechanical Guard Bar |
| Cable Length | 5 ft. |
| Construction | Steel Safety Gate with Winters-Engineered Shift Mechanism |
| Operation | Positive Mechanical Gate Engagement |
| Installation | Shifter Cable & Linkage Hardware Included |
| Transmission | Application |
|---|---|
| Ford A4LD | Compatible Gated Shifter Application |
Fitment Notes:

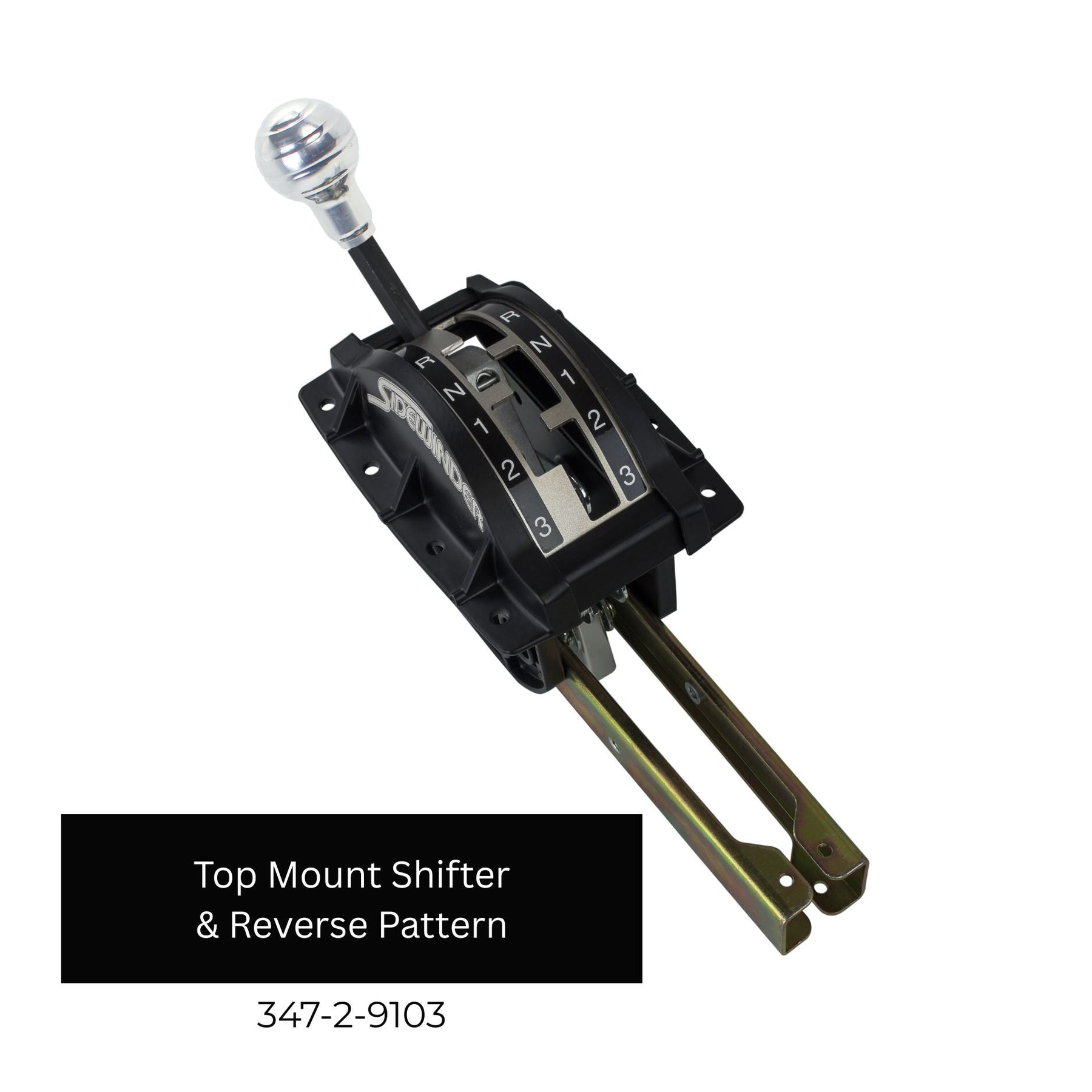

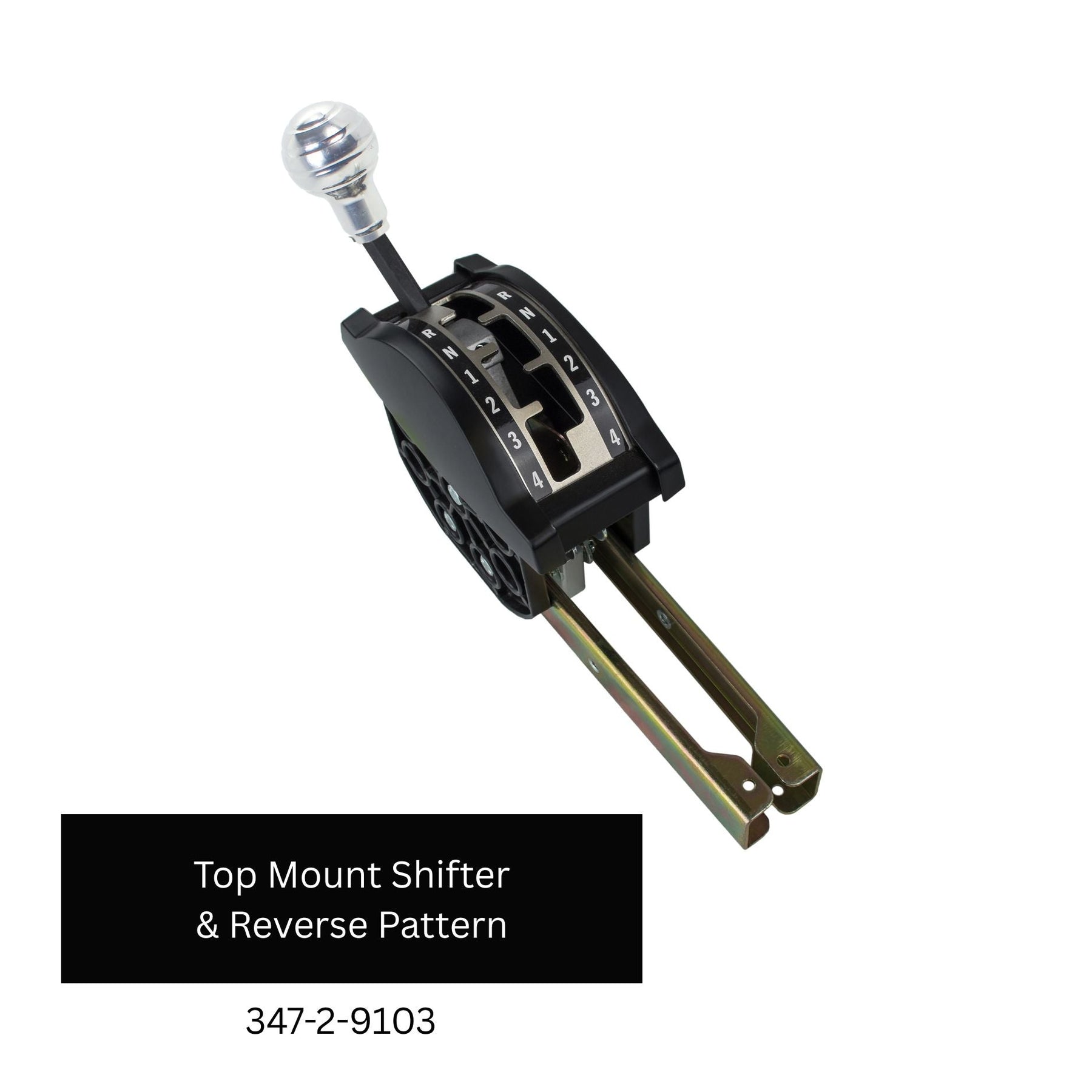

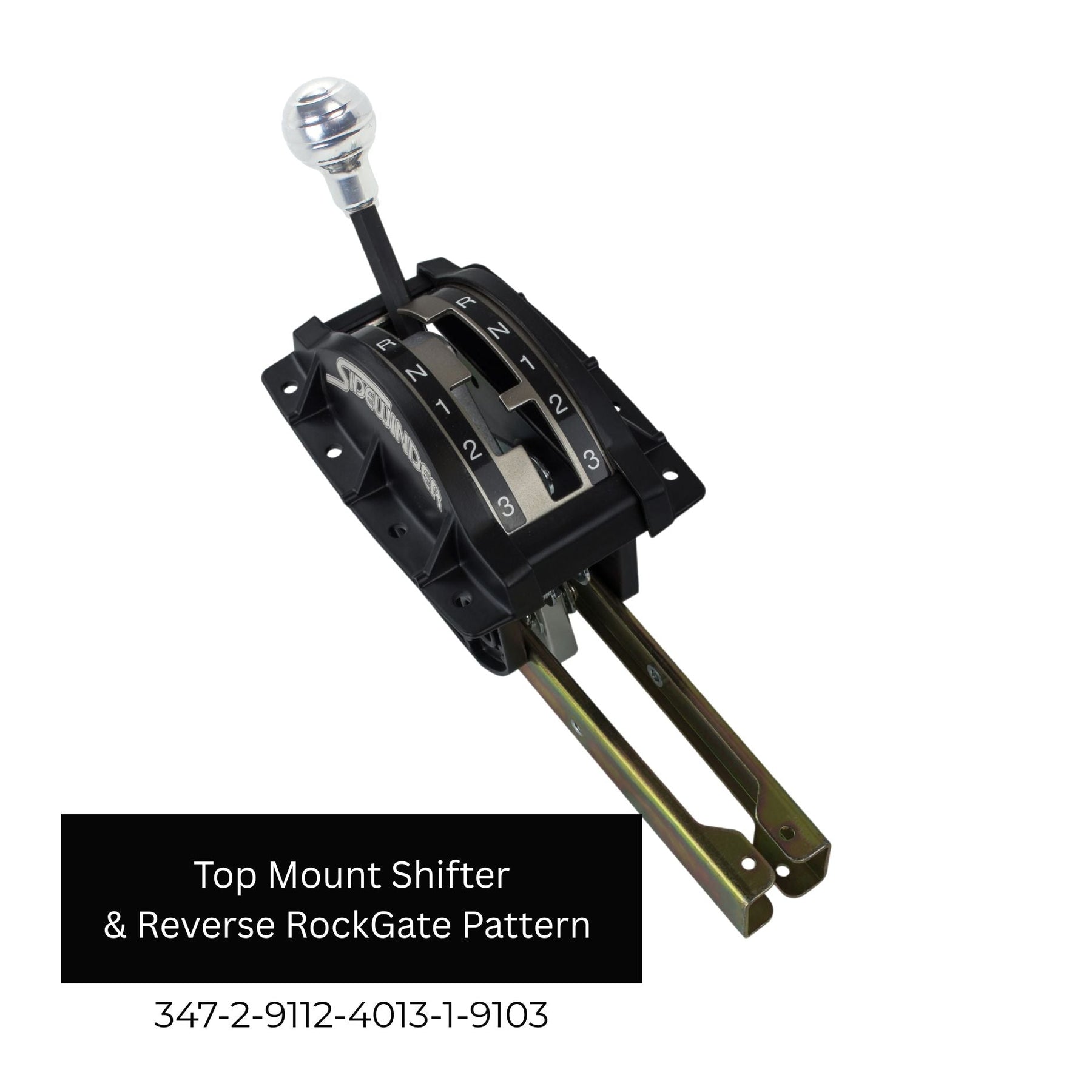

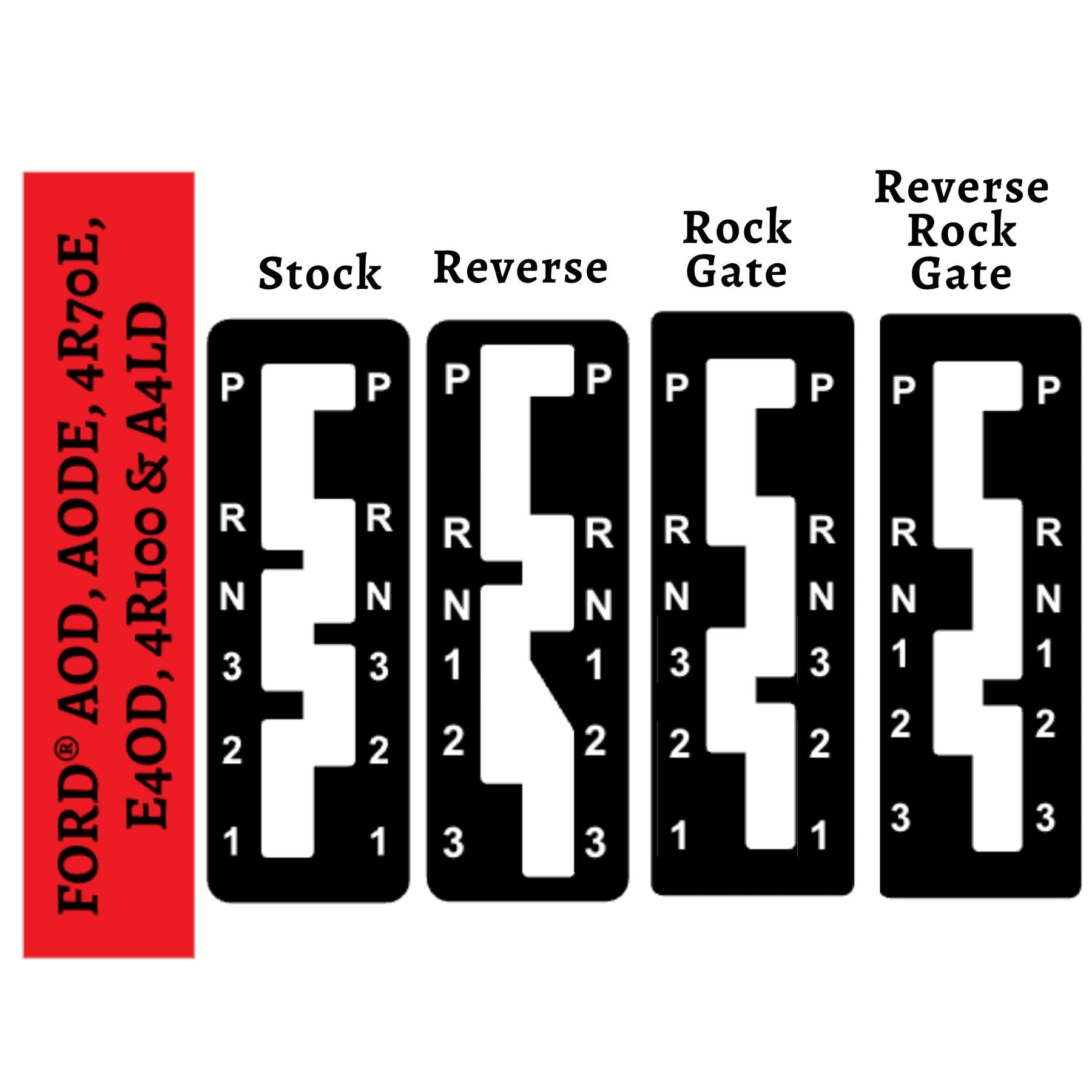

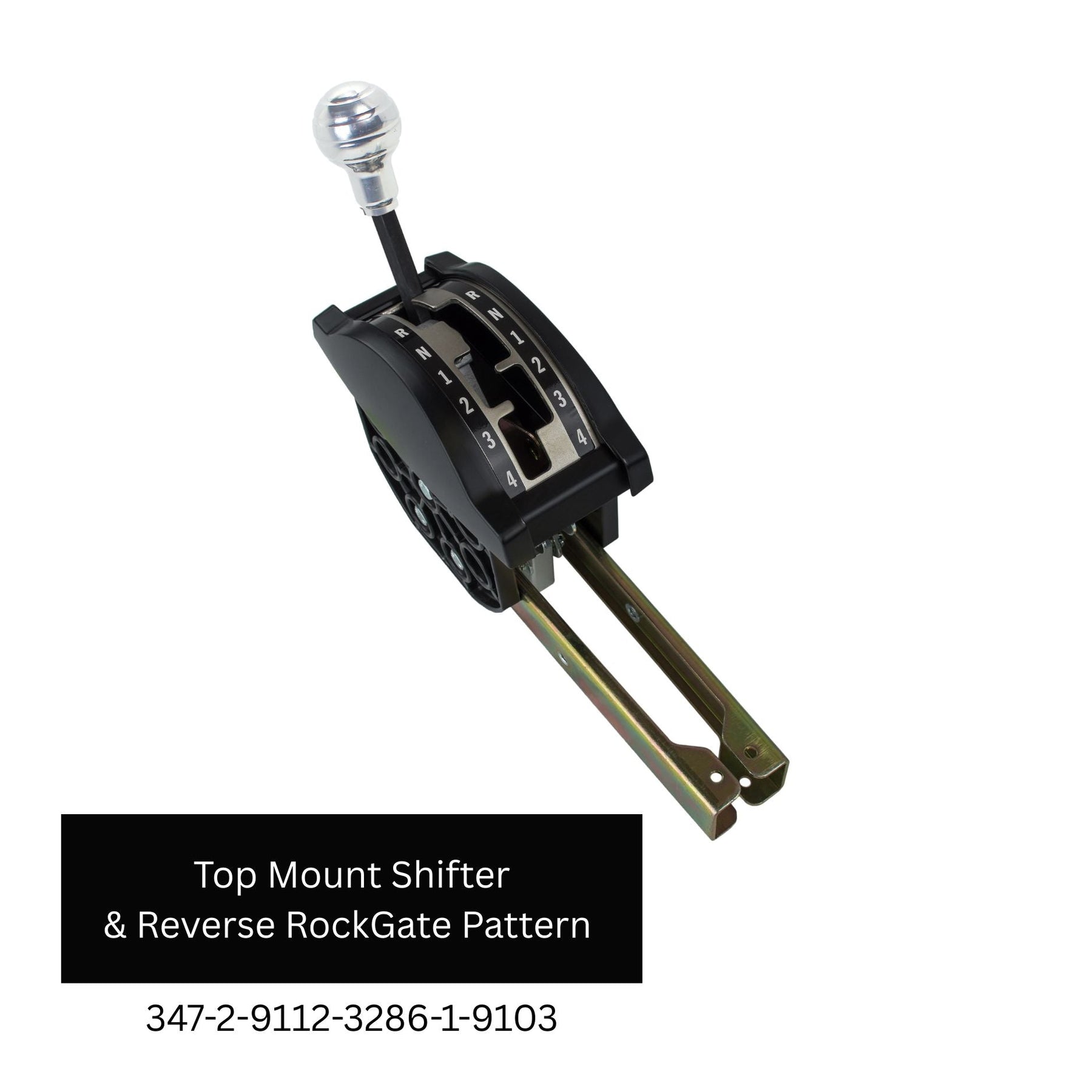

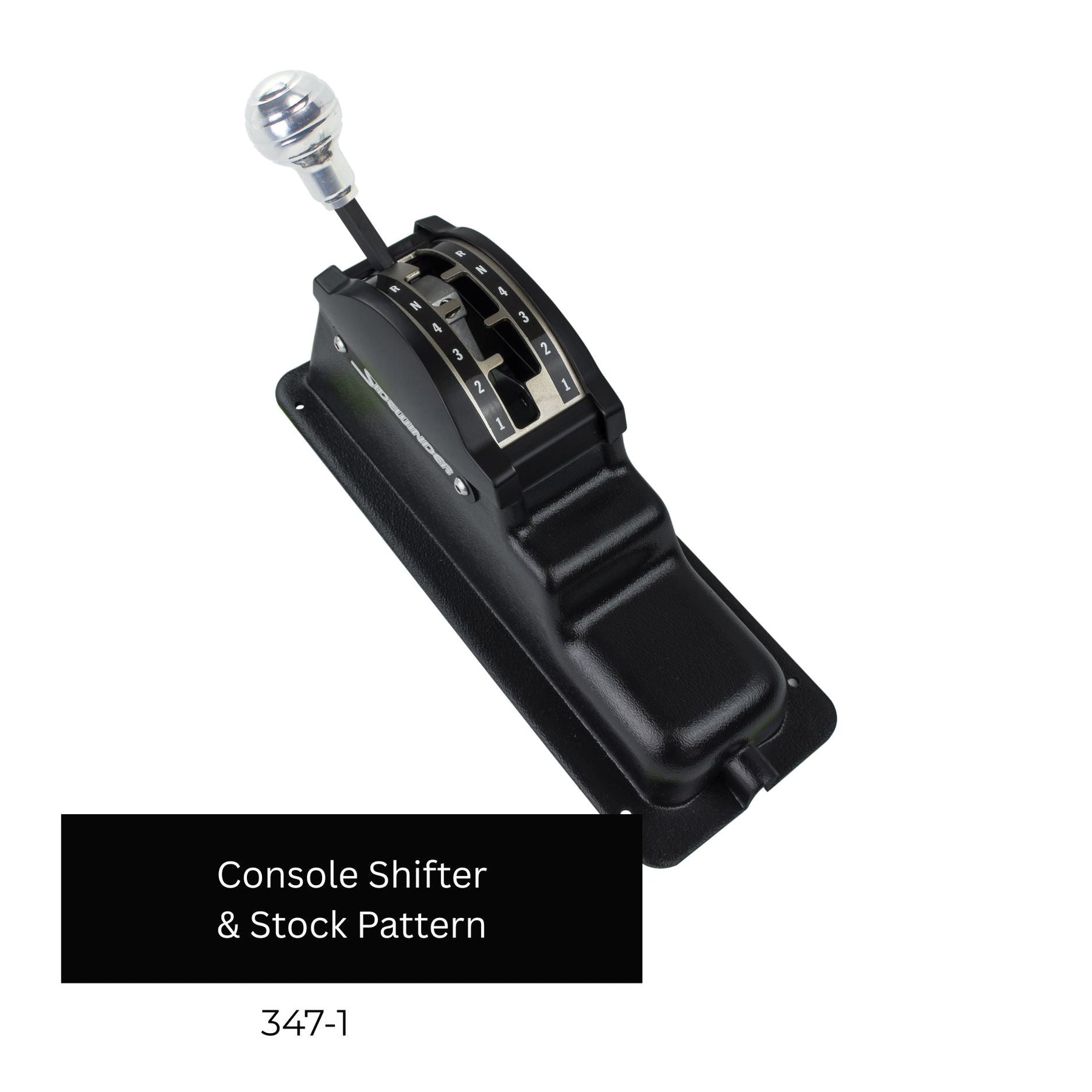

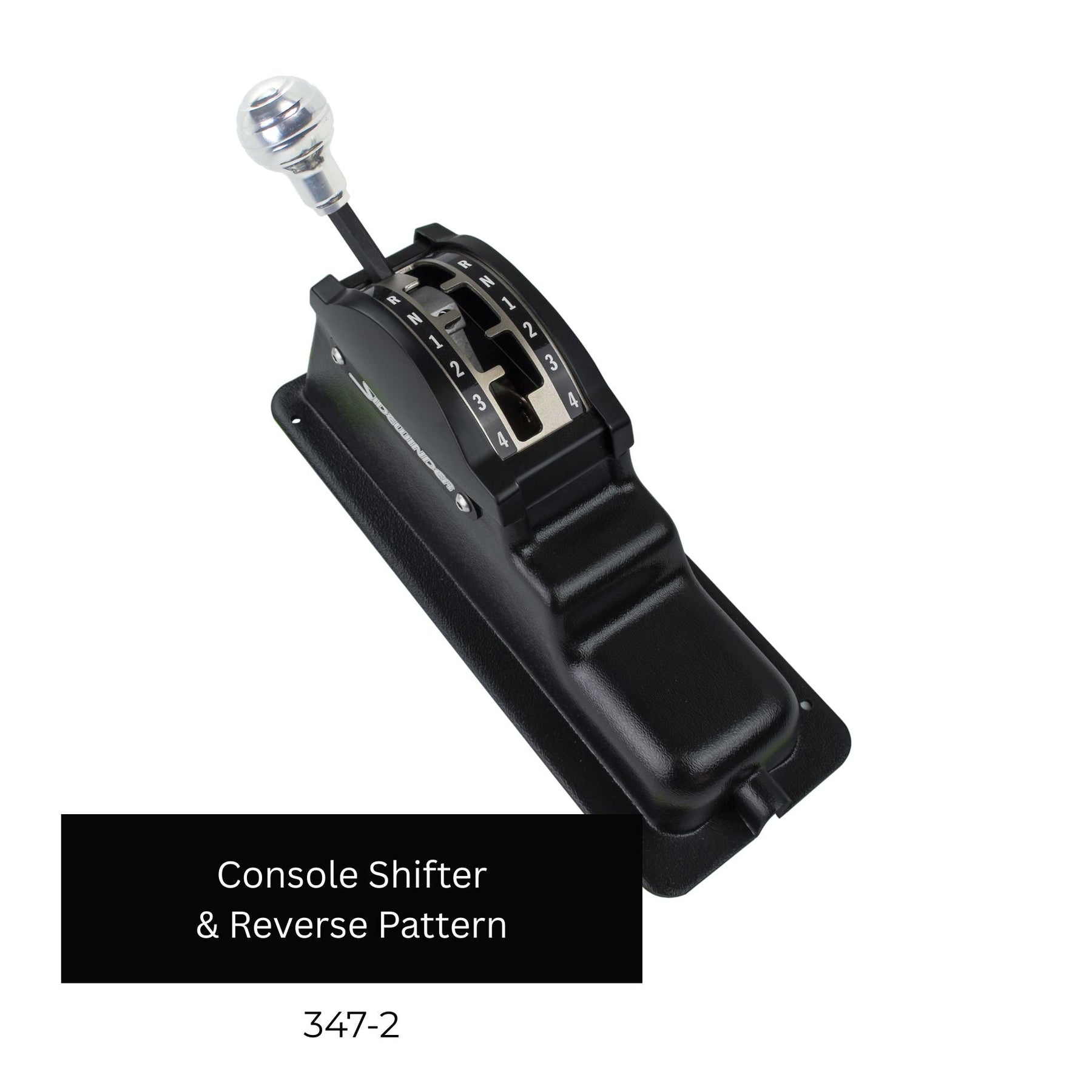

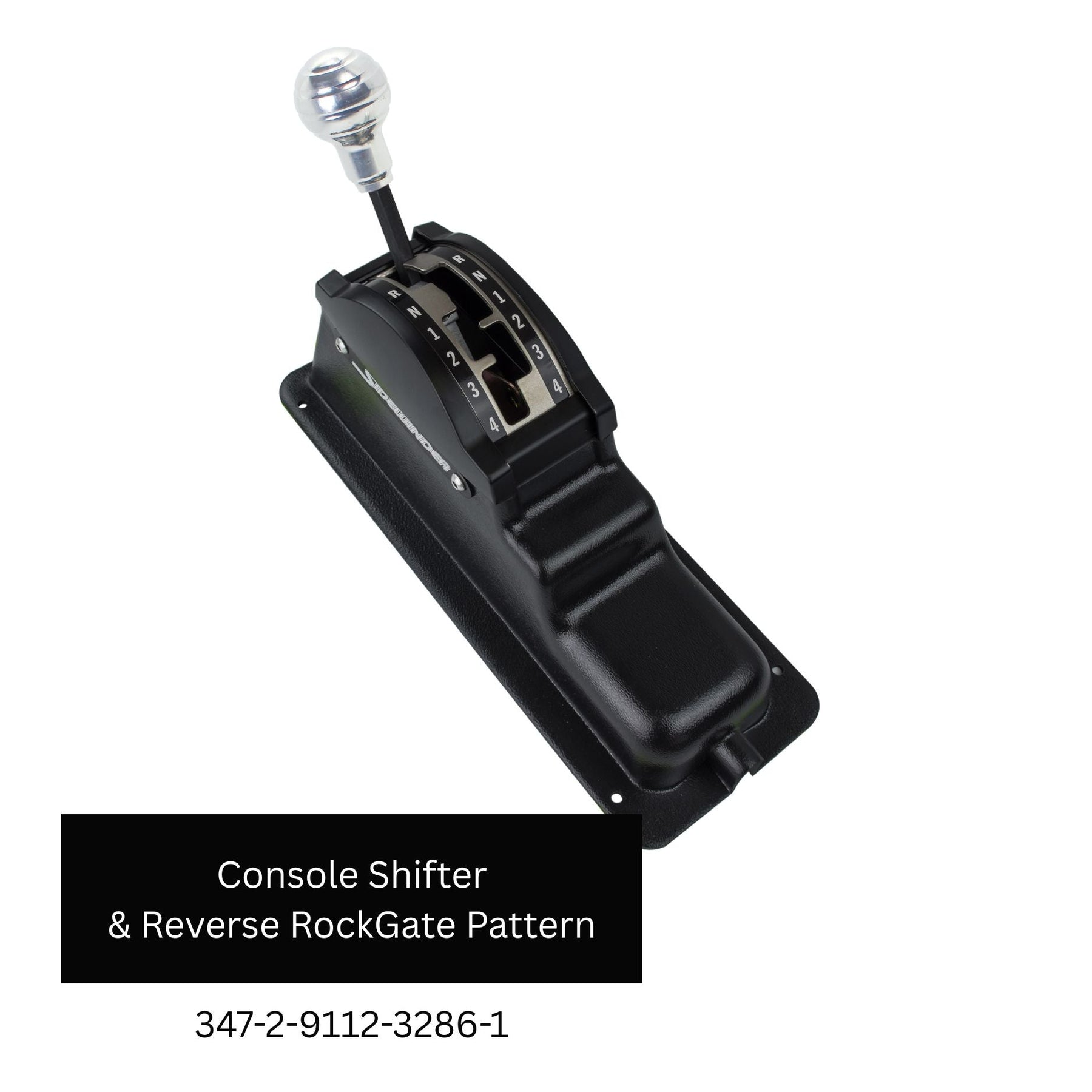

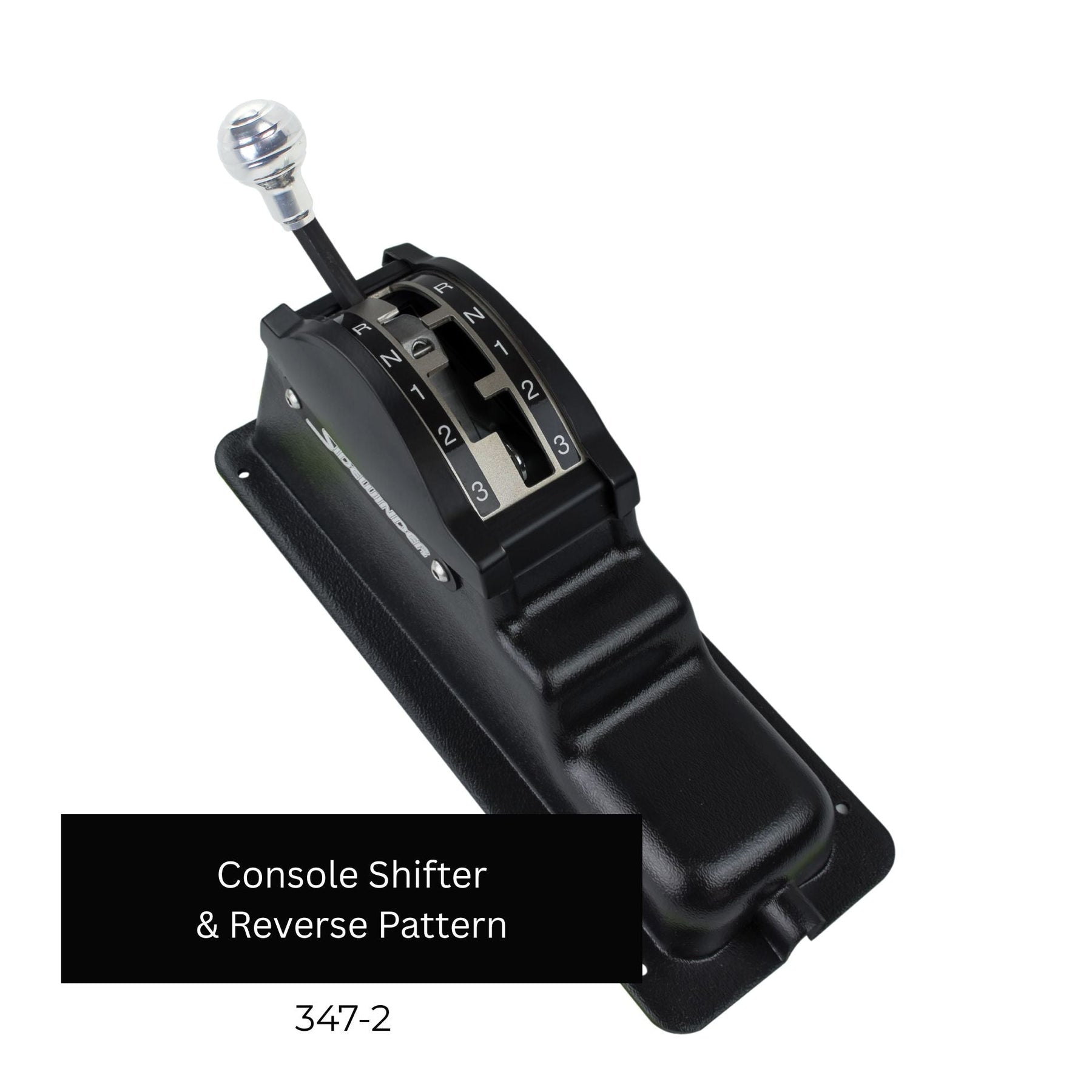

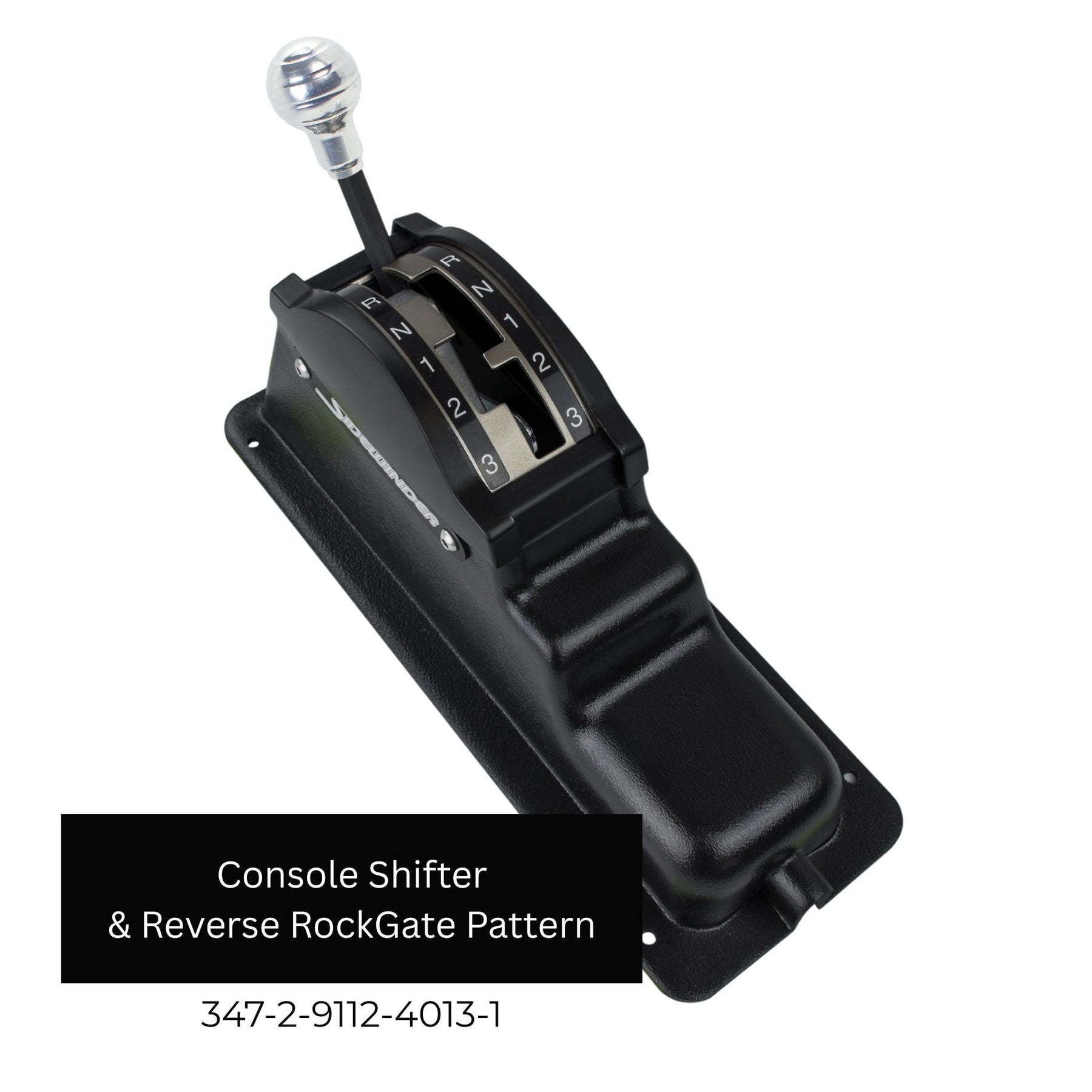

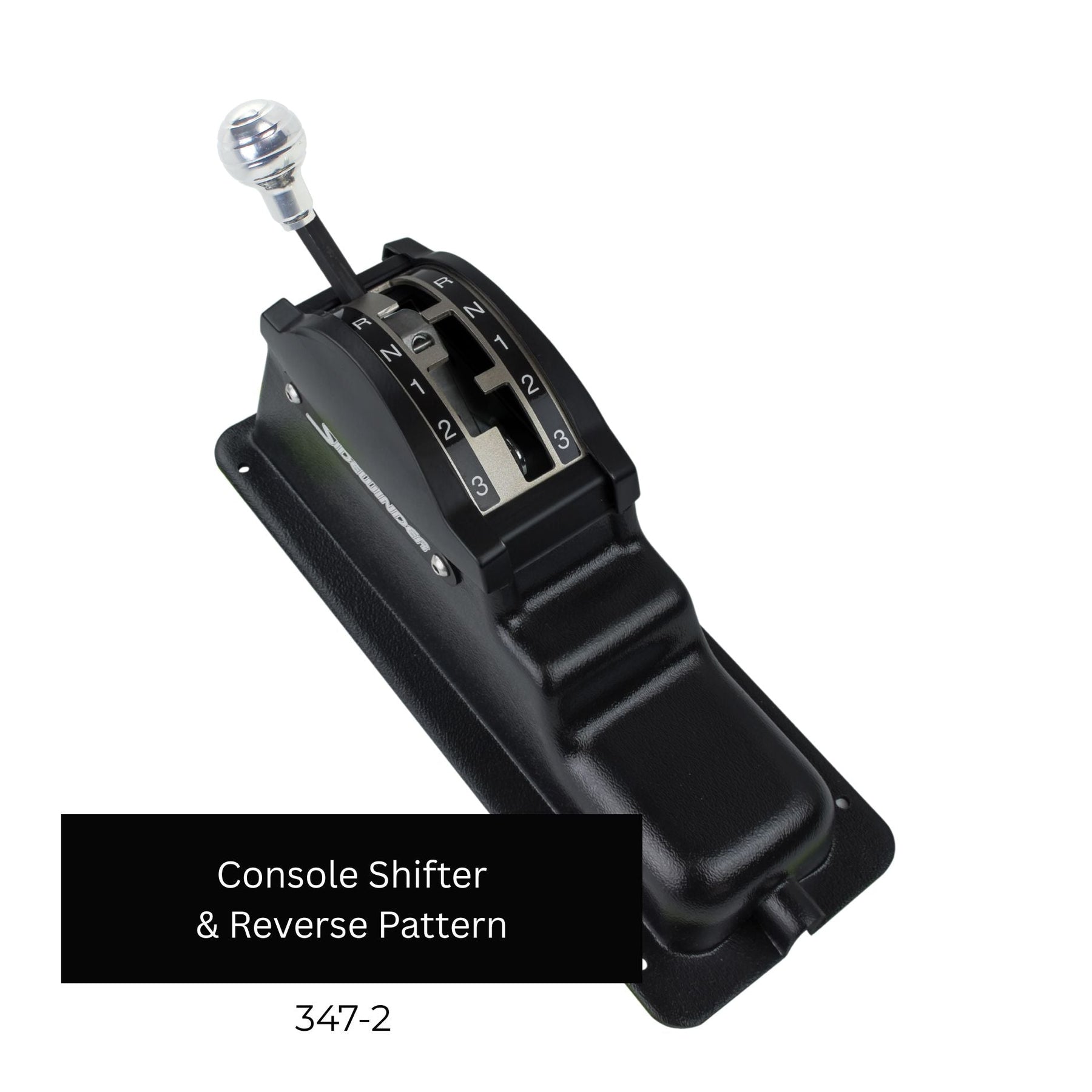

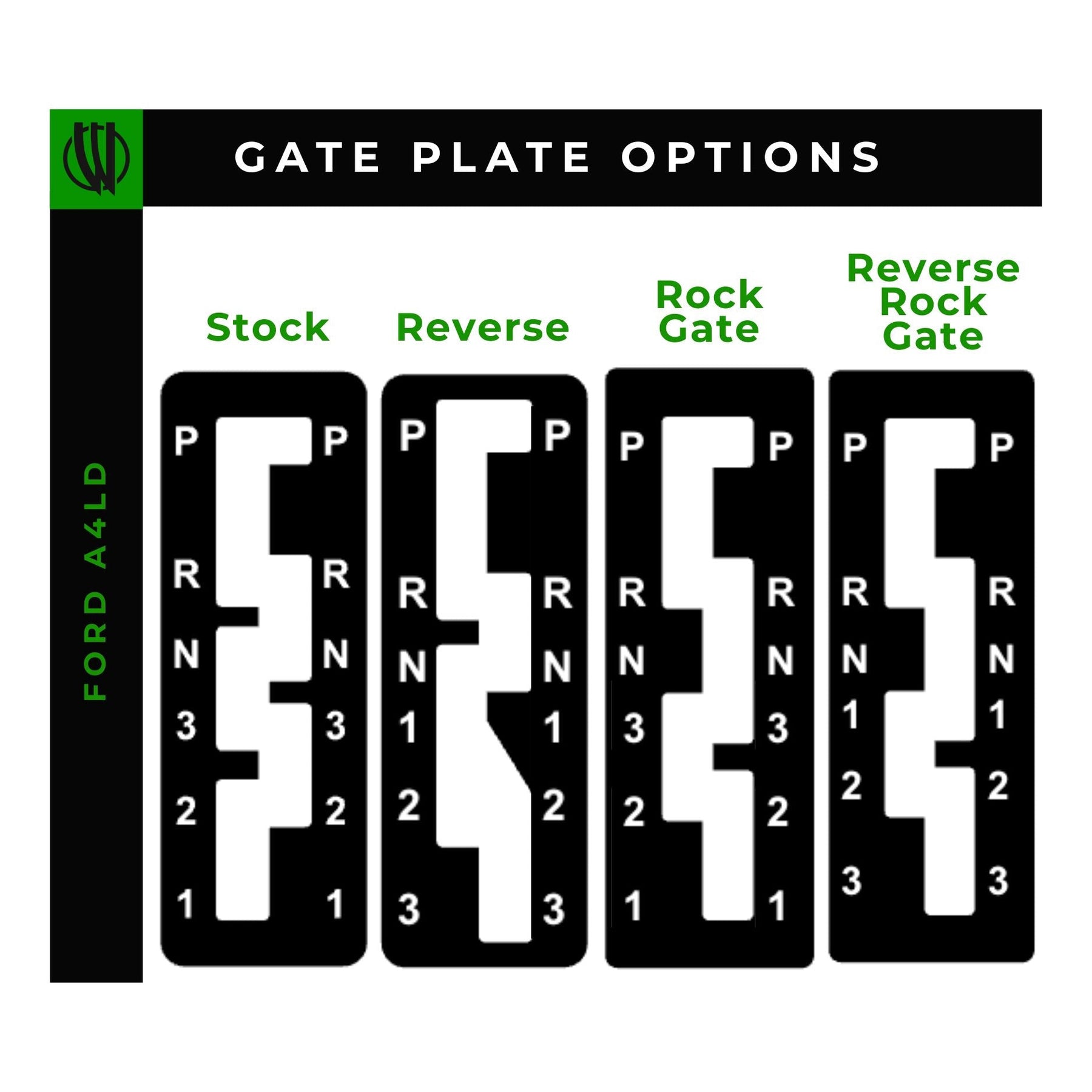

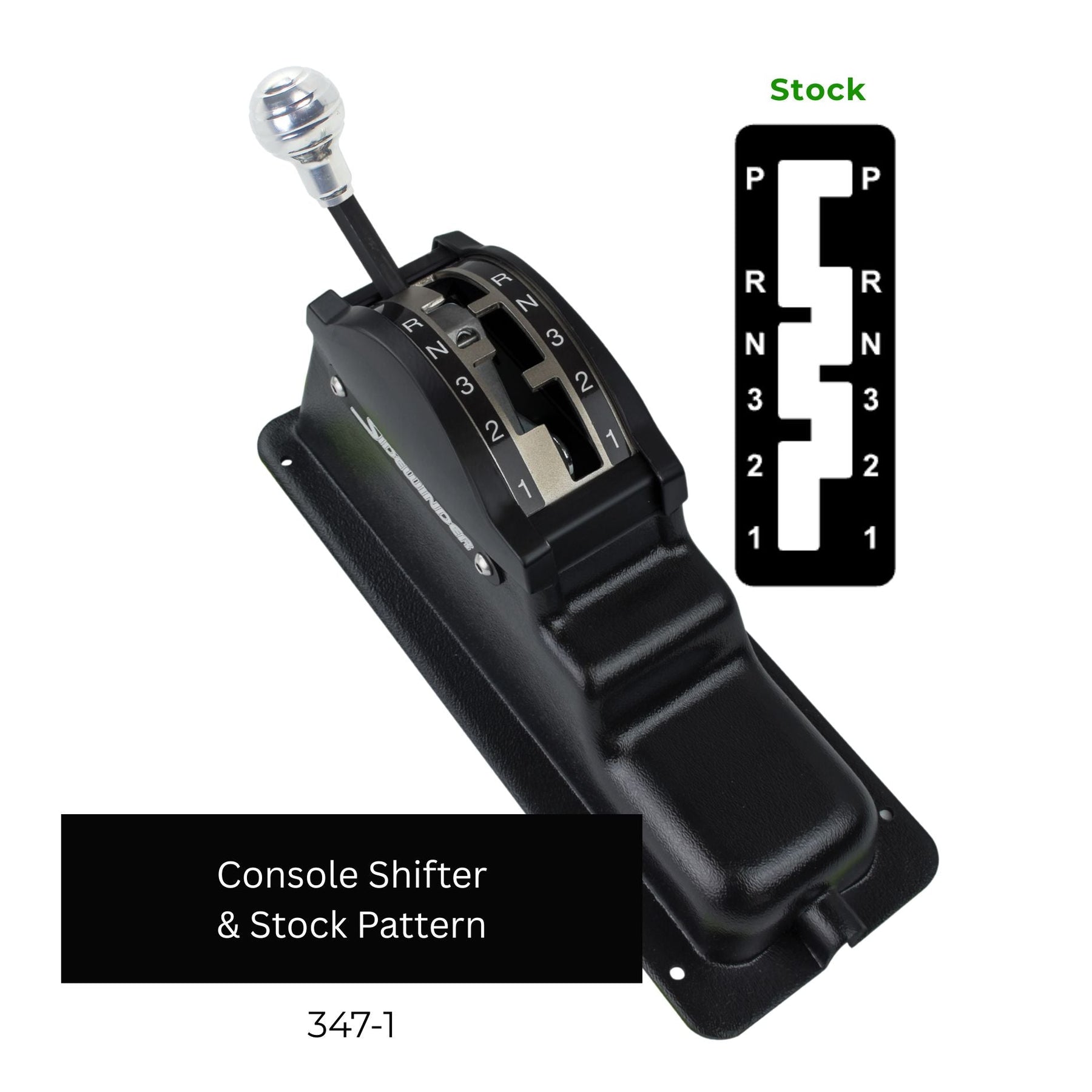

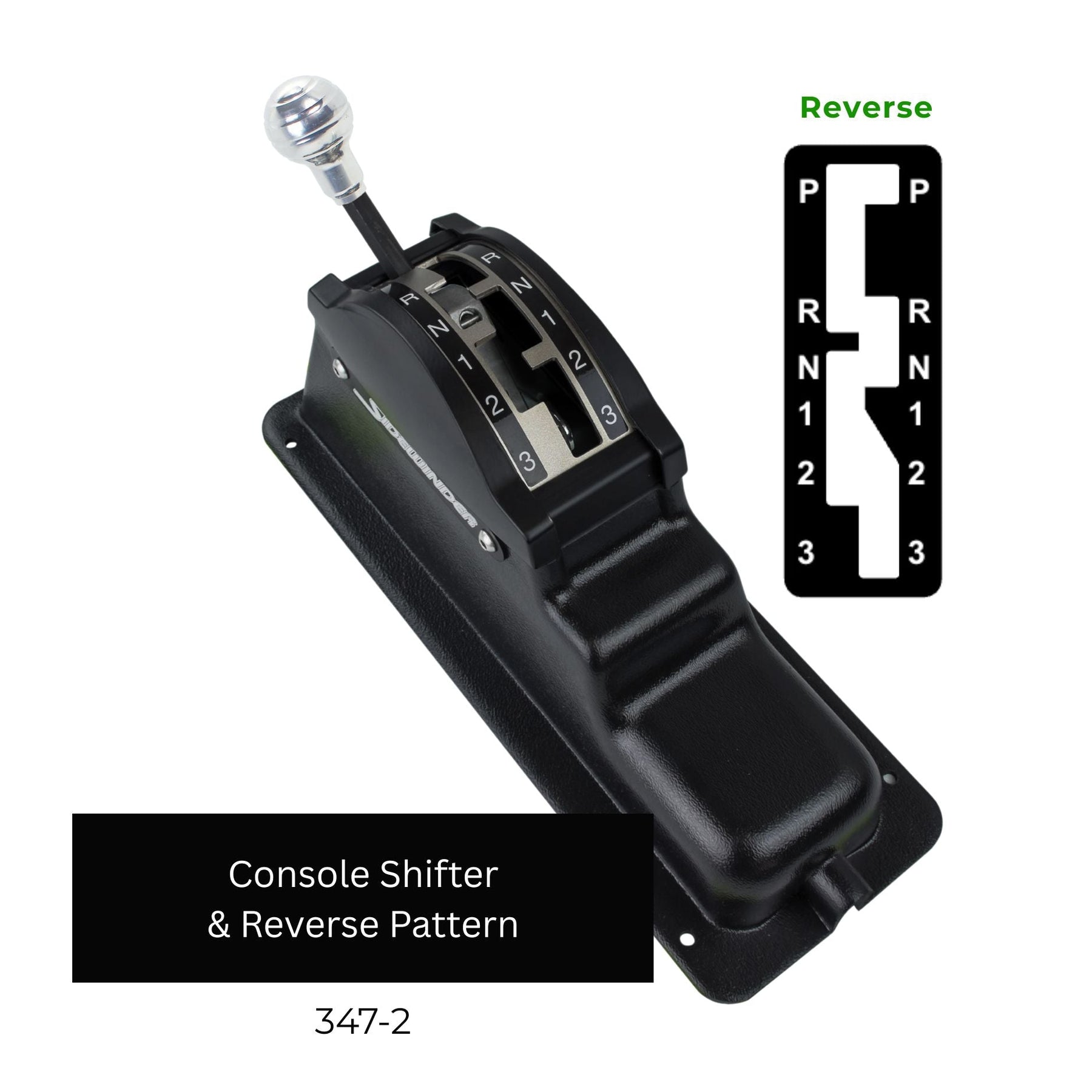

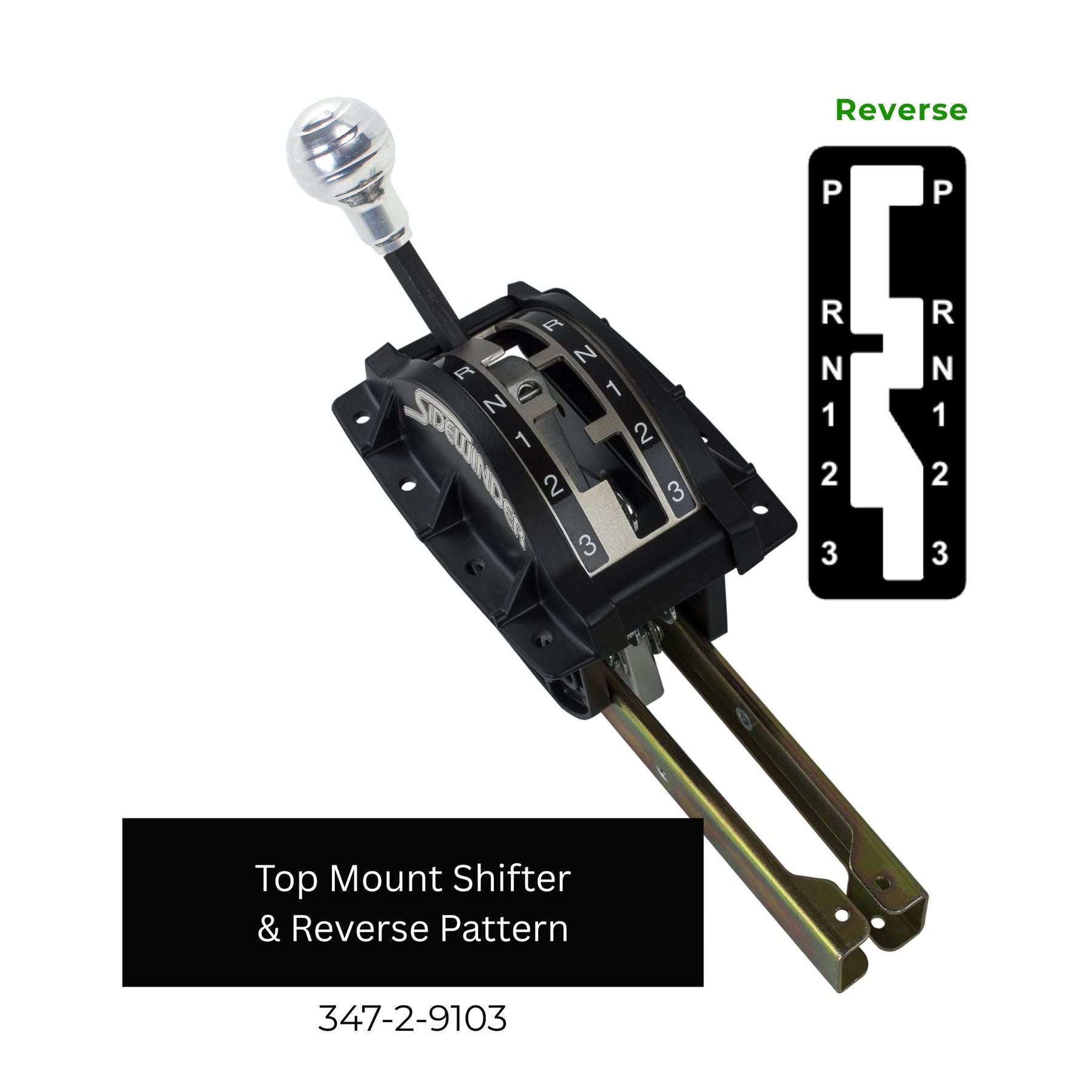

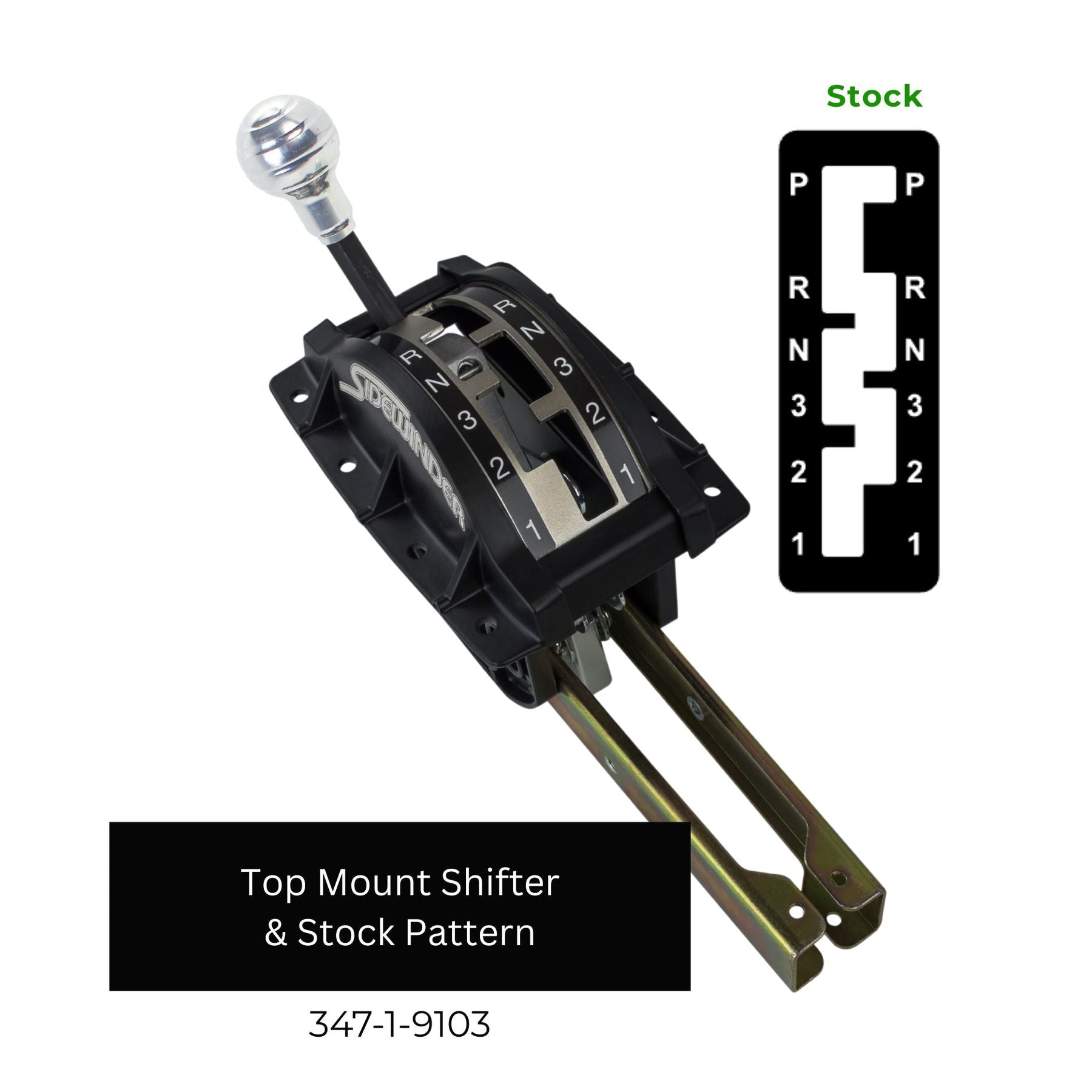

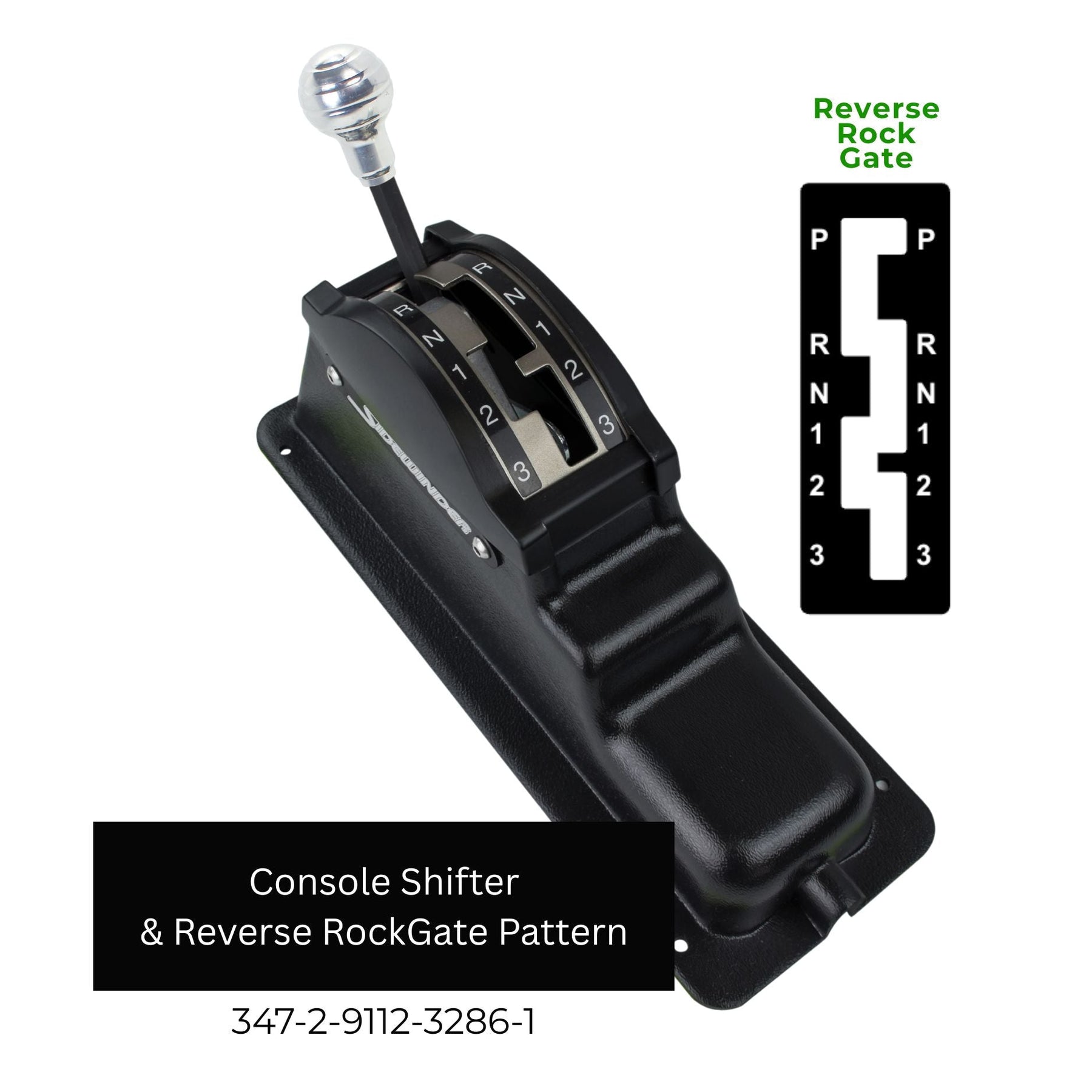

The correct gate plate depends on the transmission configuration. A standard automatic transmission uses the Standard Pattern, while an A4LD configured with a reverse manual valve body requires the Reverse Pattern. The gate pattern must match the transmission's actual shift sequence for proper operation.
The SideWinder uses a stepped steel gate to provide positive mechanical gear selection instead of relying on spring-loaded shift mechanisms. Physical gate positions give the driver a direct, repeatable feel while helping reduce missed shifts in performance and off-road applications.

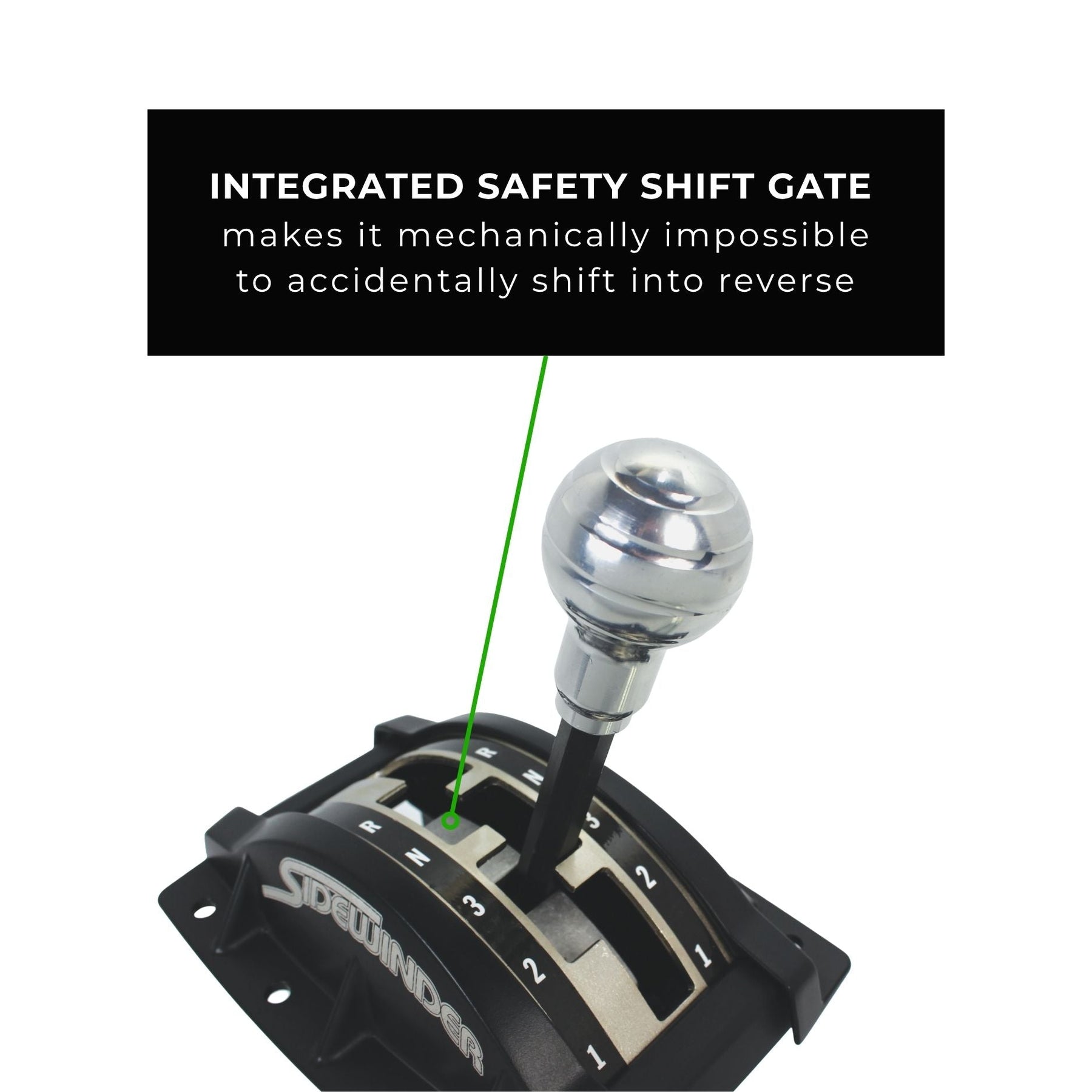

The gate incorporates a physical barrier between the forward gears and Reverse. The driver must intentionally move the shift rod through the proper gate path before Reverse can be selected, helping prevent accidental engagement during forward operation.
The Ford A4LD SideWinder includes a 5-foot shifter cable. This works for many conventional installations, but custom tube chassis, unusual drivetrain layouts, and applications requiring complex cable routing should be measured before installation.

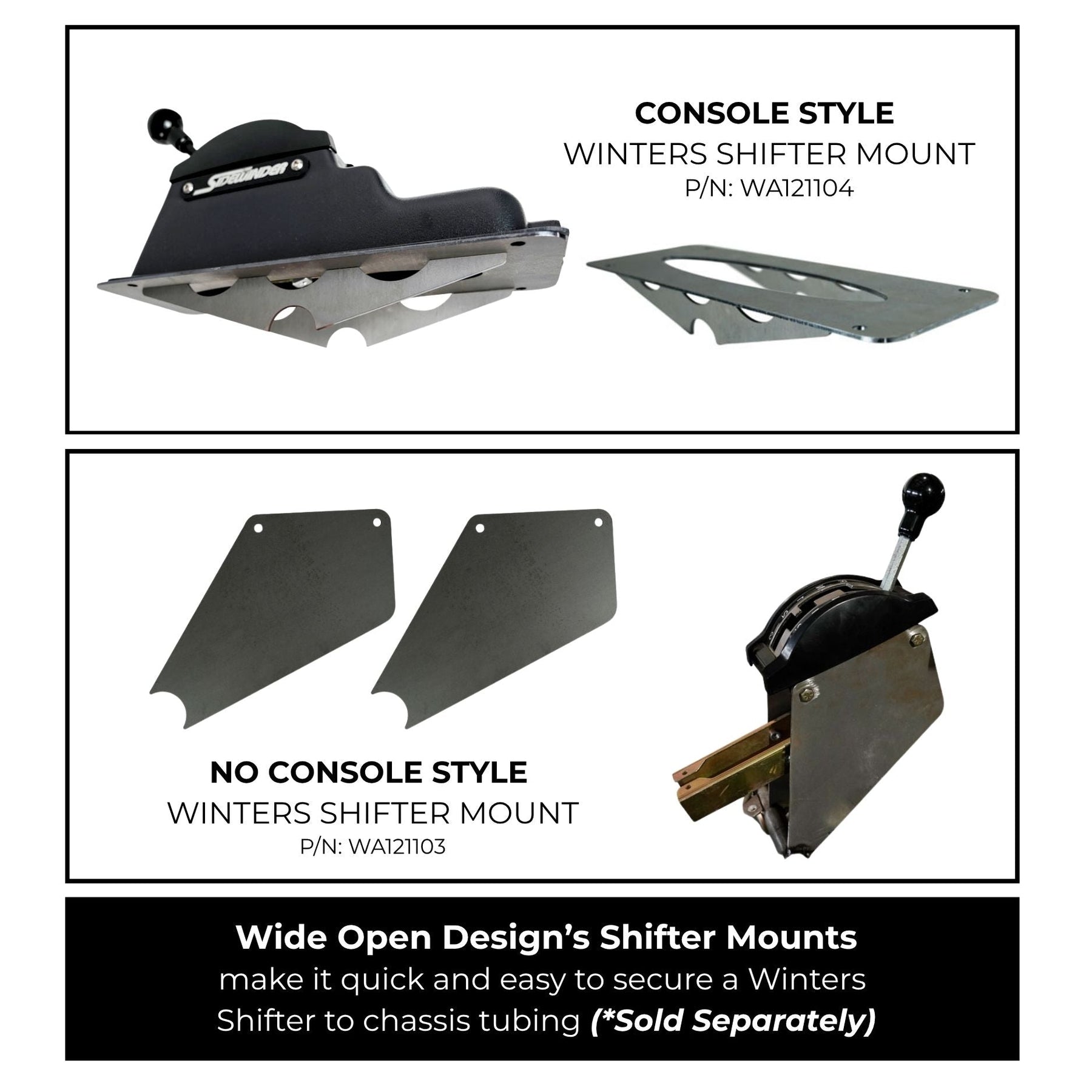

Yes. Because the SideWinder operates the transmission through a cable, builders have flexibility when positioning the shifter. The Wide Open Design No Console Style Shifter Mount provides a rigid mounting solution for custom chassis and fabricated interior applications.
Adjustment is performed at the transmission-side bracket. Set both the shifter and transmission in Neutral before adjusting the cable. Proper adjustment helps center the cable travel and ensures complete engagement throughout the available gear positions.
