Winters Ford A4LD Shift Linkage Kit 3027
3027
The Winters Ford A4LD Shift Linkage Kit 3027 connects a Winters cable-operated shifter to the shift arm on a Ford A4LD automatic transmission. It provides the correct linkage arm and cable bracket to make sure movement at the shifter properly matches the gear positions at the transmission.
Using the correct transmission-specific linkage is important because the shifter needs to move the transmission through its full range from Park to First without running out of cable travel or stopping between gear positions. This kit is designed specifically around the Ford A4LD, taking the guesswork out of adapting a Winters shifter to the transmission.
Use Kit 3027 when installing a compatible Winters shifter on an A4LD or when replacing linkage components that have become worn, damaged, or lost.

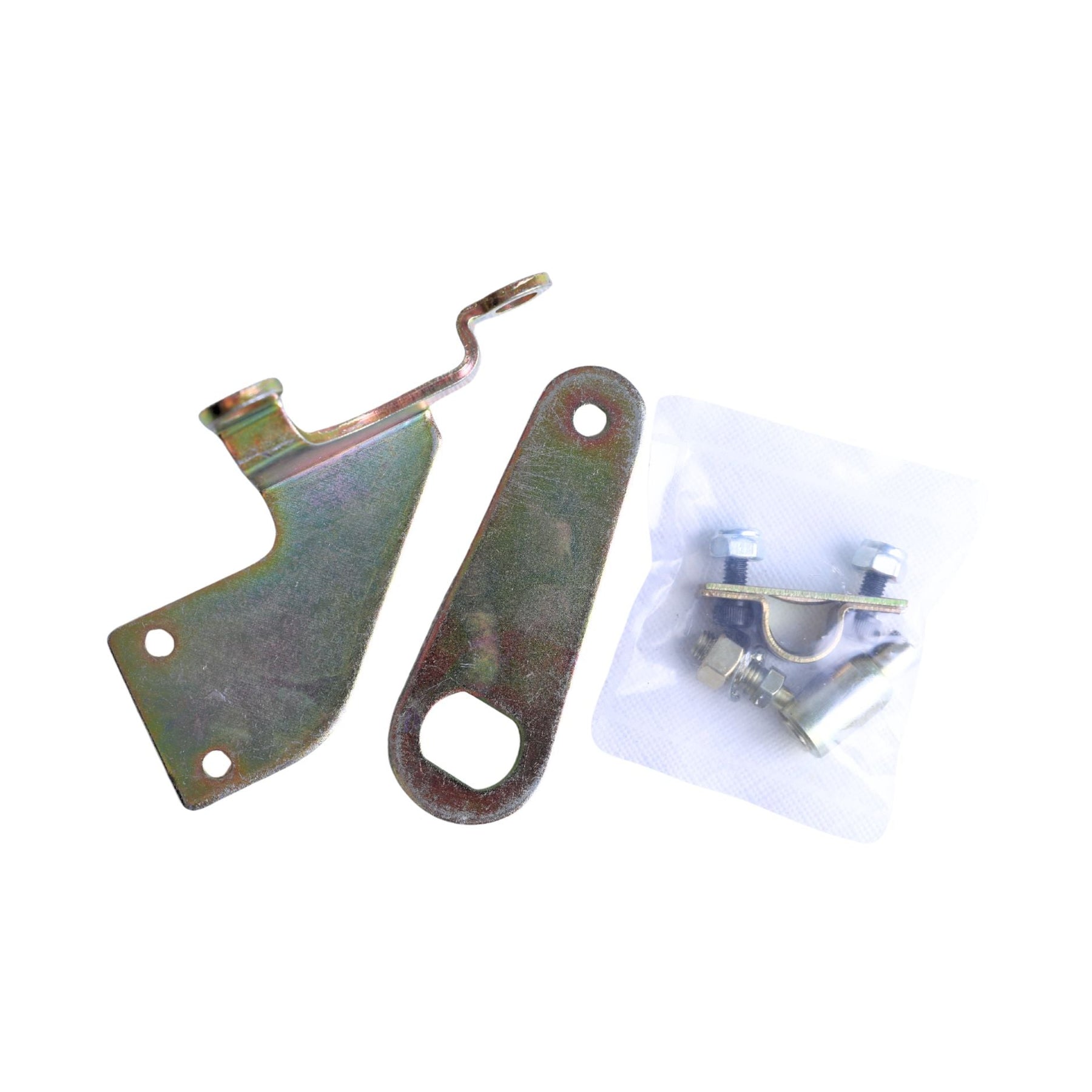

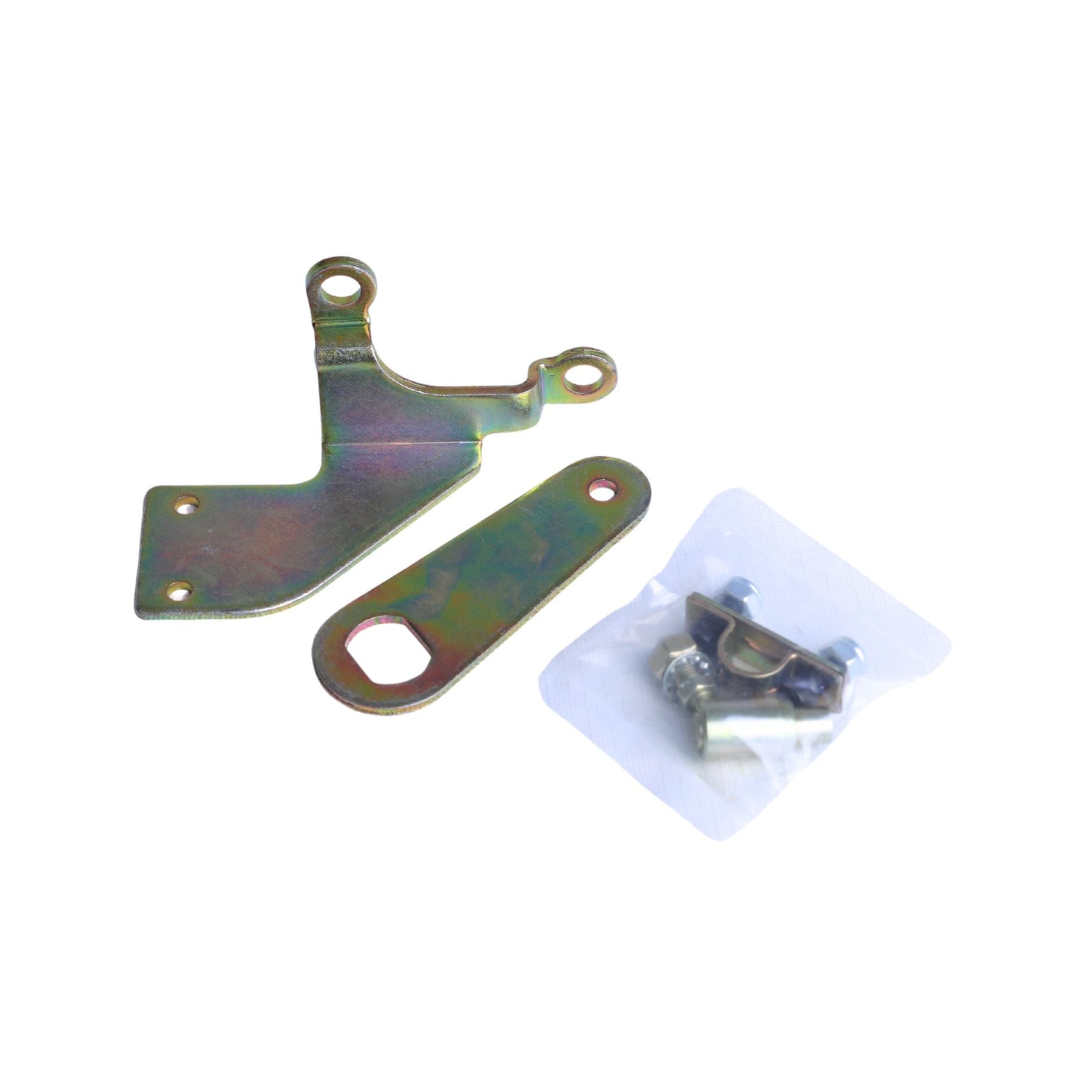

Includes:
- (1) Linkage Arm – P/N 12746
- (1) Cable Bracket – P/N 12748
- (1) Hardware Kit – P/N 6062
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Winters Performance |
| Part Number | 3027 |
| Product Type | Automatic Transmission Shifter Linkage Kit |
| Transmission | Ford A4LD Automatic |
| Linkage Arm | P/N 12746 |
| Cable Bracket | P/N 12748 |
| Hardware Kit | P/N 6062 |
| Operation | Cable-Operated |
| Installation Location | Transmission Side |
| Application | Winters Shifter to Ford A4LD Transmission |
Fitment
Designed For:
- Ford A4LD Automatic Transmissions
- Compatible Winters Cable-Operated Shifter Installations
- Replacement or New Shifter Installations Requiring Winters Kit 3027
Fitment Notes:
- This is a transmission-specific linkage kit for the Ford A4LD.
- Do not select a linkage kit based only on the Winters shifter model; the linkage must also match the transmission.
- The linkage arm and cable bracket determine how cable movement is transferred to the A4LD transmission selector.
- Verify that your transmission is a Ford A4LD before ordering.
- Final cable adjustment should be performed after the shifter, cable bracket, and linkage arm are installed.
FAQ
Why does the Ford A4LD need its own Winters linkage kit?
The shifter may be cable-operated, but the transmission still determines the geometry required at the other end of that cable. The Ford A4LD has its own selector lever movement and mounting arrangement. Kit 3027 provides the A4LD-specific linkage arm and cable bracket needed to connect the Winters shifter system to that transmission.
What does the linkage arm do?
The linkage arm attaches at the transmission selector and converts the linear movement of the shifter cable into rotation of the A4LD selector mechanism. Using the correct arm geometry helps the shifter and transmission move through their corresponding gear positions together.
Why is the cable bracket transmission-specific?
The cable bracket establishes the position and angle of the cable housing relative to the transmission linkage arm. That relationship affects available cable travel and selector movement, which is why the correct bracket is an important part of a properly installed cable shifter system.
Is this the complete Winters SideWinder shifter?
No. Kit 3027 is the Ford A4LD transmission linkage kit. It contains the linkage arm, cable bracket, and associated hardware used at the transmission. The Winters shifter and shifter cable are separate components unless specifically included with another package.
How should I adjust the shifter after installing the linkage kit?
With the linkage and cable installed, the shifter and transmission should be placed in the same gear position before final cable adjustment. Neutral is commonly used as the reference position because it helps center the available cable travel. After adjustment, manually verify that the transmission fully reaches each intended selector position before operating the vehicle.
Can I use a linkage kit from another transmission on my A4LD?
No. Winters linkage kits should be selected for the specific transmission being used. Differences in selector geometry and cable bracket position can prevent the shifter from correctly matching the transmission's gear positions, even when the shifter itself appears similar.
