AOD

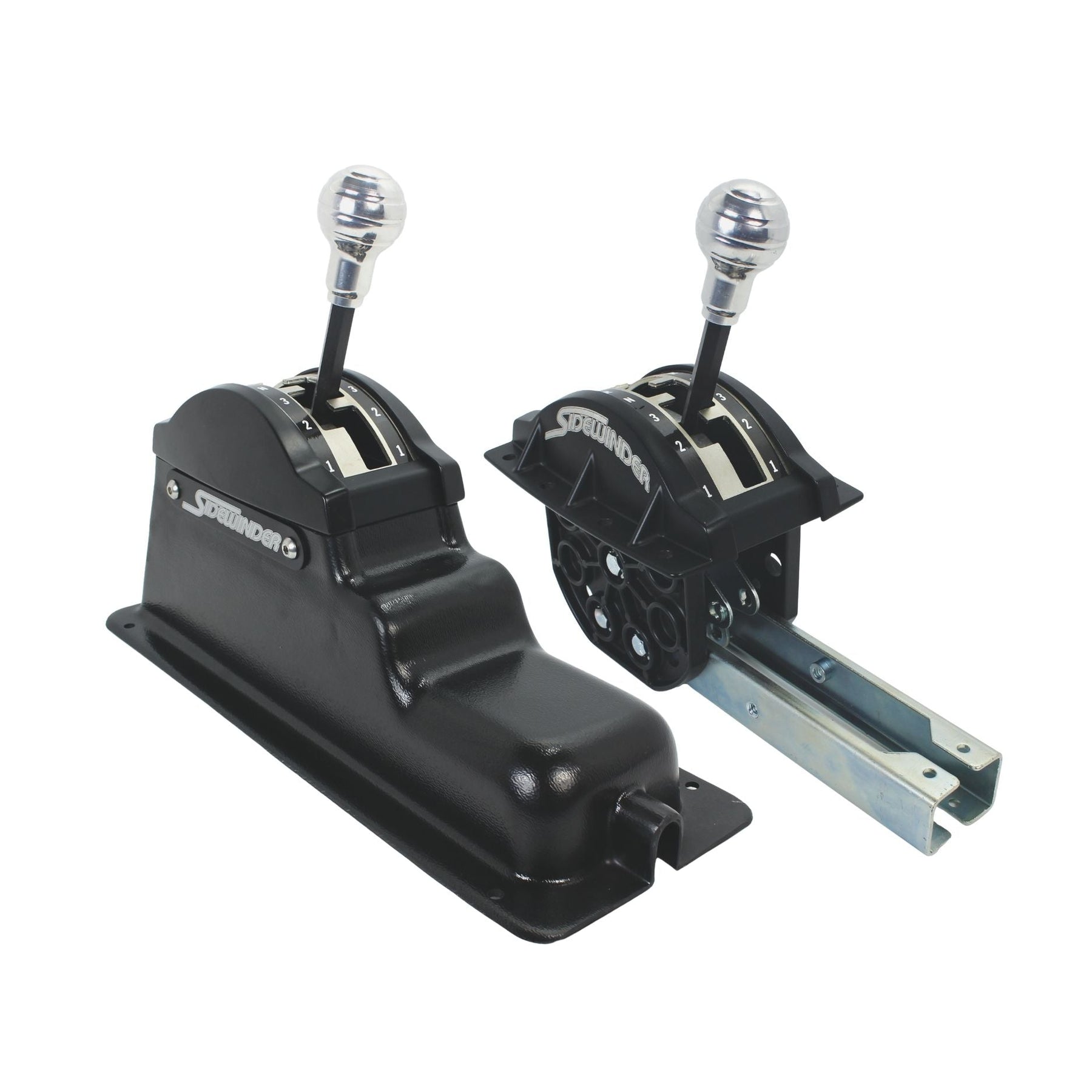

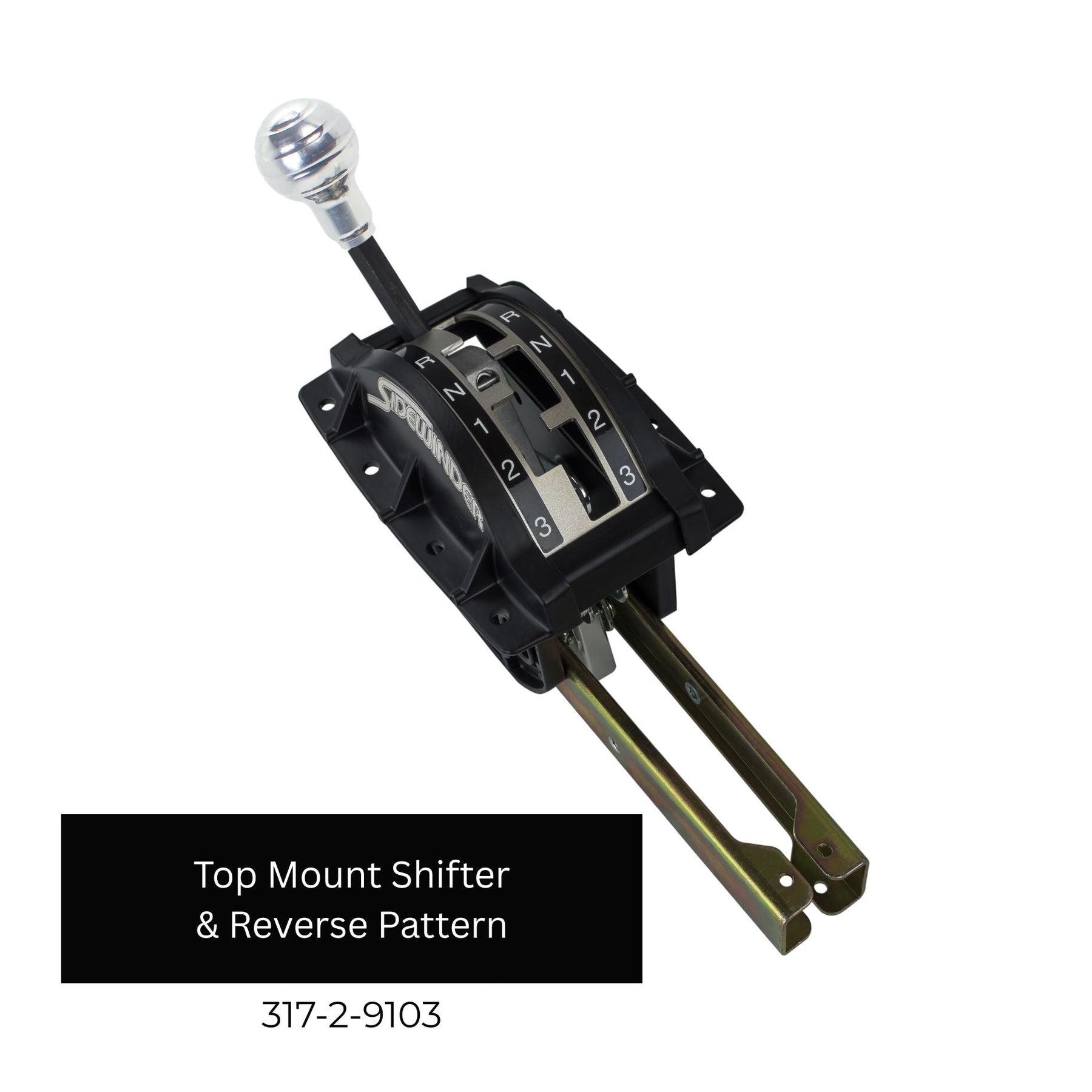

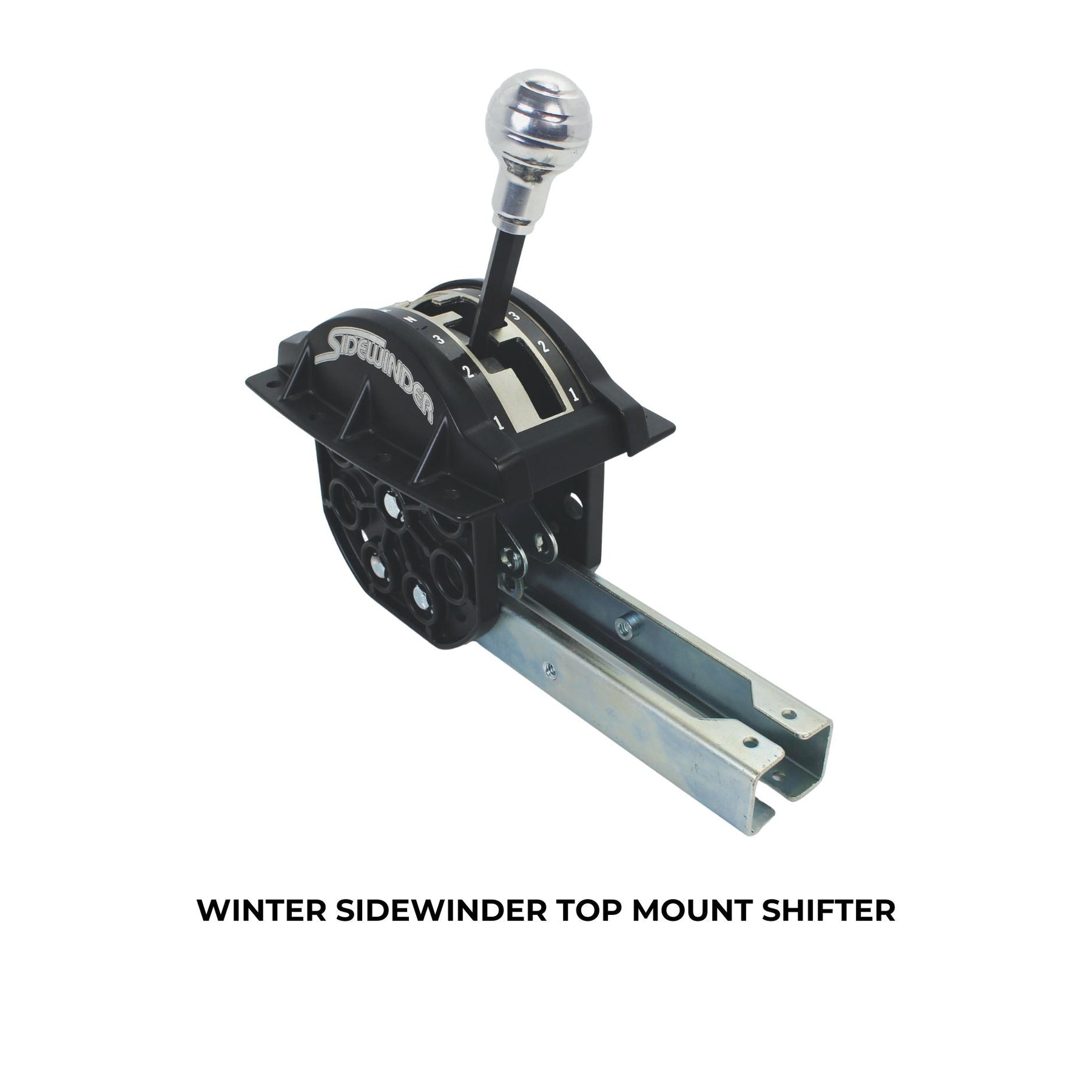

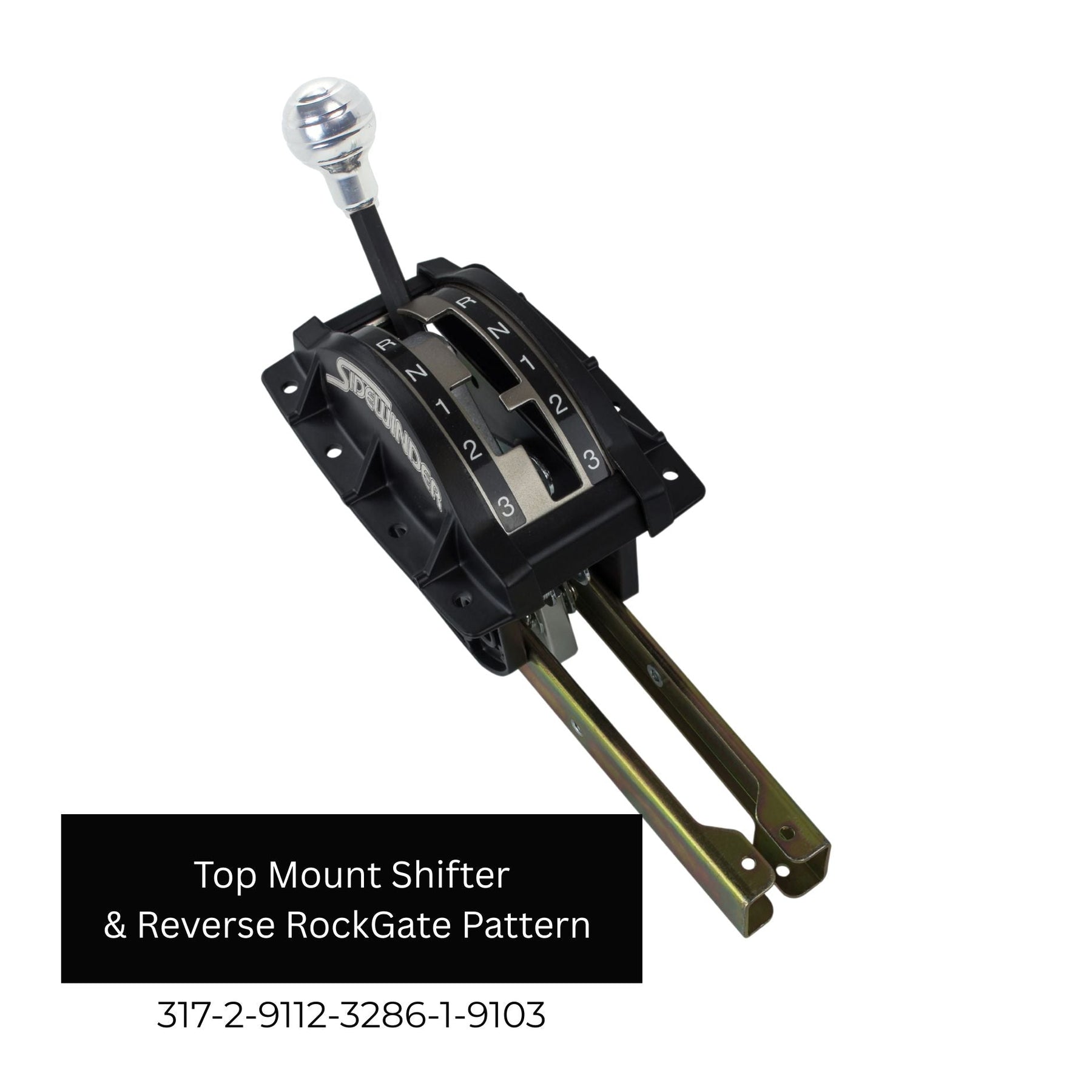

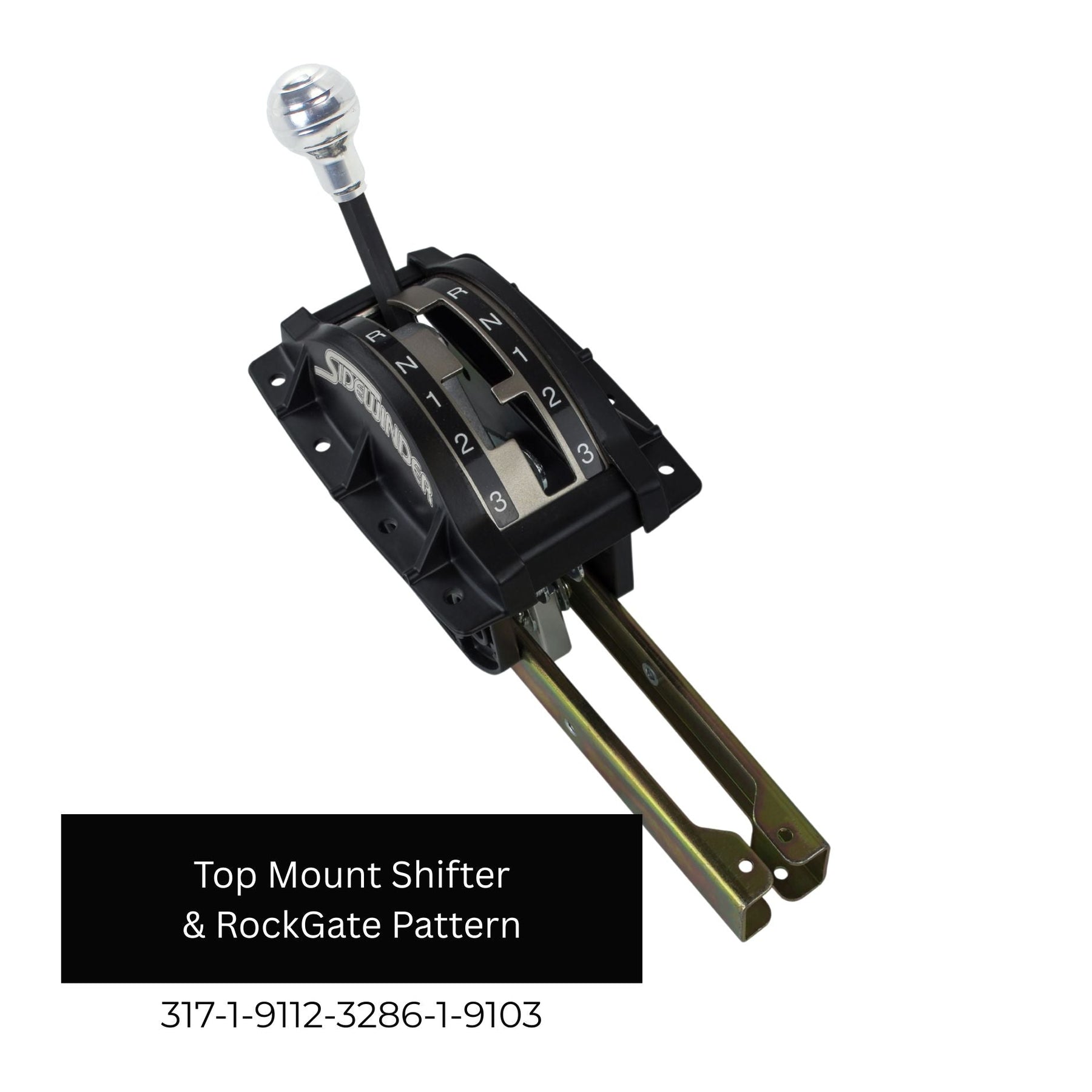

The Winters Ford AOD SideWinder Gated Shifter provides positive, repeatable gear selection for off-road vehicles, street builds, race vehicles, and custom projects using the Ford AOD automatic transmission. Instead of relying on spring-loaded lockout levers, the SideWinder uses a stepped steel gate and mechanical guard system to physically guide the shift handle through each transmission position.

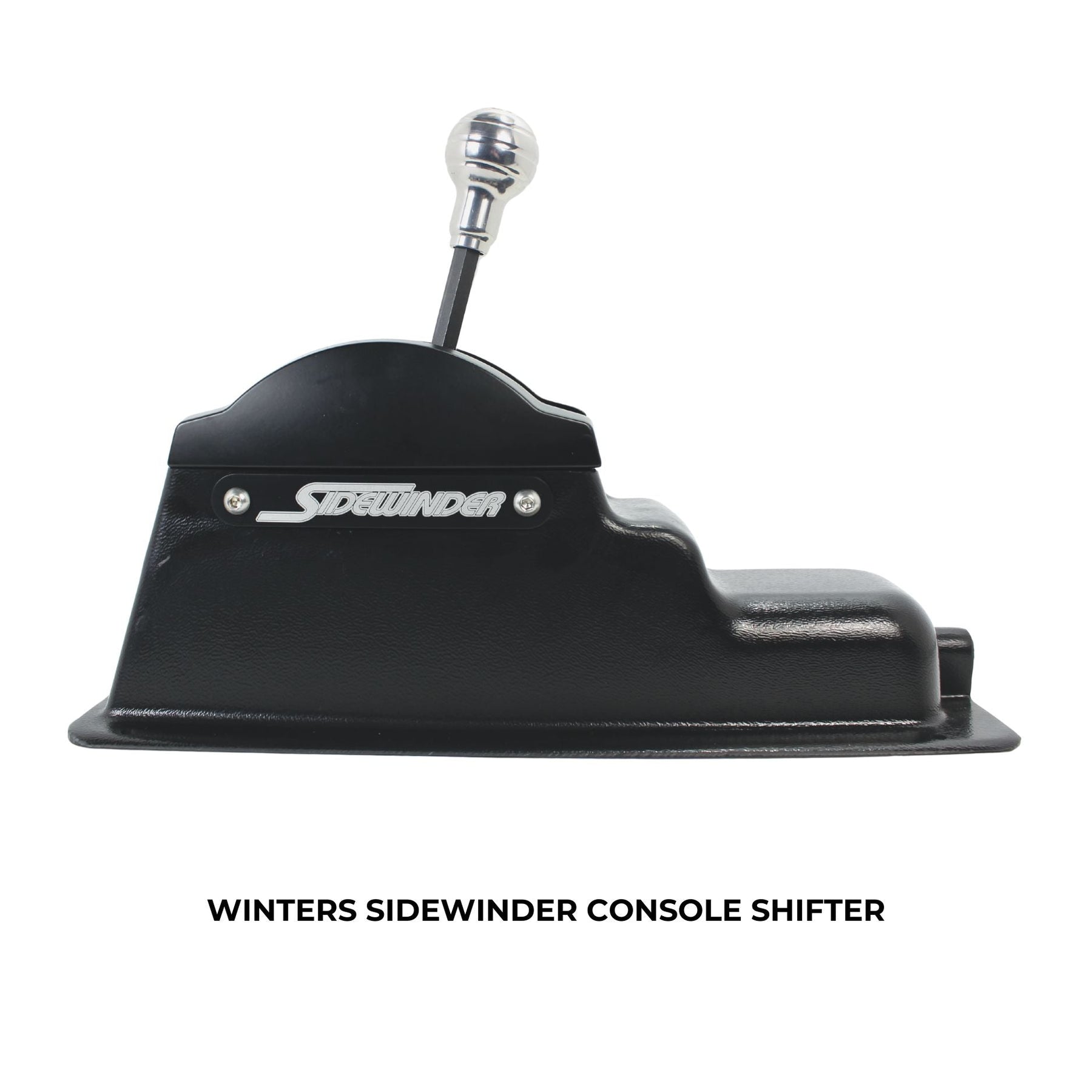

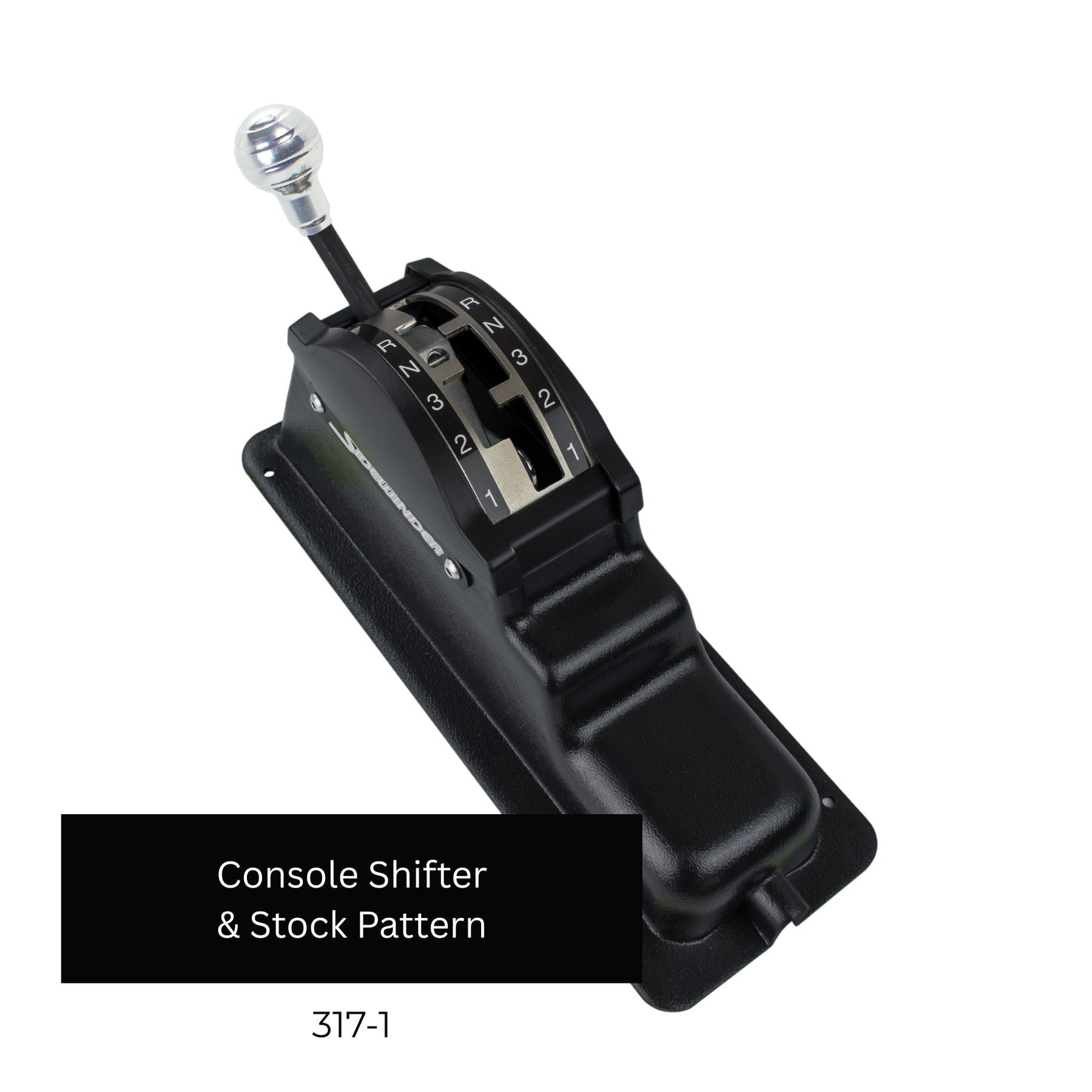

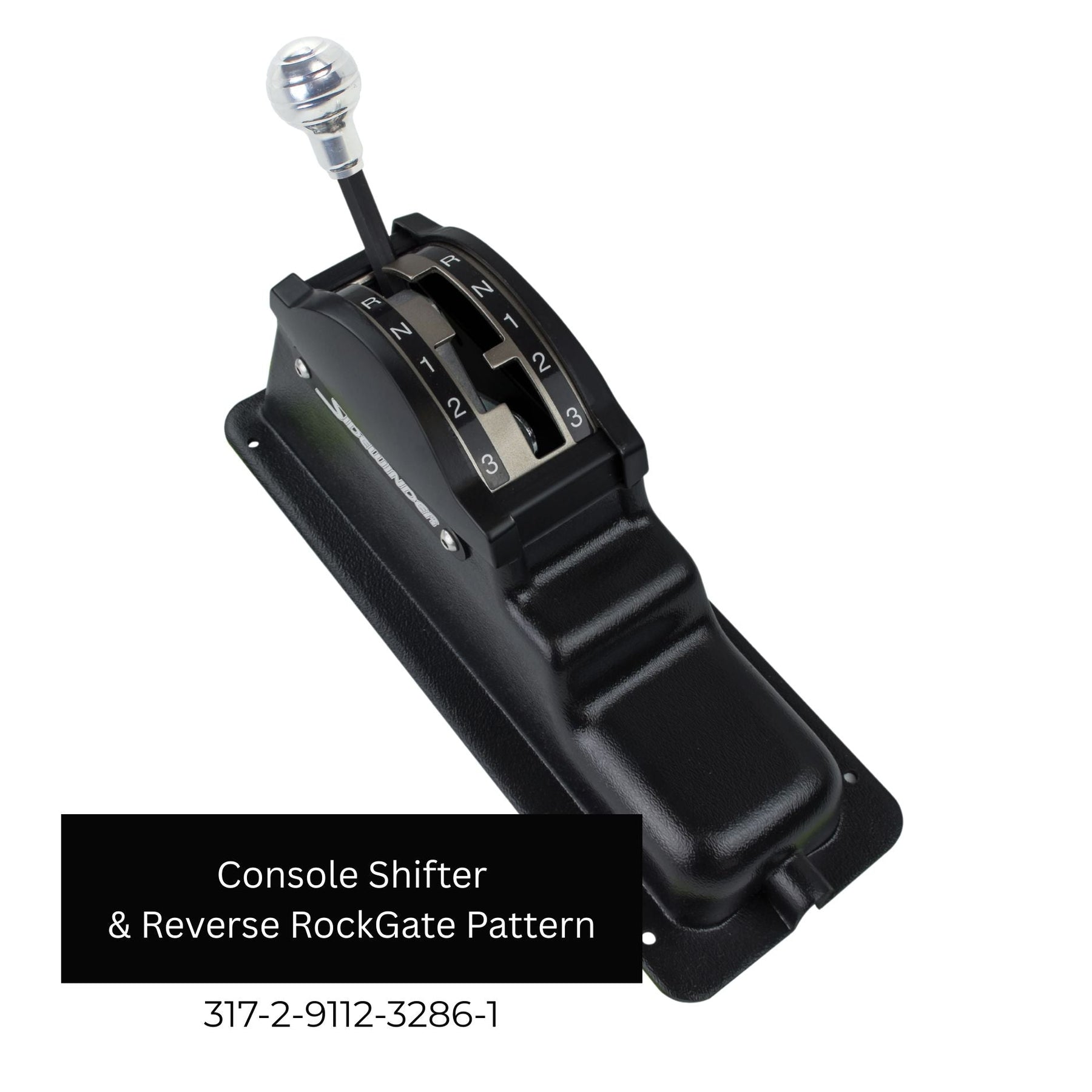

The Ford AOD is a four-speed automatic with overdrive, so proper shifter travel and cable adjustment are important for reaching the full transmission range. The SideWinder gives the driver defined gear positions while an offset section of the gate requires deliberate movement before the shifter can enter Reverse. Each shifter arrives fully assembled in its own console and includes a 5-foot cable and AOD shift linkage hardware for installation.
Includes:
| Specification | Details |
|---|---|
| Manufacturer | Winters Performance Products |
| Product Type | Automatic Transmission Gated Shifter |
| Shifter Series | SideWinder |
| Transmission Compatibility | Ford AOD Automatic Transmission |
| Transmission Type | 4-Speed Automatic with Overdrive |
| Shift Mechanism | Mechanical Stepped-Gate Design |
| Reverse Protection | Offset Mechanical Safety Gate |
| Console | Included |
| Cable Length | 5 Feet |
| Transmission Linkage | Included |
| Assembly | Ships Fully Assembled |
Fits:
Common Applications:
Installation Notes:

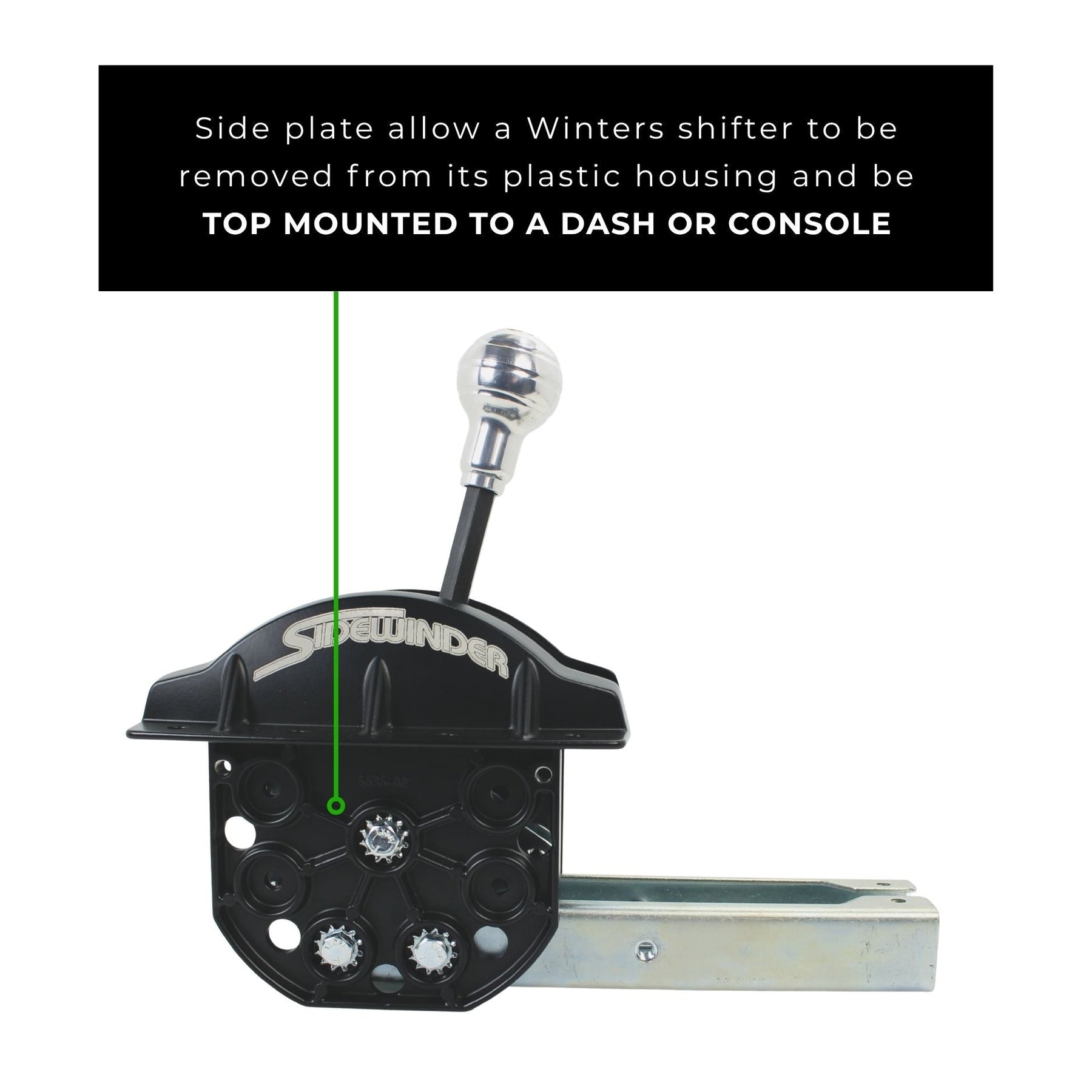

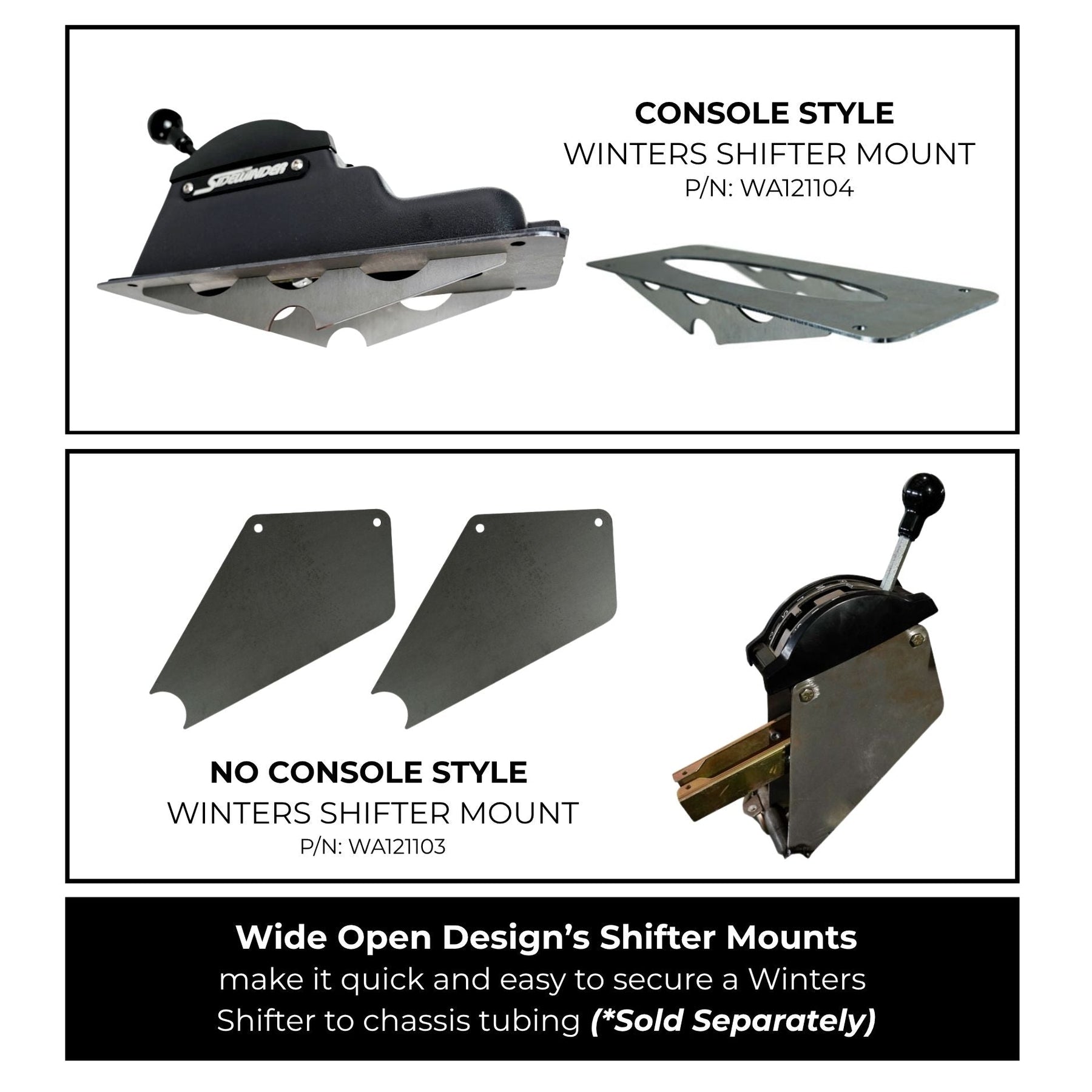

For custom installations, the Wide Open Design Winters Shifter Mounting Brackets provide a rigid, pre-drilled mounting foundation for the SideWinder housing.
The AOD gives Ford builders a four-speed automatic with overdrive, making it useful for vehicles that see both performance driving and road use. The SideWinder replaces a conventional vehicle-specific shifter arrangement with a rugged cable-operated gated shifter that works especially well in custom consoles and fabricated vehicle interiors.
No. The AOD and AODE are related Ford four-speed automatic transmissions, but they are not the same transmission. The AOD uses mechanical controls, while the later AODE incorporates electronic transmission control. Make sure you identify your transmission before ordering the shifter and linkage components.

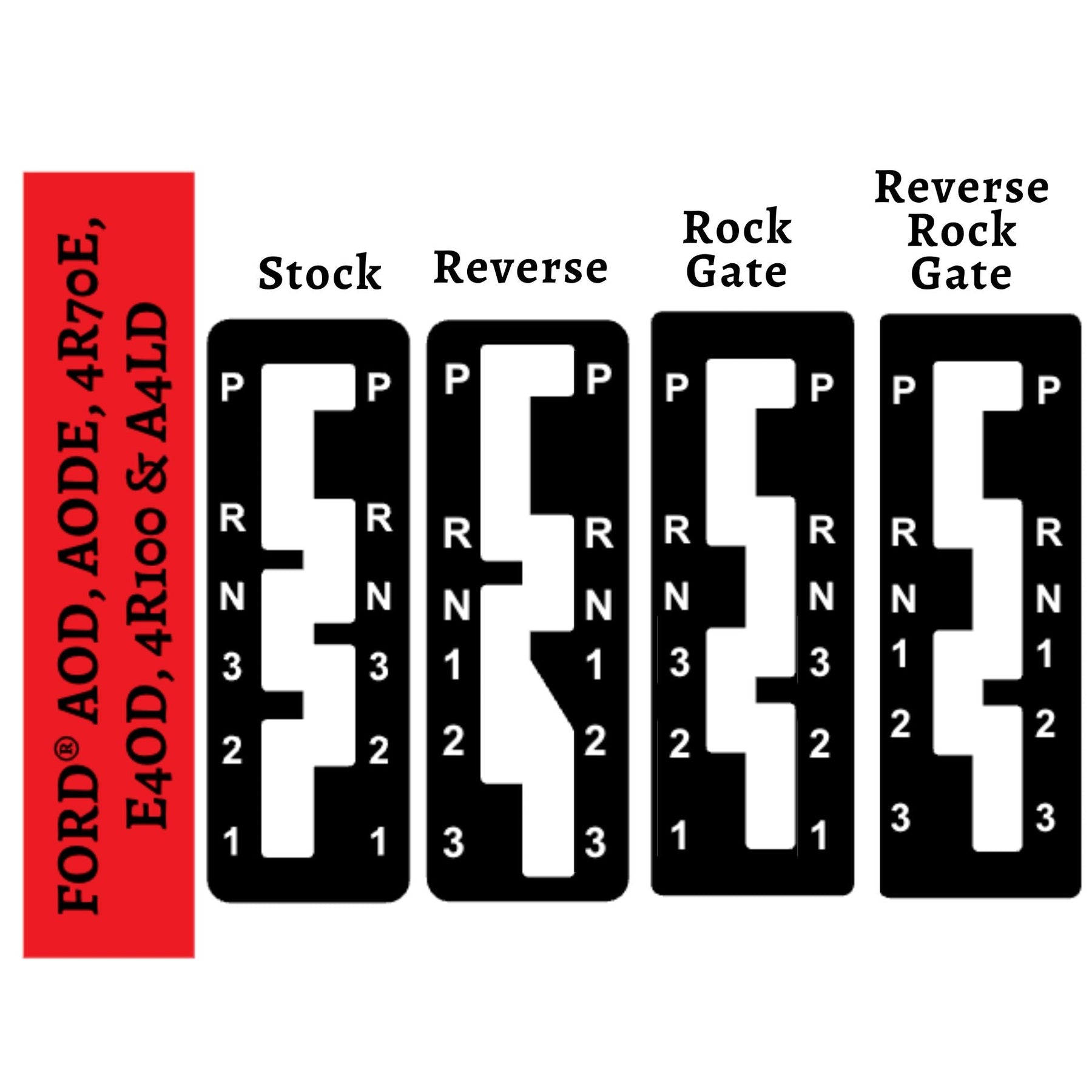

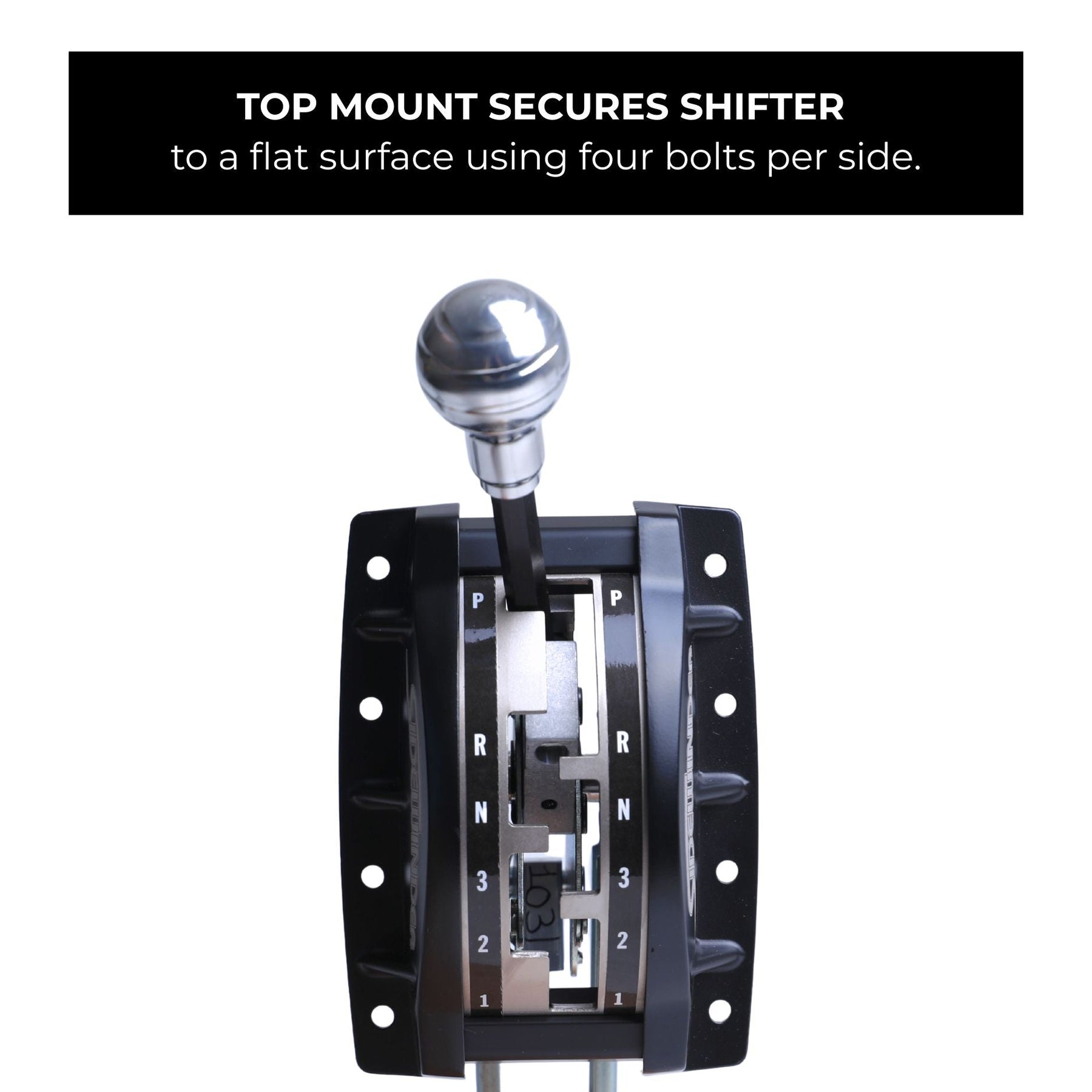

The stepped steel gate physically guides the shift handle through the transmission positions. Defined positions make it easier for the driver to select the intended range without relying on a spring-loaded lockout lever.

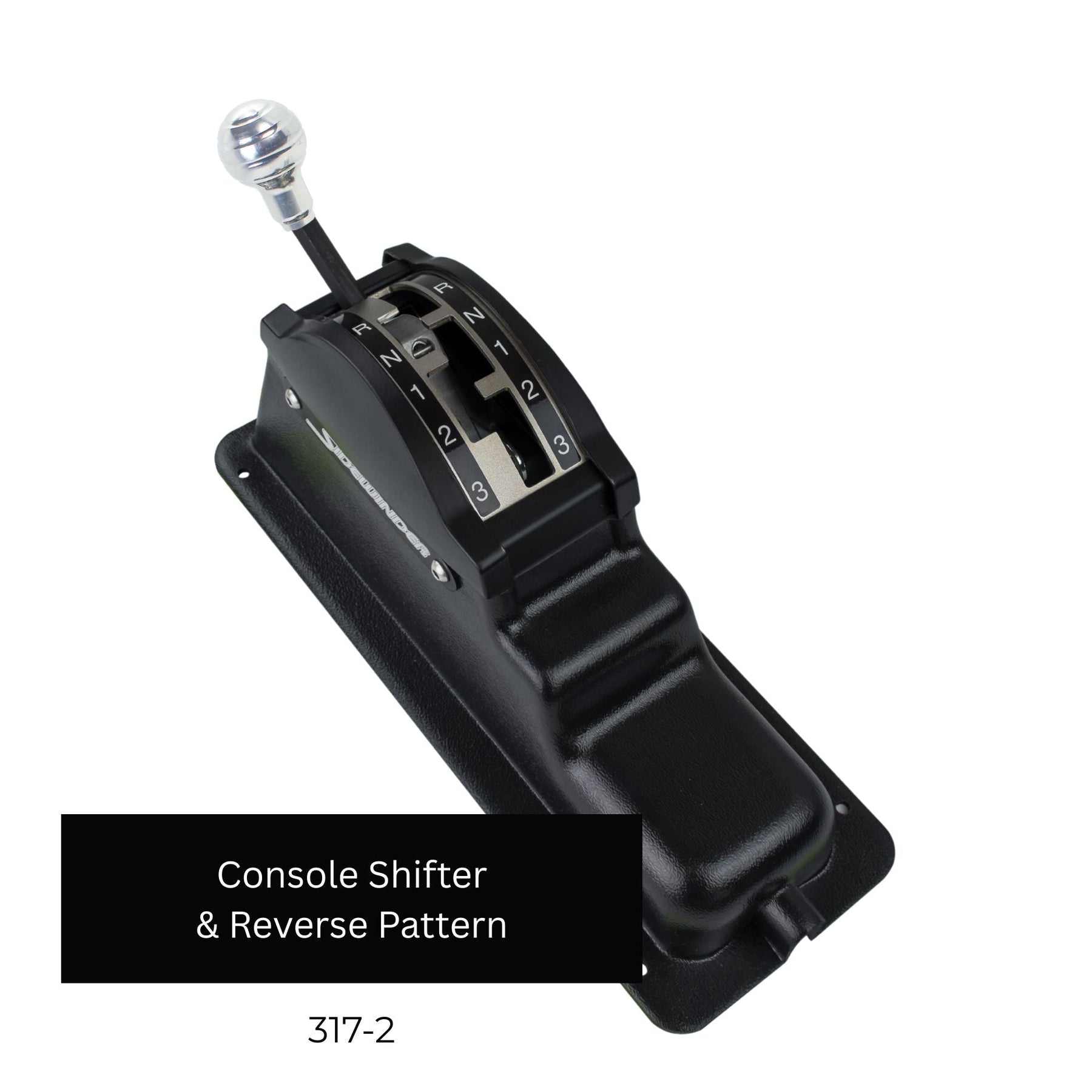

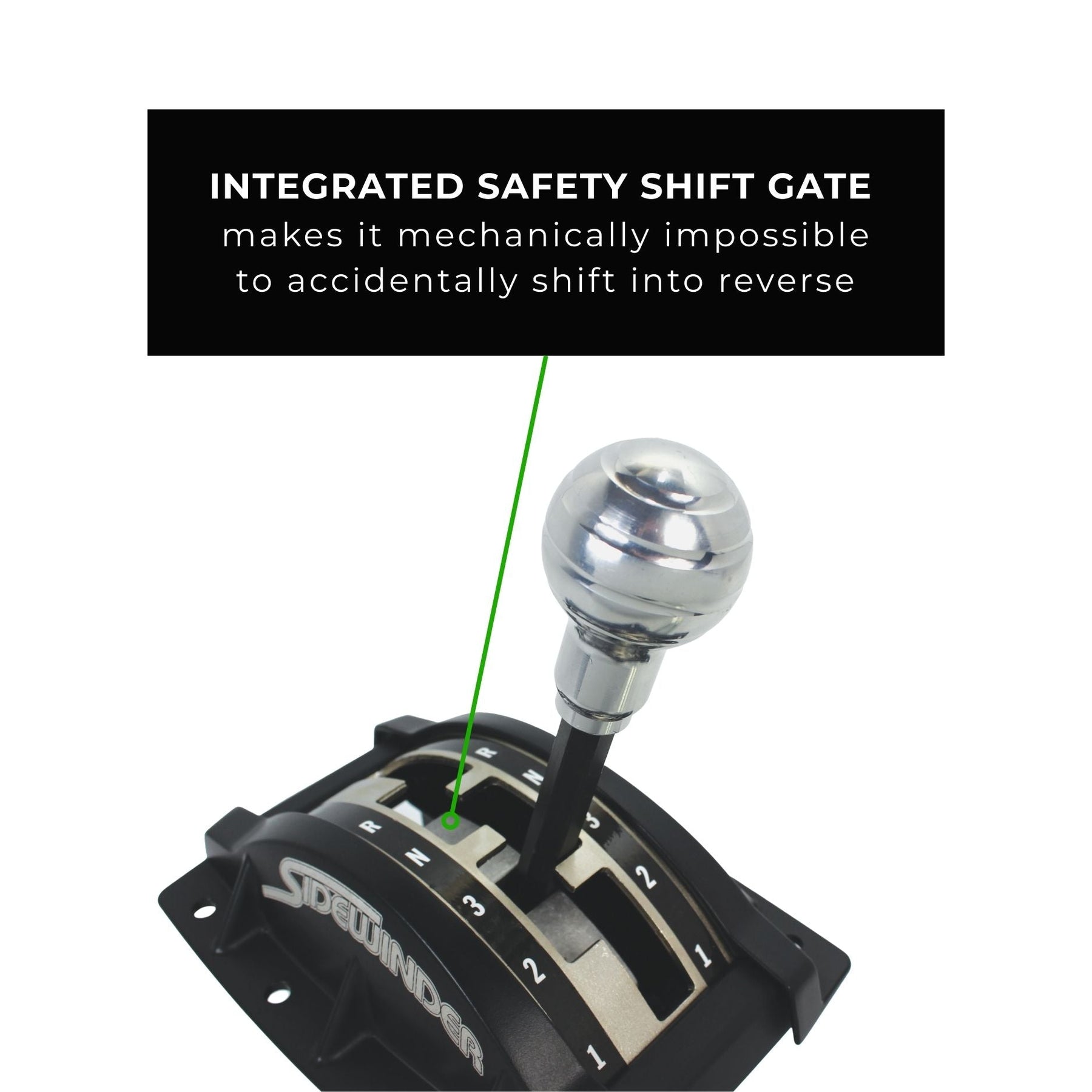

Reverse is located behind an offset section of the gate. The driver must intentionally move the shift handle through that offset before entering Reverse, helping prevent an accidental direct shift from a forward range into Reverse.
The shifter and cable need to move the AOD selector through its complete range so each shifter position corresponds with the correct transmission position. Poor adjustment can leave the transmission between positions or prevent the selector from reaching the end of its travel.
The included 5-foot cable works for many front-engine vehicles and custom builds. Longer cables may be required when the shifter is mounted farther from the transmission or when the cable needs to route around exhaust, drivetrain, or chassis components.
Yes. Because the SideWinder operates through a flexible push-pull cable rather than rigid linkage between the shifter and transmission, it can be positioned to work with many custom cockpit layouts. The shifter housing should still be mounted securely so it cannot move during gear changes.
Place both the AOD transmission selector and SideWinder shifter in Neutral before making the final cable adjustment. Once adjusted, move the shifter through its entire range and verify that every position fully engages the corresponding transmission detent without binding or placing unnecessary tension on the cable.
