Name: Winters Sidewinder Shifter for Ford E40D & 4R100 - Lockout Shifter
Brand: Winters Performance
SKU: 337-1B
Price: 309.24 USD
Availability: InStock

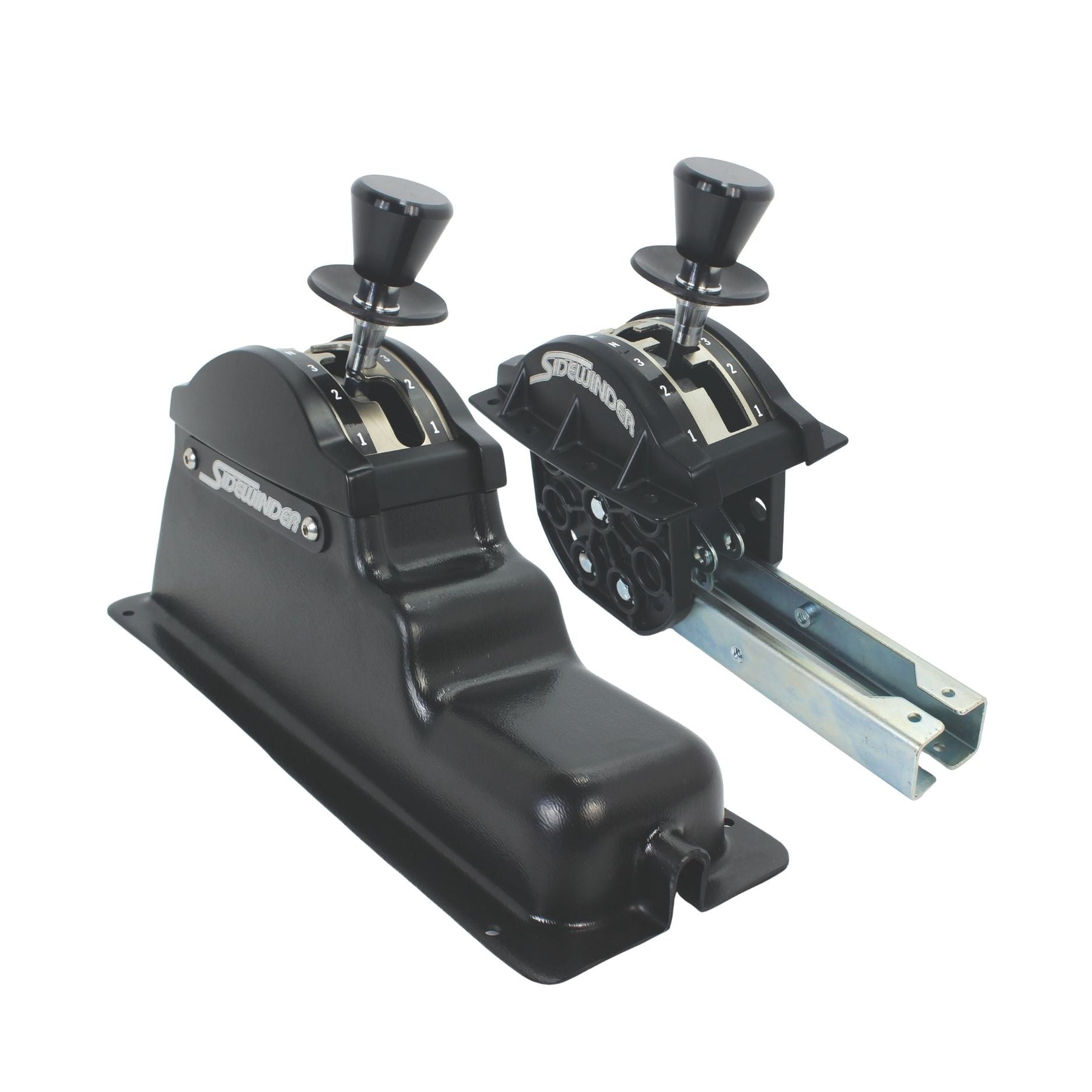

Pair of Art Carr style Winters Lockout Shifters set on a white background

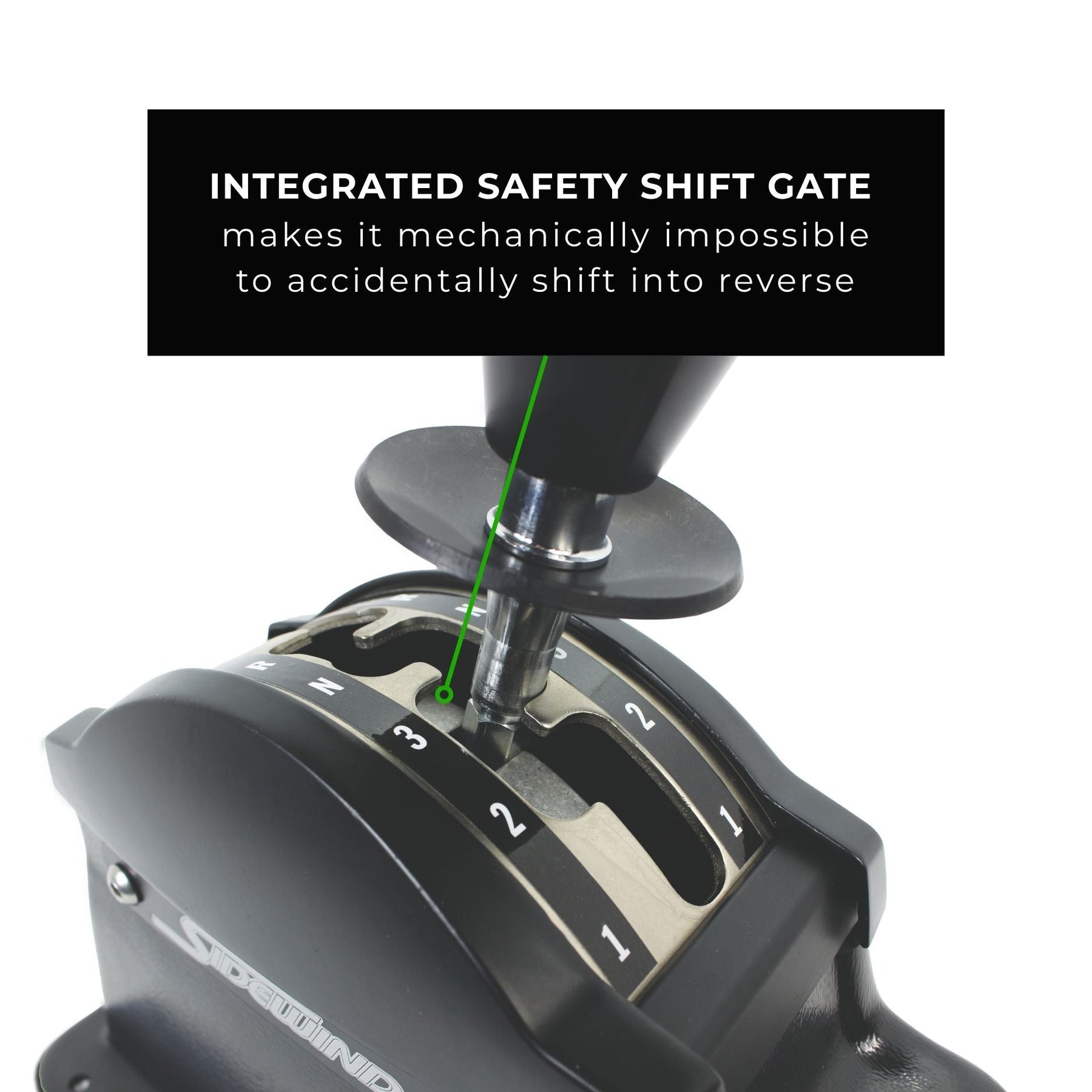

Close-up of a winters lockout shifter with an integrated safety shift gate feature, labeled on a white background.

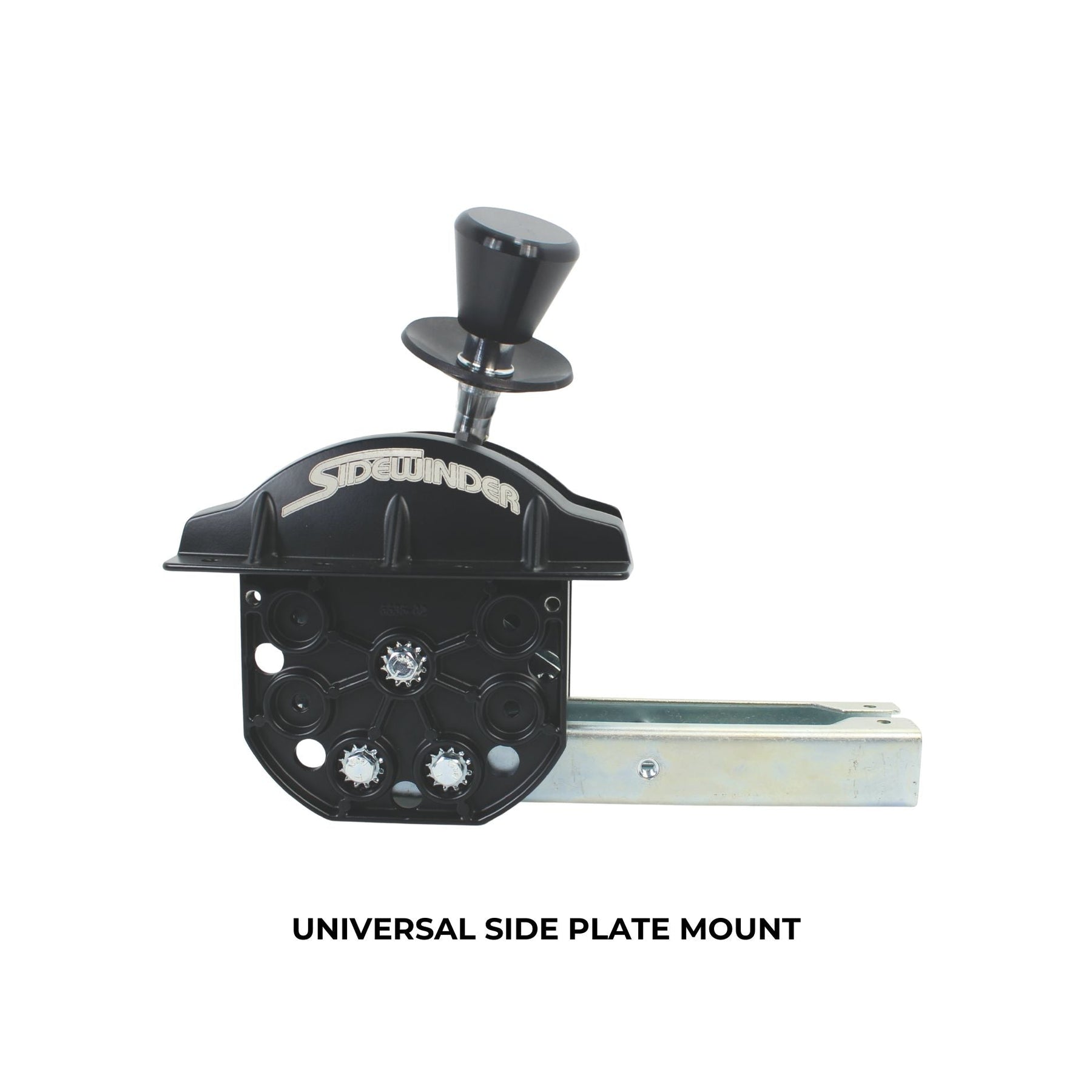

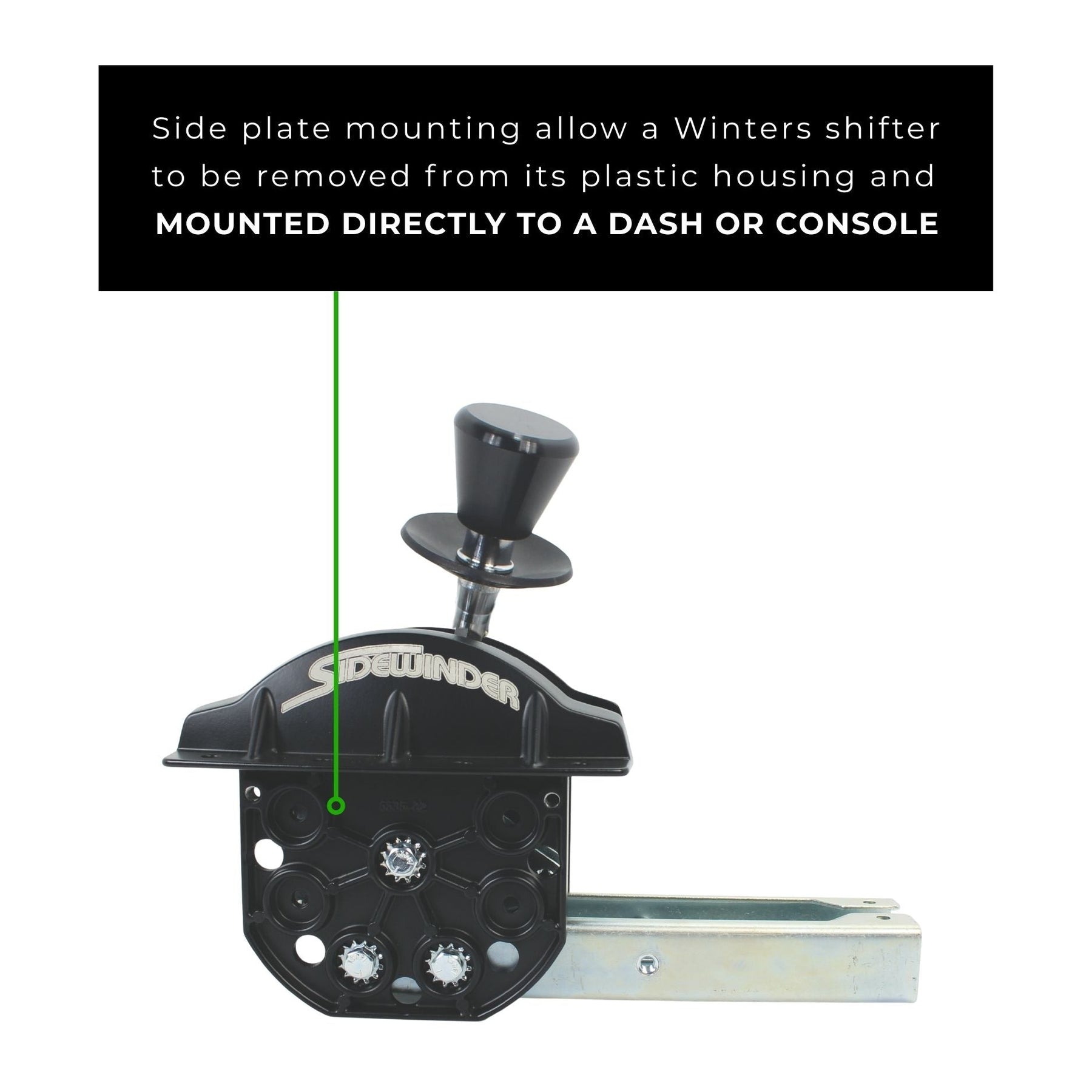

Winters shifter with side plate mounting instructions on a white background

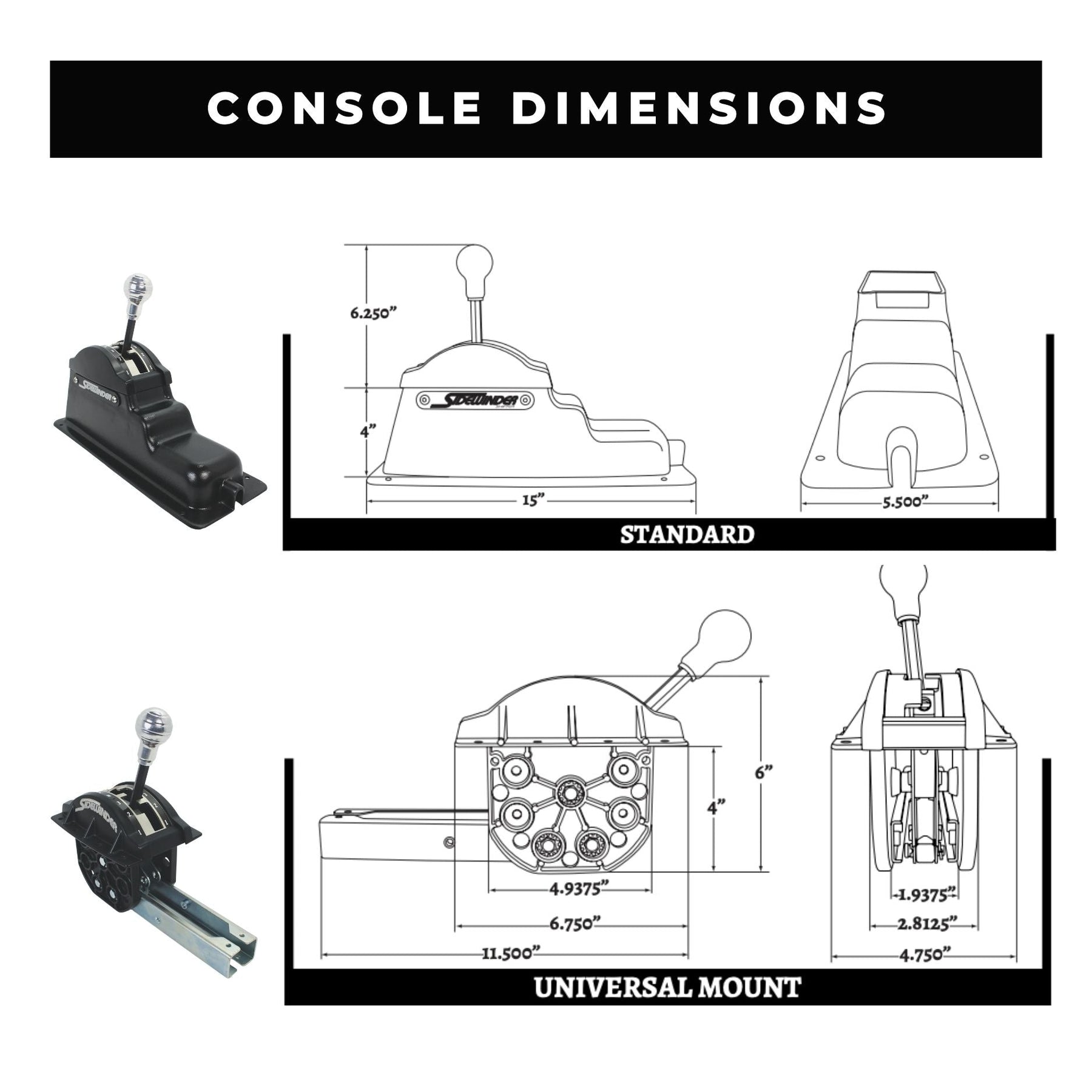

Technical diagram of console dimensions for standard and universal side plate mounts with labeled parts and measurements.

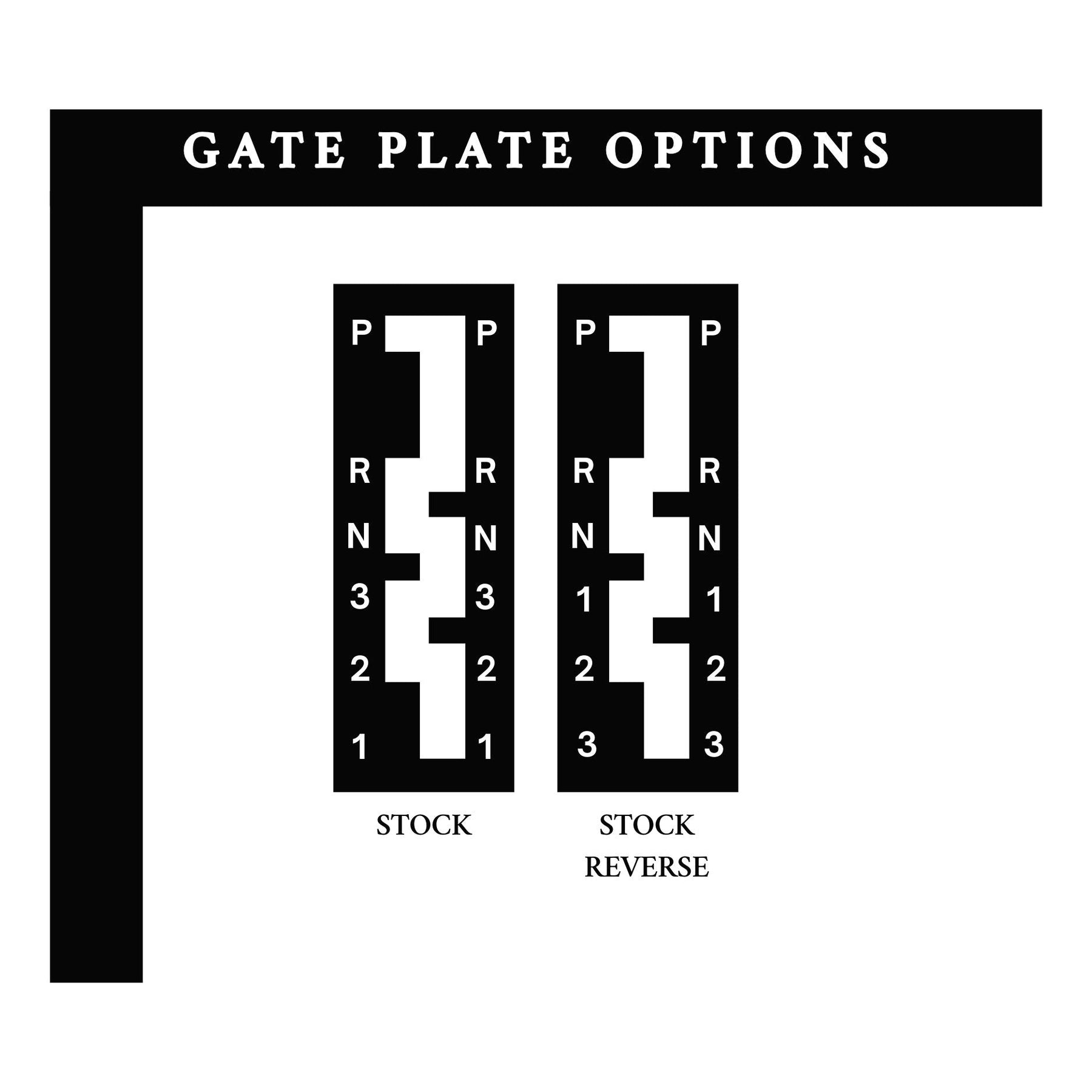

Illustration of gate plate options for an Art Carr Winters Shifter with &

Winters Sidewinder Shifter for Ford E40D & 4R100 - Lockout Shifter

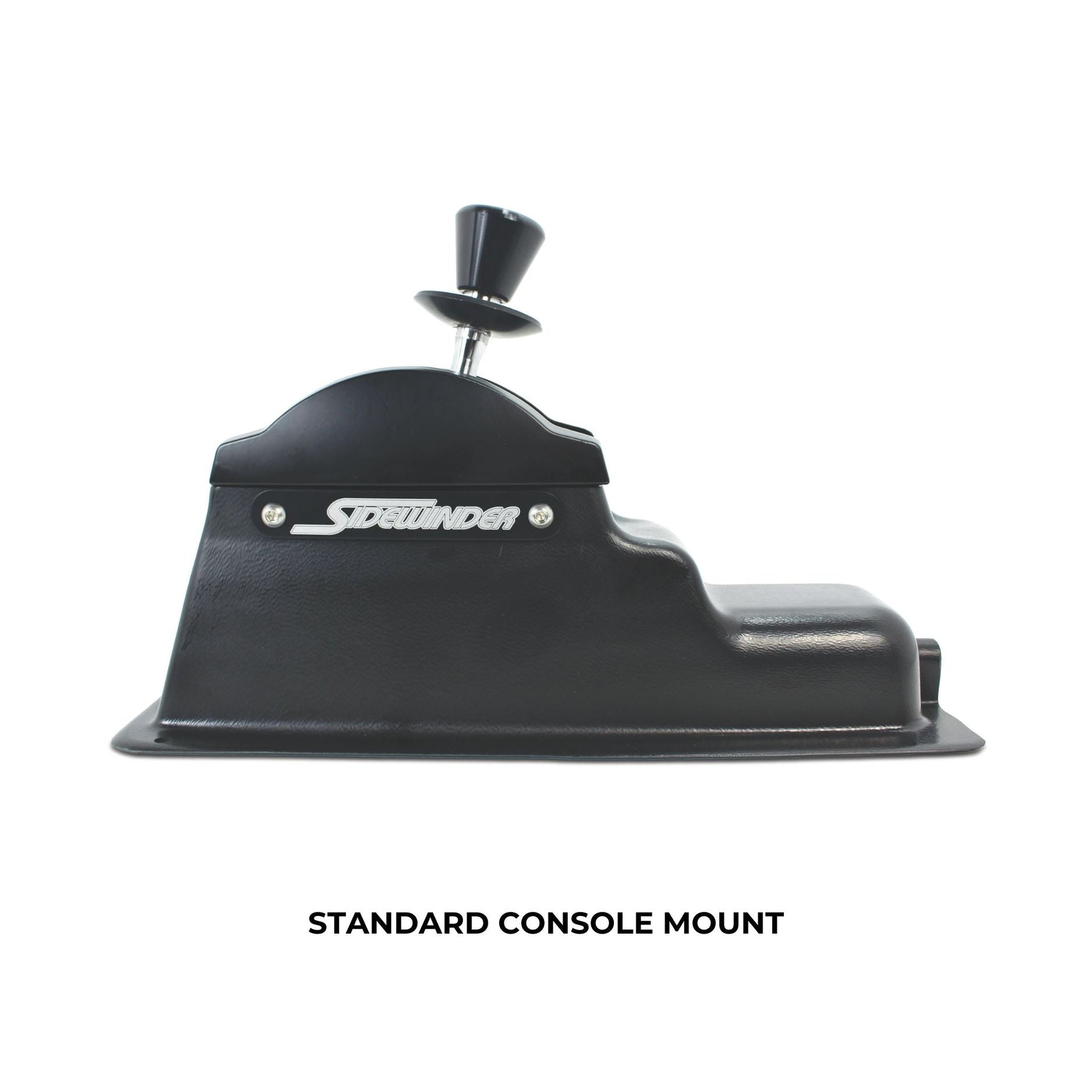

Winters Lockout Shifter with Standard console mount with &

$309.24

Shipping calculated at checkout.

Quantity

The Art Carr - Winters SideWinder Lockout Shifter for Ford E4OD and 4R100 is designed specifically for the Ford E4OD, and 4R100 automatic transmissions, this lockout configuration features a mechanical reverse lockout system that makes it physically impossible to accidentally shift into reverse from any forward gear.

The shifter comes fully assembled in a standard Winters plastic console and typically includes a 5-foot (3 travel) double-clip push-pull cable and mounting hardware. Shifters are also available without a cable if a custom length is required.

The lockout version includes a neutral safety switch, ensuring the vehicle can only be started when the shifter is in Park — an essential feature for diesel swaps and competition builds.

Meets the safety requirements of most major American racing sanctioning bodies, including:

National Hot Rod Association (NHRA)
International Hot Rod Association (IHRA)
SCORE International
Best in the Desert (BITD)
NASCAR (Dirt and Pavement Modifieds/Late Models)
Sprint Cars (305, 360, 410)
Drag Racing
ULTRA4 Racing

Note: We highly recommend reading your specific rule book; it is essential for safety and technical compliance.

Transmission Compatibility: Ford E4OD / 4R100
Shift Pattern: Standard or Reverse (specify configuration)
Lockout: Yes
Neutral Safety Switch: Yes
Cable: 5 ft, 3 travel (unless ordered without cable)

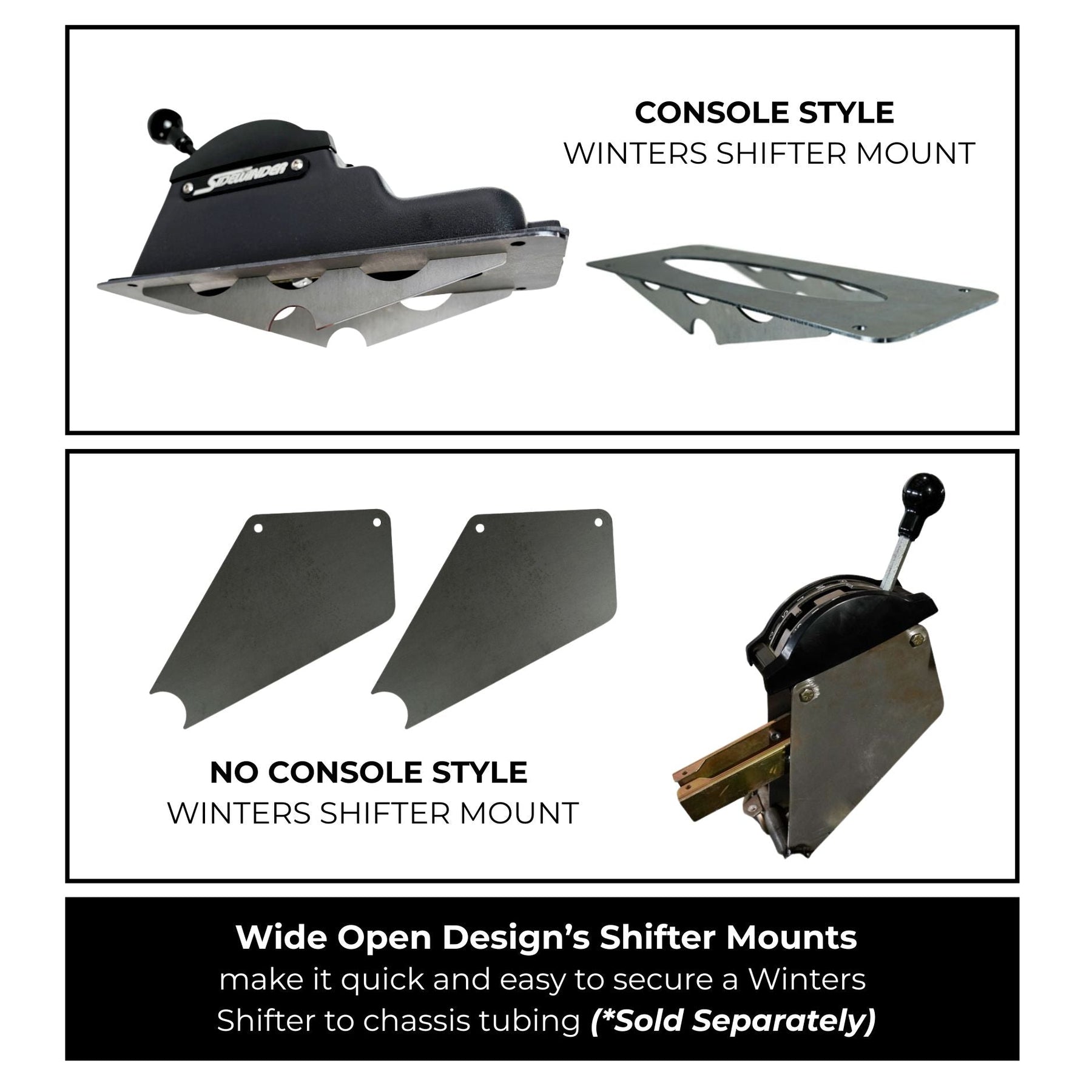

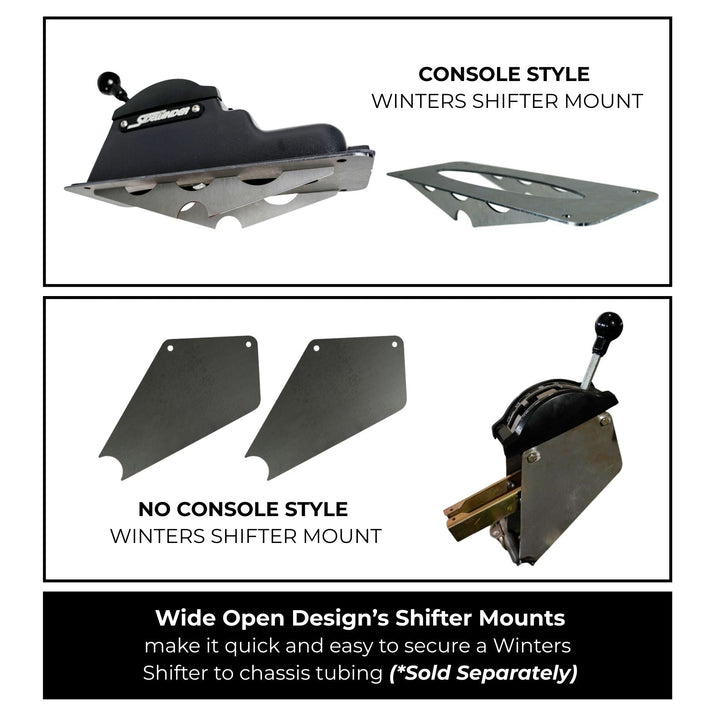

Mounting: Console or custom flat-mount capable

Ford E4OD automatic transmissions
Ford 4R100 automatic transmissions
Requires correct linkage kit (Winters P/N 3395)
Ideal for diesel swaps, Ultra4 trucks, mud trucks, and heavy-duty off-road builds

The E4OD and 4R100 are large-case, heavy-duty transmissions commonly used in diesel and high-torque applications. Proper detent alignment and cable geometry are critical to ensure full gear engagement under load. The Winters Sidewinder lockout design provides precise manual control while eliminating the risk of accidental reverse engagement — especially important in high-vibration race and off-road environments.
