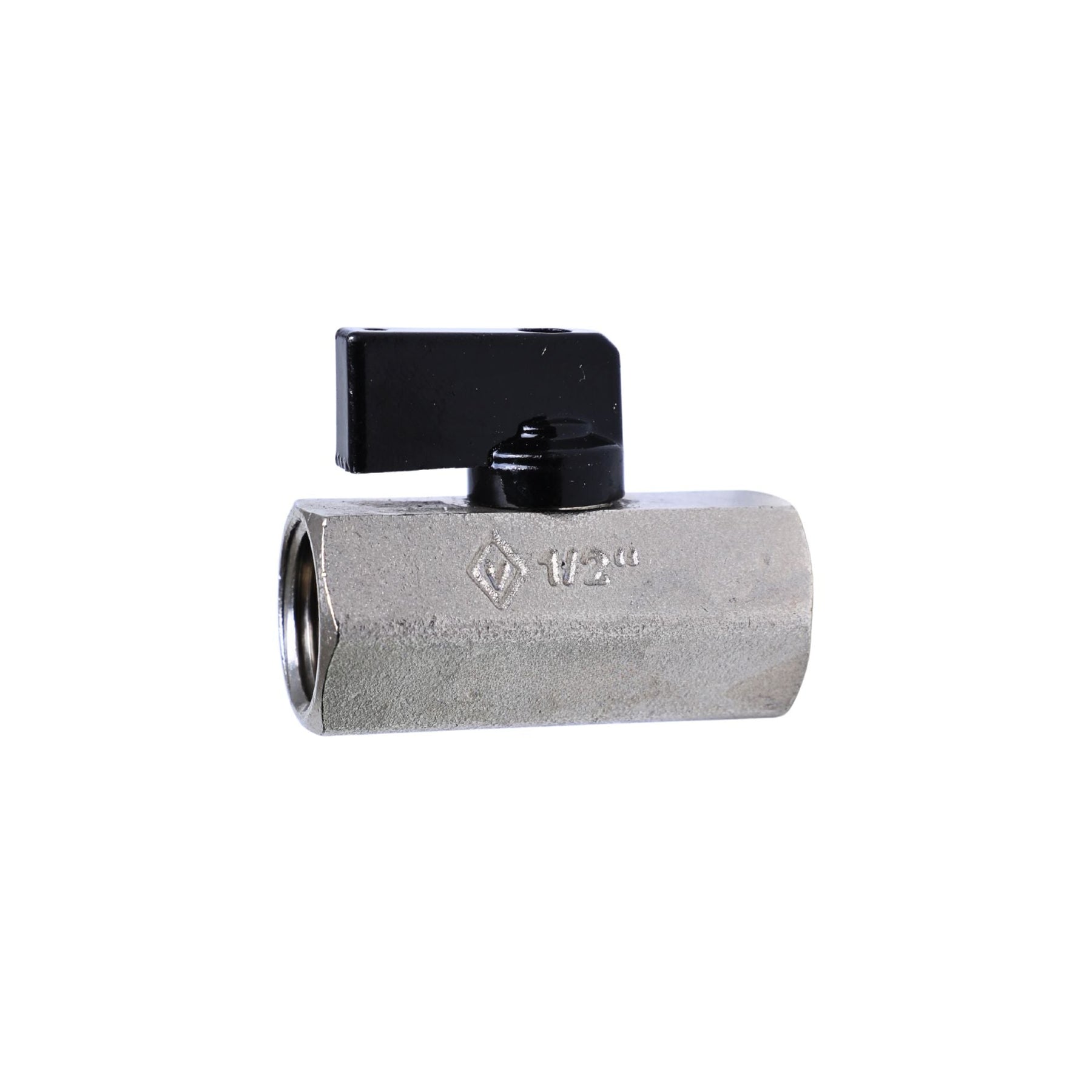

1/2 NPT fuel shutoff ball valve with black handle on a white background

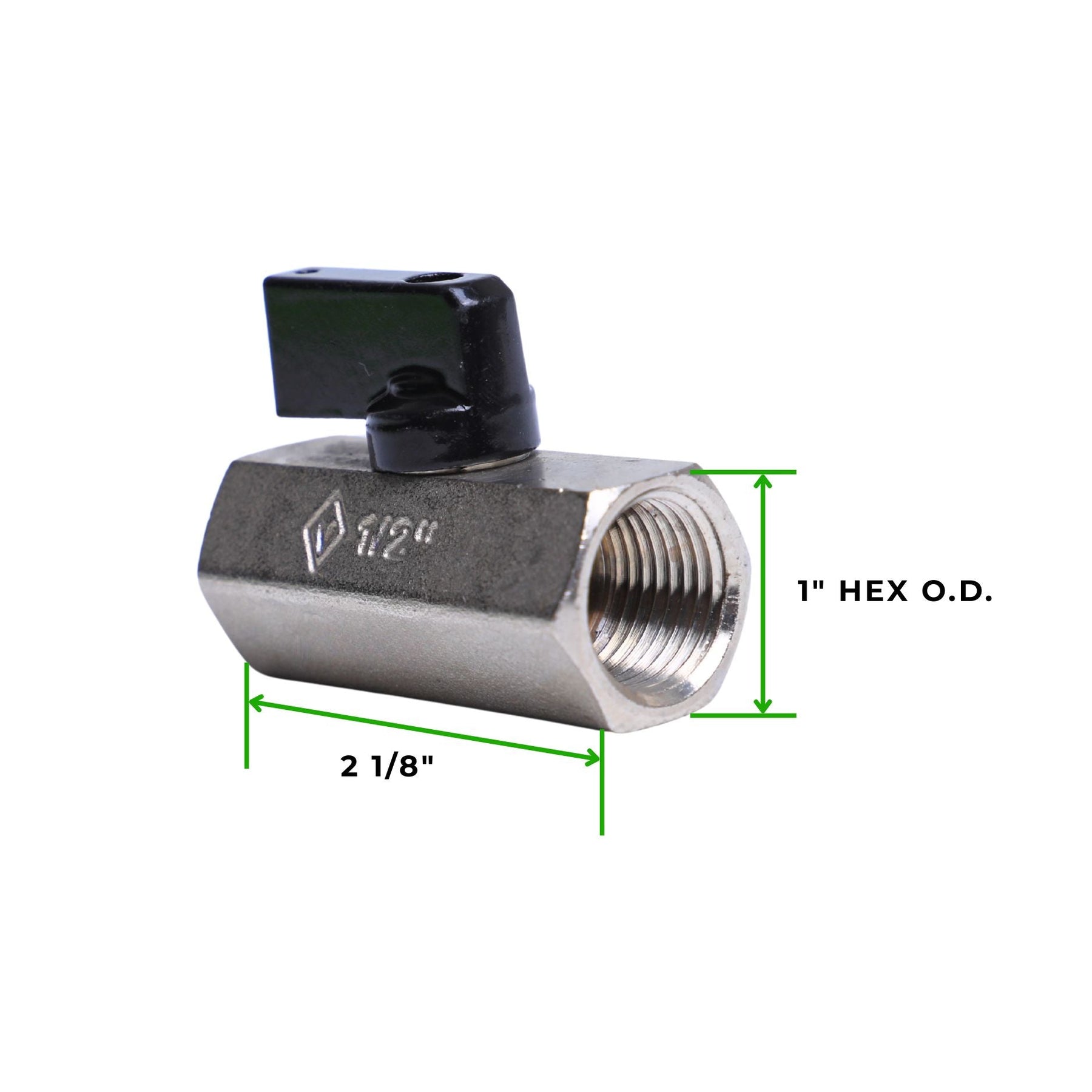

fuel system shutoff valve -6 AN adapter for LS swap with dimensions labeled on a white background
1/2" NPT Mini Ball Fuel Shutoff Valve
1/2 NPT fuel shutoff ball valve with black handle on a white background
fuel system shutoff valve -6 AN adapter for LS swap with dimensions labeled on a white background
1/2" NPT Mini Ball Fuel Shutoff Valve

1/2" NPT Mini Ball Fuel Shutoff Valve

46-9241

$34.49
/
Shipping calculated at checkout.

Our 1/2" NPT Mini Ball Valve is a compact, high flow fuel shutoff solution designed for performance and racing fuel systems. If you need reliable flow with the ability to quickly isolate your fuel system for maintenance, this valve is a must have.

Built for durability and ease of installation, the hex-shaped body makes tightening and positioning simple, even in tight chassis layouts common in tube frame buggies and race vehicles.

This valve is ideal for use between the fuel cell and pump, before a filter, or anywhere you want quick fuel system isolation for service or safety.

Included

  • (1) 1/2" NPT Mini Fuel Shutoff Valve

Features:

  • 1/2 NPT female ports
  • Compact mini ball valve design
  • HEX body for easy wrench installation
  • Non-corrosive and fuel-safe construction
  • Smooth, positive shutoff action
  • Optional -6 AN or -8 AN adapter fittings available (*sold separately)

This is the same style valve commonly used in race fuel systems where serviceability and safety matter.

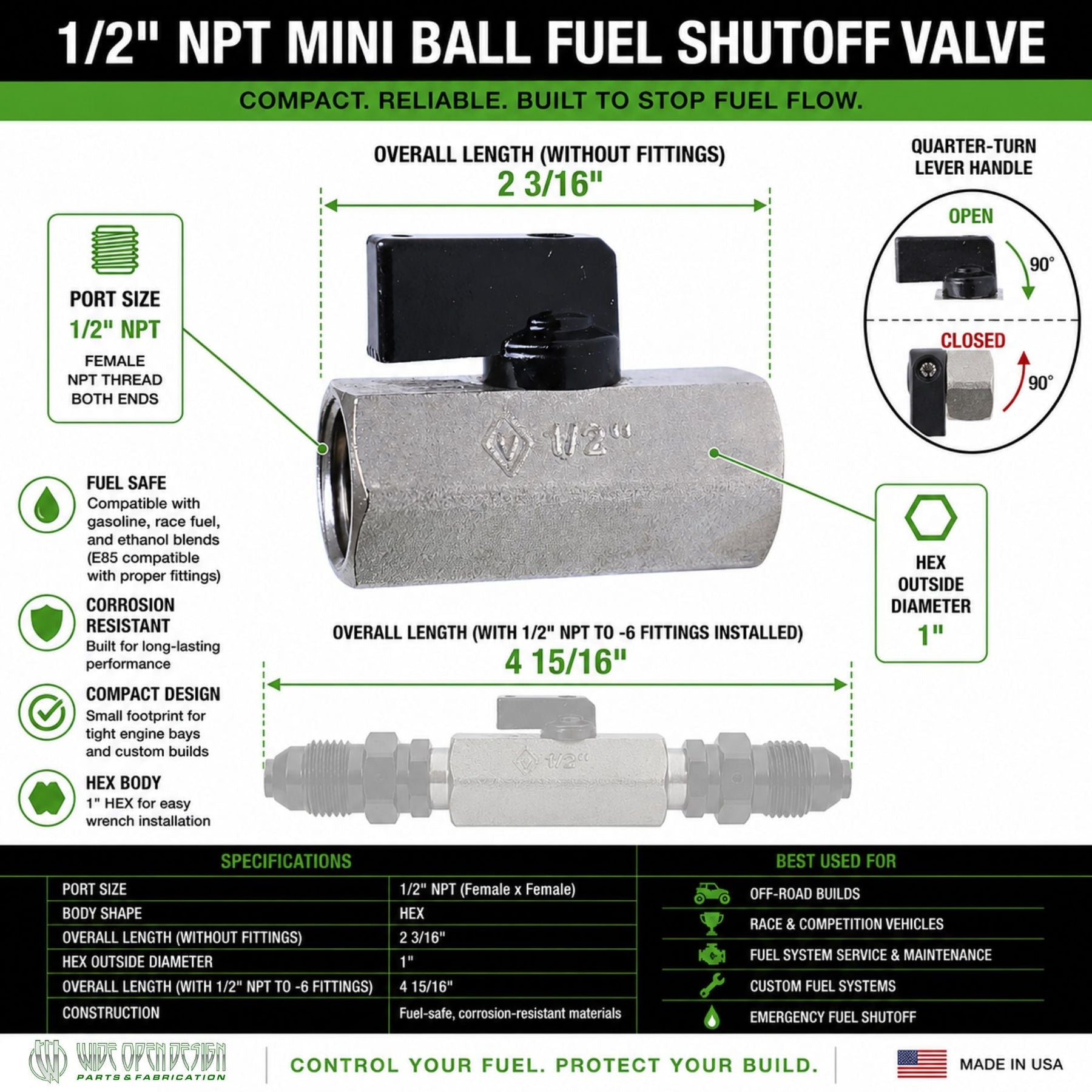

Specifications
  • Port Size: 1/2 NPT
  • Body Shape: HEX for easy installation
  • Overall Length (without fittings): 2 3/16
  • HEX Outside Diameter: 1
  • Overall Length (with 1/2 NPT to -6 fittings installed): 4 15/16
  • Fuel Compatibility: Gasoline, race fuel, ethanol blends (E85 compatible when paired with proper fittings)
  • Construction: Fuel-safe, corrosion-resistant
Fitment
  • Universal fuel system applications
  • Race cars
  • Rock crawlers
  • Ultra4 vehicles
  • LS swap builds
  • Carbureted or EFI fuel systems
  • Compatible anywhere 1/2 NPT ports are used or when paired with NPT-to-AN adapters.
Tech Insight

A dedicated fuel shutoff valve dramatically simplifies fuel system service. Whether you're replacing a pump, cleaning a pre-filter, or servicing injectors, isolating the tank saves time and prevents unnecessary fuel spillage.

In off-road and racing applications, adding a shutoff valve also adds an extra layer of safety during maintenance or emergency situations.

If you're building a serious fuel system, this small component makes a big difference in usability.
