Adjustable Antenna Bar Mount - Rugged Radios

BM-ANT-1.0

$65.00
/
Shipping calculated at checkout.

Select Your Bar Mount Size

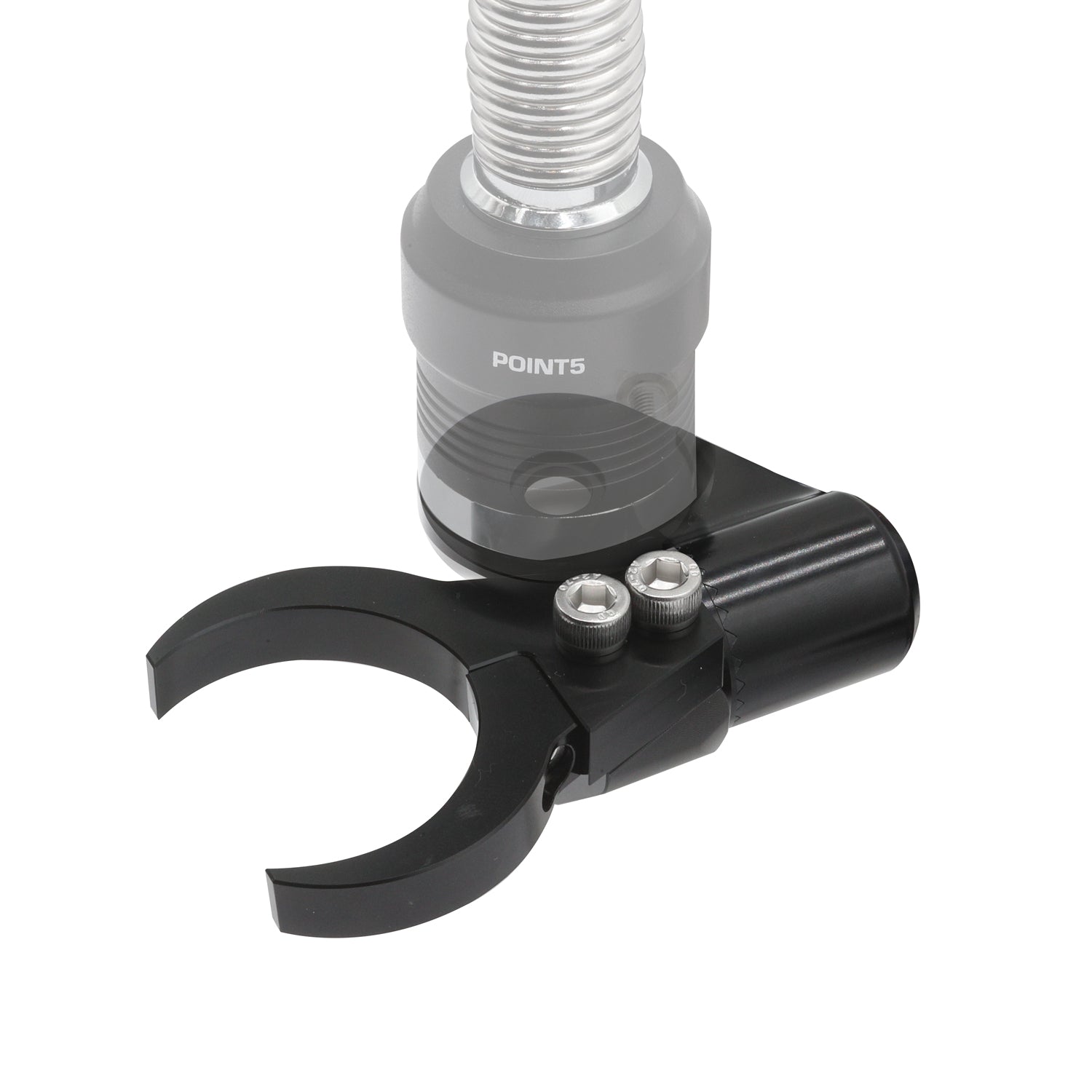

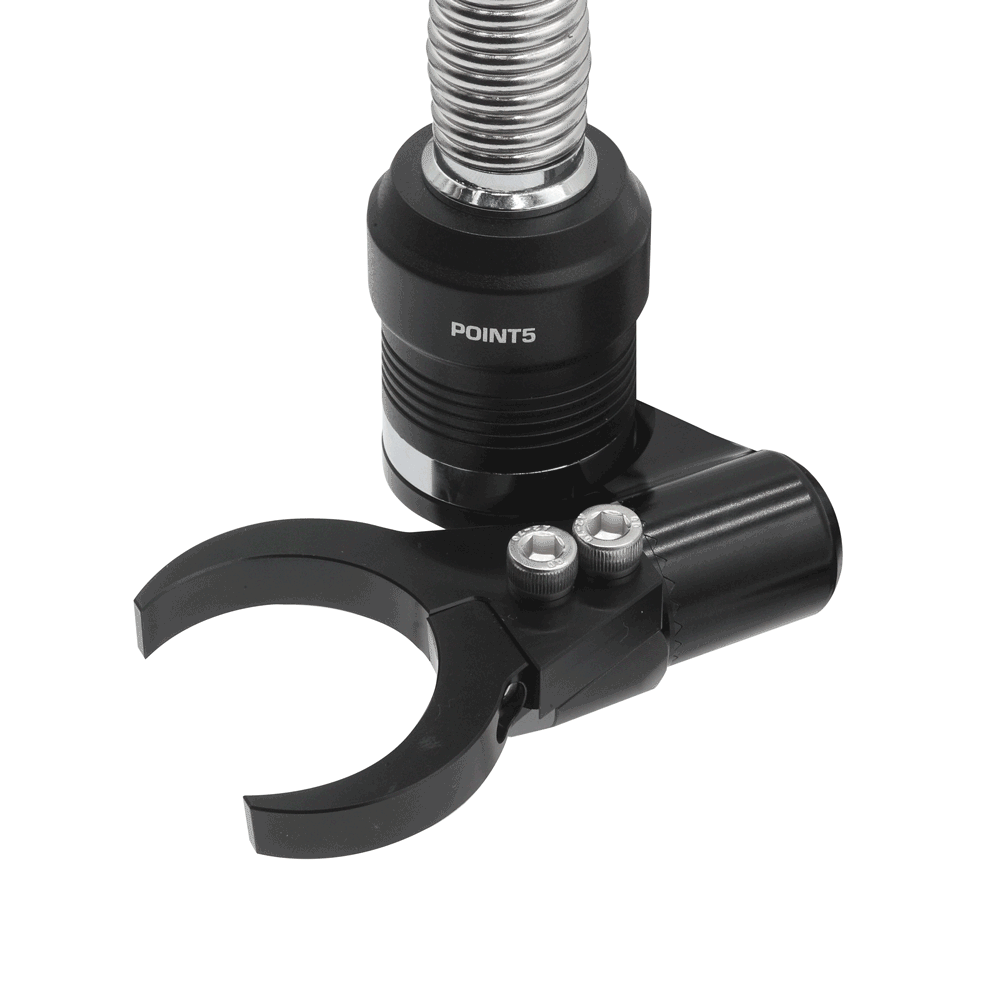

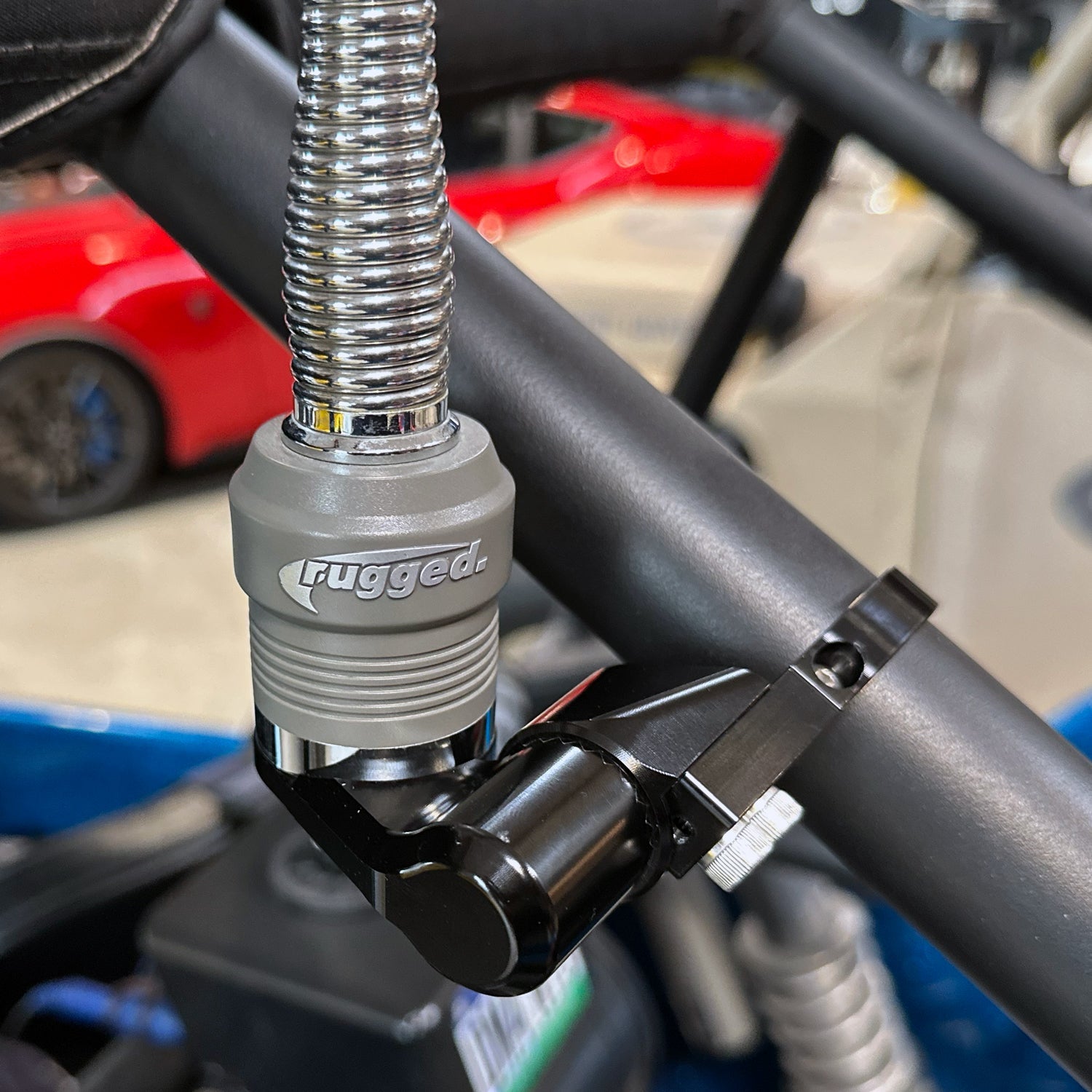

The Rugged Radios Adjustable Antenna Bar Mount provides an adjustable antenna mounting point on a roll cage, tubular frame, or other suitable round bar. It is useful when a builder needs to place the antenna around a roof edge, cage intersection, or limited bodywork without welding on a new bracket or drilling the tubing.

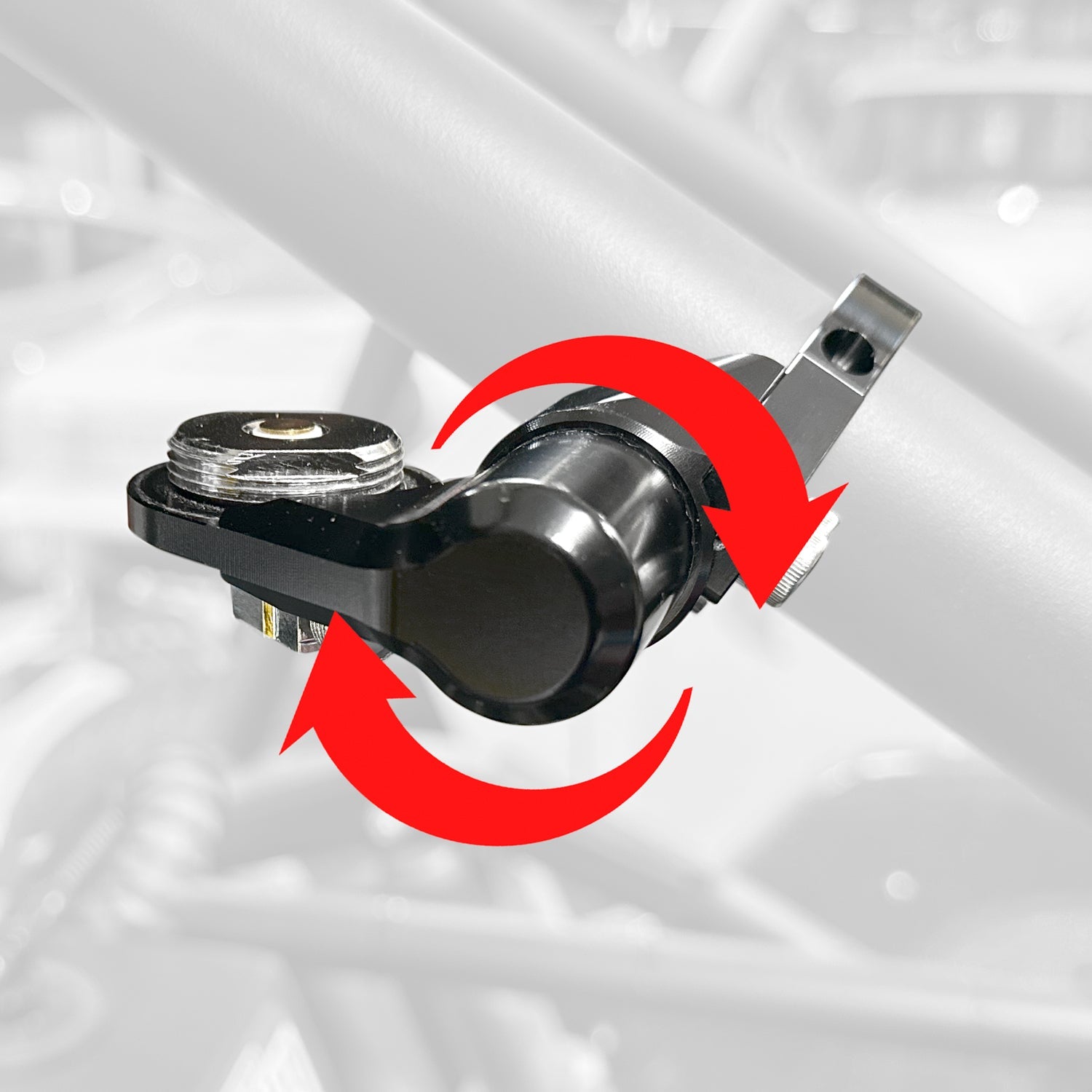

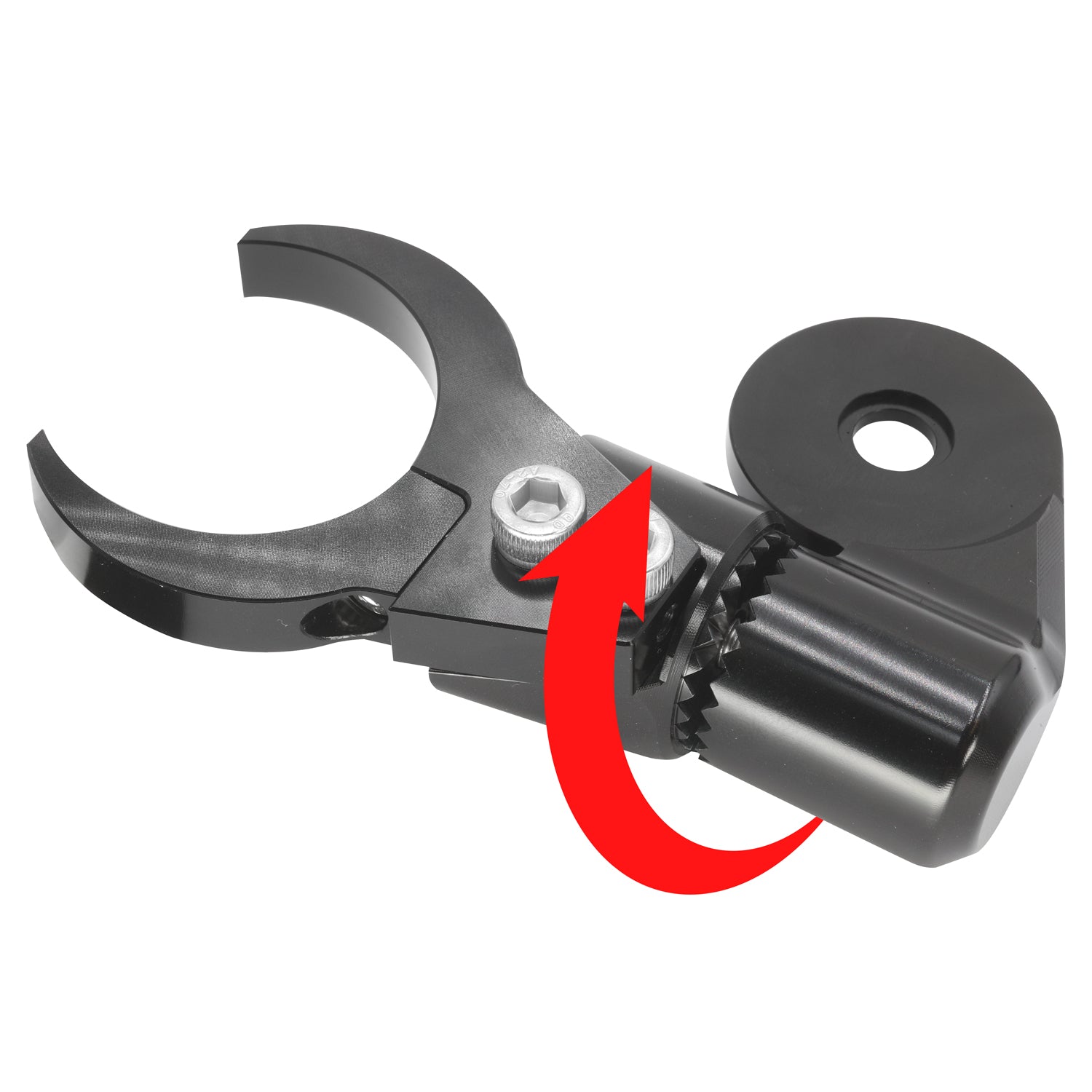

More than 30 indexed positions allow the antenna angle to be set with the mount on horizontal or vertical tubing. Billet aluminum construction provides the clamp-and-bracket assembly, and the available variants cover specific tube diameters rather than a single universal clamp size. Select the actual tube measurement and the compatible antenna-cable interface; the mount-only option omits the bar clamp.

Includes:

  • Antenna mounting bracket
  • Selected bar clamp; no clamp with mount-only option
Specifications
Part Number BM-ANT-1.0
BM-ANT-1.25
BM-ANT-1.5
BM-ANT-1.75
BM-ANT-1.8
BM-ANT-2.0
BM-ANT-2.5
BM-XC-ANT
Product Type Antenna Mounts
Primary Application Cage and tubular-frame antenna mounting; Custom antenna positioning around vehicle bodywork
Manufacturer / brand Rugged Radios
Material Billet aluminum
Adjustment More than 30 indexed positions
Cable interface 3/8-inch NMO-style antenna cable
Tube options 1, 1.25, 1.5, 1.75, 1.8, 2, or 2.5 inches
Select Your Bar Mount Size 1" Inch; 1.25" Inch; 1.5" Inch; 1.75" Inch; 1.8" Inch; 2" Inch; 2.5" Inch; Antenna Mount Only (No Bar Mount)
Fitment

Common Uses:

  • Cage and tubular-frame antenna mounting
  • Custom antenna positioning around vehicle bodywork

Fitment Notes:

Dimensional fit by tube size. Not compatible with NMO-MT-3/4 mounts; tube diameters vary by mounting location.

FAQs

Does the mount-only option include a bar clamp?

No. Choose a listed bar-size option if the installation needs the matching clamp.

Can I mount it on horizontal tubing?

Yes. The indexed adjustment supports horizontal or vertical bar mounting while allowing the antenna angle to be set.

How do I choose the clamp size?

Measure the actual outside diameter at the intended tube location and select the matching available variant. Tube size can differ between locations on the same vehicle.

What connections or fitment does this require?

Dimensional fit by tube size. Not compatible with NMO-MT-3/4 mounts; tube diameters vary by mounting location.

What is supplied with this listing?

Antenna mounting bracket; Selected bar clamp; no clamp with mount-only option.
