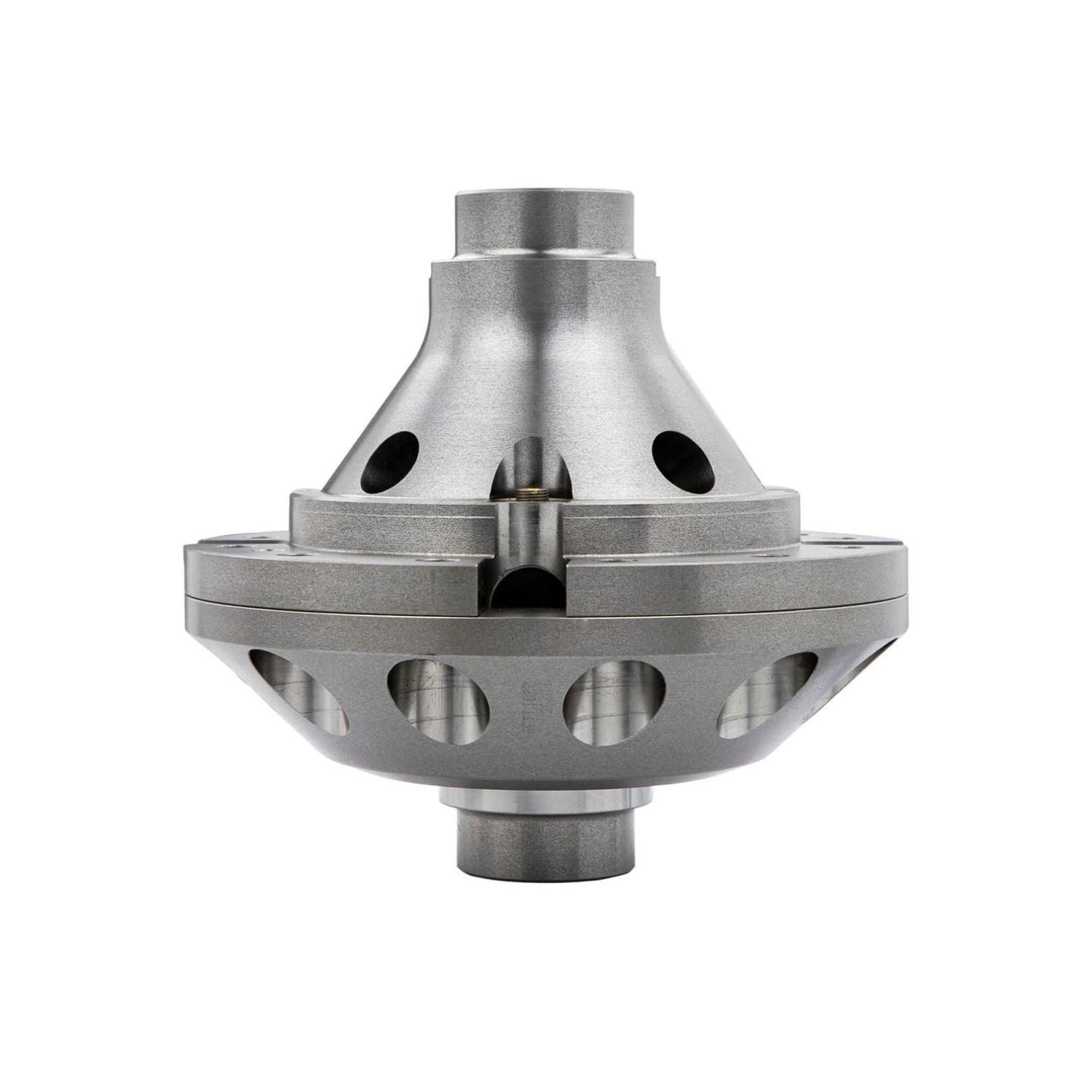

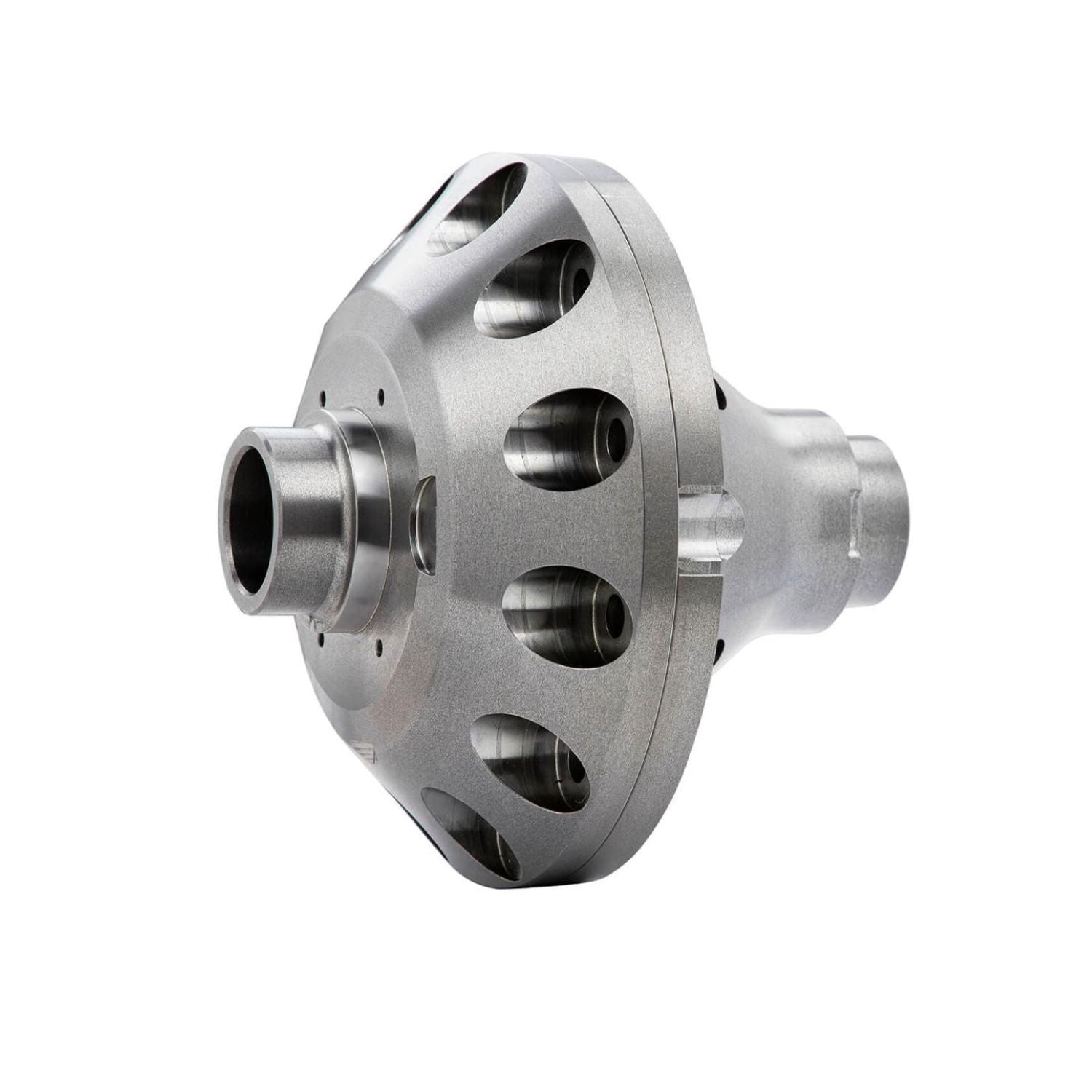

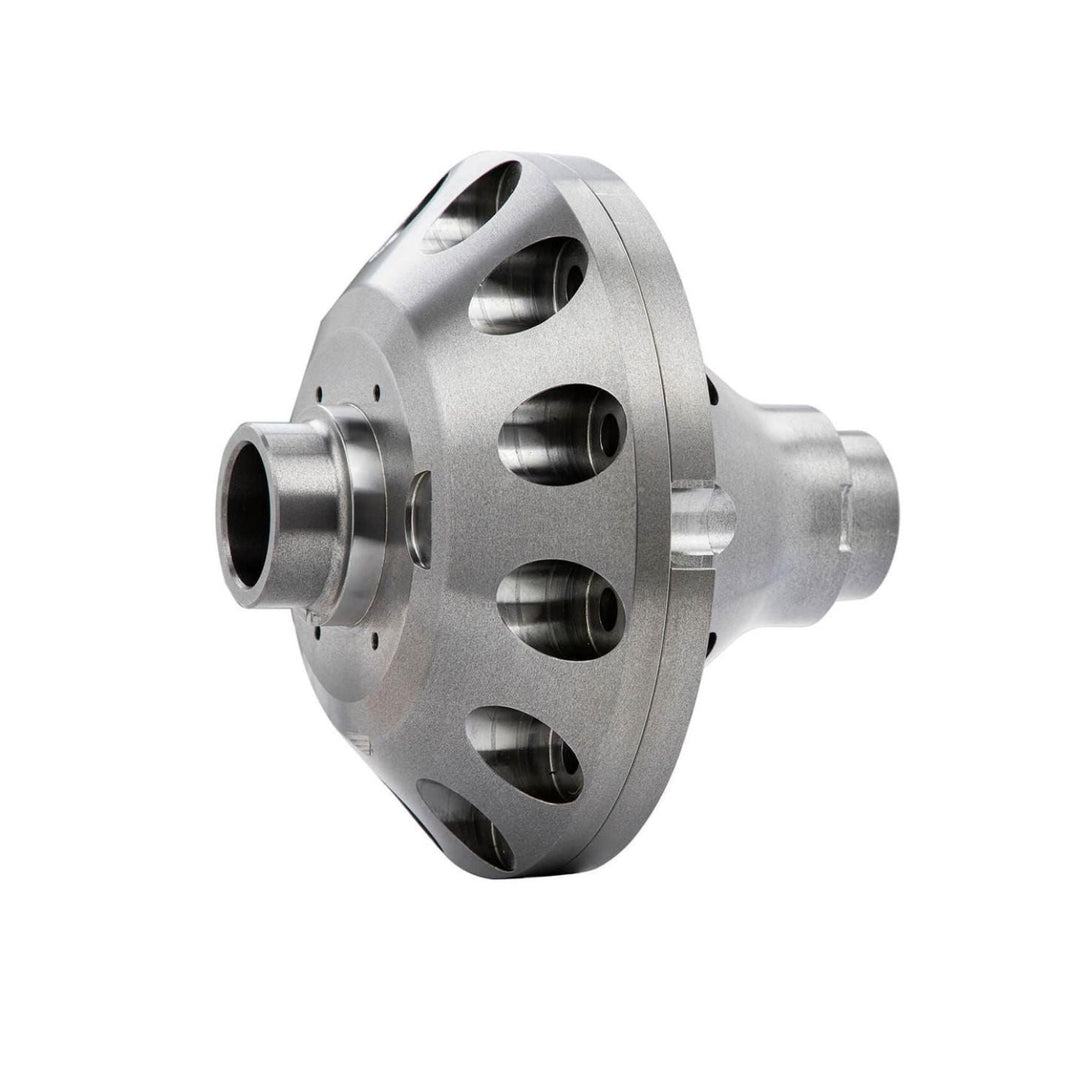

ARB GM 14-Bolt Selectable Air Locker - 10.5" Rear Axle, 35 Spline

ARBRD235

$1,399.95
/
Shipping calculated at checkout.

The ARB Air Locker for the GM 14-Bolt 10.5" axle is the world’s premier selectable locking differential. Designed for strength and reliability, this Air Locker uses ARB’s proven pneumatically actuated locking system, enabling engagement at any speed while maintaining normal open-differential behavior when unlocked. With the flip of a switch, the Air Locker delivers instant 100% traction on demand, allowing both axle shafts to rotate together for maximum control in the toughest terrain.

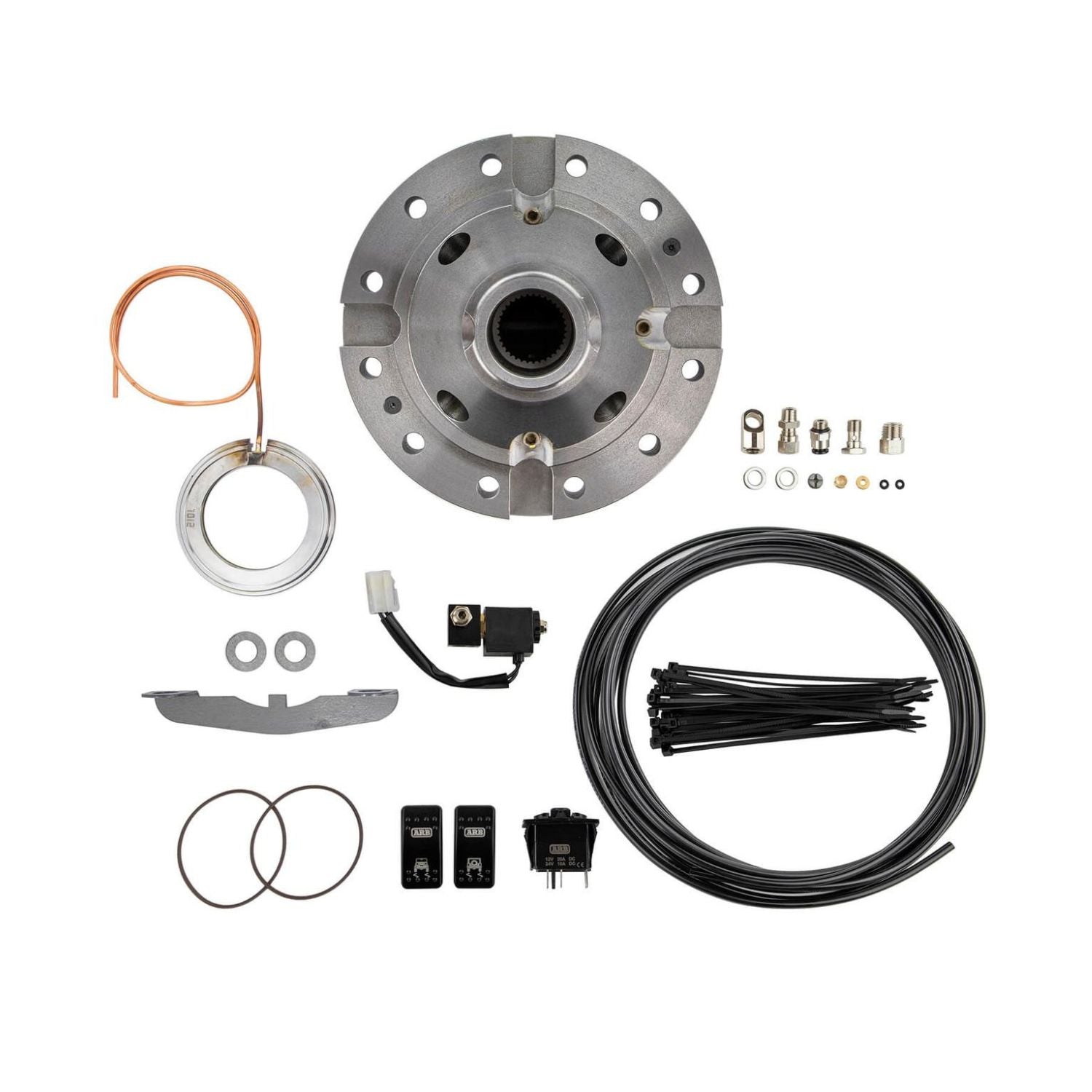

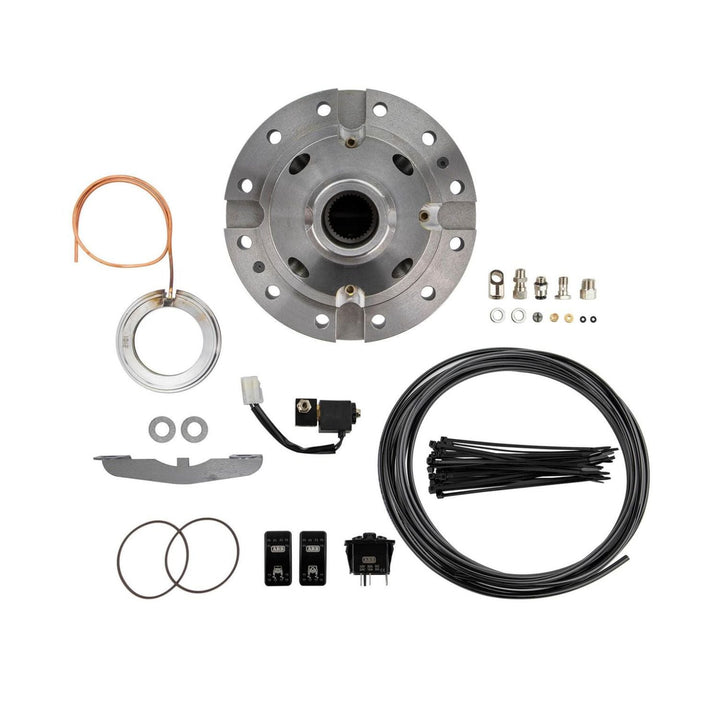

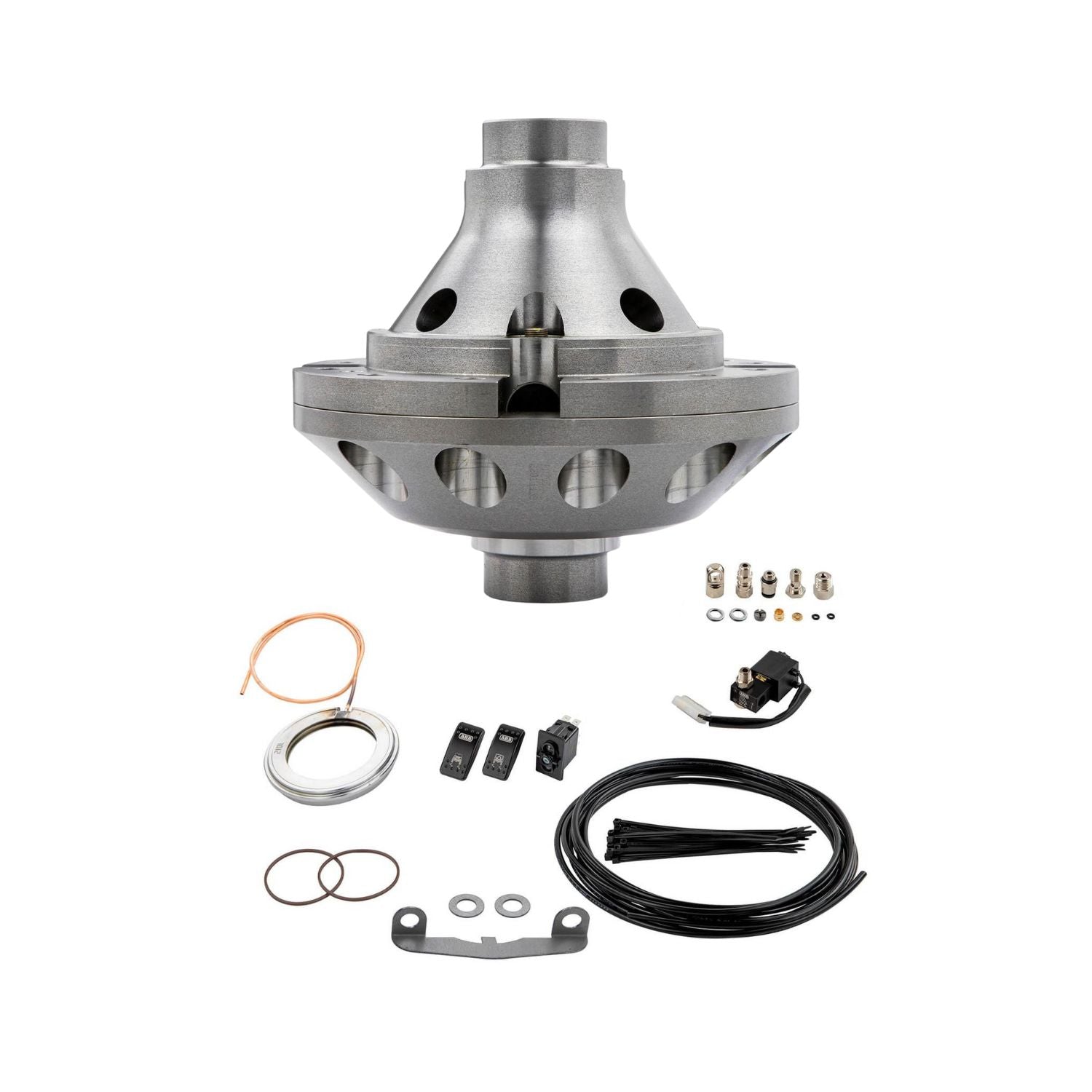

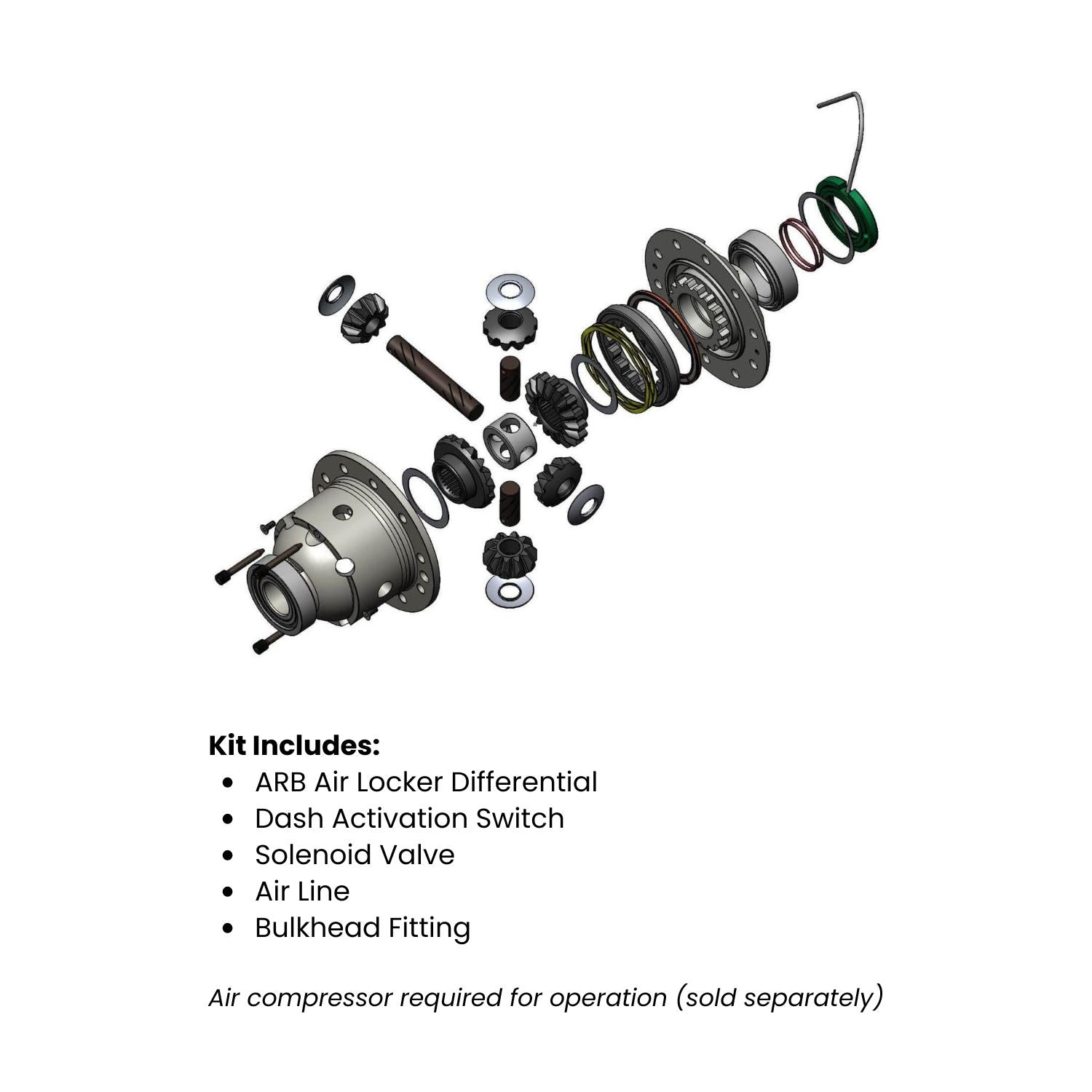

Includes:

  • ARB Air Locker Differential
  • Dash mounted activation switch
  • Solenoid valve
  • Air line
  • Bulkhead fitting

Important Notes:

  • Performance applications do not use OEM axle shafts — custom axle shafts are required
  • 4.56 & up gear ratios require a thick (high offset) gear set
  • Air compressor required for operation (sold separately)
Specifications
  • Axle Type: GM Full-Float 14-Bolt
  • Ring Gear Diameter: 10.5"
  • Position: Rear
  • Spline Count: 35-Spline
  • Gear Ratio Compatibility: All ratios (4.56 & up require thick gear set)
  • Material: Forged nickel alloy steel & nodular iron
  • Operation: Pneumatically actuated
  • Color: Silver
Fitment
  • GM Full-Float 14-Bolt 10.5" Rear Axles
  • Performance applications do not use OEM axle shafts — custom axle shafts are required
  • Racing, rock crawling, rock bouncing, and extreme off-road use
Tech Insight

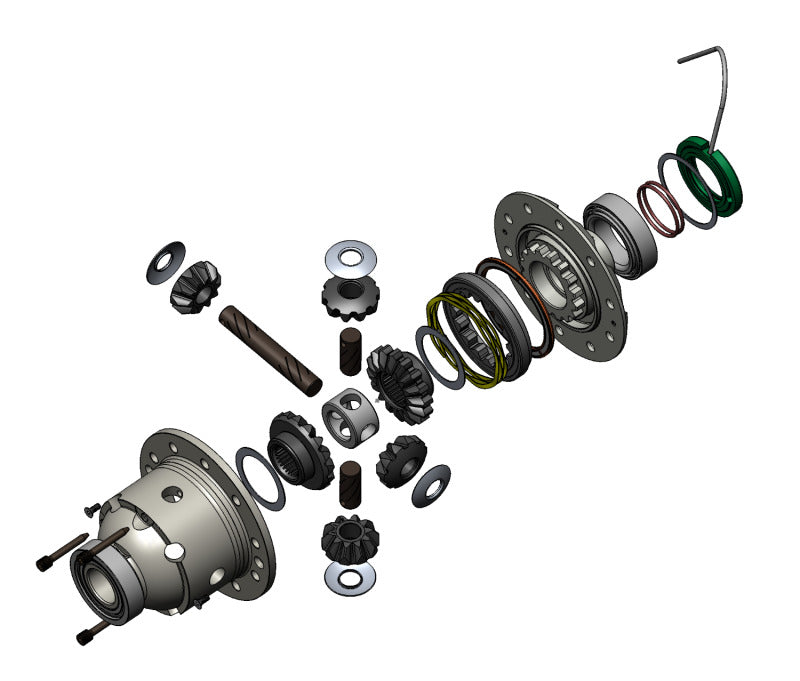

ARB Air Lockers use a two piece design with minimal moving parts, ensuring maximum reliability under extreme torque loads. The patented timed locking mechanism delivers ultra fast engagement and disengagement, while the steel reinforced elastomer annular seal is proven to withstand 20,000+ activation cycles in the harshest climates on Earth.

Advanced internal components, including forged gears, a long cross shaft, and reinforced spider block, provide up to 30% greater strength over conventional high strength differential gears.
