ARBRD234

$1,399.95
/
Shipping calculated at checkout.

The ARB Air Locker for the GM 14-Bolt 10.5" axle instantly locks both axle shafts together, ensuring maximum power delivery to both wheels. When activated, its pneumatically operated locking system prevents the internal differential gears from rotating independently, tying both wheels directly to the ring gear for unmatched traction.

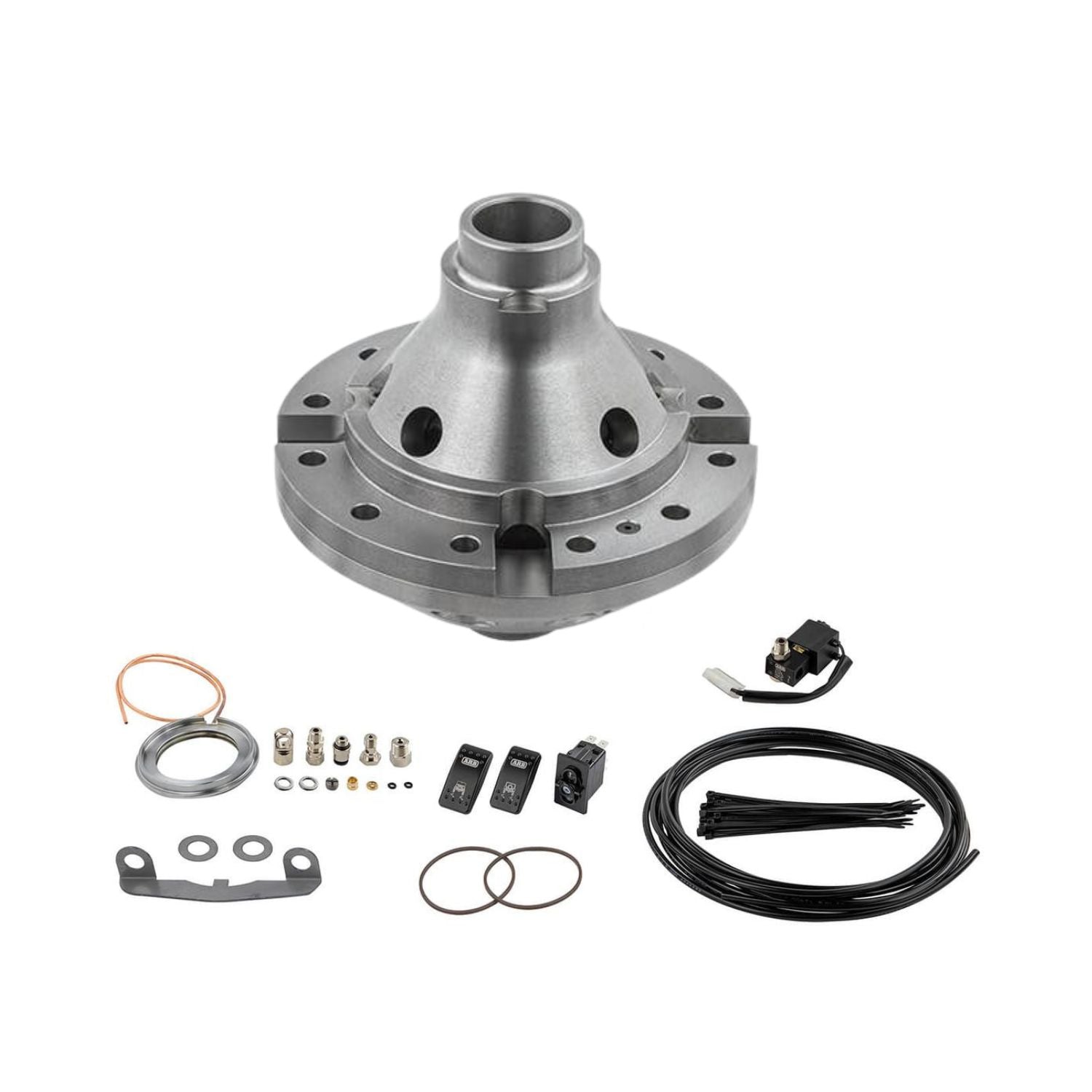

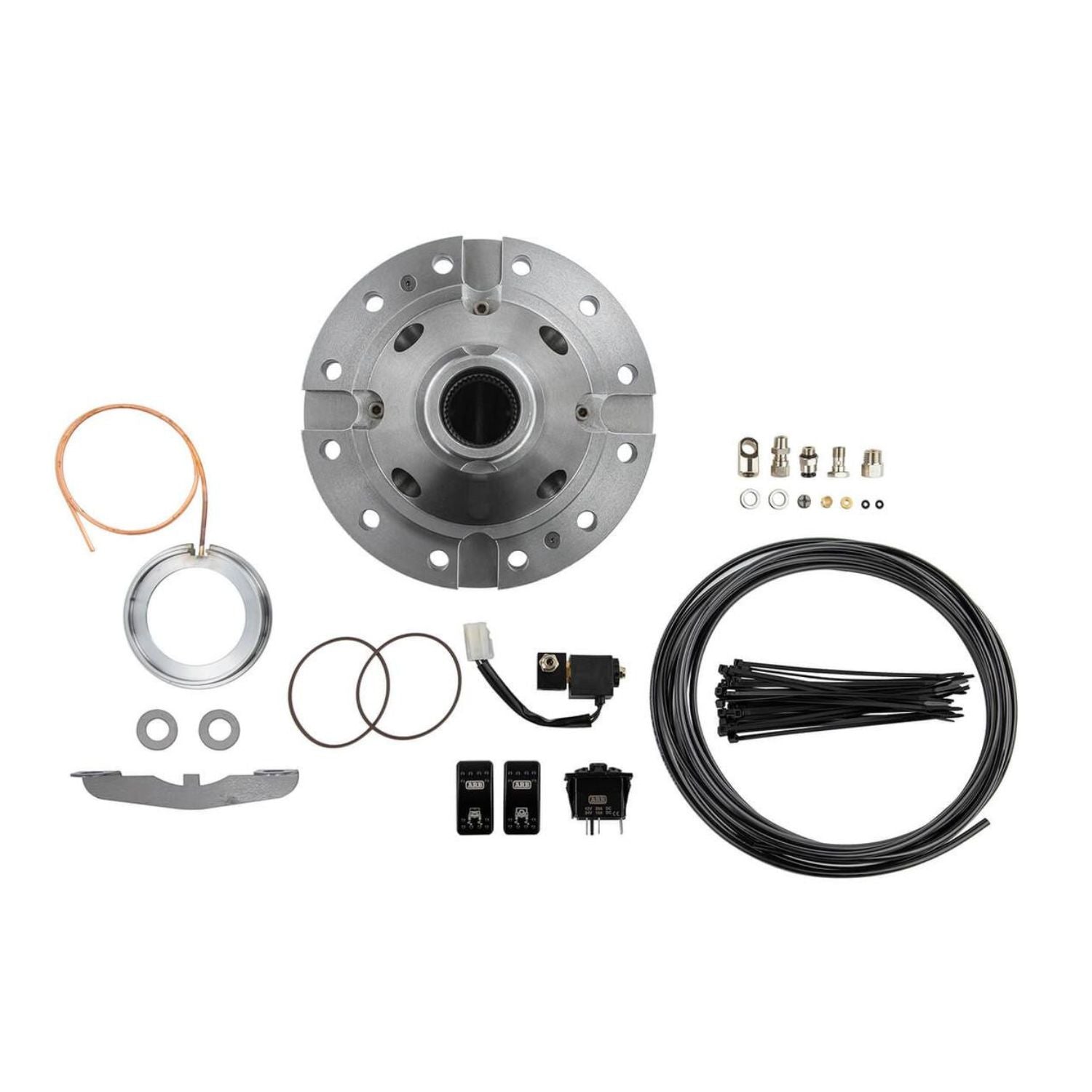

Includes:

  • ARB GM 14-Bolt 10.5" Air Locker Differential
  • Dash mounted activation switch
  • Solenoid valve
  • Air line
  • Bulkhead fitting
    Notes:
  • Air compressor required for operation (sold separately).
  • Performance applications DO NOT support factory OEM axle shafts
Specifications
  • Axle Type: GM Full Float 14-Bolt
  • Ring Gear Size: 10.5"
  • Spline Count: 40
  • Locker Type: Selectable Air Locker
  • Activation: Pneumatic (air-actuated)
  • Construction: Two-piece ultra durable design
  • Material: Steel
  • Ratio Compatibility: All ratios

Special Requirement:

  • 4.56 & UP ratios require a thick, high-offset gearset
Fitment
  • Axle: GM 14-Bolt 10.5" Full-Float
  • Position: Rear

Important Fitment Notes:

  • Performance applications DO NOT support factory OEM axle shafts
  • Custom axle shafts must be sourced to match your specific axle assembly
Tech Insight

ARB’s patented timed locking mechanism ensures high strength under load while allowing fast, positive unlocking. The steel-reinforced, elastomer bonded annular seal is engineered to survive extreme temperatures and repeated duty cycles without air loss. This design delivers predictable traction only when you need it, making it ideal for vehicles that see both street and off-road use.
