Brake Plumbing Kit for Dual Steer with GM Master Cylinder
WA01011
This complete brake plumbing kit is designed specifically for dual-steer setups running GM-style master cylinders (9/16"-18 & 1/2" -20 ports). We built this kit so customers can order all the correct plumbing components in one click — using the exact same quality Fragola parts we rely on when plumbing our own turn-key Wide Open Design buggies.
Everything is pre-selected to streamline your build, eliminate guesswork, and deliver a clean, professional brake system on your off-road rig.

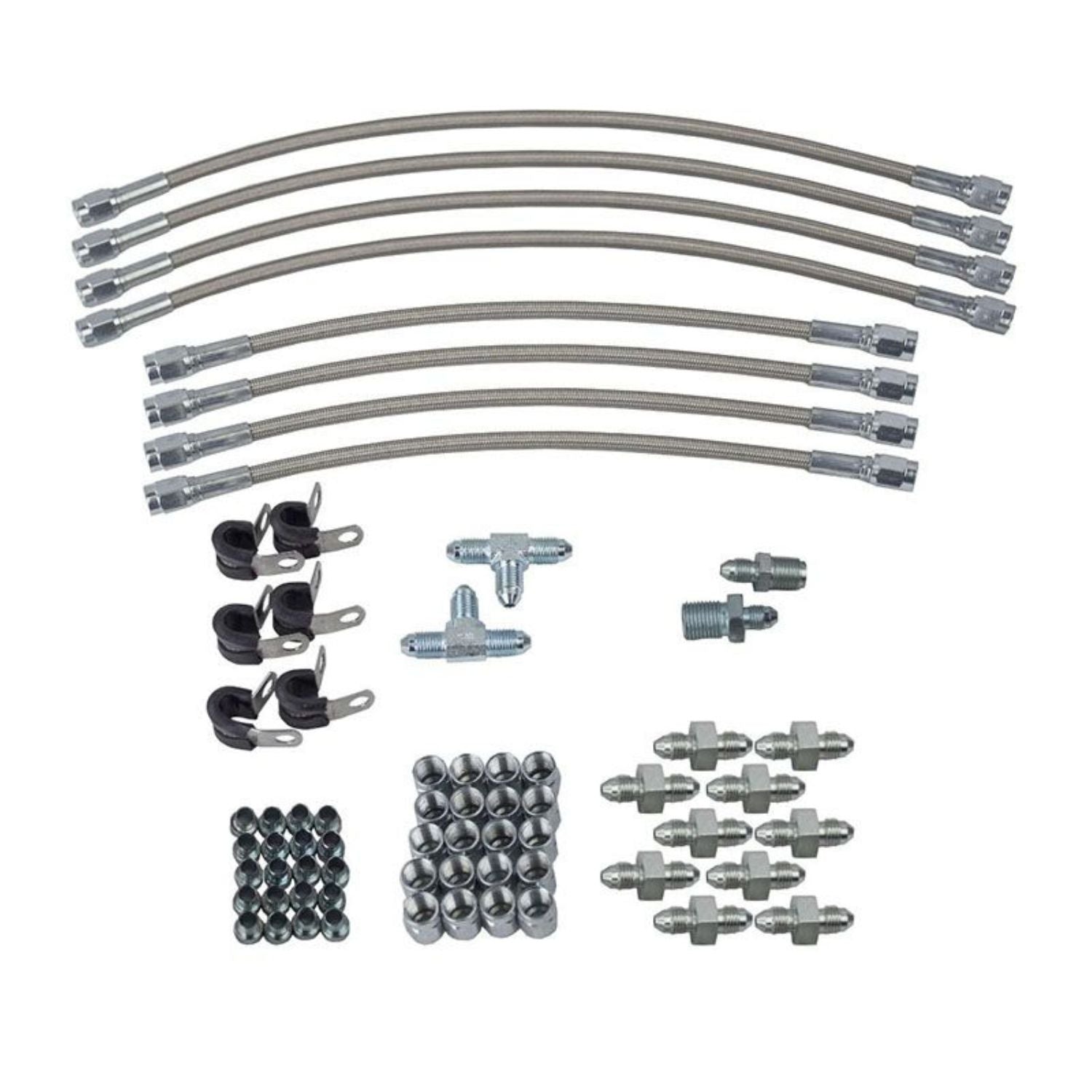

Includes:
- (4) 10" –3 Flex Lines
- (4) 14" –3 Flex Lines
- (2) –3 Tees
- (1) 9/16"-18 I.F. to –3 Adapter
- (1) 1/2"-20 I.F. to –3 Adapter
- (10) –3 Unions
- (20) –3 Tube Nuts
- (20) –3 Tube Sleeves
- (6) 1/4" Stainless Cushion Clamps
Specifications
- Brand: Fragola Performance
- Application: Dual-steer brake systems
- Master Cylinder Compatibility: GM 9/16"-18 & 1/2"-20 I.F. ports
- Line Size: –3 AN
- Kit Type: Brake Plumbing Kit
- Material (Clamps): Stainless steel
Fitment
This kit is designed for dual-steer off-road buggy setups using:
- GM-style master cylinders (9/16"-18 & 1/2"-20 fittings)
- Custom chassis, trail rigs, rock bouncers, Ultra4-style steering systems
Tech Insight

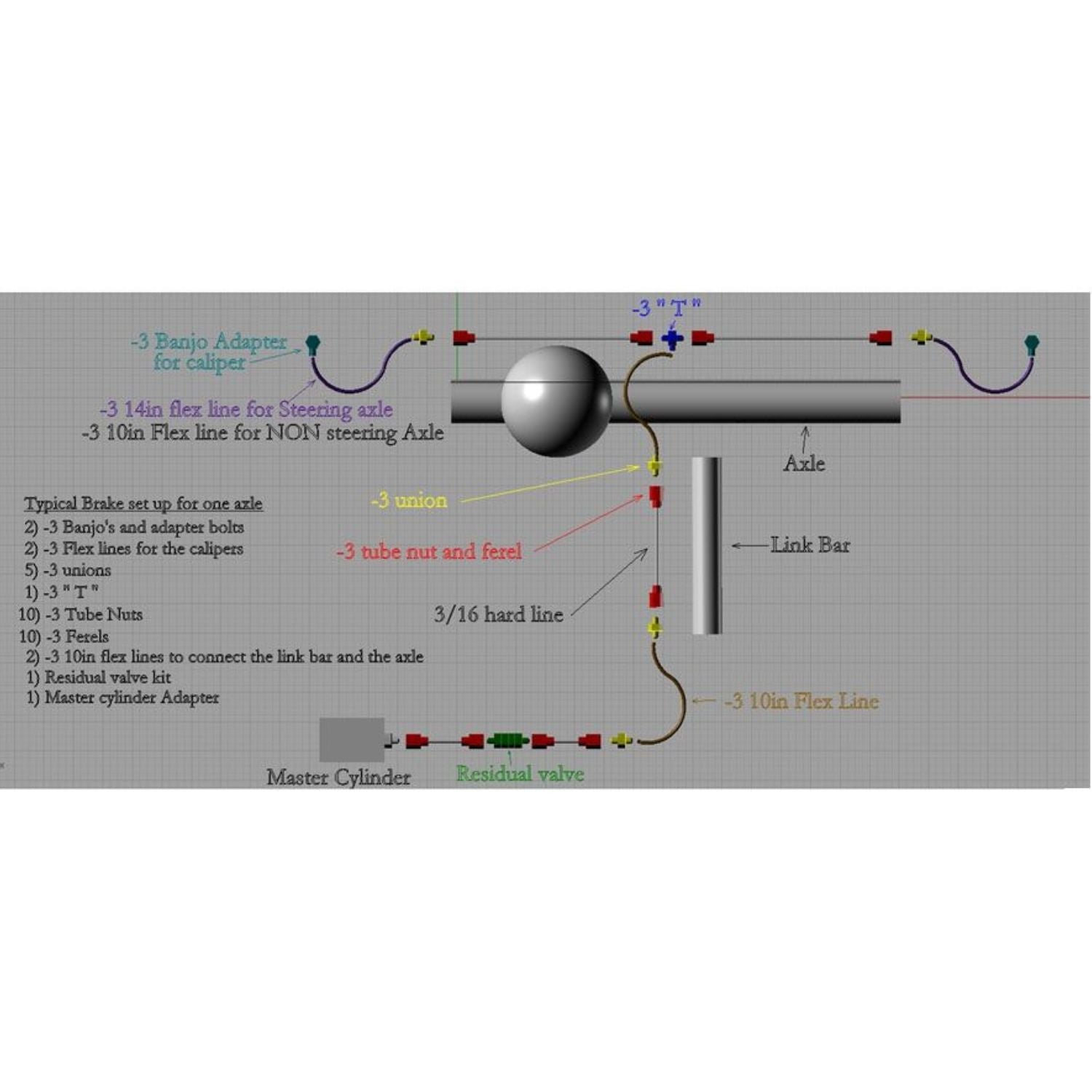

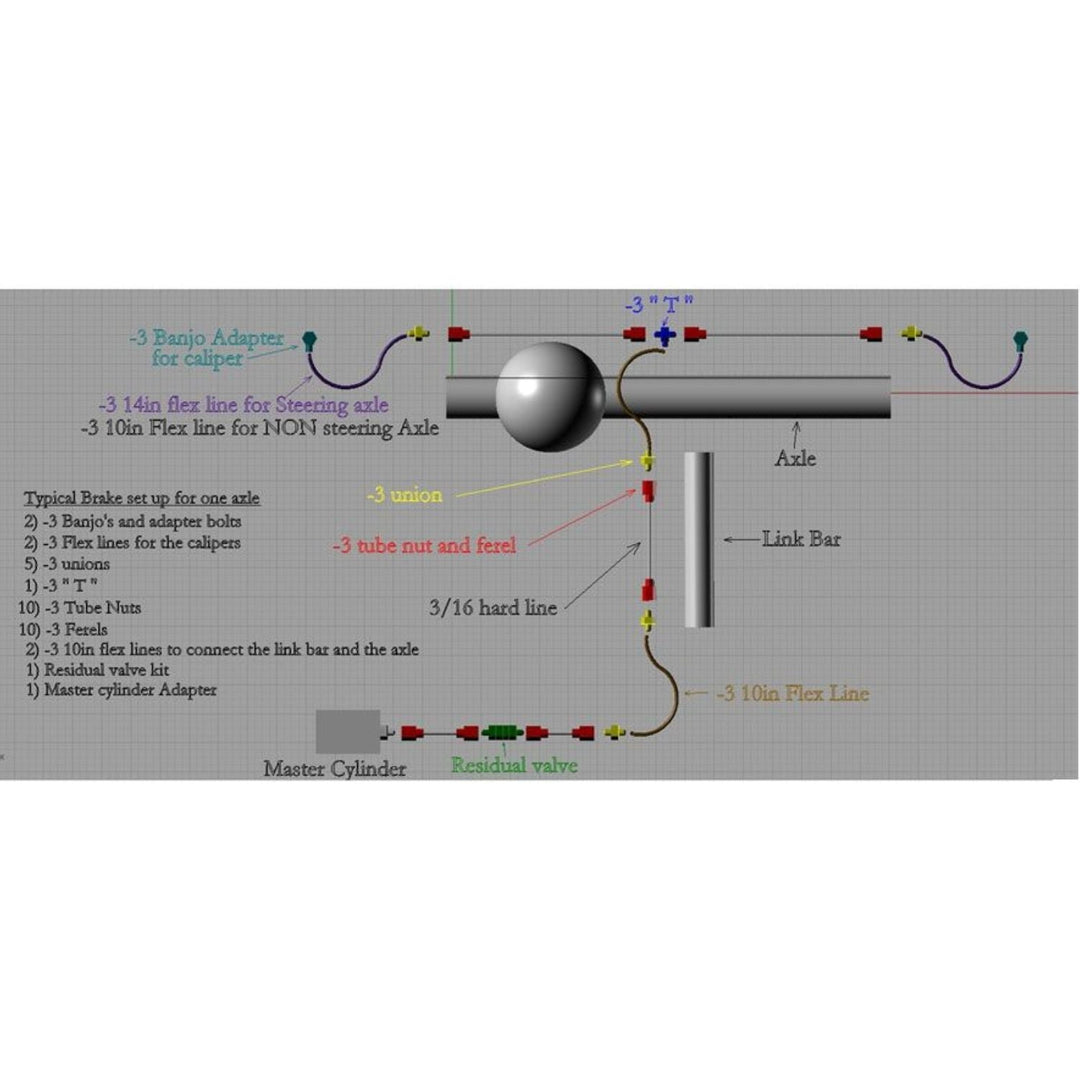

Brake systems can get complicated fast when introducing dual steering rams, multiple hoses, and long travel suspension. This kit ensures that every junction, flex point, and hard-line transition is handled with premium Fragola –3 fittings and hoses, giving you reliable hydraulic performance under extreme wheeling conditions.
The combination of 10" and 14" flex lines makes it easy to route lines cleanly around steering components, tie bars, and chassis rails without kinking or binding. Stainless cushion clamps keep the plumbing tight, secured, and protected from vibration.
This is the same proven layout we use on Wide Open Design's own turn-key chassis builds — tested in rock bouncing, racing, and high-load off-road environments.
