WA01027

$1,349.99
/
Shipping calculated at checkout.

The Crane Axle Dana 60 Kingpin Front Hub Kit gives builders the major hub, spindle, bearing, and retention components needed to service or assemble a GM Dana 60 kingpin front axle. Built around Yukon locking hubs and GM Dana 60 6-bolt spindles, this package uses an 8x6.5 wheel bolt pattern and includes matched Timken wheel bearings, races, hub seals, spindle nuts, and 9/16" wheel studs.

This kit is a strong starting point for Dana 60 front axle rebuilds, custom axle assemblies, rock crawlers, trail rigs, and off-road buggies. Packaging the hub components together eliminates the guesswork of sourcing the spindle, bearings, seals, spindle hardware, and wheel studs separately.

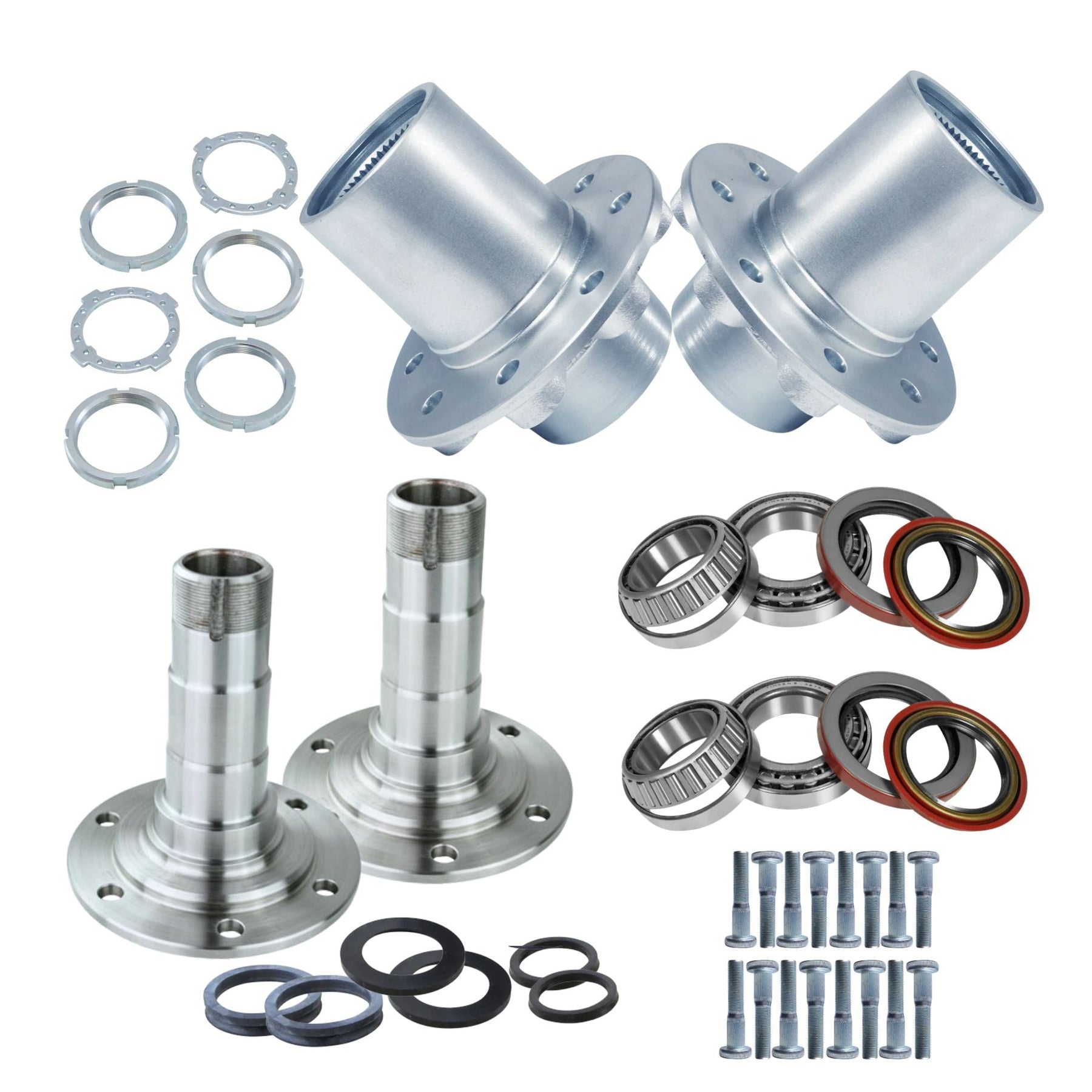

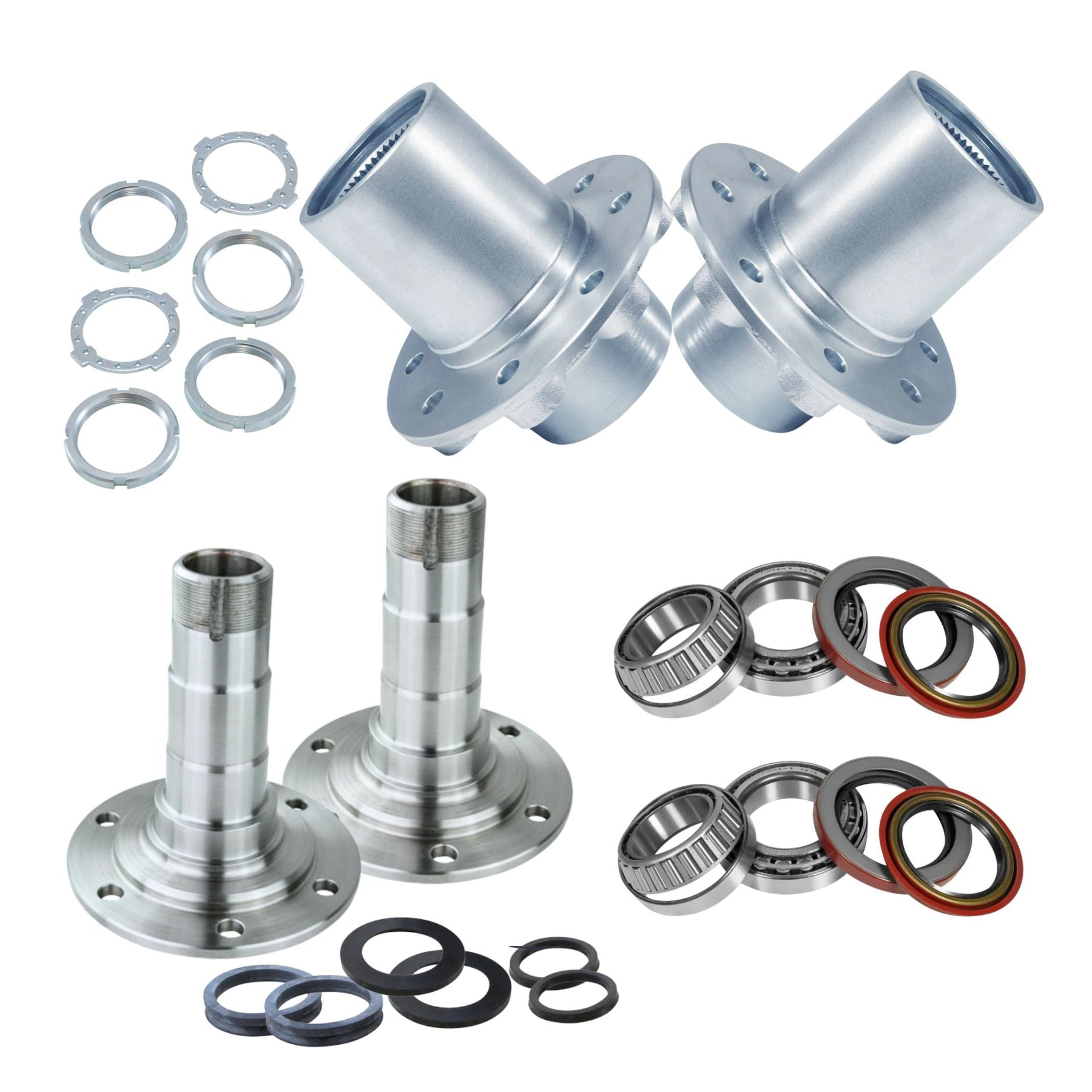

Includes:

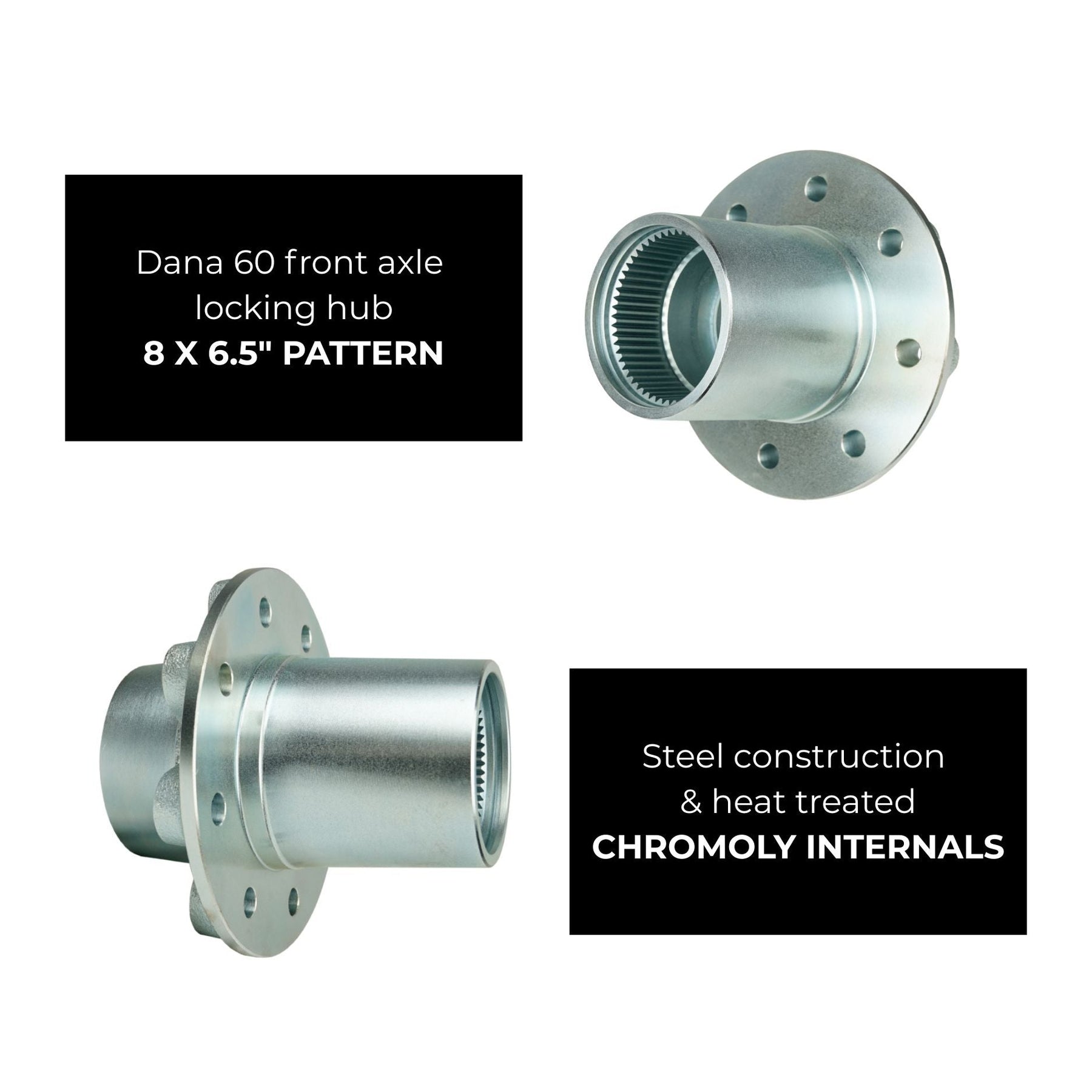

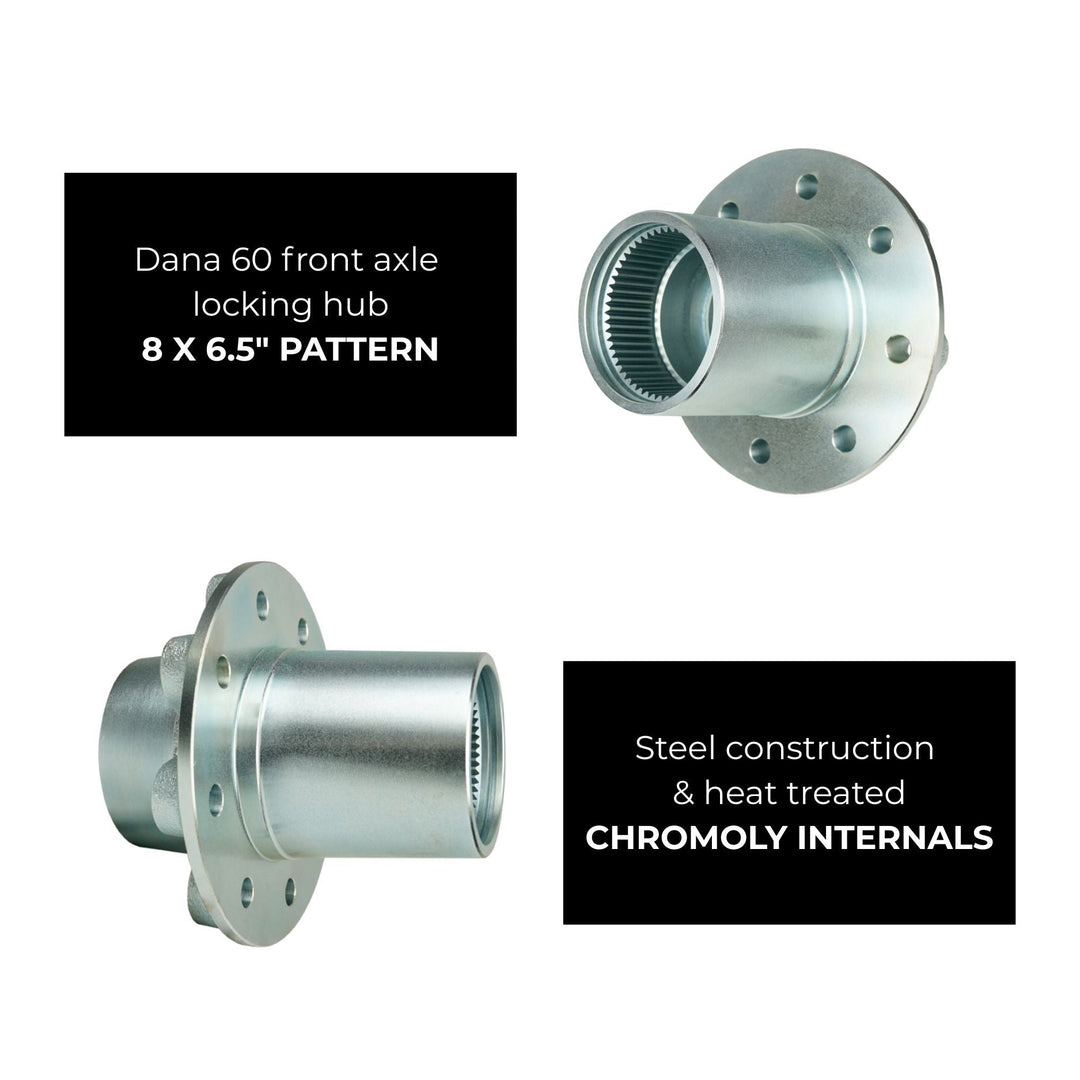

  • (2) Yukon GM Dana 60 Locking Wheel Hubs – 8x6.5
  • (2) GM Dana 60 6-Bolt Front Spindles

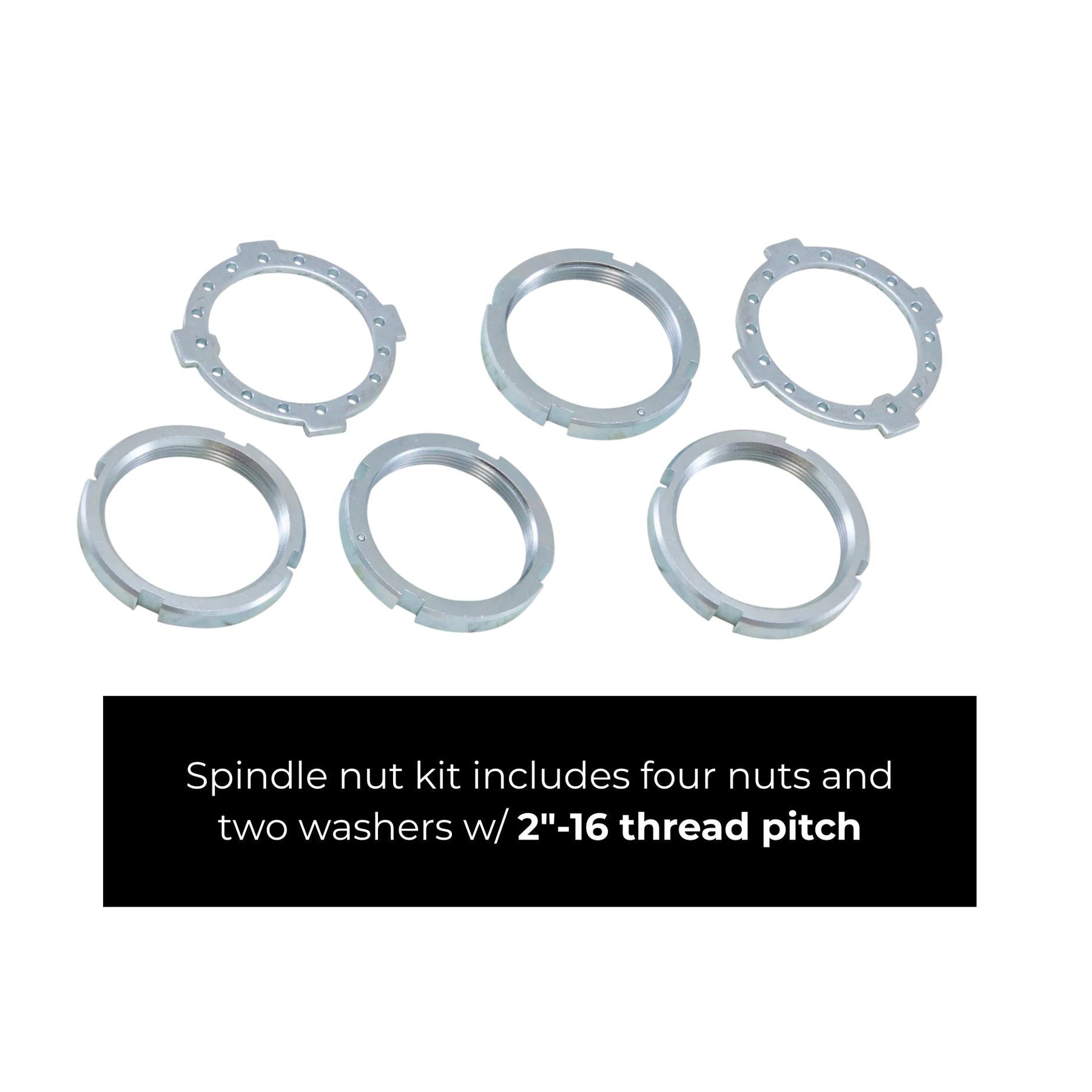

  • (2) Dana 60 Spindle Nut Kits

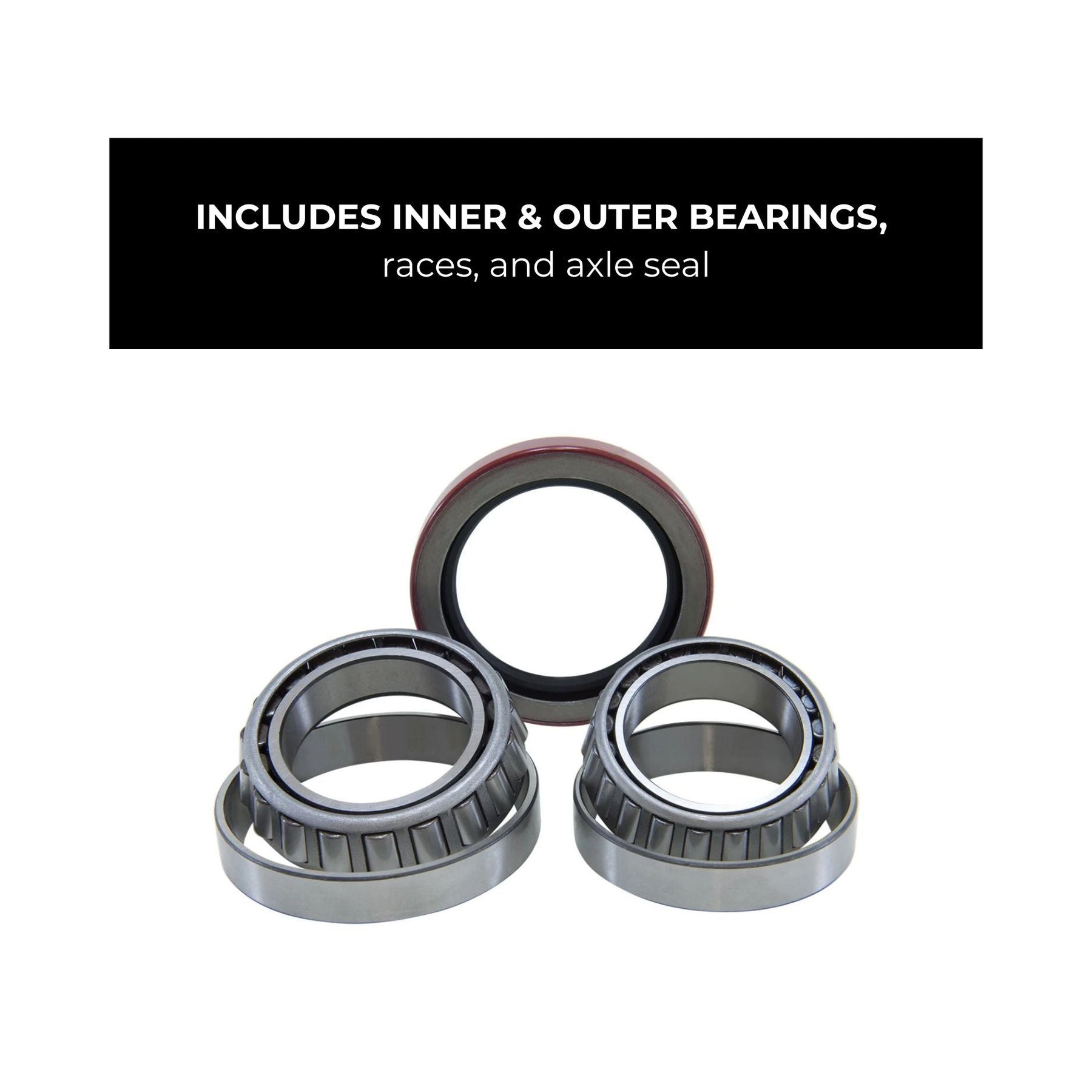

  • (2) Spicer Dana 60 Front Wheel Bearing Kits with Timken Bearings & Races
  • (16) 9/16"-18 x 3" Wheel Studs
Specifications

Specification

Details

Manufacturer

Crane Axle

Part Number

WA01027

Axle Application

GM Dana 60 Front

Axle Style

Kingpin

Wheel Bolt Pattern

8x6.5

Hub Construction

Steel with Chromoly Internals

Hub Stud Hole Diameter

.622"

Hub Default Position

Locked

Hub Engagement

1/3 Turn

Hub Bezel

Low Profile

Locking Hub Style

Internal

Spindle Style

GM Dana 60 6-Bolt

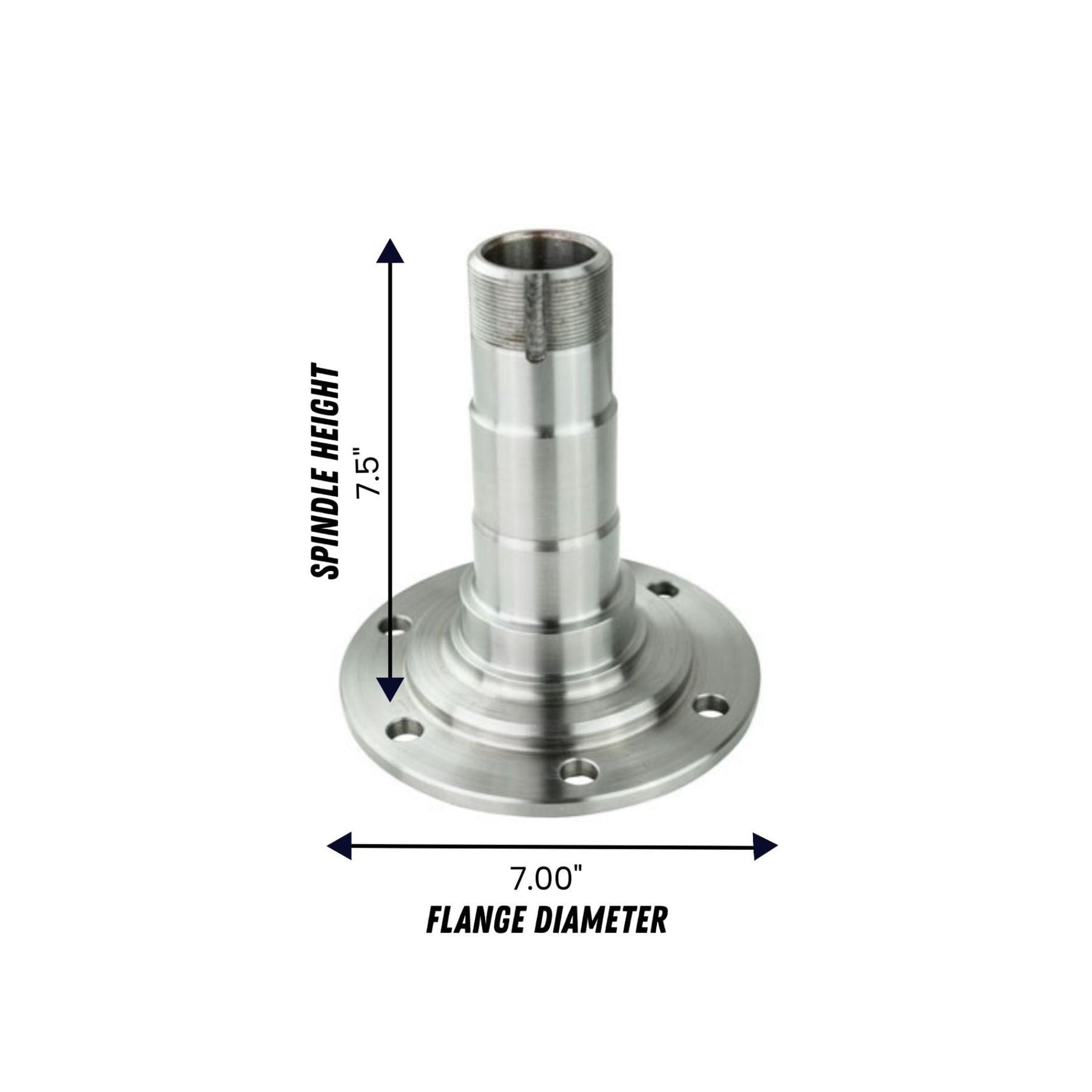

Spindle Height

7.5"

Spindle Flange Diameter

7.00"

Spindle Bolt Pattern

6-Bolt

Spindle Bearing Journals

2.255" & 2.020"

Spindle Nut Fitment

1981+ Dana 50 & Dana 60

Spindle Nut Components

Nut, Keyed Washer & Lock Nut

Wheel Bearings

Timken

Wheel Bearing Kit

Inner & Outer Bearings, Races & Hub Seal

Wheel Stud Size

9/16"-18 x 3"

Wheel Stud Quantity

16
Fitment

Designed for GM Dana 60 kingpin front axle applications using:

  • 6-bolt GM Dana 60 front spindles
  • 8x6.5 wheel bolt pattern
  • Internal-style locking hubs
  • 9/16" wheel studs
  • Compatible Dana 60 wheel bearings and races

Fitment Notes

This kit is intended for builders assembling or rebuilding a compatible Dana 60 kingpin front axle. Verify your existing knuckle, spindle pattern, wheel bolt pattern, locking hub style, and related outer axle components before ordering.

The included spindle nut kits fit 1981+ Dana 50 and Dana 60 applications and include the nut, keyed washer, and lock nut required to establish proper hub and spindle preload.

FAQ

1. What wheel bolt pattern does this kit use?

The hubs use the common 8x6.5 bolt pattern found on many GM Dana 60 and heavy-duty axle applications.

2. Does this kit include wheel bearings and seals?

Yes. Each side receives a complete Spicer wheel bearing kit with Timken inner and outer bearings, matching races, and a hub seal.

3. Are the locking hubs included?

Yes. The kit includes two Yukon Dana 60 internal-style locking hubs featuring steel construction, Chromoly internals, a low-profile bezel, and 1/3-turn engagement.

4. Is this everything needed to build a complete Dana 60 front outer?

No. This is a hub-focused component package, not a complete Dana 60 outer assembly. Additional components such as knuckles, stub shafts, brakes, and other related hardware may be required depending on your axle build.
