WOD Flat Panel Mounting Tabs with 1/4"-20 NutSerts (Pack of 10)
WF03021-10N

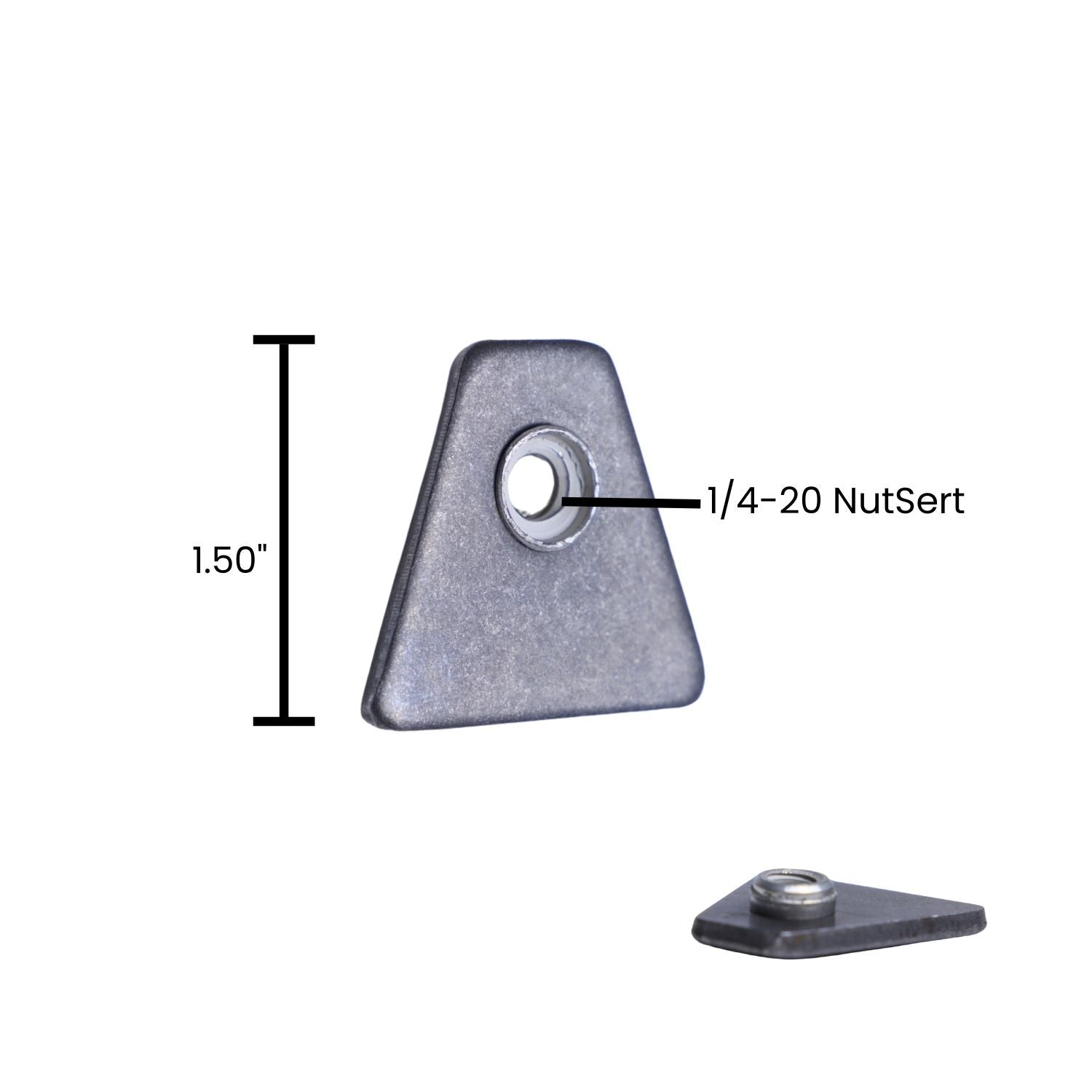

The WOD Flat Panel Mounting Tabs with 1/4"-20 NutSerts provide a clean, professional solution for mounting body panels, roof skins, aluminum interior panels, skid plates, and service covers to flat steel surfaces. Laser cut from durable 1/8" mild steel and supplied with pre-installed 1/4"-20 NutSerts, these weld-on tabs eliminate the need for loose nuts while making panel installation and removal fast and repeatable.
Designed specifically for flat mounting applications, these tabs are ideal for custom tube chassis builds, rock crawlers, Ultra4 race cars, prerunners, and fabrication projects where a flush, low-profile mounting point is preferred over traditional tube tabs. Weld them in place, bolt your panels on, and enjoy a cleaner, more serviceable installation.
Includes:

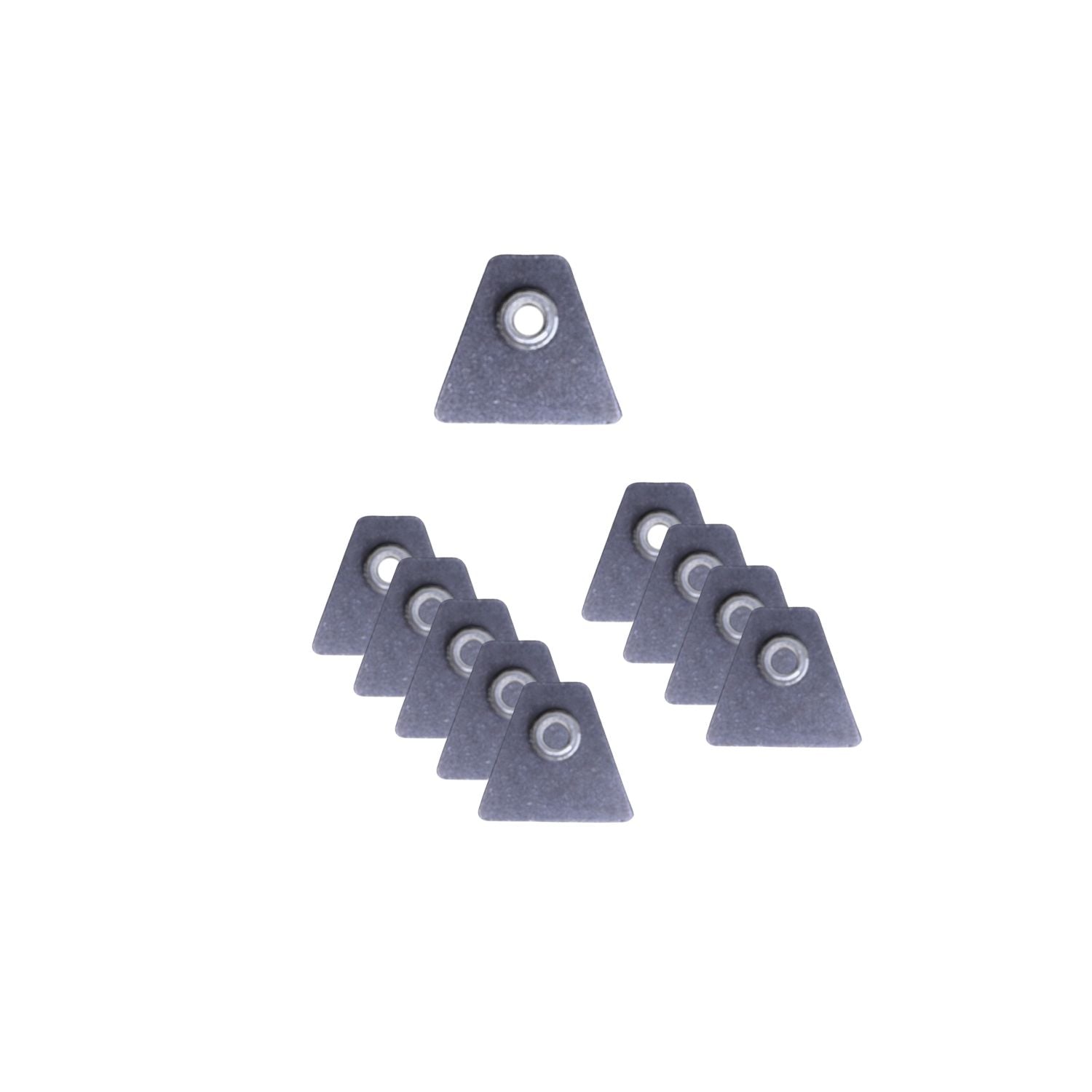

- (10) Flat Panel Mounting Tabs with Pre-Installed 1/4"-20 NutSerts
Note: Welding is required.

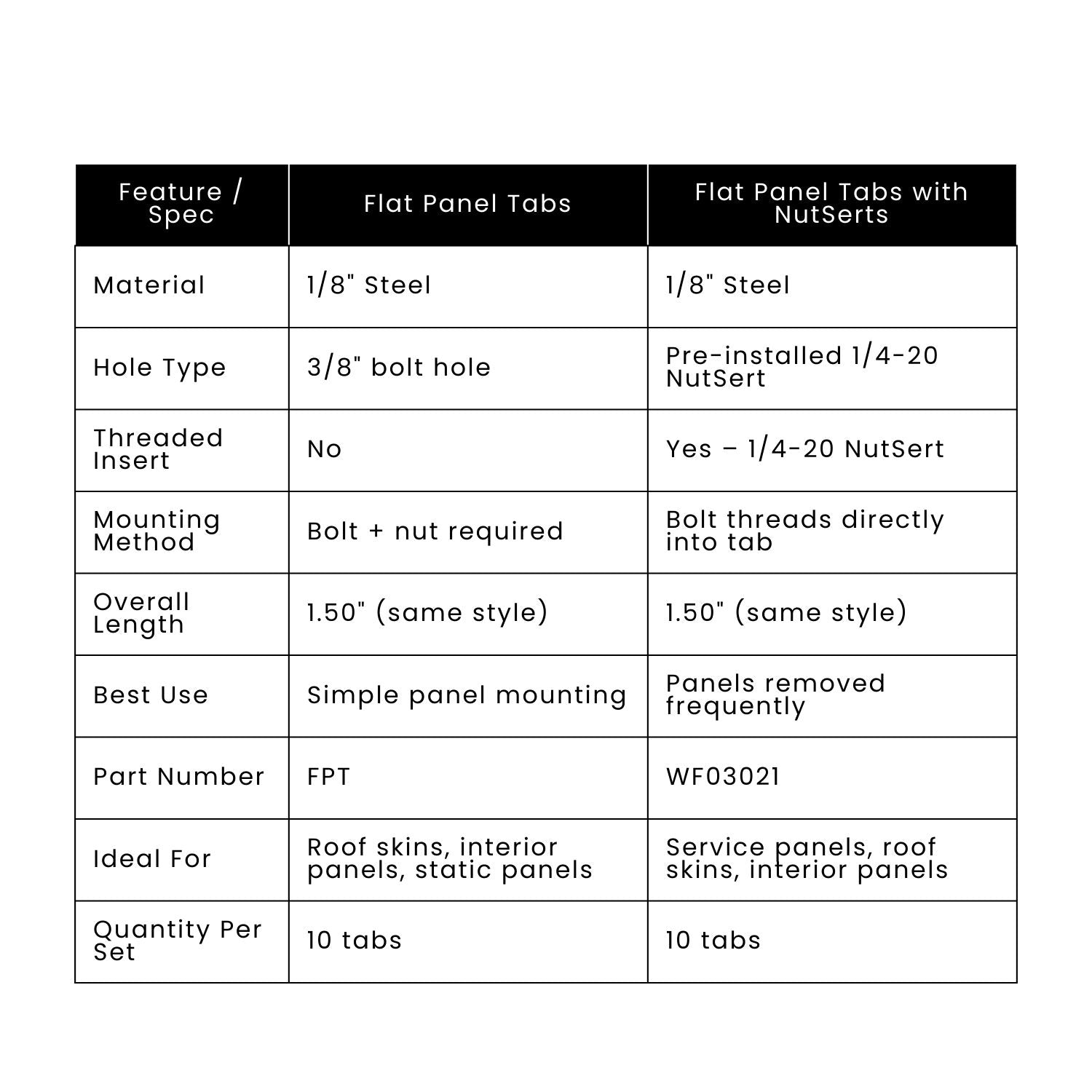

Specifications
| Specification | Details |
|---|---|
| Manufacturer | Wide Open Design |
| Product Type | Flat Panel Mounting Tabs |
| Material | 1/8" Mild Steel |
| Thread Size | 1/4"-20 |
| Insert Type | Pre-Installed NutSert |
| Mounting Style | Weld-On |
| Condition | Weld Ready |
| Quantity | 10 Tabs Per Pack |
Fitment
Universal Fitment for Custom Fabrication
Common Applications:
- Body panels
- Roof skins
- Aluminum interior panels
- Firewall panels
- Transmission tunnel panels
- Skid plates
- Access covers
- Flat-mounted brackets and accessories
- Custom fabrication projects
Fitment Notes:
- Designed to weld directly to flat steel surfaces.
- Ideal for custom tube chassis, race cars, rock crawlers, Ultra4 vehicles, and off-road fabrication.
- Pre-installed 1/4"-20 NutSerts eliminate the need for loose nuts behind removable panels.
- Verify panel hole locations before final welding.
- Use corrosion protection after welding to maximize service life.
- Mounting bolts are sold separately unless otherwise specified.
Tech Insight
Why use flat panel tabs instead of tube tabs?
Flat panel tabs position the threaded insert directly against a flat mounting surface, allowing body panels and covers to sit flush without the stand-off created by winged tube tabs. This produces a cleaner appearance and tighter panel fit.
What is a NutSert?
A NutSert is a permanently installed threaded insert that provides reusable machine threads in a compact package. It eliminates the need to hold a nut behind the panel during installation or removal.
What are these tabs commonly used for?
Builders frequently use them to mount roof skins, aluminum interior panels, firewalls, skid plates, inspection covers, transmission tunnels, and removable body panels on custom off-road vehicles.
Do these require welding?
Yes. These tabs are supplied weld-ready and are intended to be welded directly to flat steel chassis or structural components before panel installation.
Are mounting bolts included?
No. The tabs include pre-installed 1/4"-20 NutSerts, but mounting hardware is sold separately unless otherwise noted.
Can these be removed after welding?
Once welded in place they become a permanent threaded mounting point, allowing panels to be removed and reinstalled repeatedly without damaging the chassis or requiring access to the back side of the panel.
