Flat Weld Plate for PSC Steering Cylinder Clamps
SCWP01-C

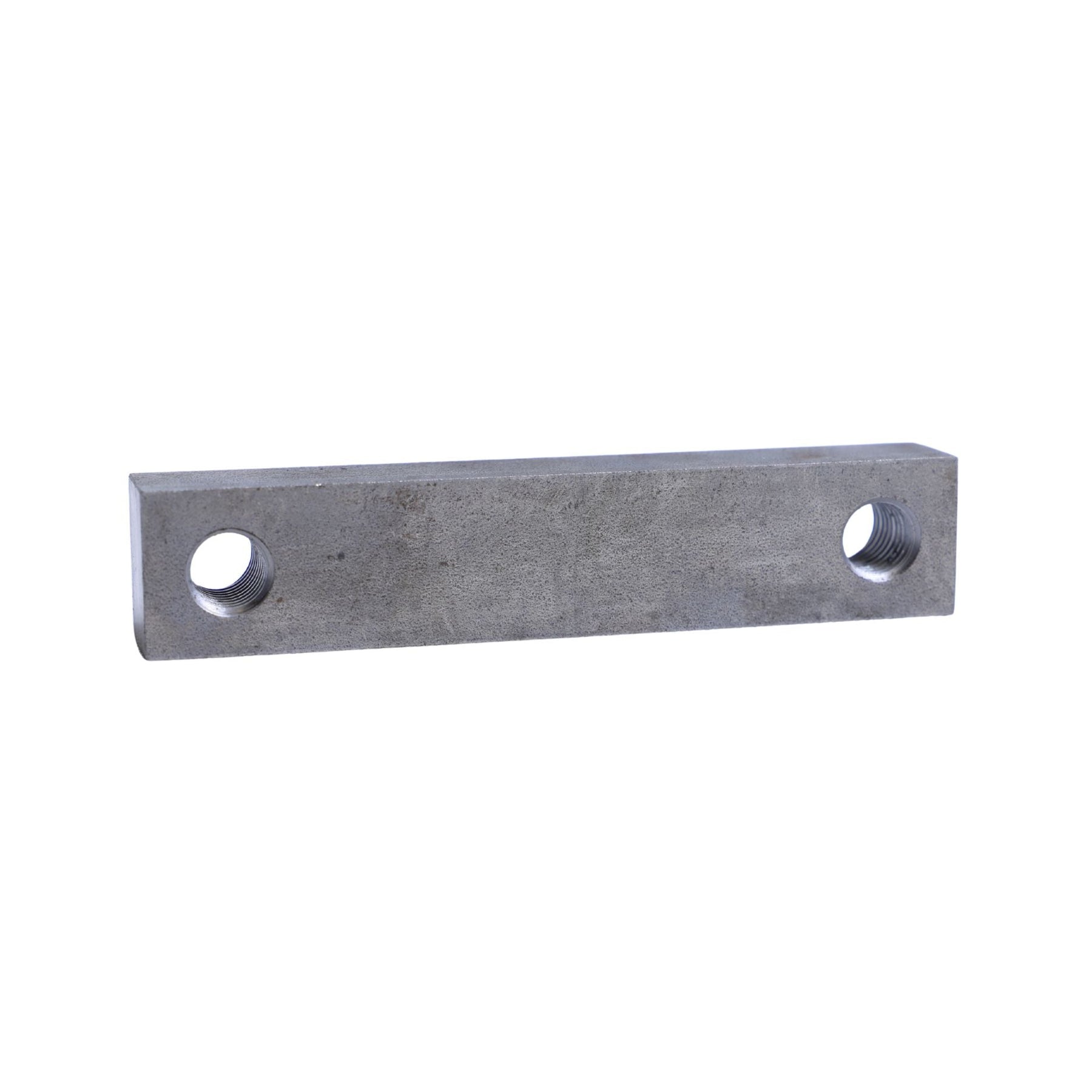

Create a strong, reliable mounting point for your PSC steering cylinder clamp with this Flat Weld Plate. Designed for custom full hydraulic steering systems, this plate provides a pre-threaded mounting surface that eliminates the need to drill and tap your axle housing or steering bracket.

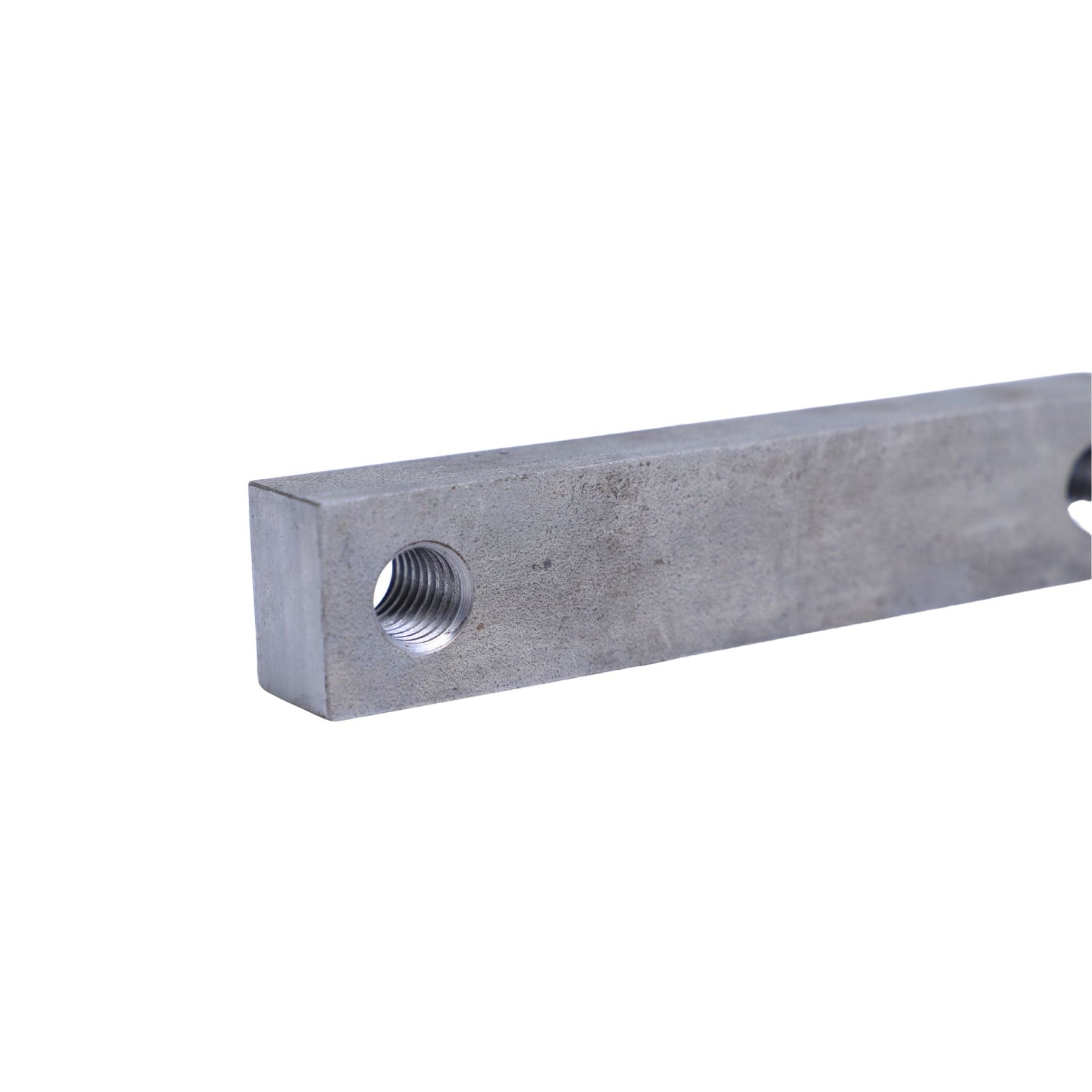

Machined with ½”-13 threads and 4" bolt spacing, the plate is ready to accept compatible PSC steering cylinder clamps. Simply weld it to your axle housing or fabricated bracket, then bolt the clamp directly to the plate for a clean, serviceable installation.
Ideal for rock crawlers, Ultra4 race cars, rock bouncers, mud trucks, and custom off-road builds, these weld plates simplify steering cylinder fabrication while providing a strong foundation for your hydraulic steering ram.
Includes:
-
(1) Flat Weld Plate
Note: Steering cylinder clamp and mounting bolts are sold separately.
Specifications
|
Material |
Steel |
|
Mounting Style |
Weld-On |
|
Overall Length |
5.0" |
|
Overall Width |
1.0" |
|
Thickness |
0.750" |
|

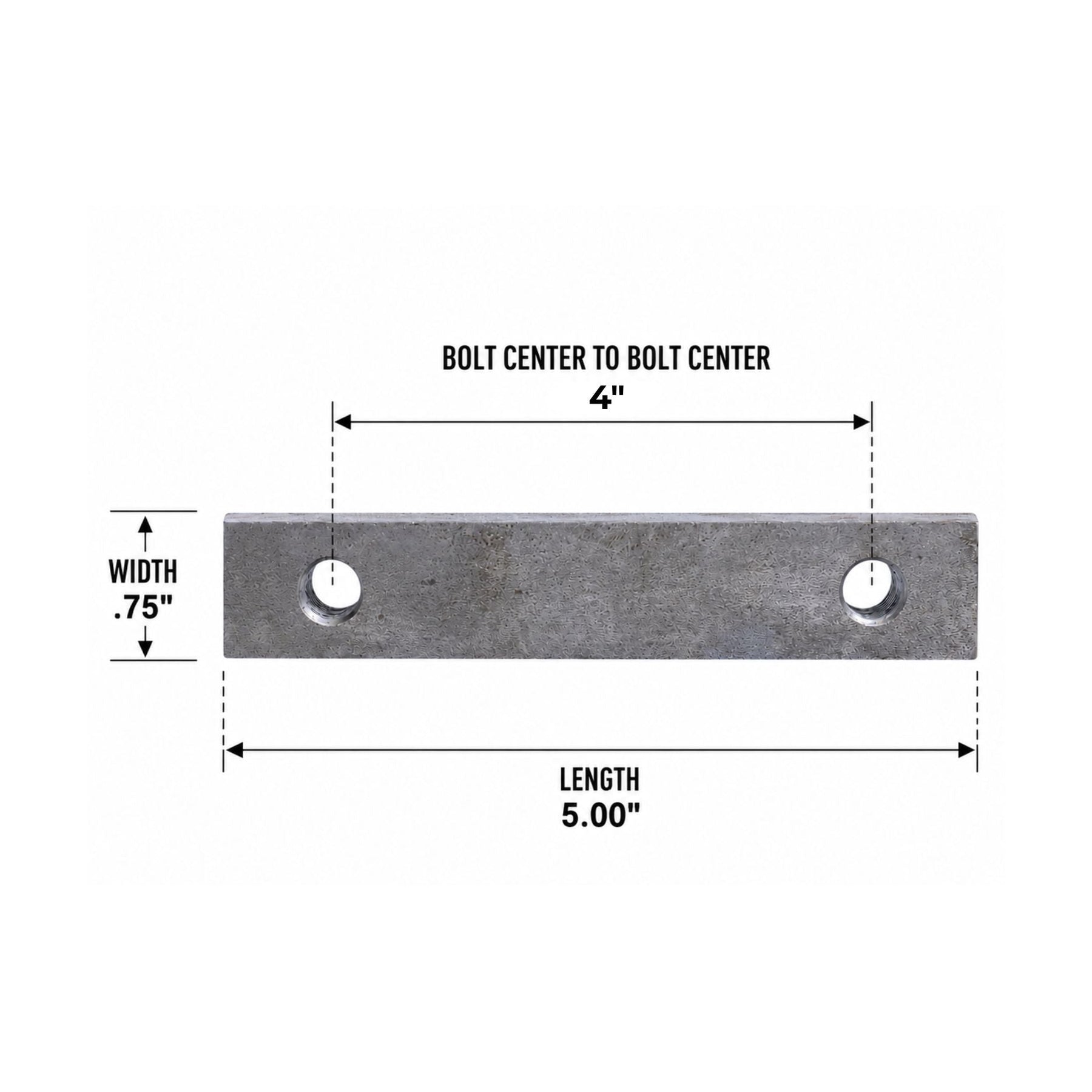

Bolt Spacing |
4.0" Center-to-Center |
|
Thread Size |
1/2-13 |
|
Sold As |
Individually |
Fitment
Fitment Notes
- Designed for PSC steering cylinder hold-down clamps
- Compatible with 2.25", 2.50", 2.75", and 3.0" clamp sizes
- Fits PSC steering cylinder applications including SC2217 and SC2228
- Welding required
- Designed to weld to axle housings or fabricated steering brackets
- Verify clamp size before ordering
Tech Insight
A properly mounted steering cylinder is critical to the reliability of a full hydraulic steering system. Using a pre-threaded weld plate creates a stronger, more accurate mounting surface than drilling and tapping an axle housing, while also making future steering cylinder service much easier. Planning the steering cylinder location before final welding helps ensure proper ram travel, steering geometry, and clamp alignment throughout suspension travel.
Frequently Asked Questions
What is this weld plate used for?
It provides a threaded mounting surface for PSC steering cylinder hold-down clamps on custom full hydraulic steering systems.
Do the steering clamps come with the plate?
No. The weld plate is sold individually. Steering cylinder clamps and mounting hardware are sold separately.
Does this plate require welding?
Yes. It is designed to be welded to an axle housing or fabricated steering bracket.
What clamp sizes does it fit?
This plate is compatible with PSC steering cylinder clamps for 2.25", 2.50", 2.75", and 3.0" diameter cylinders.
Do I need to drill and tap the plate?
No. The plate is pre-threaded with 1/2-13 threads for quick installation.
