LS Engine Fuel Filter Regulator for Gen IV Deadhead Fuel Systems
WIX33737

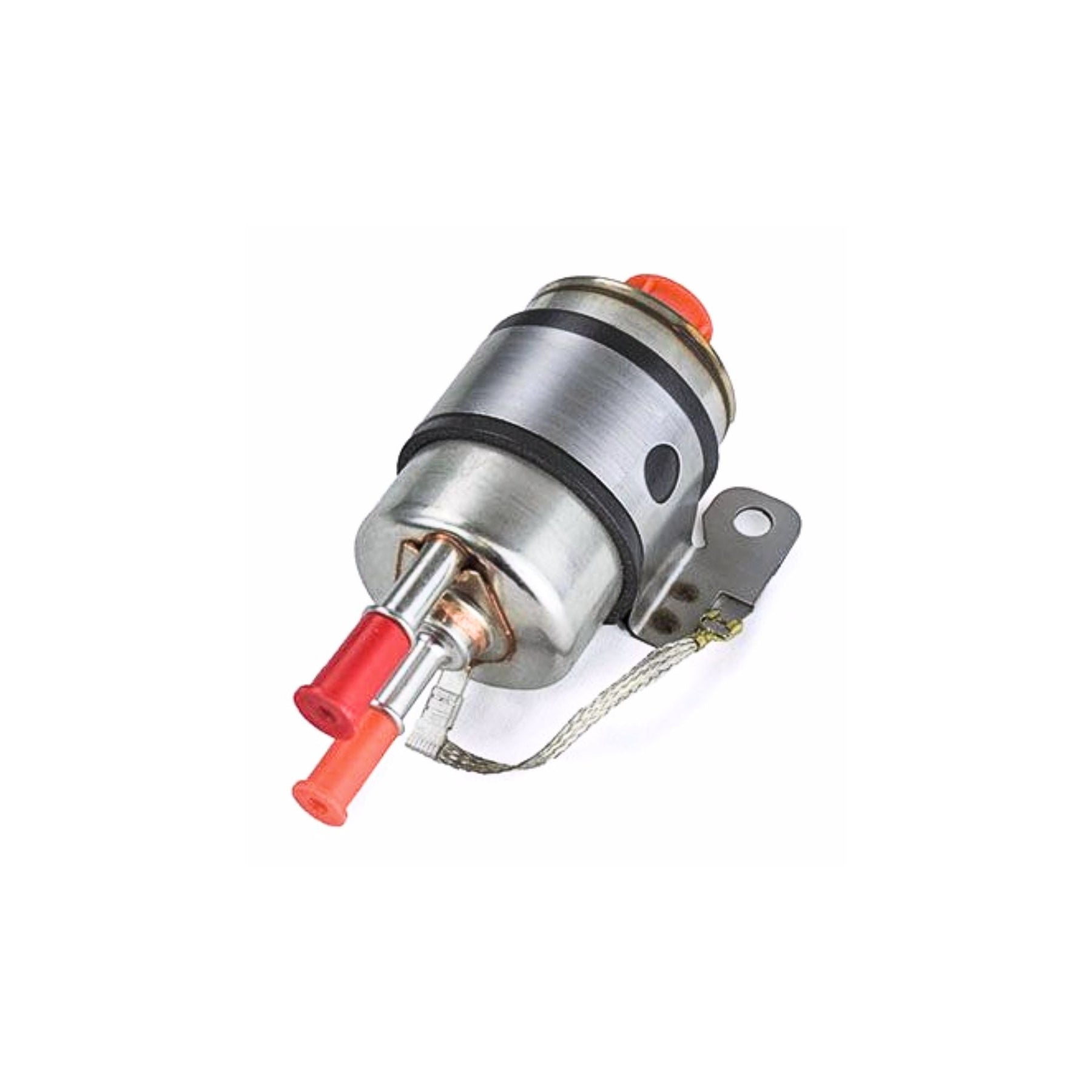

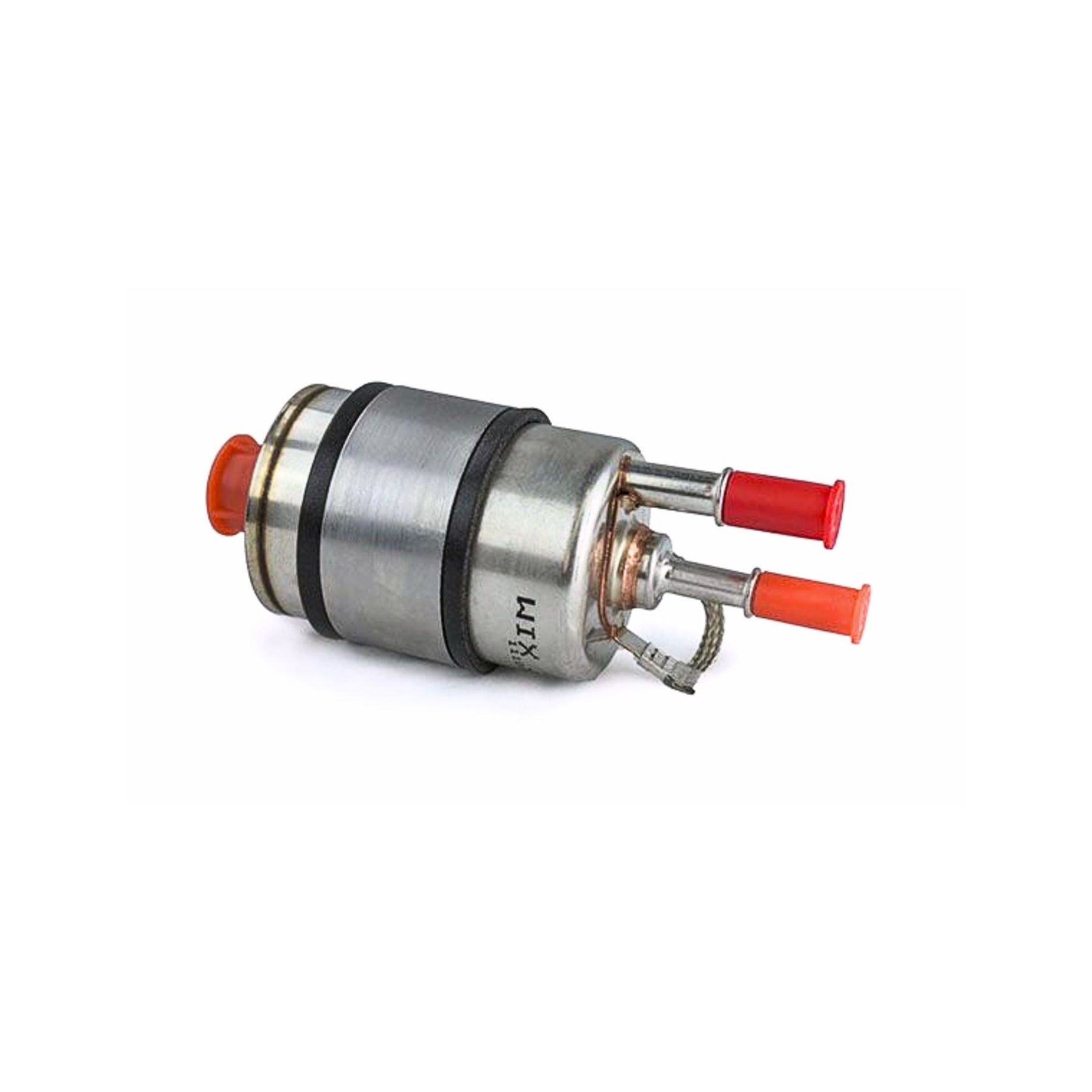

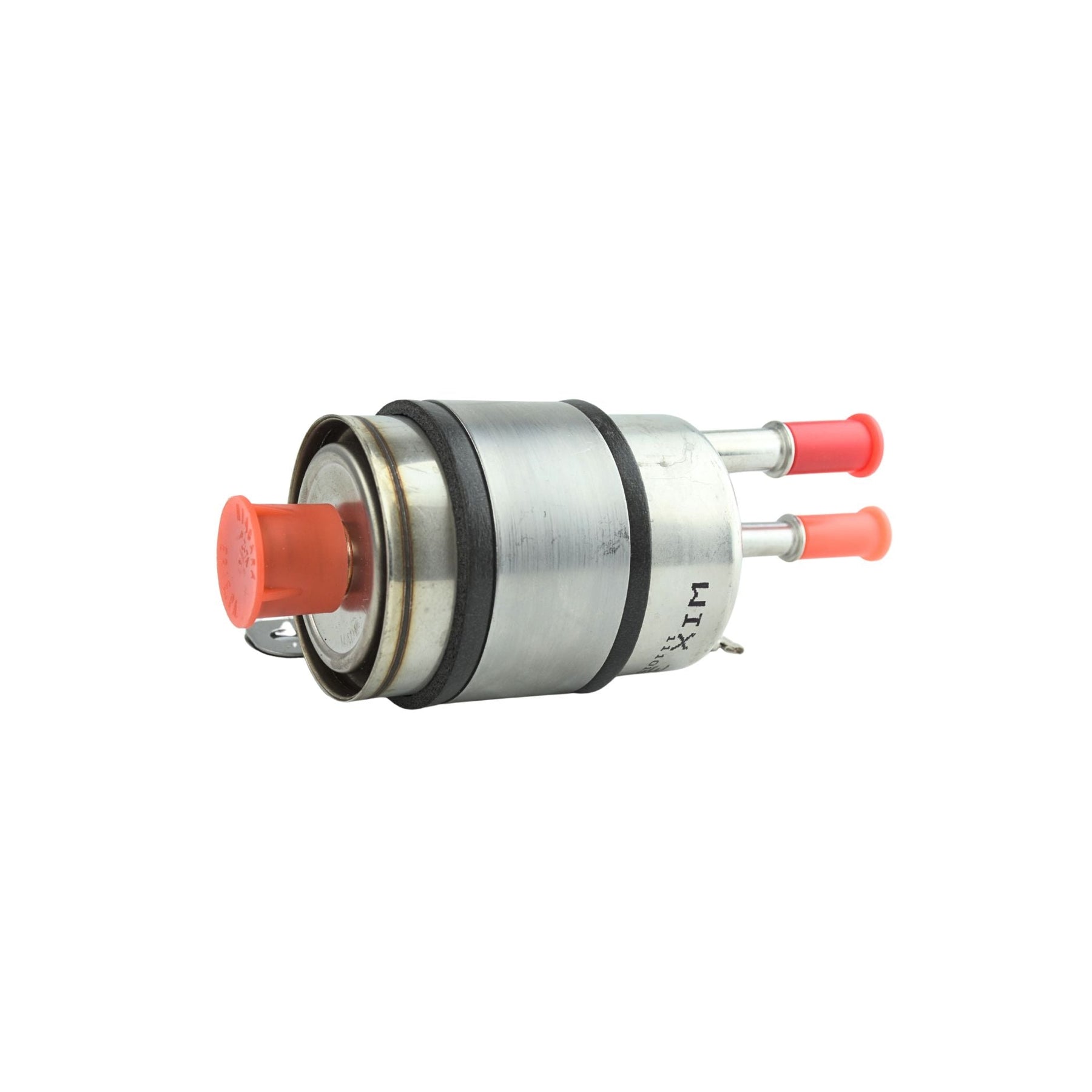

The LS Engine Fuel Filter Regulator combines fuel filtration and pressure regulation in one compact unit for Gen IV LS engines using deadhead-style fuel rail systems. By integrating both functions into a single component, it simplifies fuel system plumbing while helping maintain consistent fuel pressure for dependable engine performance.
This filter regulator is well suited for LS swaps, rock crawlers, trail rigs, tube chassis vehicles, and custom street builds where space and clean plumbing are important. It can be adapted to -6 AN fuel lines, making it easy to integrate into aftermarket fuel systems without adding a separate external regulator and filter assembly.
Includes:
- (1) LS Engine Fuel Filter Regulator Assembly
Specifications
| Specification | Details |
|---|---|
| Product Type | Fuel Filter and Pressure Regulator |
| Engine Application | Gen IV GM LS Engines |
| Fuel System Type | Deadhead / Returnless Fuel Rail |
| Functions | Fuel Filtration and Pressure Regulation |
| Fuel Line Compatibility | Adaptable to -6 AN Plumbing |
| Installation | Universal Custom Fuel System Installation |
| Design | Compact Combination Unit |
| Quantity | Sold Individually |
Fitment
Compatible Applications:
- Gen IV GM LS engines
- Deadhead-style fuel rail systems
- LS engine swaps
- Rock crawlers and rock bouncers
- Trail rigs and off-road vehicles
- Tube chassis and custom fabrication builds
- Performance street vehicles
- Aftermarket fuel systems using -6 AN plumbing
Fitment Notes:
- Designed for fuel systems without a return line running from the engine fuel rail.
- Verify that the regulator pressure is compatible with the engine, injectors, and ECU calibration before installation.

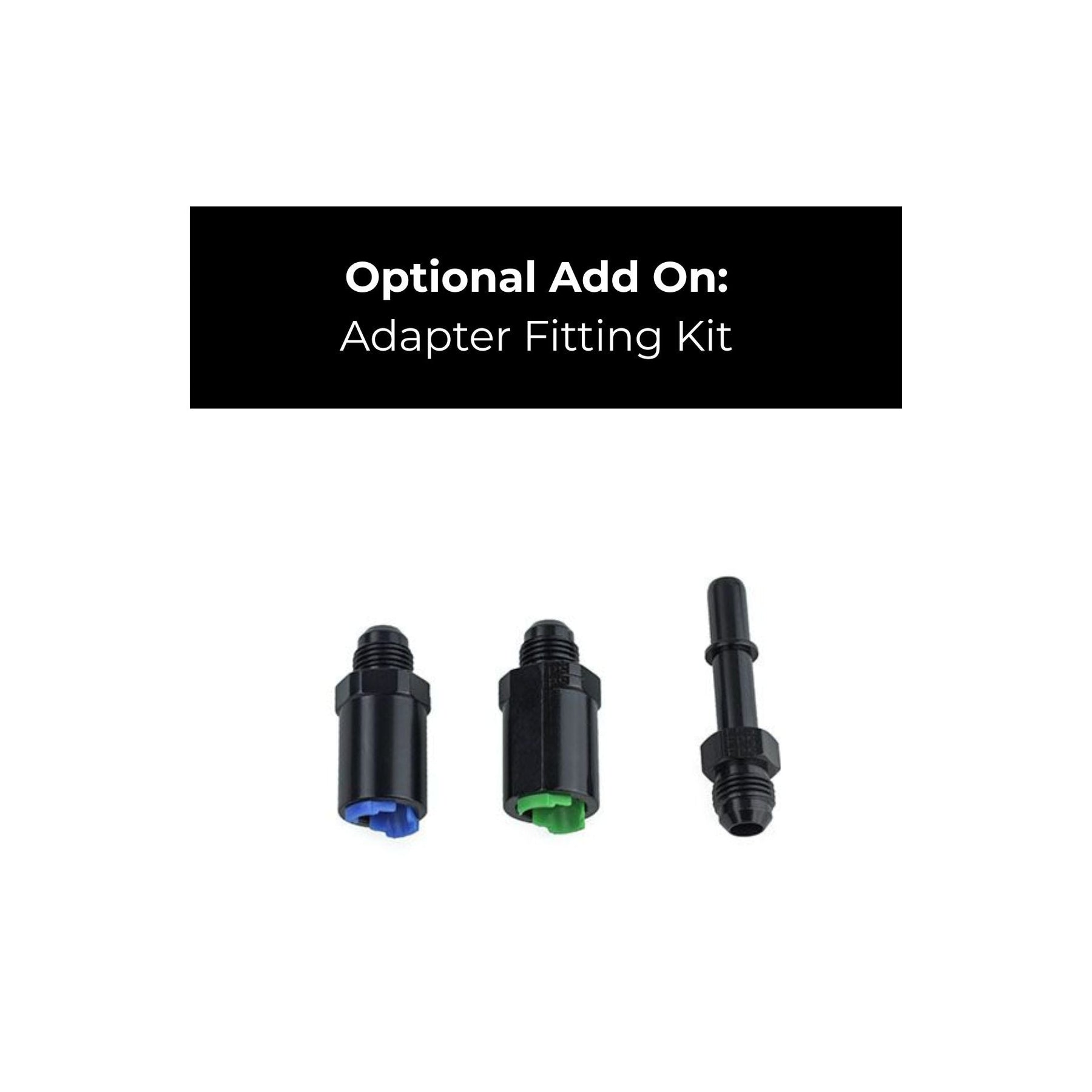

- Adapters and fittings required for -6 AN plumbing are not listed as included.
- Mount the unit in an accessible location away from exhaust heat and moving components.
- Confirm fuel flow direction before connecting the supply, outlet, and return lines.
- Use fuel-rated hose, fittings, clamps, and thread sealant appropriate for the application.
FAQ
What does a fuel filter regulator do?
A fuel filter regulator removes contaminants from the fuel supply while controlling pressure before fuel reaches the engine. Combining both functions into one unit reduces the number of separate components and connections required in the fuel system.
What is a deadhead fuel system?
A deadhead system uses a returnless fuel rail at the engine. Fuel pressure is regulated before the rail, and excess fuel is returned near the tank or regulator rather than being routed through a return line from the engine bay.
Why is this setup popular for LS swaps?
It simplifies fuel plumbing by allowing a single pressure-controlled feed line to run from the filter regulator to the engine. This can reduce hose length, fittings, and potential leak points while making the system easier to package in custom vehicles.
Can this unit be used with -6 AN fuel lines?
Yes. The filter regulator can be adapted for -6 AN plumbing using the appropriate fuel-rated fittings. The required adapters should be selected to match the regulator ports and the rest of the fuel system.
What should be verified before installation?
Confirm the required fuel pressure, fuel pump capacity, injector requirements, line size, port orientation, and return routing. Incorrect pressure or plumbing can cause poor engine performance, fuel leaks, or damage to fuel system components.
