GMR45 High Power 45W GMRS Mobile Radio - Rugged Radios
GMR45

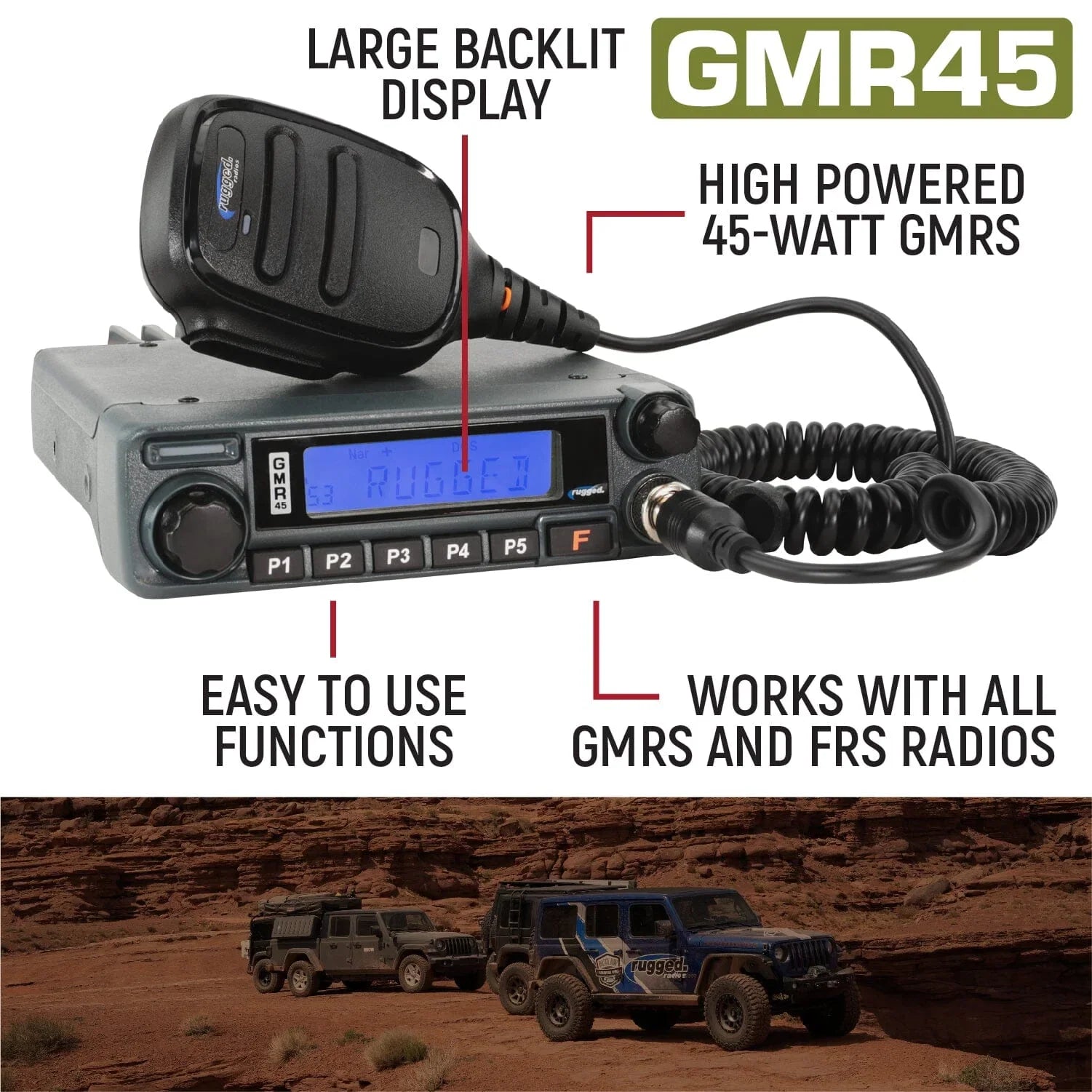

The Rugged Radios GMR45 High Power GMRS Mobile Radio provides vehicle-to-vehicle communication for trail rides, overland trips, and off-road group travel. Its 45-watt transmitter, accessible hand microphone, and backlit display make it useful for coordinating obstacles, route changes, and stops from a mounted radio in your Jeep, truck, UTV, or custom off-road vehicle. It can also serve a properly equipped base-camp installation with a suitable DC power supply and antenna system.
The GMR45 includes a built-in Rugged Ready 5-pin pigtail for connecting compatible intercoms, headsets, and accessories. Adjustable display color, brightness, squelch, and tone settings let you configure the radio for the installation, while channel scan and eight repeater channels provide additional communication options. The supplied universal bracket and fused power cable cover the basic mounting and power connections; select a compatible GMRS antenna, coax cable, and any equipment-specific connection cables separately. Communication range depends on terrain, antenna placement, obstructions, and the other radio’s installation.
Availability: Discontinued model. Available while remaining stock lasts.
Includes:

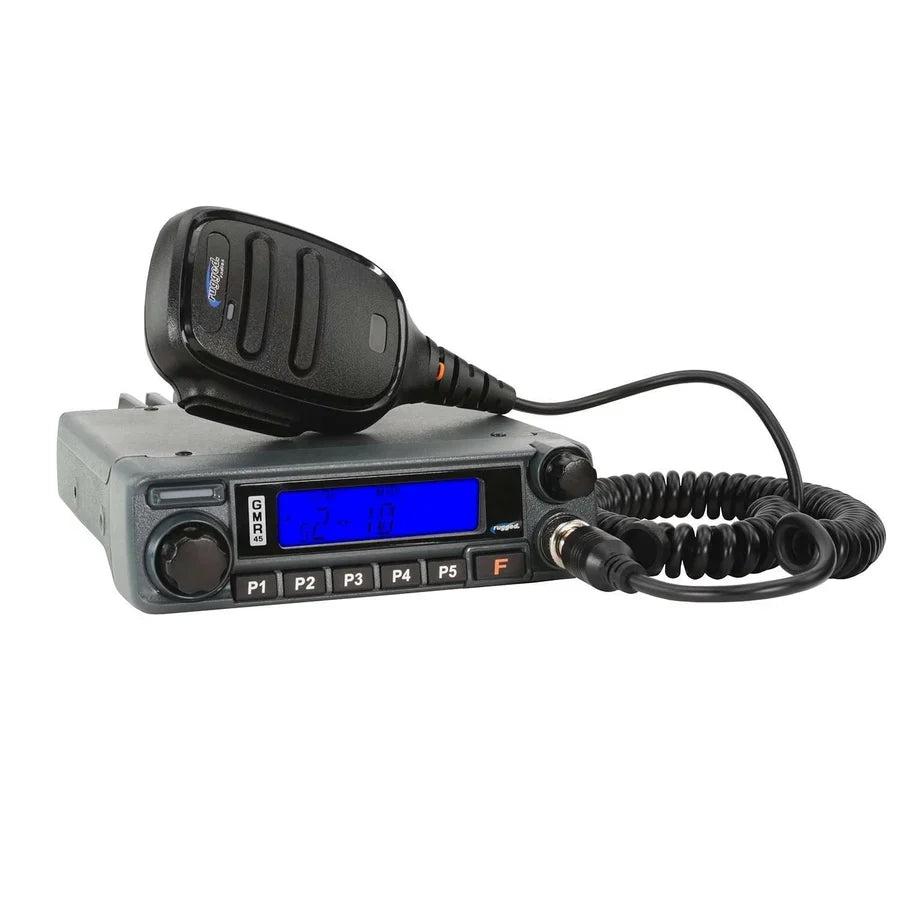

- (1) Rugged Radios GMR45 GMRS Mobile Radio
- (1) Hand Microphone with Scosche MagicMount Attachment
- (1) Scosche Magnetic Hand Microphone Hanger

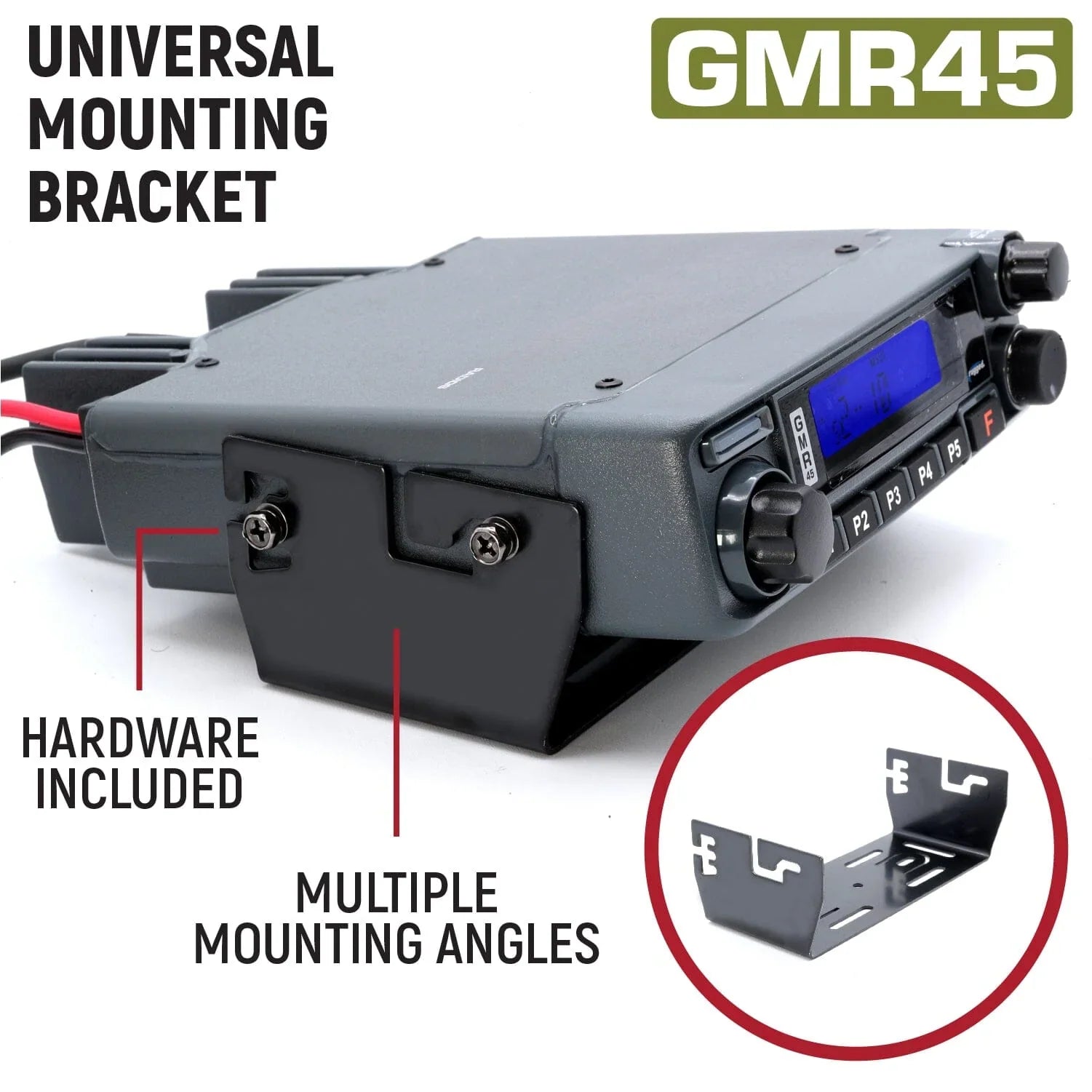

- (1) Universal U-Bracket and Mounting Hardware

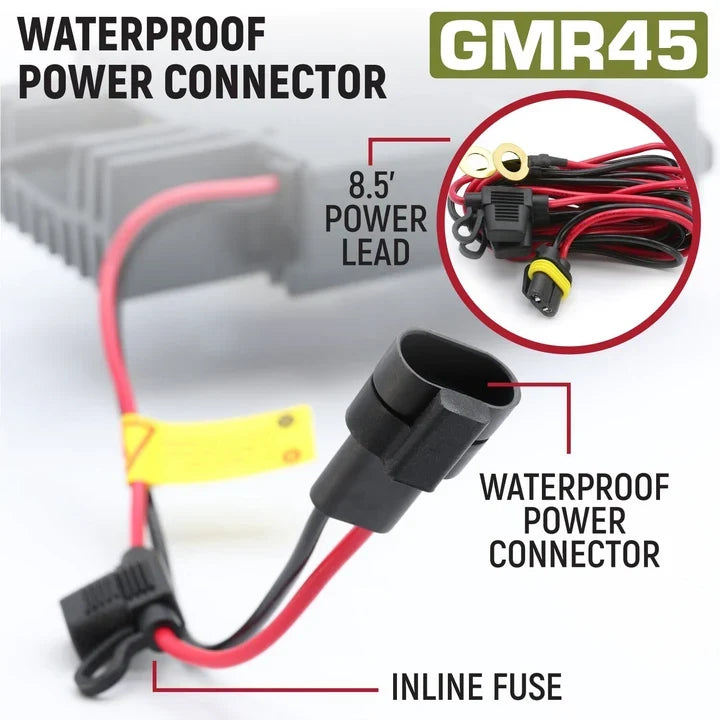

- (1) DC Power Cable with Fuse Holder and Protection Fuse
Sold Separately: Compatible GMRS antenna, coax cable, and any application-specific mounts, power supply, or accessory connection cables.
Specifications
| Manufacturer | Rugged Radios |
|---|---|
| Part Number | GMR45 |
| Product Type | GMRS Mobile Radio |
| Rated Power Output | 45 Watts |
| Operating Voltage | 13.8 VDC |
| Standard GMRS Channels | 15: Channels 1–7 and 15–22 |
| Repeater Channels | 8 |
| Accessory Connection | Built-In Rugged Ready 5-Pin Pigtail |
| Antenna Connector | UHF Female / SO-239 |
| Display | Backlit LCD with Adjustable Color and Brightness |
| Voltage Monitoring | Battery Voltage Display |
| Audio Settings | Adjustable Squelch and Selectable Tone Codes |
| Additional Features | Channel Scan, Button Lock, External Speaker Port, and DTMF |
| Microphone Mounting | Scosche MagicMount Magnetic Hanger |
| Radio Mounting | Universal U-Bracket |
| Radio Dimensions | 5.5" Wide × 7" Deep × 1.5" High |
| Primary Application | Off-Road Vehicle and Properly Equipped Base-Camp GMRS Communication |
| Model Status | Discontinued |
Fitment
Common Uses:
- Jeep and truck trail-group communication
- UTV and custom off-road vehicle installations
- Overland convoy coordination
- Base-camp communication with a suitable power supply and antenna
- Integration with compatible intercoms and headsets
Fitment Notes:
- Universal installation requires adequate mounting space and clearance for connectors, ventilation, and cable routing.
- Requires a compatible GMRS antenna and coax cable with the appropriate radio connection.
- Use the supplied fused power cable and follow the radio’s installation instructions.
- Base-camp use requires a suitable regulated DC power supply; do not connect the radio directly to household AC power.
- The built-in 5-pin pigtail supports compatible accessories. Confirm equipment wiring and any required adapter before connecting.
- Communicates with compatible GMRS radios using matching channels and tone settings.
- FRS communication is limited to shared channels 1–7 and 15–22 with compatible settings.
- A GMRS license is required to transmit.
FAQs
Is the GMR45 discontinued?
Yes. This listing is for remaining inventory of the discontinued GMR45 model. Availability is limited to stock on hand.
Does this package include an antenna and coax cable?
No. The package supplies the radio, hand microphone and magnetic hanger, universal mounting bracket, hardware, and fused power cable. Select the antenna and coax cable separately for the installation.
Can it communicate with other GMRS and FRS radios?
Yes, when the radios use matching shared channels and compatible tone settings. The GMR45 supports channels 1–7 and 15–22, plus eight repeater channels. It does not provide channels 8–14.
Can I connect it to an intercom or headset?
The built-in Rugged Ready 5-pin pigtail provides an accessory connection for compatible equipment. Confirm the exact intercom, headset, and cable wiring before connecting; a matching pin count alone does not establish compatibility.
How far will the GMR45 communicate?
There is no single dependable range for every installation. Terrain, buildings, antenna height and placement, coax condition, and the receiving radio all affect performance. Plan the antenna installation carefully rather than selecting the radio on transmitter wattage alone.
