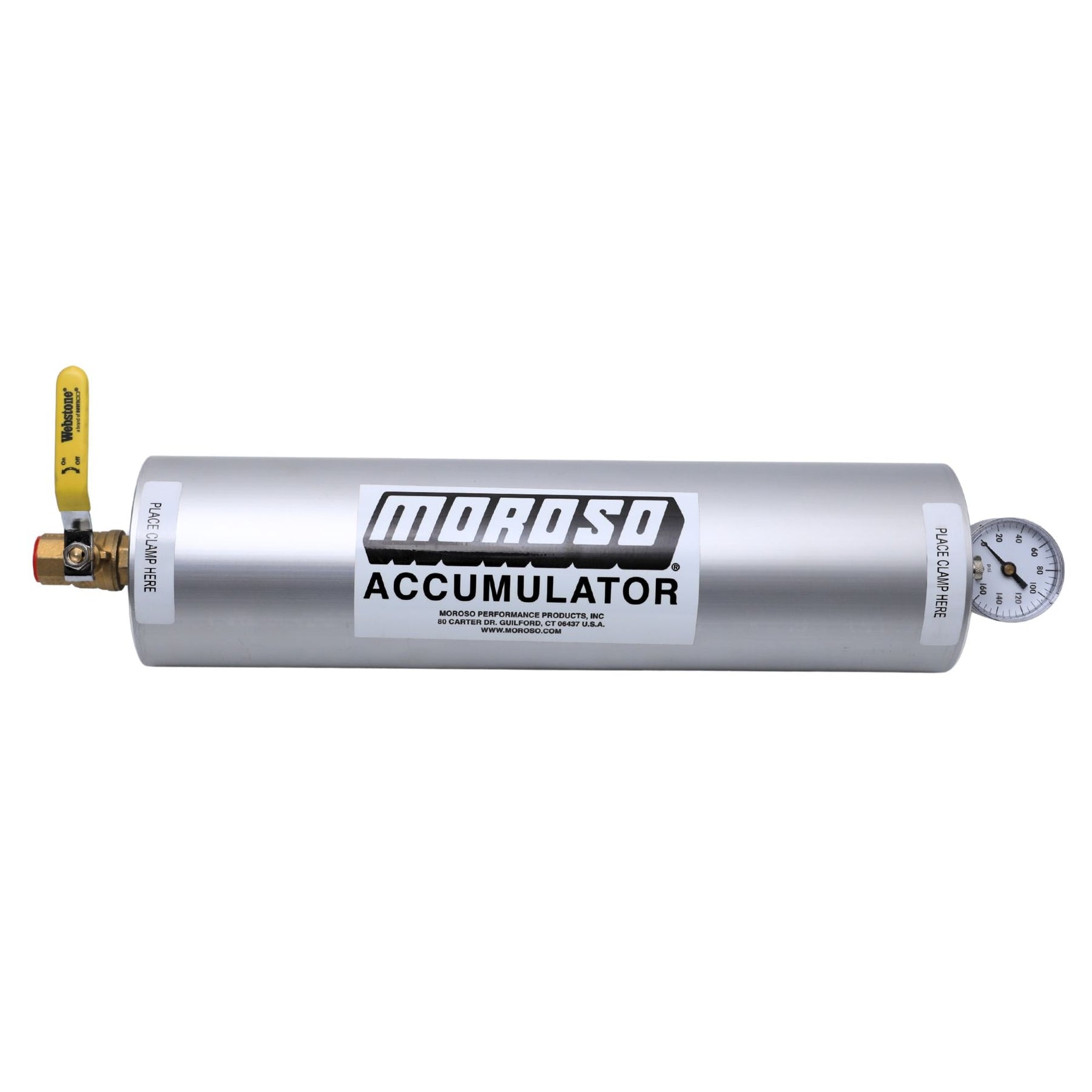

Moroso 3-Quart Oil Accumulator
Moroso 3-Quart Oil Accumulator
Moroso 3-Quart Oil Accumulator
Moroso 3-Quart Oil Accumulator
Moroso 3-Quart Oil Accumulator
Moroso 3-Quart Oil Accumulator
Moroso 3-Quart Oil Accumulator
Moroso 3-Quart Oil Accumulator
Moroso 3-Quart Oil Accumulator
Moroso 3-Quart Oil Accumulator
Moroso 3-Quart Oil Accumulator
Moroso 3-Quart Oil Accumulator

Moroso 3-Quart Oil Accumulator

23900

$324.99
/
Shipping calculated at checkout.

Protect your engine from one of the most common causes of catastrophic engine damage—momentary oil pressure loss. The Moroso 3-quart Oil Accumulator stores a pressurized reserve of engine oil and instantly delivers it back to the engine during hard acceleration, steep climbs, side hills, braking, or high-speed cornering when the oil pickup can become uncovered. It can also be used to pre-oil the engine before startup, greatly reducing the dry starts responsible for much of an engine's long-term wear.

Ideal for V8 engines, high-performance six-cylinder builds, rock crawlers, Ultra4 cars, prerunners, drag cars, road race vehicles, and other high-performance applications, the 3-quart accumulator features a heavy-wall aluminum cylinder, billet aluminum floating piston, integrated pressure gauge, and manual ball valve. Whether you're protecting an expensive race engine or adding insurance to a trail rig, an oil accumulator is one of the smartest upgrades you can make.

Includes:

  • (1) 3-Quart Oil Accumulator

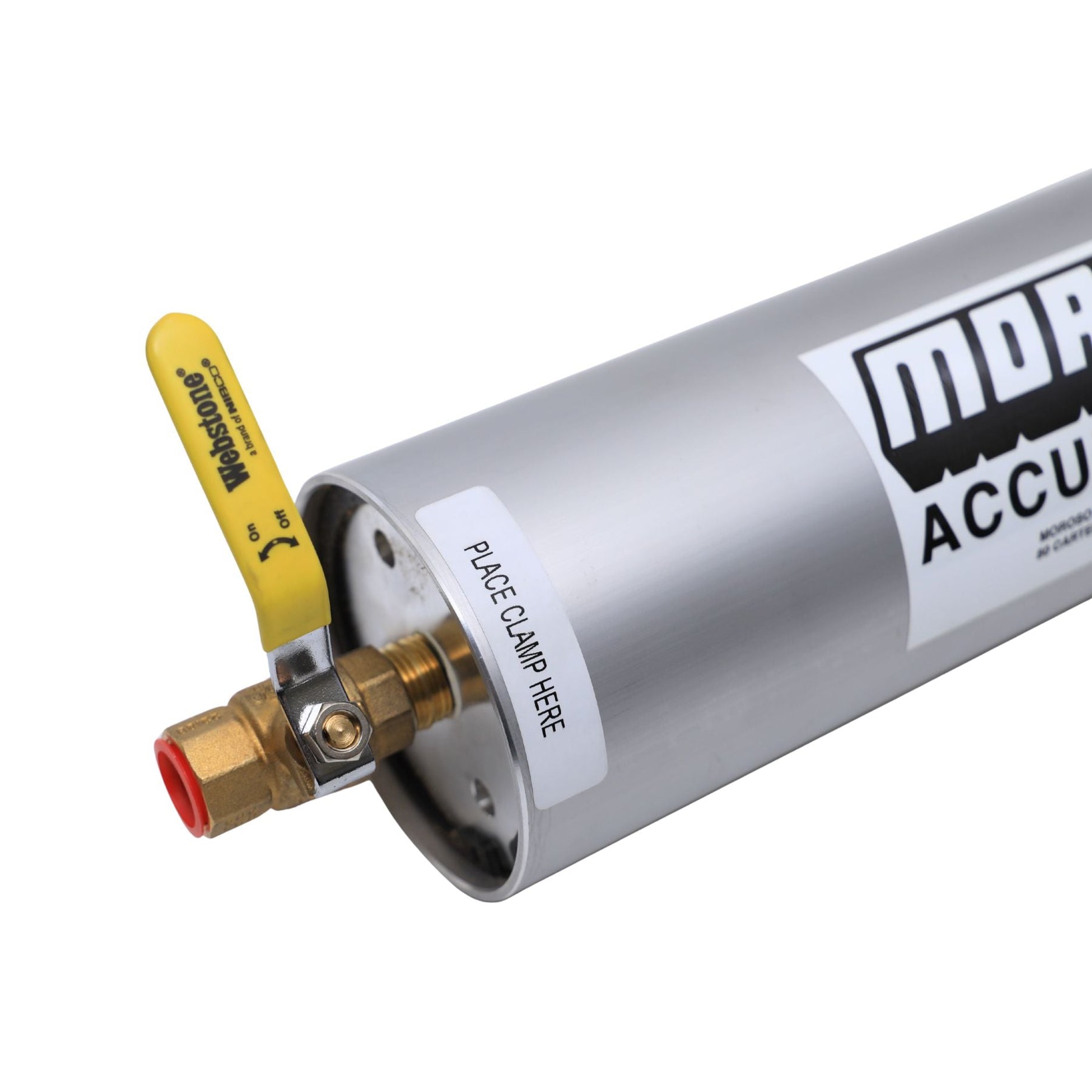

  • Manual Ball Valve

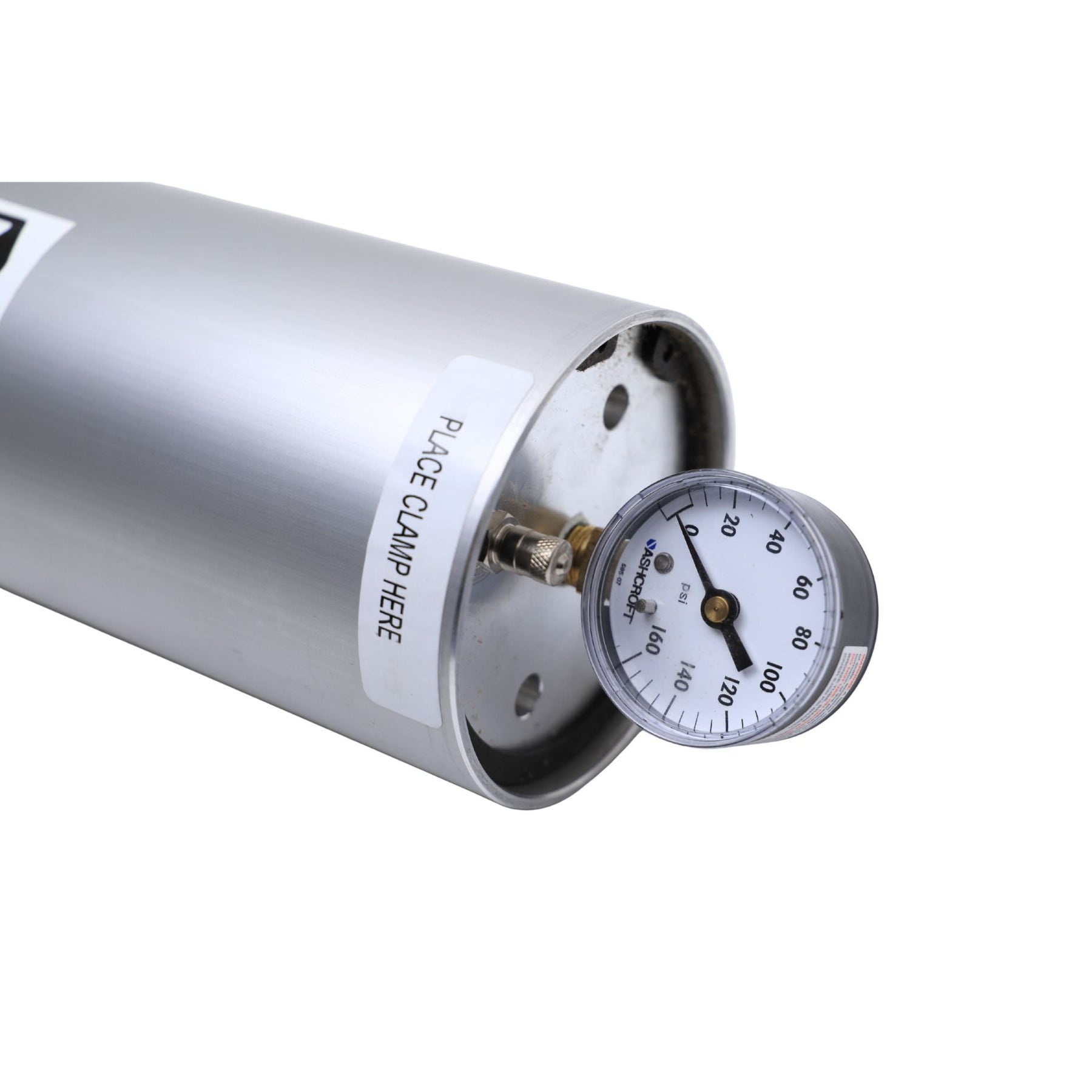

  • Integrated Air Pressure Gauge
  • Schrader Air Valve
  • 1/2" NPT Oil Port

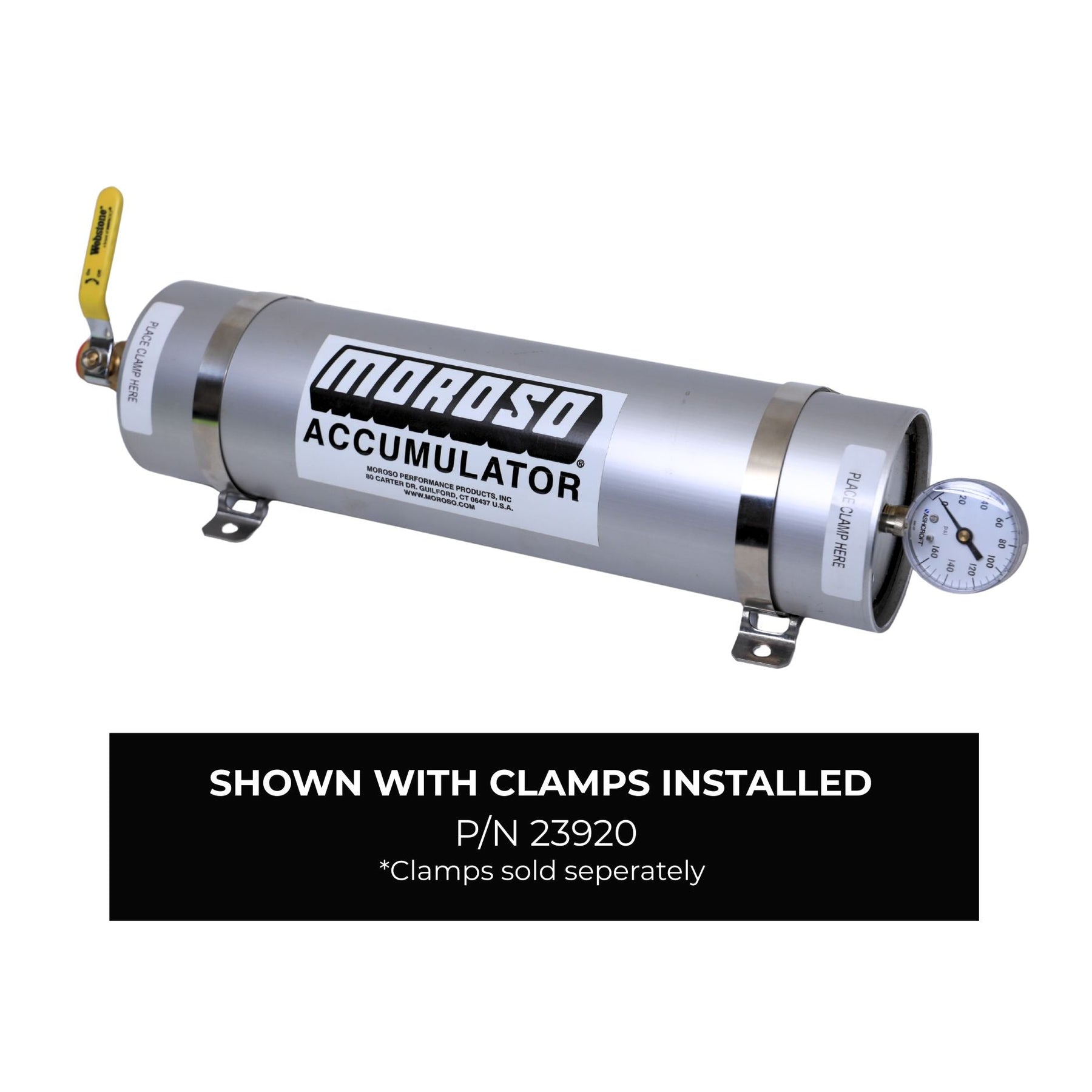

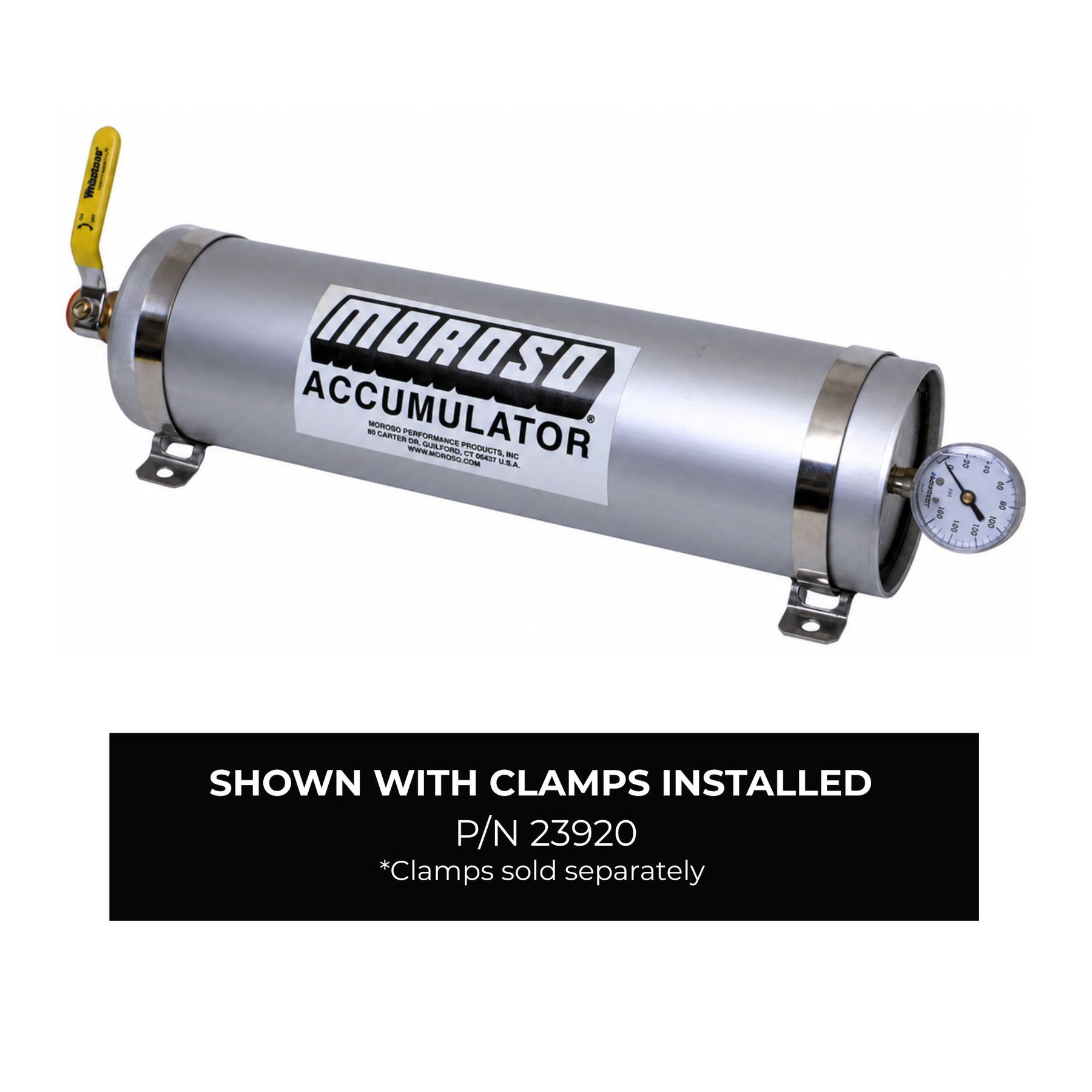

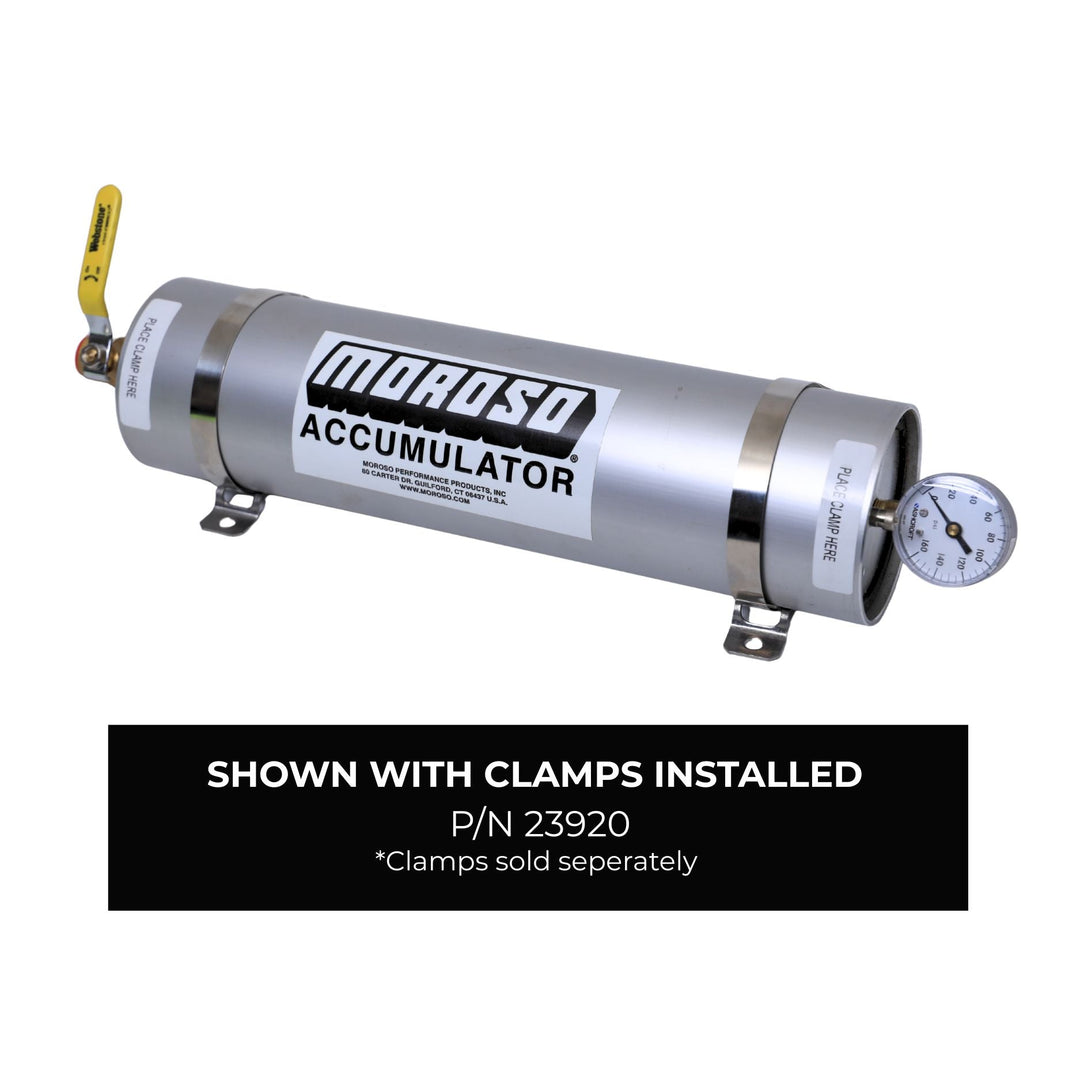

Note: Moroso 3-Quart Oil Accumulator Clamps Sold Separately

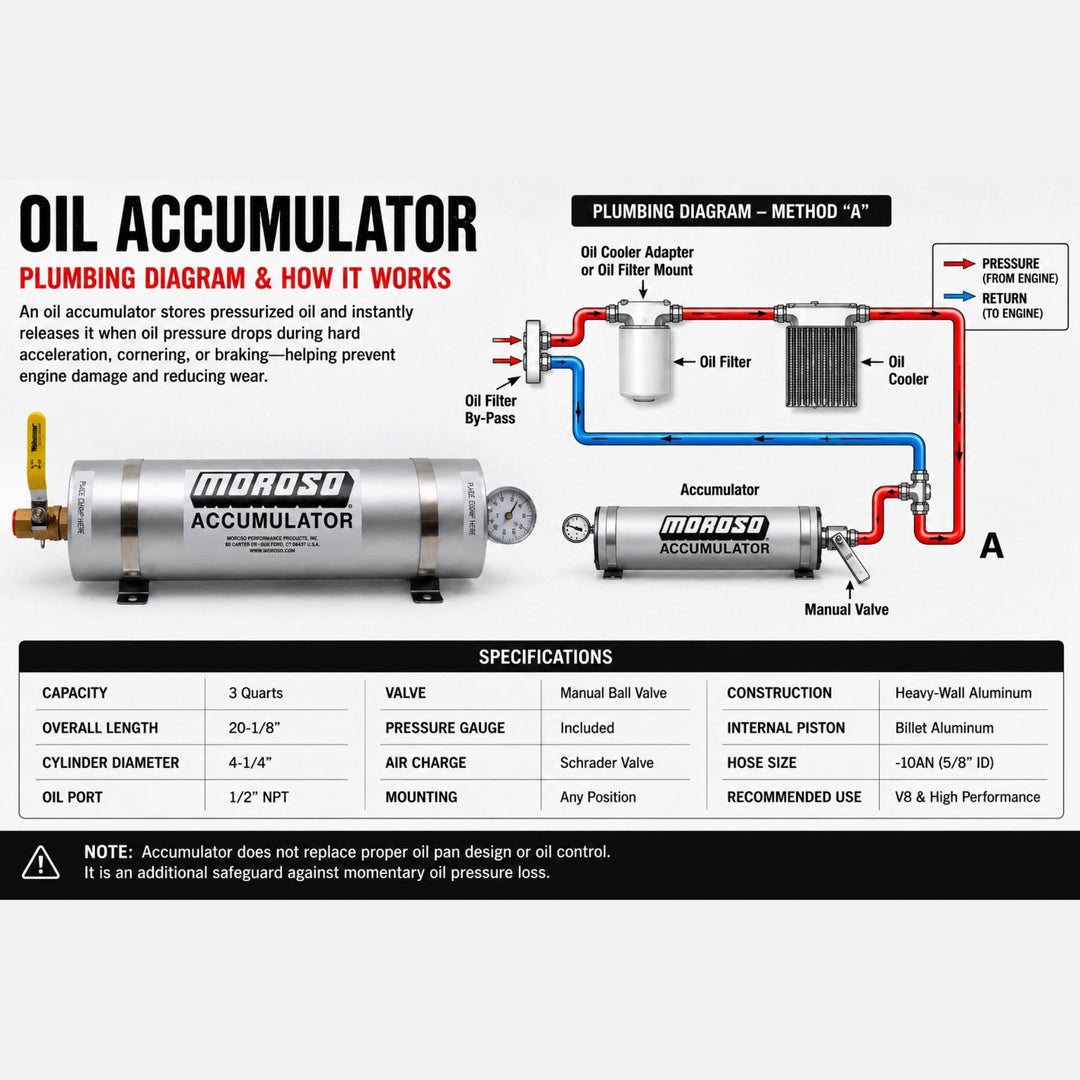

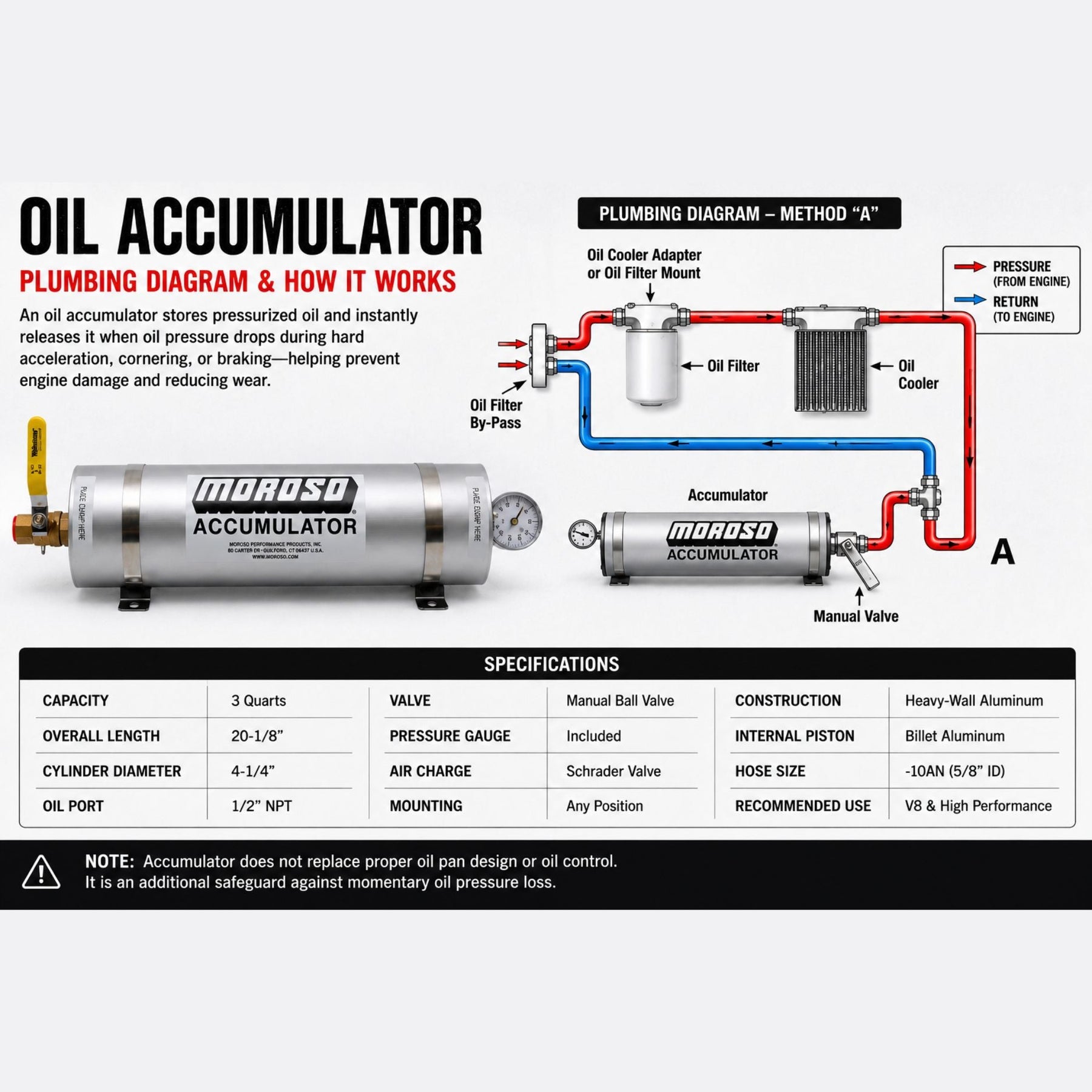

Specifications
Specification Details
Capacity 3 Quarts
Overall Length 20-1/8"
Cylinder Diameter 4-1/4"
Oil Port 1/2" NPT
Valve Manual Ball Valve
Pressure Gauge Included
Air Charge Schrader Valve
Mounting Any Position
Construction Heavy-Wall Aluminum Cylinder
Internal Piston Billet Aluminum Floating Piston
Serviceable Yes
Fitment

Universal Fitment

Fitment Notes:

  • Designed for custom oiling systems.
  • Recommended for V8 and high-performance 6-cylinder engines.
  • Can be mounted horizontally, vertically, or at any angle.
  • Requires -10AN (5/8" ID) oil plumbing.
  • May be installed with:
    • Remote oil filter systems
    • Oil cooler plumbing
    • Oil filter sandwich adapters
    • Pressure-side engine oil galleries
  • Fabrication and plumbing required.
Tech Insight

What does an oil accumulator do?

An oil accumulator stores pressurized engine oil and automatically supplies it whenever engine oil pressure drops, helping protect bearings and other critical engine components.

Does an oil accumulator increase oil capacity?

Yes. A 3-quart accumulator adds approximately three additional quarts of oil capacity to the engine's lubrication system.

Will this prevent oil starvation off-road?

It helps significantly reduce the effects of temporary oil starvation caused by steep climbs, side hills, rock crawling, acceleration, braking, and cornering. It is not a substitute for a properly designed oil pan but provides an important layer of protection.

Can I pre-oil my engine before starting?

Yes. Opening the manual valve before startup allows stored oil to pressurize the engine before cranking, reducing dry-start wear.

Can the accumulator be mounted horizontally?

Yes. The accumulator can be mounted in virtually any position without affecting operation.

What engines is the 3-quart model recommended for?

The 3-quart version is generally recommended for:

  • Small Block V8
  • Big Block V8
  • LS engines
  • Hemi engines
  • Ford Modular V8
  • High-performance inline sixes
  • Competition engines

Do I need special oil lines?

Yes. Most installations use -10AN (5/8") high-pressure hose rated for at least 400 PSI.

Is an electric valve required?

No. This model includes a manual ball valve. Electric and pressure-activated valves are available separately for automatic operation.

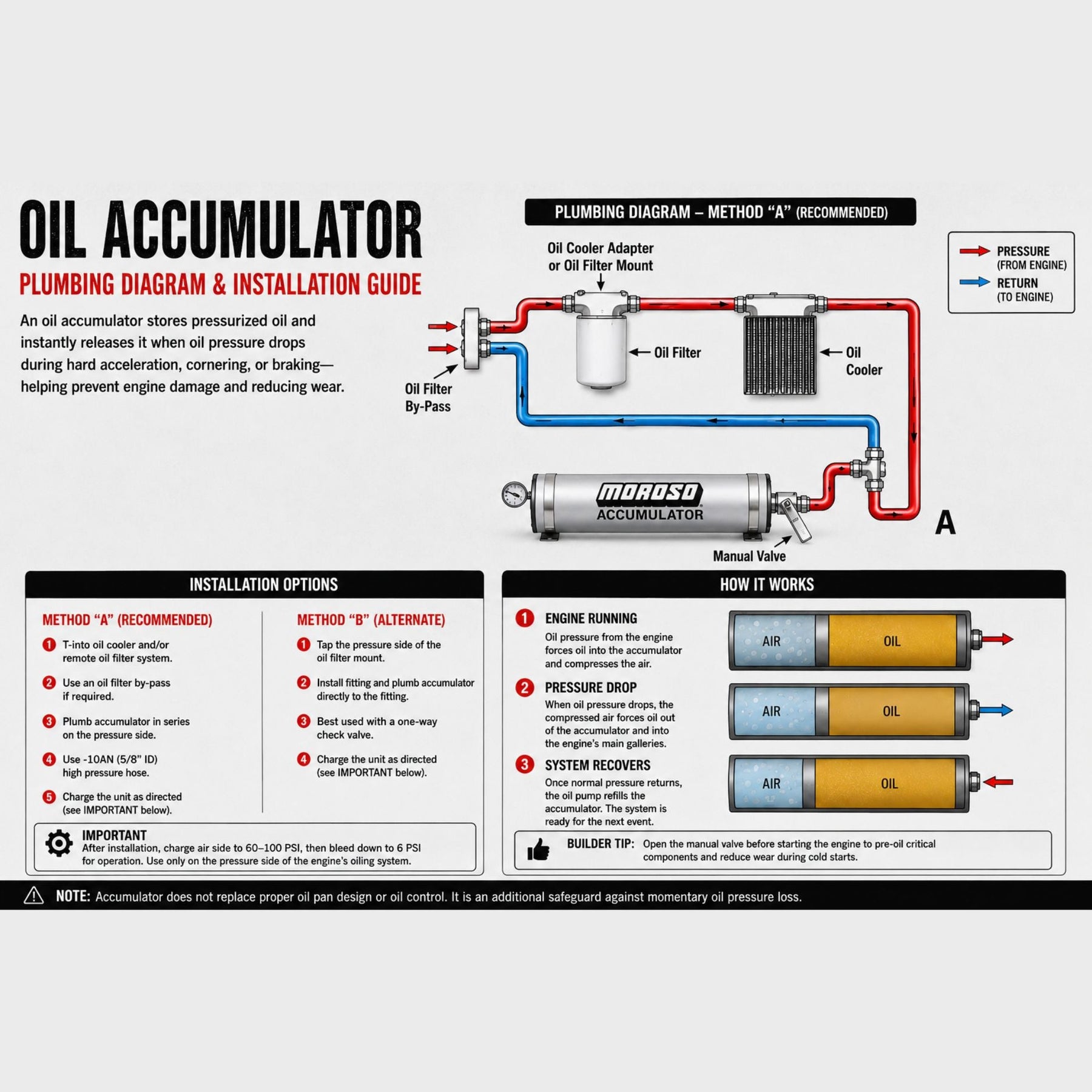

Installation Guide
