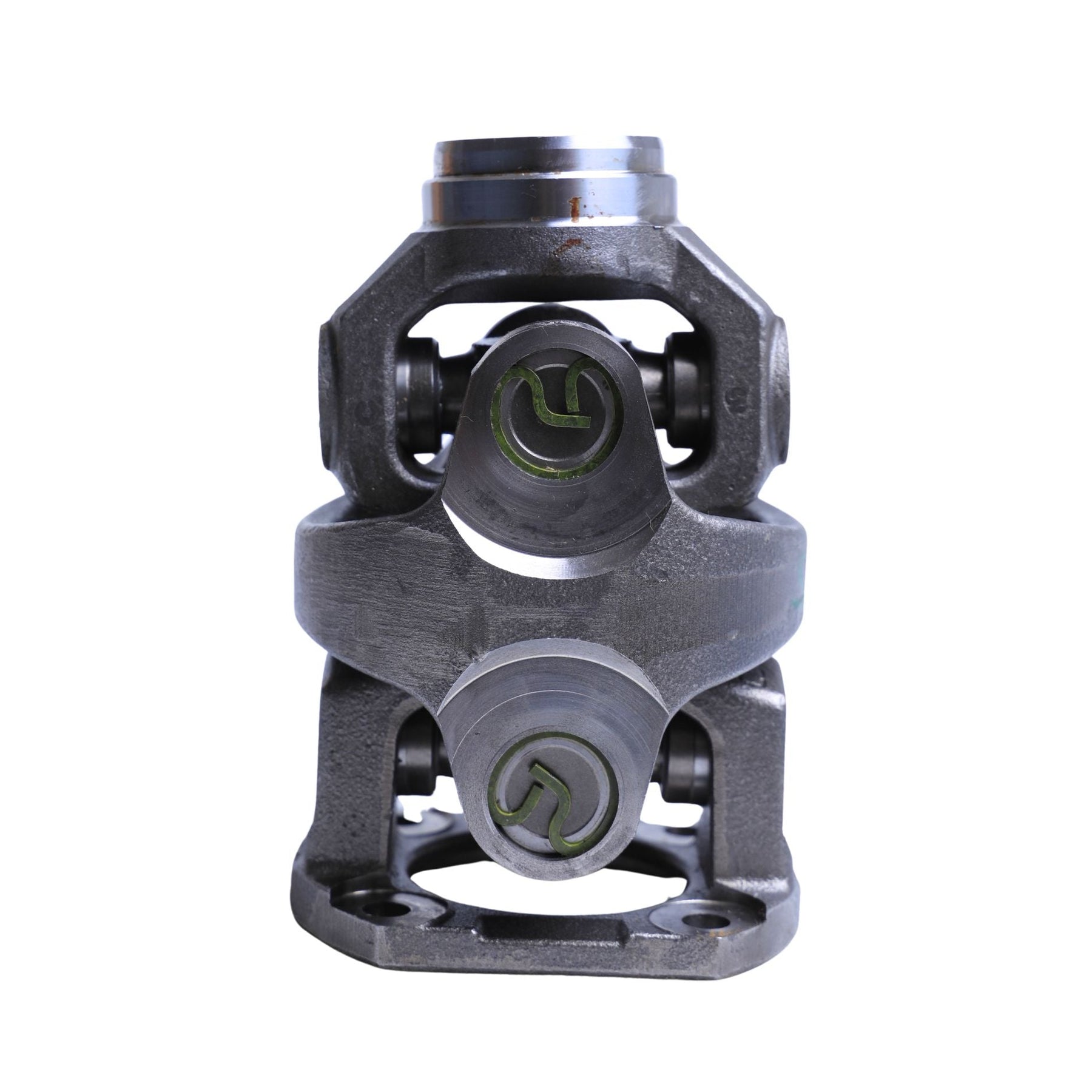

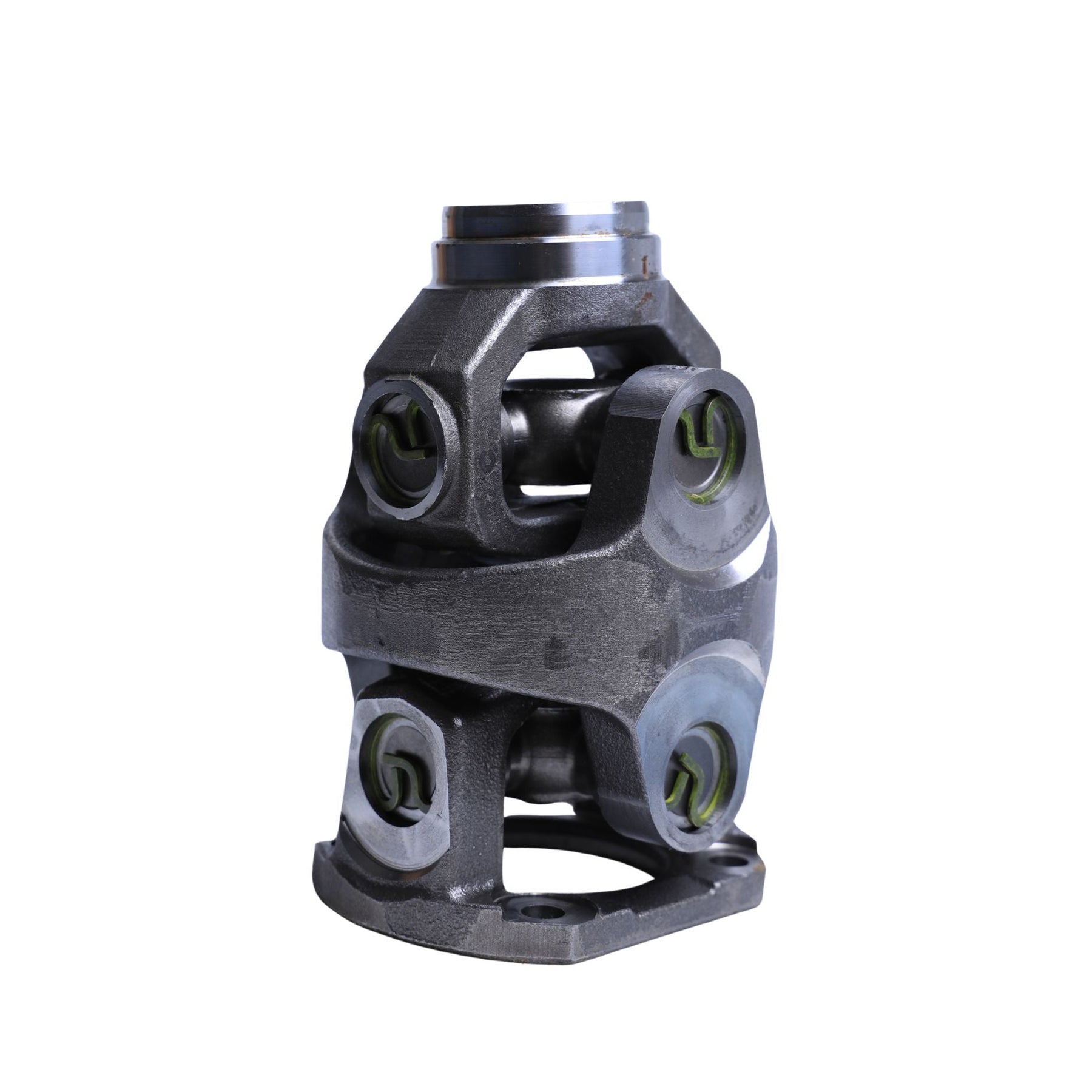

1410/1415 High-Angle Double Cardan CV Head – 30° Angle
N924141HAG
The 1410/1415 High-Angle Double Cardan CV Head – 30° is built for custom driveshafts that need more operating angle than a standard CV assembly can provide. With up to 30 degrees of operating joint angle, this 1410/1415-series CV head is a strong fit for rock crawlers, lifted 4x4s, buggies, and custom drivetrains where suspension travel and driveline geometry create steep driveshaft angles.

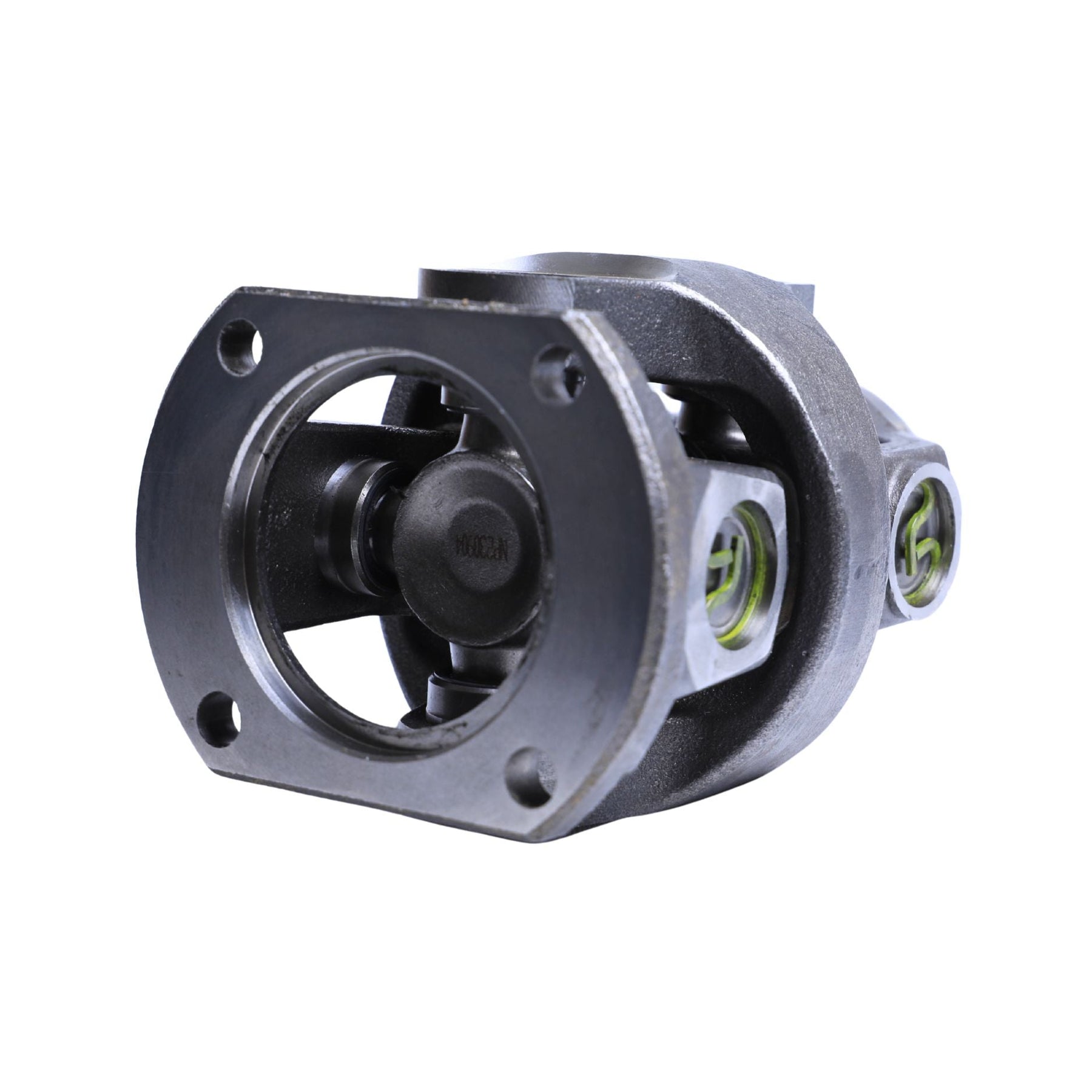

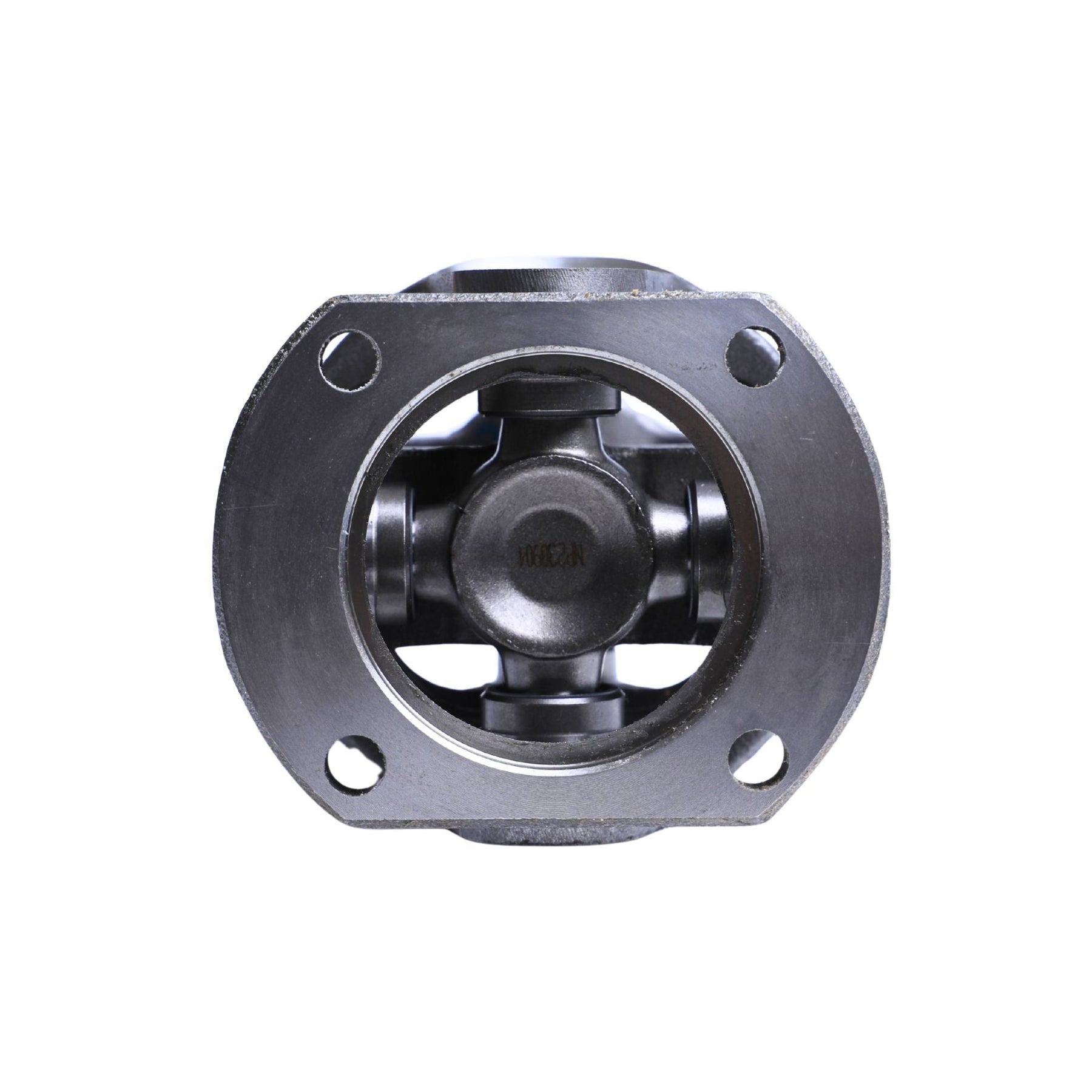

The N924141HAG uses a flat-flange connection with a 4.250" bolt circle and 3.125" pilot and is designed for 2.500" OD x 0.120" wall driveshaft tubing. For builders packaging a large 1410/1415 driveline into a high-angle application, the combination of a 30-degree maximum joint angle and weld-on tube connection makes this CV head well suited for custom driveshaft fabrication.
Includes:
- (1) 30° High-Angle Double Cardan CV Head Assembly
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Neapco |
| Part Number | N924141HAG |
| Product Type | High-Angle Double Cardan CV Head Assembly |
| Driveline Series | 1410 / 1415 |
| Maximum Joint Angle | 30° |
| CV Head Style | Flat Flange |
| Bolt Circle Diameter | 4.250" |
| Bolt Hole Diameter | 0.469" |
| Pilot Diameter | 3.125" |
| Driveshaft Tube Size | 2.500" OD x 0.120" Wall |
| Butt Diameter | 2.258" |
| Centerline to Centerline of H-Yoke | 3.484" |
| Centerline to Point of Weld | 2.094" |
| Overall Length | 7.32" |
| Primary Application | High-Angle Custom Driveshaft Builds |
Fitment
Best Suited For:
- Custom 1410 / 1415 driveshaft builds
- Rock crawlers and off-road buggies
- Lifted 4x4 applications
- High-angle driveline applications
- Custom suspension and drivetrain layouts
Fitment Requirements:
- 1410 / 1415-series driveline
- 2.500" OD x 0.120" wall driveshaft tubing
- 4.250" bolt circle
- 3.125" pilot
- 0.469" bolt holes
Fitment Notes:
- Designed to accommodate a maximum operating joint angle of 30 degrees.
- The high-angle design provides additional operating angle compared with standard 22-degree CV setups.
- Verify flange bolt circle, pilot diameter, driveshaft tube size, and available operating angle before ordering.
- Intended for custom driveshaft fabrication and requires proper driveshaft assembly and welding.
FAQ
What is the maximum operating angle of the Neapco N924141HAG CV head?
The N924141HAG is designed to accommodate a maximum operating joint angle of 30 degrees, making it useful when driveline geometry requires more angle than a standard 22-degree CV setup can provide.
What U-joint series does this CV head use?
This double Cardan CV head is designed for 1410 / 1415-series driveline applications.
What size driveshaft tubing does the N924141HAG fit?
It is designed for 2.500" outside-diameter driveshaft tubing with a 0.120" wall thickness.
What flange pattern does this Neapco CV head use?
The flat flange uses a 4.250" bolt circle with 0.469" bolt holes and a 3.125" pilot diameter.
When should I use a high-angle double Cardan CV driveshaft?
A high-angle CV assembly is useful in custom drivetrains where suspension height, transfer case position, axle location, or a short driveshaft creates a steep operating angle. This assembly provides up to 30 degrees of operating joint angle for those applications.
