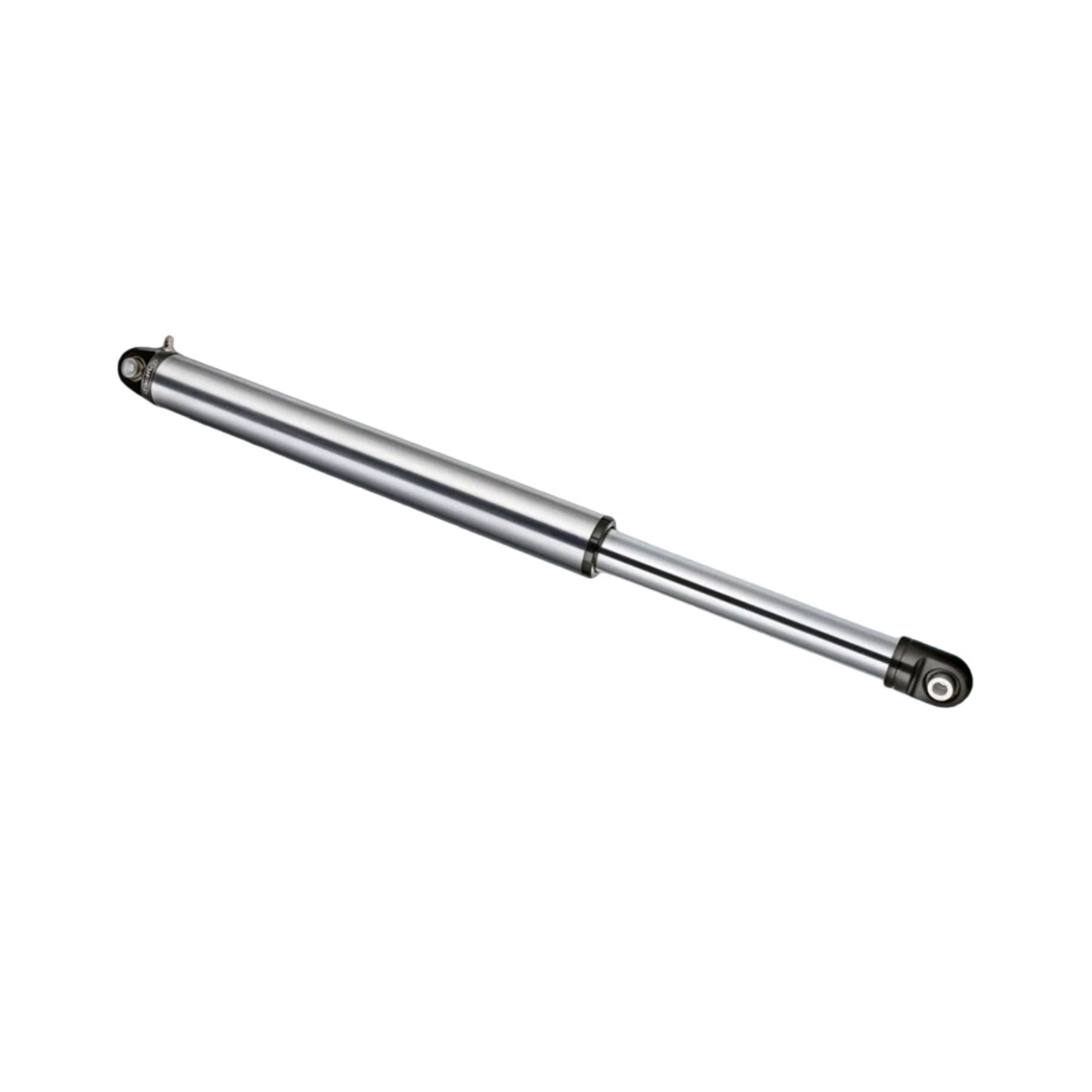

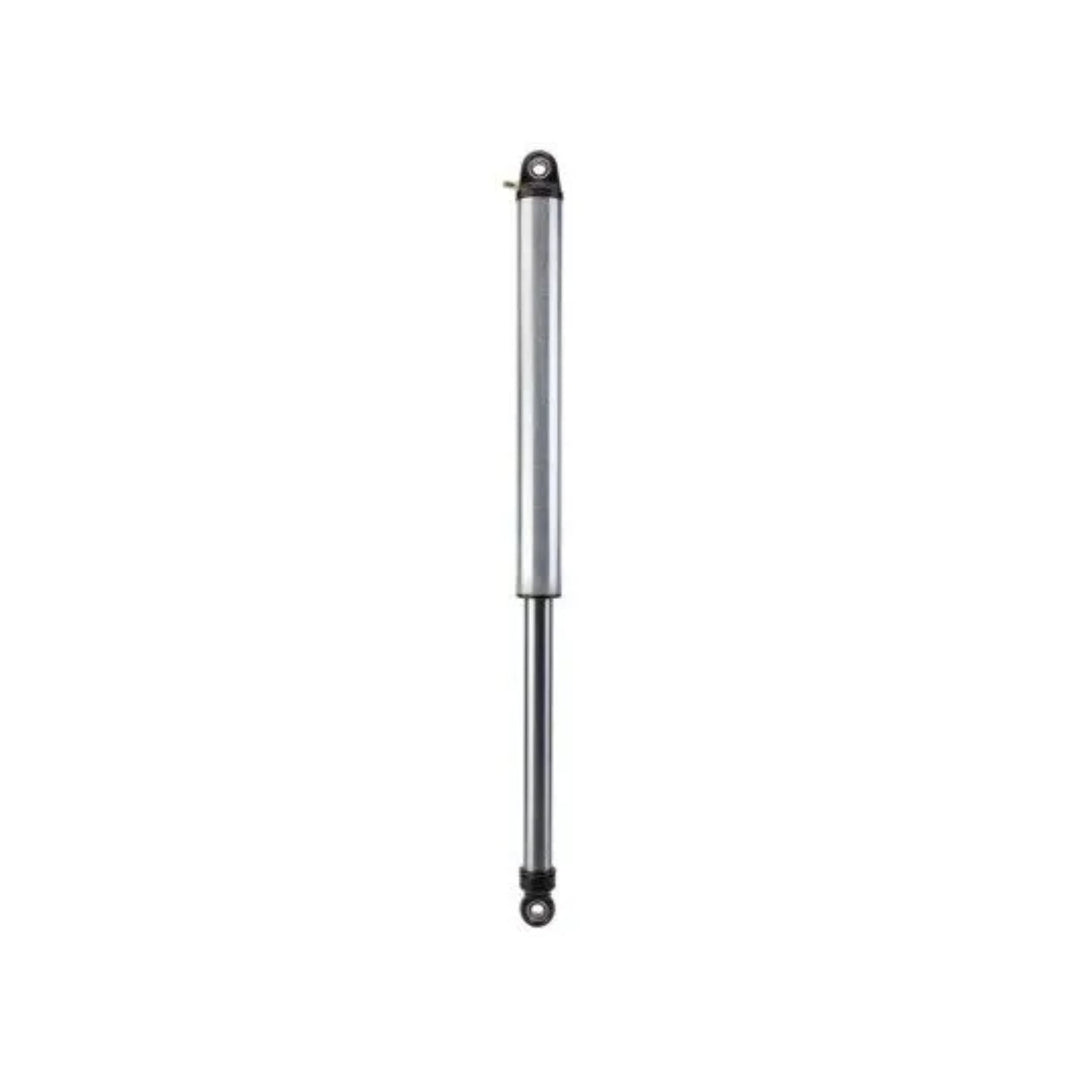

Radflo 2.5 Air Shock - 1.625" Shaft
6SA-001-00
The Radflo 2.5 Air Shock with 1.625" Shaft combines spring support and shock damping in one compact suspension component for lightweight rock crawlers, trail buggies, and custom tube chassis vehicles. Available in 8", 10", 12", 14", 16", and 18" travel lengths, the large 2.5" body and oversized 1-5/8" shaft provide increased strength and oil capacity for demanding off-road suspension applications.
Unlike a coilover, an air shock supports vehicle weight without an external coil spring, helping reduce suspension weight and simplify packaging in tight chassis layouts. Ride height and spring characteristics can be tuned through nitrogen pressure and oil volume, while Radflo's velocity-sensitive valving controls suspension movement throughout the travel. The result is a simple, lightweight, and highly tunable suspension option for vehicles where packaging and weight matter.
Includes:
- (1) Radflo 2.5 Air Shock
- Universal Spherical Bearing
- Mounting Hardware
Sold Individually.
Availability: As the #1 stocking warehouse for Radflo, we stock a large selection of Radflo shocks and suspension components for immediate shipment. Popular travel lengths are commonly available, while specialized configurations may require additional production time.
Need parts quickly or have questions? Call us to confirm current inventory and get help selecting the correct shock length and suspension setup for your build.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Radflo Suspension Technology |
| Shock Type | Off-Road Air Shock |
| Body Diameter | 2.5" |
| Travel Options | 8", 10", 12", 14", 16", 18" |
| Shaft Diameter | 1.625" (1-5/8") |
| Bearing Size | 5/8" (0.625") |
| Application | Front or Rear / Universal |
| Body Material | SSID Alloy Steel Tube |
| Body Finish | Clear Cadmium Plating |
| Body Caps / Eyelets | CNC-Machined 6061 Aluminum |
| Cap Finish | Black Anodized |
| Rod Material | Steel |
| Rod Finish | Mirror Polished & Chrome Plated |
| Rod Guide | CNC-Machined Bronze with PTFE Coating |
| Piston | Radflo Aluminum Freeflo Racing Piston |
| Seal System | Quad-Ring & Lip Seal Combination |
| Valving | Velocity-Sensitive Deflective Disc |
| Tuning | Consumer or Factory Tunable |
| Shock Oil | Radflo High-Temp Foam-Resistant Suspension Fluid |
| Pressurization | Nitrogen Gas |
| Charge Pressure | Starting at 200 PSI / Adjustable for Application |
| Serviceability | Fully Rebuildable / Consumer or Factory Serviceable |
| Sold | Individually |
Fitment
Universal fitment for lightweight custom off-road suspension applications including:
- Rock Crawlers
- Trail Buggies
- Lightweight Off-Road Vehicles
- Custom Tube Chassis Vehicles
Fitment Notes:
- Available in 8", 10", 12", 14", 16", and 18" travel lengths.
- Air shocks both support vehicle weight and provide suspension damping.
- Vehicle weight, suspension leverage ratio, mounting angle, and shock travel must be considered when selecting an air shock.
- Nitrogen pressure and oil volume must be tuned for the specific vehicle and suspension setup.
- Verify mounting dimensions, suspension geometry, and full-cycle clearance before ordering.
Tech Insight
Air shocks combine the spring and damper into one compact suspension component. Instead of using an external coil spring, nitrogen pressure supports vehicle weight while the shock's piston, oil, and valving control suspension movement. This makes air shocks especially useful on lightweight rock crawlers and trail buggies where simple packaging, low suspension weight, and easy ride-height adjustment are priorities.
The 1.625" shaft provides substantial strength for demanding off-road suspension loads, while the 2.5" body provides additional oil capacity compared with smaller air shocks. Nitrogen pressure and oil volume can be adjusted to change ride height and spring characteristics, while internal valving can be tuned to control compression and rebound. Because an air shock is both the spring and damper, proper sizing and setup are especially important for vehicle weight, suspension geometry, and intended use.
