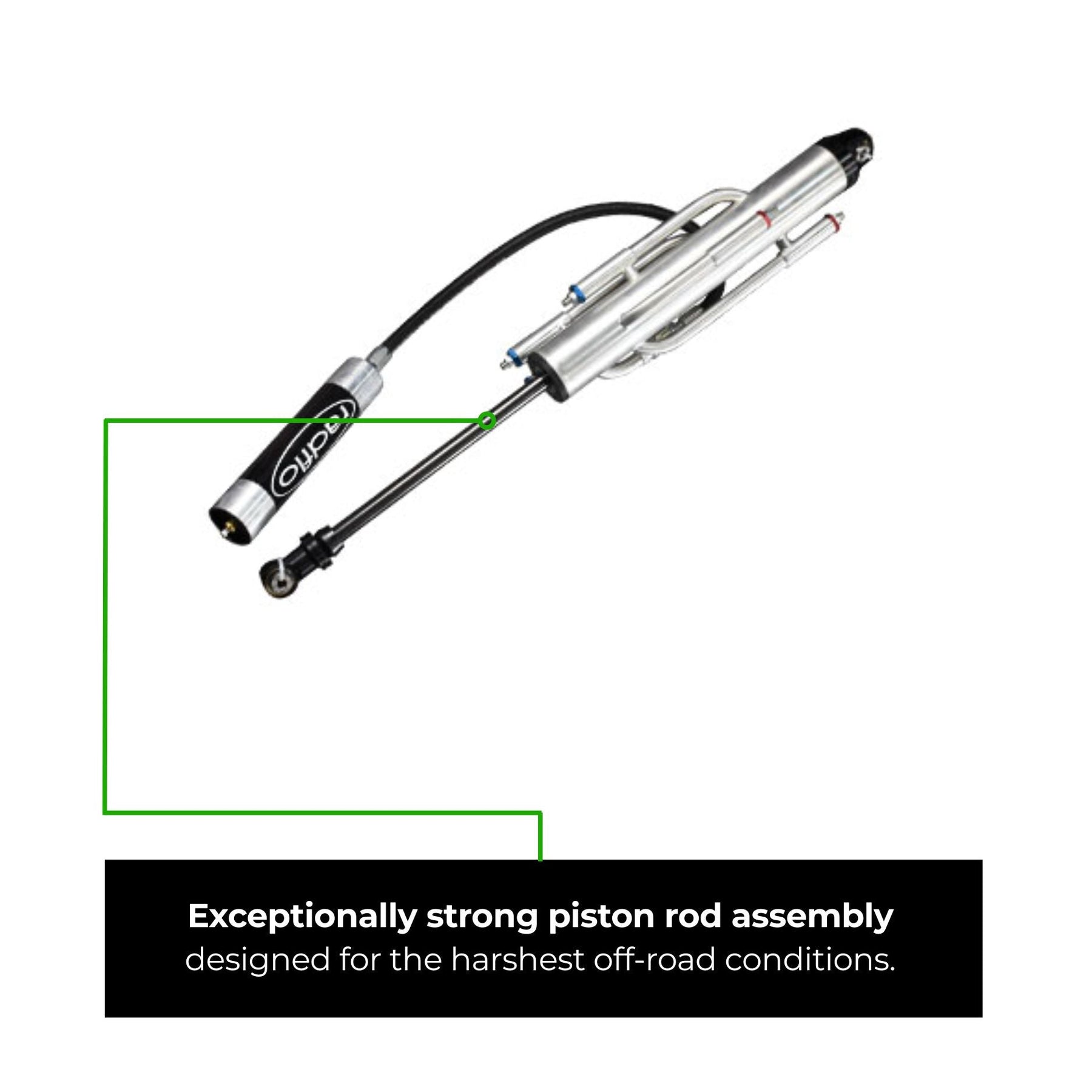

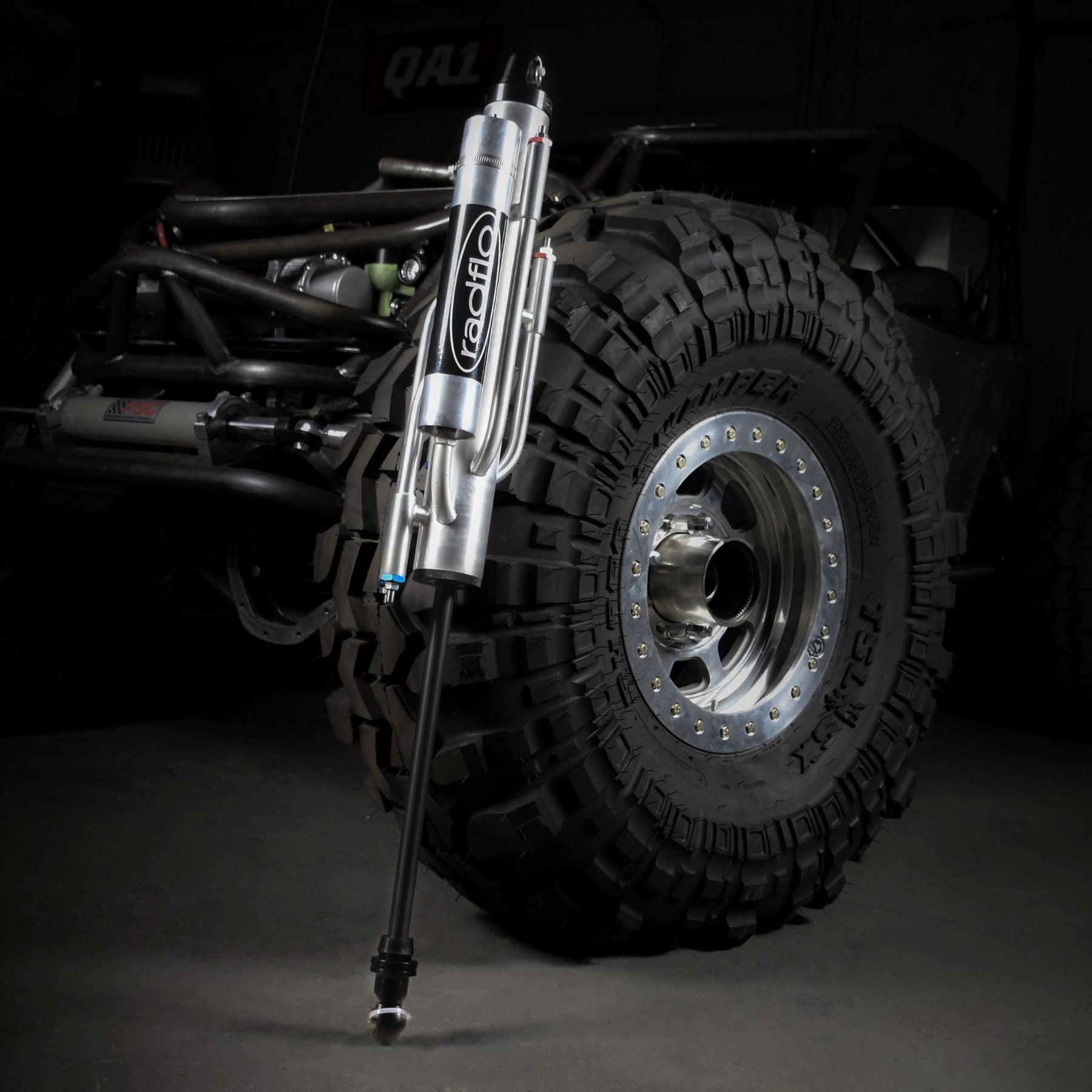

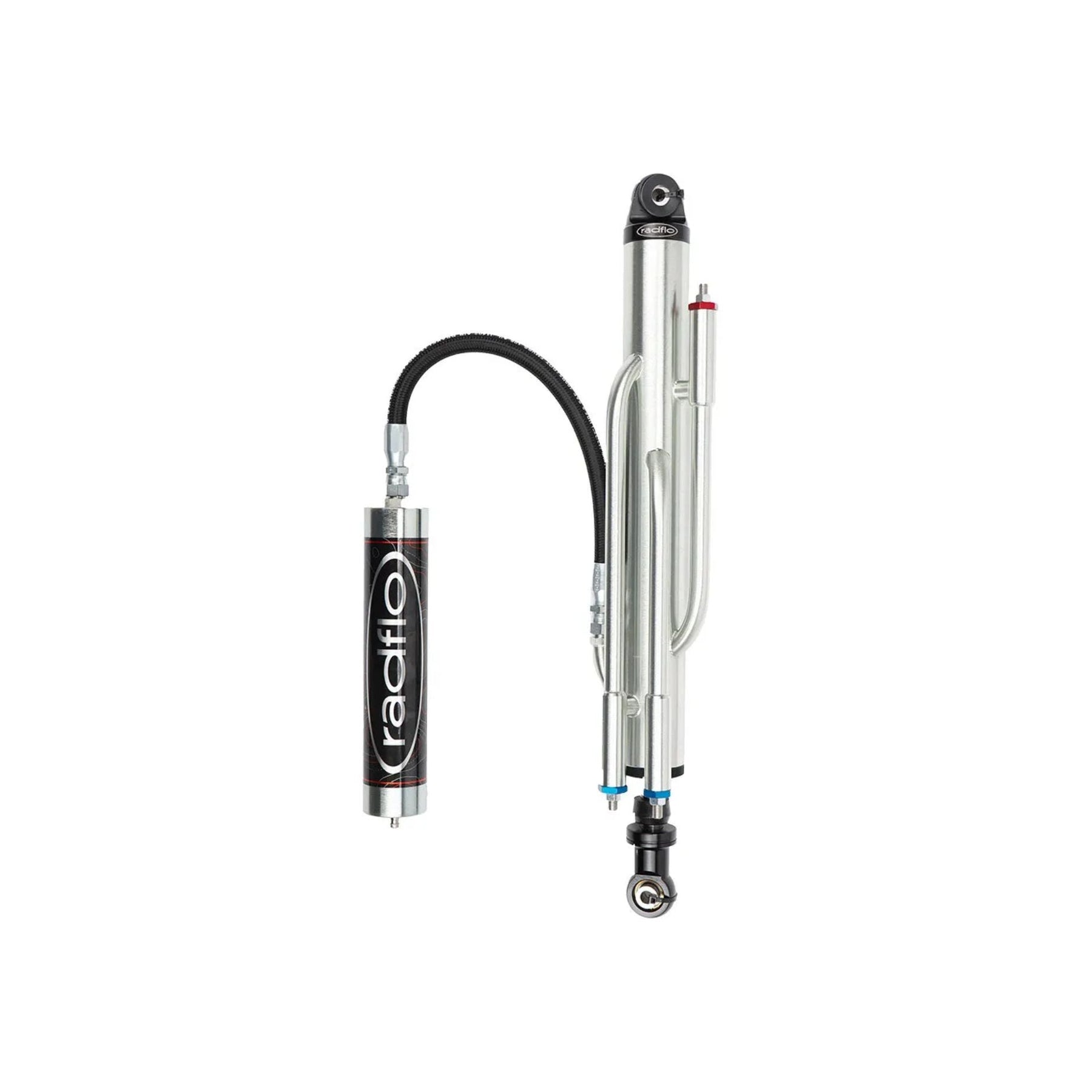

Radflo 2.5 External Bypass – 3 Tube – 3/4" Tubes – Remote Reservoir w/ 30" Hose
6BP-304-1R
The WOD custom Radflo 2.5 3-Tube Off-Road Bypass Shock with Remote Reservoir is built for rock crawlers, Ultra4 cars, rock bouncers, desert trucks, trail rigs, and custom off-road vehicles that need more suspension control than a conventional shock can provide. Manufactured by Radflo and used in Wide Open Design builds, this 14" travel bypass shock combines velocity-sensitive internal valving with three external 3/4" bypass tubes for position-sensitive damping throughout the shock travel.
The upgraded 3/4" bypass tubes provide increased oil flow capacity, while the remote reservoir adds fluid capacity and helps manage heat during sustained hard use. A 30" high-pressure reservoir hose gives builders more flexibility when locating the reservoir in tight chassis and suspension layouts. Each shock is custom built and valved around vehicle weight, suspension geometry, and intended use.
Includes:
- (1) Radflo 2.5" 3-Tube Bypass Shock
- Upgraded 3/4" Bypass Tubes
- Remote Reservoir
- 30" High-Pressure Reservoir Hose
- Universal Spherical Bearings
- Mounting Hardware
Sold Individually
Availability Note: As the #1 stocking warehouse for Radflo, we stock a large selection of Radflo coilovers and springs for immediate shipment. Custom-valved and special-order configurations may require 4–6 weeks for production and delivery.
Need parts quickly or have questions? Call us for current inventory availability and expert help selecting the right coilover shocks, springs, or suspension package for your build.
Specifications
|
Specification |
Details |
|
Manufacturer |
Radflo Suspension Technology |
|
Part Number |
Not Provided |
|
Shock Type |
External Bypass Shock |
|

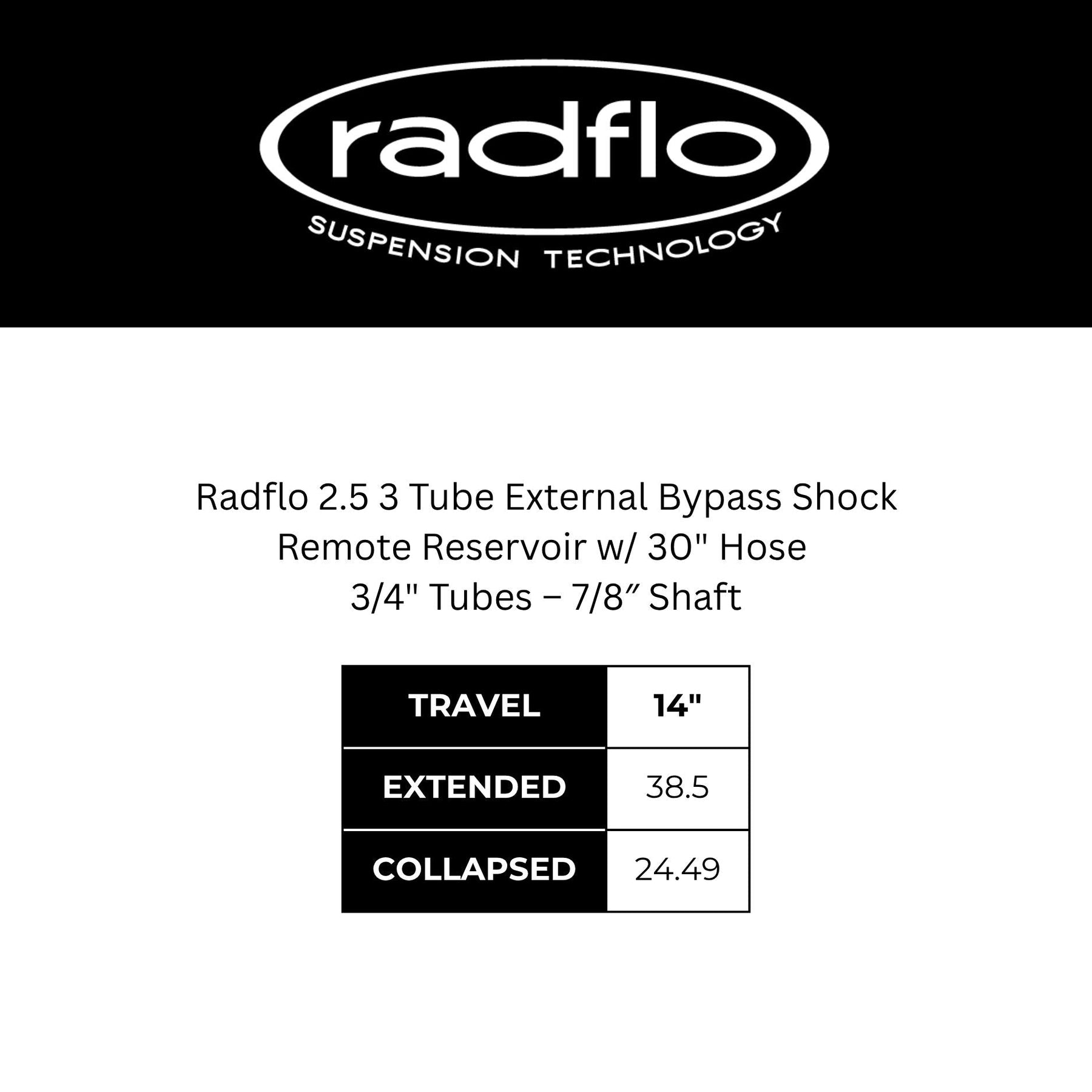

Travel |
14" |
|
Body Diameter |
2.5" |
|
Shaft Diameter |
7/8" (0.875") |
|
Bypass Tubes |
3 |
|
Bypass Tube Size |
3/4" |
|
Reservoir Type |
Remote Reservoir |
|
Reservoir Hose |
30" High-Pressure Hose |
|
Application |
Front or Rear / Universal |
|
Bearing Size |
0.625" |
|
Body Material |
SSID Alloy Steel Tube |
|
Body Finish |
Clear Cadmium Plated |
|
Caps / Eyelets |
CNC-Machined 6061 Aluminum |
|
Cap Finish |
Black Anodized |
|
Rod Material |
Nitro Steel |
|
Rod Finish |
Mirror Polished |
|
Rod Guide |
CNC-Machined Bronze with PTFE Coating |
|
Piston |
Radflo Aluminum Freeflo Racing Piston |
|
Seal System |
Quad-Ring + Lip Seal / Fully Rebuildable |
|
Internal Valving |
Velocity-Sensitive Deflective Disc |
|
External Control |
Position-Sensitive Bypass Tubes |
|
Oil |
Radflo High-Temp Foam-Resistant Fluid |
|
Pressurization |
Nitrogen – Starting at 200 PSI, Altitude Dependent |
|

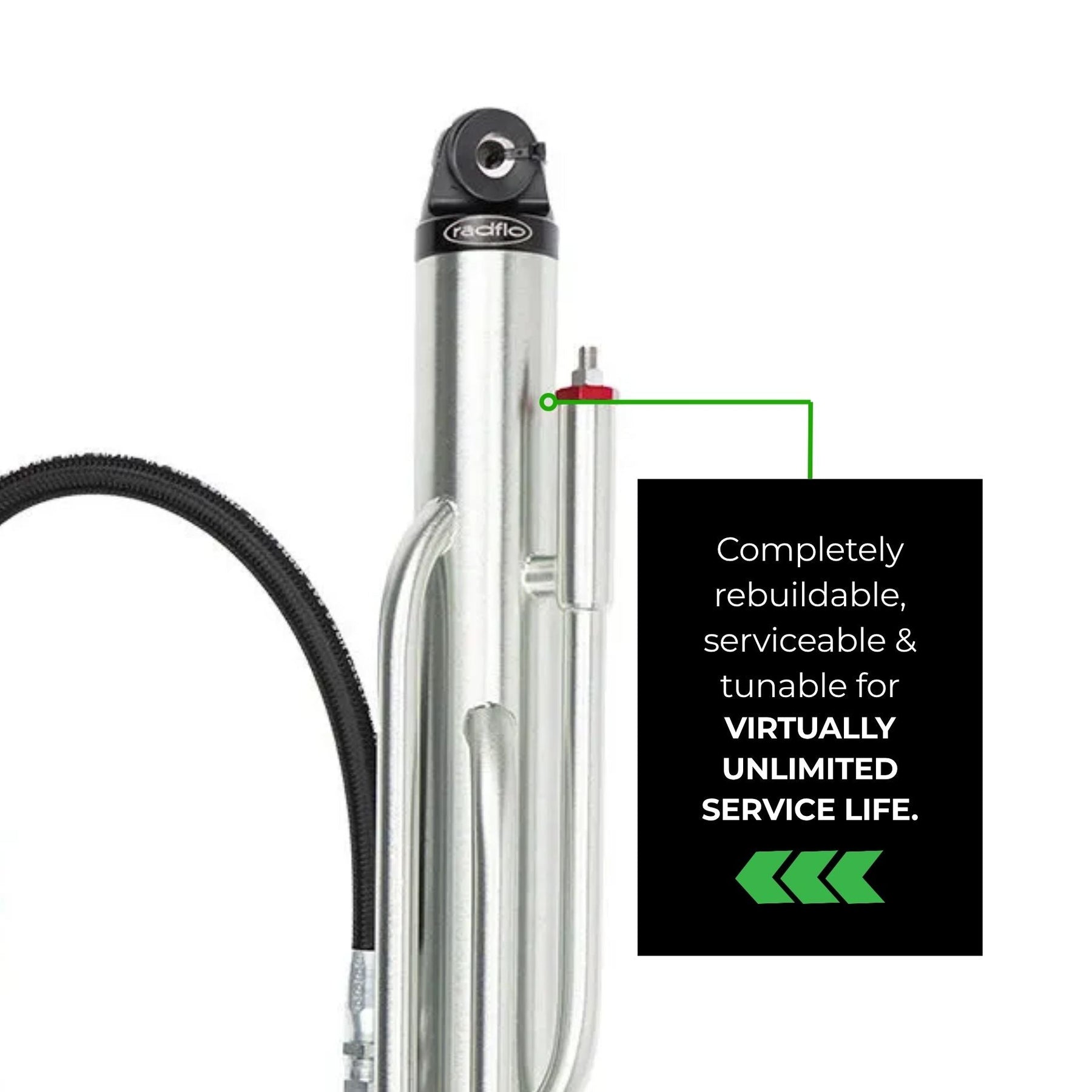

Serviceability |
Consumer or Factory Serviceable |
|
Tuning |
Consumer or Factory Tunable |
Fitment
Universal application for custom off-road suspension systems including:
- Rock Crawlers
- Ultra4 Cars
- Rock Bouncers
- Desert Trucks
- Prerunners
- Custom Tube Chassis Vehicles
- Heavy-Duty Trail Rigs
Fitment Notes
This is a universal performance shock, so fitment is determined by shock travel, mounting dimensions, suspension geometry, and available clearance
Allow sufficient clearance around the shock body, external bypass tubes, reservoir hose, and remote reservoir throughout the complete suspension cycle.
Tech Insight
1. What is the difference between a 3-tube and 4-tube bypass shock?
Both use external bypass tubes to create position-sensitive damping zones. A 4-tube configuration provides an additional bypass circuit, giving builders more control over how damping is divided and adjusted throughout the shock travel. A 3-tube bypass provides substantial tuning capability with a simpler package that works well for many rock crawling, trail, and racing applications.
2. What does a bypass shock do?
A bypass shock combines velocity-sensitive internal valving with position-sensitive external damping. Oil is routed through external bypass tubes at specific points in the shock travel, allowing damping to change depending on the shock's position. This helps provide a compliant ride through smaller terrain while increasing control deeper in the stroke.
3. Do I still need coilovers if I run bypass shocks?

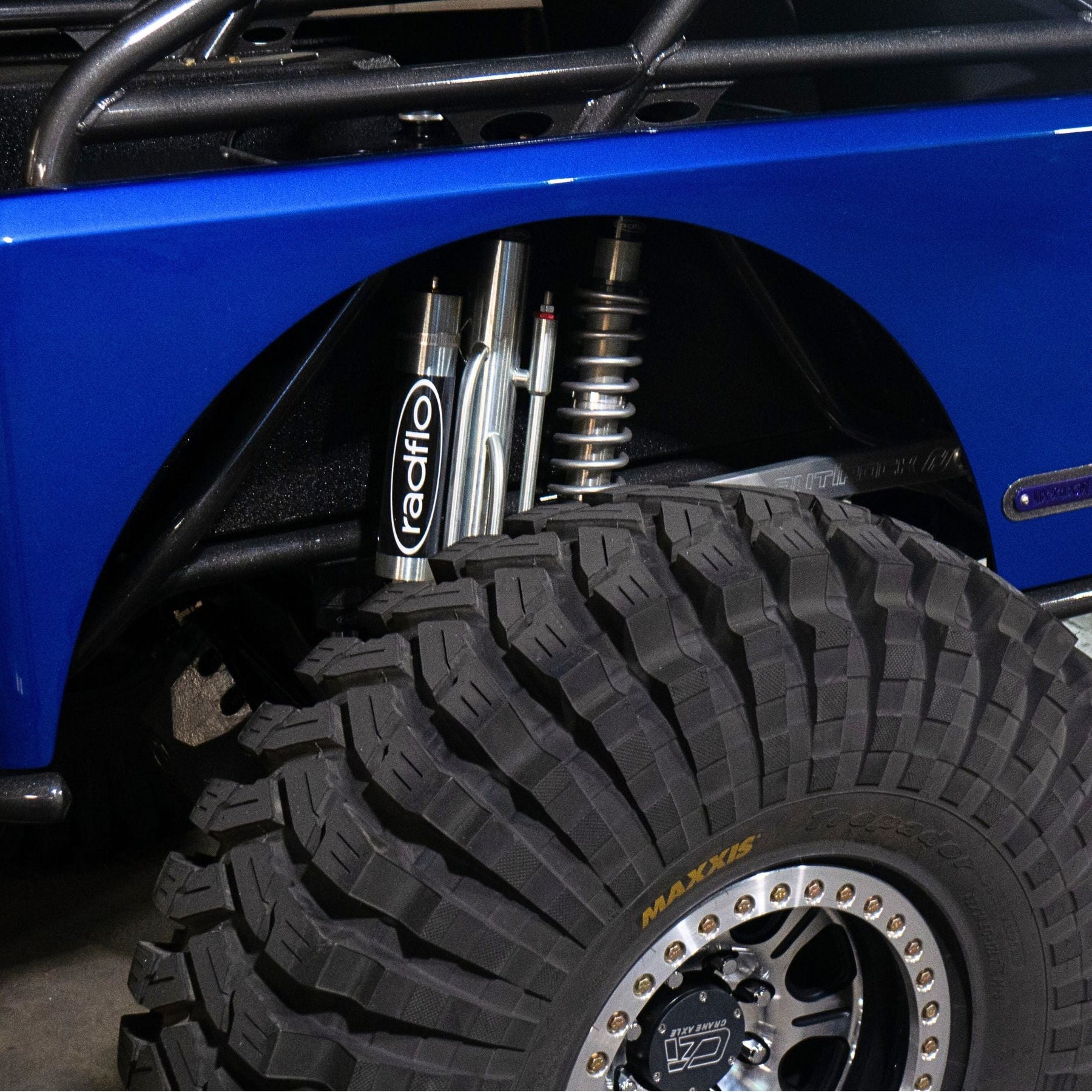

In most custom suspension applications, yes. A bypass shock primarily controls suspension movement and does not normally support vehicle weight. Coilovers or another spring system support the vehicle, while the bypass shocks provide additional damping and suspension control.
4. What are the benefits of the upgraded 3/4" bypass tubes?
The larger 3/4" bypass tubes increase oil-flow capacity through the external bypass circuits, giving the shock more fluid-flow capability when controlling damping through different areas of the travel. This is especially beneficial in demanding off-road and racing applications where consistent damping and tunability are priorities.
5. What are the benefits of the 30" high-pressure reservoir hose?
The 30" high-pressure hose gives builders more flexibility when mounting the remote reservoir, allowing it to be positioned away from the shock body where space, protection, cooling, and service access are better. This is especially useful on custom tube chassis and off-road suspension systems where packaging space is limited.
