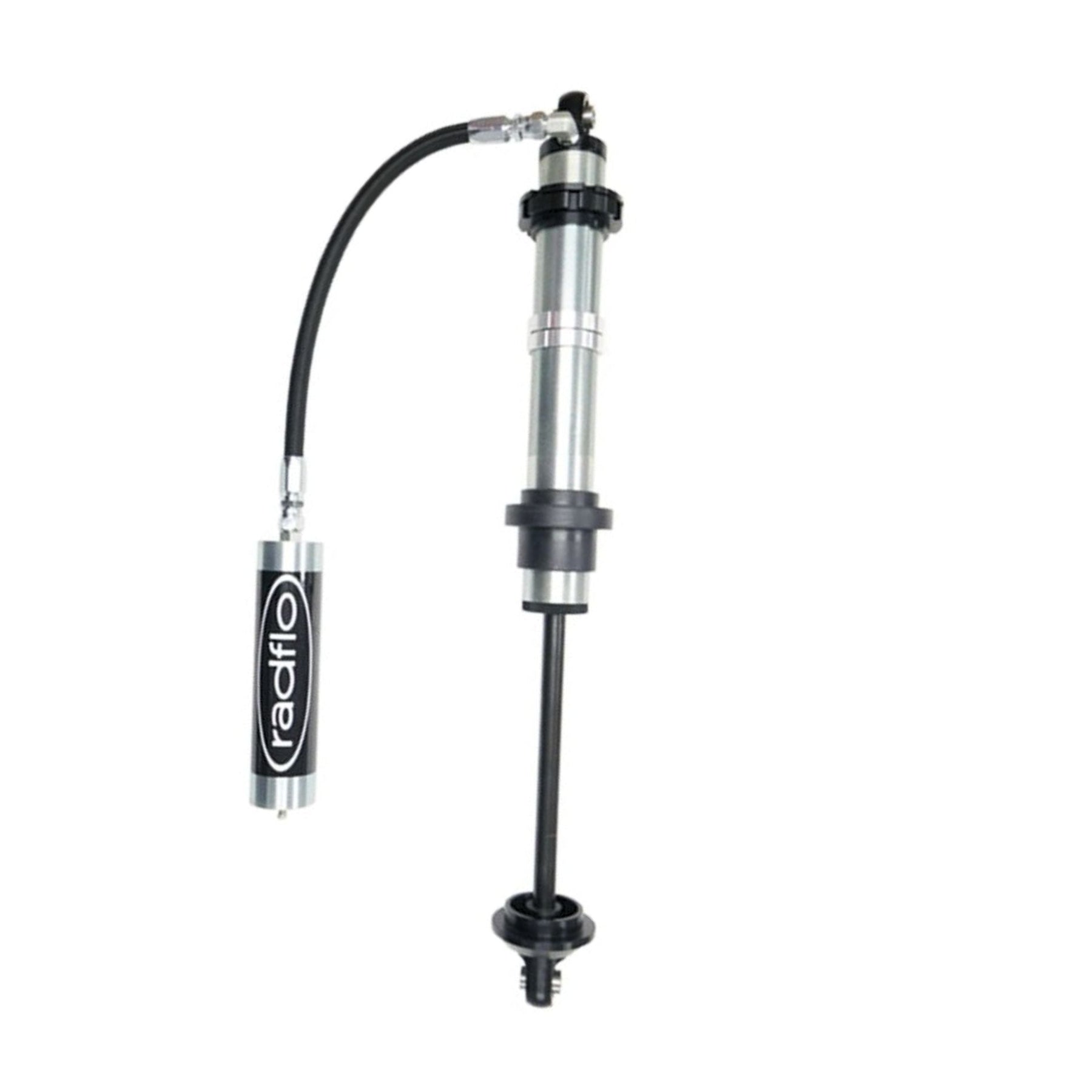

Radflo 2.5 Short Body Remote Reservoir Coilover Shock - 12" Travel, 90° Fittings
6CR-011-90
The Radflo 2.5" x 12" Short Body Remote Reservoir Coilover Shock is designed for builders who need premium suspension performance in a compact package. The short-body design helps maximize suspension travel where chassis clearance, ride height, steering components, drivetrain placement, or suspension geometry limit the space available for a traditional coilover.
Built around Radflo's proven 2.5" shock body, heavy-duty 7/8" Nitro Steel® shaft, and remote reservoir, this coilover delivers increased oil capacity, heat management, and tunable damping for demanding off-road use. The included 90-degree reservoir fittings simplify hose routing in tight installations, making this shock well suited for rock crawlers, rock bouncers, Ultra4 cars, tube chassis vehicles, and other custom builds where every inch of packaging space matters.
Includes:
- (1) Radflo 2.5" x 12" Short Body Remote Reservoir Coilover Shock
- Remote Reservoir with 90° Fittings
- Dual-Rate Spring Hardware
Availability Note: As the #1 stocking warehouse for Radflo Performance Shocks, we maintain one of the largest inventories of Radflo coilovers and springs in the industry. While many popular shock configurations are available for immediate shipment, custom-valved and special-order configurations may require 4–6 weeks for production and delivery.
Need parts quickly or have ordering questions? Call us for current inventory availability and expert help selecting the right coilover shocks, springs, or suspension package for your build.
Specifications
| Specification | Details |
|---|---|
| Brand | Radflo |
| Product Type | Short Body Remote Reservoir Coilover Shock |
| Shock Body Diameter | 2.5" |

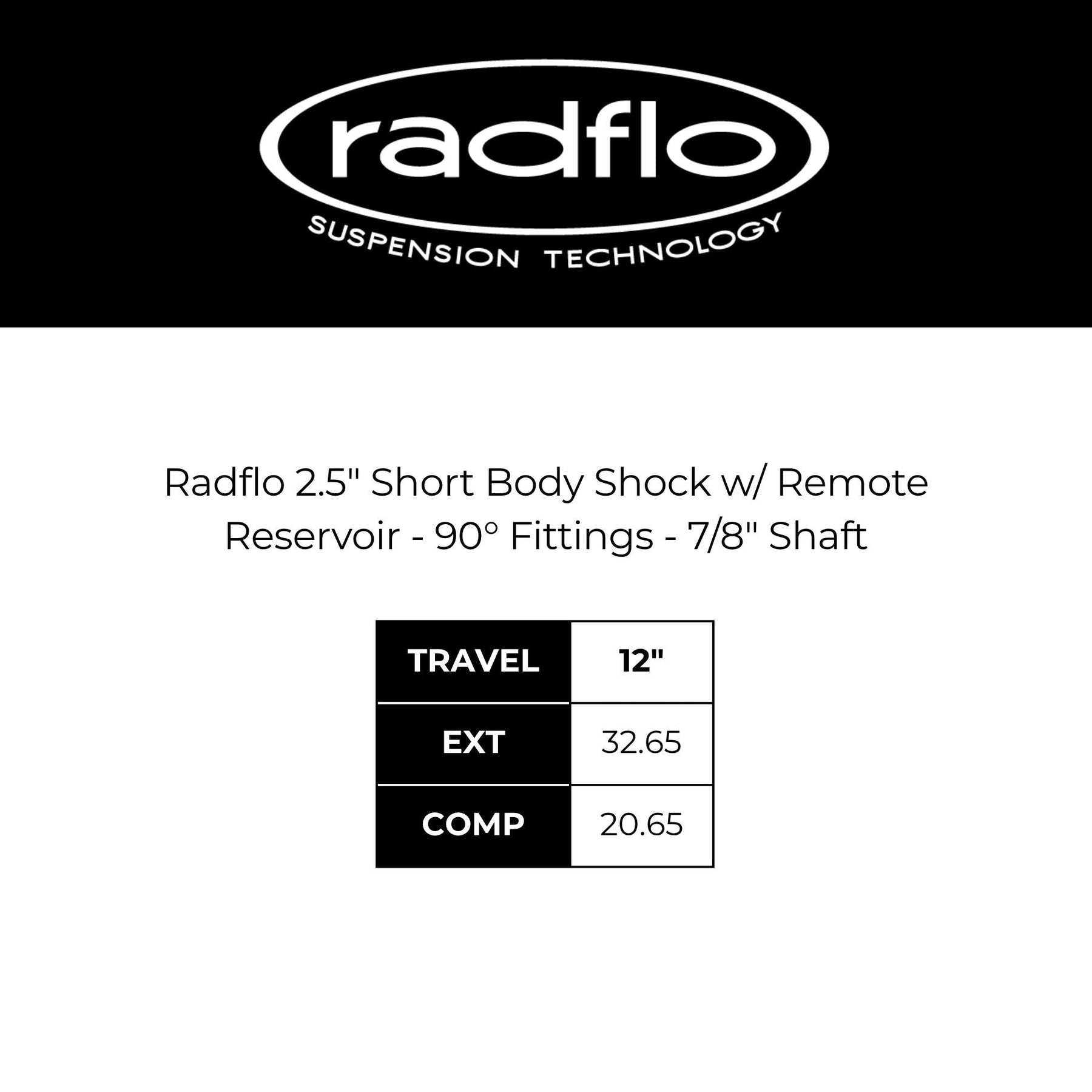

| Travel | 12" |
| Design | Short Body |
| Reservoir | Remote Reservoir with 90° Fittings |

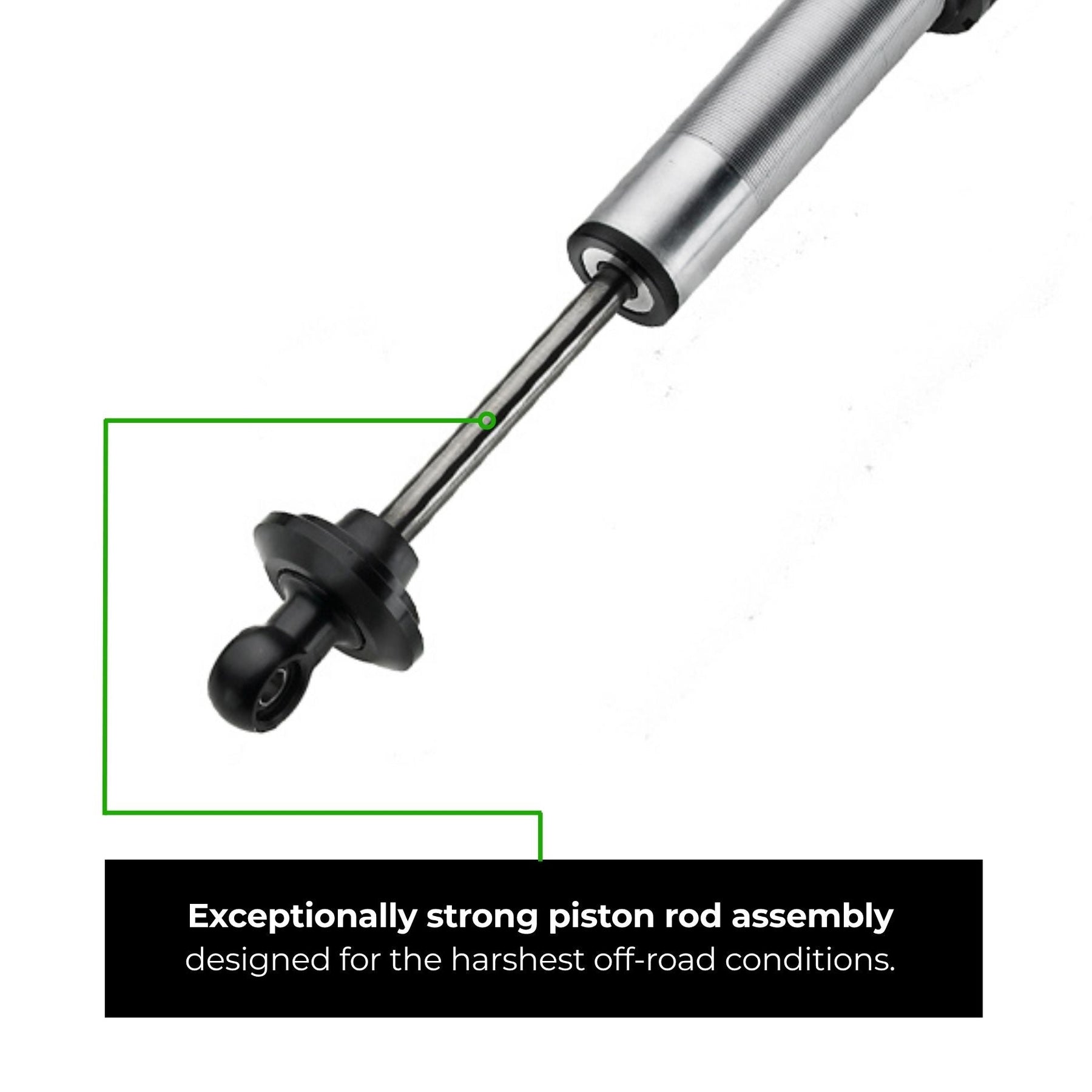

| Shaft Diameter | 7/8" |
| Shaft Material | Nitro Steel® |
| Bearing Size | 5/8" |
| Valving | Velocity-Sensitive Deflective Disc |
| Piston | Radflo Freeflo® Aluminum Racing Piston |
| Body Material | SSID Alloy Steel Tube |
| Rod Guide | CNC-Machined Bronze with PTFE Coating |
| Seal System | Quad-Ring® and Multi-Lip Seal Design |
| Body Caps & Eyelets | CNC-Machined 6061 Aluminum, Black Anodized |
| Shock Fluid | High-Temp, Foam-Resistant Suspension Fluid |
| Pressurization | Nitrogen Gas |
| Charge Pressure | 200 PSI |
| Finish | Clear Cadmium Plated Body / Mirror-Polished Components |
| Spring Hardware | Dual-Rate Hardware Included |
| Springs | Not Included |

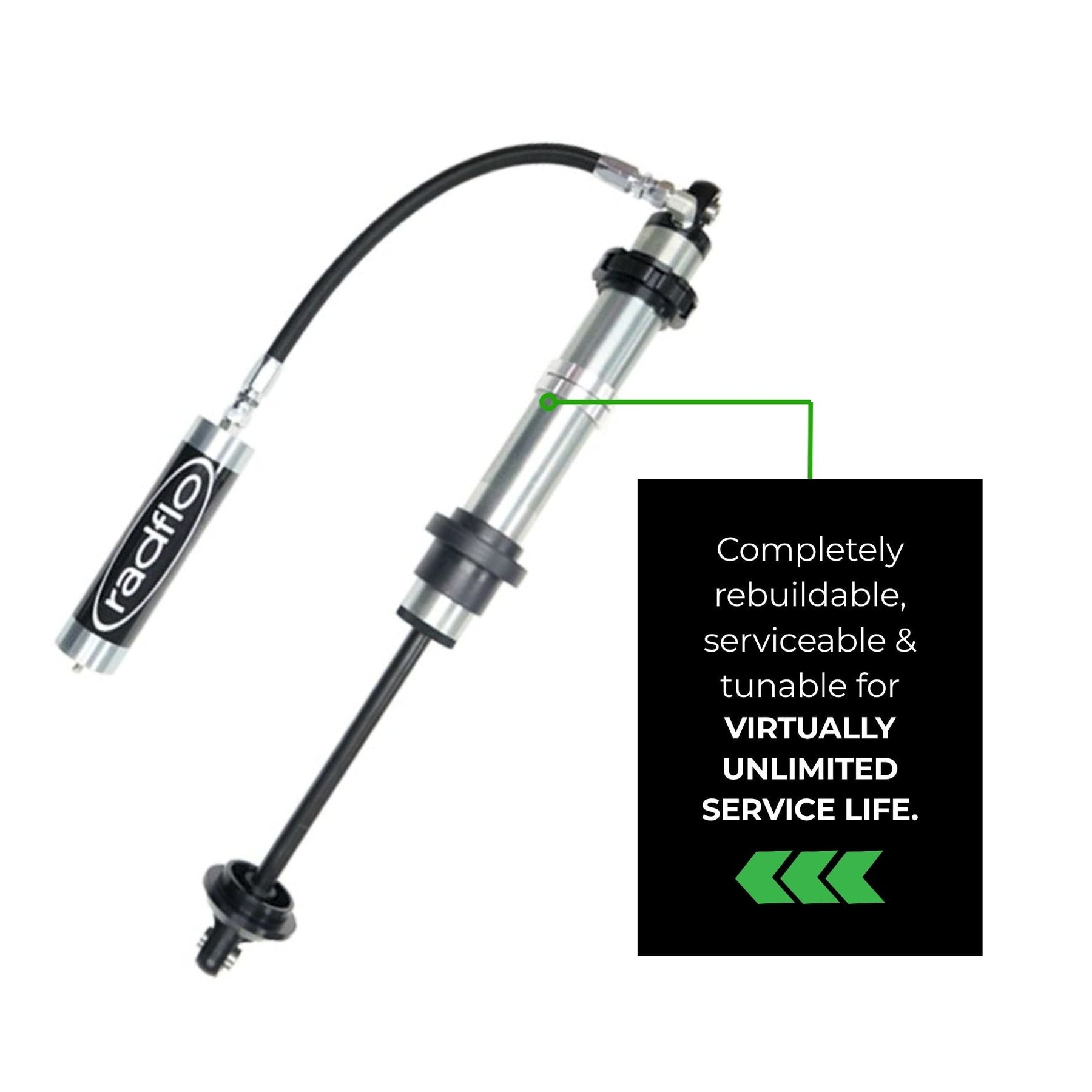

| Serviceability | Fully Rebuildable & Revalvable |
| Application | Front or Rear |
| Sold | Individually |
Spring Note: Springs are sold separately. This coilover is compatible with a wide range of Eibach coilover springs for custom spring-rate and dual-rate configurations.
Fitment
Universal coilover for custom front or rear off-road suspension applications.
Common Applications:
- Rock Crawlers
- Rock Bouncers
- Ultra4 Cars
- Custom Tube Chassis Vehicles
- High-Performance Trail Rigs
- High-Clearance Suspension Systems
- Custom Off-Road Fabrication Projects
Fitment Notes:
- Designed for tight mounting locations where a standard-length coilover creates packaging limitations.
- Verify shock mounting space, compressed length, extended length, and suspension travel before ordering.
- 90-degree reservoir fittings provide additional flexibility when routing reservoir hoses through tight chassis layouts.
- Verify clearance around steering components, suspension links, chassis tubing, drivetrain components, and tires throughout the complete suspension cycle.
- Spring rates and shock valving should be selected around vehicle weight, suspension geometry, and intended use.
- Requires custom mounting and suspension setup.
FAQ
What is a short-body coilover?
A short-body coilover packages the shock into a more compact overall design, helping builders fit the required suspension travel into applications where chassis space or mounting height is limited.
Why choose a short-body coilover instead of a standard coilover?
The primary advantage is packaging. A short-body shock can help create clearance around chassis tubing, steering components, drivetrain parts, fuel cells, and suspension mounts while allowing the builder to retain the desired suspension travel.
What are the advantages of a remote reservoir?
A remote reservoir increases shock fluid capacity and provides additional space for the nitrogen charge, helping manage heat and maintain more consistent damping during demanding off-road use.
Why does this coilover use 90-degree reservoir fittings?
The 90-degree fittings make reservoir hose routing easier in tight chassis layouts where straight fittings may create interference with chassis tubing, suspension components, steering, or drivetrain parts.
Do Radflo 2.5 Short Body Coilovers include springs?
No. Springs are sold separately so the spring rates can be matched to vehicle weight, suspension geometry, shock angle, and intended use. Learn how to calculate coilover spring rates.
