Sanderson BB1 Big Block Chevy Block Hugger Headers - Raw Steel
BB1-P
The Sanderson BB1 Big Block Chevy Block Hugger Headers are engineered for custom vehicles where frame, steering, suspension, and ground clearance leave little room for a conventional exhaust system. Designed for Chevrolet 396 through 502 big block engines, the compact BB1 layout sits approximately 2" tighter to the engine than traditional block hugger designs and extends less than 11" below the exhaust port centerline.
Constructed from 16-gauge steel tubing, these headers use 1-7/8" primary tubes and 3" collectors to support strong torque and exhaust flow across a wide range of Big Block Chevy combinations. Sanderson's 3/8" patented flange design is built to seal directly against the cylinder head without traditional header gaskets, helping reduce leak points and simplify installation.
An optional professionally TIG-welded V-band upgrade is available for builders who want a compact, serviceable collector connection with improved sealing and easier exhaust removal.
Includes:

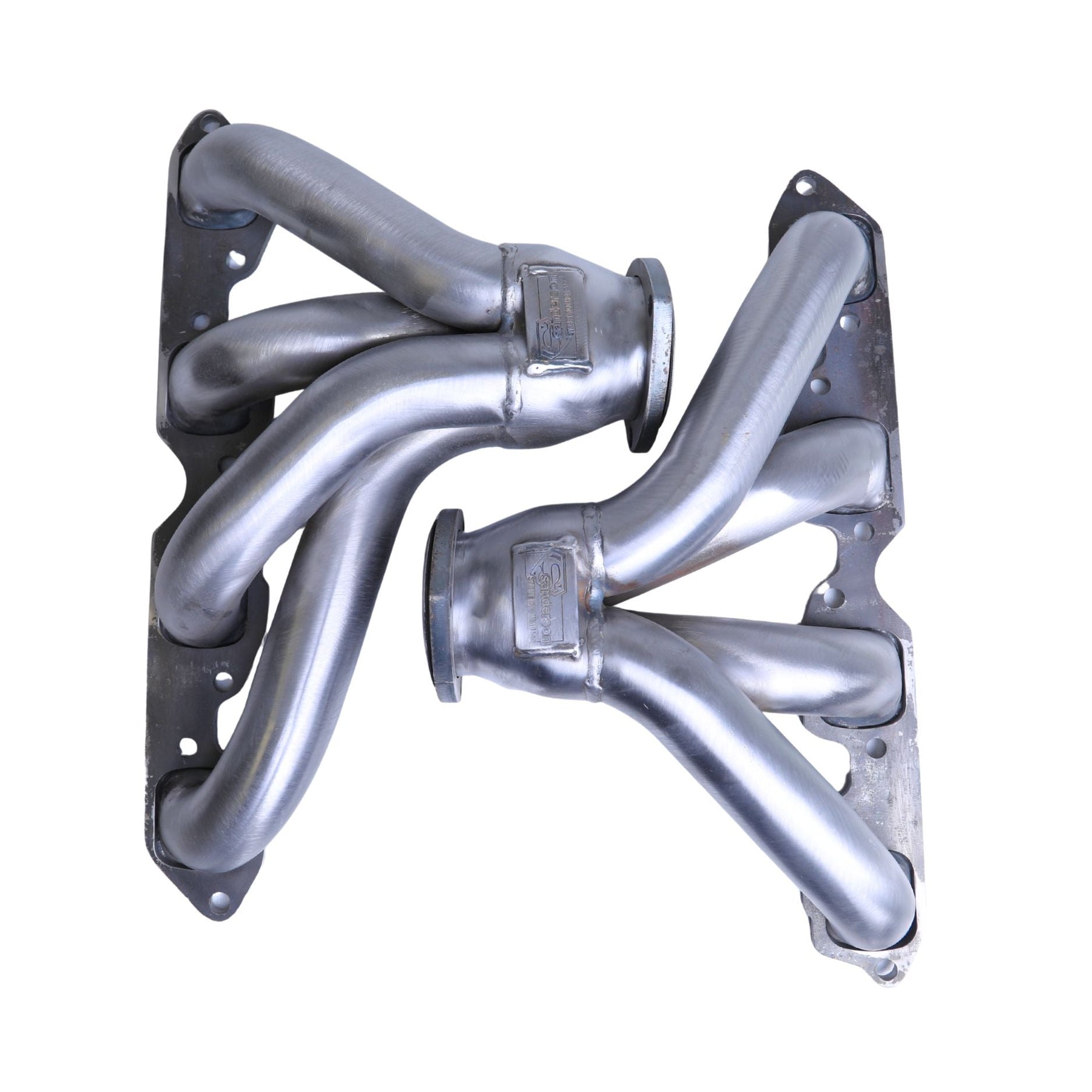

- (1) Pair of Sanderson BB1 Big Block Chevy Headers
- (1) Header Bolt Set
- (1) Collector Reducer Set
- Required Installation Hardware

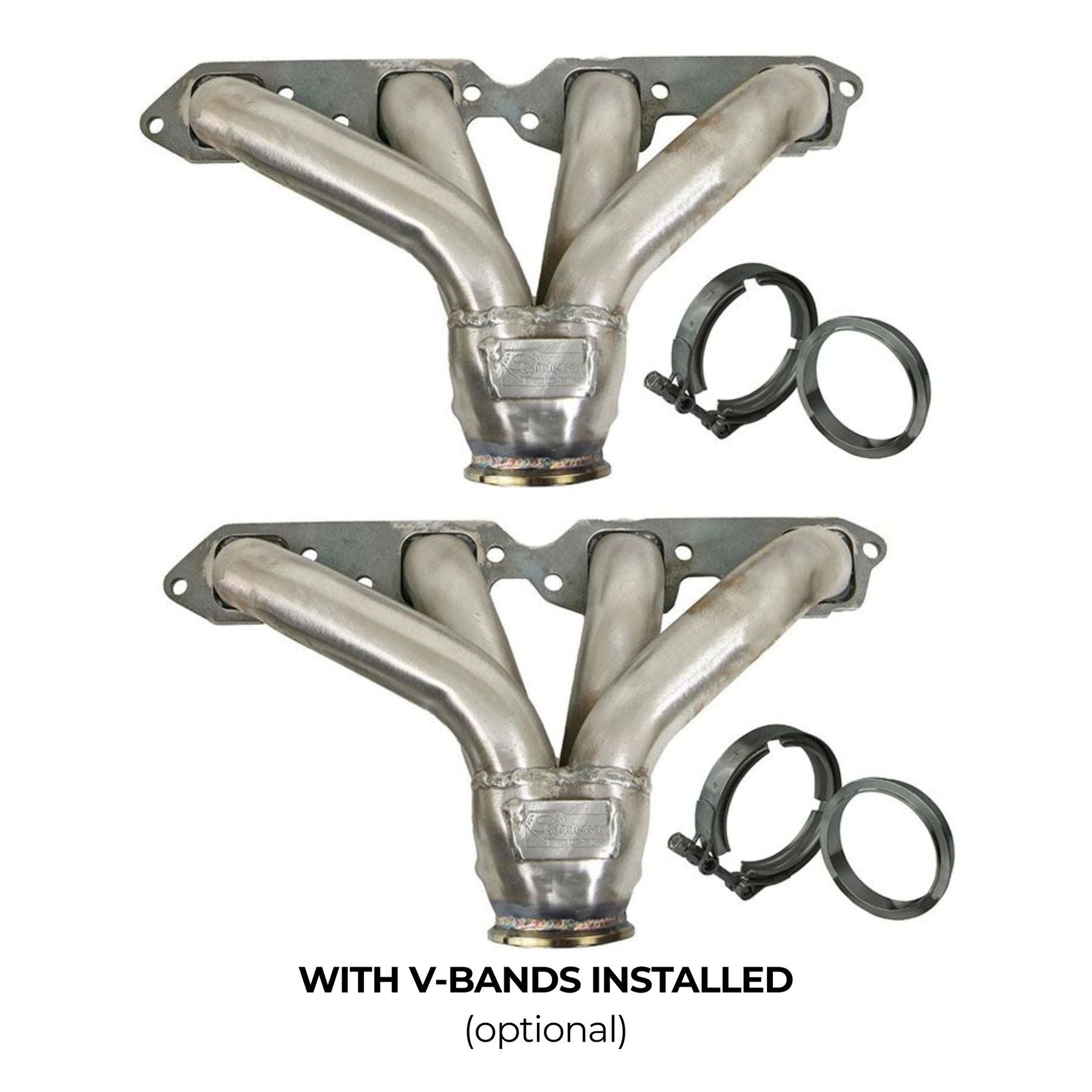

Optional Upgrade: Professionally TIG-welded V-band collector connections.
Note: Headers are supplied in raw, unfinished steel and should be protected with a suitable high-temperature finish before regular use.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Sanderson Headers |
| Model | BB1 |
| Product Type | Block Hugger Shorty Header Set |
| Engine Platform | Big Block Chevrolet |
| Compatible Engine Sizes | 396, 402, 427, 454 & 502 |

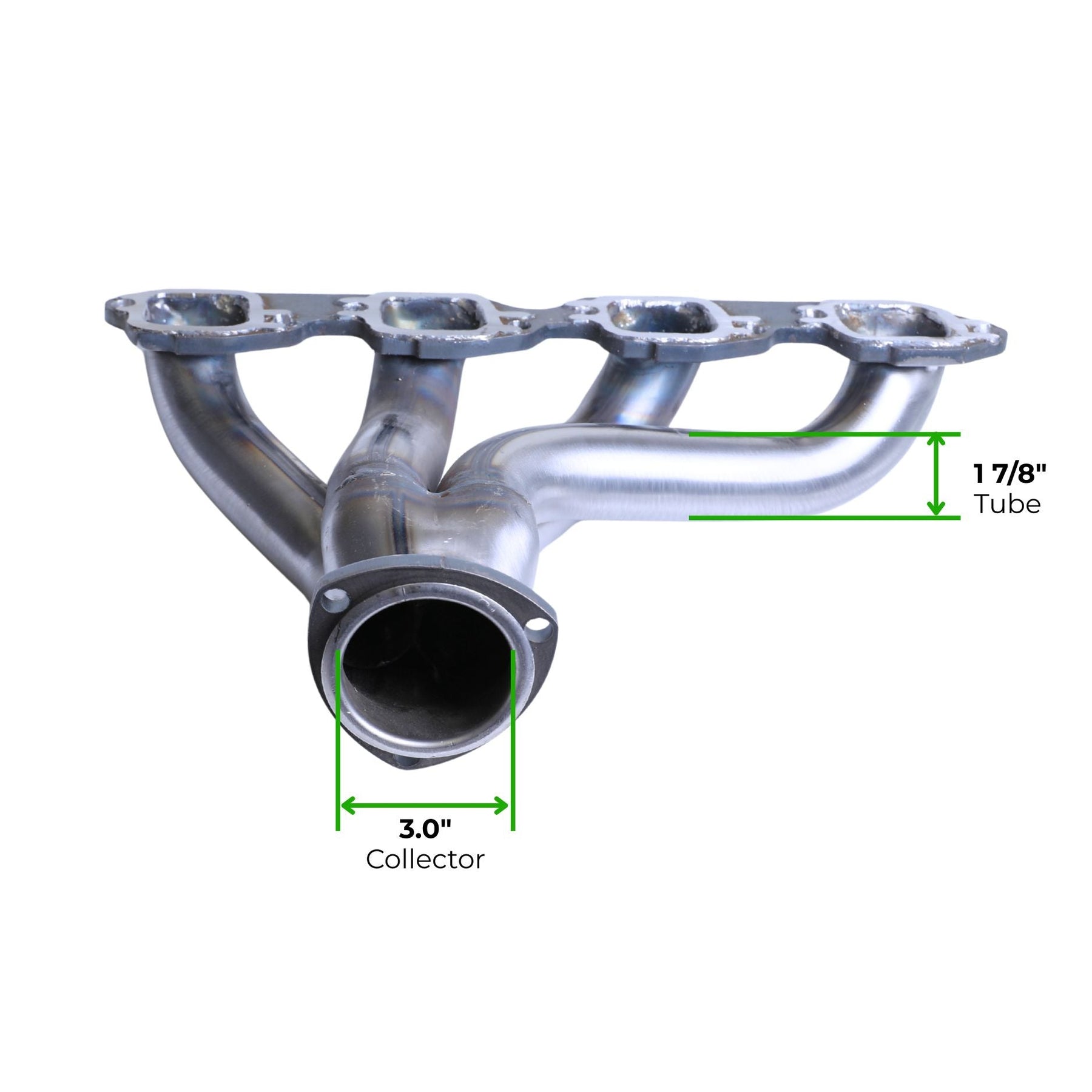

| Primary Tube Diameter | 1-7/8" |
| Collector Diameter | 3" |
| Primary Tube Thickness | 16 Gauge |
| Collector Thickness | 16 Gauge |
| Flange Thickness | 3/8" |
| Header Style | Short Tube / Block Hugger |
| Ground Clearance | Less Than 11" Below Exhaust Port Centerline |
| Material | Steel |
| Finish | Raw / Uncoated |
| Header Gaskets Required | No, Per Sanderson Flange Design |
| V-Band Upgrade | Optional |
| Country of Origin | Made in the USA |
Fitment
Compatible Engine Platforms:
- Big Block Chevrolet 396
- Big Block Chevrolet 402
- Big Block Chevrolet 427
- Big Block Chevrolet 454
- Big Block Chevrolet 502
Common Applications:
- Hot rods and street rods
- Early Chevrolet chassis
- Early Ford chassis with Big Block Chevy swaps
- Custom engine swaps
- Rock crawlers and off-road vehicles
- Custom tube chassis builds
- Restomods and performance street vehicles
- Applications with limited frame and steering clearance
Fitment Notes:
- Designed for chassis without a crossmember directly beneath the center of the engine block.
- Engine placement, motor mounts, frame rails, steering shaft position, starter clearance, and suspension components affect final fitment.
- The compact design improves clearance but does not guarantee fitment in every custom chassis.
- Verify collector position and exhaust routing before ordering optional V-band connections.
- Custom exhaust fabrication may be required.
- Raw steel should be coated or otherwise protected before regular use.
- Mock up the engine, mounts, steering, and surrounding chassis components before completing the exhaust system.
Tech Insight
What makes the Sanderson BB1 different from a standard block hugger header?

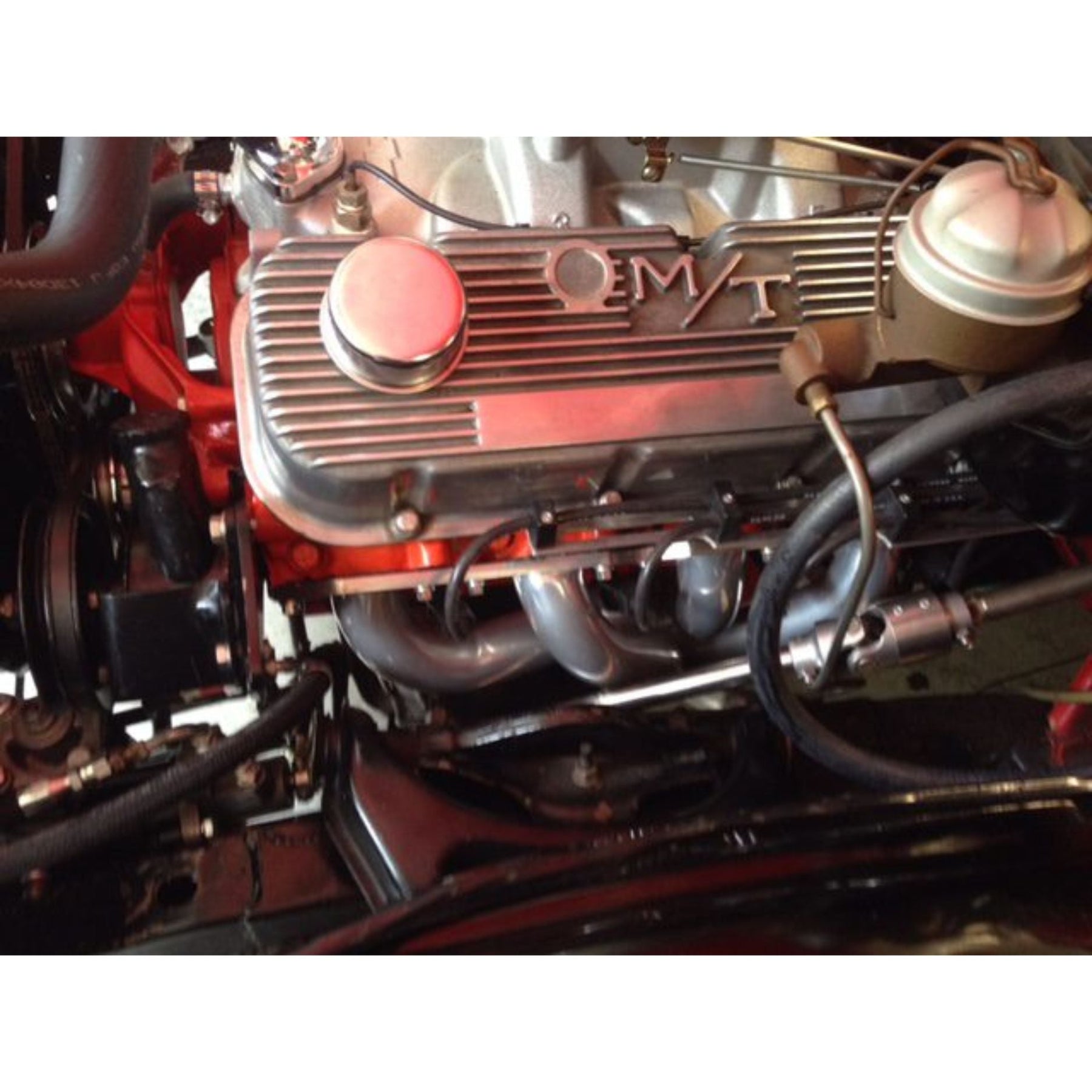

The BB1 is designed to sit approximately 2" tighter to the engine than many traditional block hugger headers. This creates additional clearance around narrow frame rails, steering shafts, suspension components, and other chassis structures.
Why is ground clearance important on a Big Block Chevy swap?
Many headers hang low beneath the engine, making the collectors vulnerable to speed bumps, rocks, trail obstacles, and road impacts. The BB1 extends less than 11" below the exhaust port centerline, helping keep the exhaust tucked closer to the engine and chassis.
Are 1-7/8" primary tubes suitable for a Big Block Chevy?
The 1-7/8" primary size provides a strong balance of exhaust velocity and flow for a wide range of 396, 402, 427, 454, and 502 combinations. It can support responsive torque in milder builds while providing adequate flow for more aggressive street and off-road engines.
How does the gasketless flange design work?
Sanderson's thick 3/8" flange is designed to seal directly against the cylinder head without a conventional header gasket. Eliminating the gasket removes a common failure point, but the cylinder-head sealing surface must still be clean, flat, and in good condition.
What is the advantage of optional V-band collectors?
V-band connections create a compact and serviceable exhaust joint that can be removed and reinstalled without traditional collector gaskets. They are especially useful in tight chassis where exhaust service access is limited.
Should raw steel headers be coated?
Yes. Raw steel can rust when exposed to moisture, mud, condensation, and repeated heat cycles. Ceramic coating is a strong choice for corrosion protection and heat management, while high-temperature paint offers a more economical finish.
Will these headers fit every Big Block Chevy swap?
No universal header can guarantee fitment in every custom vehicle. The BB1's compact design improves the odds of clearing tight chassis components, but engine position, frame design, mounts, steering, starter, suspension, and transmission location must all be verified during mockup.
