JM-S-F

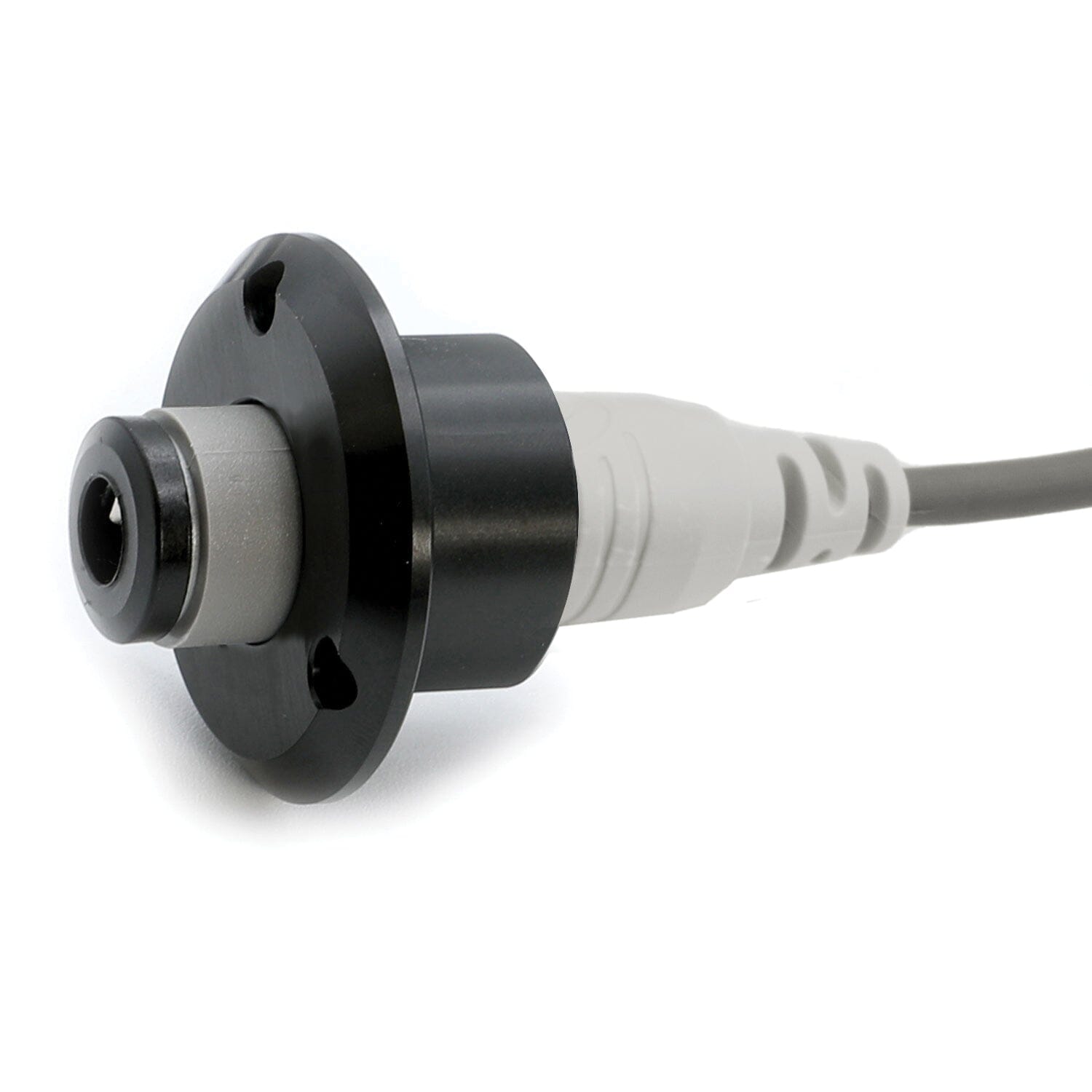

The Rugged Radios Single Headset / Helmet Jack Flush Mount creates an accessible plug-in point for a compatible headset or helmet cable on a dash or center console. It keeps the connection where a seated driver or passenger can reach it, helping organize communication wiring instead of leaving the cable end loose behind the cockpit.

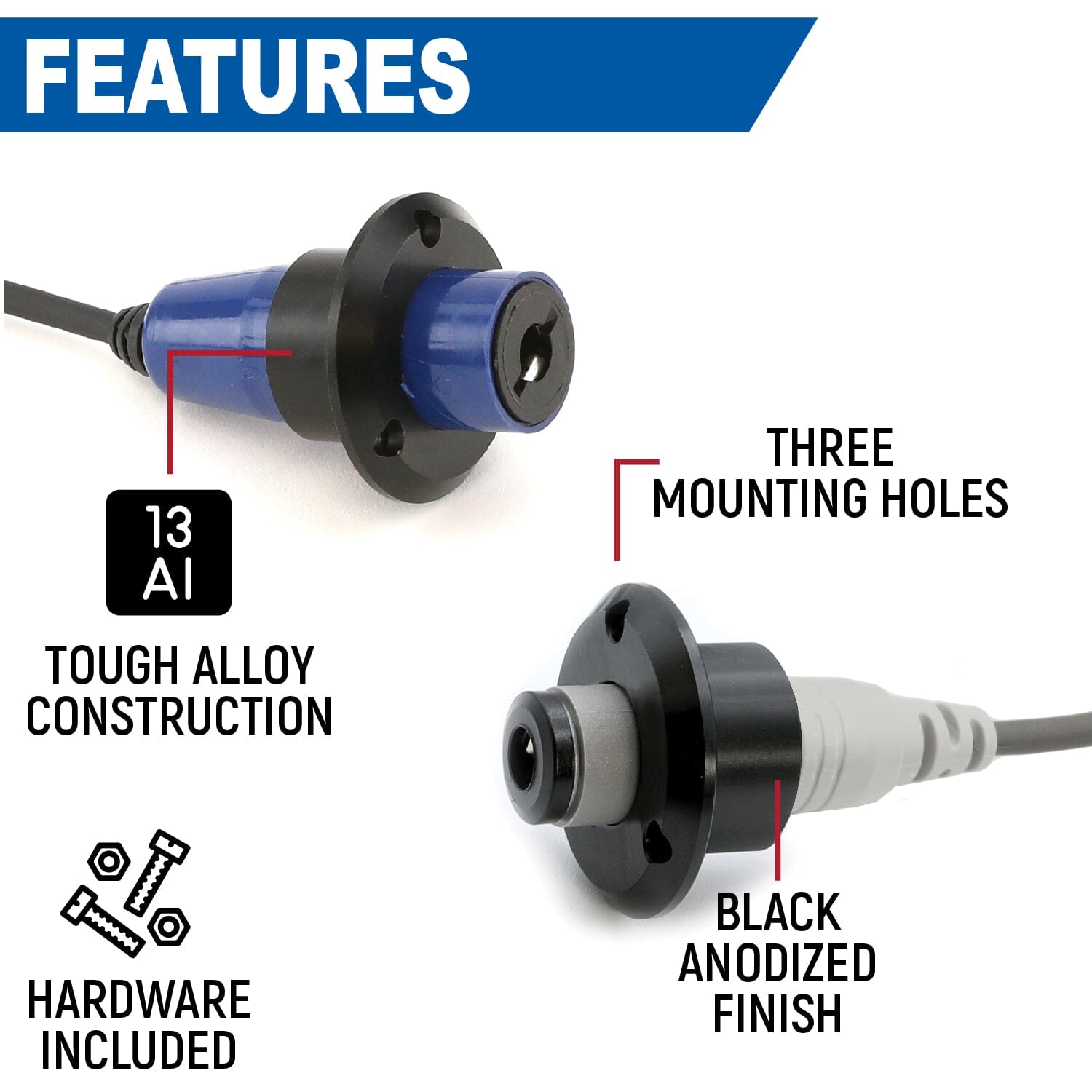

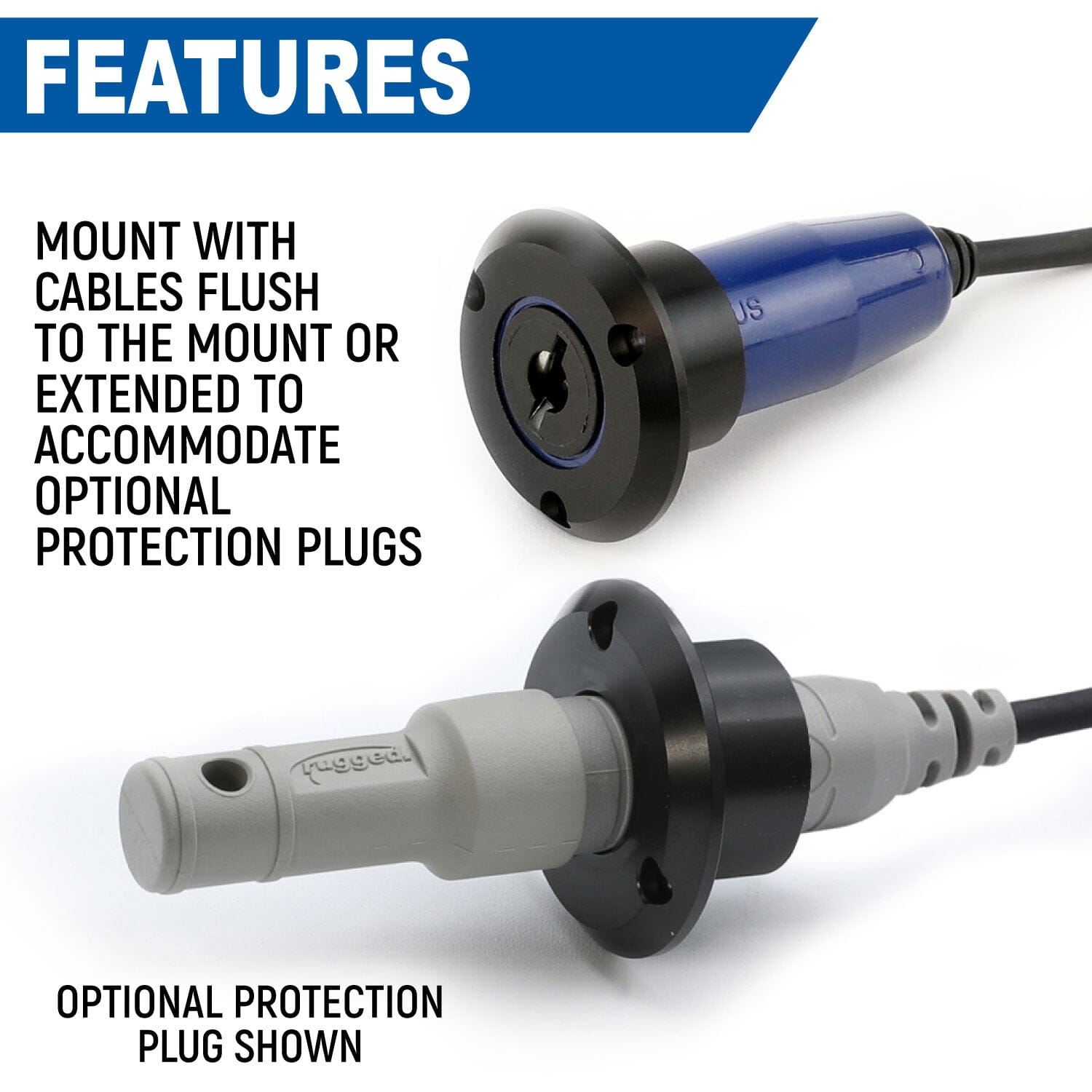

The billet single-jack mount secures the cable connection routed from the intercom and sits in a drilled panel opening. Choose the OFFROAD version for blue-jack cables or the STX Stereo version for grey-jack cables. Installation needs a 1-inch hole and space for the mount’s 0.75-inch depth, plus room to route the cable behind the panel. The mount and screws are supplied; the cable and installation tools are separate.
Includes:
| Manufacturer / brand | Rugged Radios |
|---|---|
| Part Number | JM-S-F, JM-S-F-STX |
| Product Type | Jack Mounts |
| Primary Application | Dash-mounted headset connection; Center-console helmet connection; Organized custom communication wiring |

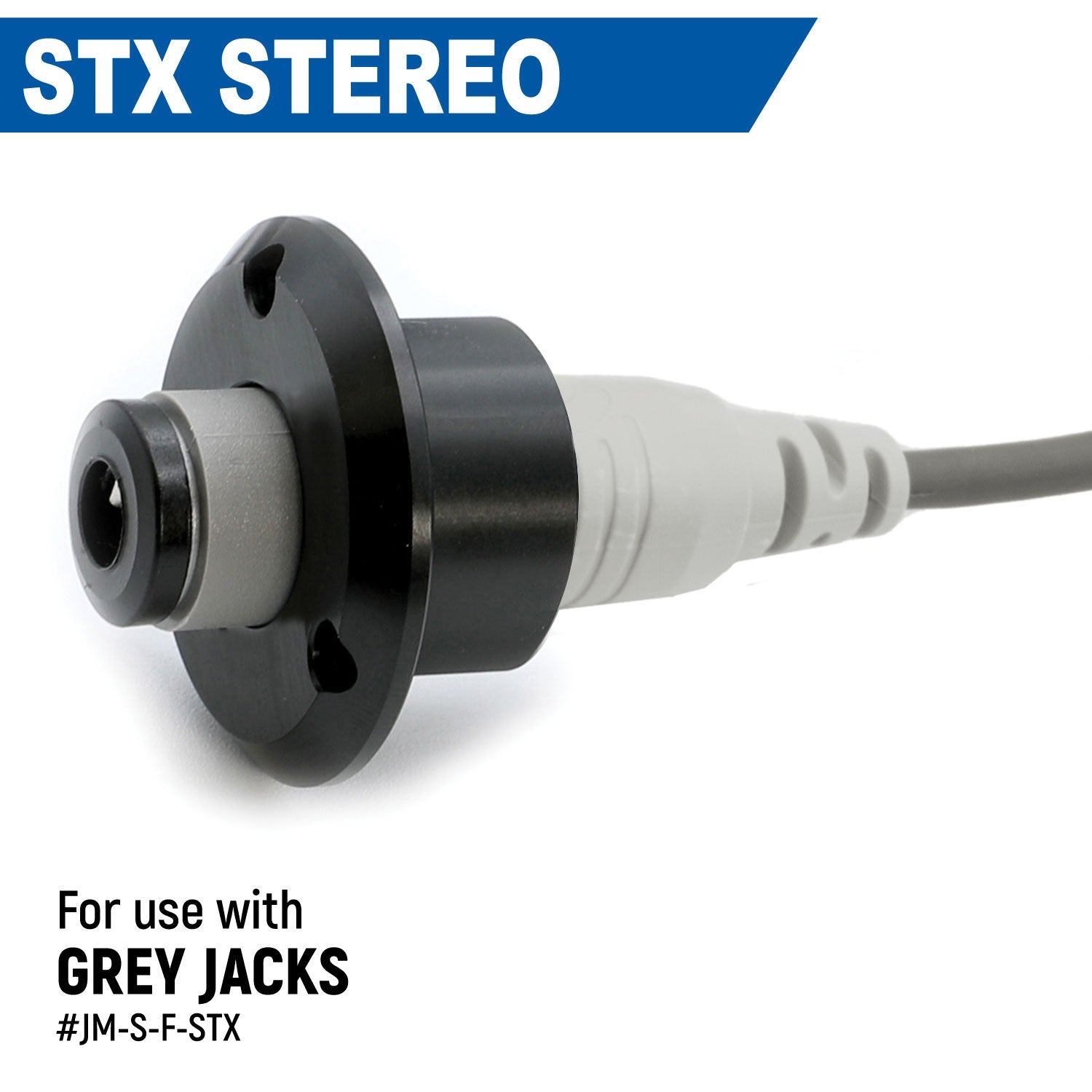

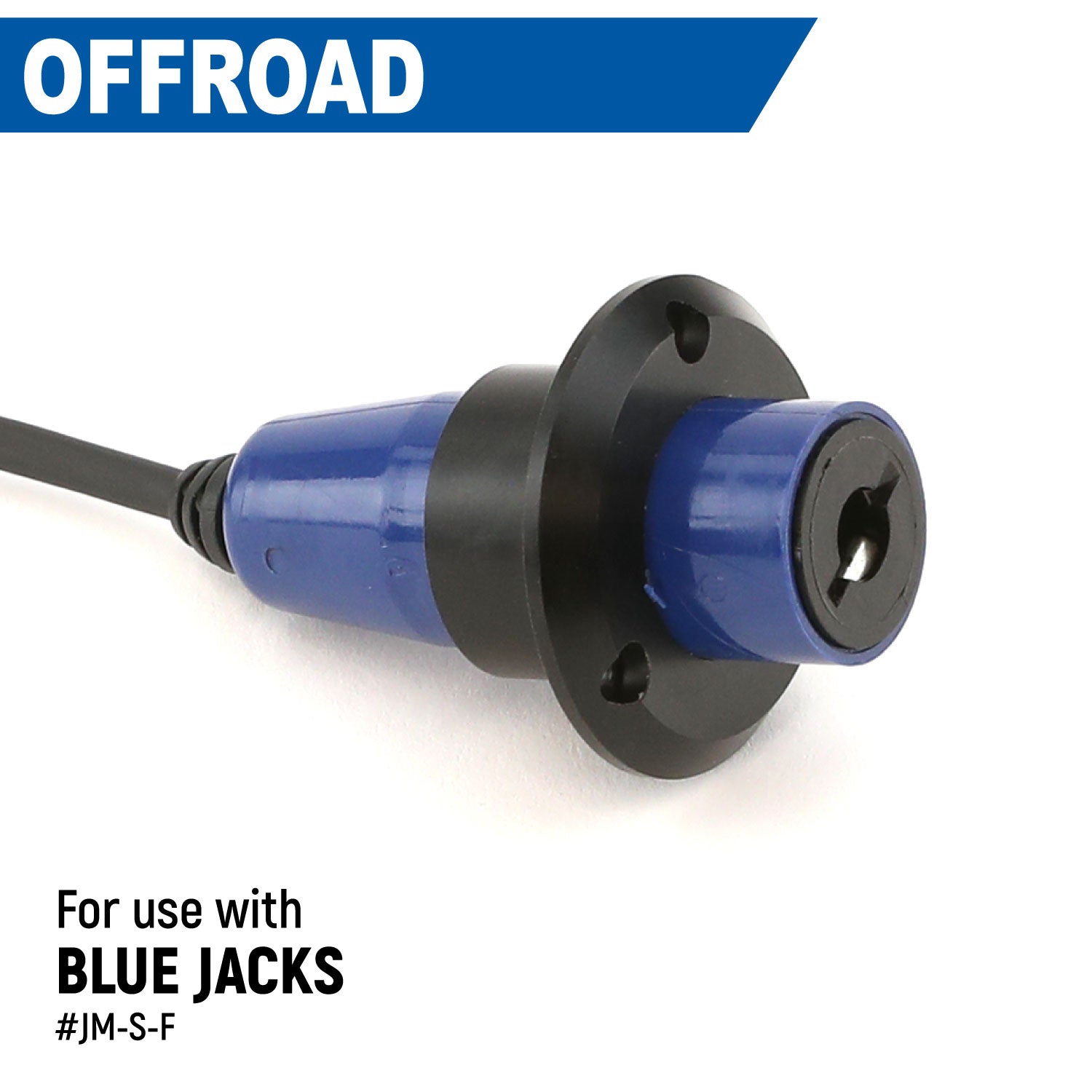

| Versions | JM-S-F: OFFROAD; JM-S-F-STX: STX Stereo |
| Cable identification | OFFROAD: blue jack; STX Stereo: grey jack |
| Panel hole | 1 inch |
| Mount depth | 0.75 inch |
| Tools required, not supplied | 1/16-inch and 3/32-inch Allen wrenches; 1/4-inch wrench |
Common Uses:
Fitment Notes:
No. Route the separately supplied cable from the intercom to the mount.

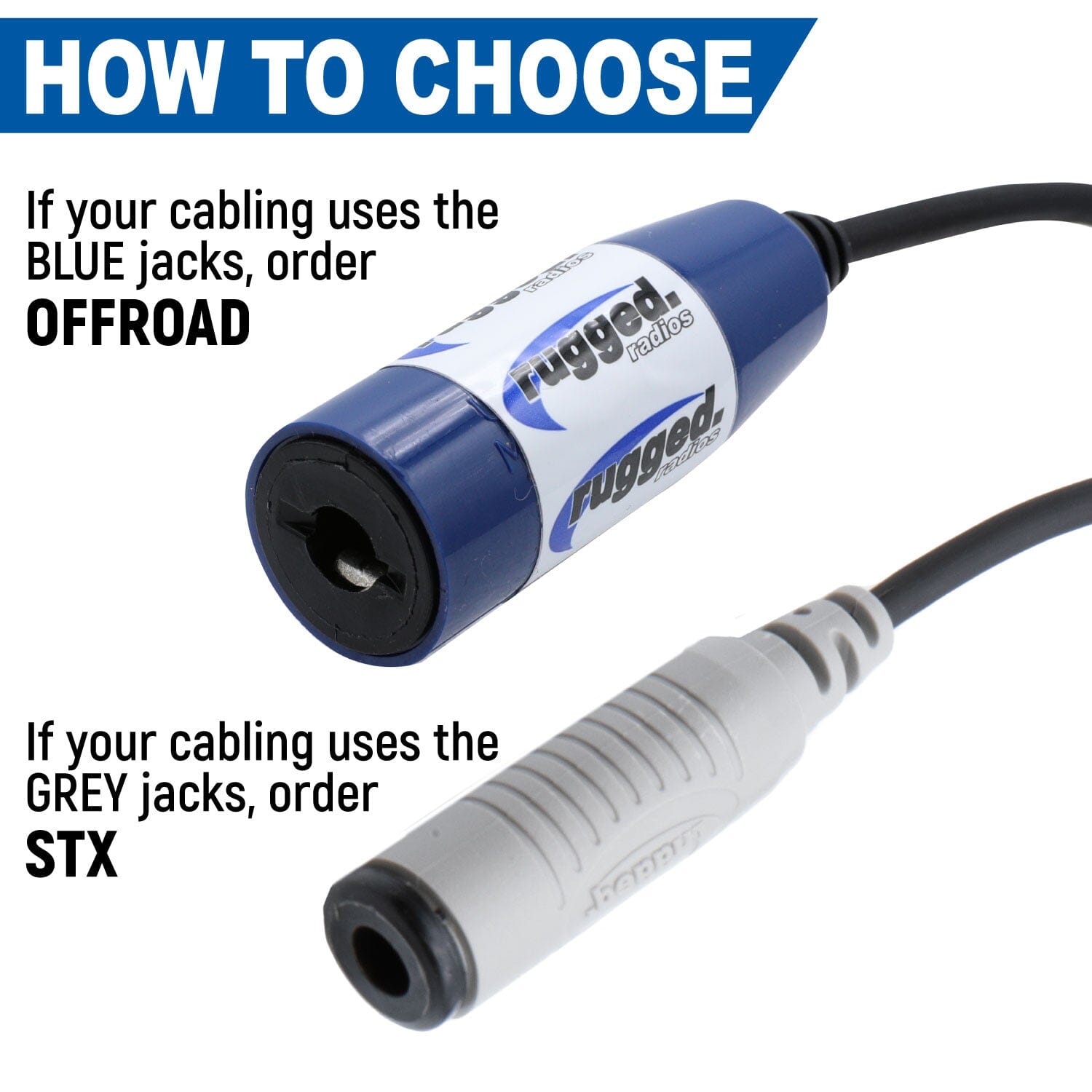

Select OFFROAD for the blue jack or STX Stereo for the grey jack.
Rugged specifies a 1-inch installation hole.
The jack mount is 0.75 inch deep. Allow additional space for cable routing behind it.
Yes. One set screw and three flush-mount screws are listed. The Allen wrenches and 1/4-inch wrench are not included.
