SP9100 Eight-Switch Power Control System - Switch-Pros

SP9100

$659.00
/
Shipping calculated at checkout.

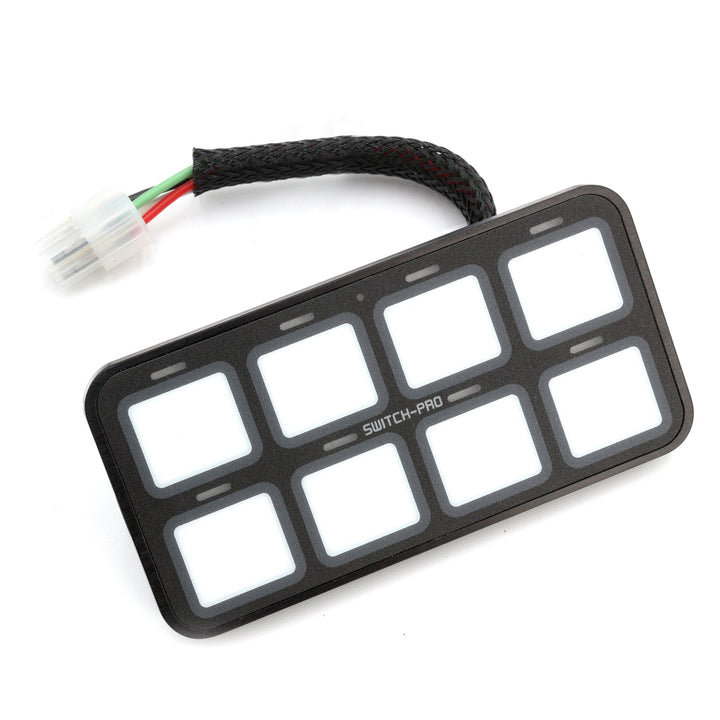

The Switch-Pros SP9100 Eight-Switch Power Control System combines an eight-button switch panel and programmable power module for controlling lighting and other vehicle accessories from one cab location. It is useful in an off-road build where a row of separate switches and relays would otherwise spread wiring and accessory controls across the dash.

The SP9100 provides eight configurable outputs, Bluetooth setup, and RGB panel backlighting, with the included communication cable separating the cab panel from the power-module location. Choose output assignments around each accessory's current draw rather than the number of available switches. Four channels are rated at 35 amps and four at 20 amps, but the system's combined 125-amp limit still governs the complete installation.

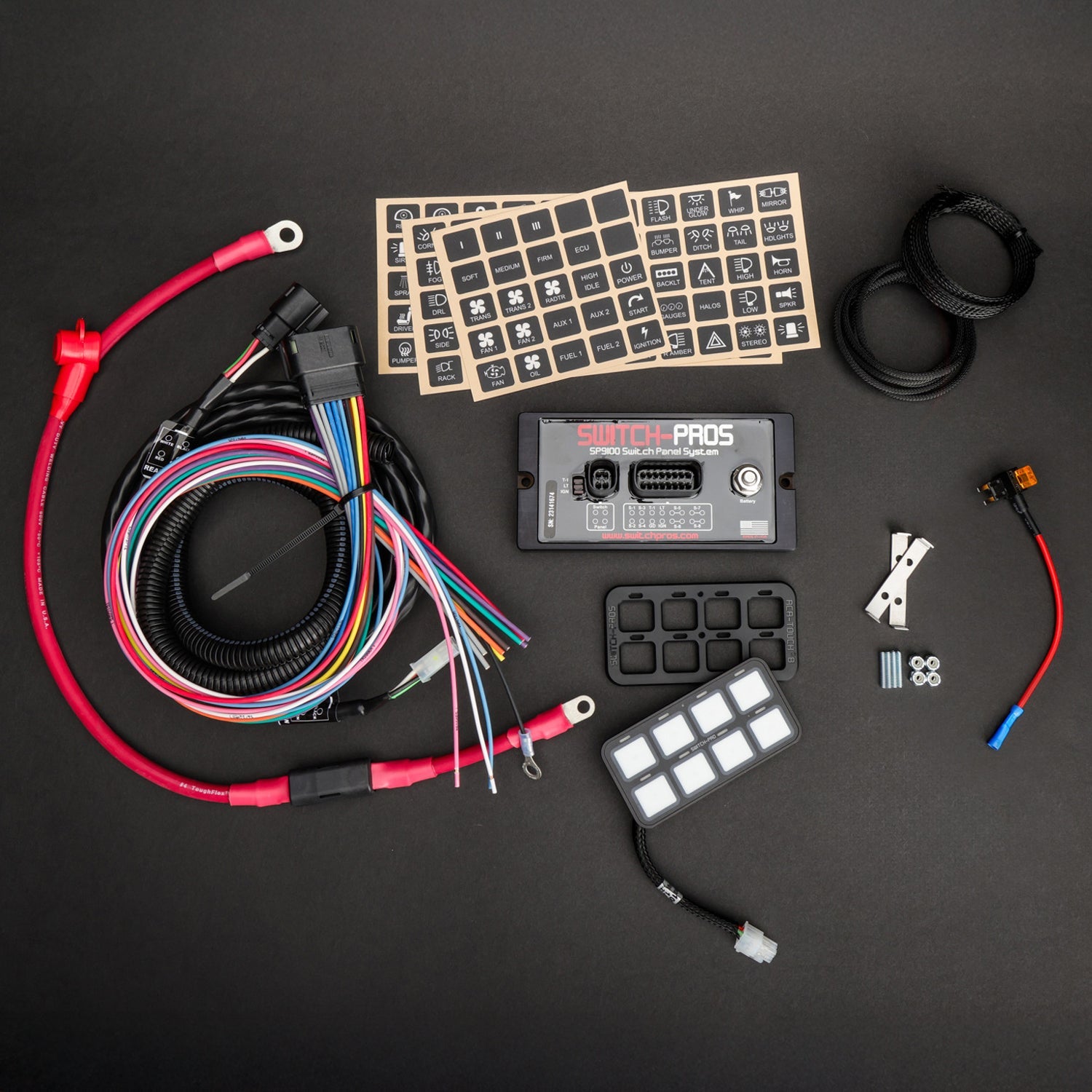

Includes:

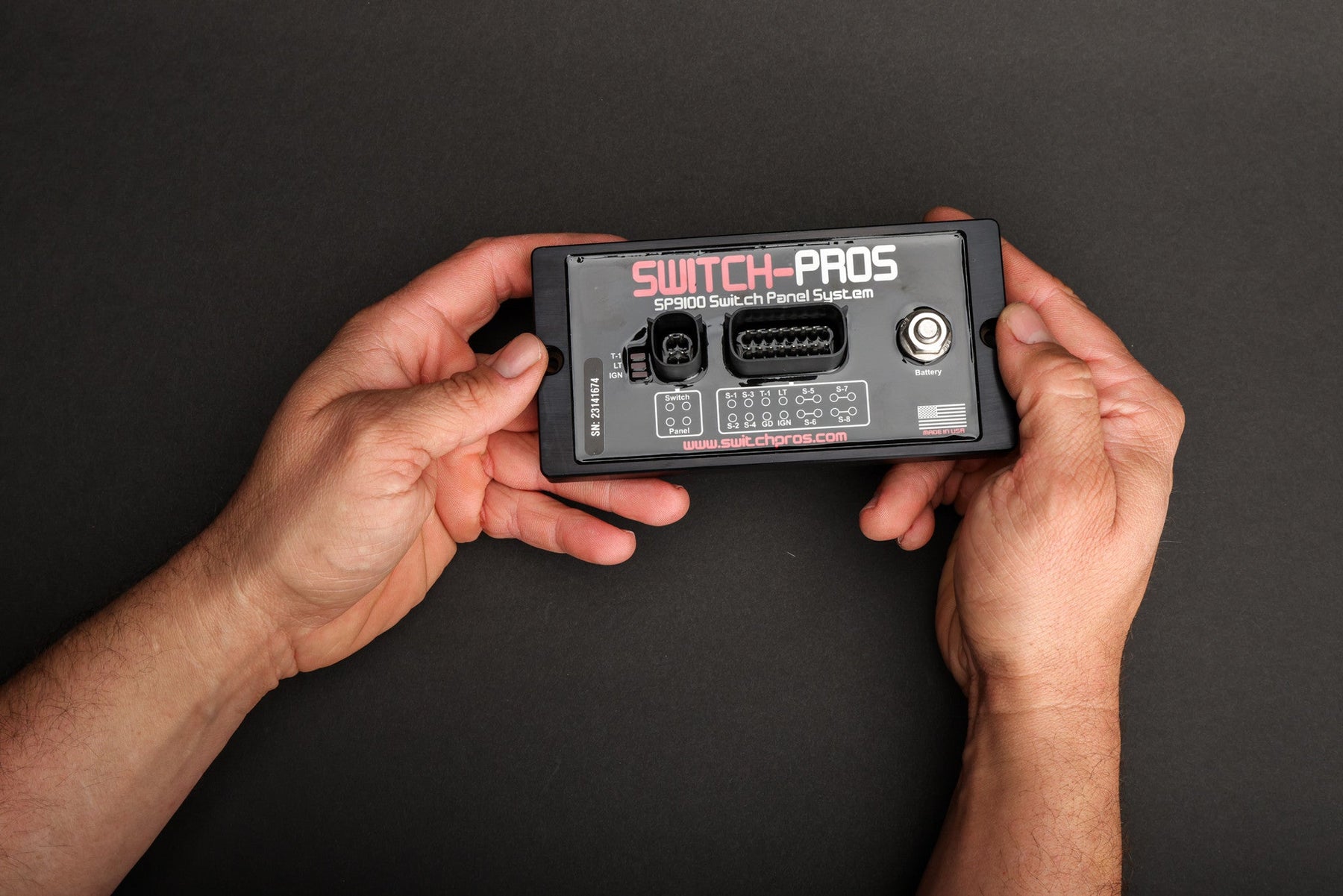

  • Switch panel and power module

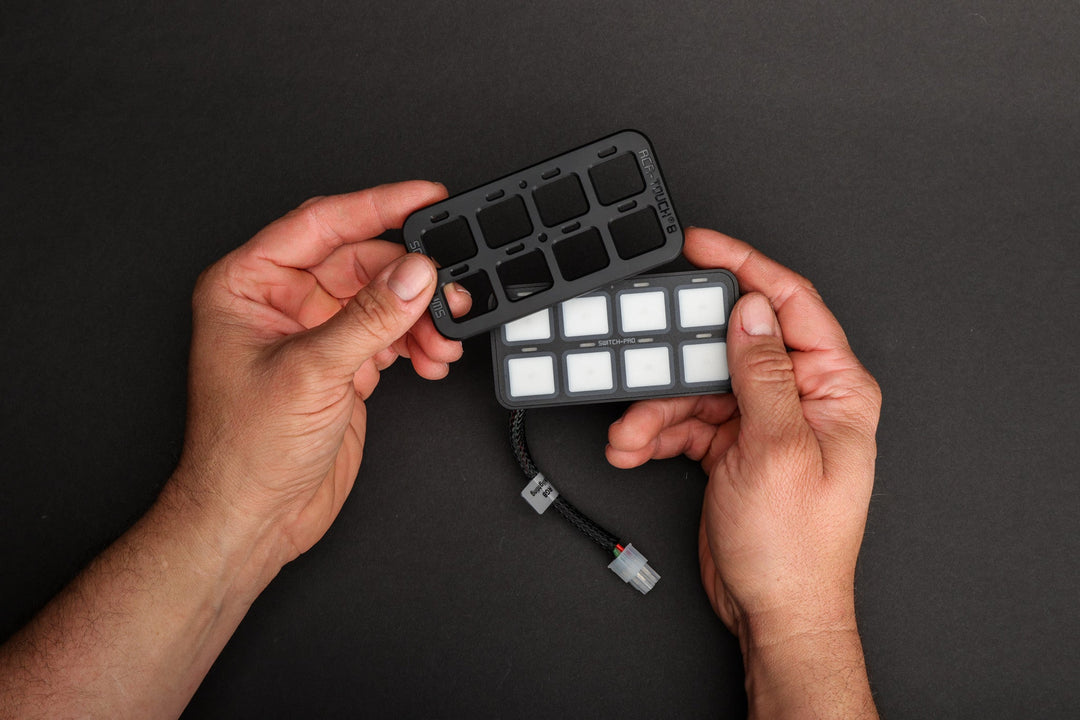

  • RCR-Touch 8 cover
  • 11-foot communication cable
  • Power cable with 125A inline fuse
  • 125 selectable legends
  • Mounting brackets and hardware
  • 16-pin output harness and installation guide
Specifications
Part Number SP9100
Product Type Switch Panels
Primary Application Central control of vehicle lighting and accessories; Custom dash switch-panel and power-module installations
Manufacturer / brand Switch-Pros
Total capacity 125 amps
Outputs Four 35A and four 20A channels
Rating IP67
Panel 4 x 2 x 0.375 inches
Module 6 x 3 x 0.5 inches, excluding connectors
Fitment

Common Uses:

  • Central control of vehicle lighting and accessories
  • Custom dash switch-panel and power-module installations

Fitment Notes:

Custom vehicle electrical installation; wire and protect each accessory for its load and the module’s output limits.

FAQs

Can all outputs run at their individual maximum together?

No. Individual channel limits still apply, and combined system load must remain within the 125A total rating.

Can I configure an output as momentary?

Yes. The source lists on/off and momentary operation among the programmable output functions.

Can the cab panel be separated from the power module?

Yes. The package includes an 11-foot communication cable between the switch panel and power module for the planned installation.

What connections or fitment does this require?

Custom vehicle electrical installation; wire and protect each accessory for its load and the module’s output limits.

What is supplied with this listing?

Switch panel and power module; RCR-Touch 8 cover; 11-foot communication cable; Power cable with 125A inline fuse; 125 selectable legends; Mounting brackets and hardware; 16-pin output harness and installation guide.
