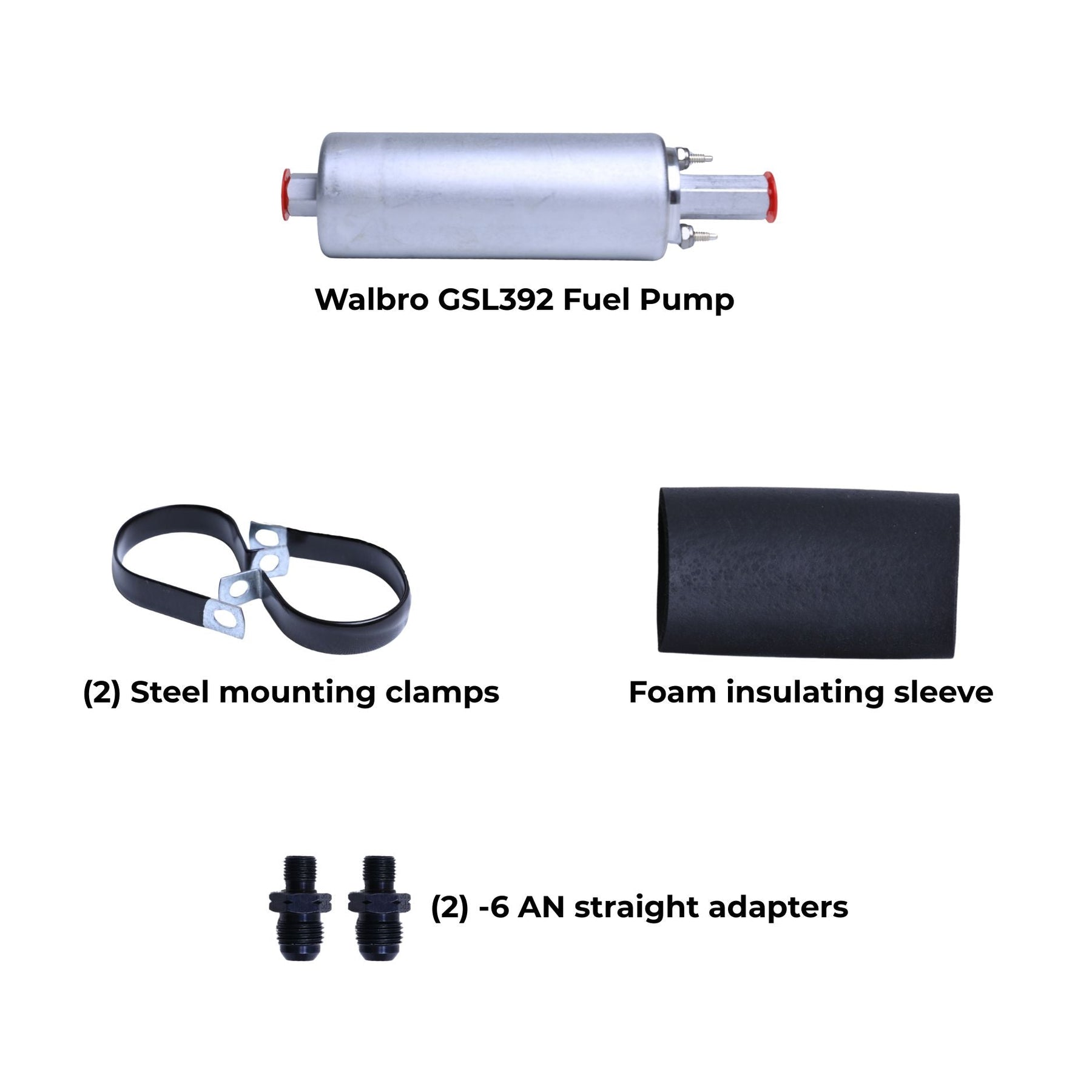

Walbro 255 inline fuel pump kit with pump, mounting hardware and adapters on a white background.

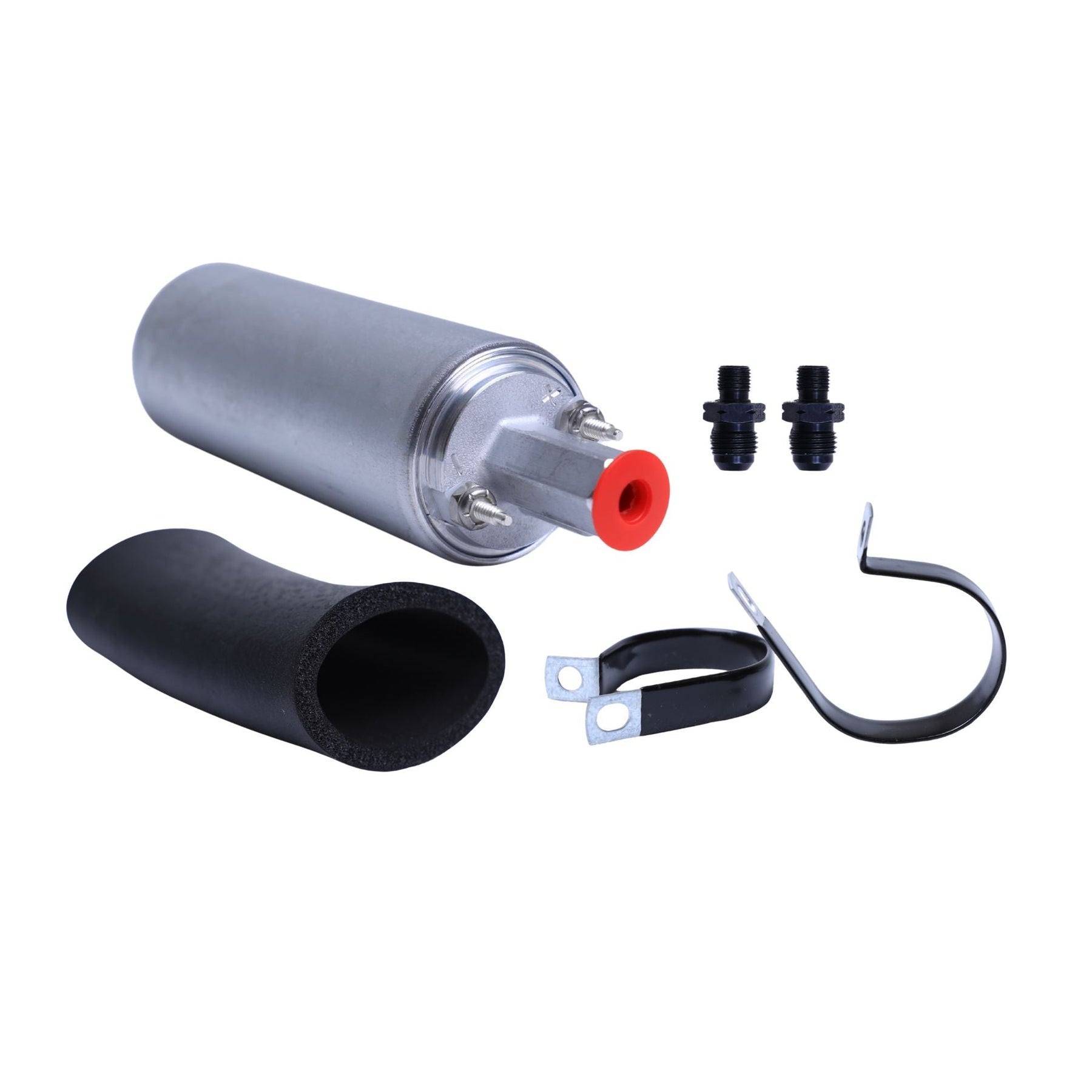

Vibration dampening foam sleeve and GSL392 pump with -6 AN adapters with pump parts on a white background
LS swap external fuel pump kit on a white background, text indicating horsepower support.

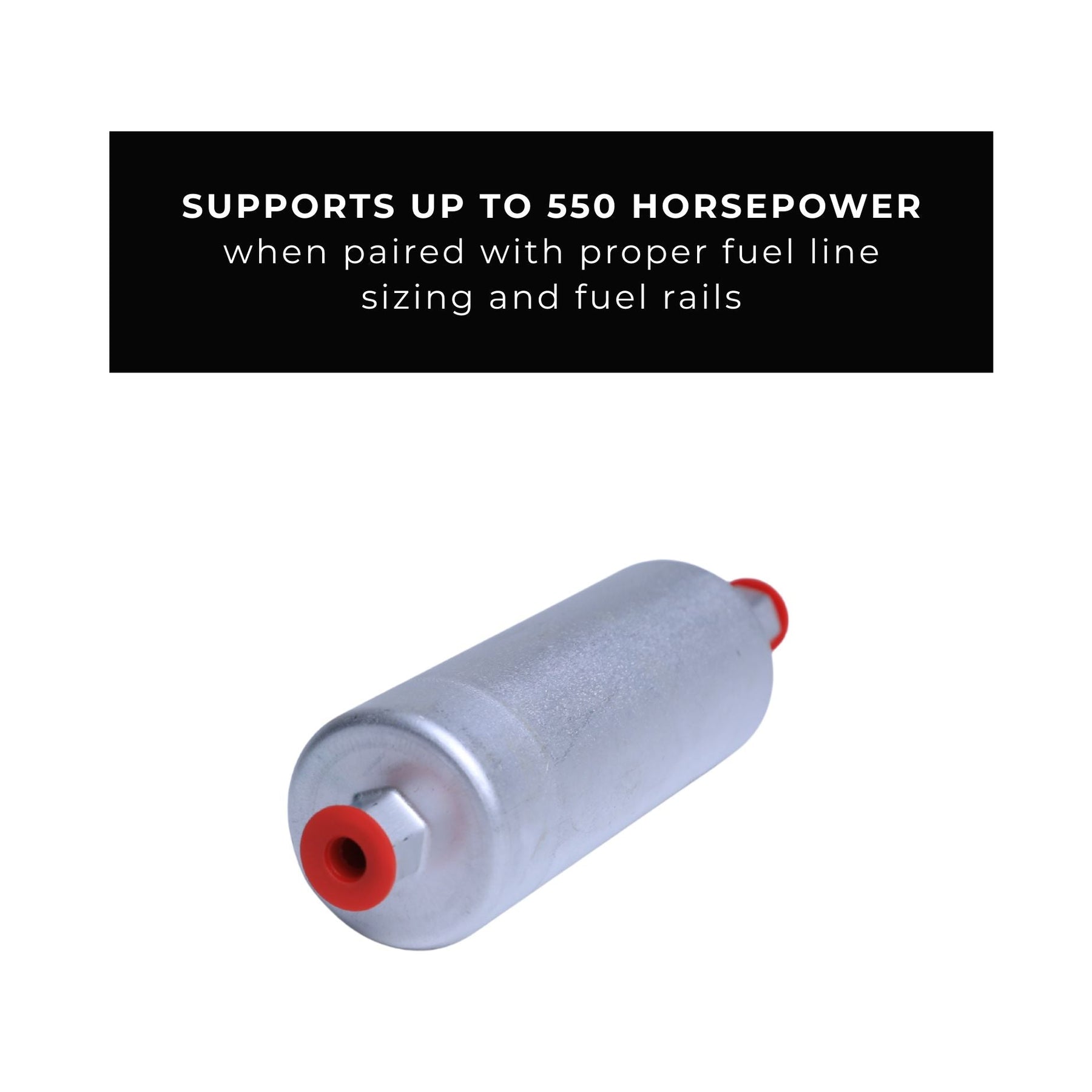

255 LPH fuel pump for 550 HP engine with mounting clamps, insulating sleeve, and adapters on a white background
Walbro 255 LPH Fuel Pump & Mounting Kit
Walbro 255 inline fuel pump kit with pump, mounting hardware and adapters on a white background.
Vibration dampening foam sleeve and GSL392 pump with -6 AN adapters with pump parts on a white background
LS swap external fuel pump kit on a white background, text indicating horsepower support.
255 LPH fuel pump for 550 HP engine with mounting clamps, insulating sleeve, and adapters on a white background
Walbro 255 LPH Fuel Pump & Mounting Kit

Walbro 255 LPH Fuel Pump & Mounting Kit

WA01023

$149.99
/
Shipping calculated at checkout.

This Walbro 255 External In-Line Fuel Pump Kit includes everything you need to install a proven 255 LPH high pressure pump into your LS swap or off-road fuel system.

Built around the trusted Walbro GSL392 255 LPH inline fuel pump, this kit combines the pump, mounting hardware, and (2) -6 AN straight adapter fittings to simplify installation into -6 AN fuel plumbing.

Capable of supporting up to 550 HP engines (with proper fuel line sizing and fuel rails), this setup is ideal for naturally aspirated LS builds and many moderate performance applications.

This is a complete external inline pump solution — ready to mount and plumb.

Included

  • (1) Walbro GSL392 Fuel Pump
  • (1) Installation Kit:
    • Foam insulating sleeve
    • (2) Steel mounting clamps
  • (2) -6 AN Straight Adapter Fittings
Specifications
  • Flow Rate: 255 Liters Per Hour (LPH)
  • Pump Type: External / Inline
  • Max Supported Power: Up to 550 HP (gasoline, proper system design required)
  • Fuel Compatibility: Gasoline and ethanol blends (with proper filtration)
  • Adapters Included: (2) -6 AN straight fittings
  • Mounting: External with vibration-dampening sleeve
Fitment
  • Universal EFI fuel systems
  • LS swaps
  • Rock crawlers & Ultra4 cars
  • Street/strip performance builds
  • Off-road race vehicles

Designed for inline installation outside the fuel tank.

Tech Insight

The Walbro 255 LPH pump is one of the most widely used EFI pumps in performance applications because of its balance of reliability, flow, and compact size.

For best results:

  • Use a 100-micron pre-filter before the pump
  • Use a 10-micron post-filter after the pump
  • Ensure proper voltage supply with relay wiring
  • -6 AN feed line is suitable for most builds under ~500 HP

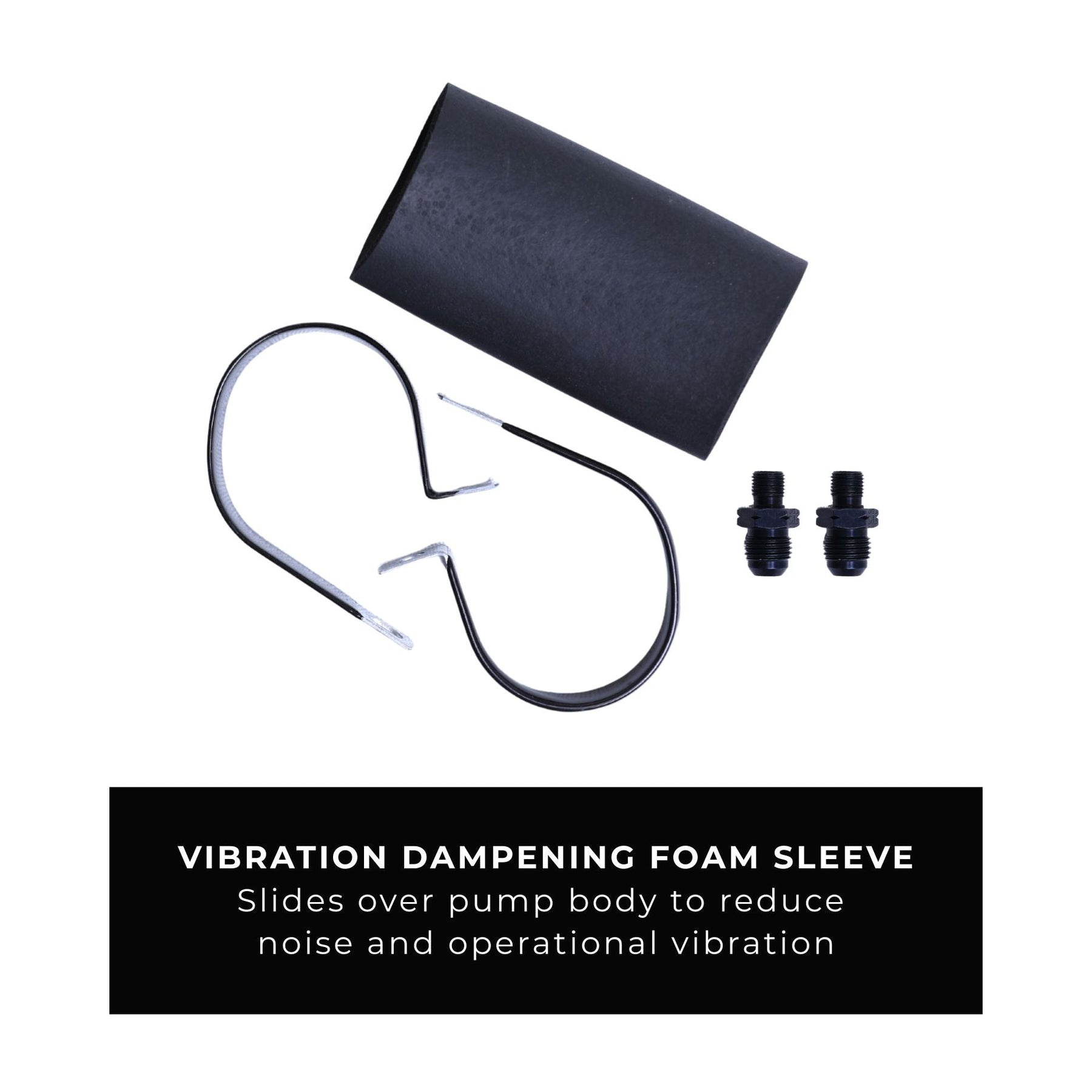

Mounting the pump with the included foam sleeve reduces vibration and noise while increasing pump longevity, which is especially important in rigid tube chassis off-road vehicles.

If you're building a dependable LS fuel system without overcomplicating it, this kit covers the essentials.
