WARN Premium Locking Hubs for 2005+ Ford Super Duty – 35 Spline
WRN95060

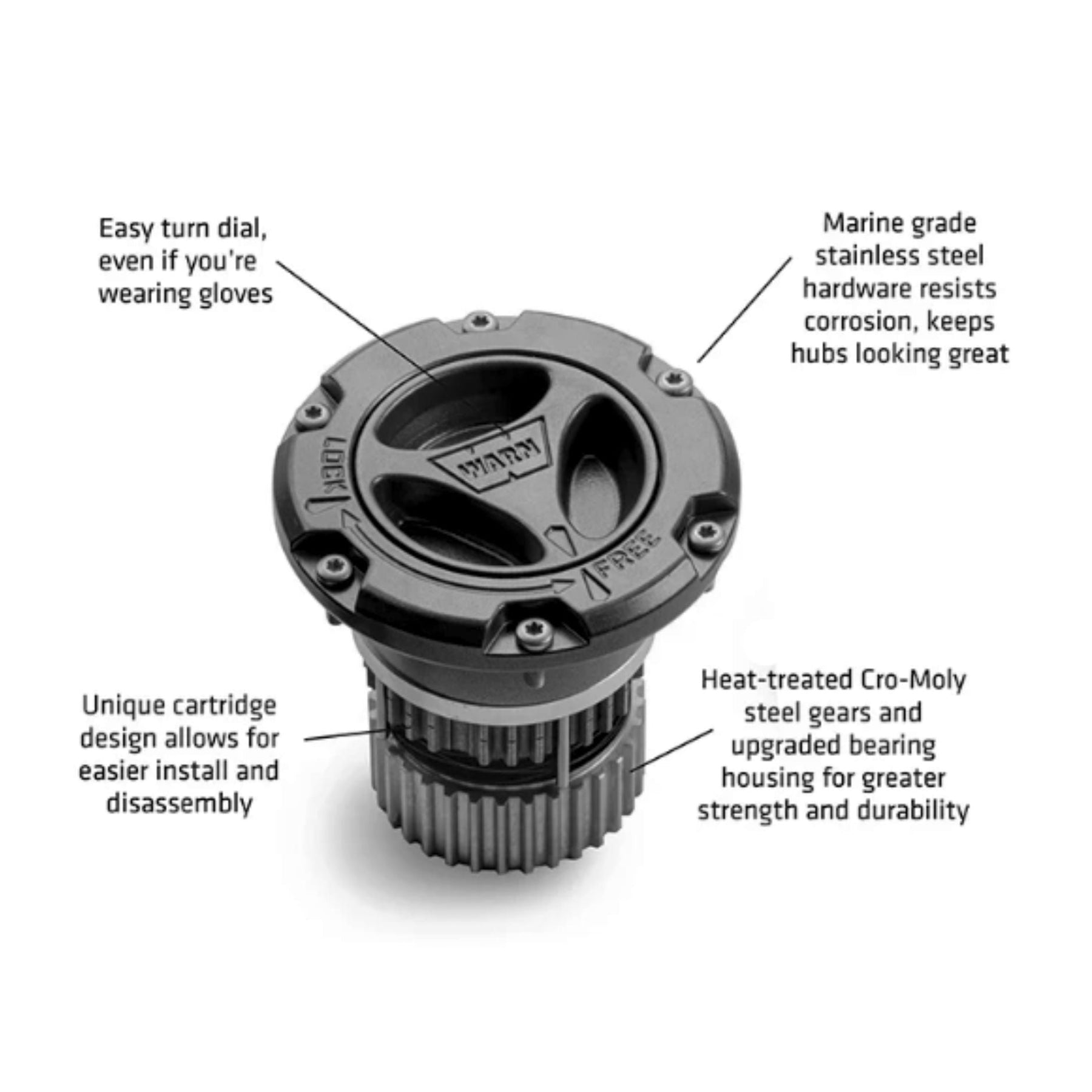

The WARN Premium Locking Hubs for Ford Super Duty – 35 Spline are a heavy-duty manual lockout upgrade for 2005+ Ford Super Duty front axles. Manufactured in the USA by WARN Industries, these hubs use heat-treated Cro-Moly steel gears, an upgraded bearing housing, and an all-metal cap and dial to handle the added drivetrain loads common with larger tires, off-road use, and modified F-250, F-350, F-450, and F-550 trucks.

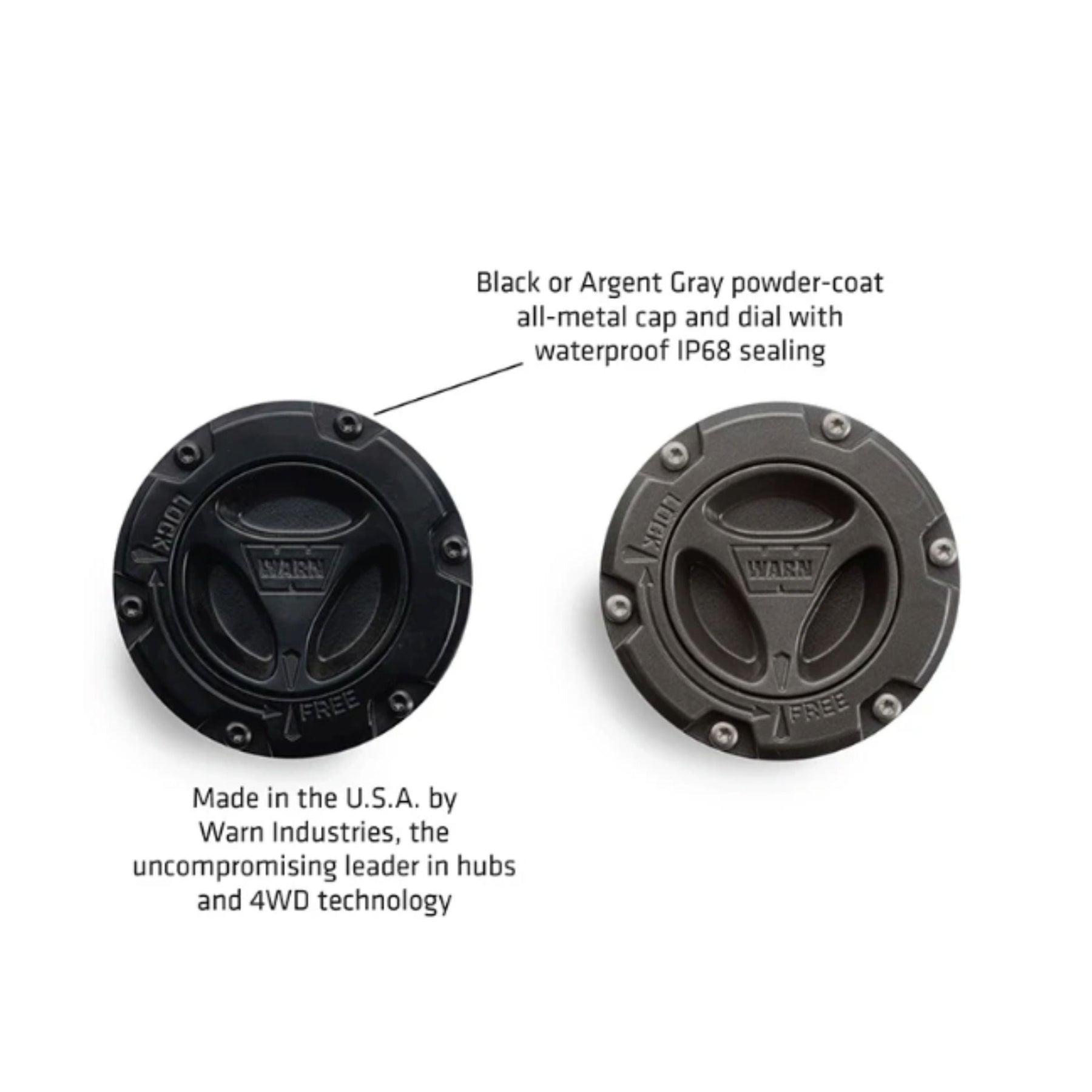

A glove-friendly tri-lobe dial uses approximately 9/10 of a turn for positive engagement, while IP68 waterproof sealing and marine-grade stainless steel hardware help protect the hub from water, mud, and corrosion. WARN's cartridge-style design also simplifies installation, disassembly, and service compared with more complicated locking hub assemblies.
Includes:

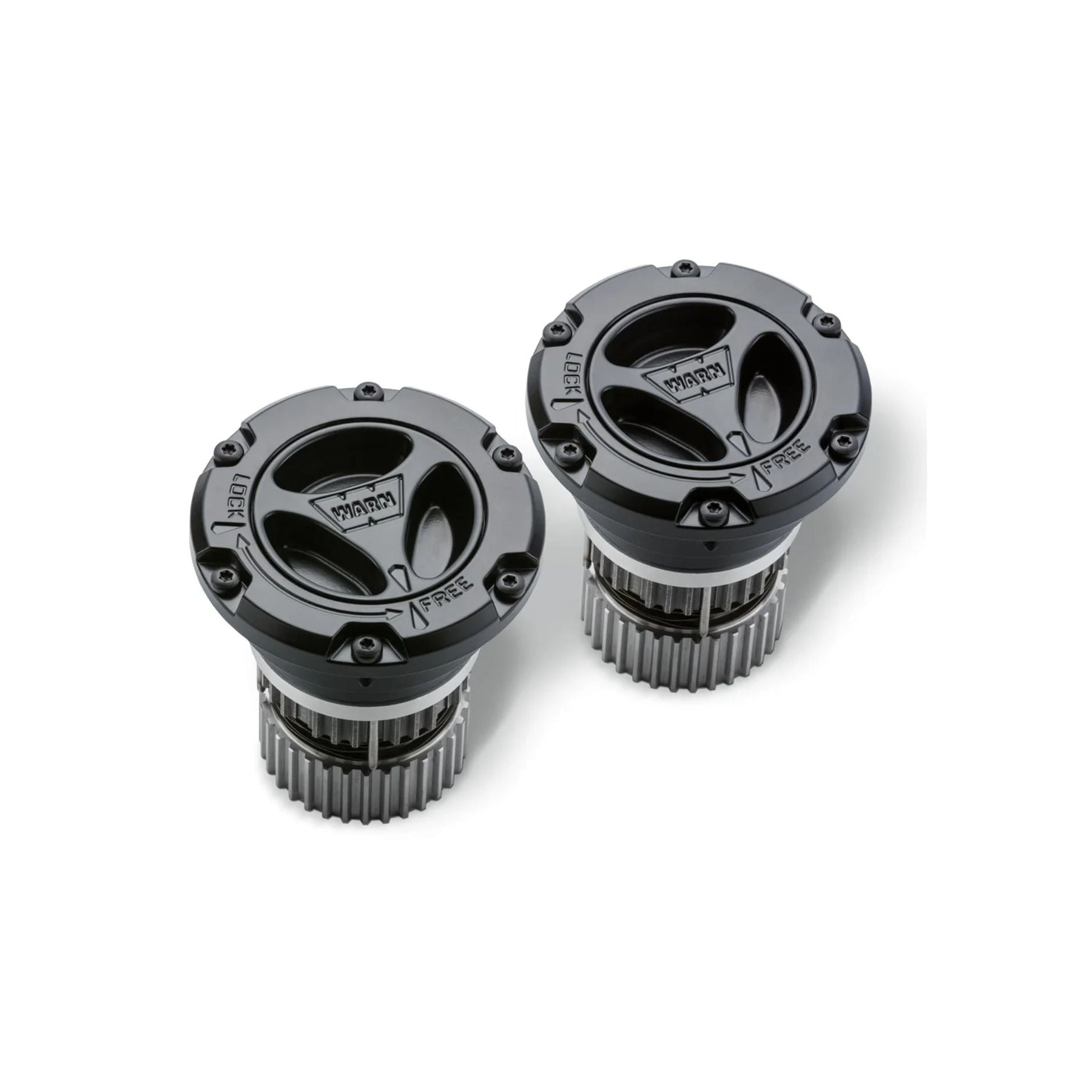

- (2) WARN Premium 35-Spline Locking Hubs
- All-Metal Caps and Dials
- Heat-Treated Cro-Moly Steel Internal Gears
- Marine-Grade Stainless Steel Hardware
- Installation Components
- Black Finish
Specifications
|
Specification |
Details |
|---|---|
|
Manufacturer |
WARN Industries |
|
Part Number – Black |
95060 |
|
Part Number – Argent Gray |
108325 |
|
Product Type |
Premium Manual Locking Hub Set |
|
Application |
Ford Super Duty Front Axle |
|
Years |
2005–2026 |
|
Spline Count |
35 |
|
Bolt Circle |
6-Bolt |
|
Quantity |
Set of 2 |
|
Cap / Dial Material |
All Metal |
|
Black Finish |
Powder-Coated |
|
Hardware |
Marine-Grade Stainless Steel |
|
Internal Gears |
Heat-Treated Cro-Moly Steel |
|
Engagement |
Approx. 9/10 Turn |
|
Dial Style |
Easy-Turn Tri-Lobe |
|
Water Resistance |
IP68 |
|
Design |
Serviceable Cartridge |
|
Country of Origin |
USA |
Fitment
|
Year |
Make |
Model |
Fitment |
|
2005–2026 |
Ford |
F-250 Super Duty |
4WD, 35-Spline, 6-Bolt |
|
2005–2026 |
Ford |
F-350 Super Duty |
4WD, 35-Spline, 6-Bolt |
|
2005–2026 |
Ford |
F-450 Super Duty |
4WD, 35-Spline, 6-Bolt |
|
2005–2026 |
Ford |
F-550 Super Duty |
4WD, 35-Spline, 6-Bolt |
Fitment Notes
- Designed for compatible 2005 and newer Ford Super Duty 4WD applications using 35-spline, 6-bolt locking hubs. Verify your existing axle and hub configuration before ordering, especially on trucks that have had axle or front drivetrain components changed.
- These hubs are not designed for front axle disconnect systems.
FAQ
1. What is the advantage of WARN Premium locking hubs over factory Super Duty hubs?
WARN Premium hubs use an all-metal cap and dial, heat-treated Cro-Moly steel gears, upgraded bearing housing, and corrosion-resistant stainless hardware. They are designed as a durable manual locking hub option for modified trucks, larger tires, and demanding off-road use.
2. Will these locking hubs fit my Ford F-250 or F-350 Super Duty?
They fit compatible 2005–2026 Ford F-250 and F-350 Super Duty 4WD trucks using the 35-spline, 6-bolt hub configuration. They are also listed for compatible F-450 and F-550 Super Duty applications.
3. Are these WARN hubs waterproof?
WARN uses IP68 waterproof sealing to help protect the internal components from water and debris, making them well suited for trucks exposed to mud, water crossings, snow, and other harsh conditions.
4. Are these hubs difficult to engage?
No. The large tri-lobe dial is designed to be easy to grip, even while wearing gloves. Approximately 9/10 of a turn provides positive engagement of the inner drive gear to the clutch ring.
5. Are these locking hubs a good upgrade for trucks with larger tires?
Yes. WARN specifically builds its Premium locking hub lineup to handle the additional stress associated with modified trucks and larger tires. The Cro-Moly steel gears and all-metal construction make these a strong choice for heavy-duty and off-road Super Duty builds.
