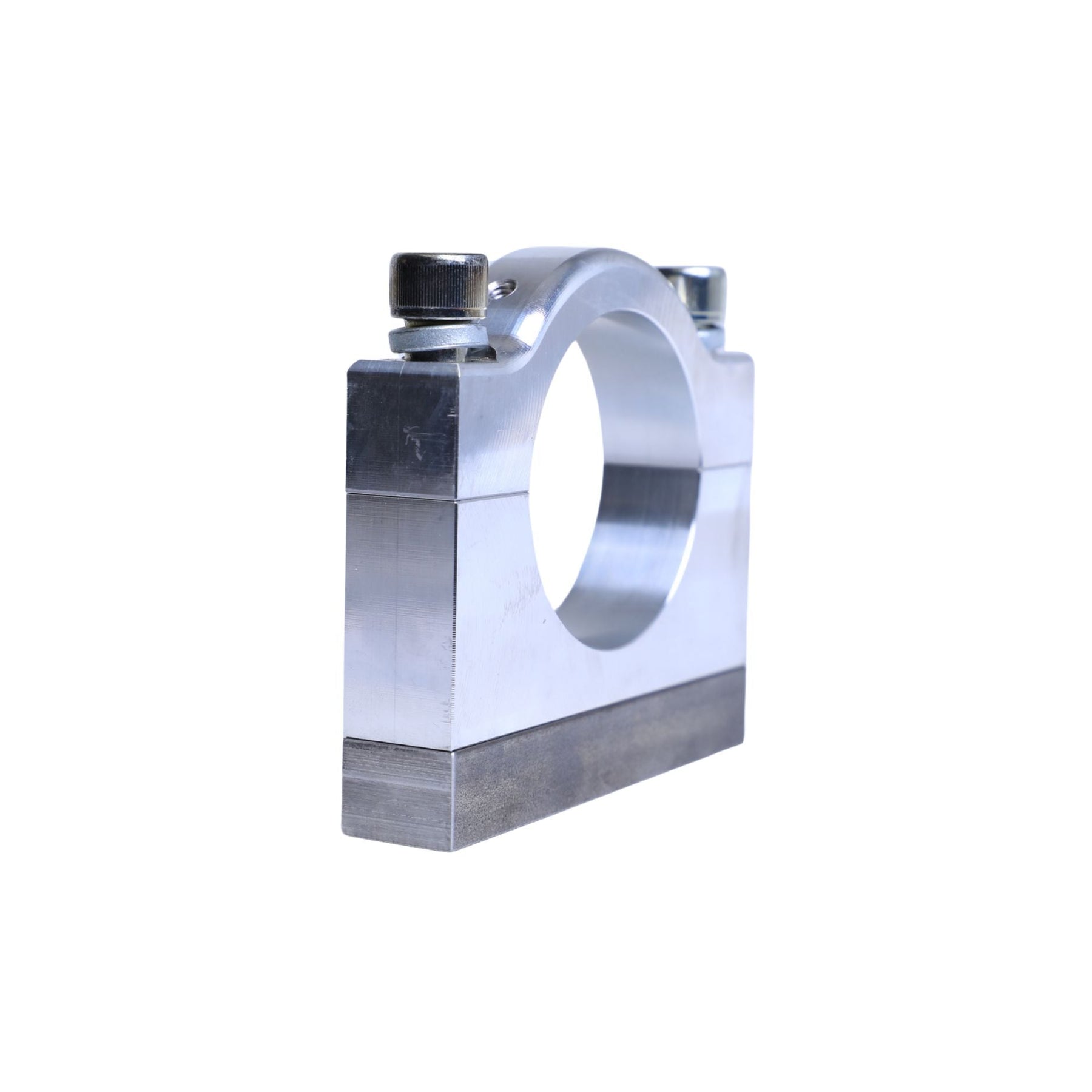

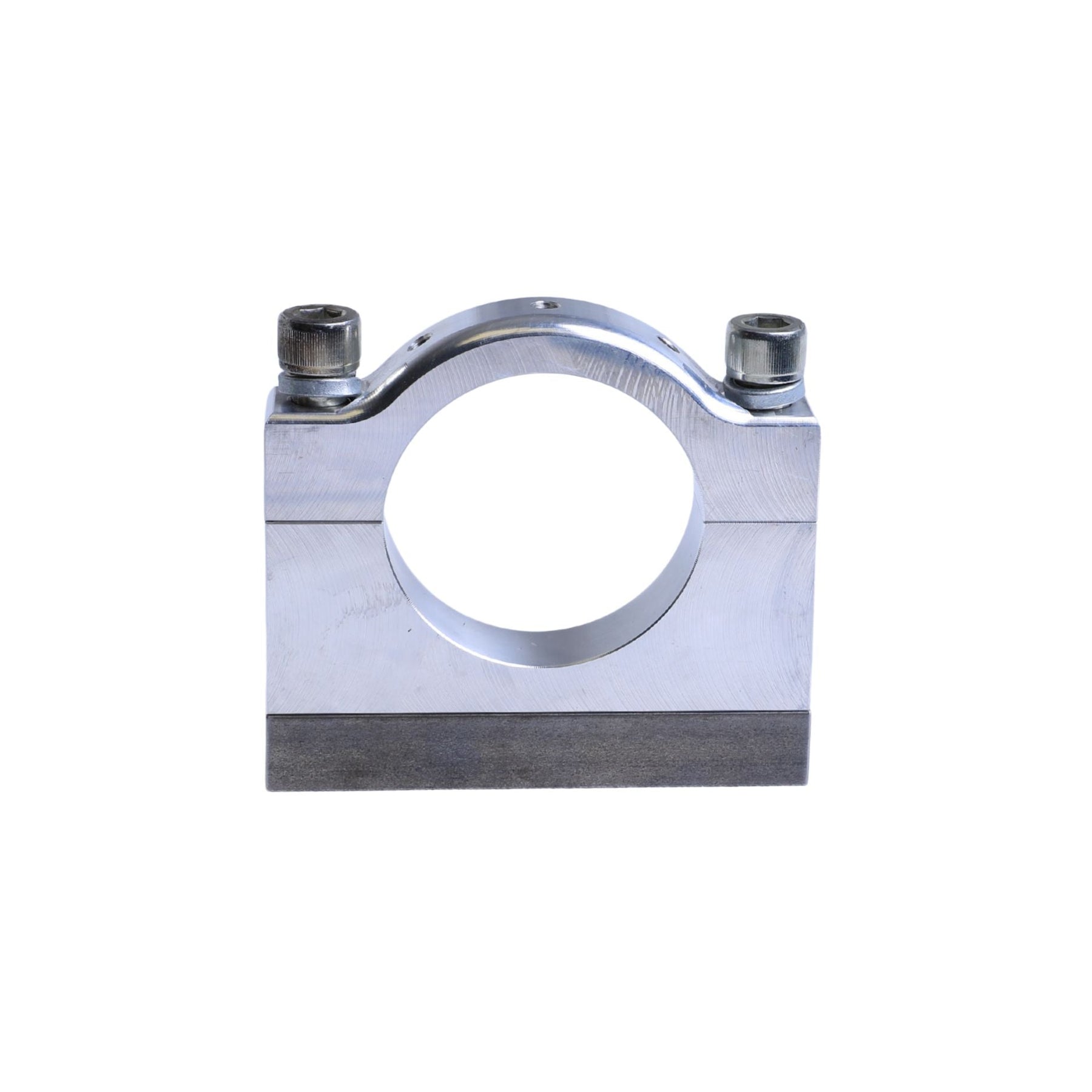

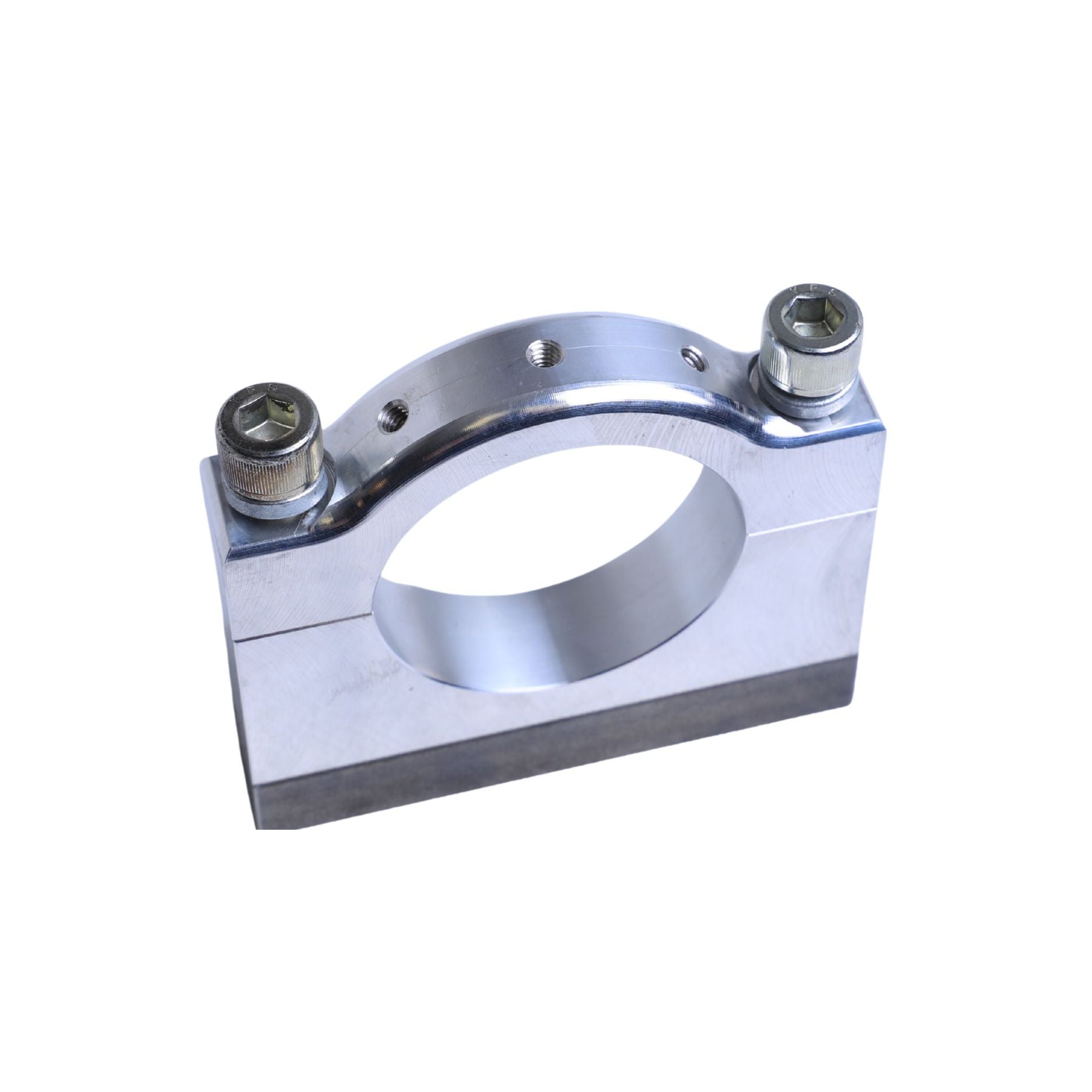

Weld-On Steering Cylinder Hold-Down Clamp for 2.5" PSC Cylinder
Weld-On Steering Cylinder Hold-Down Clamp for 2.5" PSC Cylinder
Weld-On Steering Cylinder Hold-Down Clamp for 2.5" PSC Cylinder
Weld-On Steering Cylinder Hold-Down Clamp for 2.5" PSC Cylinder
Weld-On Steering Cylinder Hold-Down Clamp for 2.5" PSC Cylinder
Weld-On Steering Cylinder Hold-Down Clamp for 2.5" PSC Cylinder
Weld-On Steering Cylinder Hold-Down Clamp for 2.5" PSC Cylinder
Weld-On Steering Cylinder Hold-Down Clamp for 2.5" PSC Cylinder

Weld-On Steering Cylinder Hold-Down Clamp for 2.5" PSC Cylinder

SCCL04KF

$67.50
/
Shipping calculated at checkout.

Secure your steering cylinder with a Weld-On Steering Cylinder Hold-Down Clamp designed for PSC 2.5” steering cylinders. This heavy-duty clamp helps prevent cylinder movement under extreme steering loads, protecting your steering ram, mounting tabs, and hydraulic system during aggressive off-road driving.

Precision machined from heavy-duty steel, the clamp provides a secure fit around the cylinder body while allowing proper support throughout the suspension's range of motion. By reducing unwanted movement and vibration, the hold-down clamp helps improve steering reliability in rock crawlers, Ultra4 race cars, rock bouncers, mud trucks, and custom off-road builds.

Designed to weld directly to your axle housing or custom steering mount, this clamp is an ideal solution when fabricating a full hydraulic steering system or replacing worn steering cylinder hardware.

Includes:

  • (1) Weld-On Steering Cylinder Hold-Down Clamp
  • Mounting Hardware

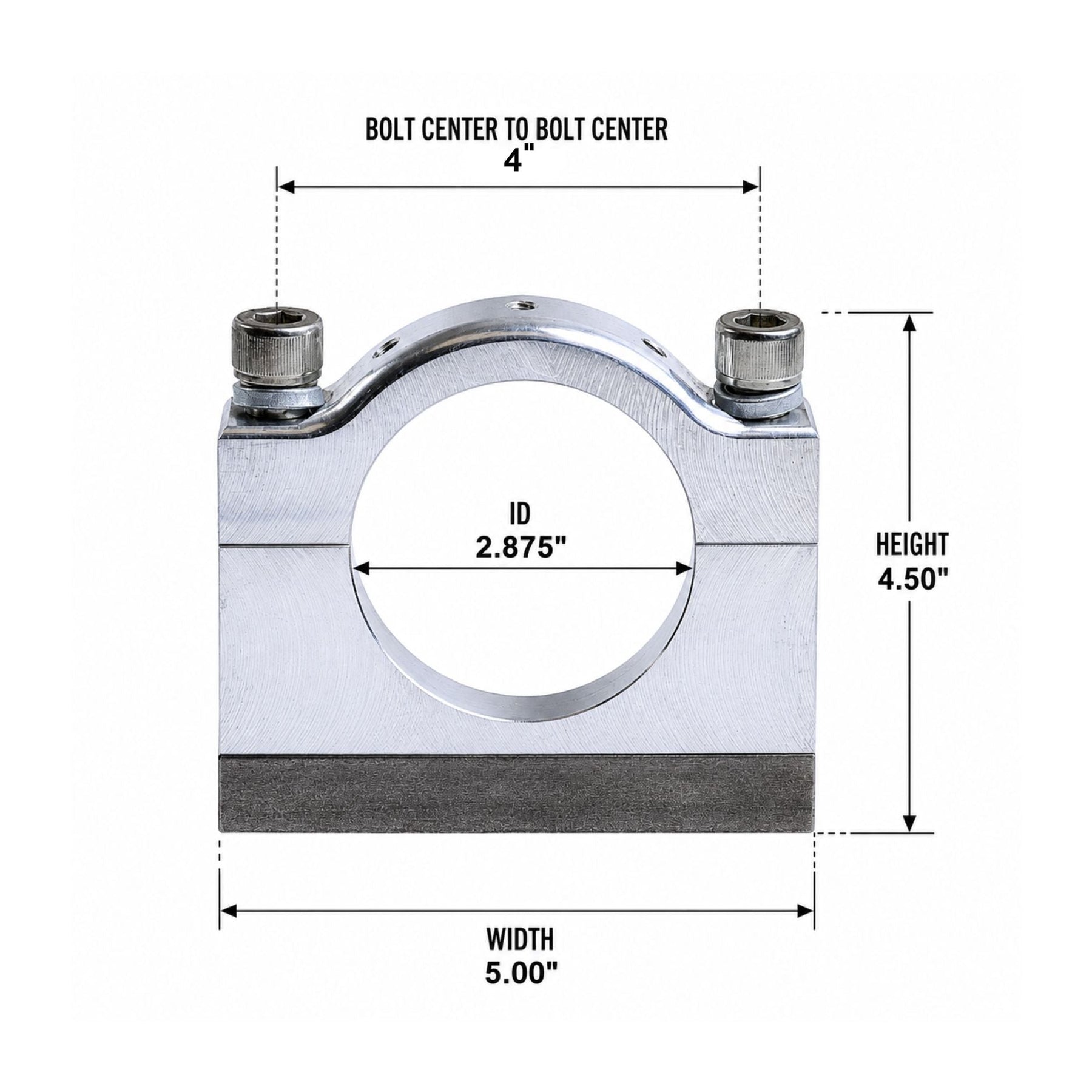

Specifications

Specification

Details

Application

Full Hydraulic Steering

Cylinder Size

2.5" Body

Mounting Style

Weld-On

Material

Steel

Finish

Raw Steel

Sold As

Individually
Fitment

Fitment Notes

  • Fits PSC SC2212 steering cylinder
  • Fits PSC SC2213 steering cylinder
  • Fits PSC SC2215 steering cylinder
  • Fits PSC SC2218 steering cylinder
  • Welding required
  • Designed for custom full hydraulic steering systems
Tech Insight

A full hydraulic steering cylinder is subjected to tremendous side loads from large tires, hydraulic pressure, and impacts with obstacles. A properly supported steering ram reduces stress on the cylinder body, rod, mounting tabs, and heims while helping maintain steering precision. When fabricating a full hydraulic steering system, properly positioning and supporting the cylinder is just as important as selecting the correct orbital valve and steering pump.

Frequently Asked Questions

Will this fit all PSC steering cylinders?

No. This clamp is designed specifically for PSC 2.5-inch body steering cylinders, including SC2212, SC2213, SC2215, and SC2218.

Is this a bolt-on clamp?

No. This is a weld-on clamp designed for custom steering fabrication.

Can I use this on a rock crawler or Ultra4 car?

Yes. It is designed for demanding off-road applications including rock crawlers, Ultra4 cars, rock bouncers, mud trucks, and custom buggies.

Does mounting hardware come with the clamp?

Yes. Mounting hardware is included.
