Wilwood Forward Mount Swing Pedal Assembly - Dual MC, 7:1 ratio
WIL340-13832

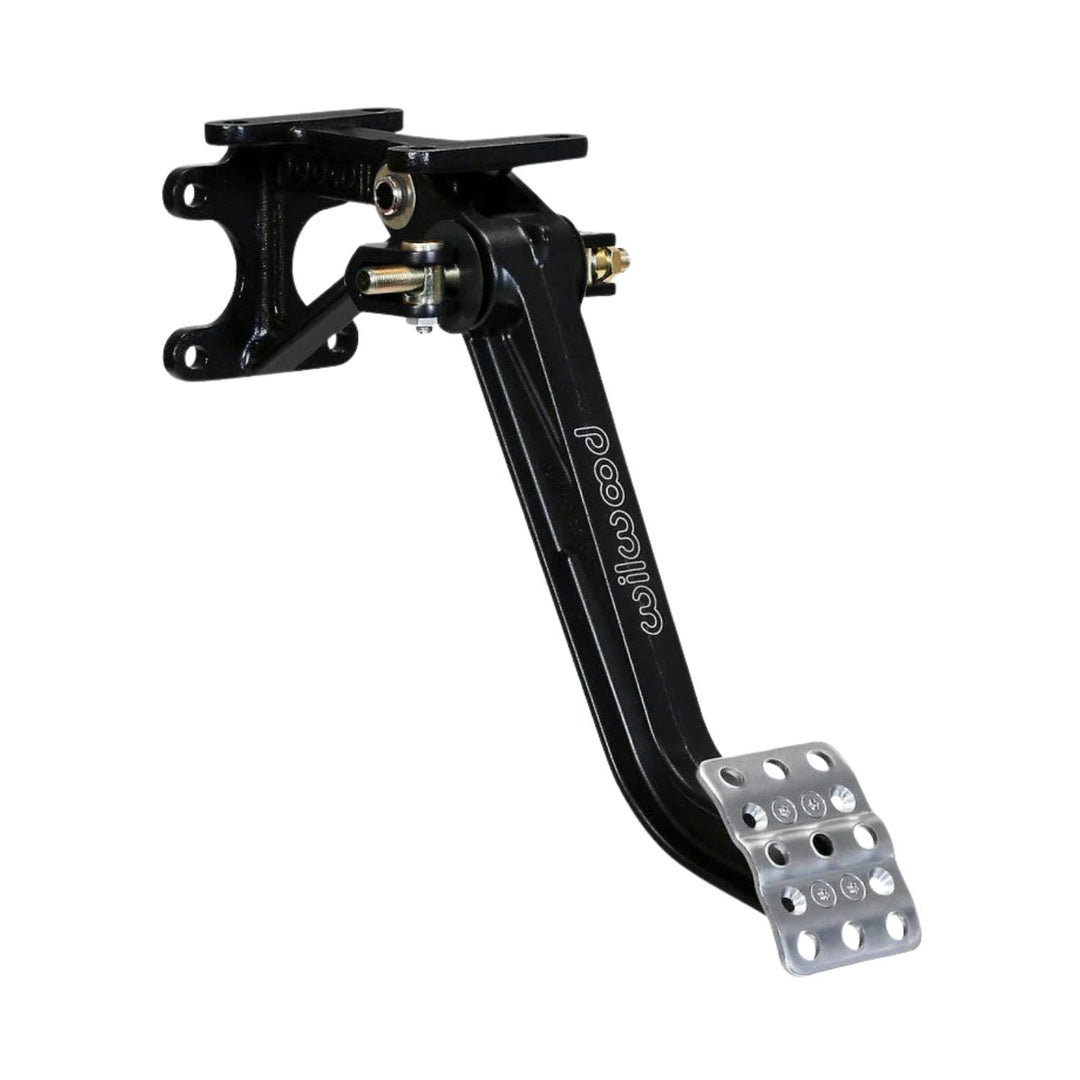

The Wilwood Forward-Mount Swing Pedal Assembly is designed to operate two single-outlet brake master cylinders mounted forward of the pedal and outside the firewall. The assembly combines a lightweight aluminum frame with a reinforced forged I-beam pedal arm, a 7:1 pedal ratio, and an adjustable non-skid pedal pad. It accepts Wilwood vertical-mount flange single-outlet master cylinders, allowing bore sizes to be selected separately for the braking system.
The integrated balance bar allows front-to-rear brake bias to be adjusted while the pin-and-clevis pushrod design provides the misalignment needed for smooth, bind-free operation throughout pedal travel. Positive detents help maintain the balance-bar setting, while the included jam nut can lock the adjustment in place or an optional remote cable can be added for quick brake-bias adjustment from the driver's position.
Includes:
- (1) Wilwood Forward-Mount Swing Pedal Assembly
- (1) Balance Bar Assembly
- (1) Balance Bar Jam Nut
Master cylinders are sold separately.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Wilwood |
| Product Type | Dual Master Cylinder Brake Pedal Assembly |
| Pedal Style | Swing Mount |
| Master Cylinder Position | Forward / Outside Firewall |
| Master Cylinder Configuration | Dual Single-Outlet |
| Pedal Ratio | 7:1 |
| Frame Material | Aluminum |
| Pedal Arm | Reinforced I-Beam Style Forged Arm |
| Pedal Pad | Non-Skid Waffled / Laterally Adjustable |
| Brake Bias Adjustment | Adjustable Balance Bar |
| Balance Bar Detent | Positive Detent Every Full Turn |
| Pushrod Attachment | Pin & Clevis |
| Remote Bias Adjustment | Optional Remote Cable Compatible |
| Master Cylinder Compatibility | Wilwood Vertical-Mount Flange Single-Outlet Master Cylinders |
| Master Cylinders Included | No |
Fitment
Designed For:
- Custom dual-master-cylinder brake systems
- Tube chassis vehicles
- Rock crawlers and rock bouncers
- Off-road race vehicles
- Custom fabrication applications
Fitment Notes:
- Designed for applications where the master cylinders are positioned forward of the pedal and outside the firewall.
- Accepts compatible Wilwood vertical-mount flange single-outlet master cylinders.
- Master cylinders are ordered separately so bore sizes can be matched to the vehicle's brake system.
- Laterally adjustable pedal pad allows the pedal position to be tailored for driver preference and available clearance.
- Balance bar can be locked with the included jam nut or connected to an optional remote adjustment cable.
- Verify pedal mounting, master cylinder sizing, pushrod alignment, pedal travel, and surrounding clearance before final installation.
FAQ
Does this Wilwood pedal assembly include master cylinders?
No. The master cylinders are sold separately so the correct bore sizes can be selected for the vehicle's front and rear brake requirements.
What is the pedal ratio?
This pedal assembly uses a 7:1 pedal ratio, providing the mechanical leverage needed for compatible dual-master-cylinder brake systems.
What does the balance bar do?
The balance bar changes how pedal force is distributed between the two master cylinders, allowing the front-to-rear brake bias to be adjusted for the vehicle and braking system.
Can brake bias be adjusted from the driver's seat?
Yes. The balance bar is compatible with an optional remote adjustment cable for applications where quick brake-bias changes from the driver's position are desired.
What master cylinders fit this pedal assembly?
The assembly accepts Wilwood vertical-mount flange single-outlet master cylinders. Master cylinder style and bore size should be selected according to the requirements of the complete braking system.
