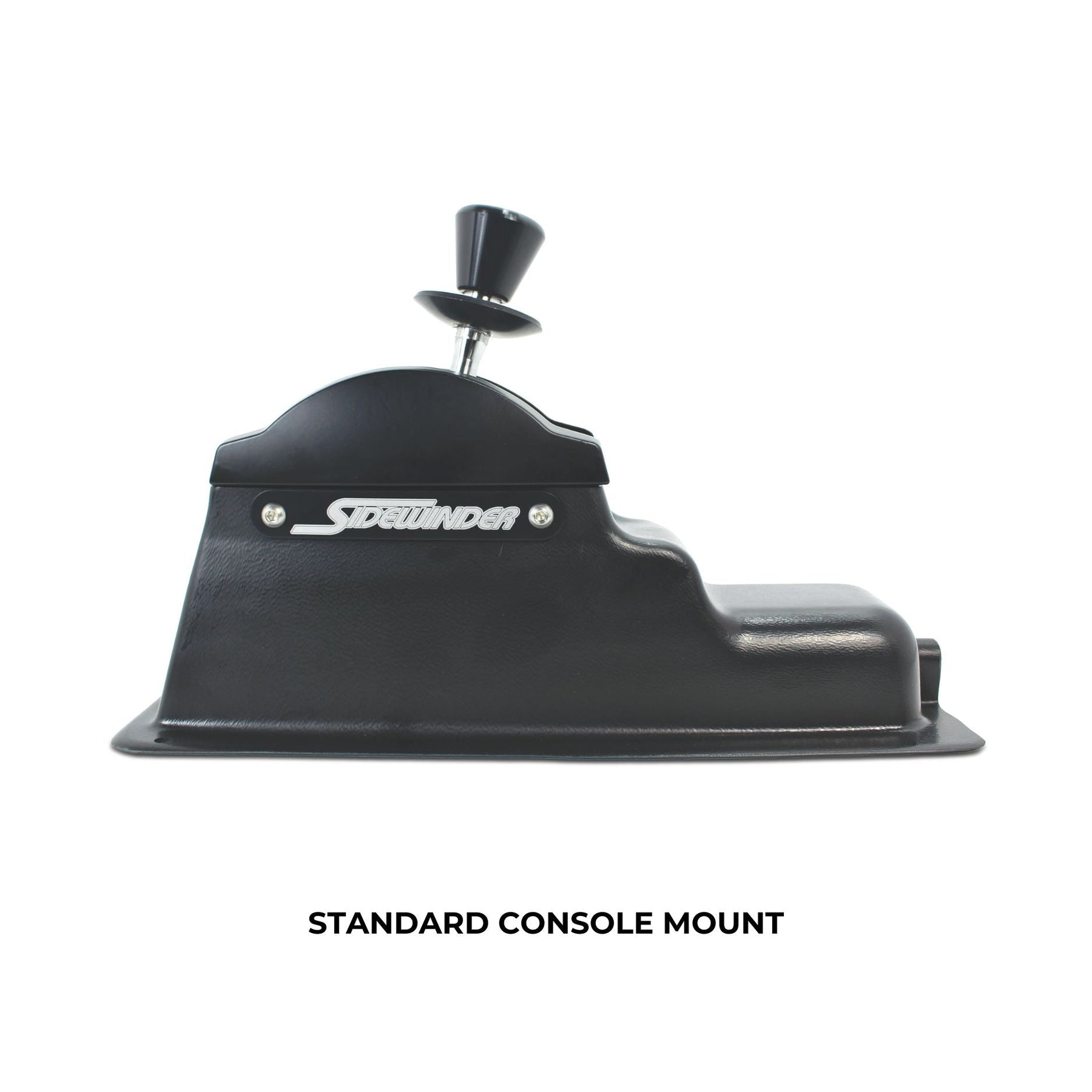

Winters Lockout Shifter with Standard console mount with &
Winters Lockout Shifter with universal side plate mount and Sidewinder logo on a white background

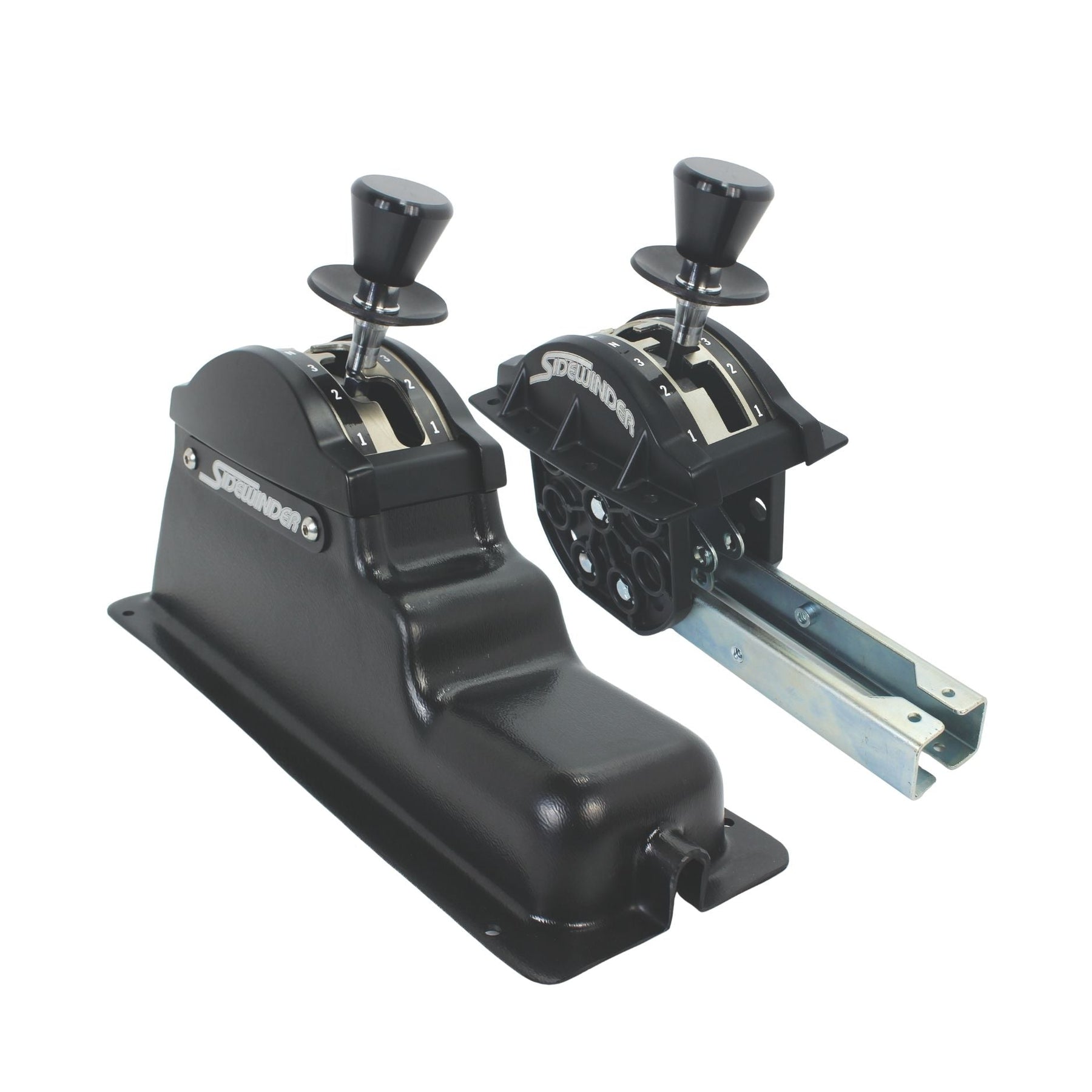

Winters Sidewinder Shifter for 700R4 & 4L60E - Lockout Shifter

177-1B

$309.24
/
Shipping calculated at checkout.

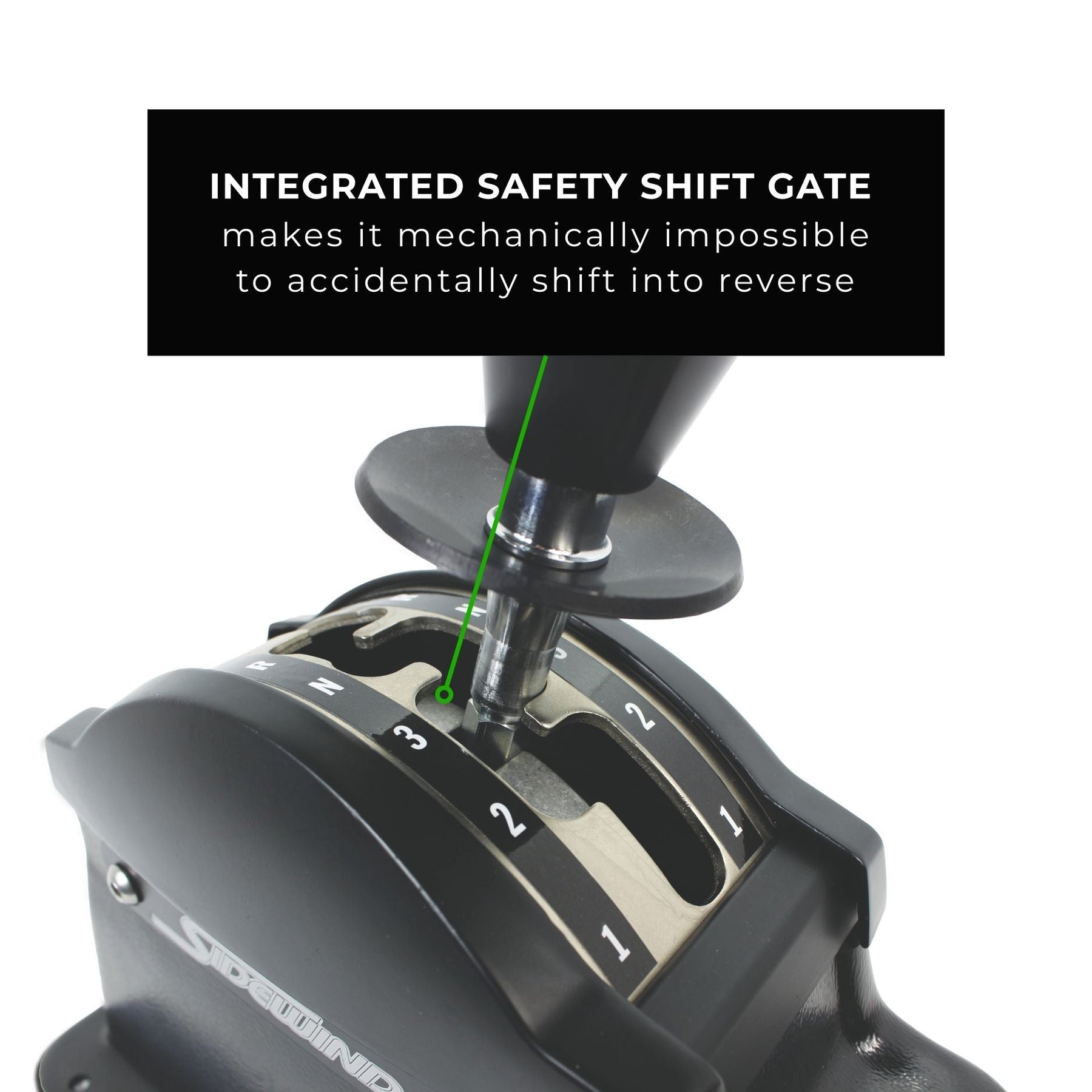

The Winters Sidewinder Lockout Shifter for 700R4 & 4L60E is designed for 700R4 and 4L60E automatic transmissions, this lockout configuration features a mechanical reverse lockout system that makes it physically impossible to accidentally shift into reverse from any forward gear.

The shifter comes fully assembled in a standard Winters plastic console and typically includes a 5-foot (3 travel) double-clip push-pull cable and mounting hardware. Shifters are also available without a cable if a custom length is required.

The lockout version includes a neutral safety switch, ensuring the vehicle can only be started when the shifter is in Park.

Meets the safety requirements of most major American racing sanctioning bodies, including:

  • National Hot Rod Association (NHRA)
  • International Hot Rod Association (IHRA)
  • SCORE International
  • Best in the Desert (BITD)
  • NASCAR (Dirt and Pavement Modifieds/Late Models)
  • Sprint Cars (305, 360, 410)
  • Drag Racing
  • ULTRA4 Racing

Note: We highly recommend reading your specific rule book; it is essential for safety and technical compliance.

Specifications
  • Transmission Compatibility: GM 700R4 / 4L60E

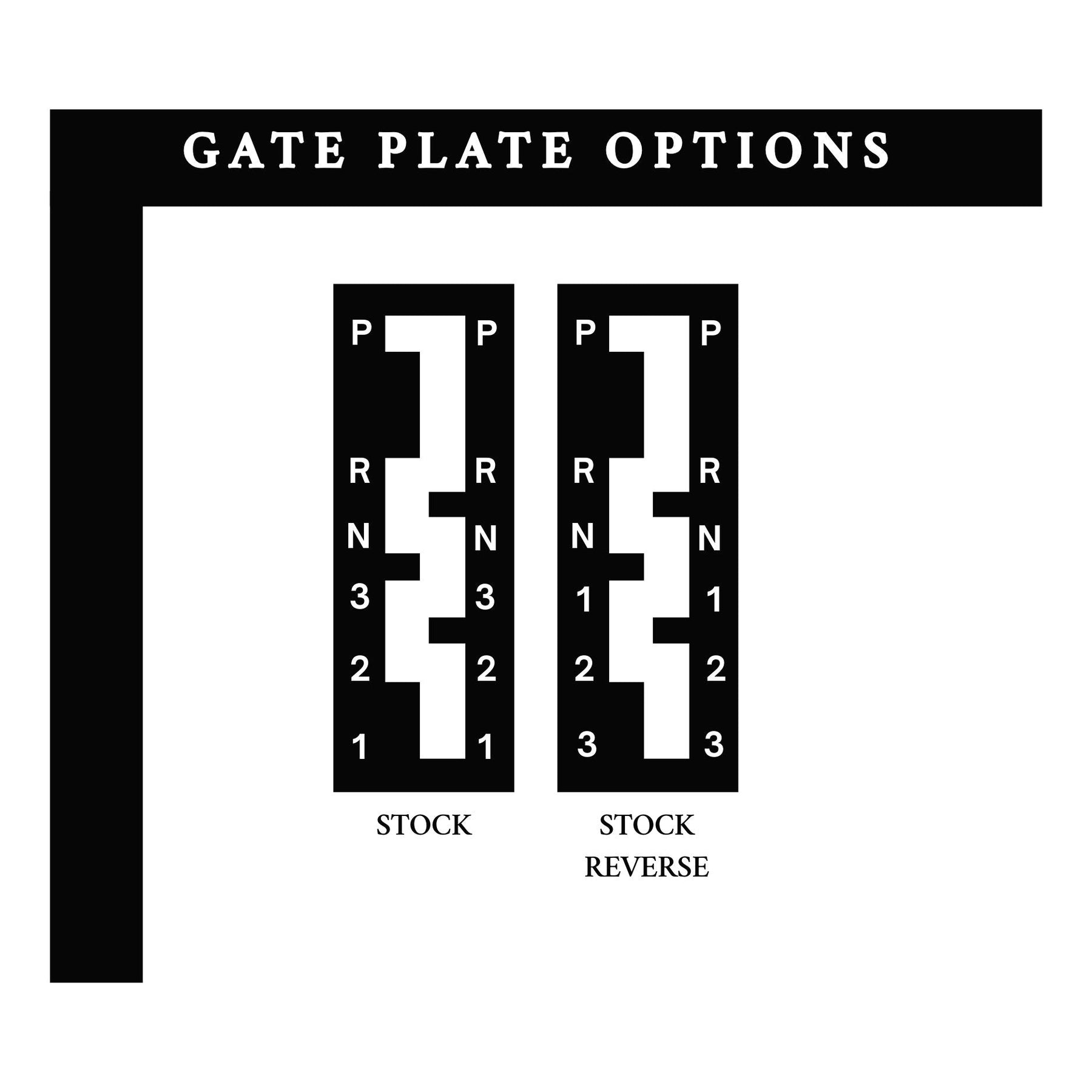

  • Shift Pattern: Standard or Reverse (specify configuration)
  • Lockout: Yes
  • Neutral Safety Switch: Yes
  • Cable: 5 ft, 3 travel (unless ordered without cable)

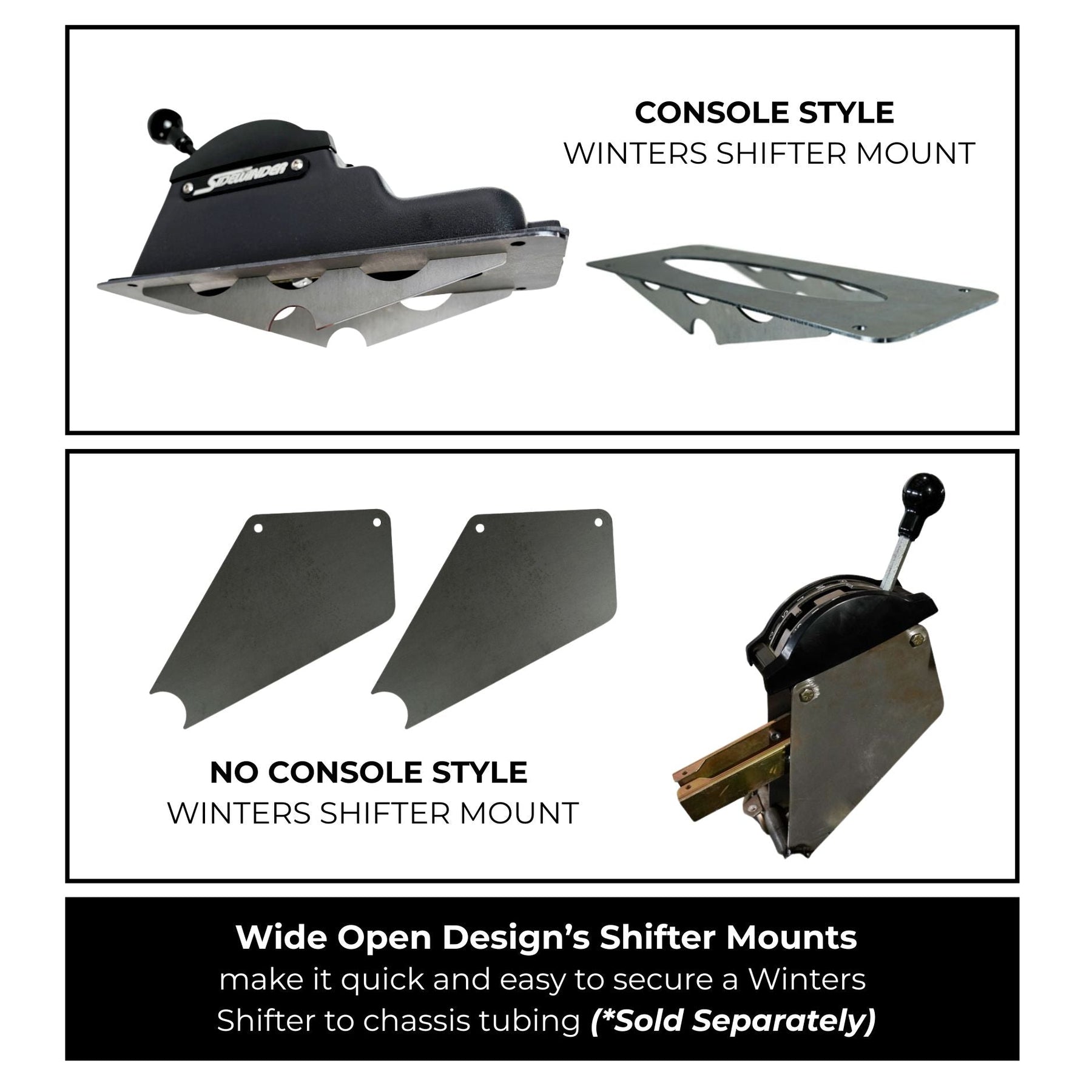

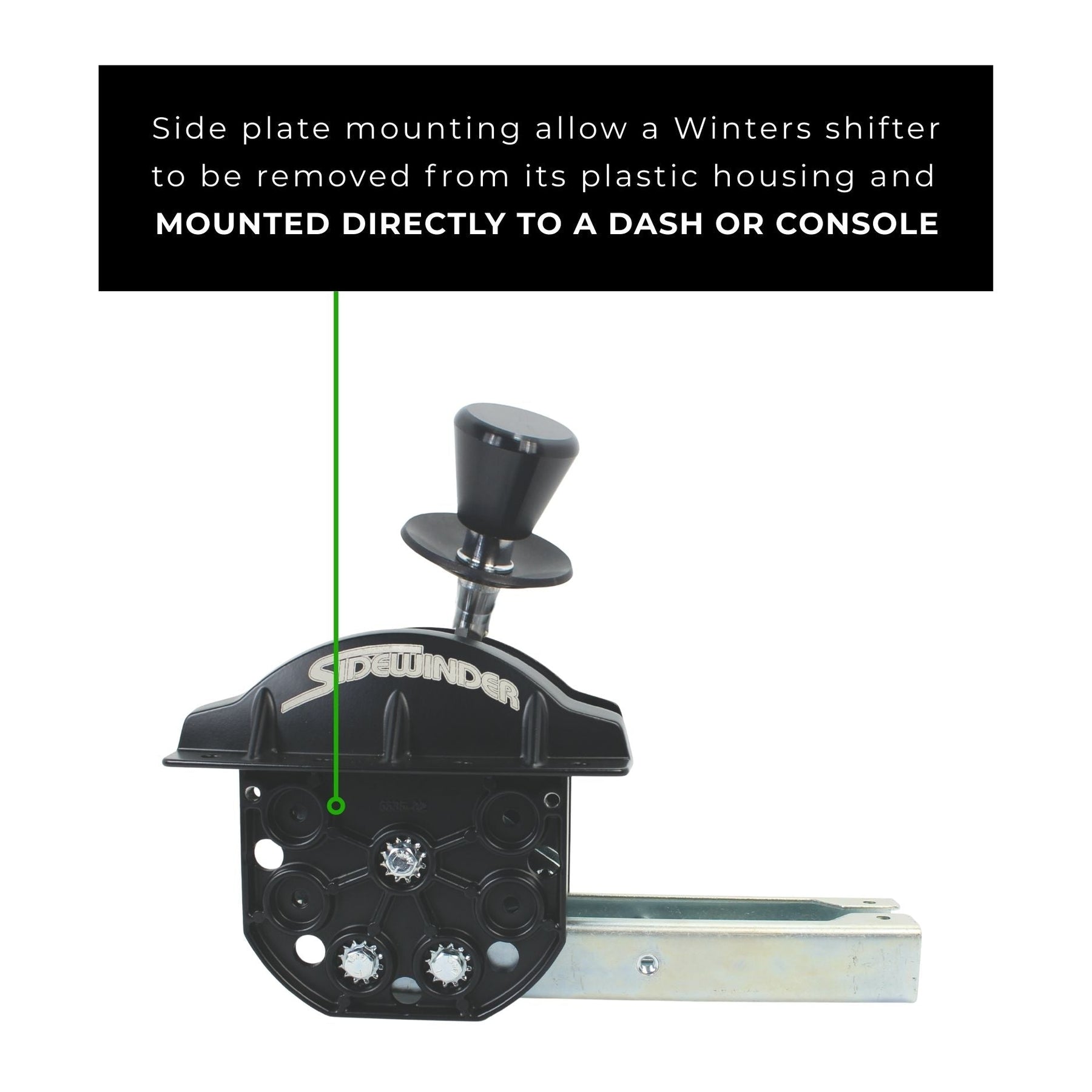

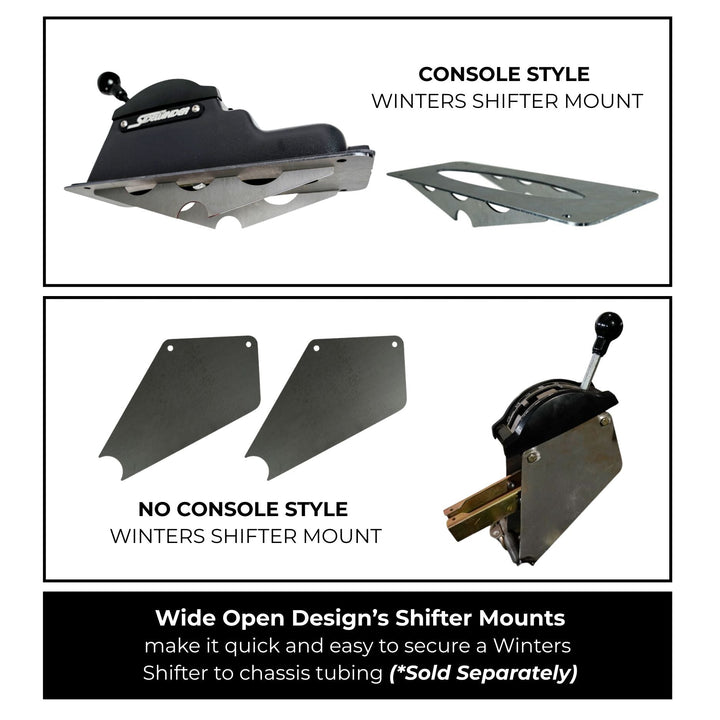

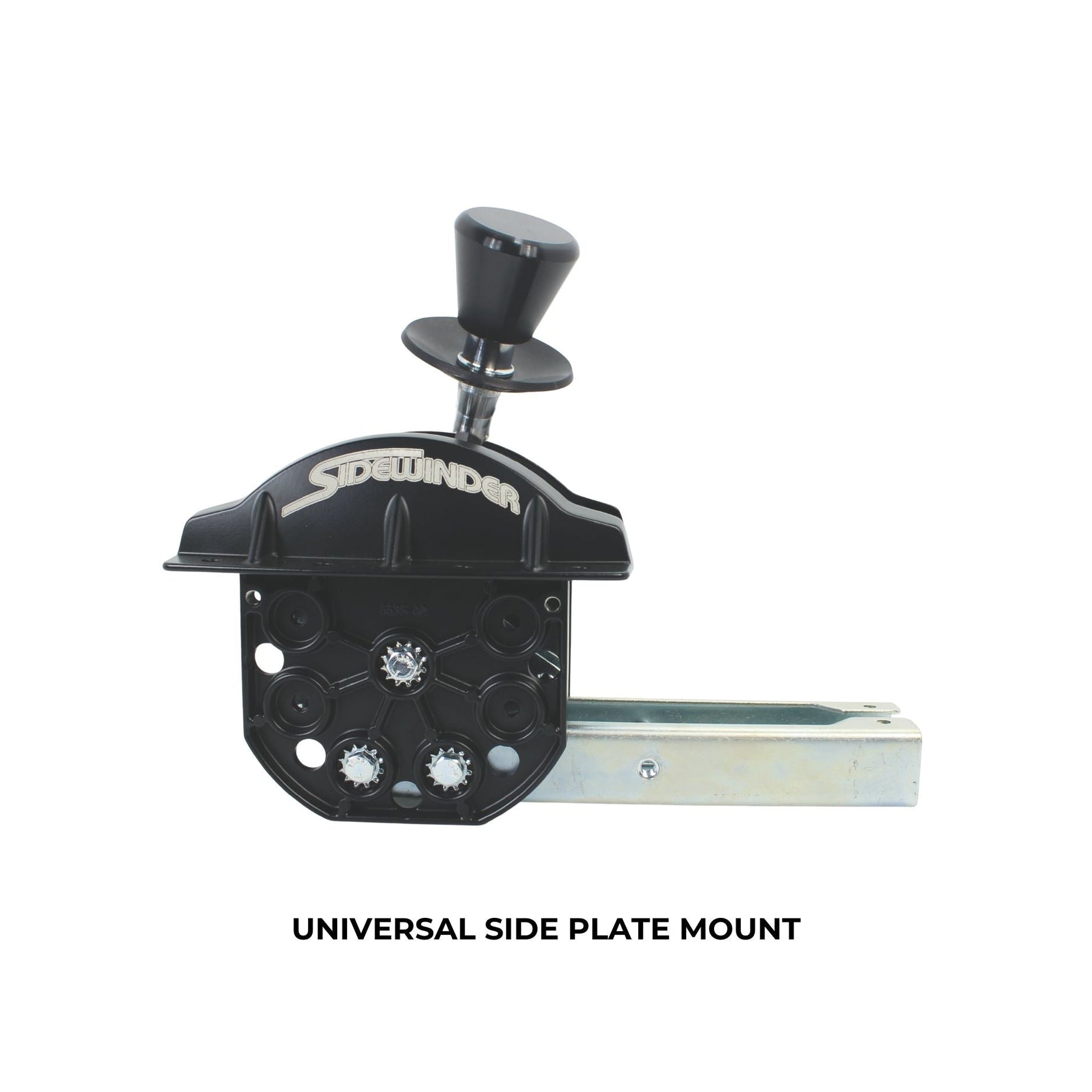

  • Mounting: Console or flat-mount capable
Fitment
  • GM 700R4 automatic transmissions
  • GM 4L60E automatic transmissions (requires correct linkage & controller for electronic units)
  • Requires correct linkage kit (Winters P/N 4095)
  • Ideal for street/strip, LS swaps, off-road rigs, and race builds
Tech Insight

The 700R4 and 4L60E overdrive transmissions are popular in LS swaps and performance street builds. Proper detent alignment is critical to ensure full overdrive engagement and prevent cable over-travel. The Winters Sidewinder lockout design provides precise manual control while eliminating the risk of accidental reverse engagement under load.
