Yukon Dana 60 35-Spline Locking Hubs
YHC70001
The Yukon Dana 60 35-Spline Locking Hubs – Hardcore Lockout Set is built for high-torque Dana 60 front axles used in rock crawlers, one-ton trucks, trail rigs, and heavy-duty off-road builds. Manufactured by Yukon Gear & Axle, these locking hubs feature all-steel construction with Chromoly internals for increased strength and are designed to resist disengagement under heavy drivetrain loads.
The low-profile bezel helps protect the hub from rocks and trail obstacles, while the 1/3-turn engagement provides quick switching between free and locked positions. These hubs default to the locked position and fit internal-style lockout and drive-flange Dana 60 hub designs.

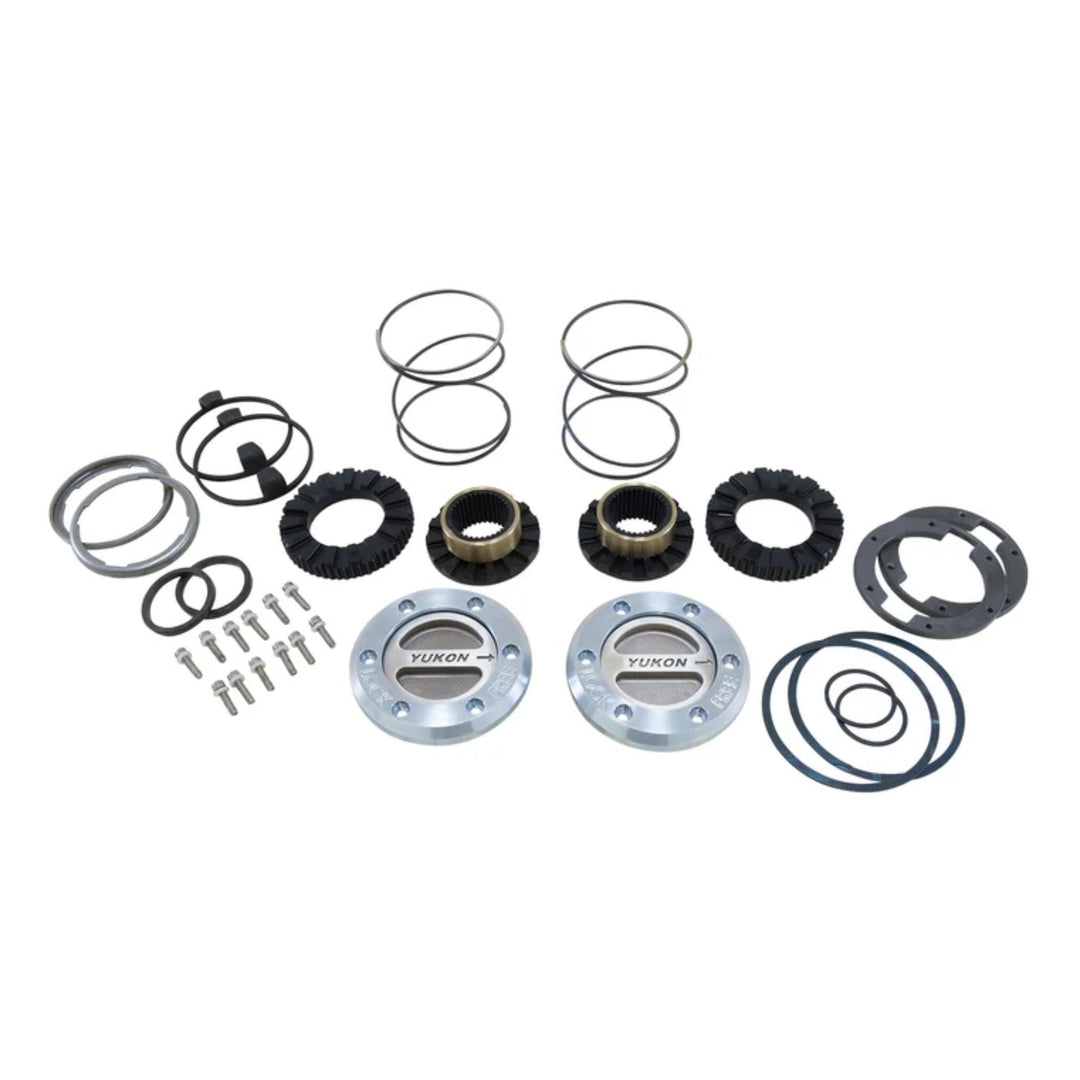

Includes
- (2) Yukon Hardcore Dana 60 Locking Hubs
- 35-Spline Engagement
- Locking Hub Installation Components
Sold as a Pair
Specifications
|
Specification |
Details |
|
Manufacturer |
Yukon Gear & Axle |
|
Part Number |
YHC70001 |
|
Product Type |
Manual Locking Hub Set |
|
Axle |
Dana 60 Front |
|
Spline Count |
35 |
|
Construction |
All Steel |
|
Internal Components |
Chromoly |
|
Engagement |
1/3 Turn |
|
Default Position |
Locked |
|
Bezel |
Low Profile |
|
Hub Style |
Internal Lockout / Flange Design |
|
Drive |
4WD |
|
Quantity |
Pair |
|
Stage-8 Lock Nut Compatible |
No |
Fitment
|
Year |
Make |
Model |
Drive |
Fitment Notes |
|
1979–1986 |
Chevrolet |
K30 |
4WD |
Dana 60 Front |
|
1987–1988 |
Chevrolet |
V30 |
4WD |
Dana 60 Front |
|
1979–1980 |
Dodge |
W200 |
4WD |
Dana 60 Front |
|
1981–1993 |
Dodge |
W250 |
4WD |
Dana 60 Front |
|
1979–1980 |
Dodge |
W300 |
4WD |
Dana 60 Front |
|
1981–1993 |
Dodge |
W350 |
4WD |
Dana 60 Front |
|
1978–1997 |
Ford |
F-250 |
4WD |
Dana 60 Front, Reverse Rotation |
|
1979–1997 |
Ford |
F-350 |
4WD |
Dana 60 Front, Reverse Rotation |
|
1979, 1981–1986 |
GMC |
K3500 |
4WD |
Dana 60 Front |
|
1980 |
GMC |
K3500 |
4WD |
Dana 60 Front |
|
1987 |
GMC |
V3500 |
4WD |
Dana 60 Front |
Fitment Notes
Designed for 35-spline Dana 60 front axles using internal-style locking hub or drive-flange designs.
These hubs will not fit external-style lockout or drive-flange hubs and are not compatible with Stage-8 lock nuts. Verify axle model, spline count, and hub design before ordering.
FAQ
1. What is the advantage of a 35-spline Dana 60 locking hub?
A 35-spline hub is designed for Dana 60 front axles using 35-spline outer axle shafts, providing a strong connection for high-torque off-road and heavy-duty drivetrain applications.
2. What does "defaults to locked" mean?
The Yukon Hardcore hub is designed so that under use it defaults toward the locked position rather than disengaging, helping maintain engagement under high drivetrain loads.
3. How do these Yukon locking hubs engage?
The hubs use a simple 1/3-turn engagement, allowing you to quickly switch between disengaged and locked positions.
4. Will these hubs fit every Dana 60 front axle?
No. They are designed for compatible Dana 60 front axles with 35-spline shafts and internal-style lockout or drive-flange hubs. They will not work with external-style hub designs.
5. Are these locking hubs good for rock crawling?
Yes. The all-steel construction, Chromoly internals, low-profile bezel, and 35-spline design make them well suited for rock crawlers, trail rigs, one-ton builds, and other high-load off-road
