Name: Yukon Ring & Pinion Gear Set – Dana 60, Std Rotation, 29-Spline
Brand: Yukon Gear & Axle
SKU: YUKYG D60-354
Price: 544.35 USD
Availability: InStock

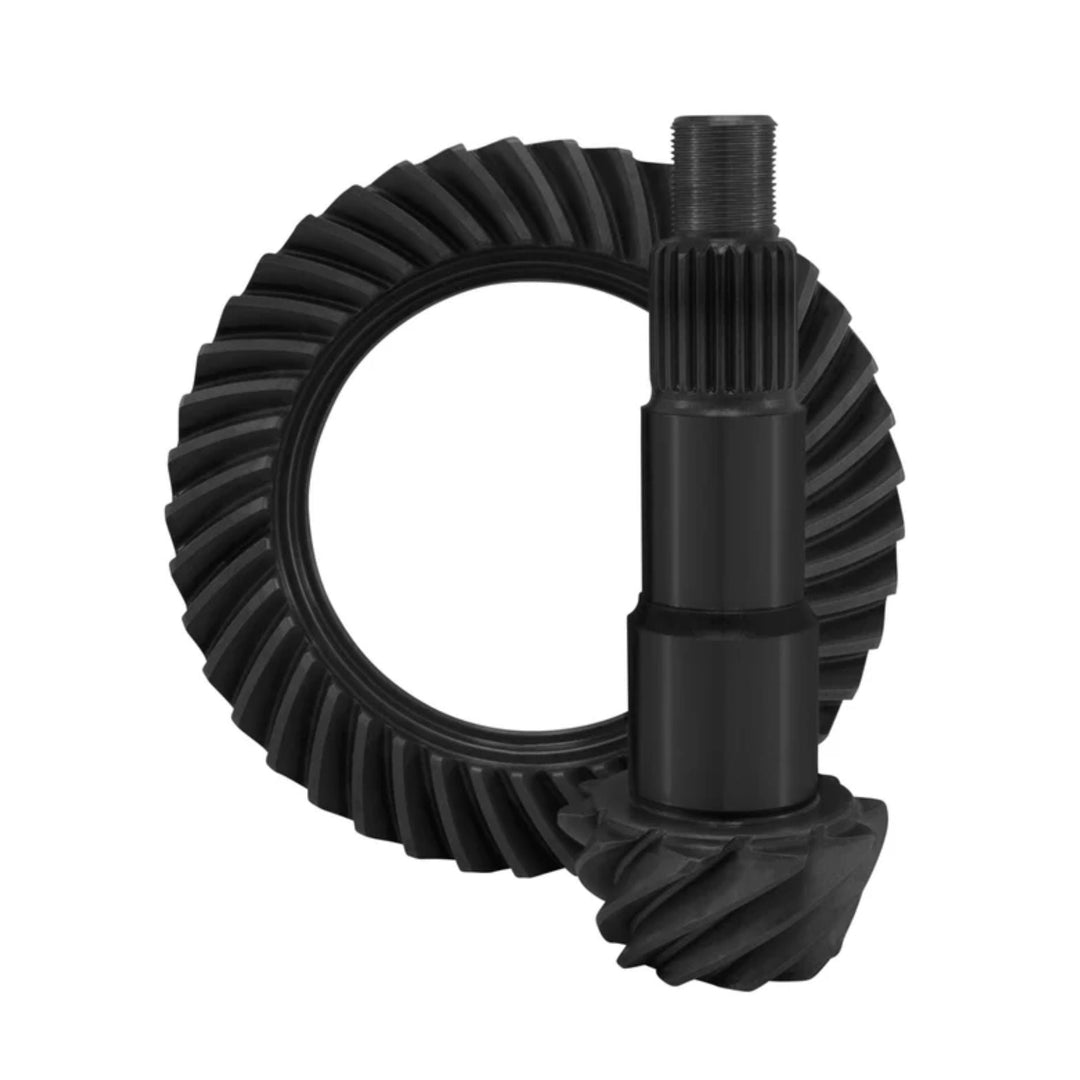

Yukon Ring & Pinion Gear Set for Dana 60 Standard Rotation and 5.13 Ratio on a white background

$544.35

Quantity

The Yukon Gear & Axle Ring & Pinion Set for standard rotation Dana Spicer 60 axles and is a top choice for aggressive off-road builds, rock crawlers, heavy tire combinations, and vehicles needing maximum torque multiplication. Re-gearing with a deeper ratio is one of the best ways to recover lost performance after larger tire upgrades and improve low-speed drivetrain control.

Includes:

Ring gear
Matching pinion gear
3.54, 4.11, 4.56, 5.13, or 5.38 Ratio

Sold as a matched gear set

Installation kit, bearings, shims, seals, and carrier components sold separately unless noted.

Brand: Yukon Gear & Axle
Product Type: Ring & pinion gear set
Application: Dana Spicer 60
Gear Ratio: 3.54, 4.11, 4.56, 5.13, or 5.38 Ratio
Rotation: Standard rotation
Ring Gear Diameter: 9.75"
Pinion Spline Count: 29-spline
Ring Gear Bolt Count: 12-bolts
Cover Bolt Count: 10-bolts
Quantity: Sold as a matched set

Fits standard rotation Dana Spicer 60 axle assemblies
Common in heavy-duty trucks, rock crawlers, trail rigs, and custom off-road builds
Suitable for front or rear Dana 60 applications depending on housing design and rotation requirements
Verify axle model, rotation type, spline count, and carrier compatibility before ordering.

Because deeper gears spin the engine faster at highway speed, ratio selection should consider tire size, transmission overdrive ratio, and intended vehicle use.

Proper setup requires accurate pinion depth, backlash, preload, and contact pattern adjustment to prevent noise and maximize gear life.
