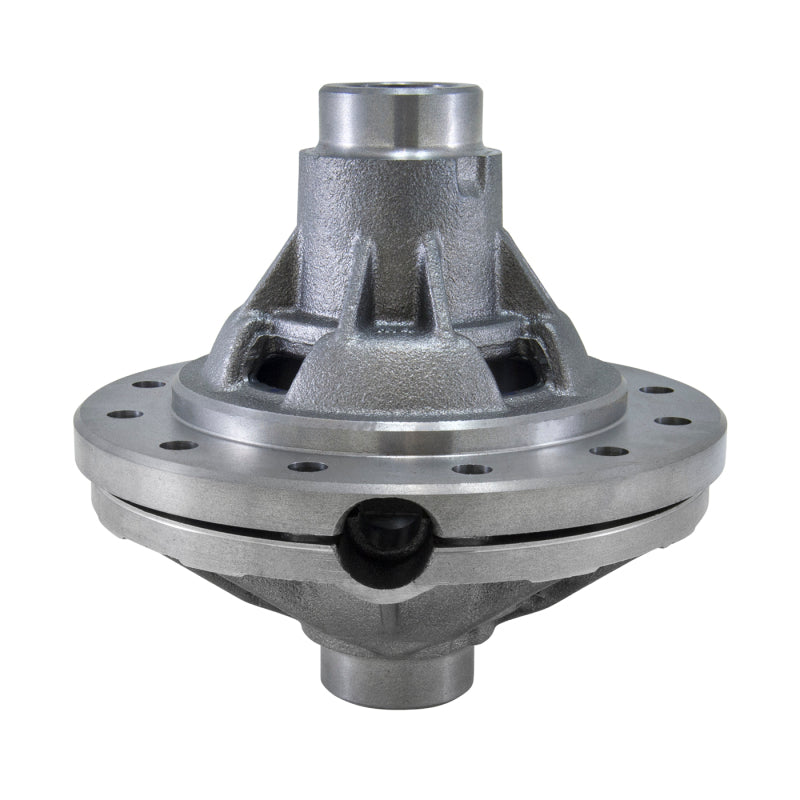

Yukon GM 14-Bolt 10.5" Standard Open Carrier Case - 4.10 & Down
YUKYC G6258336
The Yukon GM 14-Bolt 10.5" Open Carrier Case is a replacement differential carrier for GM 10.5" full-float 14-bolt axles using 4.10 and numerically lower gear ratios. It is a good option for rebuilding a worn or damaged factory open differential or assembling a custom 14-bolt axle around a standard open carrier configuration.
This carrier uses the 4.125" deck-height configuration required for compatible 4.10-and-down gear sets. The case is supplied bare without spider gears or internal differential components, allowing the builder to reuse or install the correct internal parts for the axle and gearing being used.
Includes:
- (1) Yukon GM 14-Bolt 10.5" Open Carrier Case
Important: This is a bare carrier case. Spider gears, side gears, cross shaft, bearings, and other internal differential components are not included.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Yukon Gear & Axle |
| Product Type | Open Differential Carrier Case |
| Axle Platform | GM 14-Bolt |
| Ring Gear Diameter | 10.5" |
| Axle Type | Full-Float |
| Differential Type | Open |
| Carrier Break | 4.10 & Numerically Lower |
| Deck Height | 4.125" |
| Carrier Case | Bare |
| Spider Gears Included | No |
| Internal Differential Gears Included | No |
| Primary Application | GM 10.5" 14-Bolt Differential Rebuilds |
Fitment
Designed For:
- GM 10.5" 14-Bolt full-float axle applications
- Open differential configurations
- 4.10 and numerically lower gear ratios
- 4.125" deck-height carrier applications
- Stock-style rebuilds
- Custom 14-bolt axle assemblies
Fitment Notes:
- Designed for GM 10.5" 14-bolt full-float differentials.
- Uses the 4.10-and-down carrier break.
- Verify carrier break before selecting a ring and pinion.
- Thick gear sets may allow numerically higher ratios to be used with a compatible 4.10-and-down carrier.
- This carrier is supplied bare and does not include spider gears, side gears, or other internal differential components.
- Vehicle year and model alone do not guarantee fitment; verify the actual axle before ordering.
- Professional differential setup is recommended during carrier installation.
FAQ
What does 4.10 and down mean on a GM 14-bolt carrier?
It refers to the carrier break. This case is designed for gear sets that use the 4.10-and-down carrier position, including compatible 4.10 and numerically lower ratios.
Can I use deeper gears with this carrier?
Yes, in some cases. Thick ring gears are designed to move the ring gear into the correct position so certain numerically higher ratios can be used with a compatible 4.10-and-down carrier. The gear set and carrier must still be matched correctly.
Does this carrier include spider gears?
No. This is a bare carrier case only. Spider gears, side gears, cross shaft, bearings, and other internal components are not included.
Why does carrier break matter?
The carrier break determines the position of the ring gear relative to the pinion. Using the wrong carrier or gear thickness can prevent the ring and pinion from being set to the correct backlash and contact pattern.
Will this fit every GM 14-bolt axle?
No. This carrier is for compatible GM 10.5" full-float 14-bolt differentials using the 4.10-and-down carrier configuration. Verify the axle, carrier break, and gear set before ordering.
