3-4-13881-1

$134.27
/
Shipping calculated at checkout.

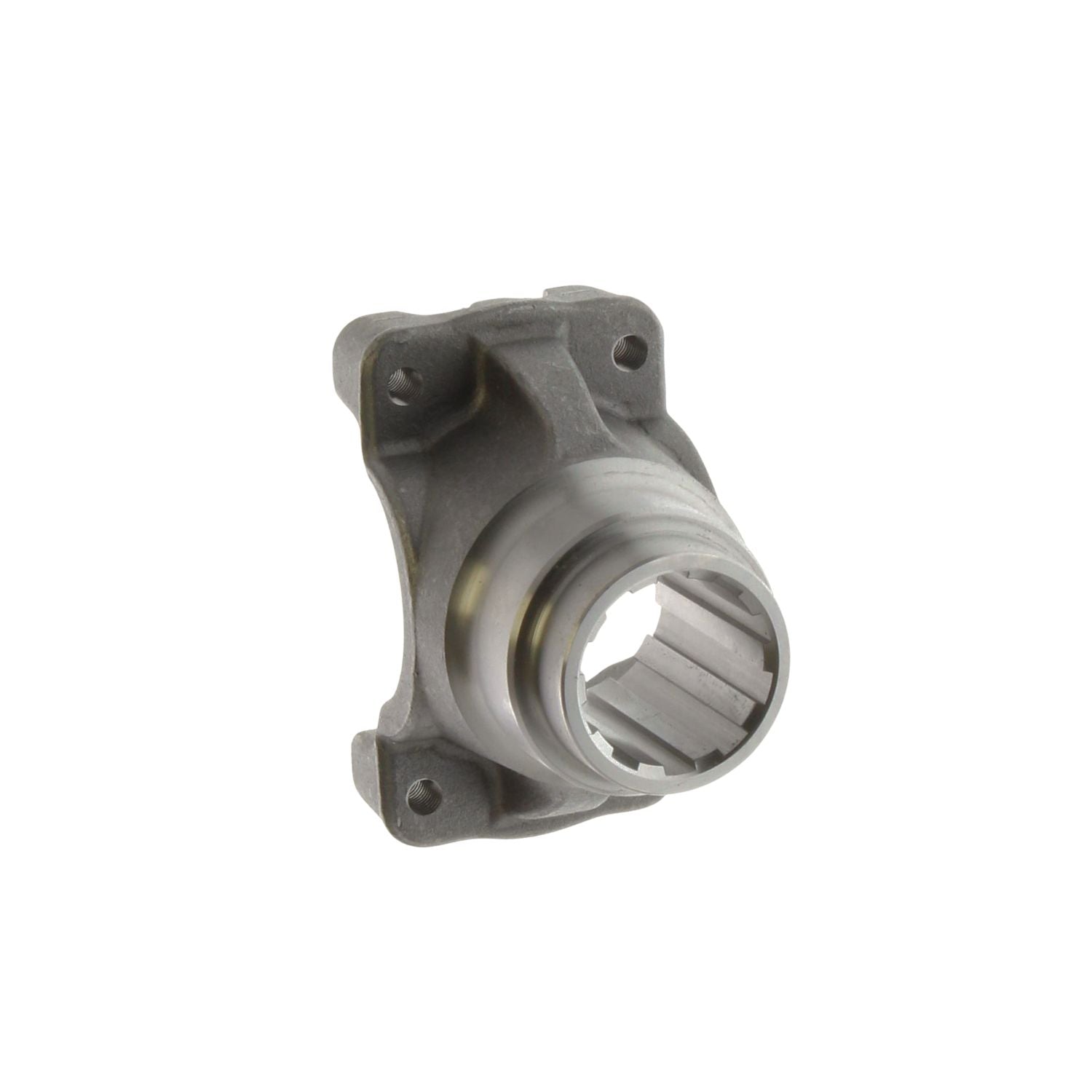

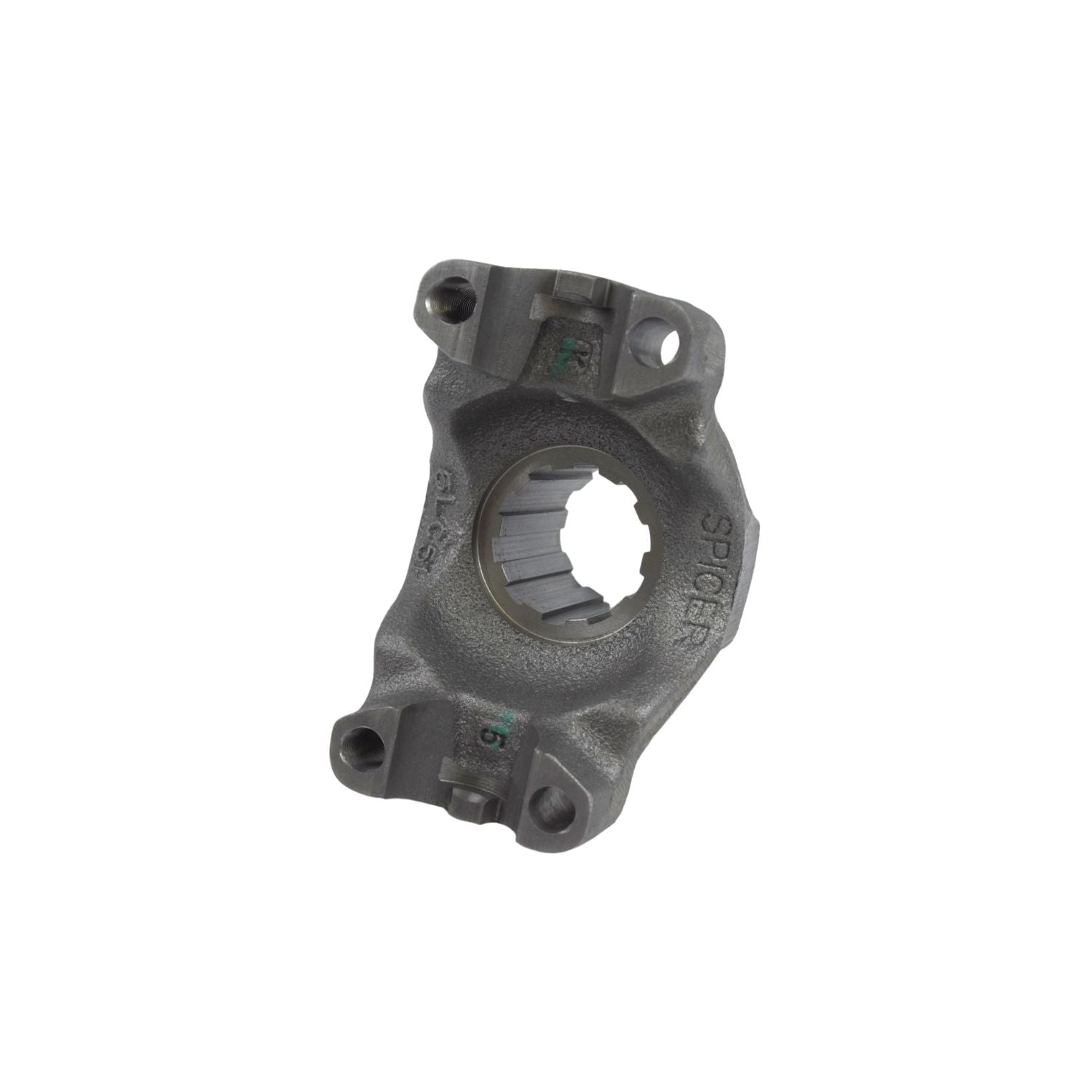

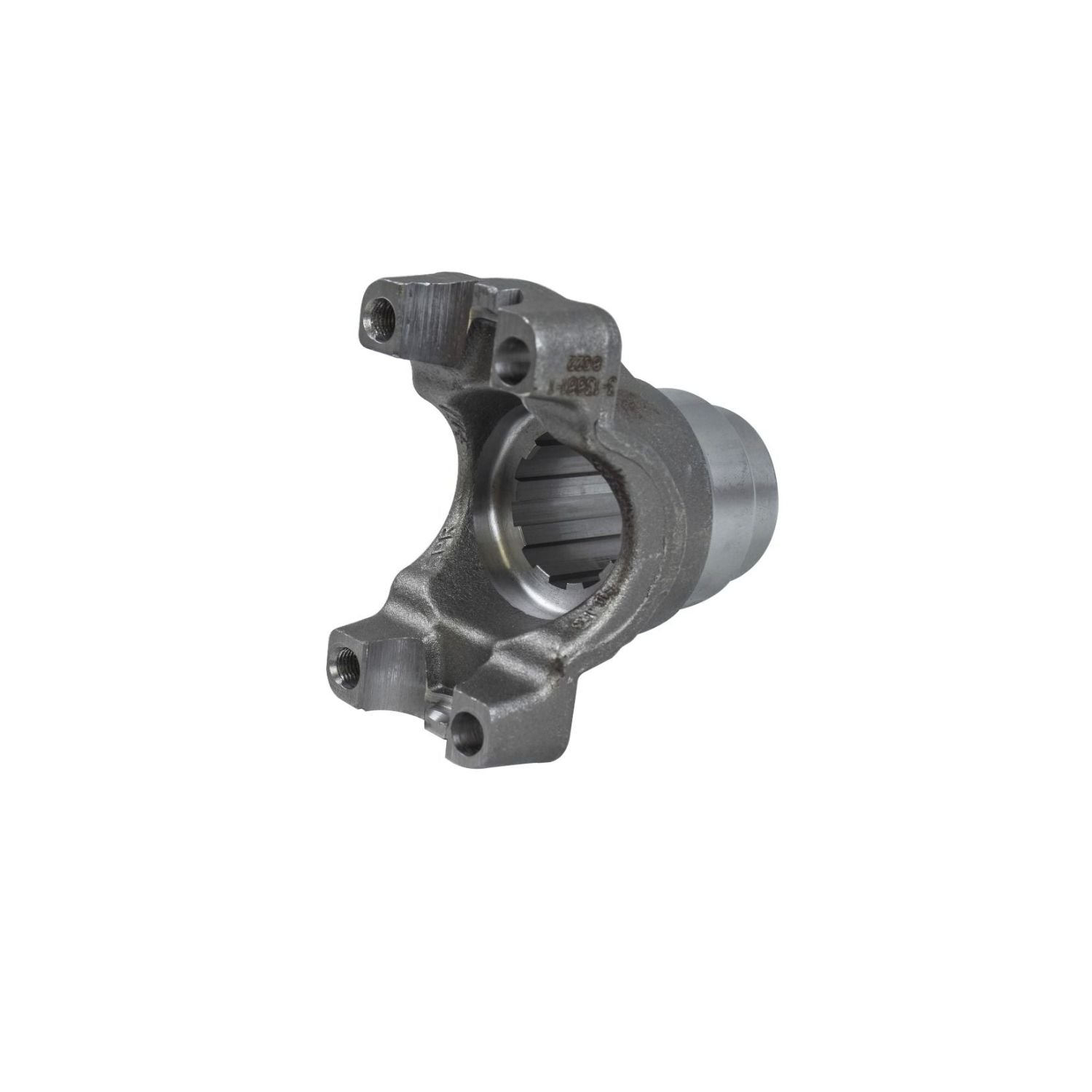

The Dana Spicer 1350 Yoke (1.5" x 10 spline) is a critical driveline component for serious off-road builds. This yoke is one of the three options designed to work with the WOD Single Ended Carrier Bearing (also available in 1410 and 1480). These are the same yokes we run on every build that leaves our shop, chosen for strength, reliability, and long-term durability under extreme articulation.

Off-road vehicles see far more suspension travel and axle movement than street vehicles. A properly matched yoke is essential for handling those stresses while keeping the driveline smooth and dependable.

Included Items:

  • 1 × Spicer 1350 Yoke – 1.5" x 10 spline, U-bolt style

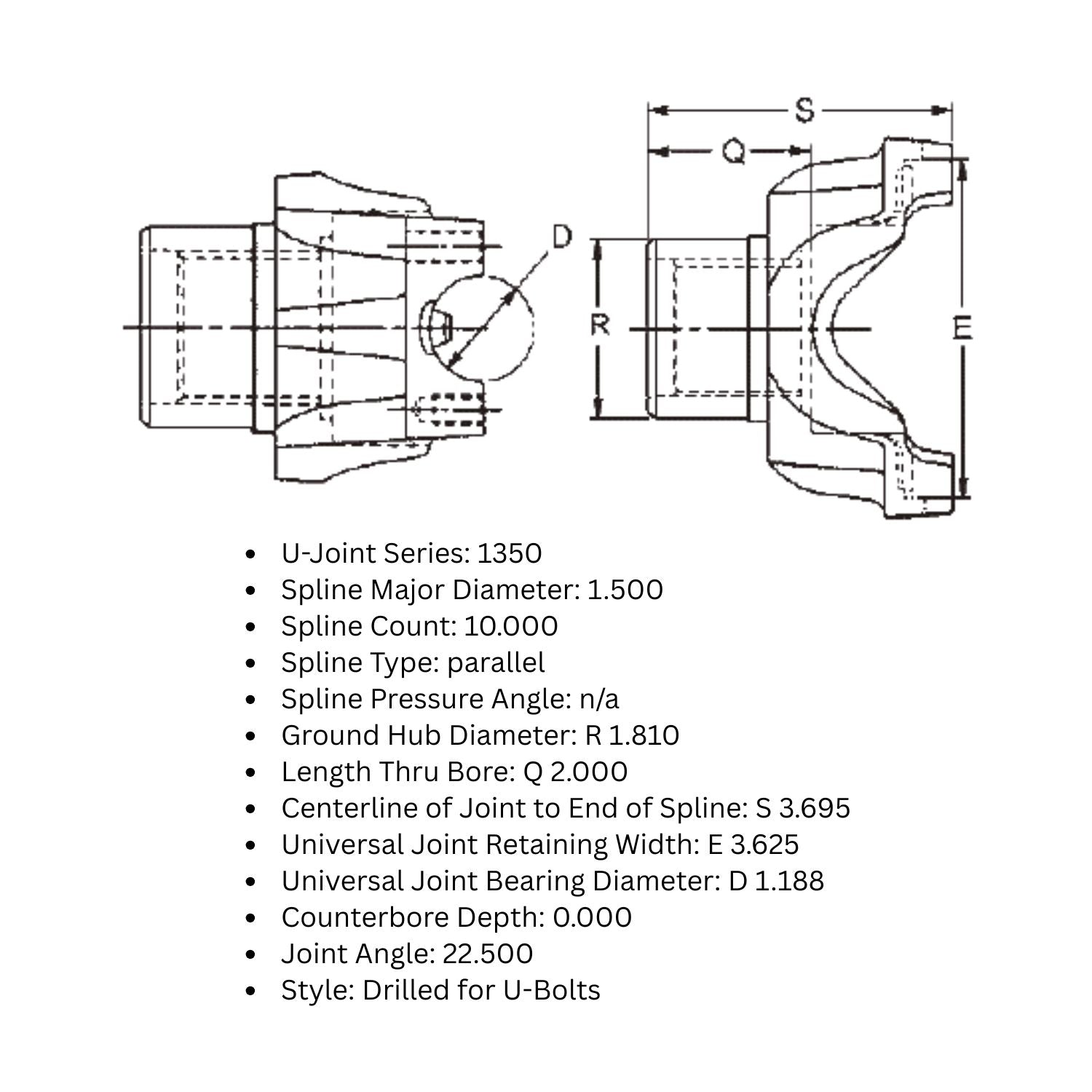

Specifications
  • U-Joint Series: 1350
  • Spline Major Diameter: 1.500
  • Spline Count: 10
  • Spline Type: Parallel
  • Ground Hub Diameter (R): 1.810"
  • Length Thru Bore (Q): 2.000"
  • Centerline of Joint to End of Spline (S): 3.695"
  • Universal Joint Retaining Width (E): 3.625"
  • Universal Joint Bearing Diameter (D): 1.188"
  • Max Joint Angle: 22.5°
  • Style: Drilled for U-Bolts
Fitment
  • Wide Open Design Single Ended Carrier Bearing
  • Off-road buggies
  • Rock crawlers
  • Custom multi-piece driveshaft systems
  • Front or intermediate shaft applications
Tech Insight

Designed to pair perfectly with the WOD Single Ended Carrier Bearing, making it easy to mix and match 1350, 1410, or 1480 setups based on your torque and packaging needs. We don’t sell parts we wouldn’t run ourselves—this yoke is used on every applicable WOD in-house build and holds up exceptionally well in real-world abuse.

Complete Kits Available

We also offer complete solutions using this yoke:

1350 Carrier Bearing Shaft Builder Kit

1350 Driveshaft Builder Kit

Hybrid and heavy-duty driveshaft configurations
