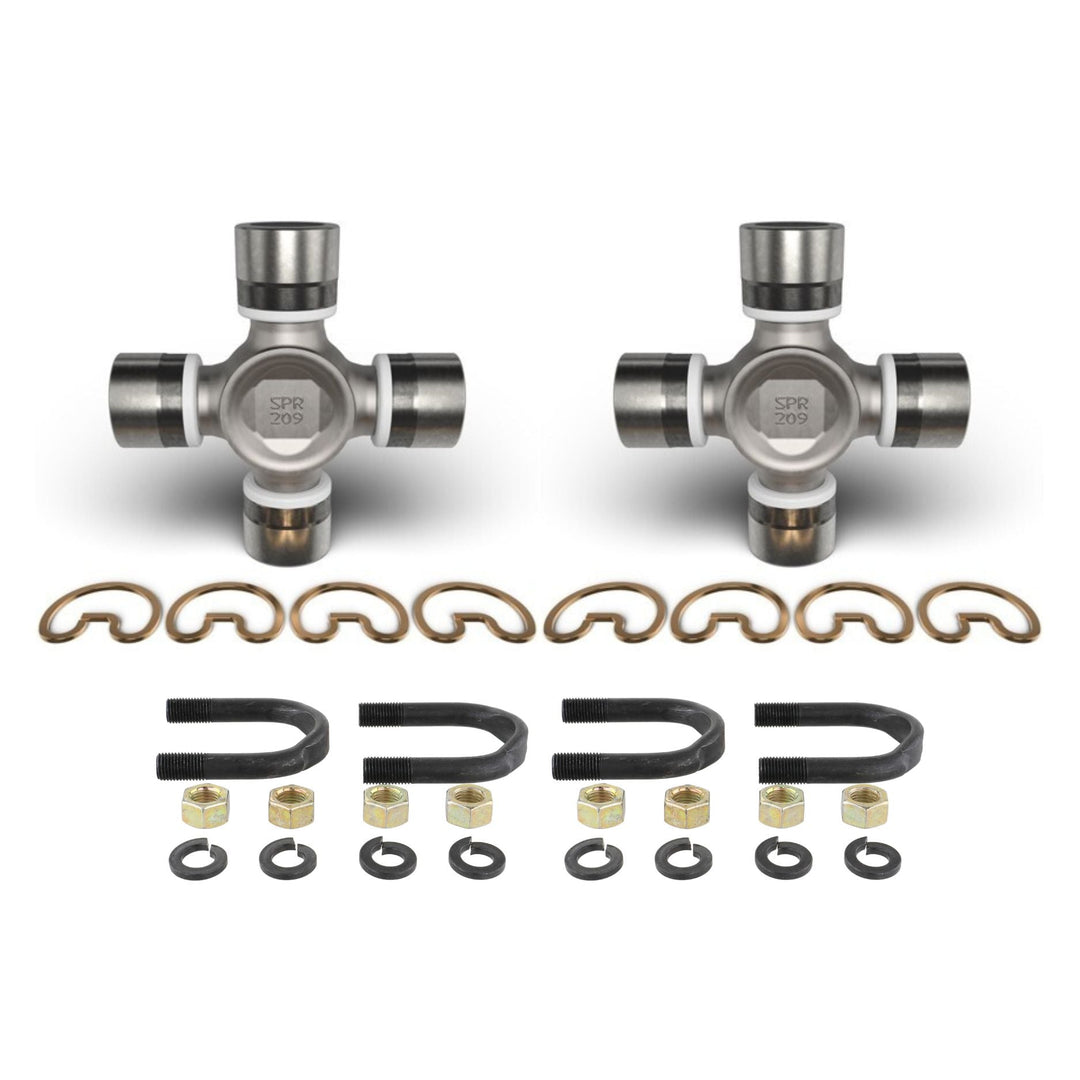

Spicer 1410 Universal Joint & U-Bolt Kit
WF03005
The Spicer 1410 Universal Joint & U-Bolt Kit is a heavy-duty driveline solution designed for high-torque off-road, towing, and performance applications. Built by Spicer, this kit pairs a 1410-series non-greaseable (solid cross) U-joint with a correctly matched U-bolt retention kit to ensure secure bearing cap clamping under extreme loads.
The non-greaseable design maximizes cross strength by eliminating grease passages—ideal for competition and harsh-use environments where durability is the priority. Precision-machined round bearing caps with outside snap ring (OSR) retention provide consistent fitment and long service life.

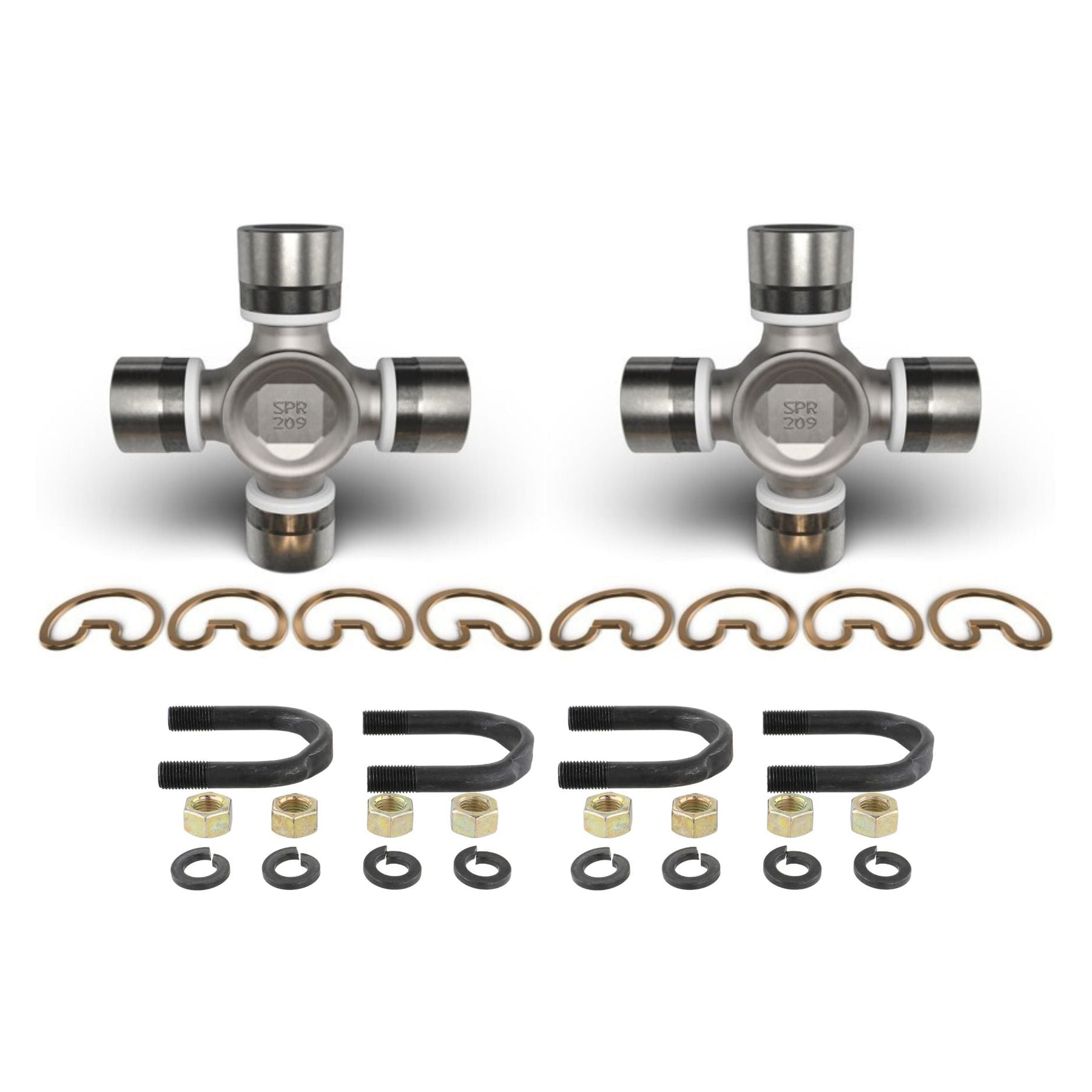

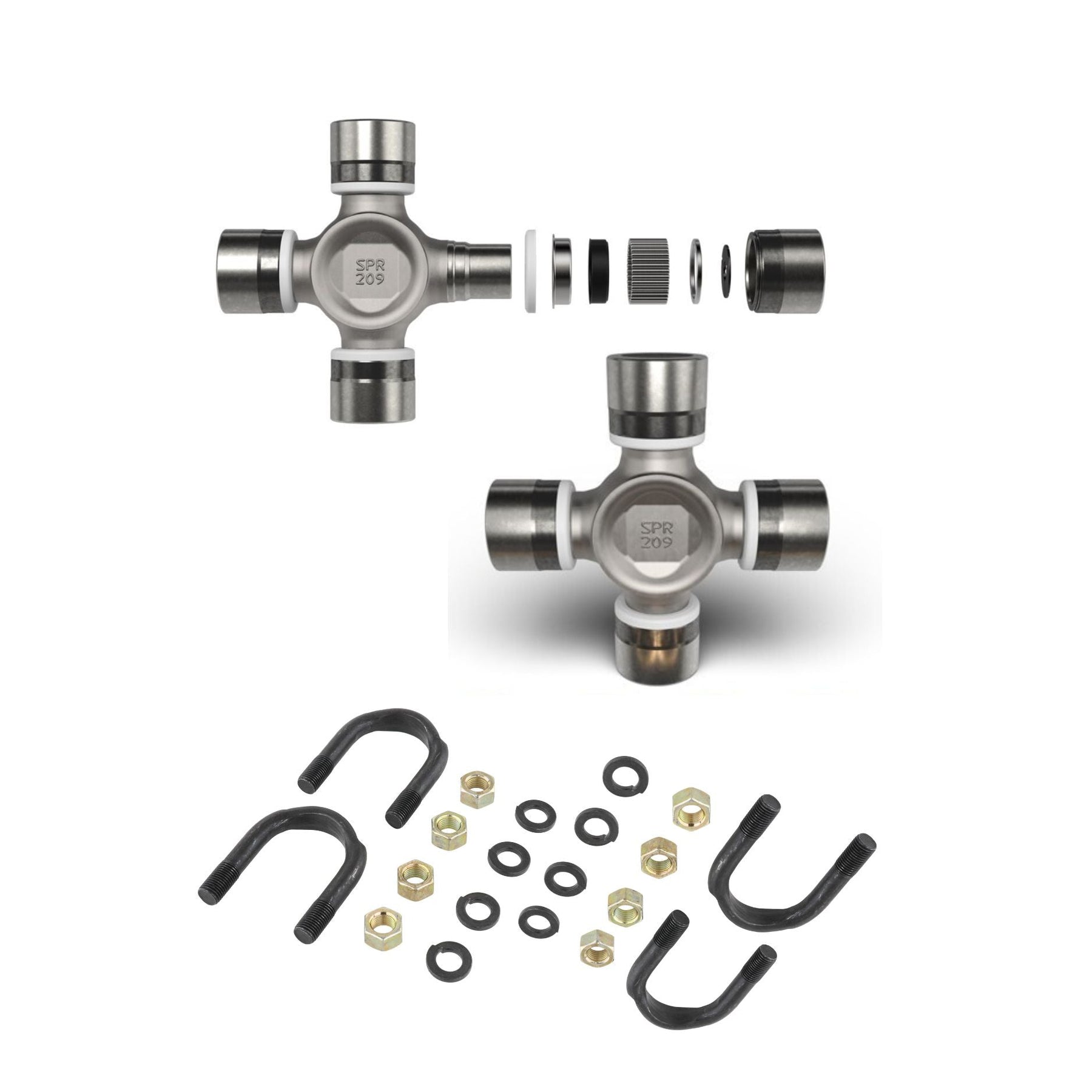

Includes:
- (2) Spicer 1410 Series Universal Joint (non-greaseable)
- (2) Spicer U-Bolt Kit sized for 1410 bearing caps
Specifications
Universal Joint
- Series: 1410
- Greasable: No (non-greaseable / solid cross)
- Bearing Cap Type: Round
- Bearing Cap Diameter:
- 1.188 in. (Cap A & B)
- 30.175 mm (Cap A & B)
- Retention: OSR (Outside Snap Ring) – both sides
U-Bolt Kit
- Fits Bearing Cap Diameter: 1.188 in.
- C/L to C/L: 1.666 in.
Fitment
- Designed for 1410-series driveline components
- Common applications:
- Driveshafts
- Axle yokes
- Transfer case outputs
- Universal fit where 1410 round-cap U-joints with OSR retention are required
Tech Insight
The 1410 series offers a strength increase over 1350 joints while maintaining broad compatibility. Choosing a non-greaseable joint provides maximum cross strength for shock loads common in off-road and racing use. Proper retention hardware matters—using the matched U-bolt kit helps prevent cap walk and extends joint life under sustained torque.
