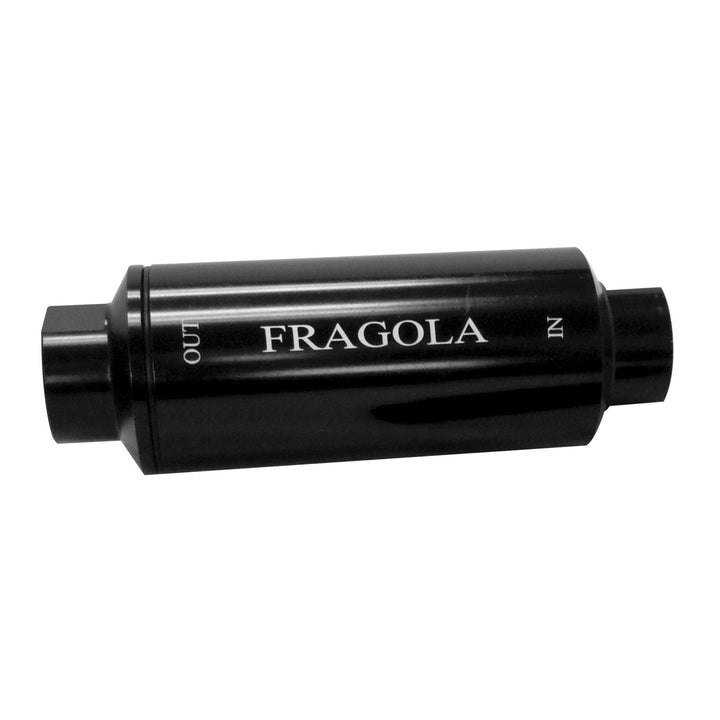

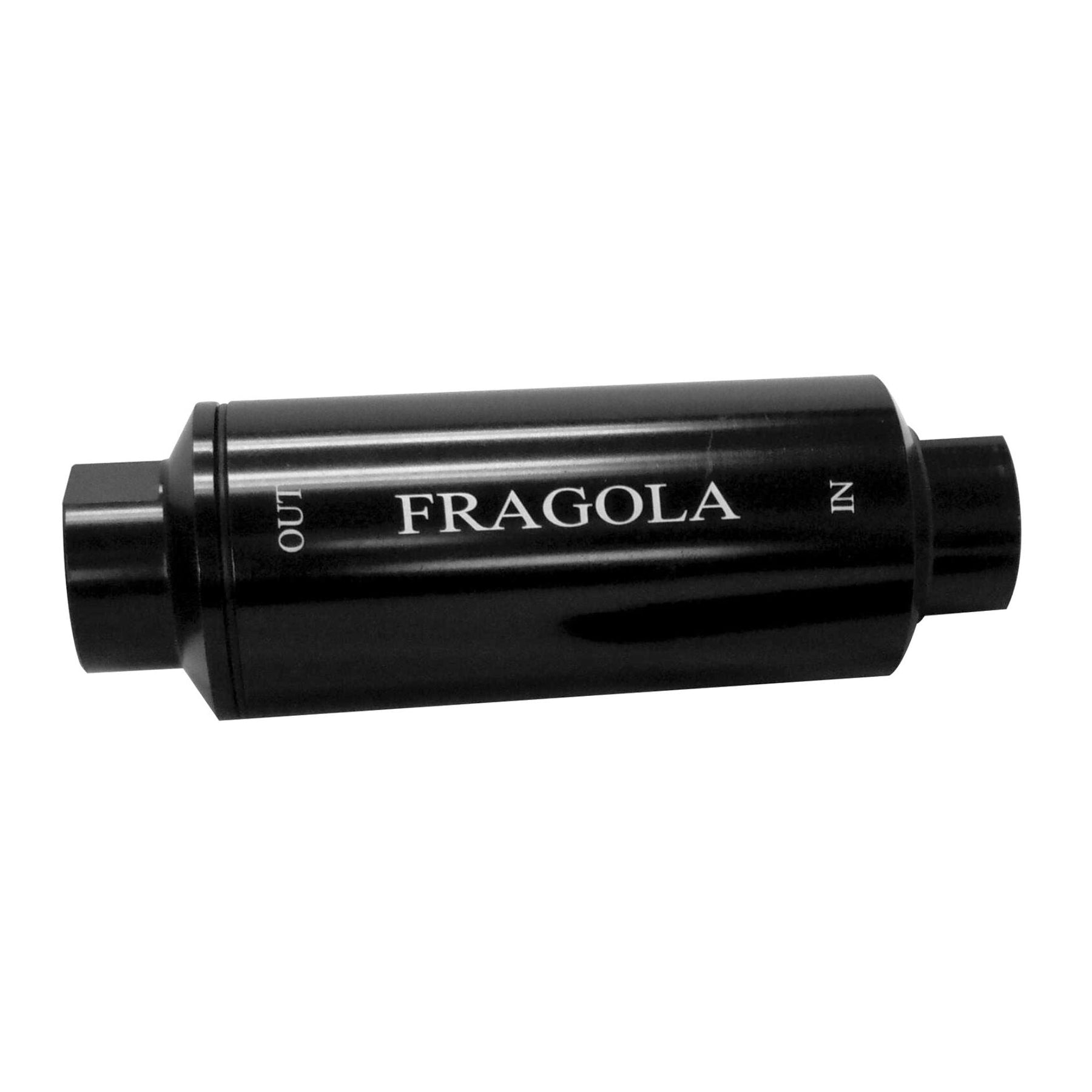

Fragola Inline Fuel Filter -10 Inlet/Outlet
SKU: FRA960002-BL
The Fragola Inline Fuel Filter with -10 AN O-ring (ORB) inlet and outlet is a high flow, billet aluminum fuel filter designed to protect your injectors and fuel system components in high performance and off-road applications.
Machined from 6061-T6 billet aluminum and finished in a durable black anodized coating, this filter is built for strength, corrosion resistance, and long term reliability. It provides excellent filtration while maintaining strong fuel flow, making it ideal as a post-pump filter in EFI systems.
Features:
- High flow inline fuel filter design

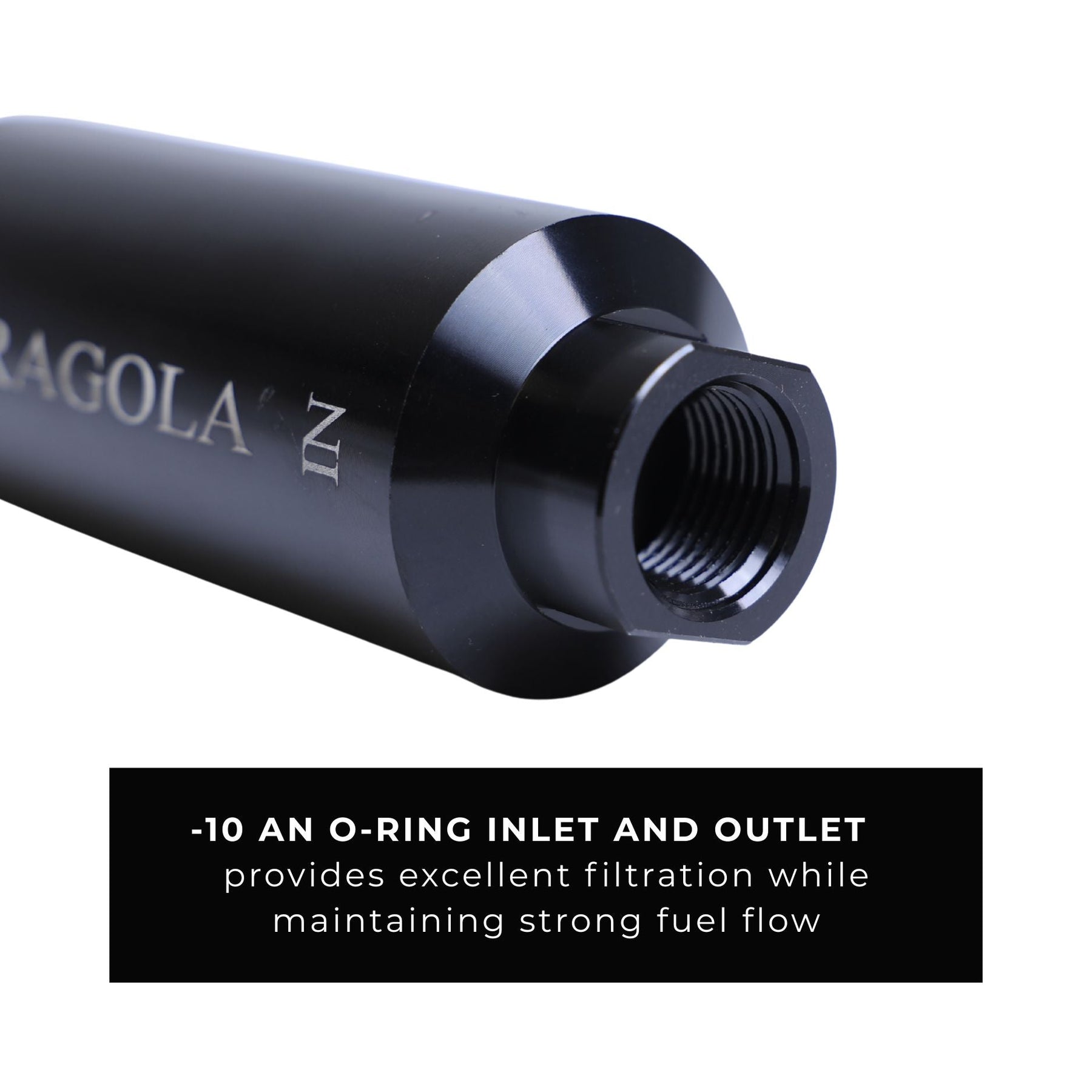

- -10 AN O-ring (ORB) female inlet and outlet ports

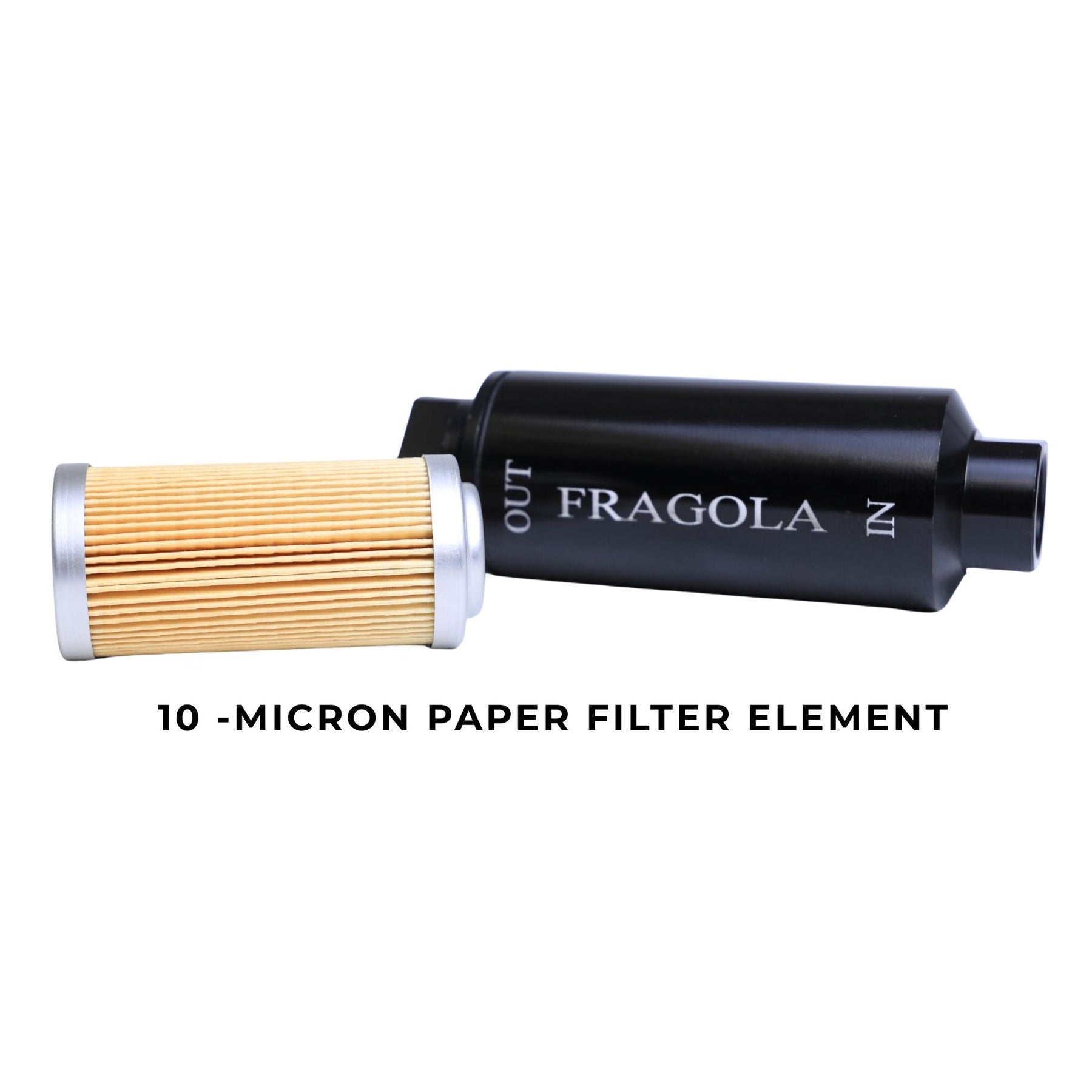

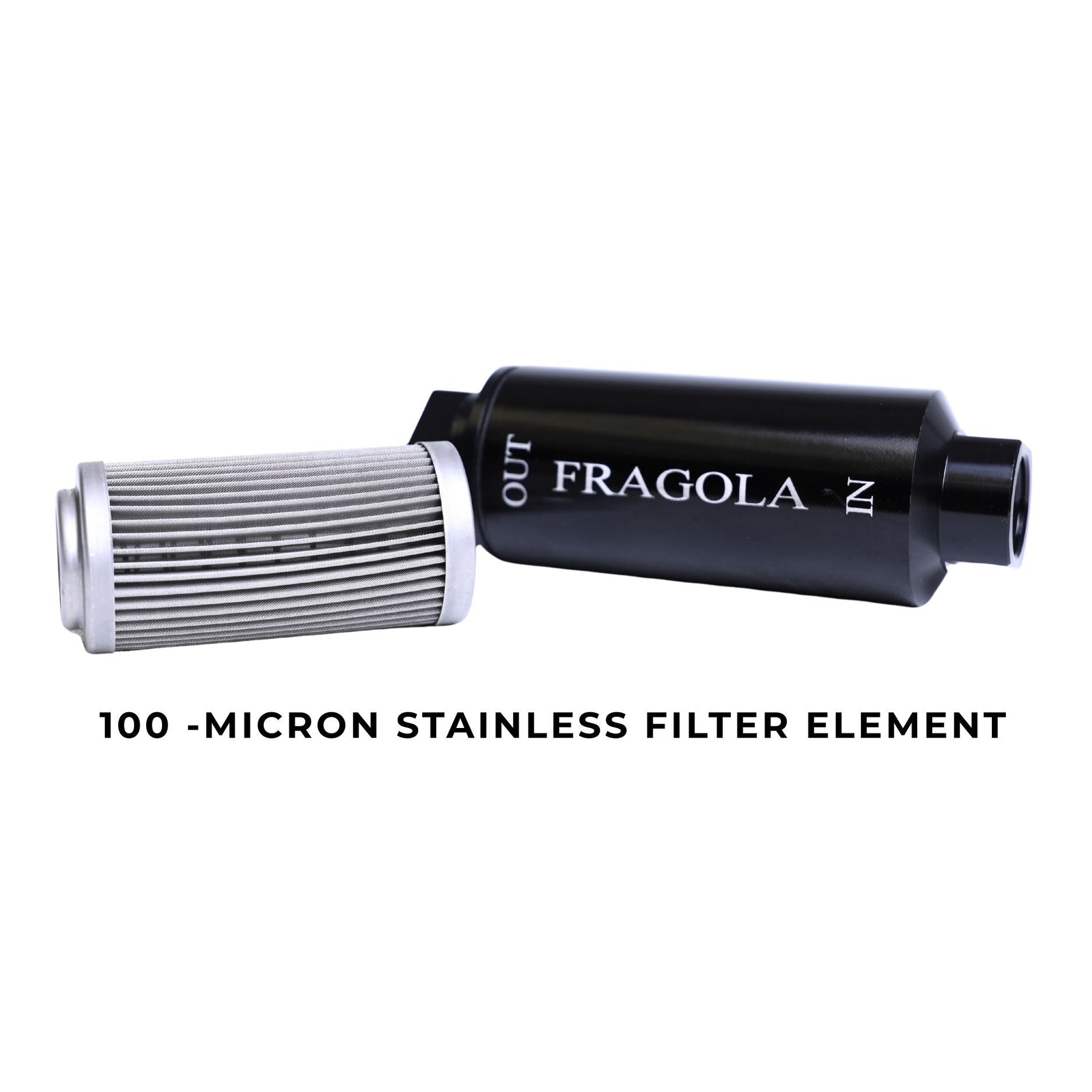

- 10 or 100 -micron filter element
- Machined 6061-T6 billet aluminum housing
- Bright dip black anodized finish
- Serviceable and element replaceable
- Fragola Performance Systems branding
Filter element included.
Specifications
- Brand: Fragola Performance Systems
- Installation kit sold separately
- Fuel Filter Style: Inline
- Inlet Quantity: 1
- Inlet Size: -10 AN O-ring (ORB)
- Inlet Attachment: Female threads
- Outlet Quantity: 1
- Outlet Size: -10 AN O-ring (ORB)
- Outlet Attachment: Female threads
- Filtration Rating: 10 or 100 Microns
- Housing Material: 6061-T6 Billet Aluminum
- Finish: Black Anodized
- Overall Length: 5.75 inches
- Outside Diameter: 2.00 inches
- Replacement Filters: 10 or 100 Microns
Fitment
- Designed for EFI fuel systems
- Ideal for -10 AN fuel plumbing setups
- Commonly used in:
- LS swaps
- High horsepower EFI builds
- Rock crawlers & Ultra4 cars
- Custom off-road fuel systems
Note: Typically installed as a post-filter after the fuel pump to protect injectors.
Tech Insight
This filter is commonly used as a post-pump filter in electronic fuel injection systems. It provides sufficient protection for injectors while minimizing restriction in high-flow applications.
Running -10 AN ORB ports makes this filter ideal for larger fuel systems where volume and flow stability matter, especially boosted LS builds or race applications.
The billet aluminum housing not only improves durability but also dissipates heat better than plastic-bodied filters, making it a dependable choice in harsh off-road environments.
