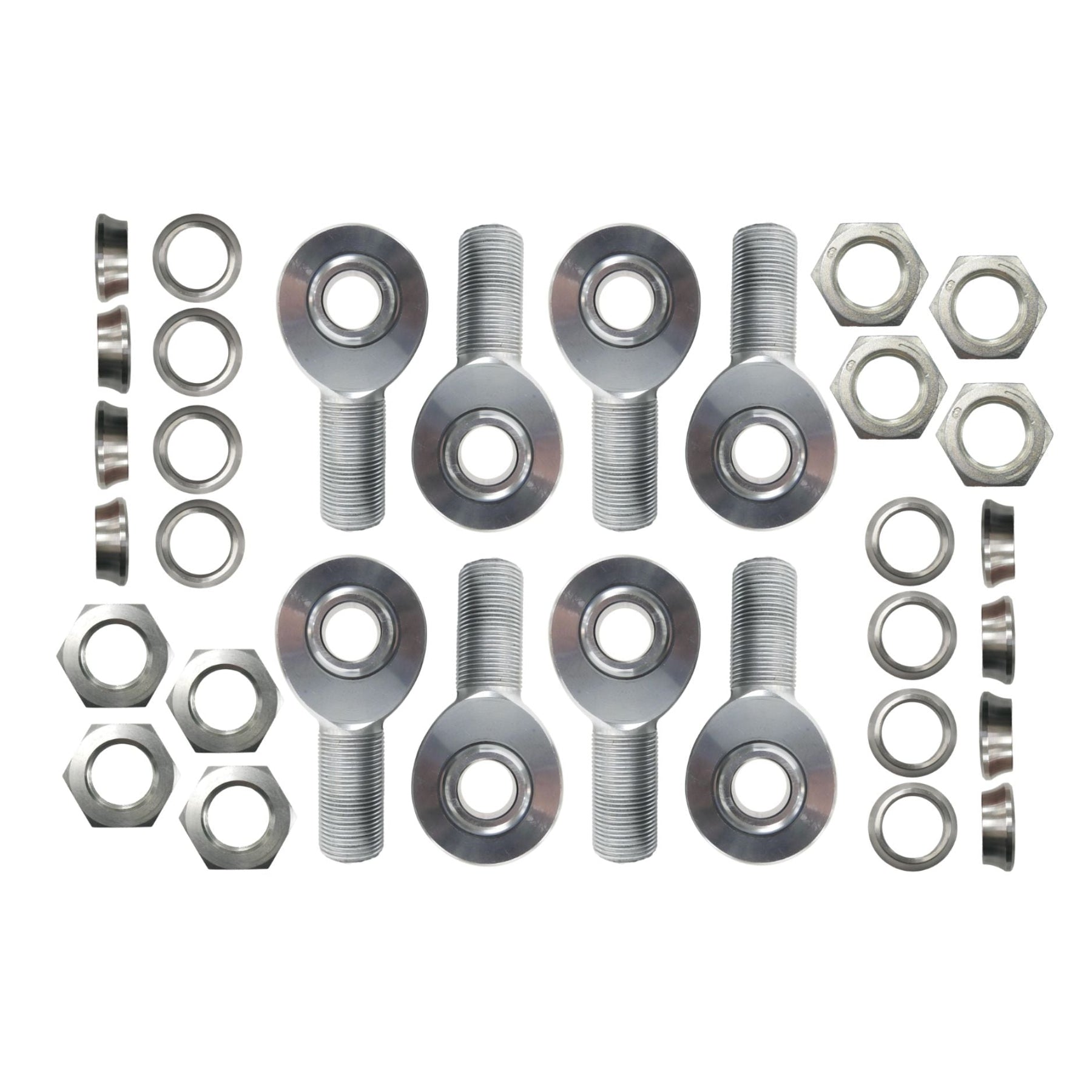

1-1/4 chromoly four link rod end kit parts on a white background
Chromoly Four Link Rod End Kit - 1-1/4" -12 Shank - 1" High Angle Heim Joint Spacer

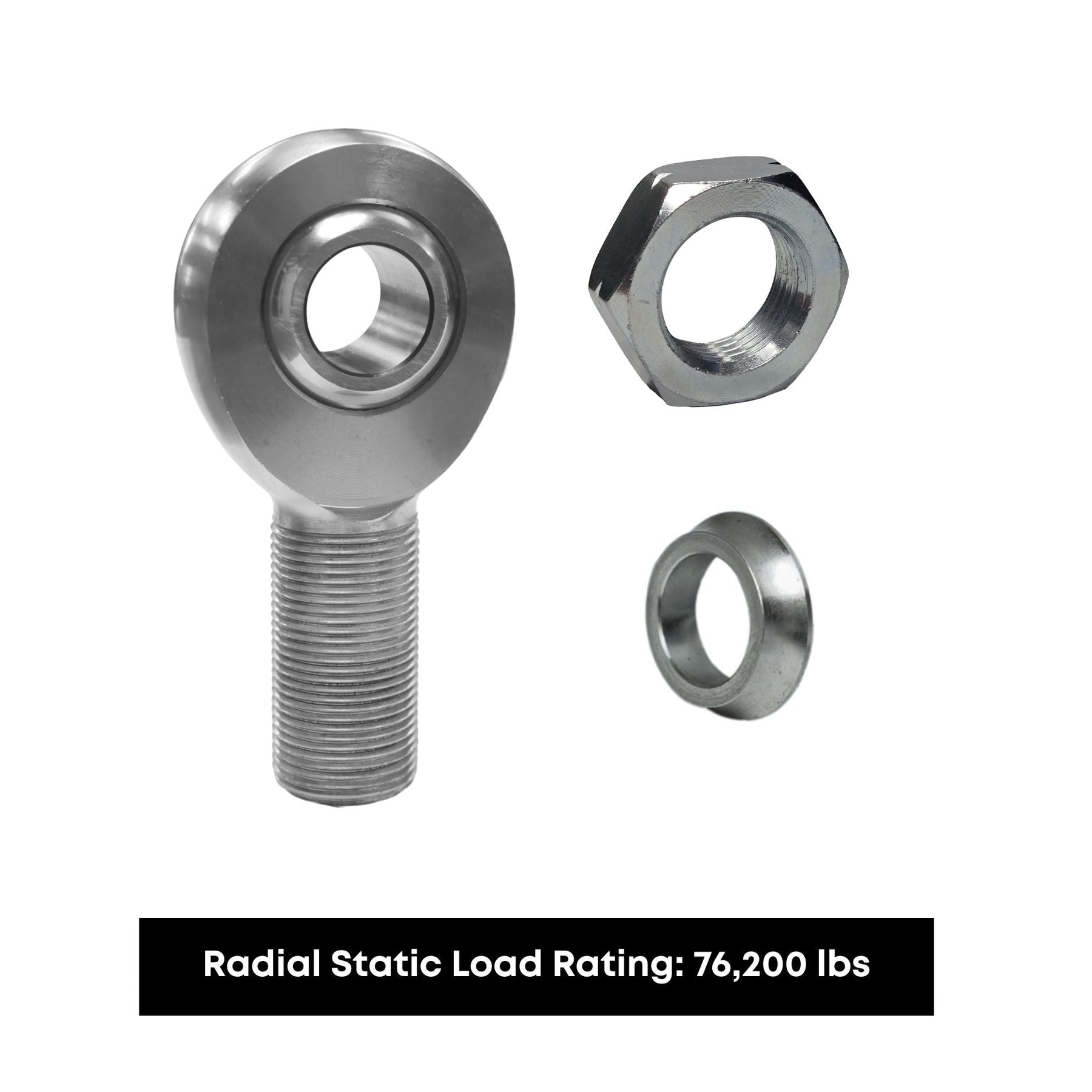

Four Link Rod End Kit with jam nut and spacer on a white background with text indicating radial static load rating.
Technical diagram chassis with suspension links with labeled parts on a white background.

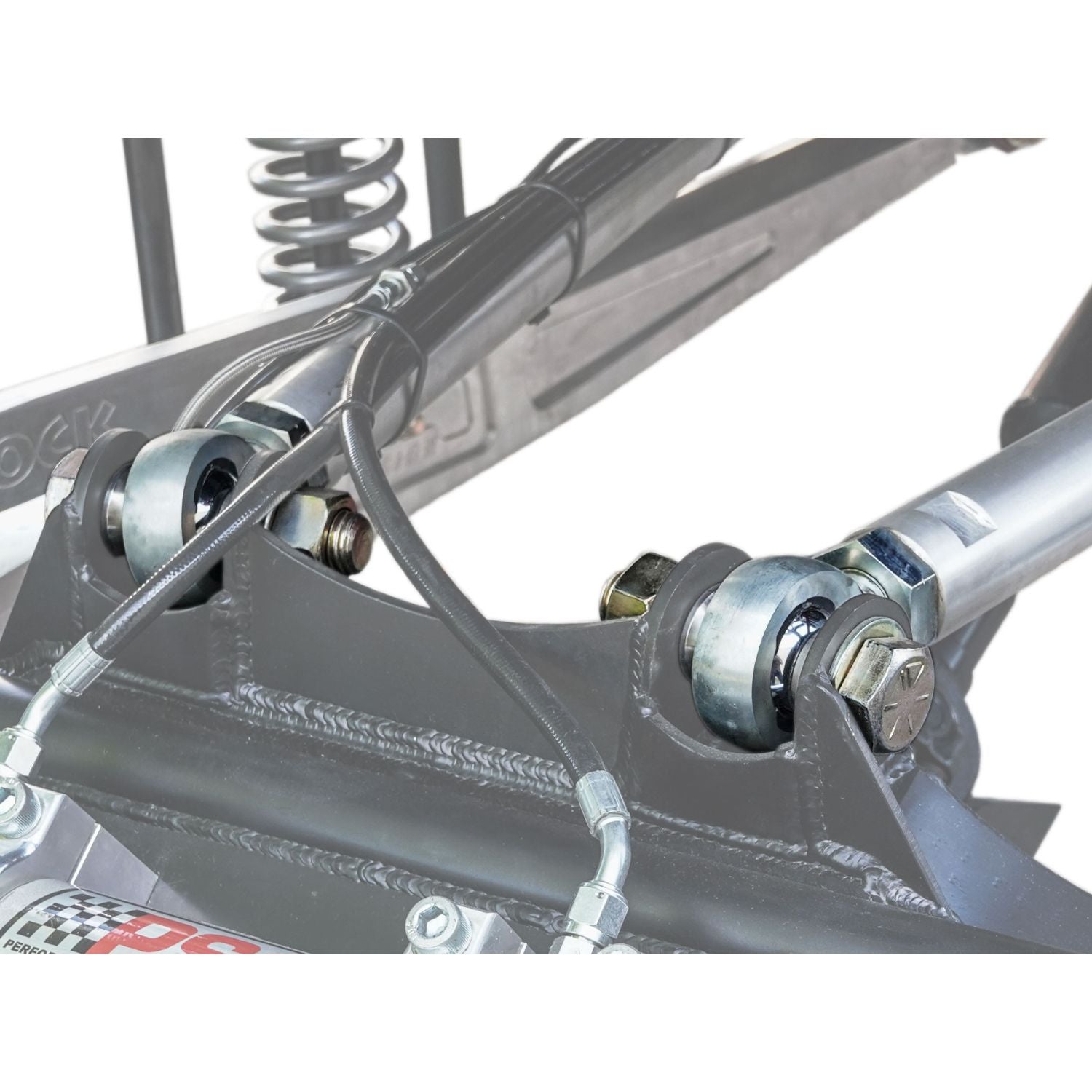

Close-up of competition four link suspension hardware on a race buggy.
Table showing shank size, bore size, misalignment spacer size, and radial static load of wide open design extreme off-road components
1-1/4 chromoly four link rod end kit parts on a white background
Chromoly Four Link Rod End Kit - 1-1/4" -12 Shank - 1" High Angle Heim Joint Spacer
Four Link Rod End Kit with jam nut and spacer on a white background with text indicating radial static load rating.
Technical diagram chassis with suspension links with labeled parts on a white background.
Close-up of competition four link suspension hardware on a race buggy.
Table showing shank size, bore size, misalignment spacer size, and radial static load of wide open design extreme off-road components

Chromoly Four Link Rod End Kit - 1-1/4" -12 Shank - 1" High Angle Heim Joint Spacer

FL1141

$392.91
/
Shipping calculated at checkout.

Wide Open Design’s 1-1/4" Chromoly Four Link Rod End Kit with 1" Bore is built for the most demanding four-link suspension systems. This setup includes everything needed to four-link the front or rear of your rig- as well as for use in industrial applications- delivering unmatched load capacity and durability for extreme duty and competition applications.

Each kit includes everything required , including massive chromoly rod ends, jam nuts, and heim joint spacers.

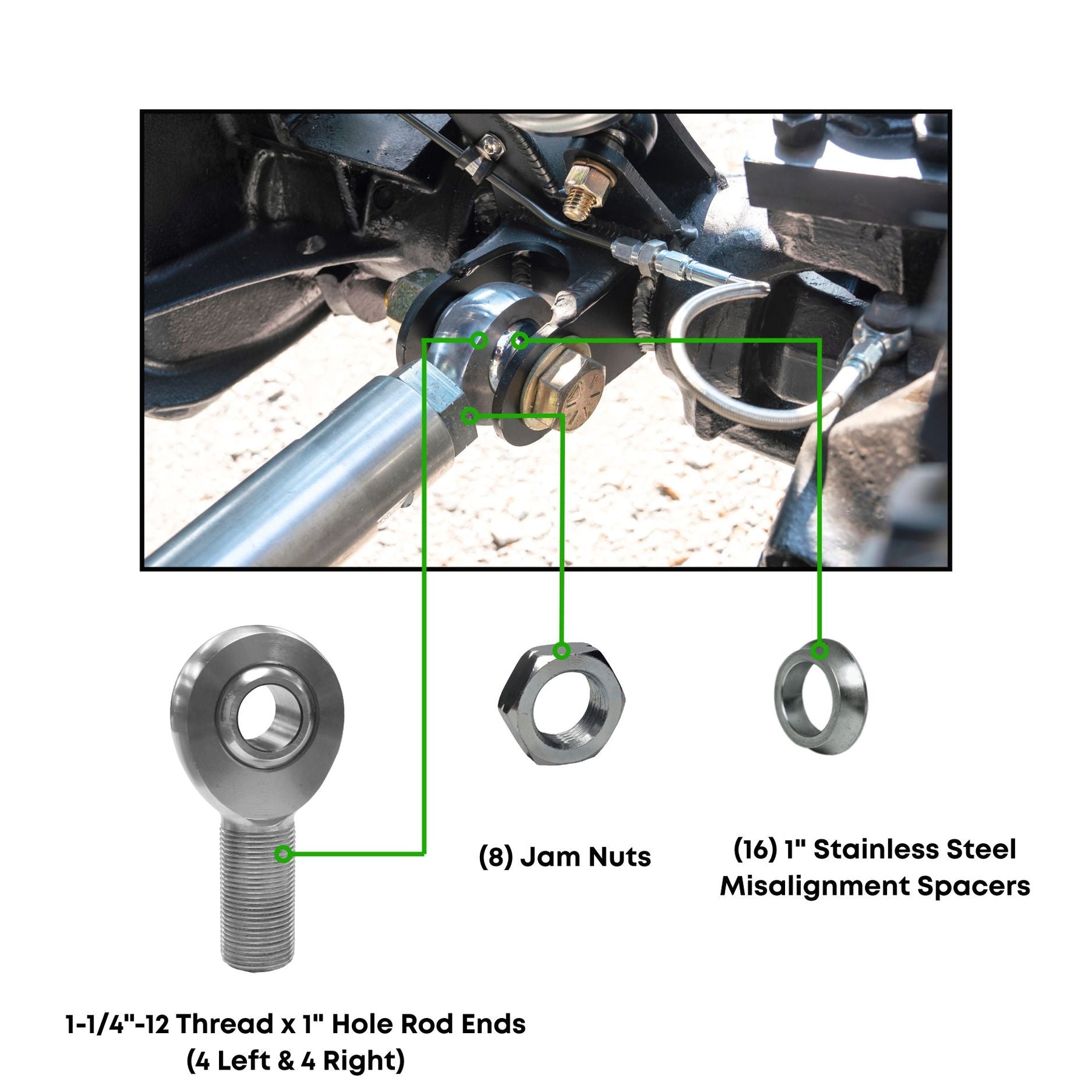

Kit Includes:

  • (8) 1-1/4"-12 Thread Rod Ends w/ 1" Bore
    • 4 Left-Hand Thread
    • 4 Right-Hand Thread
  • (8) Jam Nuts
  • (16) 1" Stainless Steel High Angle Heim Joint Spacers

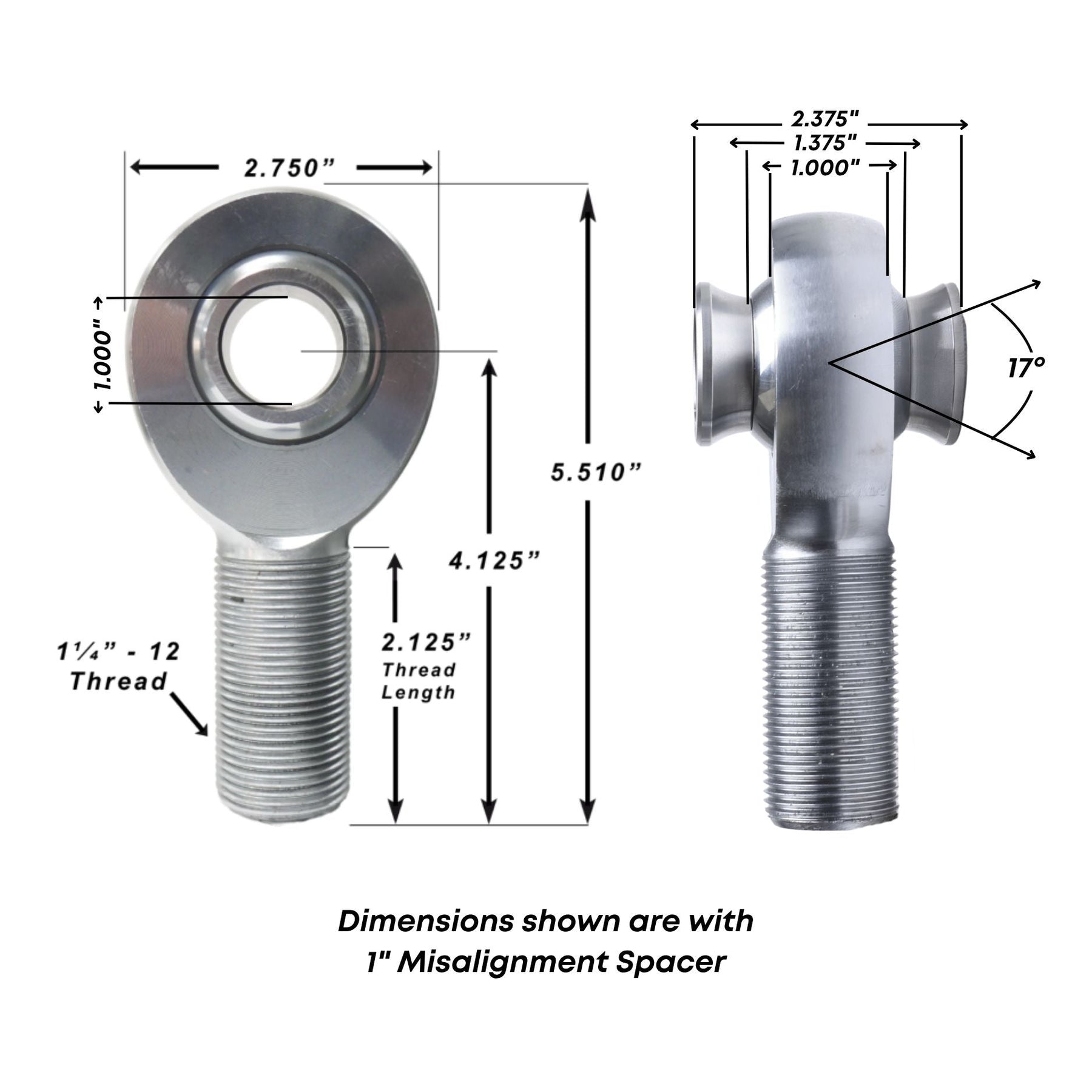

Specifications
  • Thread Size: 1-1/4"-12
  • Bore Size: 1"
  • Installed Width (with spacers): 2.375"
  • Material: Chromoly Steel
  • High Angle Heim Joint Spacers: Stainless Steel
  • Radial Static Load Rating: 76,200 lbs
  • Thread Direction: Left & Right Hand Included
Fitment
  • Extreme duty four-link suspension systems
  • Front or rear applications
  • Ultra-heavy buggies, competition rigs, rock bouncers, Ultra4-style builds
  • Designed for 1" mounting bolts

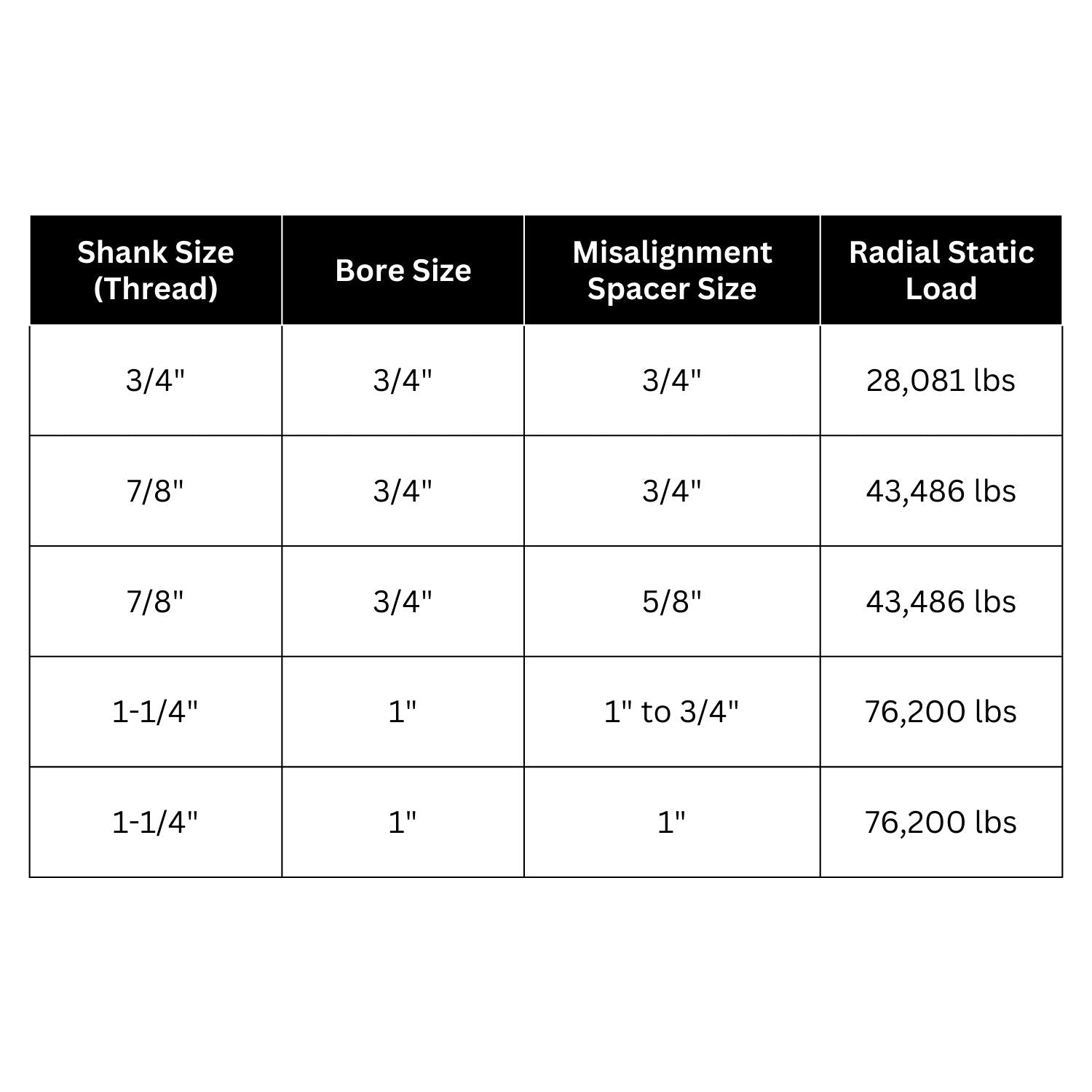

Shank Size (Thread) Bore Size Heim Joint Spacer Size Radial Static Load
3/4" 3/4" 3/4" 28,081 lbs
7/8" 3/4" 3/4" 43,486 lbs
7/8" 3/4" 5/8" 43,486 lbs
1-1/4" 1" 1" to 3/4" 76,200 lbs
1-1/4" 1" 1" 76,200 lbs
Tech Insight

Running a 1-1/4" shank rod end with a full 1" bore provides the highest strength and shear capacity available in a traditional four-link rod end setup. This configuration is ideal for extreme vehicle weights, high shock loads, and aggressive suspension geometry where stepping down bolt size is not desired.

With a narrower installed width than stepped-down spacer options, this kit is also well-suited for tight packaging where bracket spacing is limited but strength cannot be compromised.

Pairs perfectly with 7075 aluminum suspension links or heavy-wall steel links in competition-level builds.
