Name: Chromoly Rod Ends - 3/4" Hole with 3/4"-16 Shank
Brand: Wide Open Design
SKU: XMR12
Price: 10.7 USD
Availability: InStock

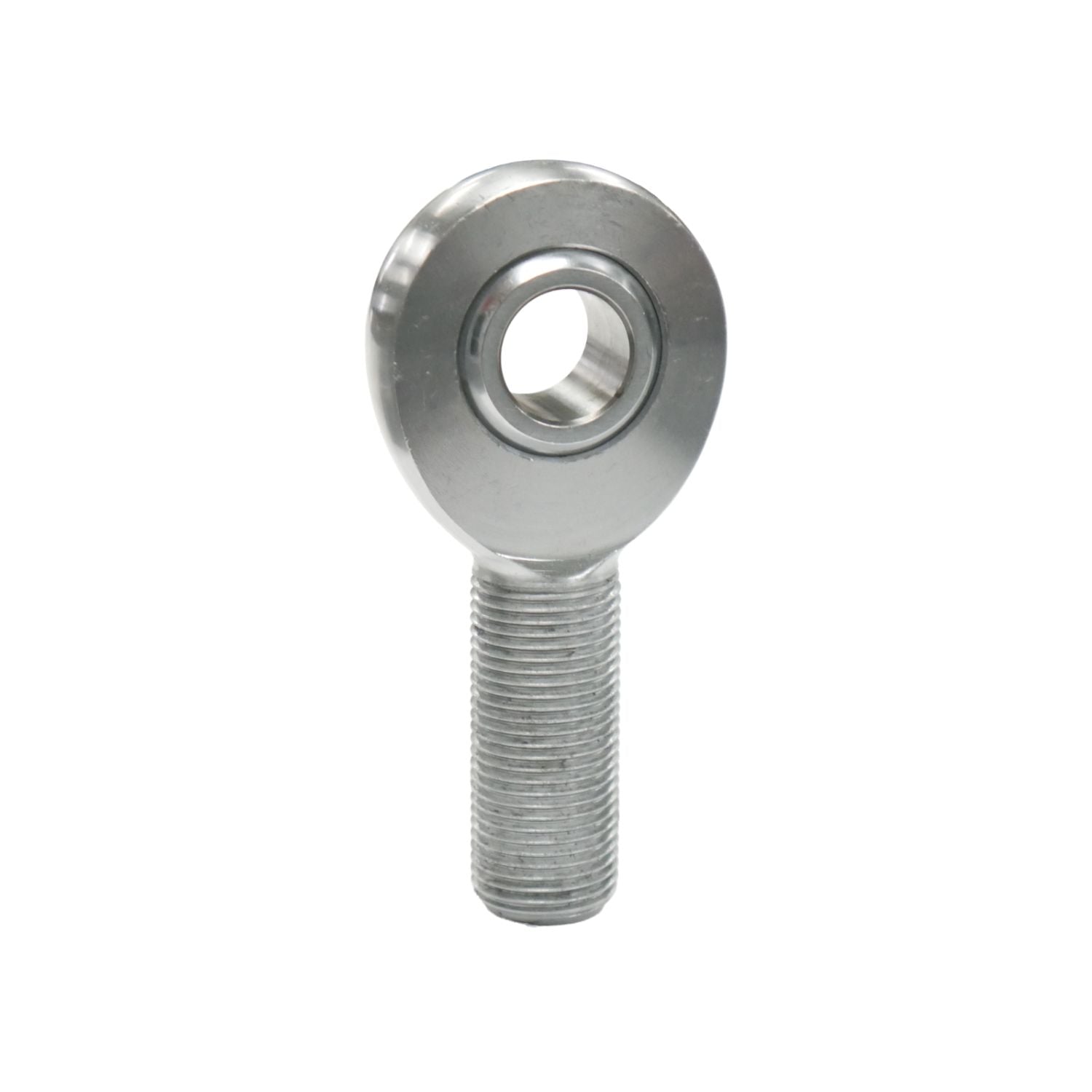

3/4-16 chromoly rod end on a white background

Chromoly Rod Ends - 3/4" Hole with 3/4"-16 Shank

four link suspension rod end with radial static load rating on a white background

Close-up of ladder bar chromoly rod ends with text detailing specifications.

$10.70

Shipping calculated at checkout.

Quantity

For the ultimate in performance rod ends, look no further than these Chromoly Steel Series male rod ends. Built for strength, durability, and long service life, these heavy duty rod ends are commonly used in four-link and ladder bar applications where reliability under load is critical.

These rod ends feature a self-sealing, self-lubricating Nylon/PTFE injection molded race that keeps dirt and debris out while providing smooth, consistent articulation. This design reduces wear and maintenance compared to traditional metal-on-metal rod ends, making them ideal for demanding off-road and performance environments.

Engineered to handle heavy shock loads and repeated abuse, these chromoly rod ends are a trusted choice for suspension and chassis builds.

Shank Thread Size: 3/4"-16
Bore Size: 3/4"
Body Material: Chromoly Steel
Ball Material: 52100 Bearing Steel
Ball Finish: Hard Chrome Plated
Race Material: Nylon/PTFE (Self-Lubricating & Self-Sealing)
Corrosion Resistance: Protective Coating
Static Radial Load Rating: 28,081 lbs

Four-link suspension systems
Ladder bars
Custom suspension and chassis fabrication
Off-road, performance, and race applications

These chromoly rod ends are designed with metal-to-metal support to withstand heavy shock loads without compromising strength. The increased cross sectional thickness improves tensile strength, while the sealed Nylon/PTFE race delivers smoother articulation and longer service life with minimal maintenance.

This makes them an excellent option for high abuse suspension applications where durability and reliability matter most.

[{"id":56174089470118,"title":"Right Hand","option1":"Right Hand","option2":null,"option3":null,"sku":"XMR12","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Chromoly Rod Ends - 3\/4\" Hole with 3\/4\"-16 Shank - Right Hand","public_title":"Right Hand","options":["Right Hand"],"price":1070,"weight":278,"compare_at_price":null,"inventory_management":"shopify","barcode":"040361572068","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":56174089437350,"title":"Left Hand","option1":"Left Hand","option2":null,"option3":null,"sku":"XML12","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Chromoly Rod Ends - 3\/4\" Hole with 3\/4\"-16 Shank - Left Hand","public_title":"Left Hand","options":["Left Hand"],"price":1070,"weight":278,"compare_at_price":null,"inventory_management":"shopify","barcode":"040361571610","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Chromoly Rod Ends - 3/4" Hole with 3/4"-16 Shank

COMPLETE THE BUILD:
