WOD Radiator Mount Brackets for 27.5" x 15.5" x 3" Radiator Combo
F021172

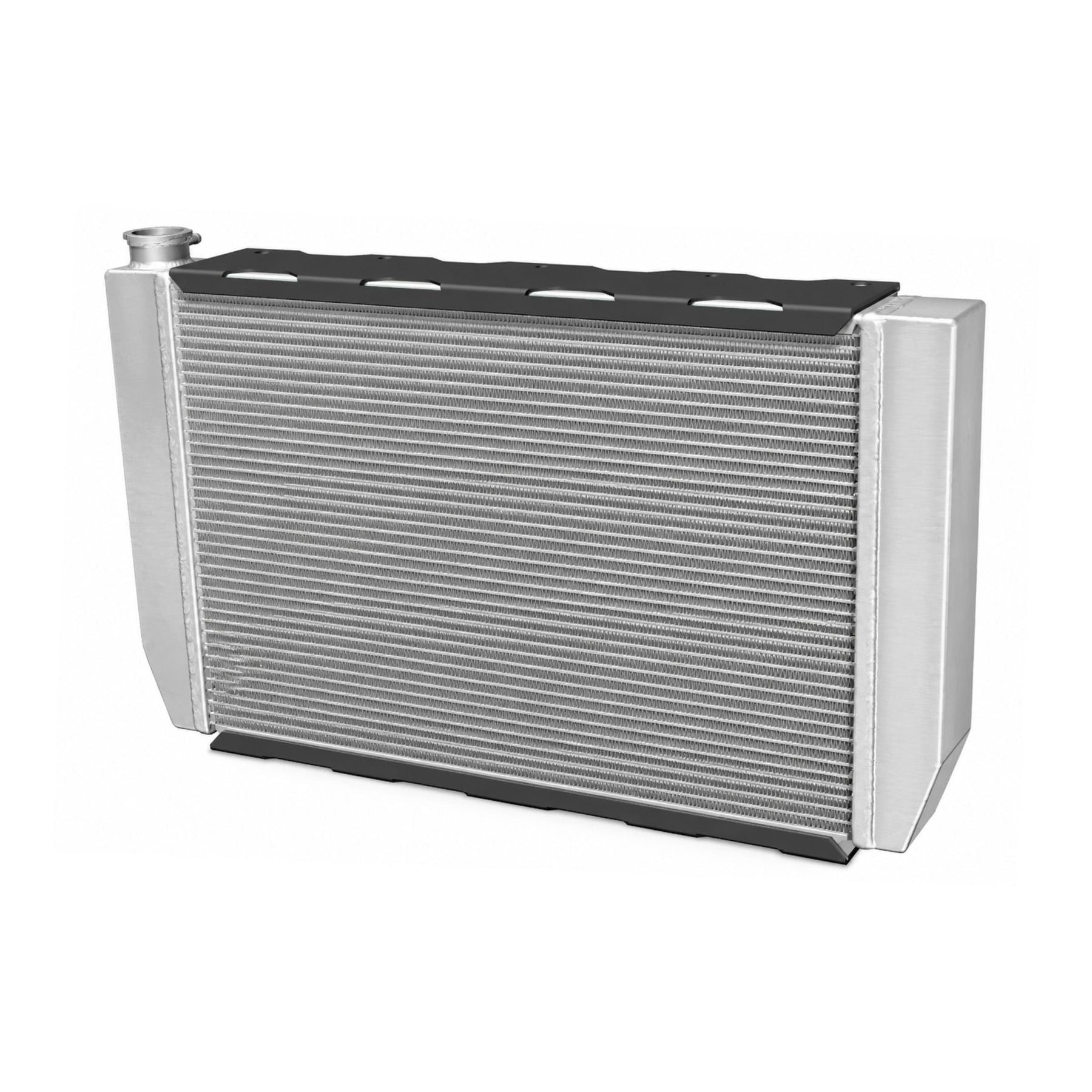

The WOD Radiator Mount Brackets are built specifically for the WA04070 27.5" x 15.5" x 3" dual pass -16 AN radiator combo unit. Originally developed for custom off-road chassis builds, this cradle-style mount is also a strong solution for many custom motorsports applications where a compact radiator and fan package needs to be mounted solidly, protected, and easy to service.

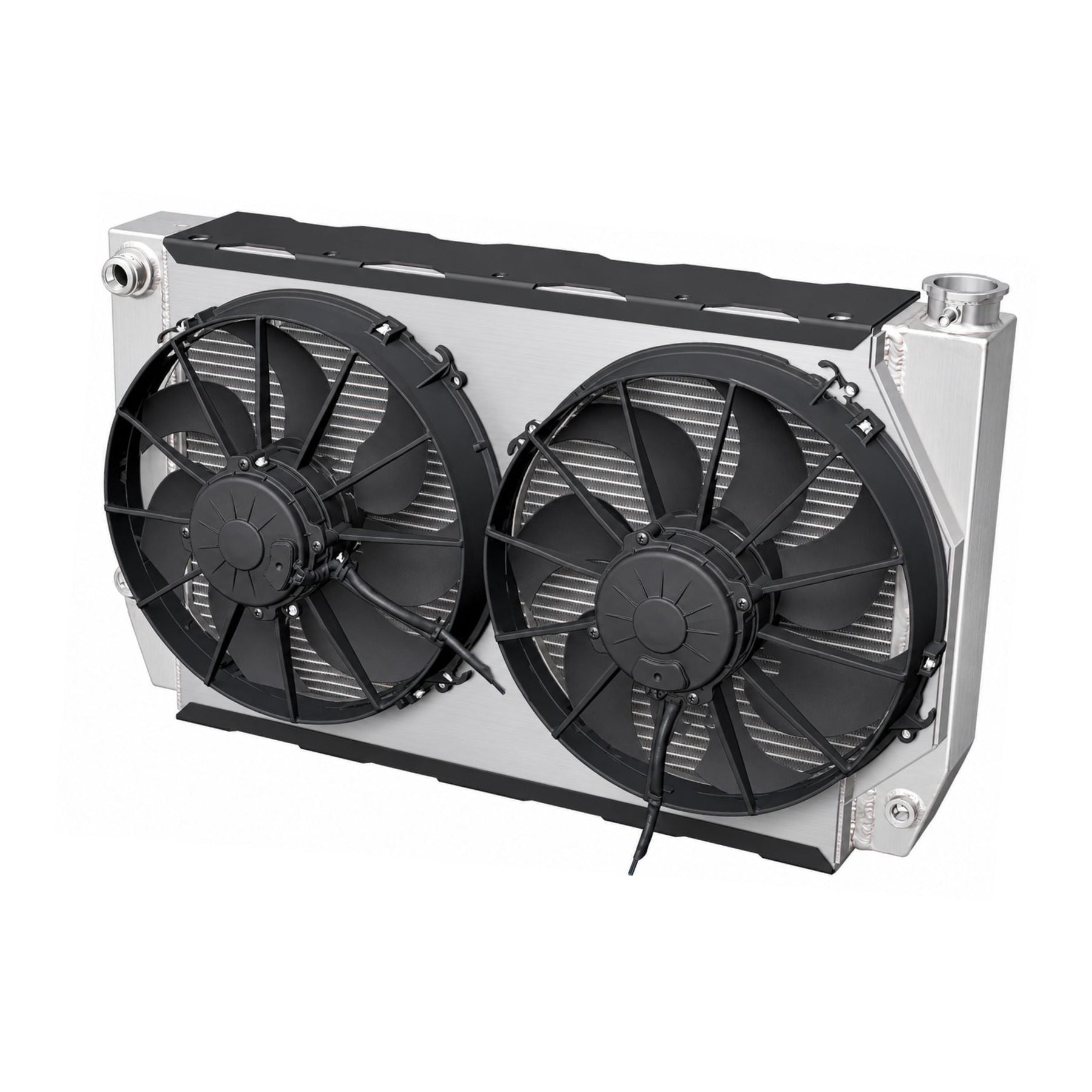

The top and bottom cradles wrap around the shroud and support the cooling combo package without mounting through the radiator core. That gives builders a stronger and cleaner foundation than trying to hang the radiator directly from the core, shroud, or loose tabs. The kit is laser cut and formed from .100" thick mild steel and ships raw so it can be welded, modified, painted, powder coated, or tied into the chassis however the build requires.
Included items:

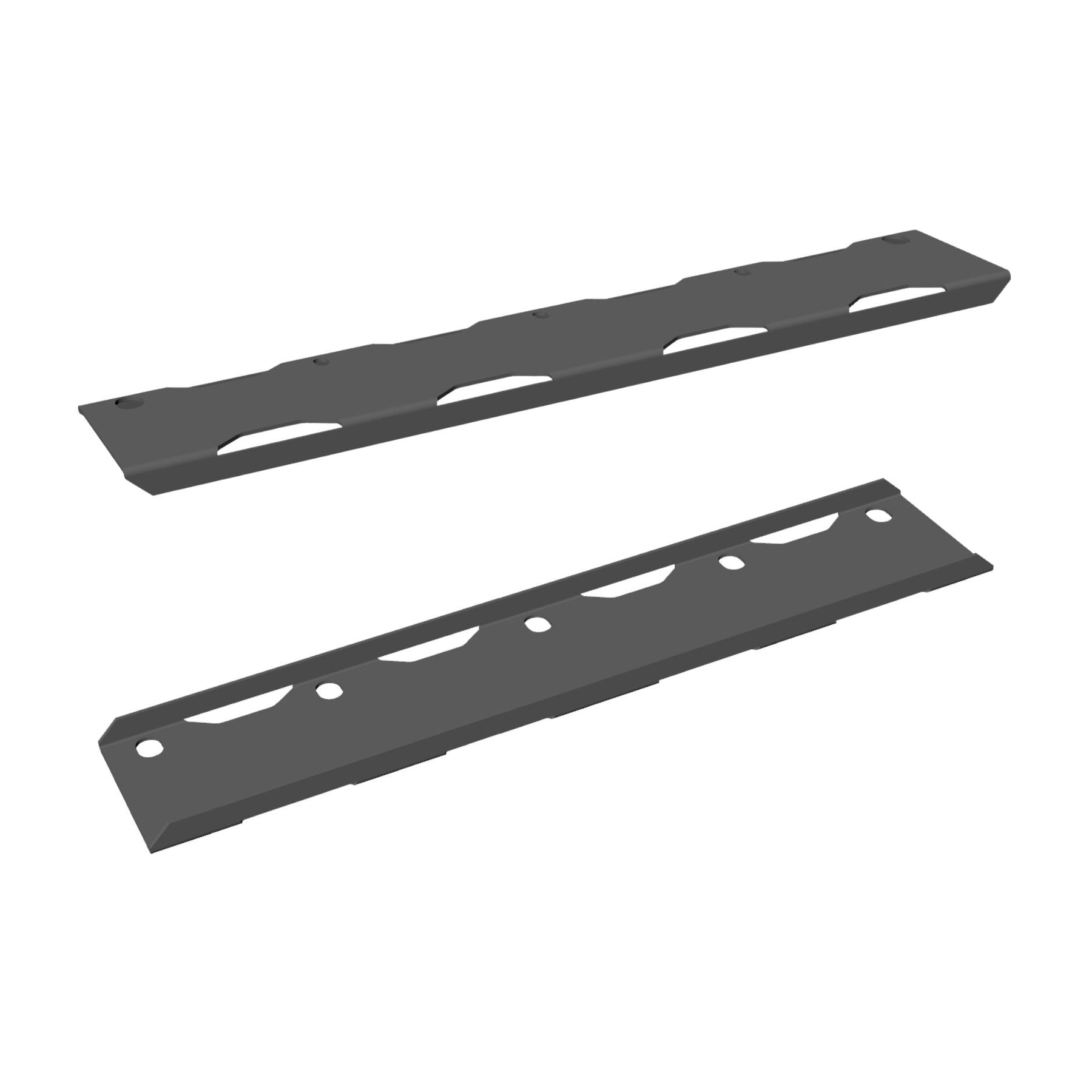

- Top radiator cradle
- Bottom radiator cradle
- Hardware to mount the radiator and fan shroud assembly
Notes:
- Cooling kit sold separately.
- This is not a generic radiator bracket kit. It is built only for the WA04070 radiator combo with the matching fan shroud.
- Additional chassis-side brackets, tabs, welding, and fabrication are required for final installation.
Specifications

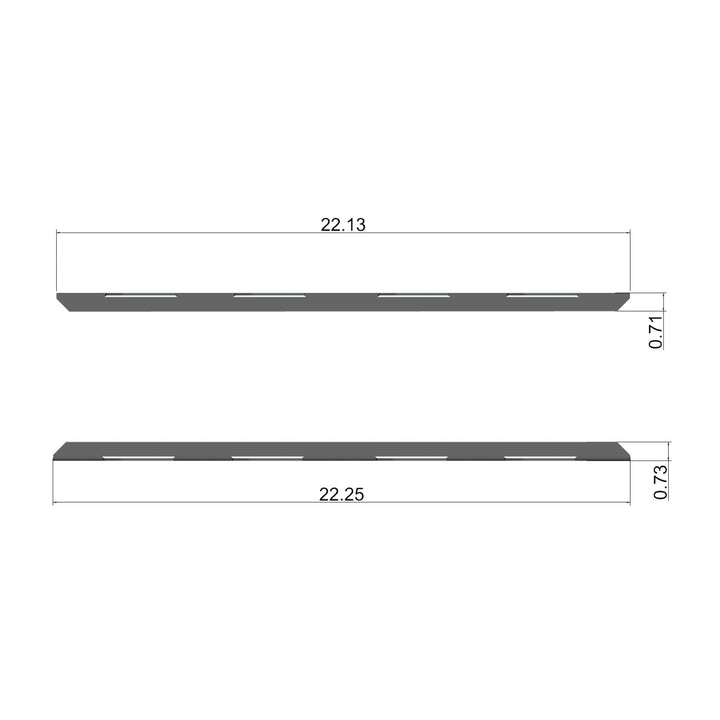

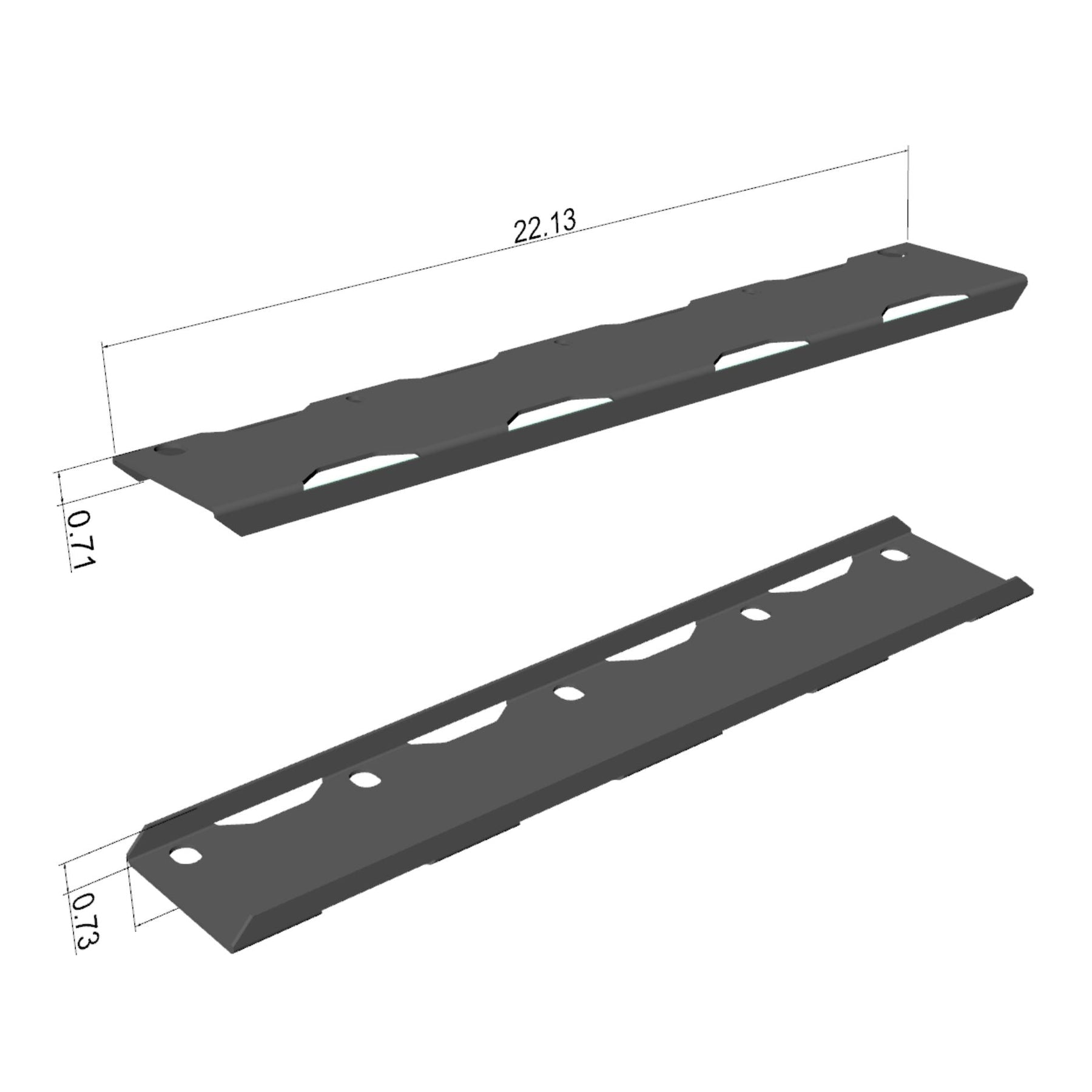

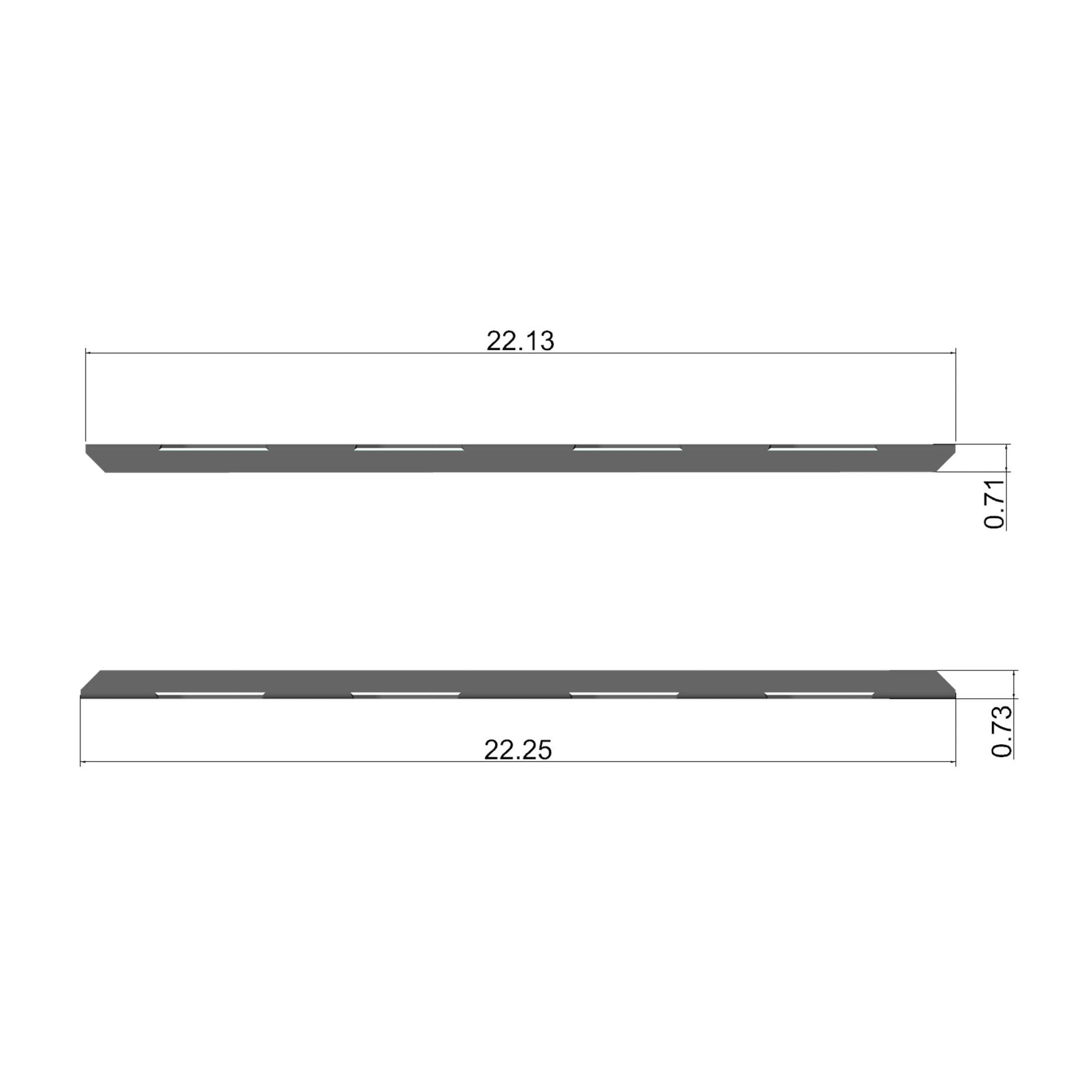

- Part Number: F021172
- Designed For: WA04070 27.5" x 15.5" x 3" DPL -16 AN radiator combo unit
- Material: Mild steel
- Material Thickness: .100"
- Finish: Raw steel
- Manufacturing Process: Laser cut and CNC formed
- Mounting Style: Universal builder kit
- Included Pieces: Top cradle, bottom cradle, and radiator/shroud mounting hardware
- Chassis-Side Mounting Hardware: Not included
- Weld-On Tabs: Not included
- Rubber Isolators/Grommets: Not included
- Installation Type: Fabrication required
- Welding Required: Application dependent
- Cooling Kit: Sold separately
- Helps support the radiator without loading the radiator core
- Designed for custom chassis, motorsports, and off-road applications
- Suitable for rear-mounted or chassis-mounted radiator layouts
Fitment
-
Fits WA04070 27.5" x 15.5" x 3" DPL -16 AN radiator combo unit only
- Does not fit the bare radiator without the matching fan shroud
- Does not fit universal radiators by size alone
- Commonly used in WOD Revolution buggy platforms
- Commonly used in WOD Evolution buggy platforms
- Commonly used in WOD JC buggy platforms
- Commonly used in WOD LJ buggy platforms
- Commonly used in WOD JKU buggy platforms
- Suitable for rock bouncers
- Suitable for trail buggies
- Suitable for Ultra4 cars
- Suitable for custom tube chassis builds
- Suitable for front-mounted radiator setups
- Suitable for rear-mounted radiator setups
- Builder measurement, fabrication, and chassis-specific mounting required
Tech Insight
Mounting a radiator in a custom off-road chassis is one of those jobs that can get messy fast. Every buggy, Jeep chassis, rear radiator setup, front radiator setup, and tube chassis layout is a little different. This kit gives builders a purpose-built cradle for the WA04070 cooling package so they do not have to start from scratch with loose tabs and guesswork.
The top and bottom cradle system wraps around the matching fan shroud and supports the radiator combo package without drilling through or mounting directly to the radiator core. That helps reduce stress on the core area and gives the builder a stronger structure to tie into the chassis. In hard-use off-road vehicles, that matters because vibration, chassis flex, and rough terrain can create problems when a radiator is mounted poorly.
The raw .100" thick mild steel construction makes the kit easy to weld to, modify, tab from, or build around. Whether the radiator is being used in a Revolution, Evolution, JC, LJ, JKU, rock bouncer, trail buggy, Ultra4-style car, or custom tube chassis, this mount kit gives the WA04070 cooling package a clean foundation for final installation.
