Spicer 1410 Yoke 1.5" x 10 Spline

WF03006-S

$76.93
/
Shipping calculated at checkout.

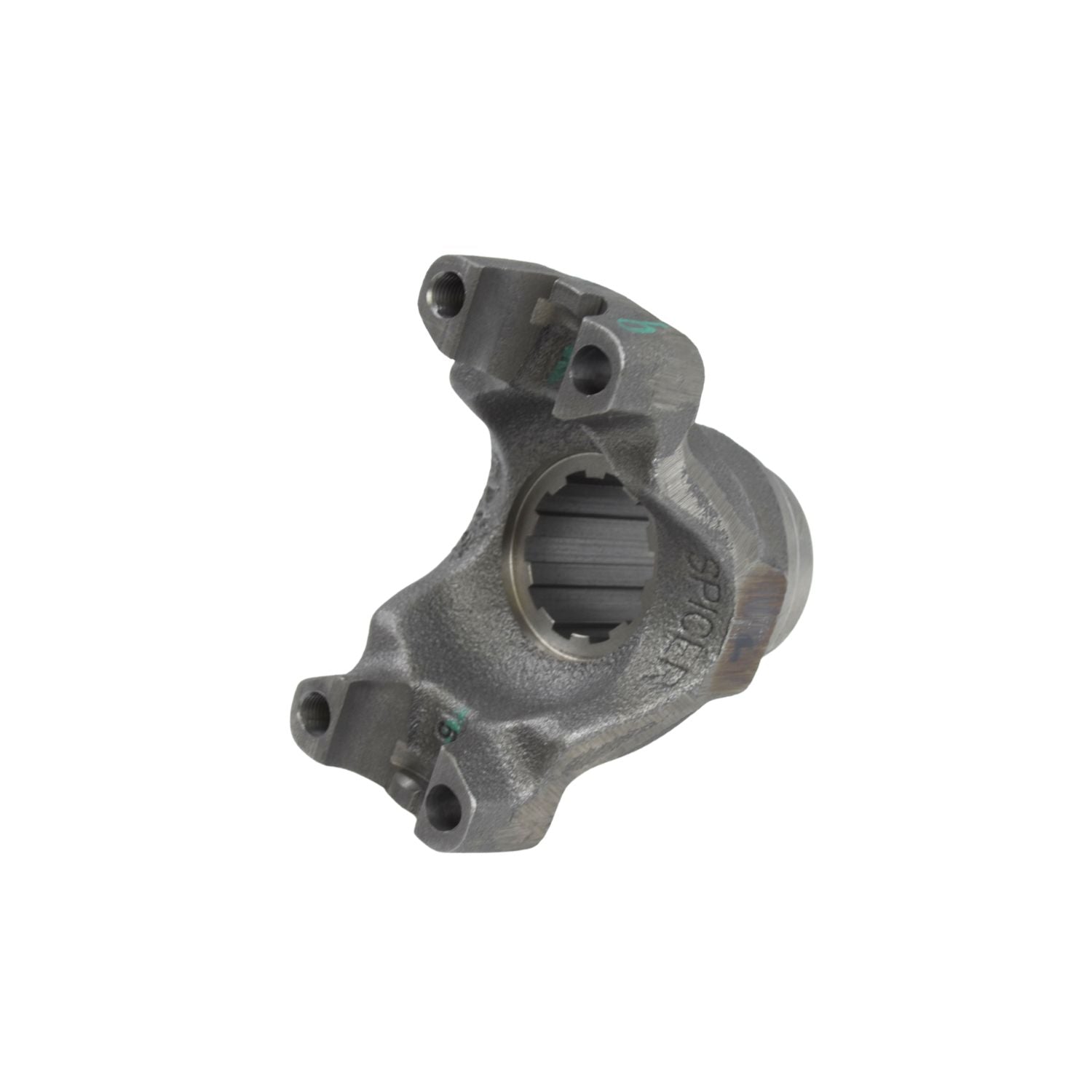

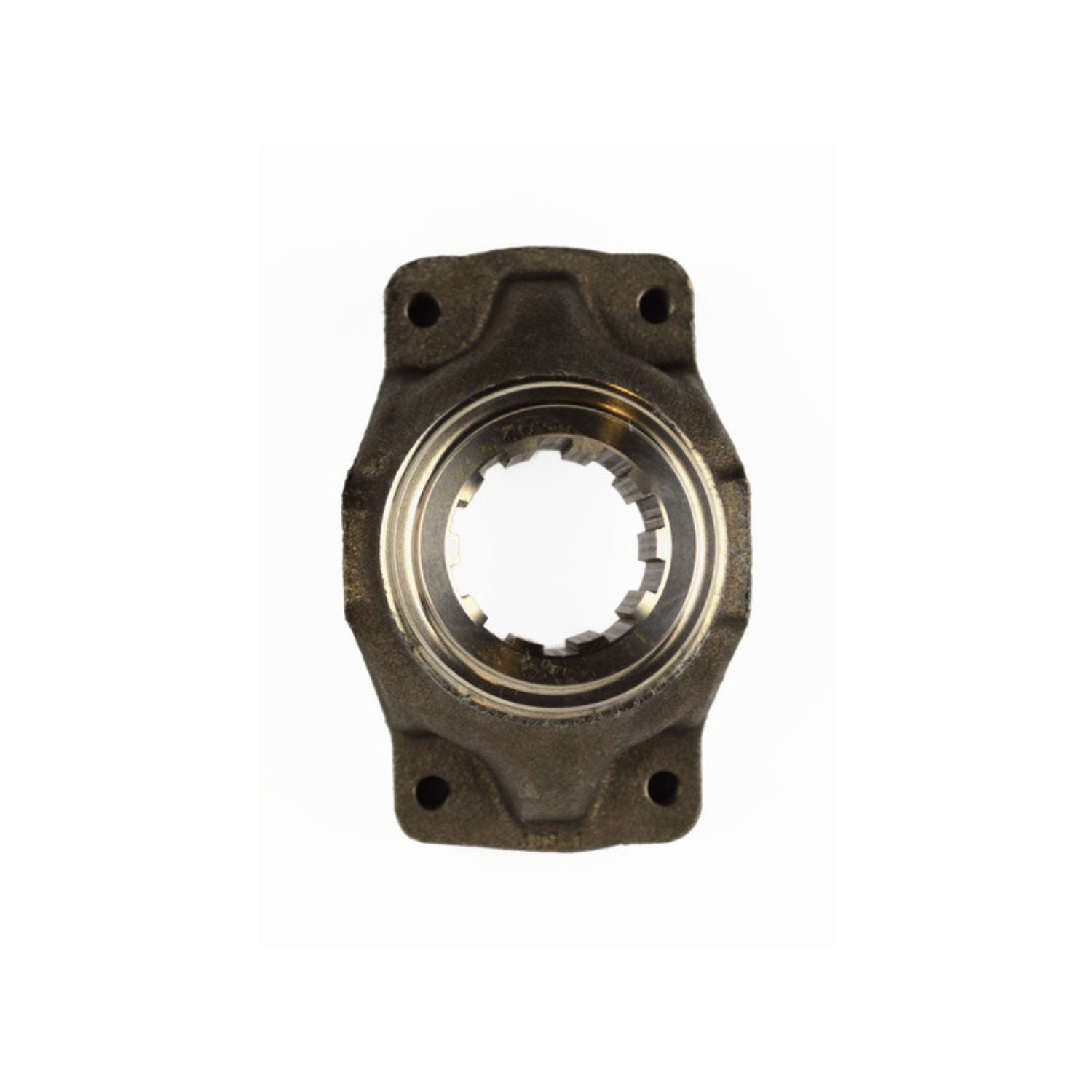

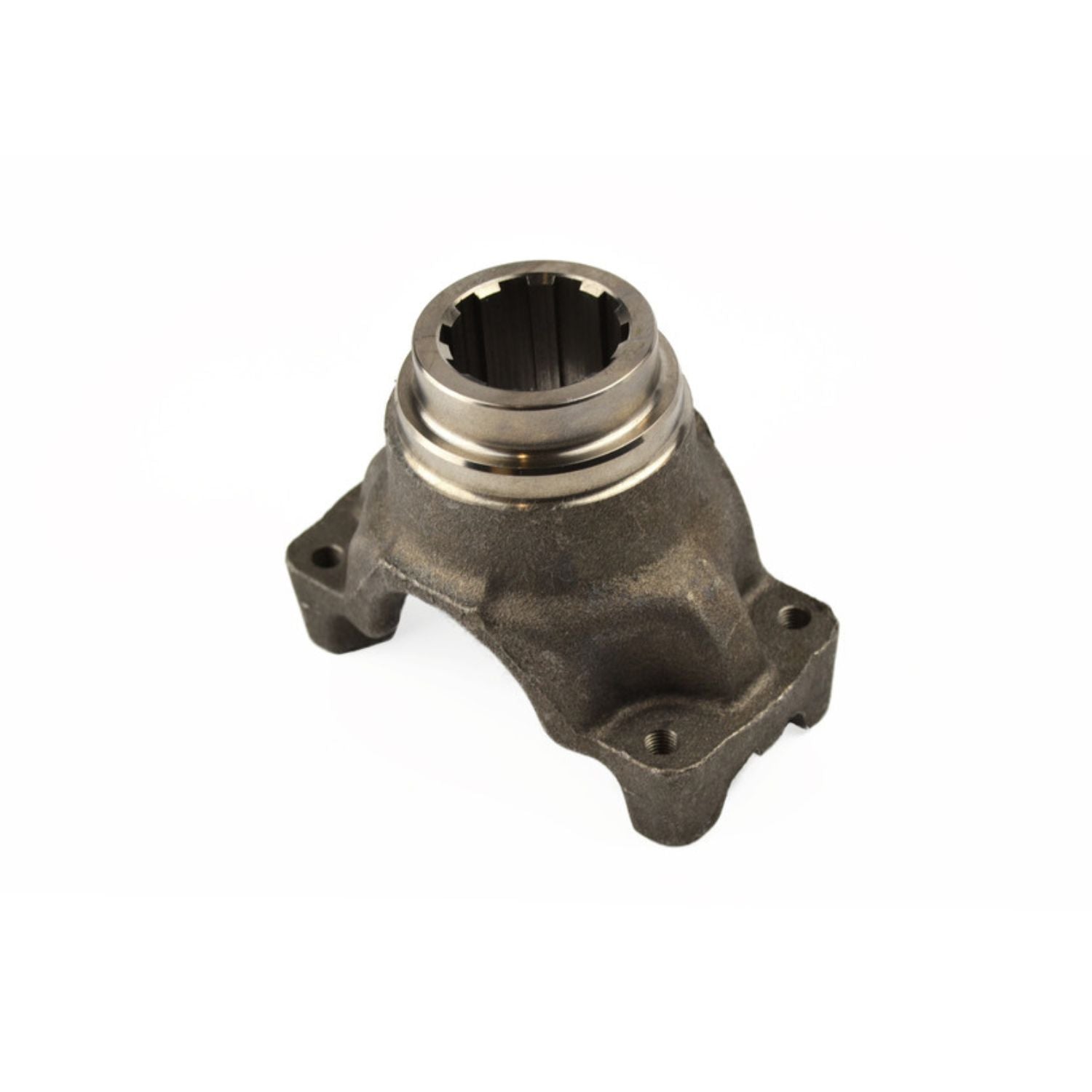

The Spicer 1410 Yoke (1.5" x 10 spline) replaces OEM part number 3-4-2941-1 and are machined by Wide Open Design to use heavy-duty U-bolts instead of factory-style straps for increased strength and improved U-joint retention. Designed to pair with the WOD Single Ended Carrier Bearing, this yoke is one of three compatible options (1350, 1410, and 1480), allowing builders to match strength to their specific torque and articulation demands.

The 1410 series offers increased strength and joint angle over 1350 setups, making it ideal for rigs with aggressive suspension travel and higher torque loads.

Included Items:

  • 1 × Spicer 1410 Yoke – 1.5" x 10 spline,
  • Machined by Wide Open Design for U-bolts

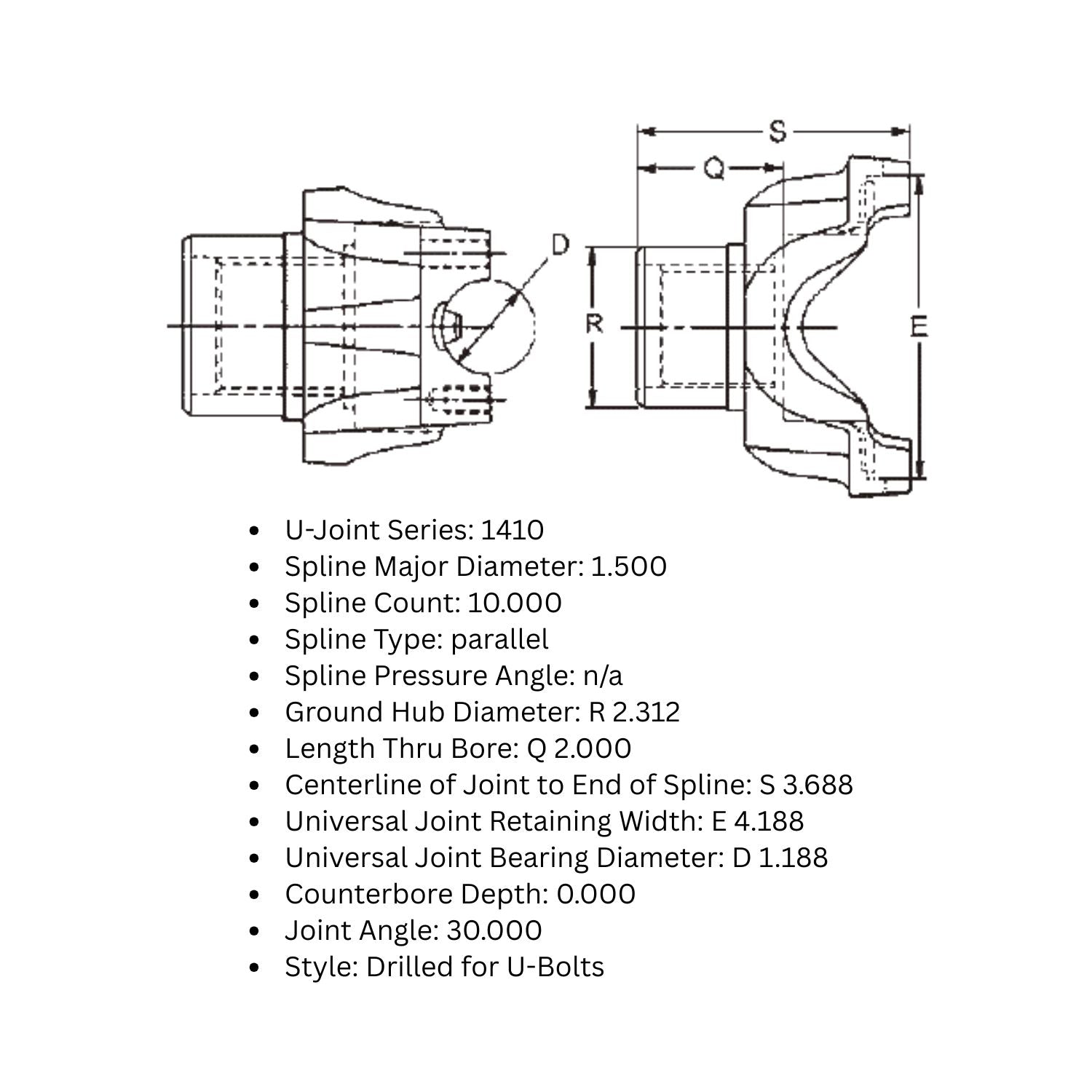

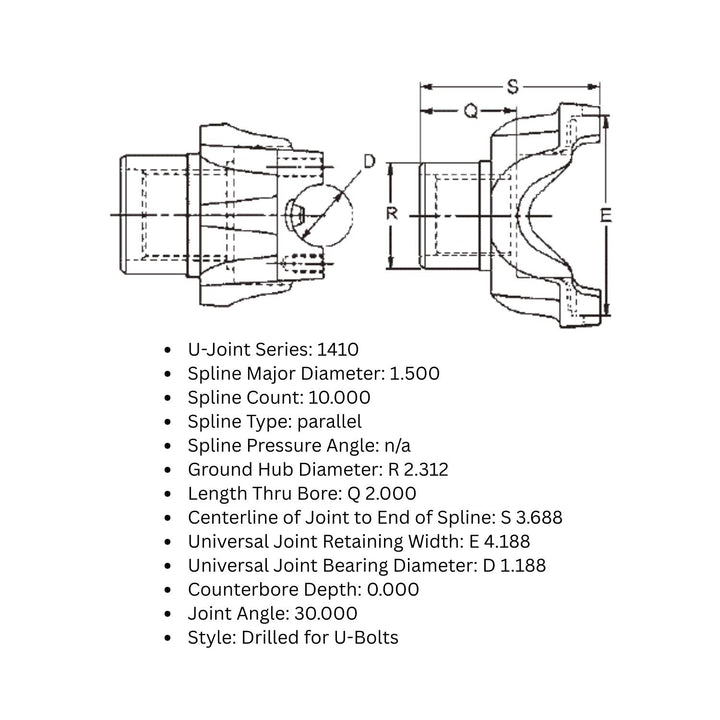

Specifications
  • U-Joint Series: 1410
  • Spline Major Diameter: 1.500"
  • Spline Count: 10
  • Spline Type: Parallel
  • Ground Hub Diameter (R): 2.312"
  • Length Thru Bore (Q): 2.000"
  • Centerline of Joint to End of Spline (S): 3.688"
  • Universal Joint Retaining Width (E): 4.188"
  • Universal Joint Bearing Diameter (D): 1.188"
  • Counterbore Depth: 0.000"
  • Max Joint Angle: 30.0°
  • Style: Drilled for U-Bolts
Fitment
  • WOD Single Ended Carrier Bearing
  • Off-road buggies
  • Rock crawlers
  • Custom multi-piece driveshaft systems
  • Front or intermediate shaft applications
Tech Insight

Designed specifically to integrate with the WOD Single Ended Carrier Bearing, allowing builders to upgrade yoke size without changing the carrier bearing assembly.
