3-4-6901-1

$75.03
/
Shipping calculated at checkout.

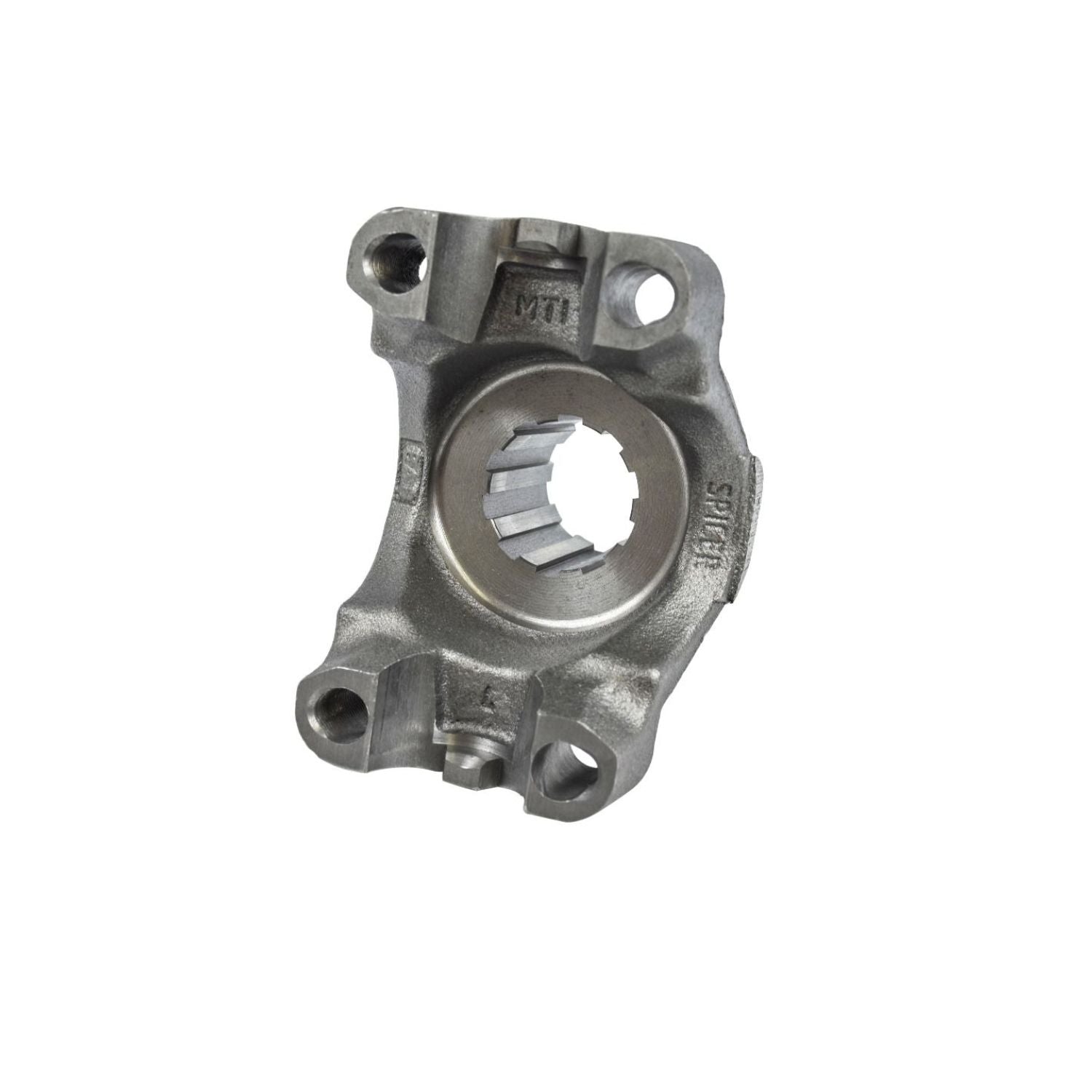

The Spicer 1480 Yoke (1.5 x 10 spline) is a critical component in extreme duty off-road drivelines, engineered to handle high horsepower, heavy vehicles, and aggressive suspension articulation. This yoke is one of the three options compatible with the WOD Single Ended Carrier Bearing (also available in 1350 and 1410).

With a 30° joint angle, this yoke accommodates aggressive suspension travel while maintaining strength and driveline stability.

Included Items:

  • 1 × 1480 Yoke – 1.5 x 10 spline, U-bolt style
Specifications
  • U-Joint Series: 1480
  • Spline Major Diameter: 1.500"
  • Spline Count: 10
  • Spline Type: Parallel
  • Ground Hub Diameter (R): 1.810"
  • Length Thru Bore (Q): 2.000"
  • Centerline of Joint to End of Spline (S): 4.031"
  • Universal Joint Retaining Width (E): 4.188"
  • Universal Joint Bearing Diameter (D): 1.375"
  • Counterbore Depth: 0.000"
  • Max Joint Angle: 30.0°
  • Style: Drilled for U-Bolts
Fitment
Tech Insight

The 1480 series is designed for rigs that push driveline components to the limit with big tires, heavy vehicles, and high torque outputs. This yoke delivers superior load capacity compared to 1350 and 1410 setups.

Designed to integrate seamlessly with the WOD Single Ended Carrier Bearing, allowing builders to upgrade yoke size without redesigning the carrier bearing assembly.

Complete Kits Available

We also offer complete driveline solutions using this yoke:
