Spicer 1480 Universal Joint & U-Bolt Kit
WF03008
The Spicer 1480 Universal Joint & U-Bolt Kit provides the U-joints and retention hardware needed for severe-duty 1480-series driveshaft systems. With two non-greaseable solid-cross Spicer U-joints and two matching U-bolt kits, this package is well suited for rock bouncers, competition crawlers, race vehicles, mega trucks, and custom off-road builds using 1480-series driveline components.
The 1480 platform uses large 1.375" bearing caps with a 4.188" overall joint width, giving builders a substantial driveline connection for applications with high torque and shock loading. The included U-bolt hardware provides positive bearing-cap retention and makes this package a natural match for WOD 1480 Driveshaft Builder Kits, WOD 1480 Carrier Bearing Shaft Builder Kits, and compatible Spicer 1480 yokes.

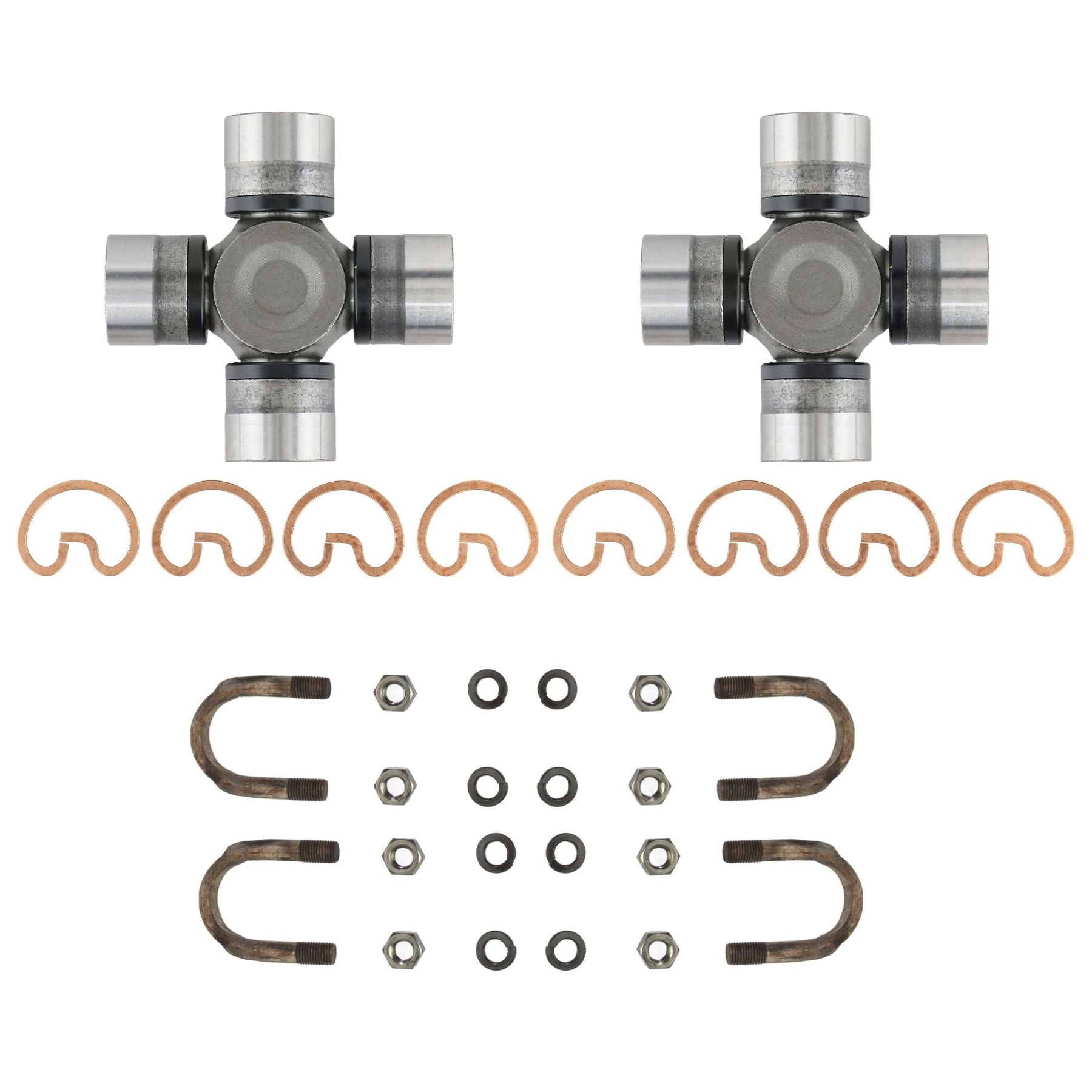

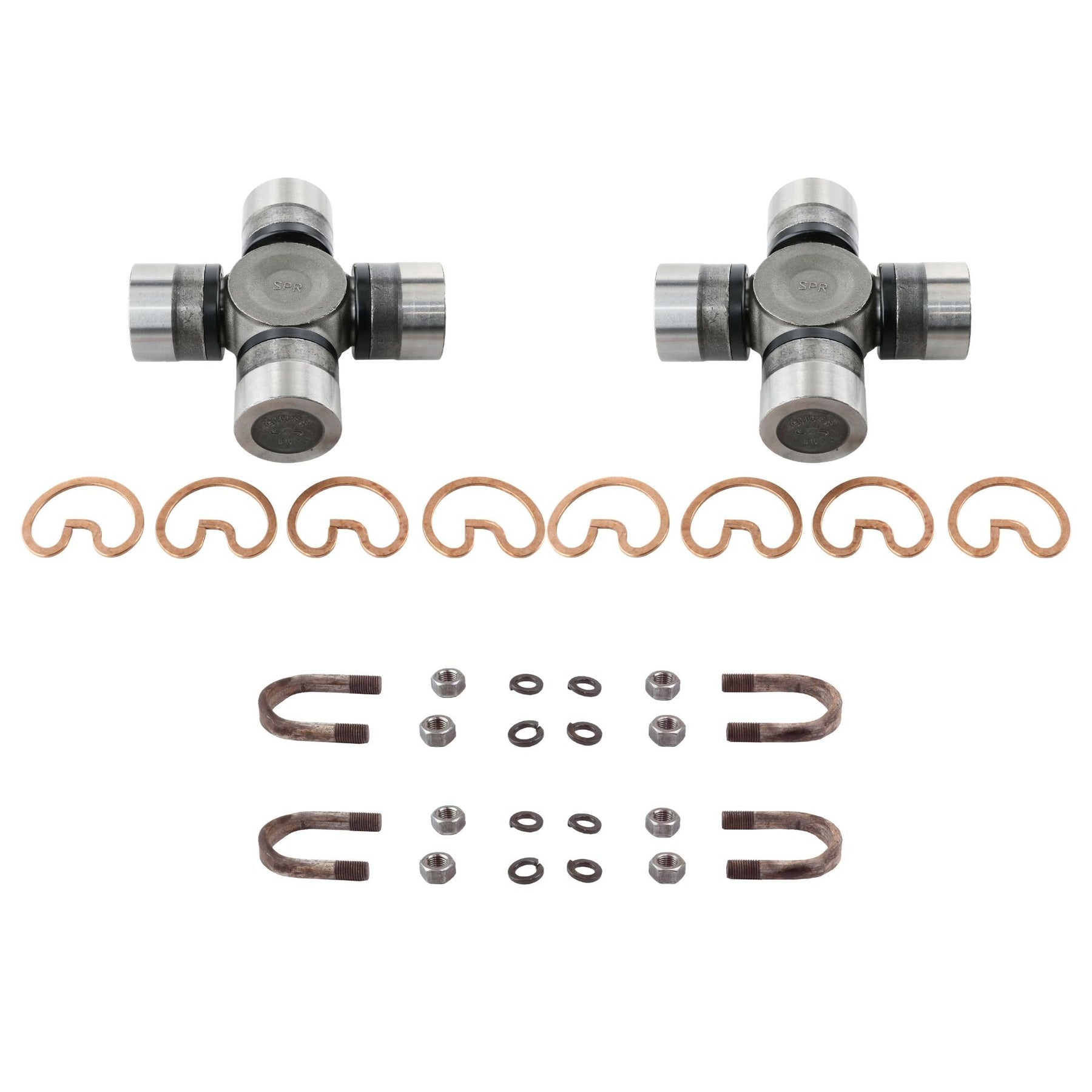

Includes:
- (2) Spicer 1480 Series Universal Joints
- (2) Spicer 1480 U-Bolt Kits
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Spicer |
| Product Type | Universal Joint & U-Bolt Kit |
| U-Joint Series | 1480 |
| U-Joint Design | Solid Cross / Non-Greaseable |
| Greasable | No |
| Bearing Cap Type | Round |
| Bearing Cap Diameter | 1.375" (34.90mm) |
| U-Joint Width | 4.188" |
| U-Joint Retention | Outside Snap Ring (OSR) |
| Yoke Retention | U-Bolt |
| U-Bolt Centerline to Centerline | 1.914" |
| U-Bolt Recommended Torque | 32–37 ft-lb |
| U-Joint Quantity | (2) |
| U-Bolt Kit Quantity | (2) |
| Primary Application | 1480-Series Severe-Duty Driveshaft & Carrier Bearing Systems |
Fitment
Common Applications:
- Rock bouncers
- Competition rock crawlers
- Off-road race vehicles
- Mega trucks and mud racing vehicles
- High-load custom driveline systems
- Front and rear driveshafts
- Intermediate and carrier bearing shafts
- Multi-piece driveshaft systems
Compatible Components:
- Spicer 1480 Series Yokes
- WOD 1480 Driveshaft Builder Kits
- WOD 1480 Carrier Bearing Shaft Builder Kits
- Compatible 1480-Series Pinion Yokes
- Custom 1480-Series Driveline Systems
Fitment Notes:
- Designed for standard 1480-series driveline components.
- U-joints use 1.375" diameter round bearing caps and a 4.188" overall joint width.
- Uses outside snap-ring U-joint retention.
- Included U-bolt kits are designed for compatible 1480 yokes using 1.375" bearing caps.
- Verify U-joint series, bearing cap diameter, joint width, and yoke retention style before ordering.
- Do not select a U-joint based on horsepower or tire size alone. Vehicle weight, gearing, driveline angles, shock loading, and the complete driveline system should all be considered.
FAQ
What is the difference between a 1410 and 1480 U-joint?
Both use a 4.188" overall joint width, but the 1480 uses larger 1.375" bearing caps compared with the 1.188" caps used by a 1410. The larger 1480 components make it the more substantial option when building a severe-duty driveline.
Why use a non-greaseable solid-cross U-joint?
A non-greaseable design eliminates the internal grease passages required by a serviceable joint, leaving a solid U-joint cross. This construction is commonly selected for high-load and competition driveline applications.
What yokes will these 1480 U-joints fit?
They are designed for compatible 1480-series driveshaft, carrier bearing, pinion, and flange yokes using 1.375" round bearing caps and a 4.188" joint width. Verify the actual dimensions and retention style before ordering.
Is 1480 a good choice for a rock bouncer or competition buggy?
1480-series components are commonly used in rock bouncers, competition crawlers, race vehicles, and other builds where the driveline experiences substantial torque and shock loading. The correct series should still be selected around the complete vehicle and driveline system.
Can I use this kit with WOD 1480 driveshaft components?
Yes. This kit is commonly paired with WOD 1480 Driveshaft Builder Kits, WOD 1480 Carrier Bearing Shaft Builder Kits, and compatible Spicer 1480 yokes.
