WF03026-S

$104.64
/
Shipping calculated at checkout.

The Spicer 1480 Series 1.5" 10-Spline Yoke – WOD U-Bolt Modified gives builders a heavy-duty 1480-series yoke for custom driveshaft and carrier bearing systems using a 1.500" 10-spline shaft. Wide Open Design machines the Spicer yoke to accept U-bolt U-joint retention instead of the original strap-style hardware, creating a secure, serviceable connection for high-load off-road driveline applications.

This yoke is compatible with the WOD Single Ended Carrier Bearing, making it the best choice when building a 1480-series intermediate shaft or multi-piece driveshaft around our carrier bearing system. With a 30° maximum joint angle, it also works well in custom driveline layouts where suspension travel, driveshaft angle, and high driveline loads all have to be considered.

Includes:

  • (1) Spicer 1480 Series Yoke
  • 1.500" 10-Spline Bore
  • Wide Open Design U-Bolt Modification

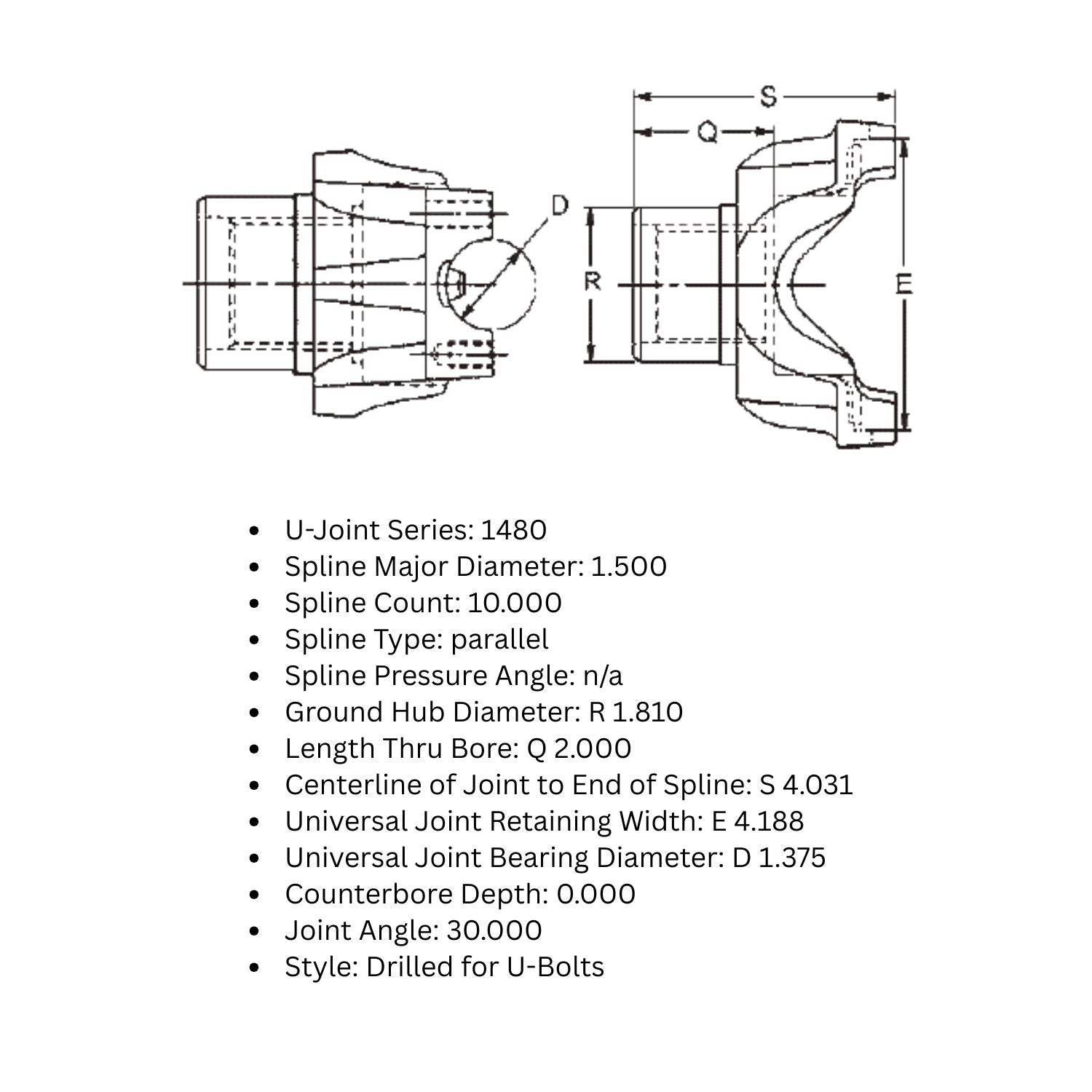

Specifications
Specification Details
Manufacturer Spicer / Wide Open Design
Product Type Driveshaft Yoke
U-Joint Series 1480
Spline Major Diameter 1.500"
Spline Count 10-Spline
Spline Type Parallel
U-Joint Retention U-Bolt
WOD Modification Machined for U-Bolt Retention
U-Joint Bearing Cap Diameter 1.375"
U-Joint Retaining Width 4.188"
Maximum Joint Angle 30°
Ground Hub Diameter 1.810"
Length Through Bore 2.000"
Joint Centerline to End of Spline 4.031"
Counterbore Depth 0.000"
Primary Application 1480-Series Custom Driveshaft & Carrier Bearing Systems
Fitment

Best Suited For:

  • WOD Single Ended Carrier Bearing systems
  • 1480-series driveshafts
  • Carrier bearing and intermediate shafts
  • Multi-piece driveshaft systems
  • Rock bouncers and competition crawlers
  • High-horsepower off-road buggies
  • Custom tube chassis vehicles

Fitment Requirements:

  • 1.500" major diameter, 10-spline shaft
  • 1480-series U-joint
  • 1.375" U-joint bearing cap diameter
  • 4.188" U-joint retaining width
  • U-bolt style U-joint retention

Fitment Notes:

  • Compatible with the WOD Single Ended Carrier Bearing.
  • Maximum specified joint angle is 30°.
  • Verify shaft spline diameter and spline count before ordering.
  • Driveshaft operating angle should be checked through the complete suspension travel of the vehicle.
FAQ

What shaft does this 1480 yoke fit?

This yoke is designed for a shaft with a 1.500" spline major diameter and 10 parallel splines. Verify both measurements before ordering for a custom driveline application.

What U-joint does this yoke use?

This yoke uses a standard 1480-series U-joint with a 1.375" bearing cap diameter and 4.188" retaining width.

Will this yoke fit the WOD Single Ended Carrier Bearing?

Yes. This yoke is compatible with the WOD Single Ended Carrier Bearing, making it useful for 1480-series carrier bearing and intermediate driveshaft assemblies.

Why does Wide Open Design machine this yoke for U-bolts?

Wide Open Design machines the yoke to replace the original strap-style U-joint retention with a U-bolt retention system. This is the configuration we use for heavy-duty custom 1480 driveline applications.

What other WOD driveline components work with this yoke?

This yoke can be incorporated into custom 1480 driveline systems using the WOD 1480 Driveshaft Builder Kit and WOD 1480 Carrier Bearing Shaft Builder Kit.
