Name: Radflo 2.0 Hydraulic Bump Stop - 1.25” Shaft
Brand: Radflo Suspension
SKU: 5SB-001-00
Price: 313.5 USD
Availability: InStock

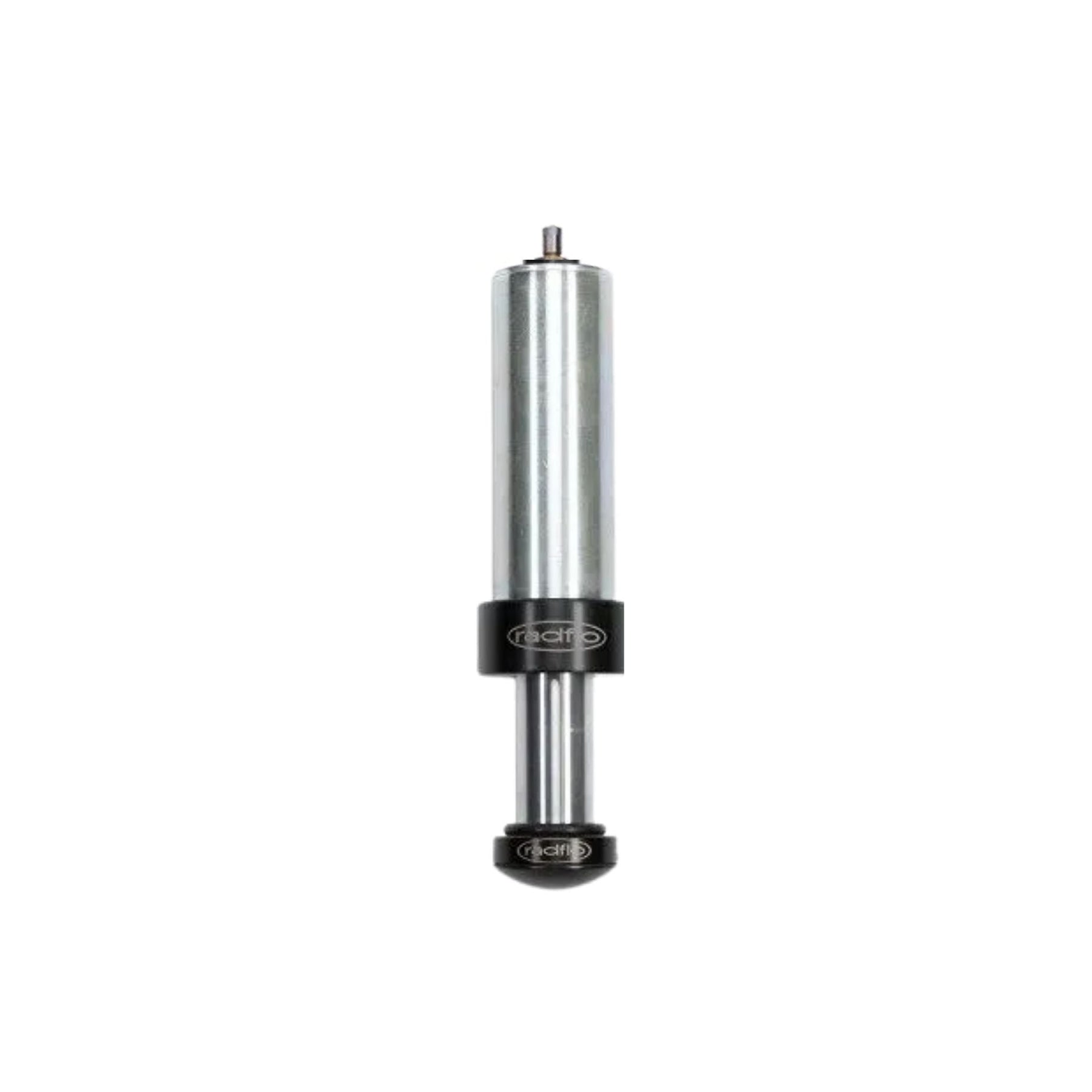

Radflo 2.0 Hydraulic Bump Stop - 1.25” Shaft

$313.50

Shipping calculated at checkout.

Quantity

The Radflo Off-Road 2.0 Hydraulic Pinch Mount Bump Stop is engineered to control hard suspension. Using velocity sensitive damping, it acts as a secondary shock during the final inches of compression; this hydraulic bump stop progressively increases damping resistance to absorb impact energy while protecting both the vehicle and occupants from damaging stress loads.

At the core is Radflo’s exclusive Freeflo® Racing Piston, combined with a massive 1.25" chrome plated alloy steel shaft, CNC-machined bronze rod guide, and multi-direction sealing system, this bump stop is built to survive the harshest off-road environments. Stroke options of 2", 3", or 4" allow proper integration into a wide range of suspension designs and mounting constraints. Every unit is fully rebuildable, serviceable, and tunable, ensuring long term performance and virtually unlimited service life.

Includes:

Radflo 2.0 Hydraulic Bump Stop (Pinch Mount
Travel length selected at purchase (2", 3", or 4")
Sold individually

Product Type: Hydraulic Pinch Mount Bump Stop
Body Diameter: 2.0
Travel Options: 2", 3", or 4"
Rod Shaft Diameter: 1.25"
Rod Material: Mirror-Polished Alloy Steel
Rod Finish: Chrome Plated
Body Material: SSID Alloy Steel Tube
Body Finish: Clear Cadmium Plating
Body Caps / Eyelets: CNC-Machined 6061 Aluminum
Body Caps Finish: Black Anodized
Rod Guide: CNC-Machined Bronze with PTFE Coating
Piston: Radflo Aluminum Freeflo® Racing Piston
Seals: Quad-Ring and Lip Seal Combination (Rebuildable)
Valving Type: Velocity Sensitive Deflective Disc
Valving Adjustment: Self-Adjusting
Valving Tuning: Consumer or Factory Tunable
Oil: Radflo High-Temp Foam Resistant Suspension Fluid
Pressurization: Nitrogen Gas
Nitrogen Pressure: 200 PSI
Serviceability: Consumer or Factory Serviceable

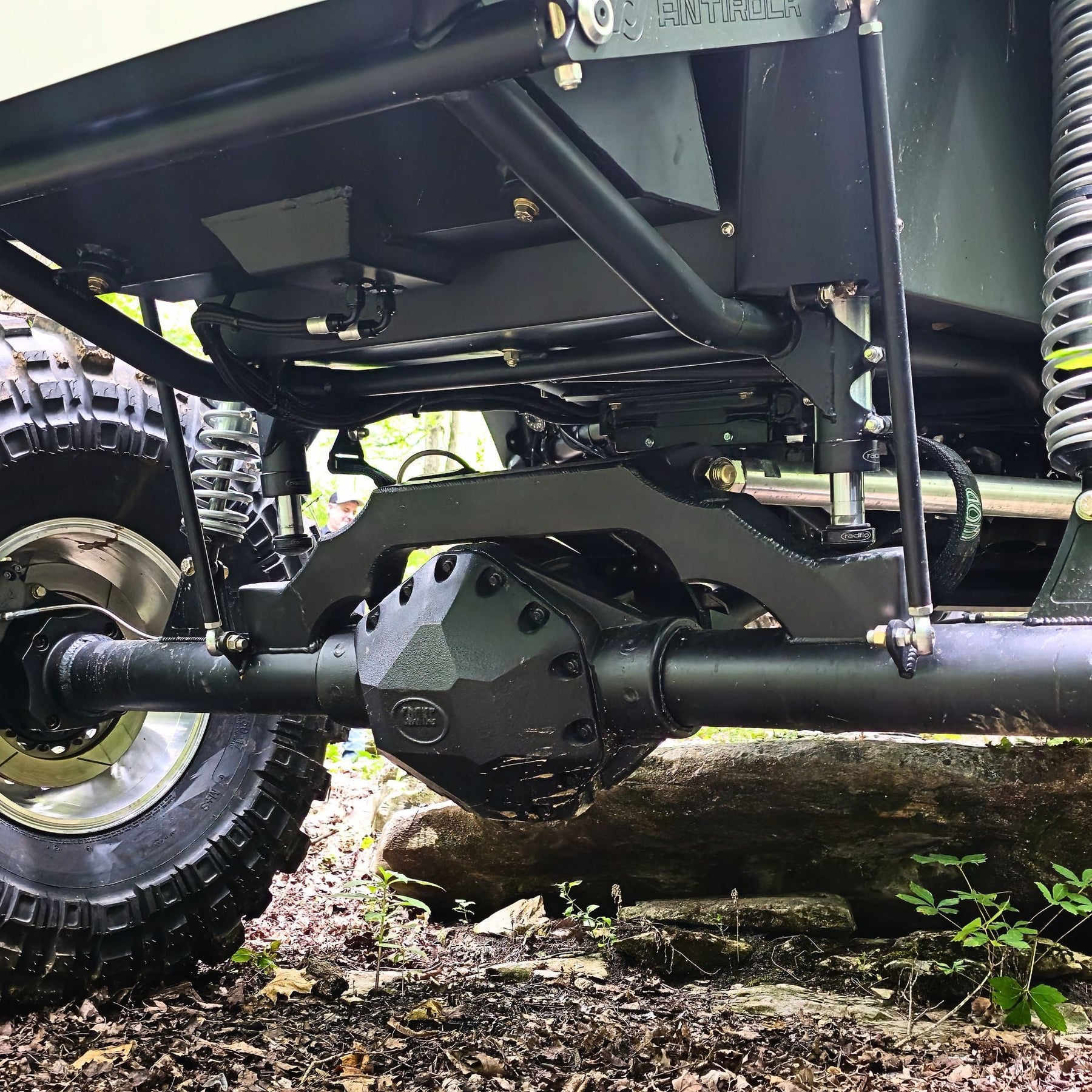

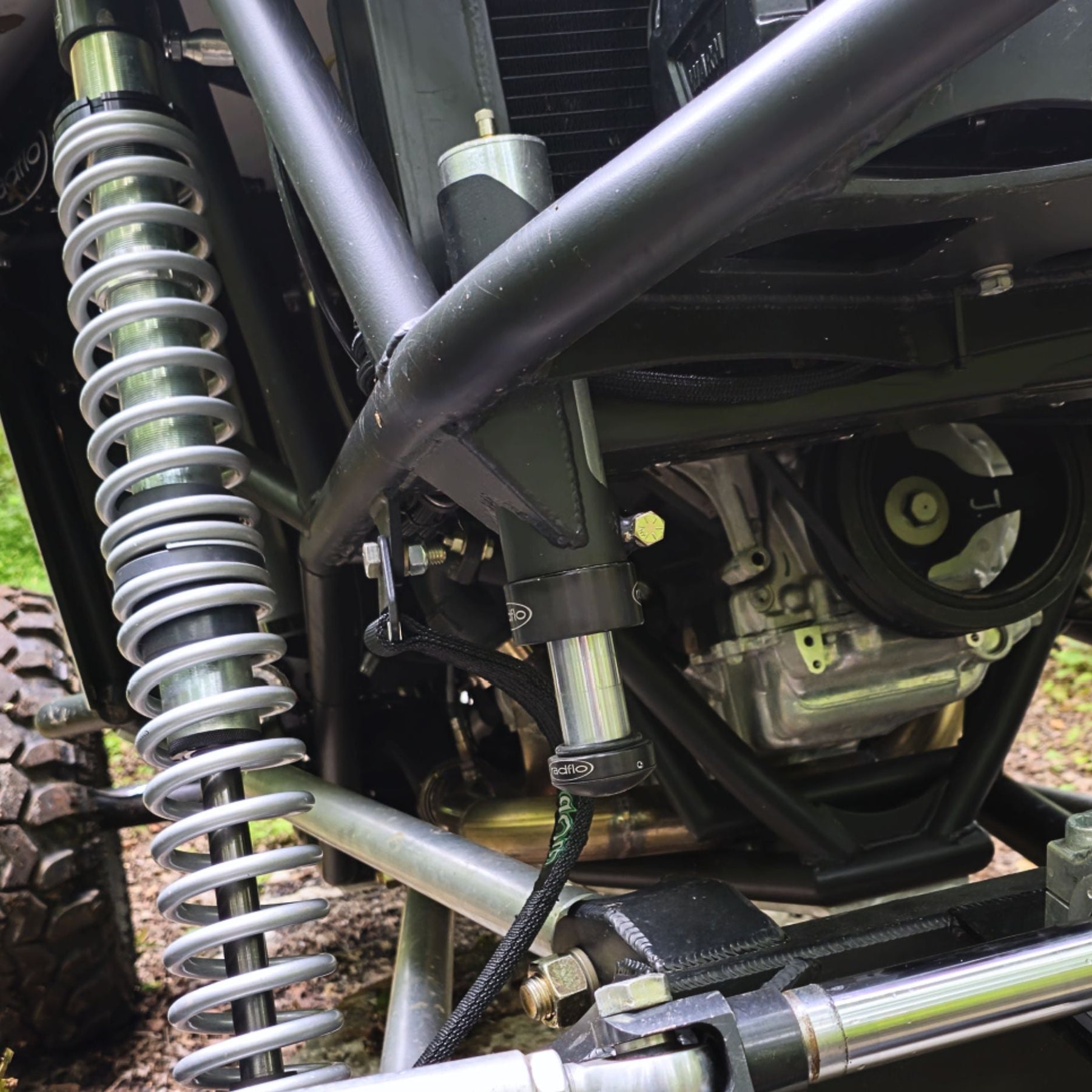

Universal Fitment
Designed for custom off-road suspension systems
Ideal for rock crawlers, prerunners, desert trucks, Ultra4, buggies, and trail rigs
Proper placement and engagement height should be matched to suspension travel and shock setup

Hydraulic bump stops act as controlled energy absorbers rather than hard stops. By using velocity sensitive damping, Radflo bump stops progressively slow suspension movement during the final portion of compression—reducing peak loads on chassis components and improving vehicle stability during hard hits.

When tuned correctly, they dramatically extend suspension component life while improving driver confidence in aggressive terrain.
