WOD Front Axle Bump Stop Pads – 3/8" Steel – Pair
WA121023

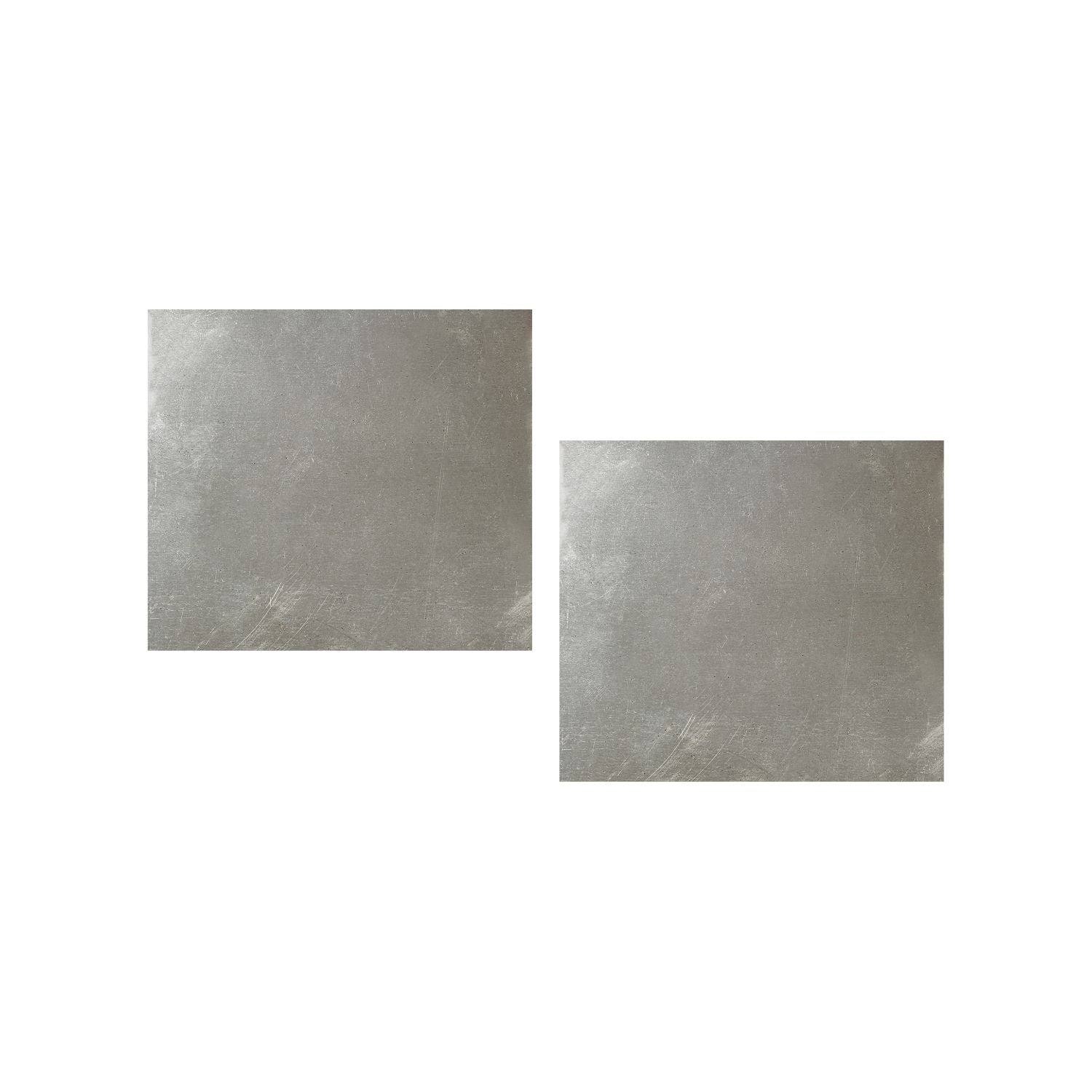

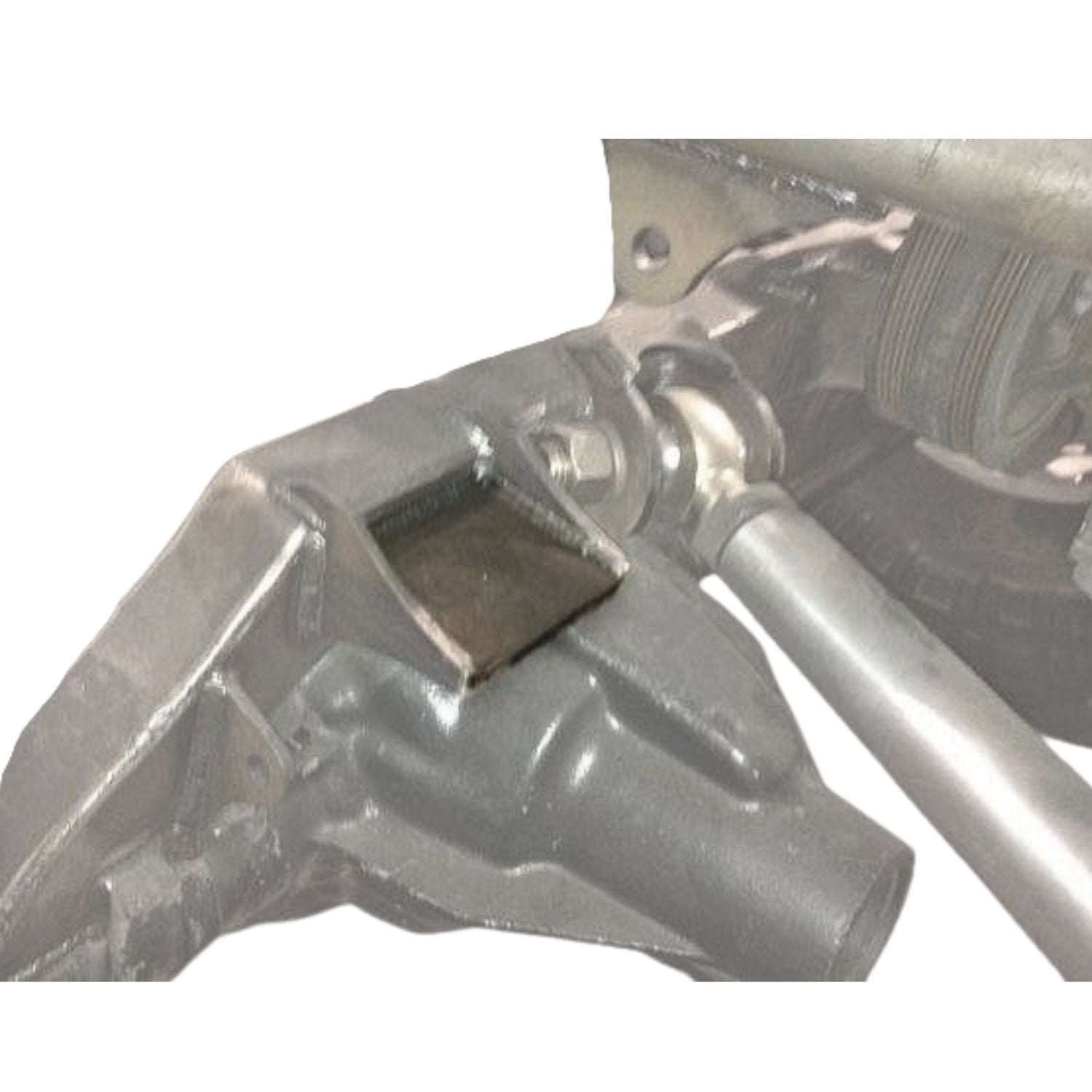

The WOD Front Axle Truss Bump Stop Pads provide a strong, flat landing surface for hydraulic bump stops and air bumps on custom off-road suspension systems. Designed for use with Wide Open Design Dana 60 Front Axle Trusses, these weld-on strike plates can also be adapted to compatible aftermarket Dana 60, GM 14-Bolt, and fabricated axle trusses. Each pad measures 4" wide x 3.5" tall, providing a consistent contact surface for proper bump stop engagement.
Precision laser cut from 3/8" high-strength steel plate, these heavy-duty bump stop pads are built to withstand repeated suspension impacts while reducing fabrication time. Sold as a pair, they provide matching landing surfaces for left and right bump stops on rock crawlers, rock bouncers, off-road buggies, and custom race vehicles. Their weld-ready design allows builders to position the pads around suspension travel, axle clearance, and bump stop alignment.
Includes:
- (2) WOD Front Axle Truss Bump Stop Pads
Note: Welding and custom fabrication are required. Bump stops, bump cans, and bump can mounting hardware are sold separately.
Specifications
| Manufacturer | Wide Open Design |
|---|---|
| Product Type | Axle Truss Bump Stop Landing Pads |
| Material | High-Strength Plate Steel |
| Material Thickness | 3/8" (0.375") |

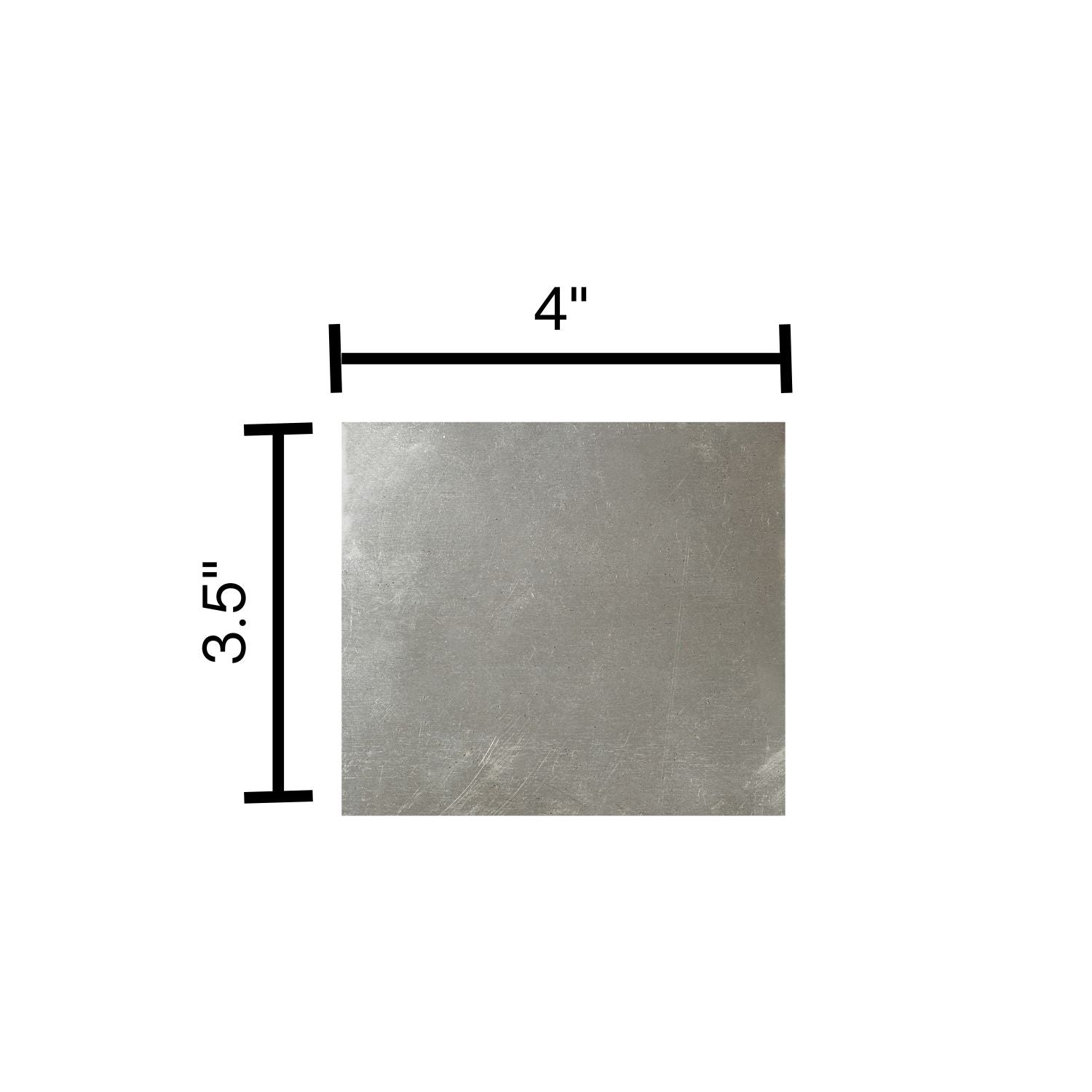

| Pad Width | 4" |
| Pad Height | 3.5" |
| Cutting Method | Precision Laser Cut |
| Installation Type | Weld-On |
| Compatible Axle Trusses | WOD Dana 60 Front Axle Trusses & Compatible Fabricated Trusses |
| Bump Stop Compatibility | Hydraulic Bump Stops & Air Bumps |
| Condition | Weld-Ready |
| Quantity | (2) Pads / Sold as a Pair |
| Primary Application | Front Axle Truss Bump Stop Strike Surfaces for Custom Off-Road Suspension |
| Country of Origin | Made in the USA |
Dimensions: Each pad measures 4" wide x 3.5" tall and is manufactured from 3/8" steel plate.
Fitment
Compatible Applications:
- Wide Open Design Dana 60 Front Axle Trusses
- Compatible Aftermarket Dana 60 Axle Trusses
- GM 14-Bolt Axle Trusses with Suitable Mounting Surfaces
- Custom Fabricated Front Axle Trusses
- Rock Crawlers, Rock Bouncers & Off-Road Buggies
- Custom Off-Road Race Suspension Systems
Bump Stop Compatibility:
- Hydraulic Bump Stops
- Air Bump Stops
- Standard & Short Air Bump Configurations
- Compatible Bump Stop Systems with Proper Strike Surface Alignment
Fitment & Installation Notes:
- Each pad measures 4" wide x 3.5" tall.
- Verify axle truss profile and available mounting surface before installation.
- Welding and fabrication are required.
- Mock up bump stops and pads before final welding.
- Cycle suspension through full compression to confirm proper bump stop contact.
- Position pads so bump stops contact the strike surface squarely without side loading.
- Check axle, steering, tire, and suspension component clearance throughout travel.
- Final trimming or fitting may be required for non-WOD axle trusses.
- Bump stops, bump cans, and axle trusses are sold separately.
Builder Note: Proper bump stop placement should be determined during suspension mockup, not after final assembly. With the axle at full compression, position each pad so the bump stop contacts the intended strike surface without side loading. Verify both sides engage at the correct point in suspension travel before final welding.
FAQ
What are the dimensions of the WOD Front Axle Truss Bump Stop Pads?
Each pad measures 4" wide x 3.5" tall and is precision laser cut from 3/8" thick high-strength steel plate.
How many bump stop pads are included?
Each kit includes two weld-on bump stop landing pads, providing a matching pair for left and right front suspension applications.
Why does a hydraulic bump stop need a landing pad?
Hydraulic bump stops apply concentrated force at the end of suspension travel. A properly positioned steel landing pad provides a flat strike surface and helps distribute that force into the axle truss rather than concentrating impact on an uneven or unsupported area.
Will these pads fit a WOD Dana 60 Front Axle Truss?
Yes. These pads are designed for integration with compatible Wide Open Design Dana 60 Front Axle Trusses. Verify pad placement and suspension clearance before welding.
Can these pads be used on a GM 14-Bolt or fabricated axle truss?
Yes. The pads can be adapted to compatible GM 14-Bolt, aftermarket Dana 60, and fabricated axle trusses with suitable mounting surfaces. Additional fitting or fabrication may be required.
Why are these bump stop pads made from 3/8" steel?
The 3/8" steel plate provides a durable strike surface for repeated suspension compression. Its thickness helps resist bending and deformation under the concentrated loads generated by hydraulic bump stops.
How should bump stop landing pads be positioned?
Position the pads during suspension mockup with the axle, shocks, links, and bump stops installed. Cycle the suspension through full compression and verify that each bump stop contacts the pad squarely before final welding.
Are the bump stops or axle truss included?
No. This listing includes two weld-on bump stop landing pads only. Hydraulic bump stops, bump cans, axle trusses, and additional mounting components are sold separately.
