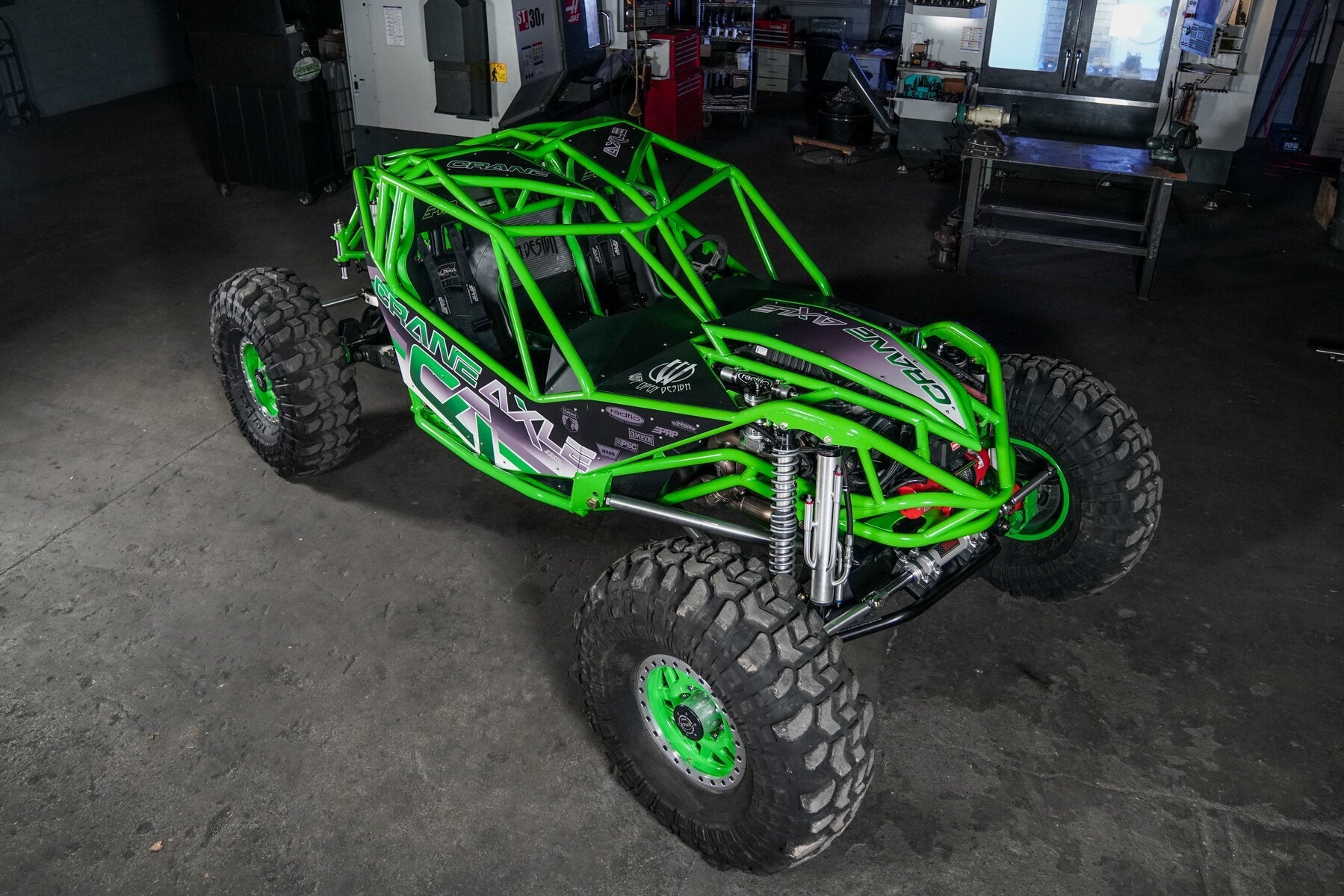

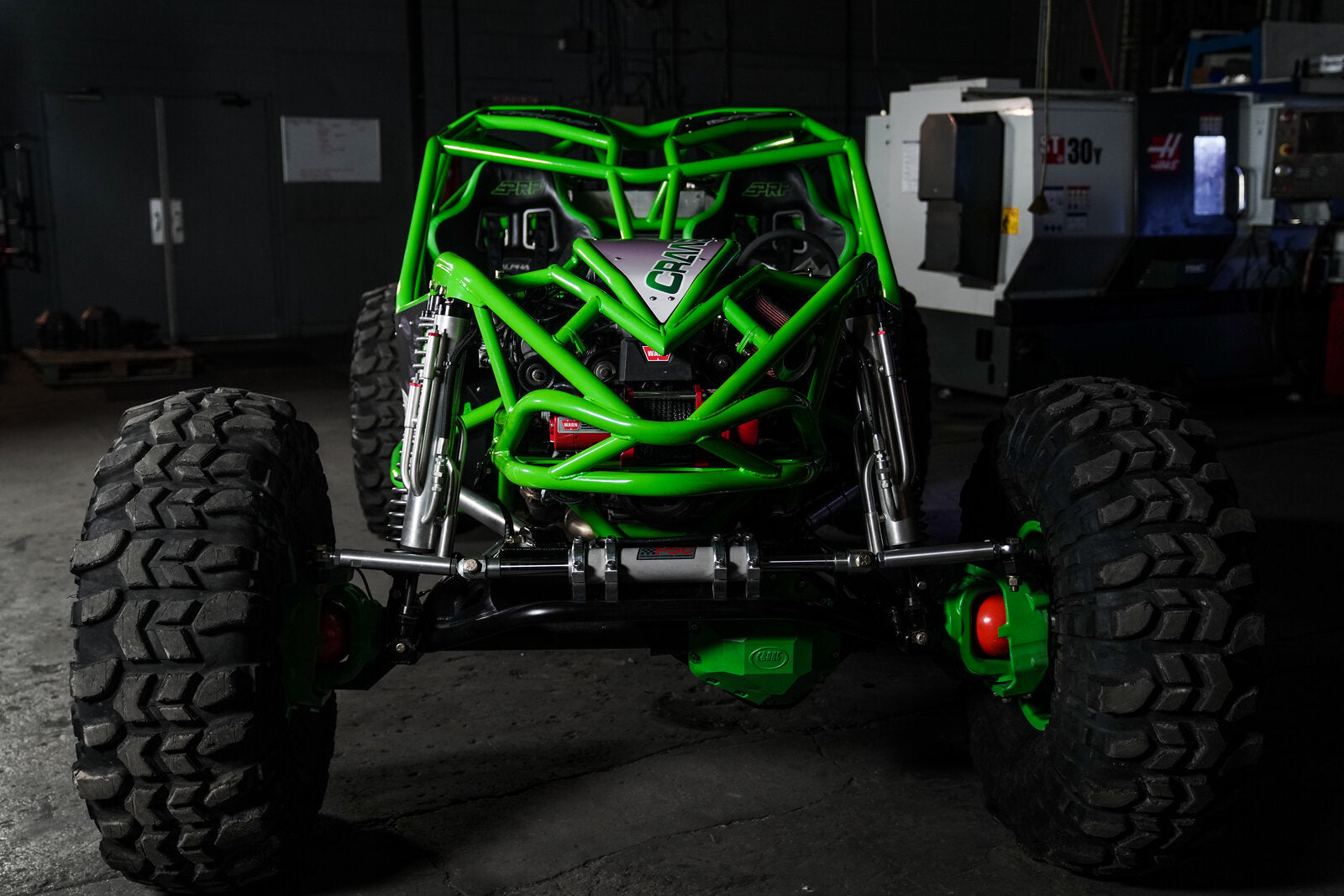

Project: The Redneck Rocket Ship | Defying Gravity
Supercharged Chaos meets Billet Precision.

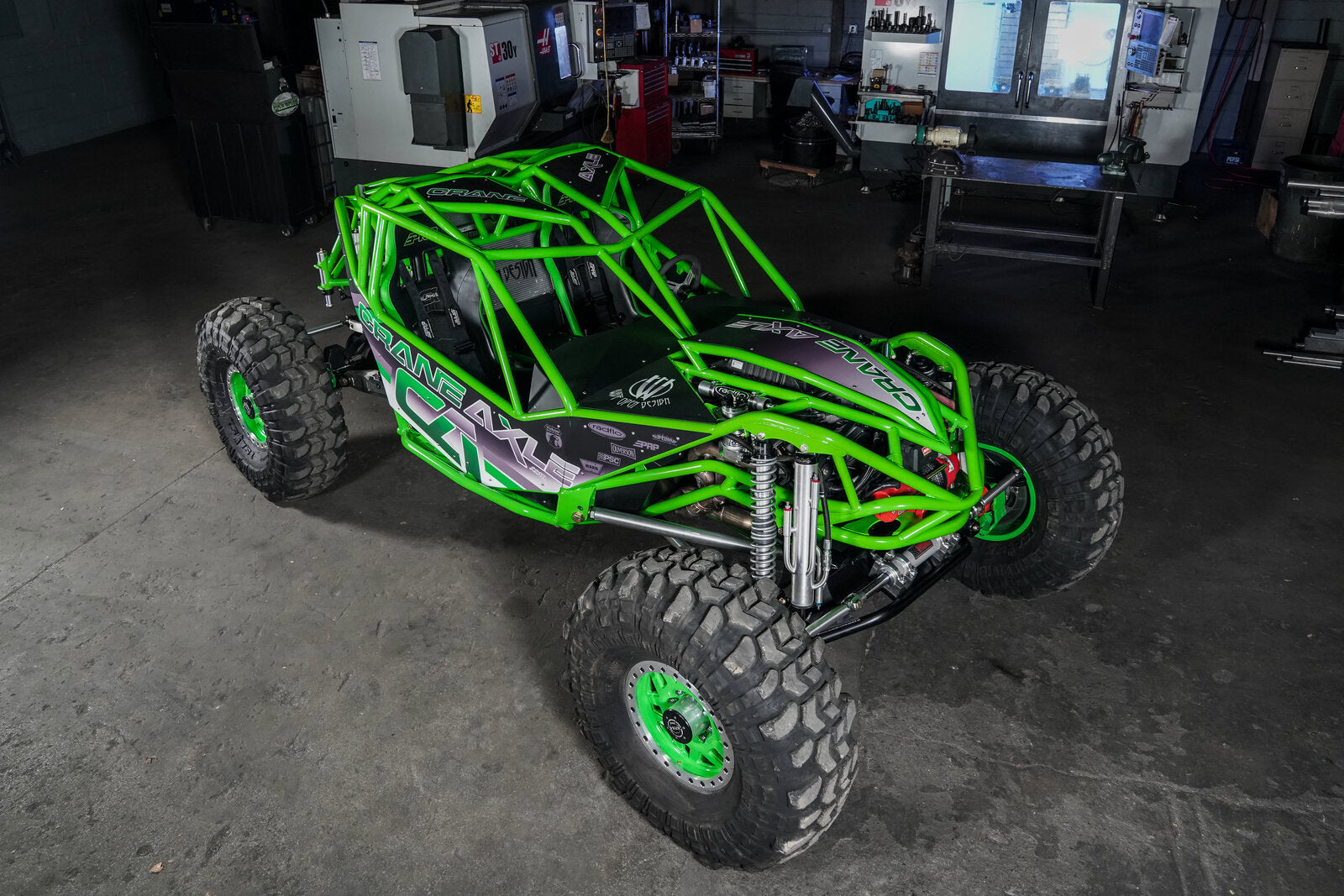

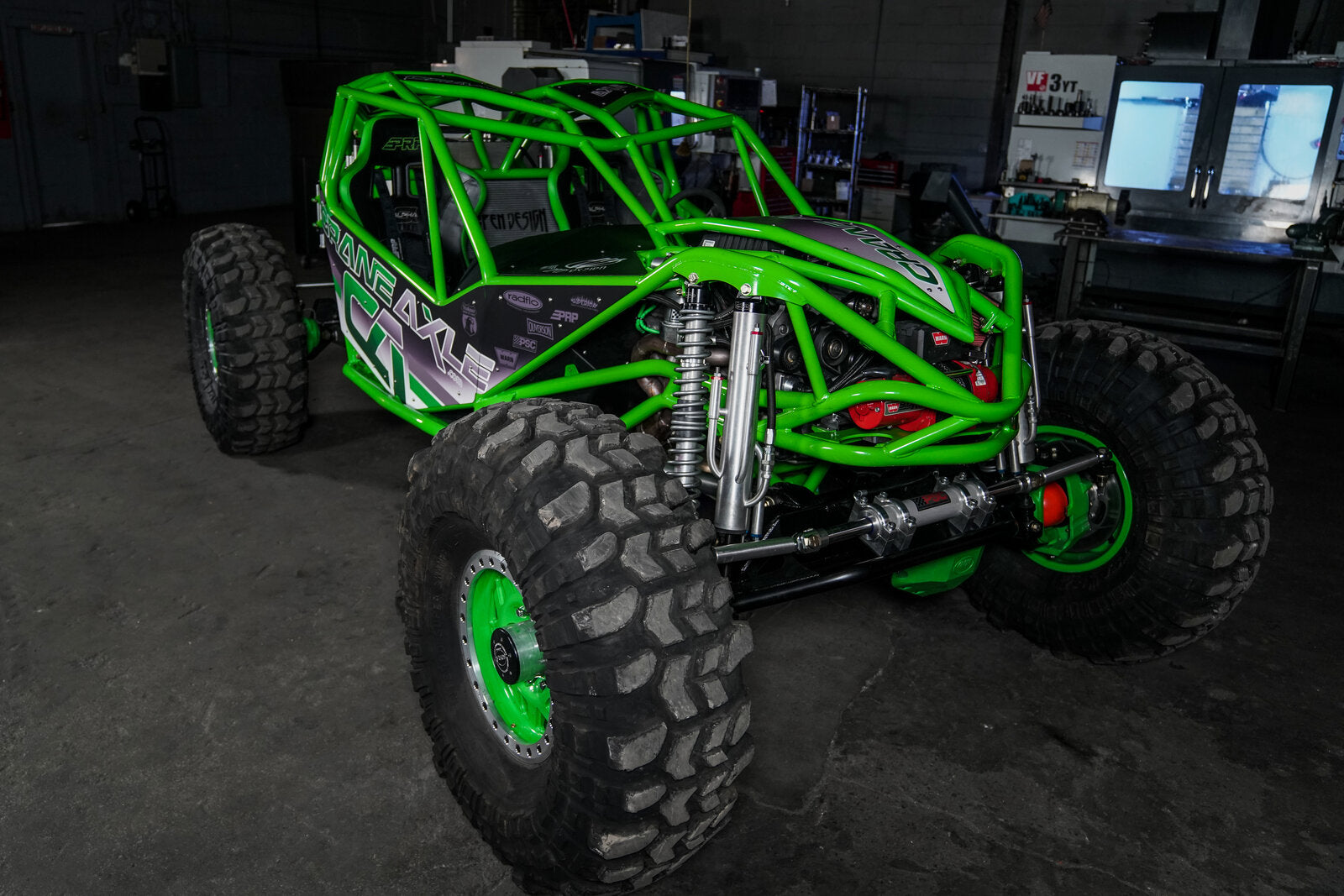

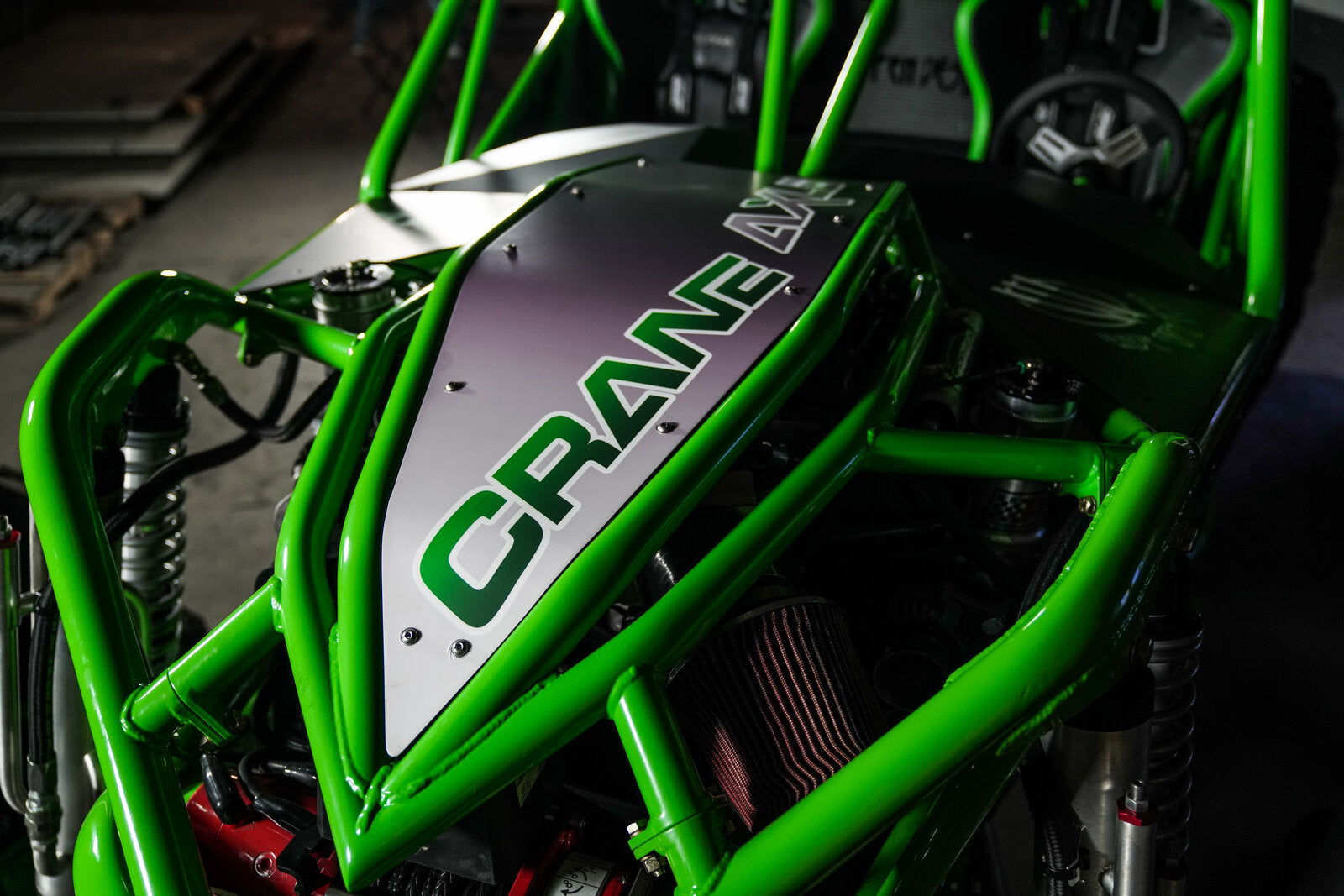

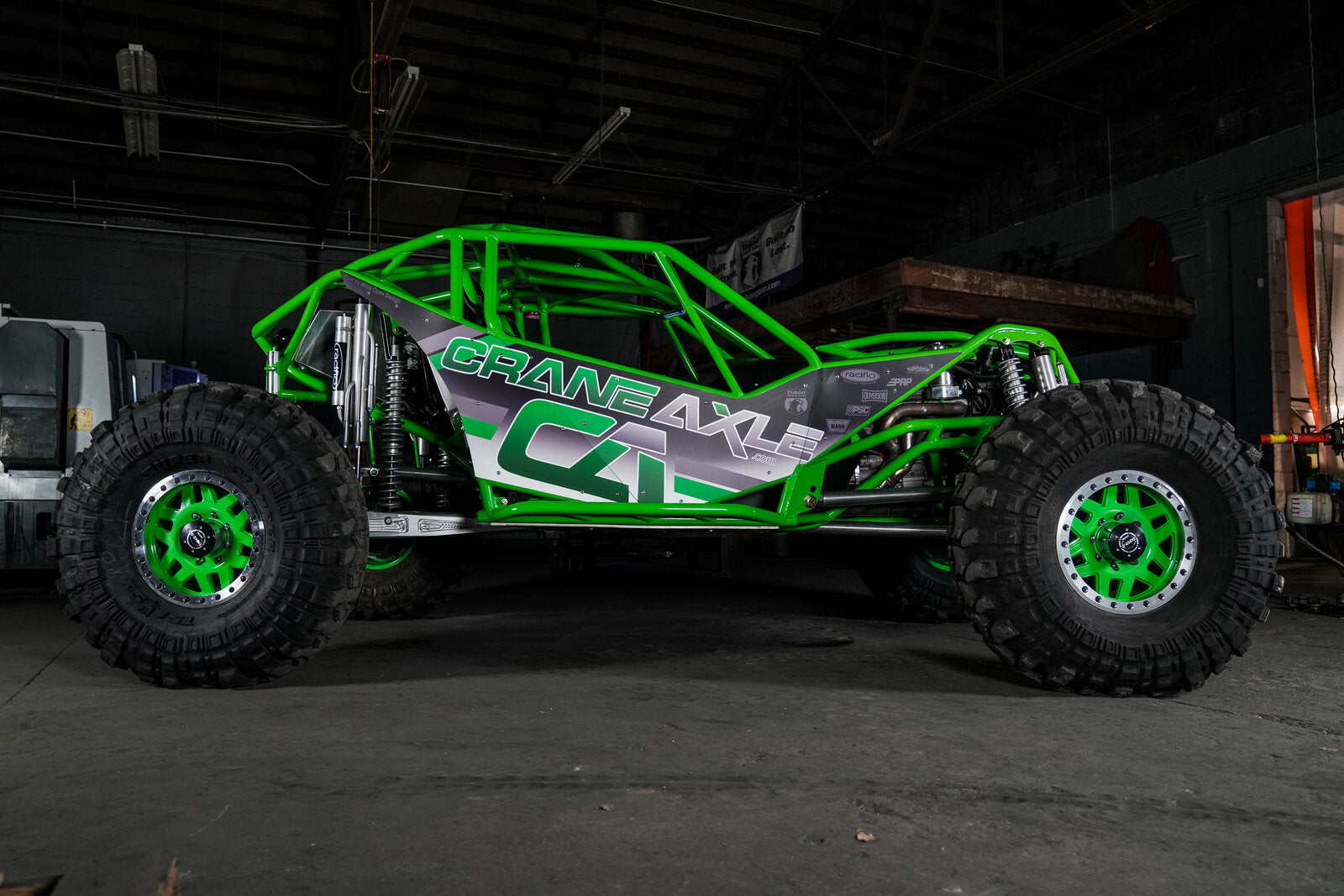

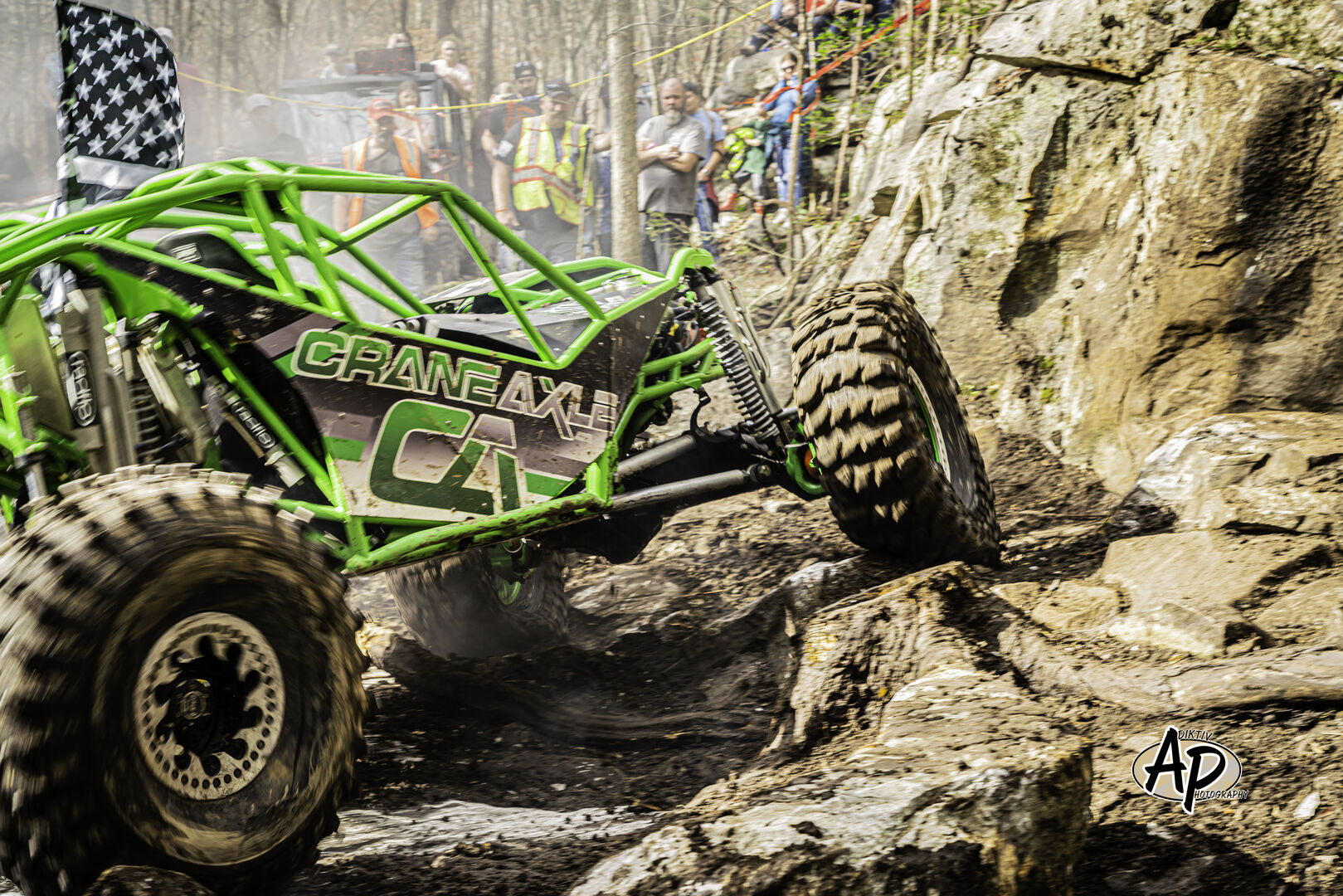

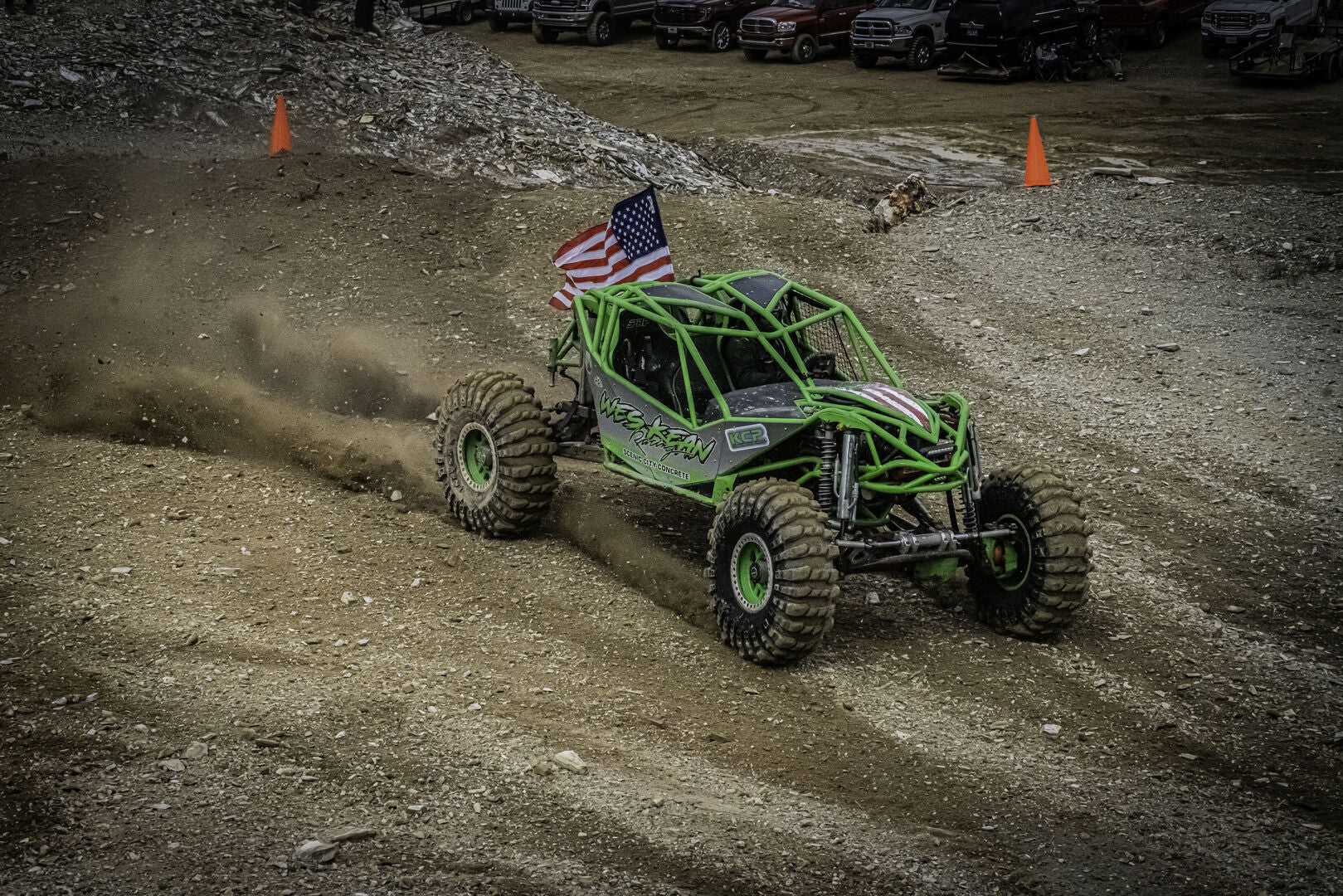

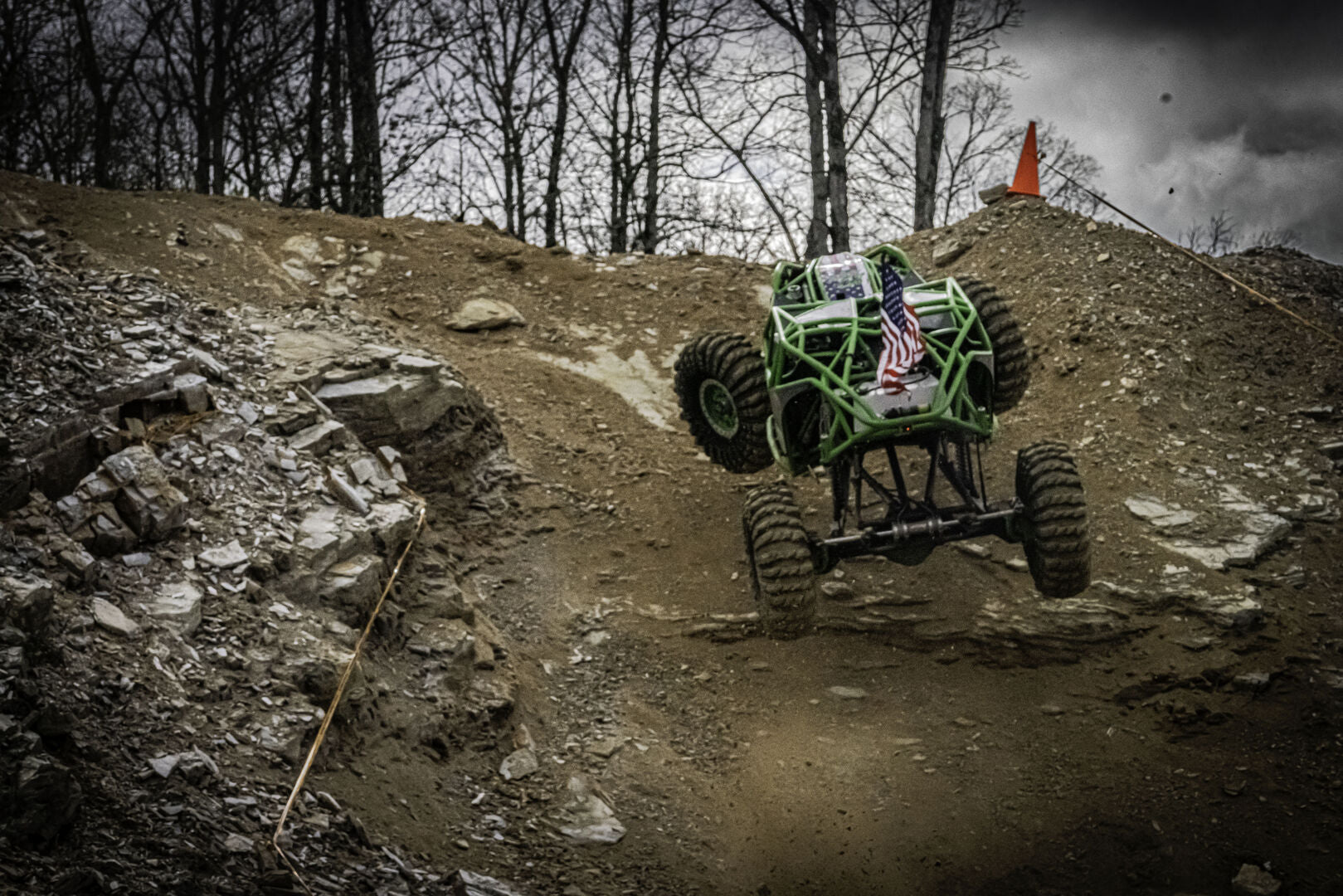

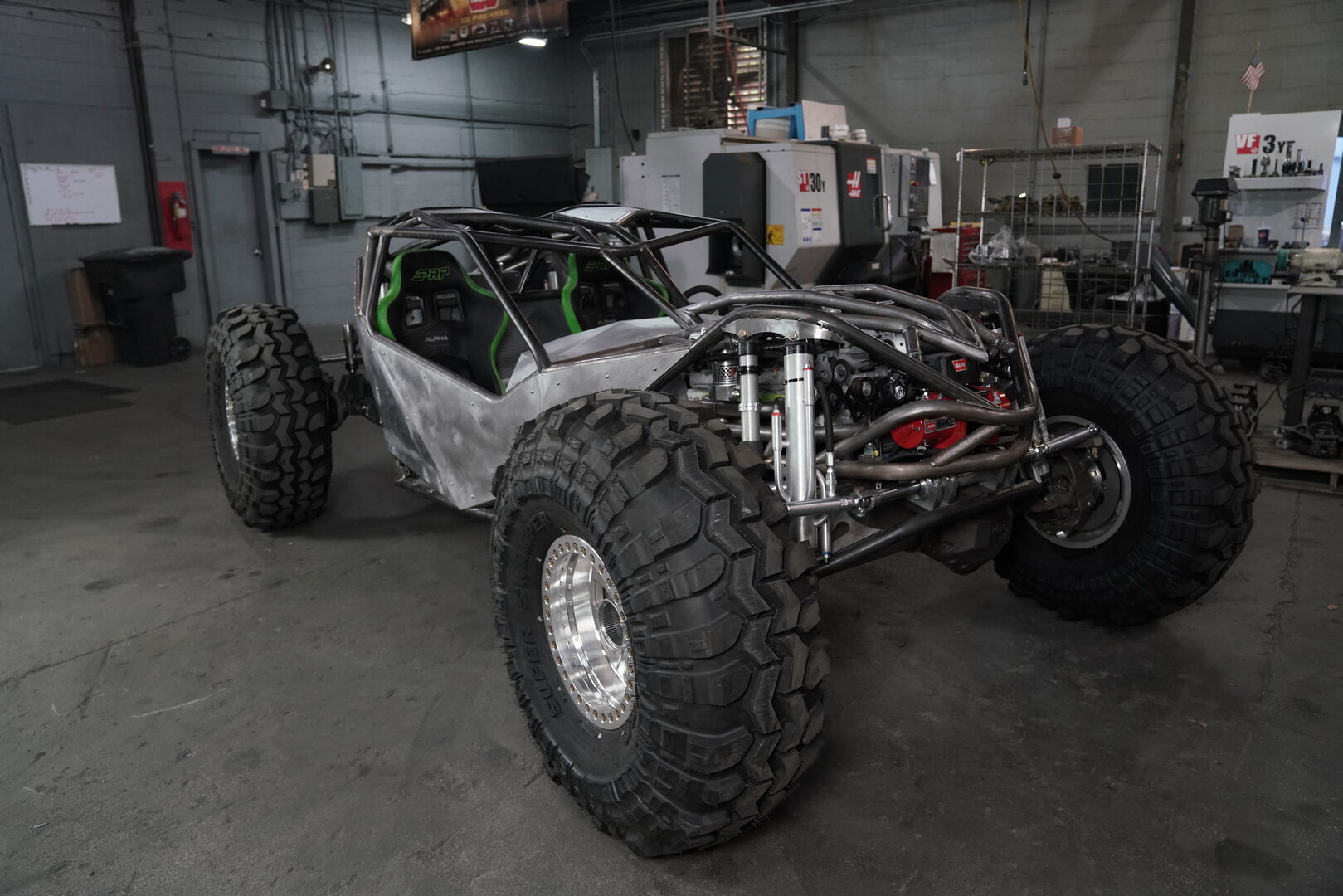

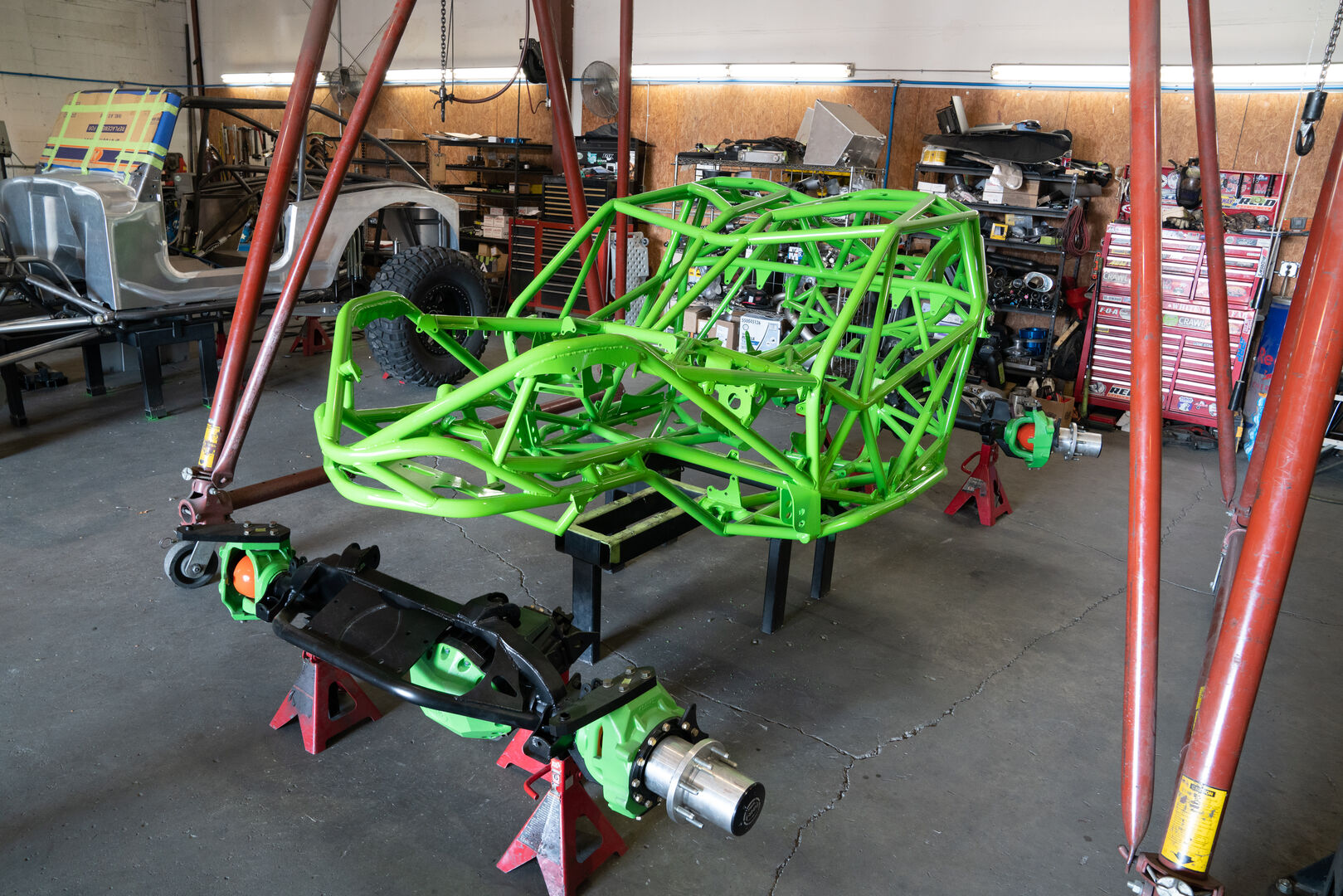

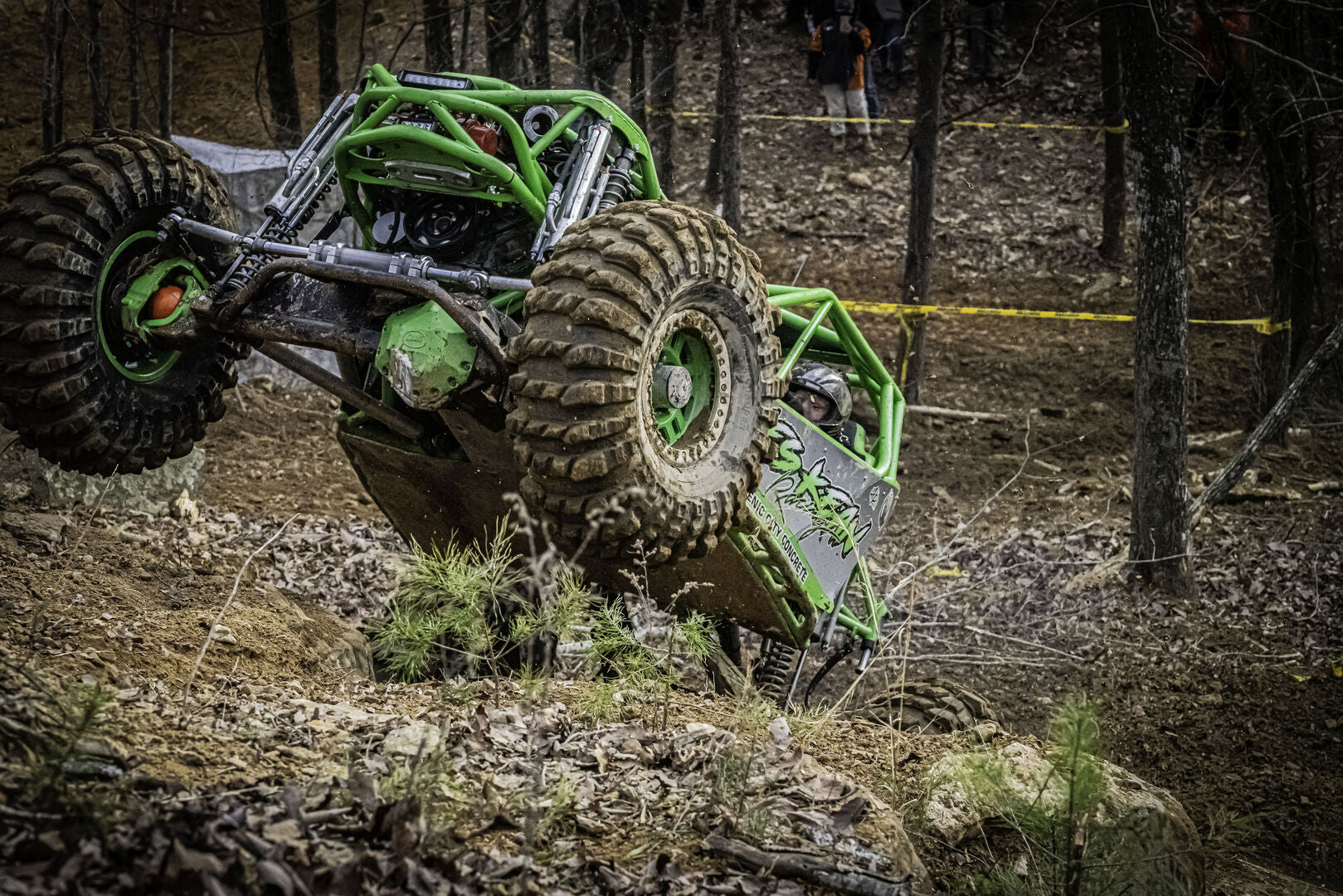

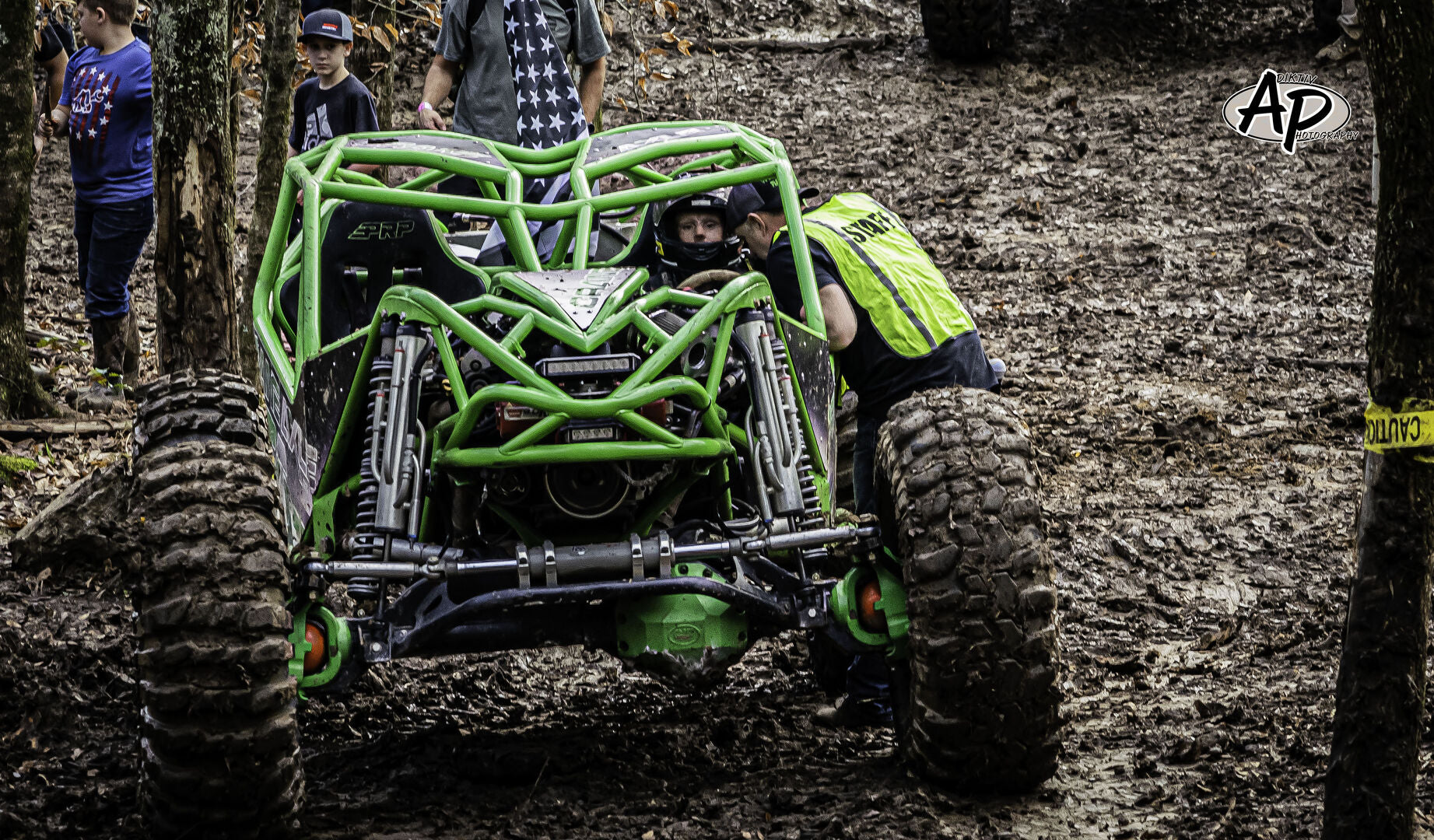

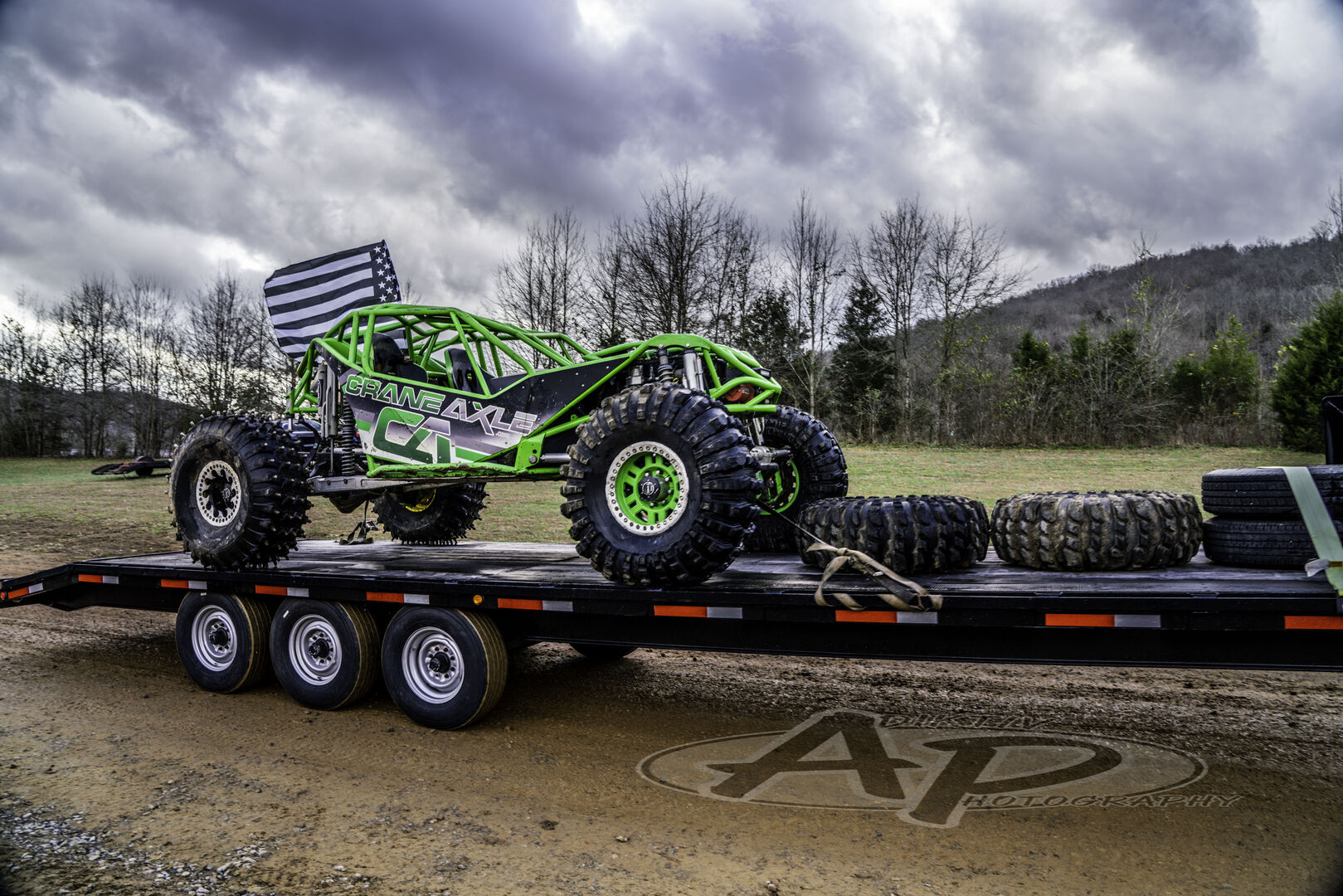

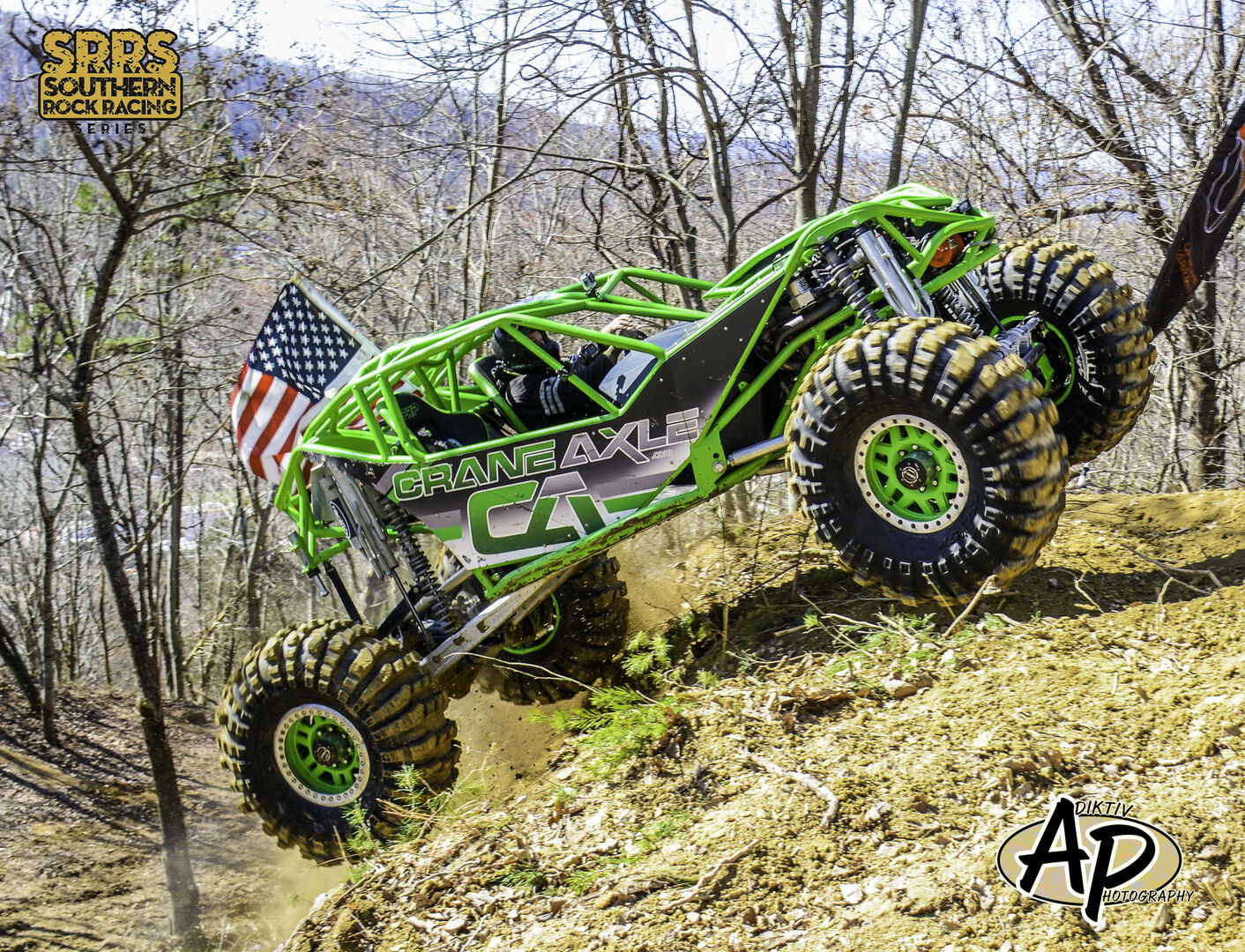

The "Redneck Rocket Ship" isn't a name—it’s a mission statement. When Wide Open Design set out to build this custom chassis, the goal wasn't just to make it fast; it was to make it unbreakable. In the world of high-horsepower hill climbing, parts are usually considered "consumables." This rig was built to change that narrative.
The Heart of the Beast:

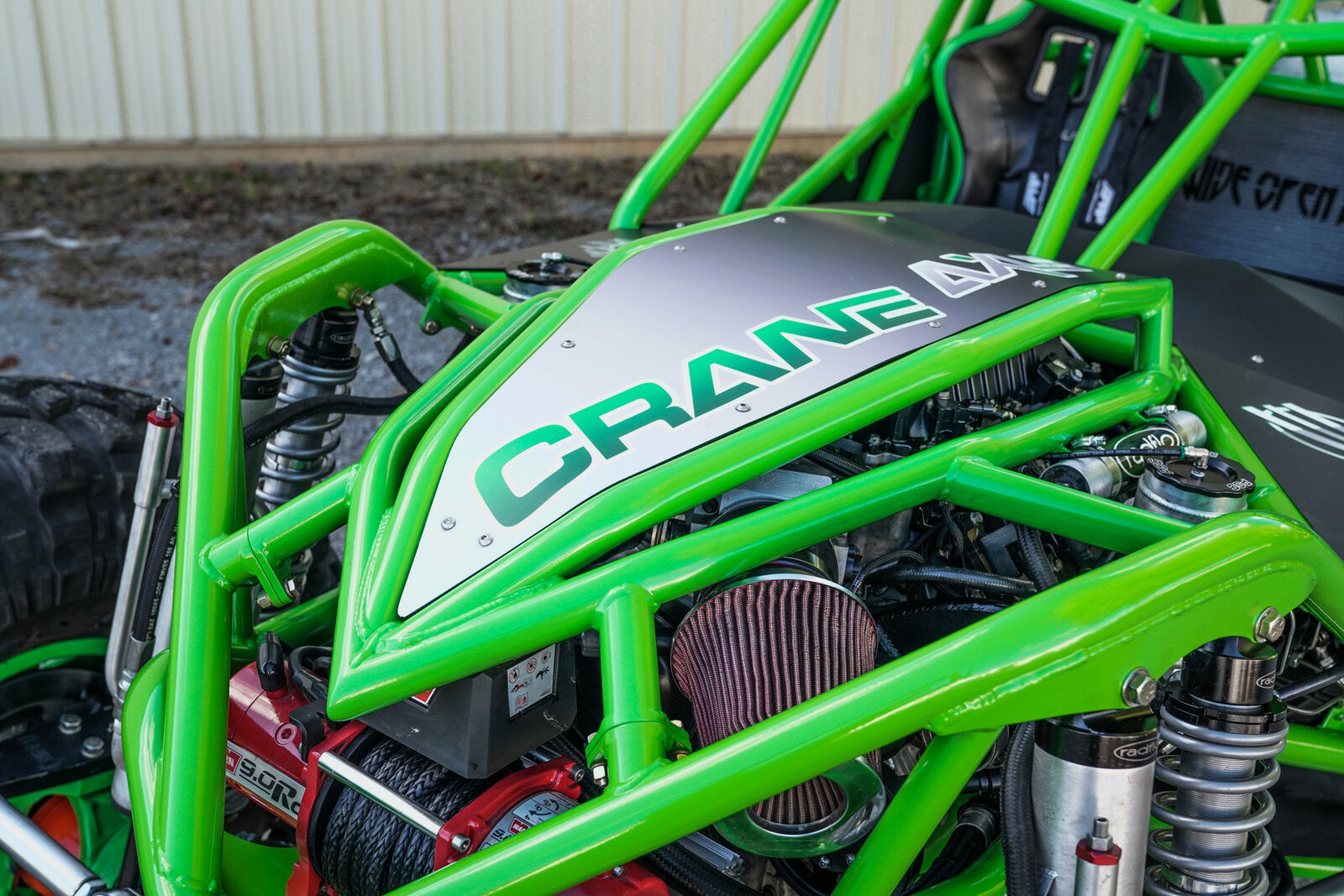

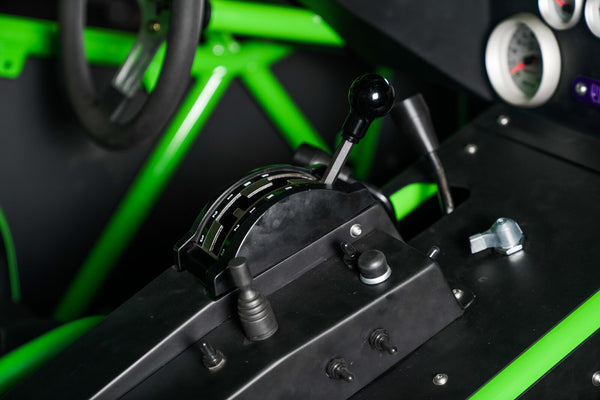

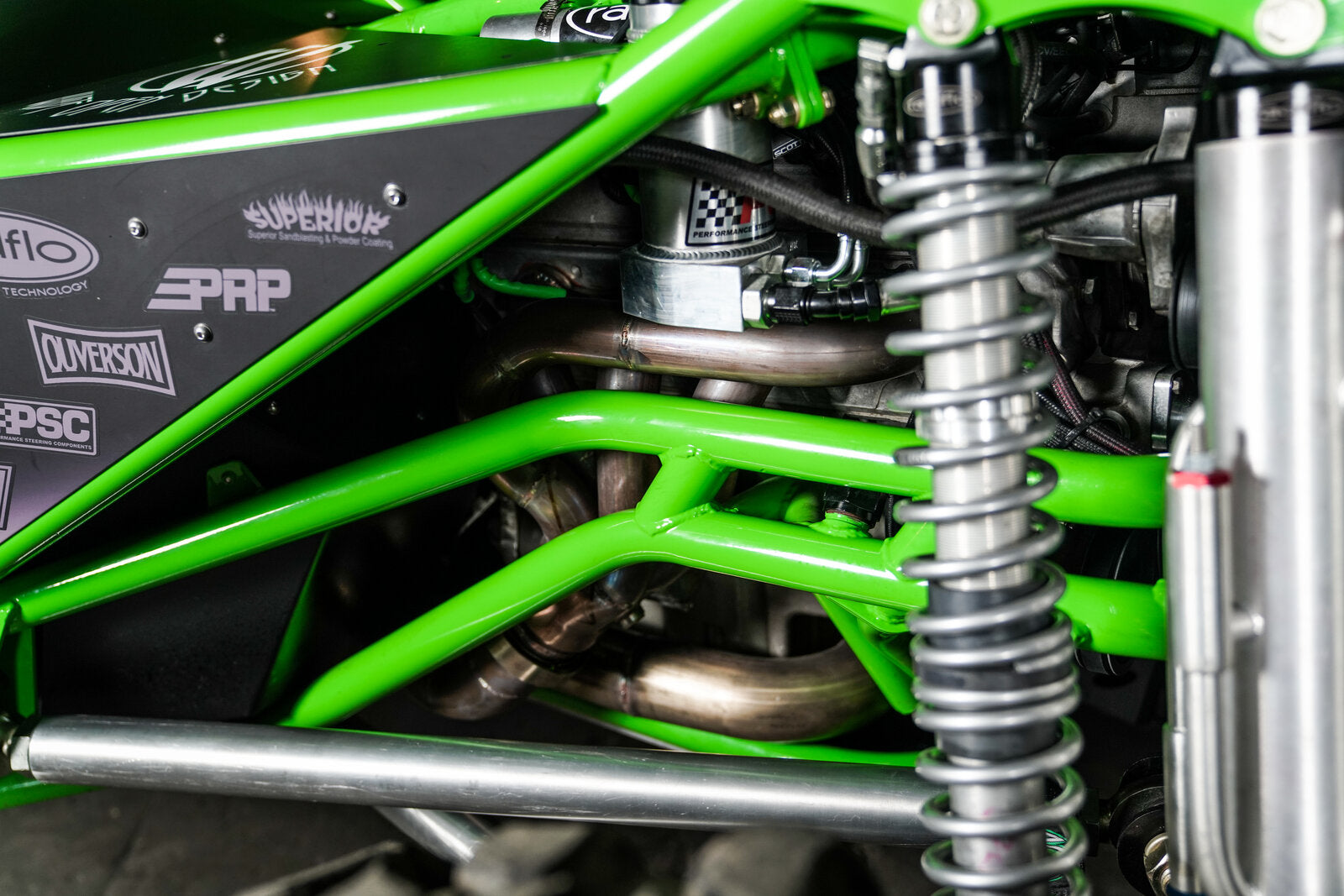

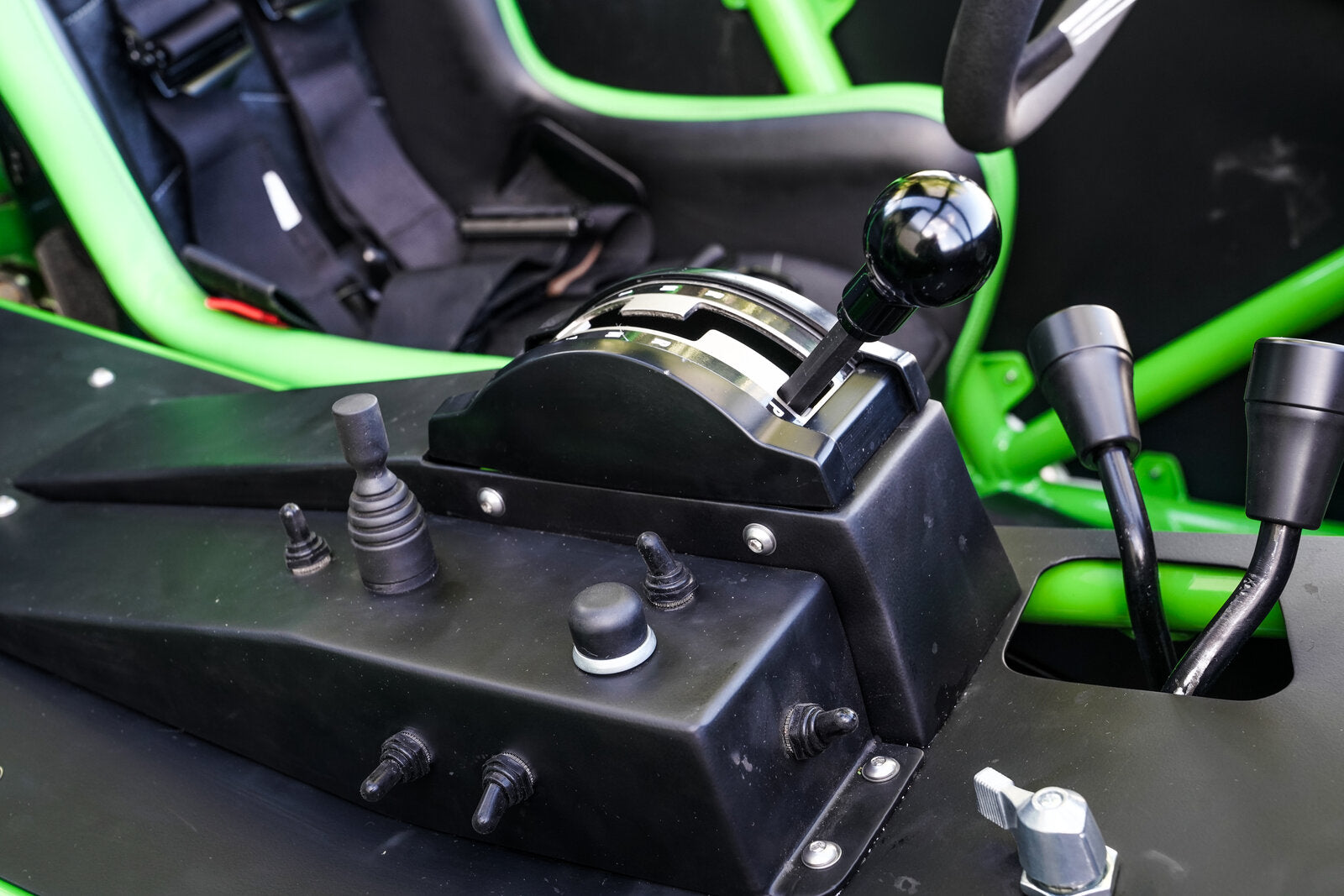

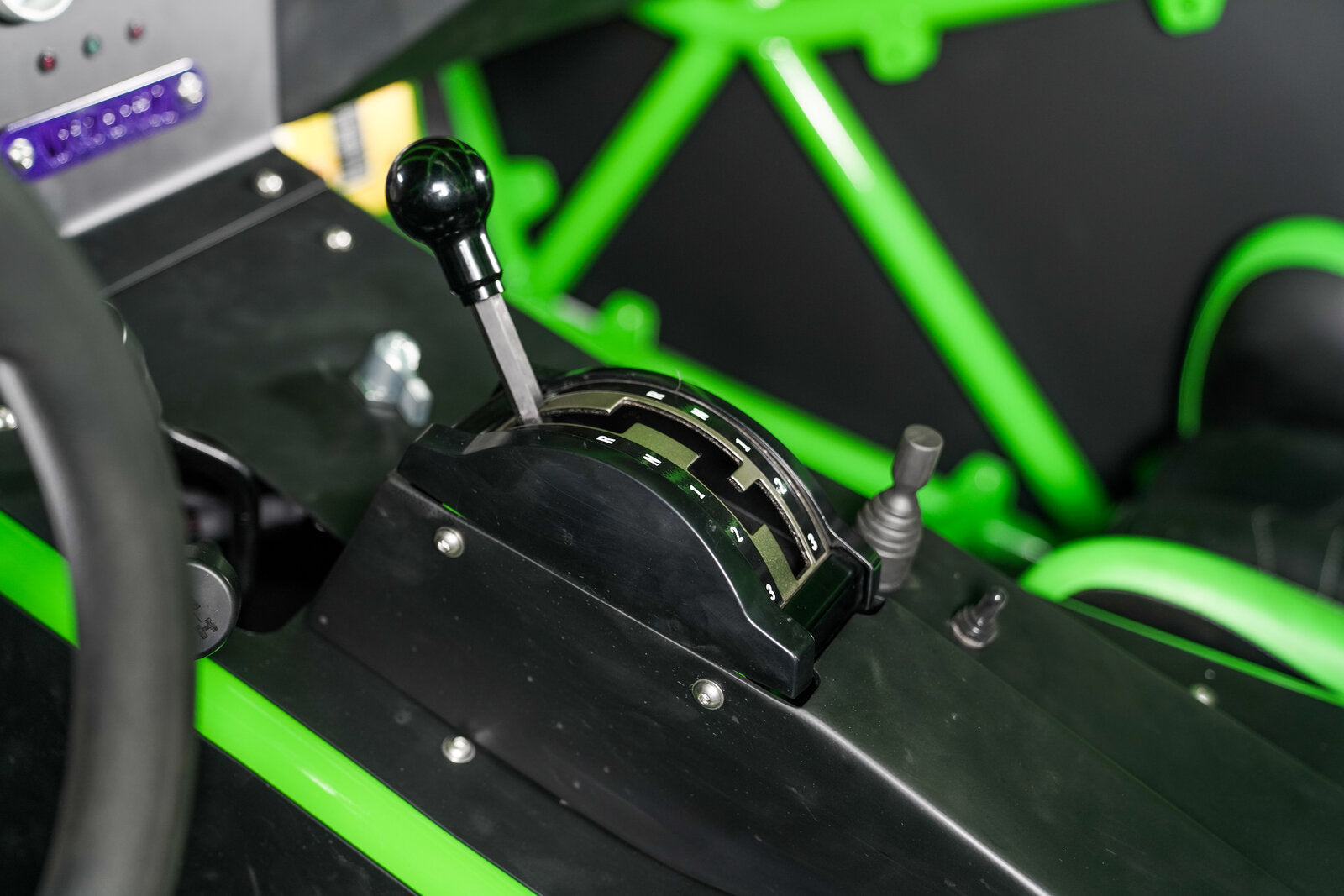

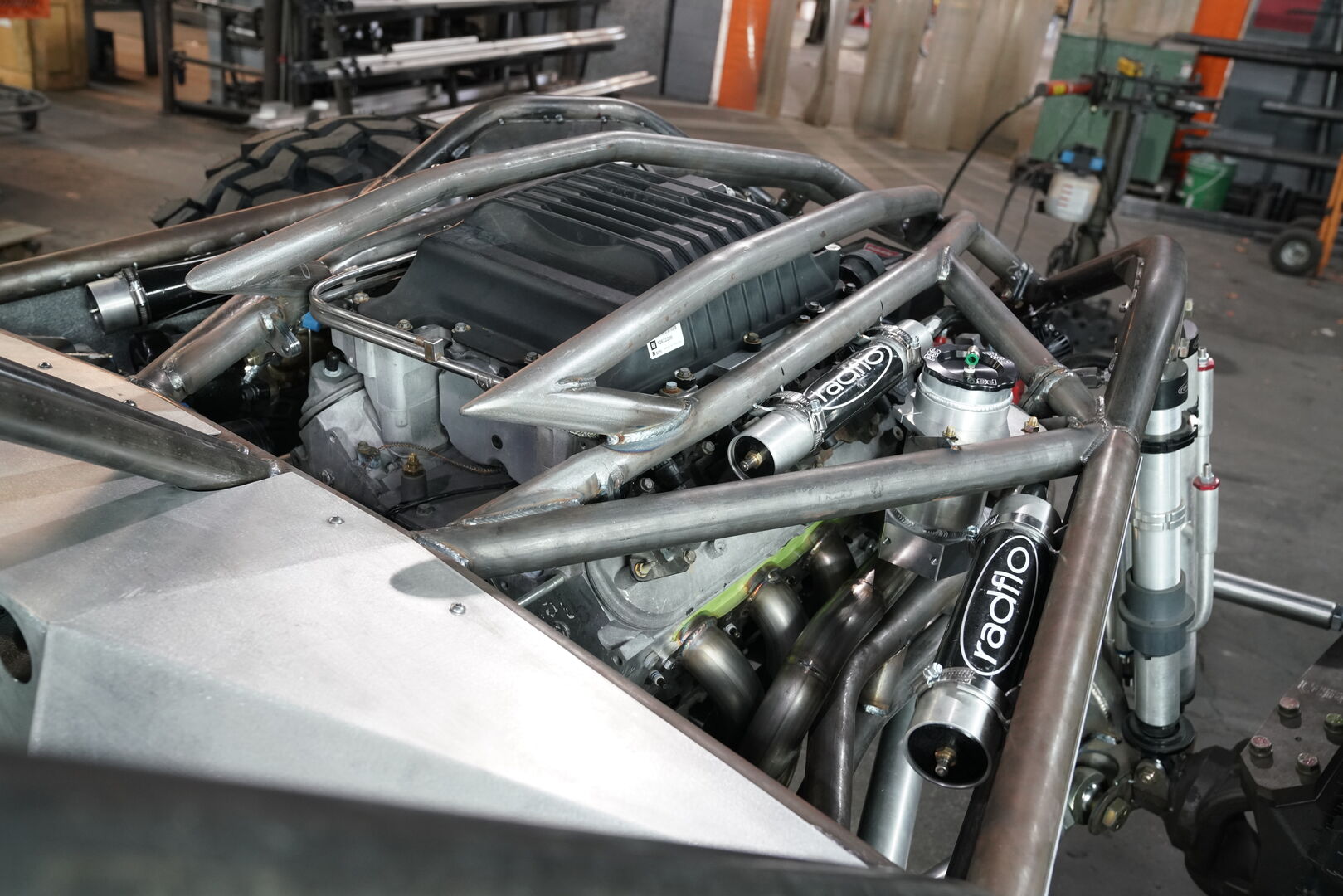

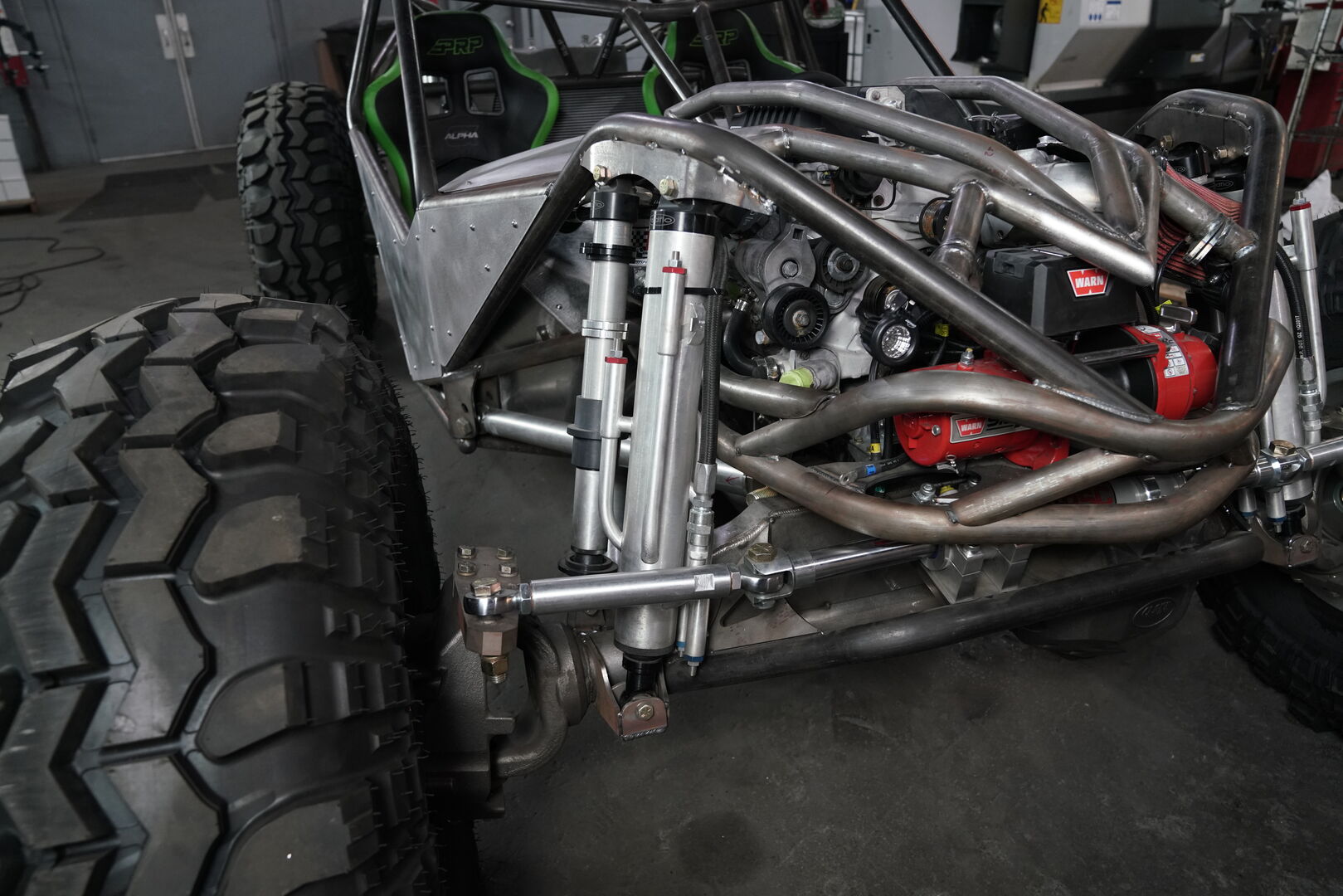

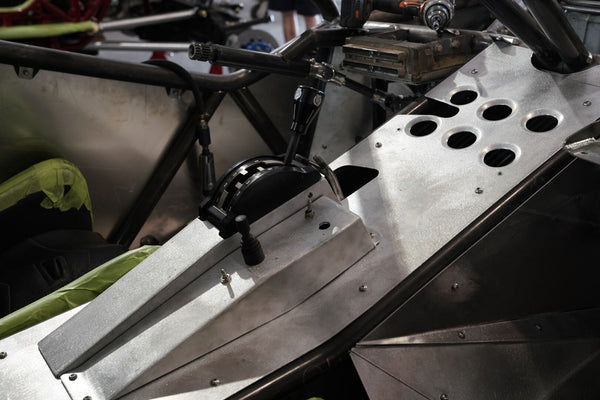

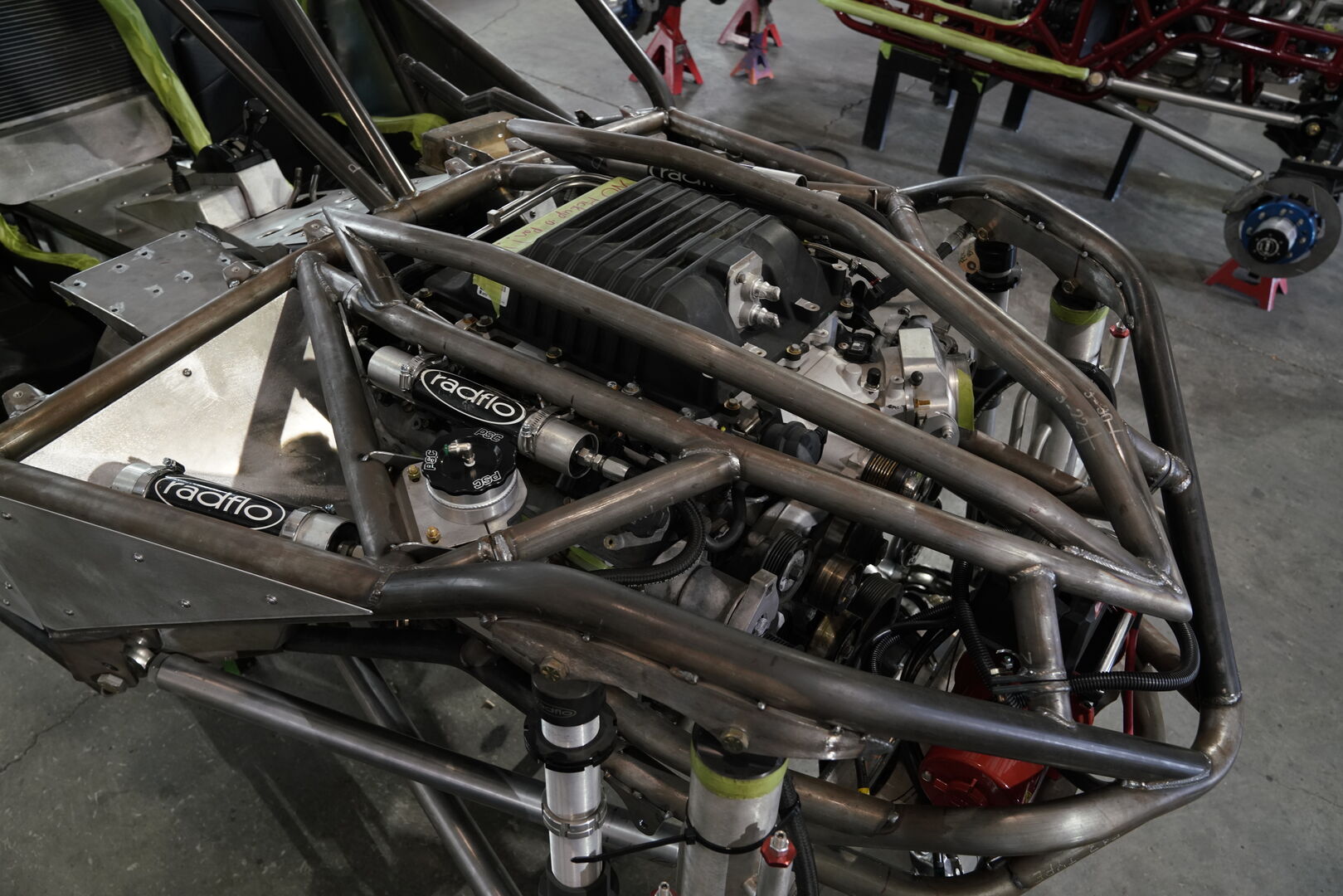

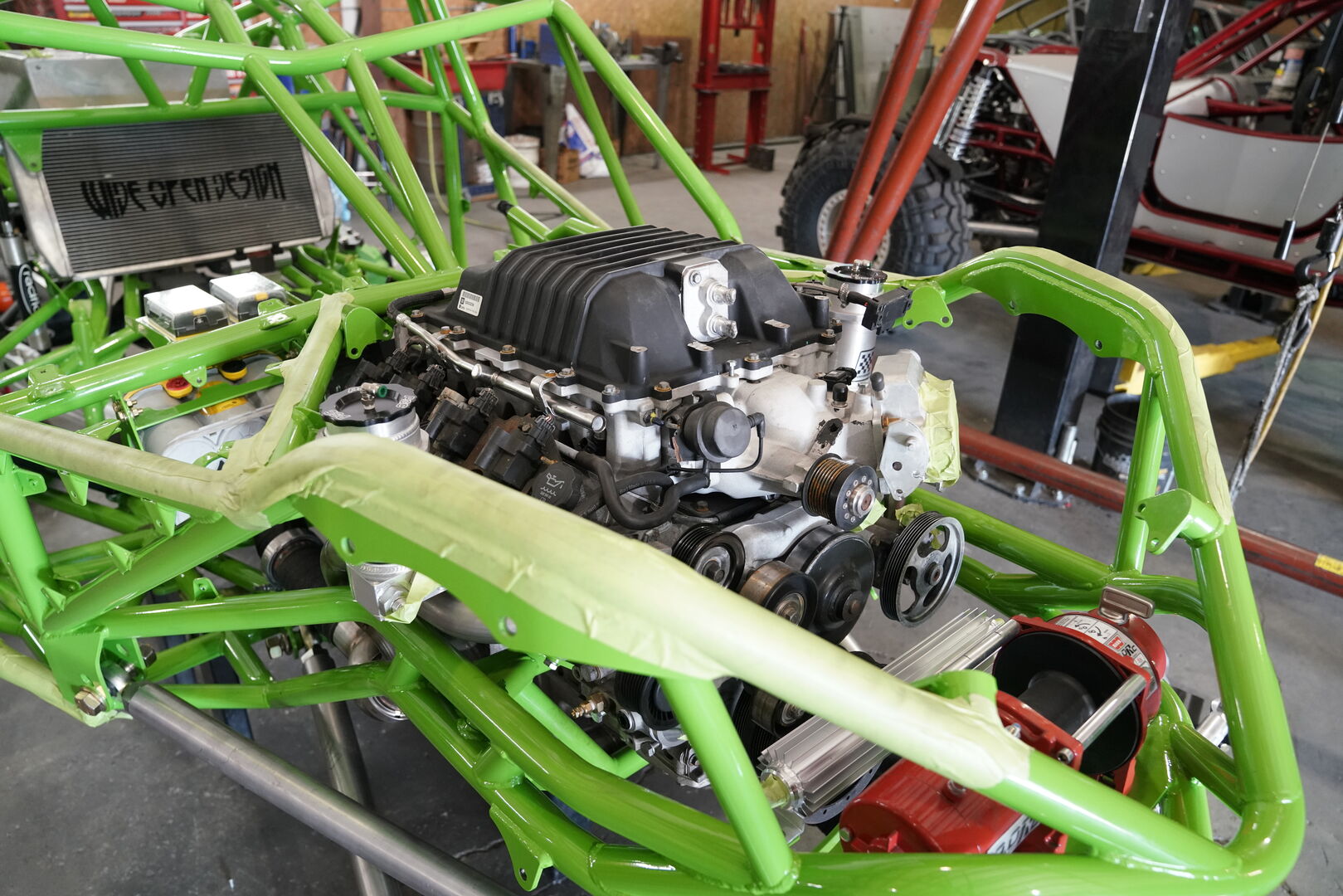

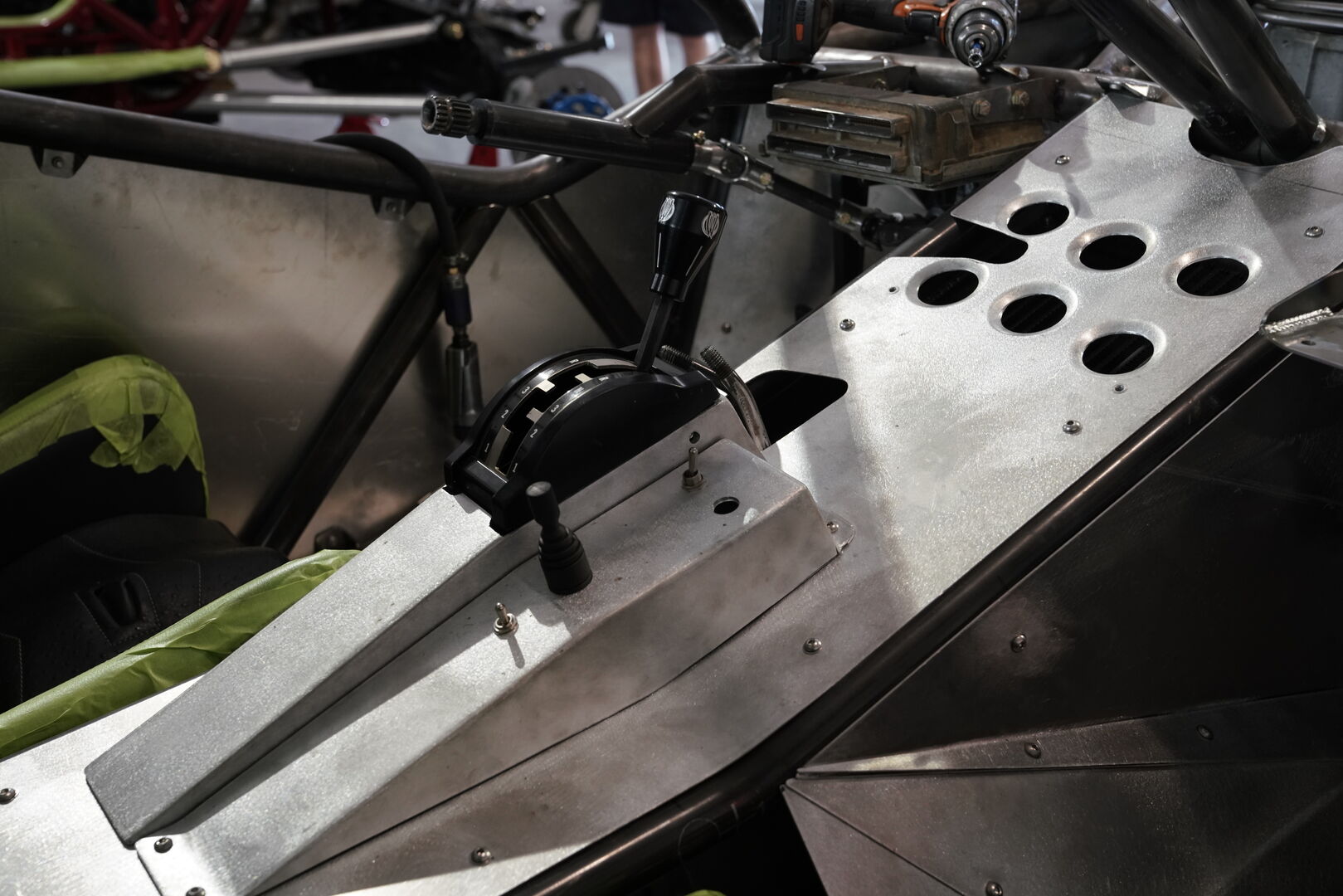

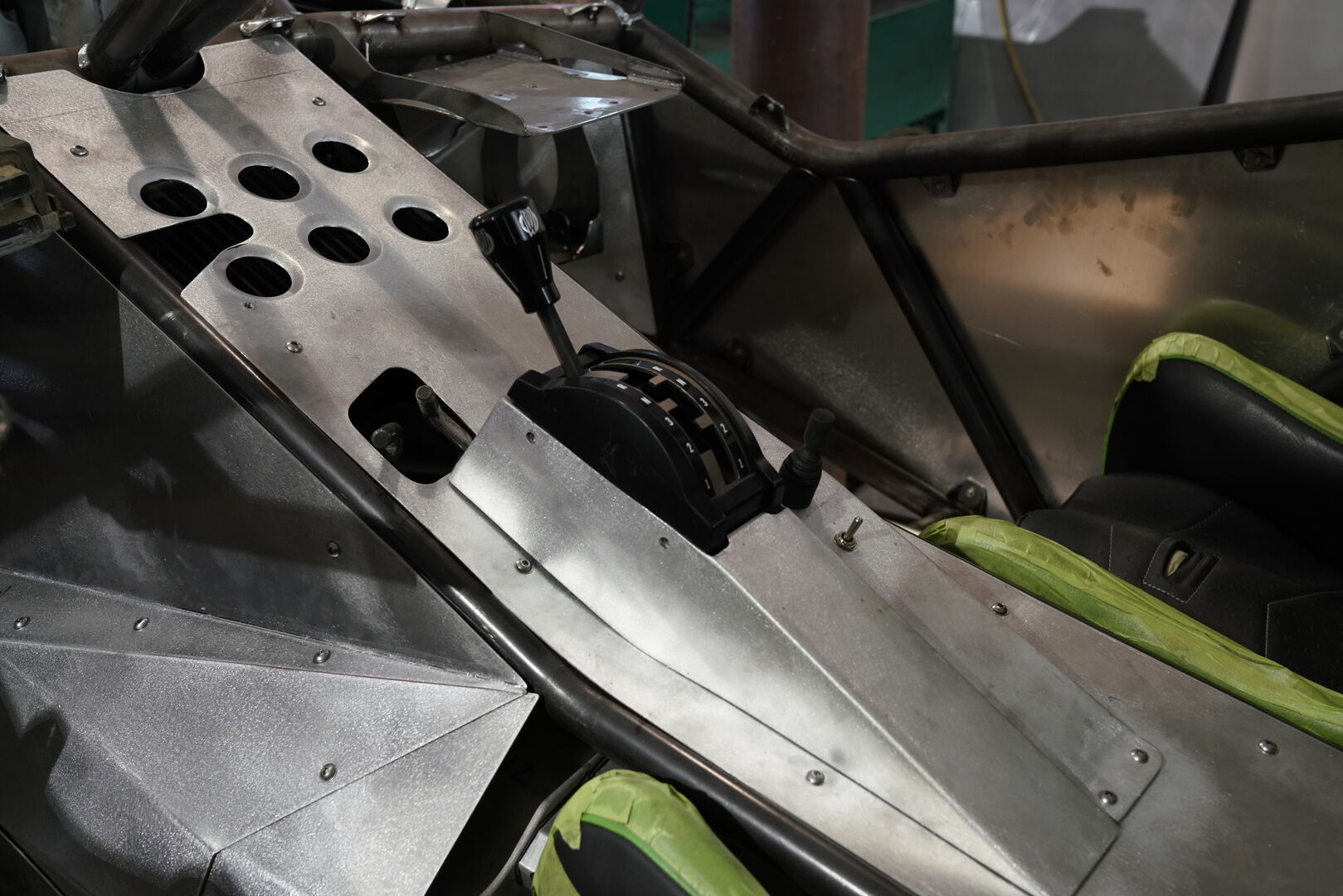

The soundtrack for this build is provided by a Supercharged LS powerplant, a setup that offers instantaneous, violent torque. To manage that heat and power, we integrated a Griffin 31x15.5 radiator and a WOD custom stainless exhaust. Shifting is handled by a race-prepped TH400 with an Art Carr/Winters shifter, sending power through an Atlas transfer case to some of the beefiest driveshafts we've ever fabricated.
The "Industrial-Strength" Drivetrain:

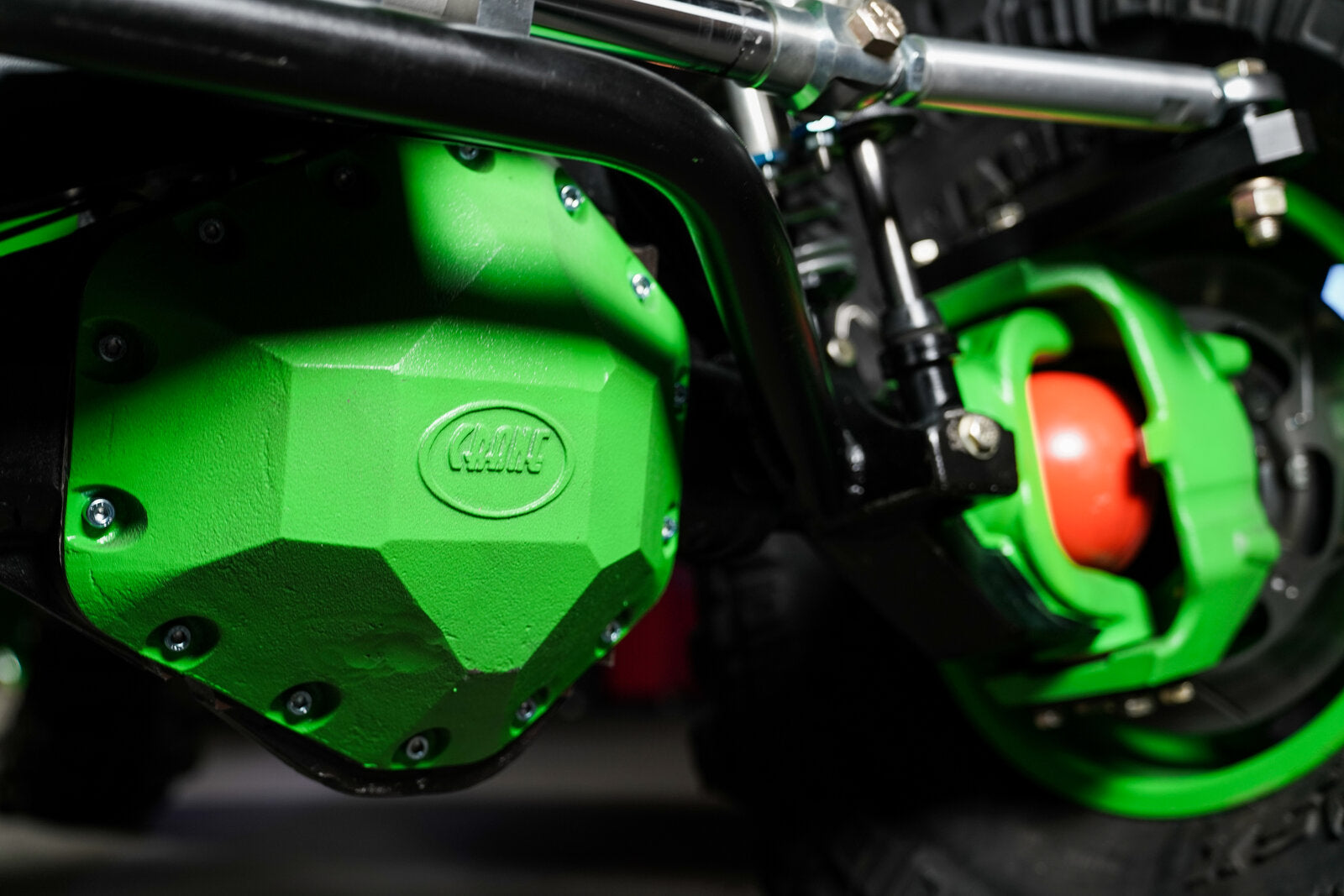

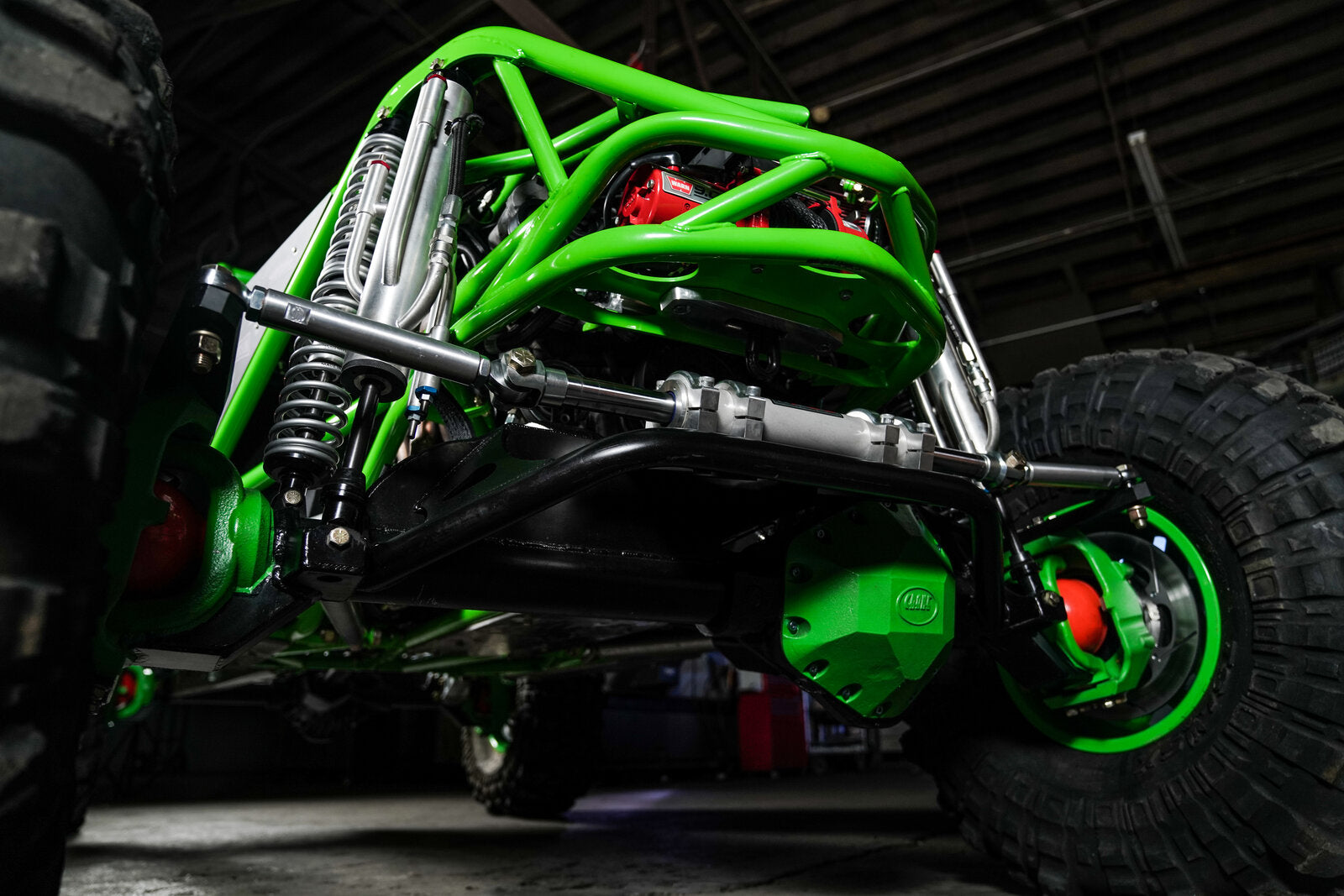

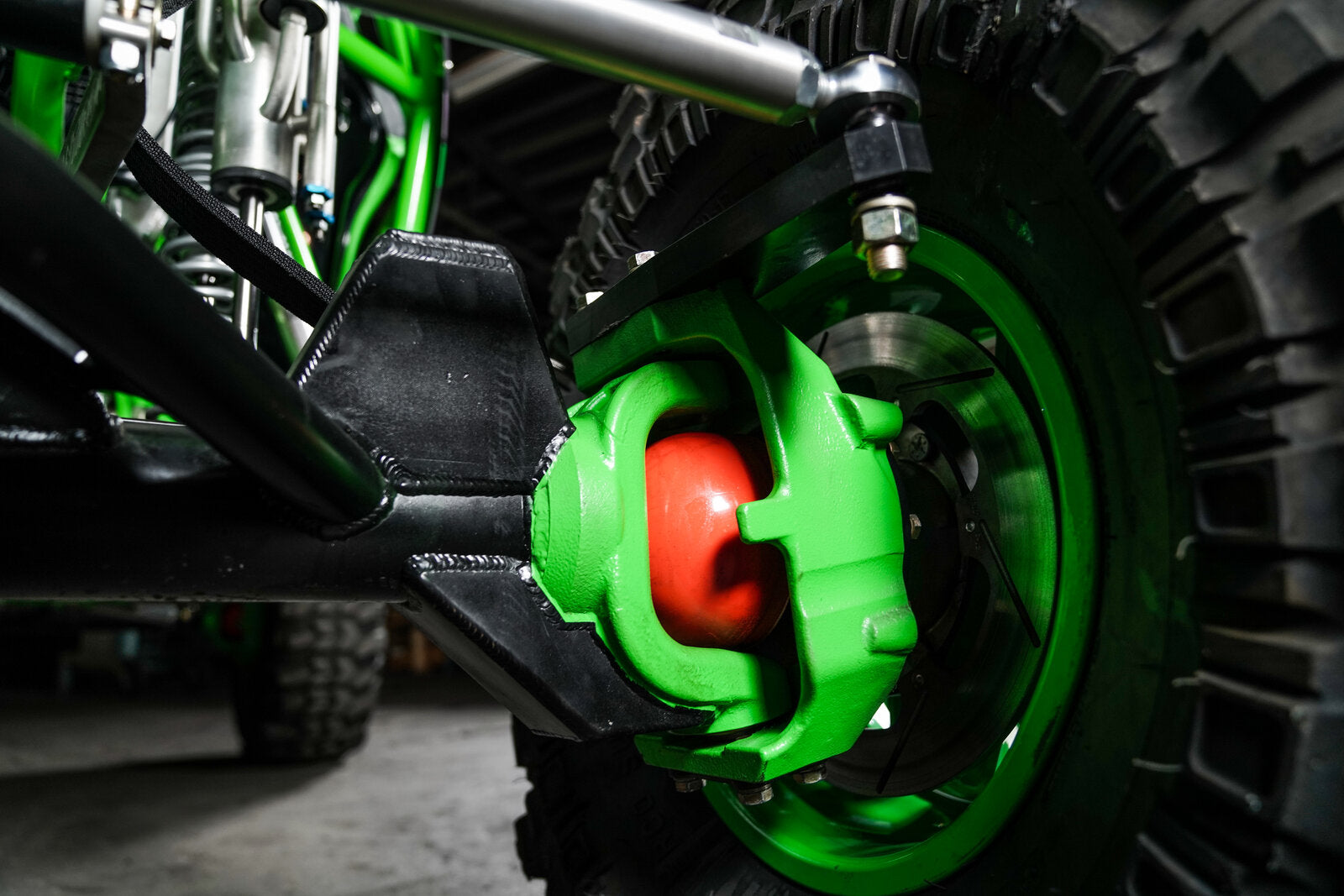

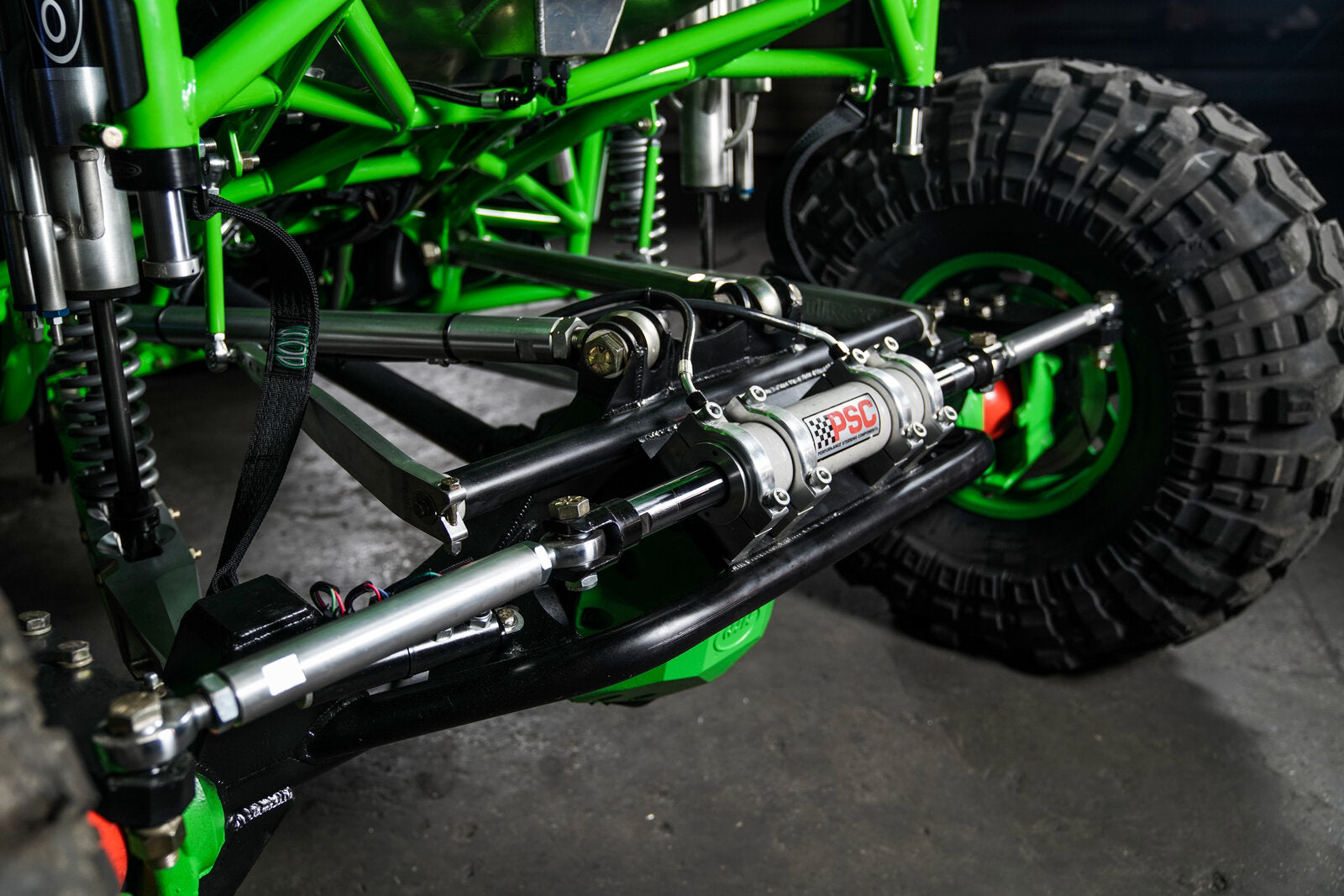

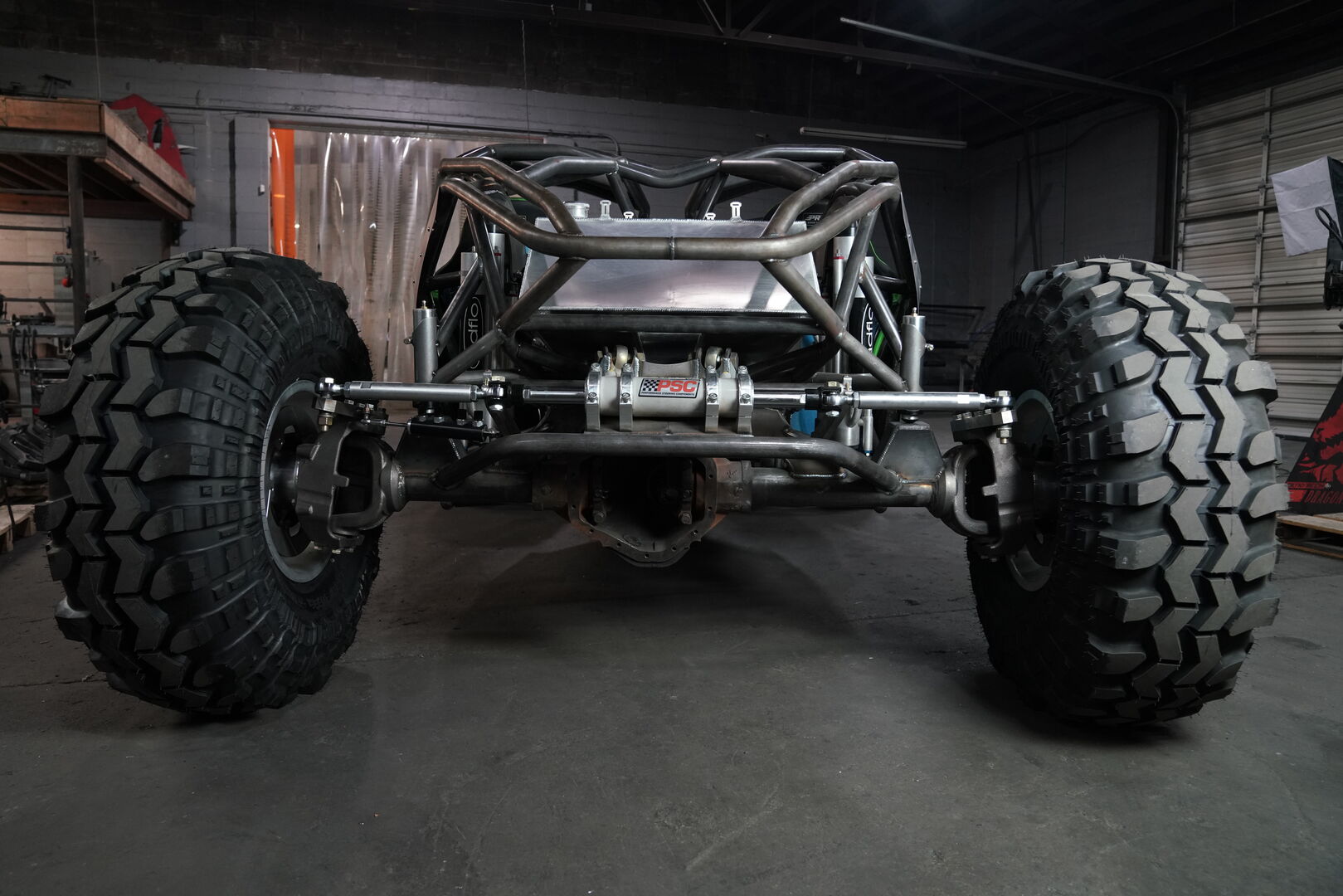

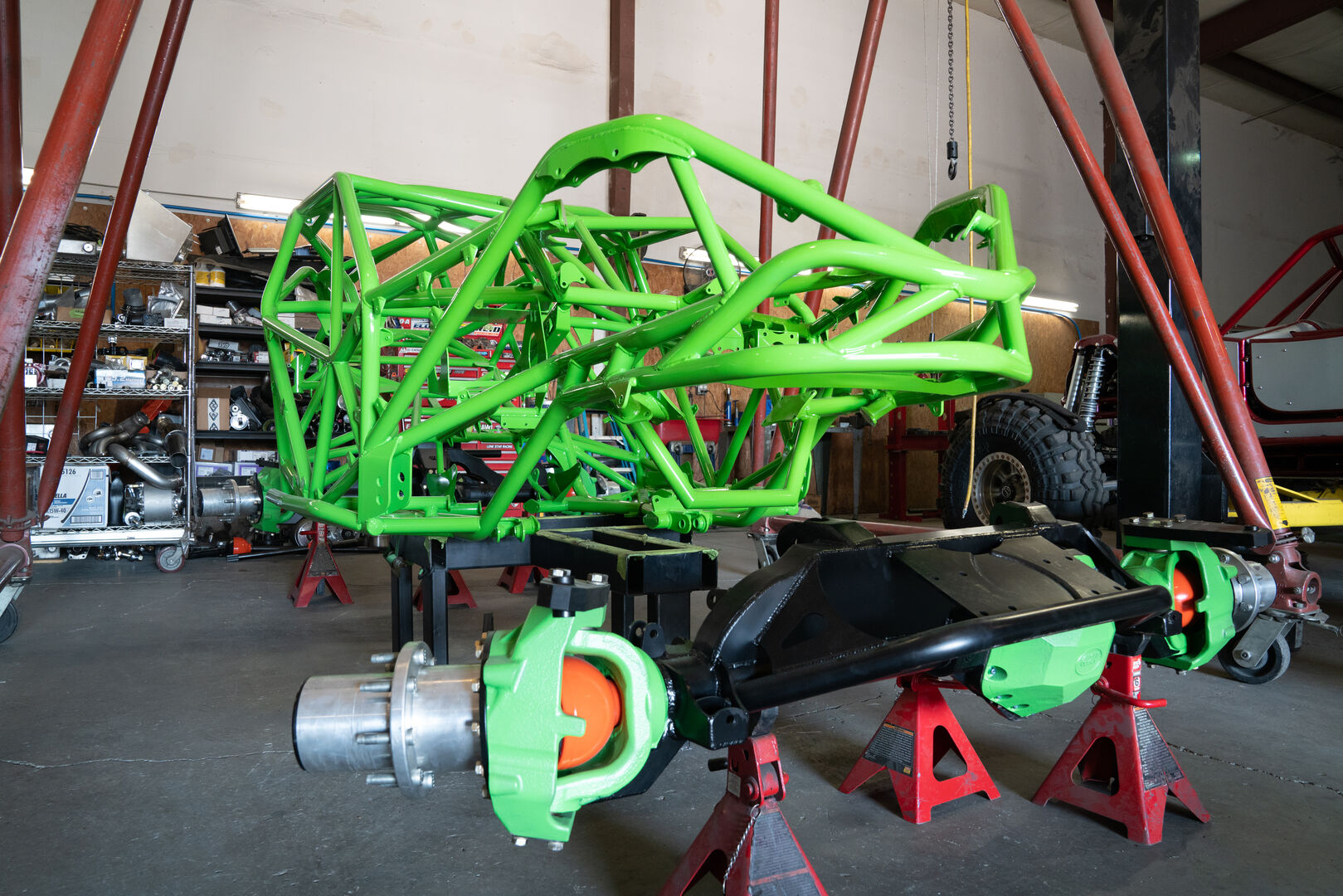

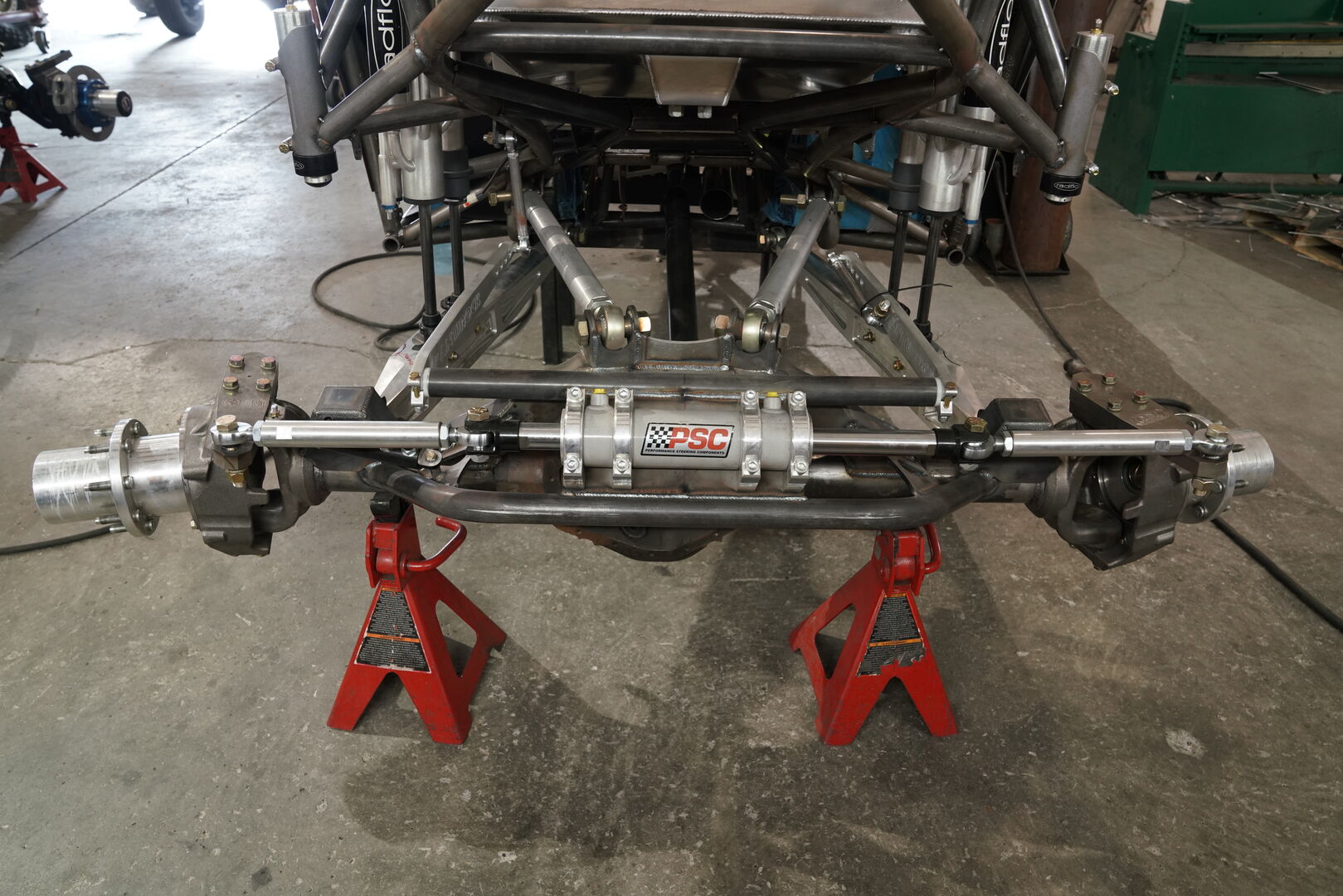

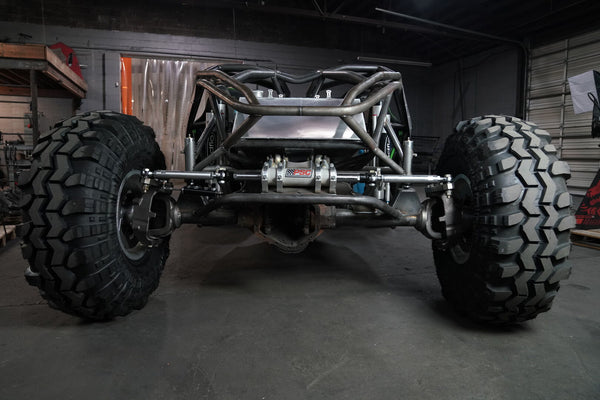

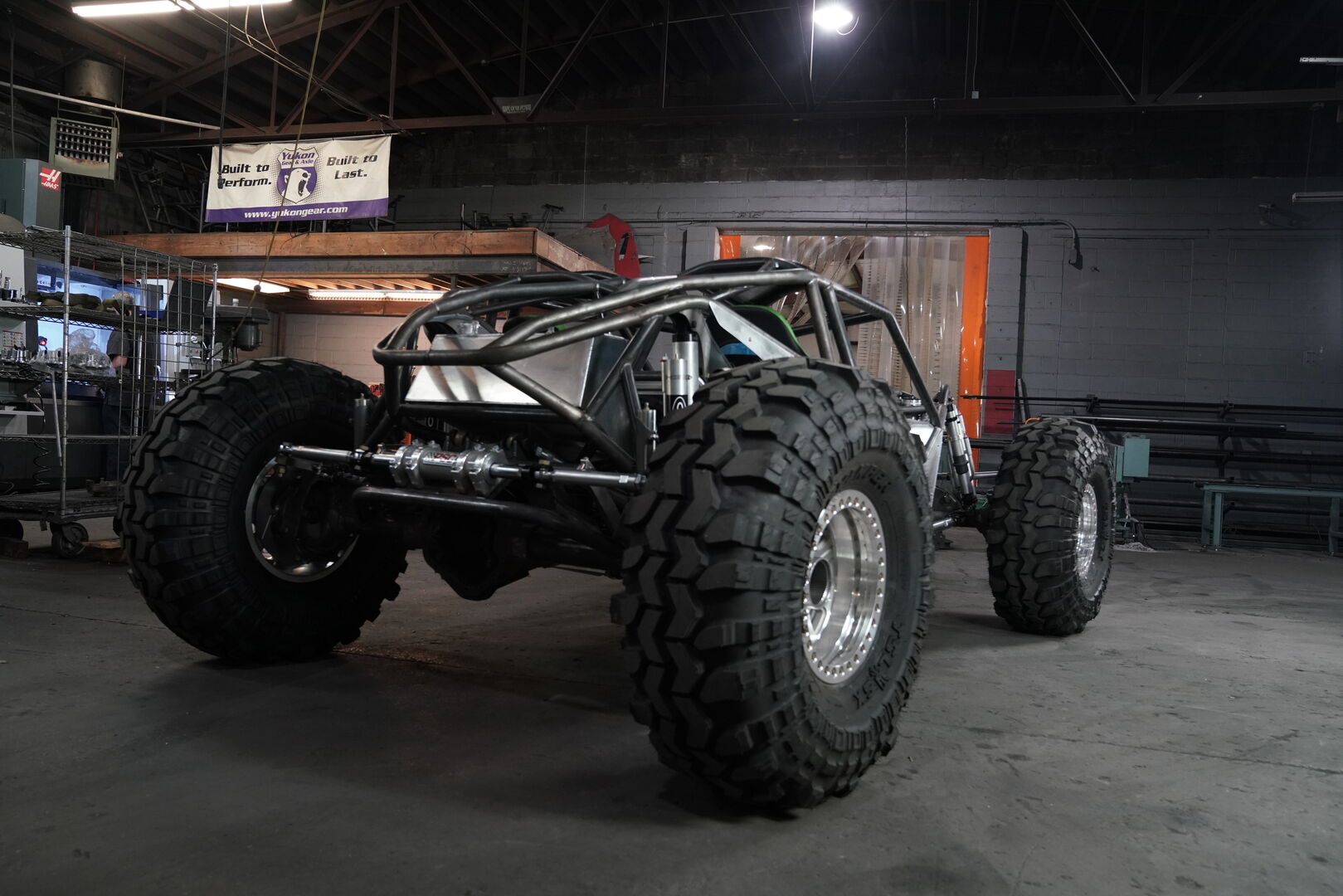

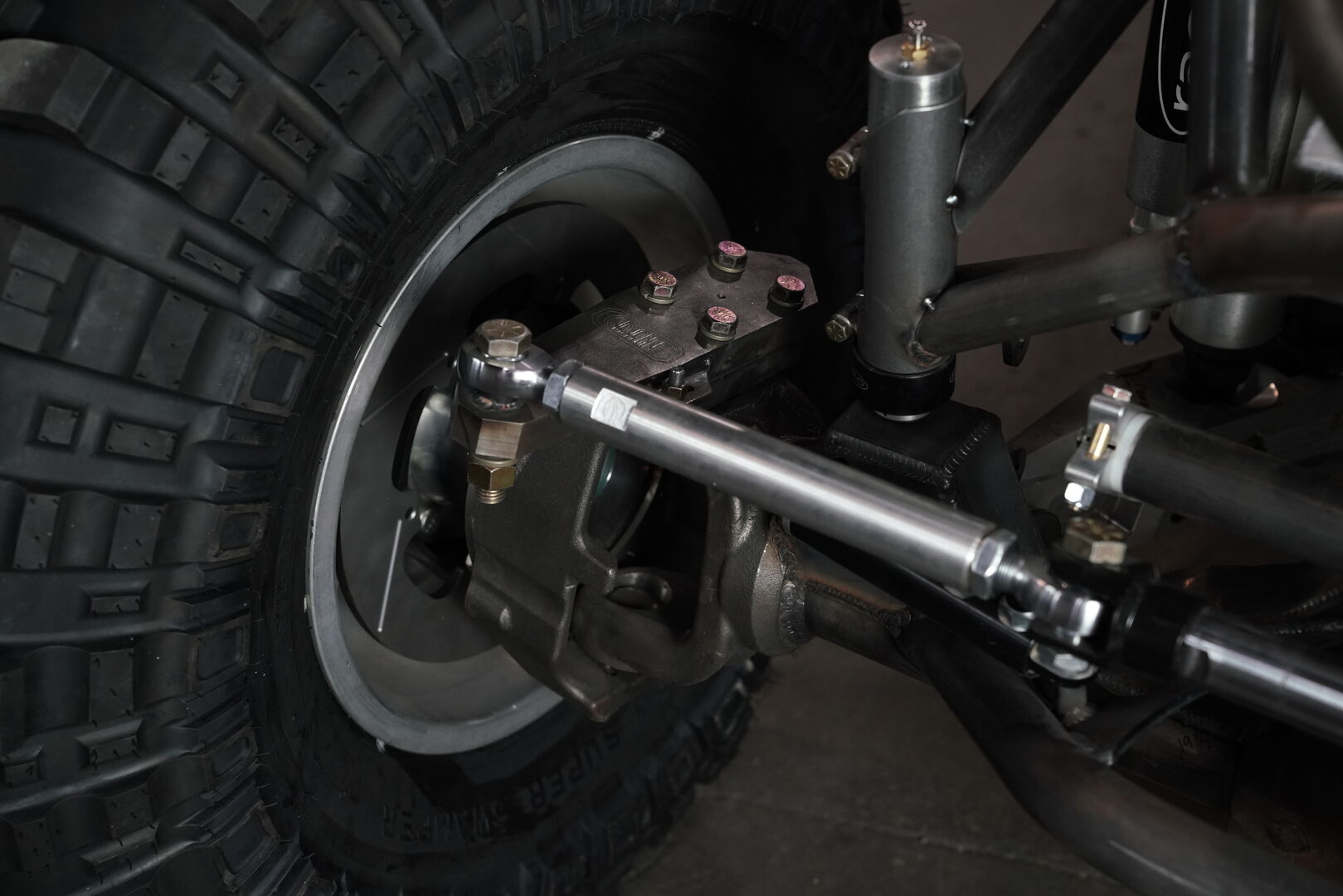

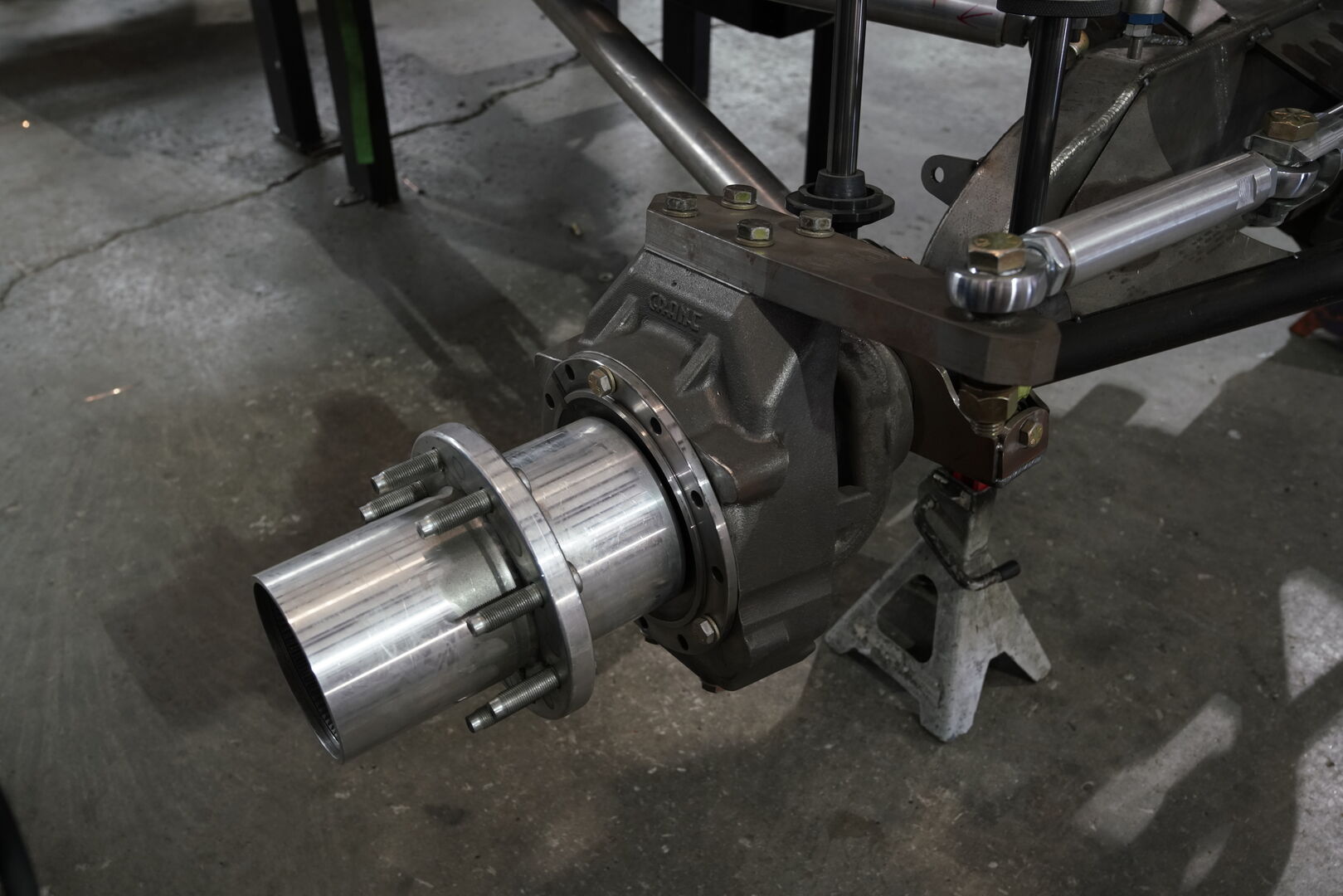

The axles are where this Rocket Ship truly leaves the atmosphere. We started with Crane 14-Bolt housings featuring massive 3.5" tubes with 1/2" walls. We didn't stop there. We ran Ouverson Spindles and Hubs with 47-spline outer shafts. To put that in perspective: most "hardcore" rigs run 35 or 40-spline. This is the kind of hardware you find in monster trucks.

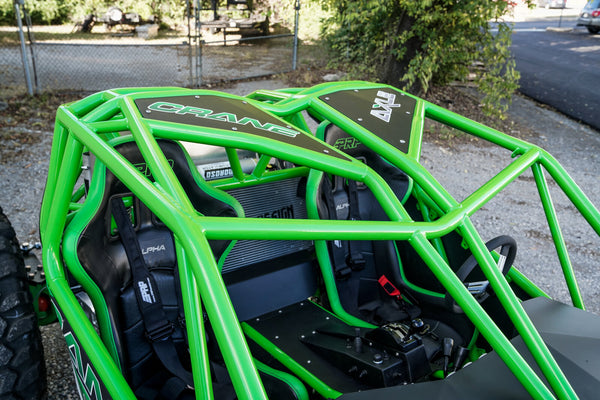

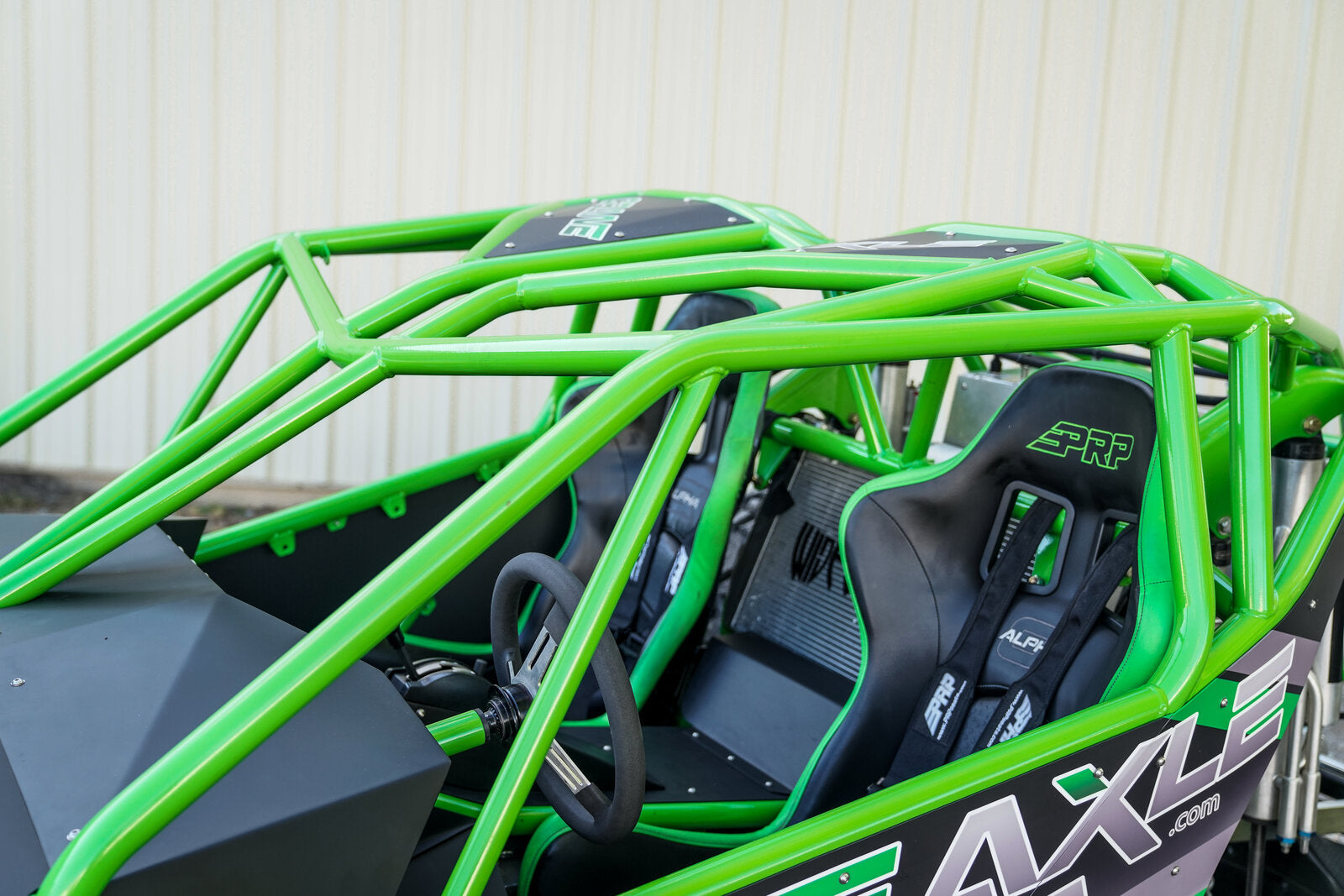

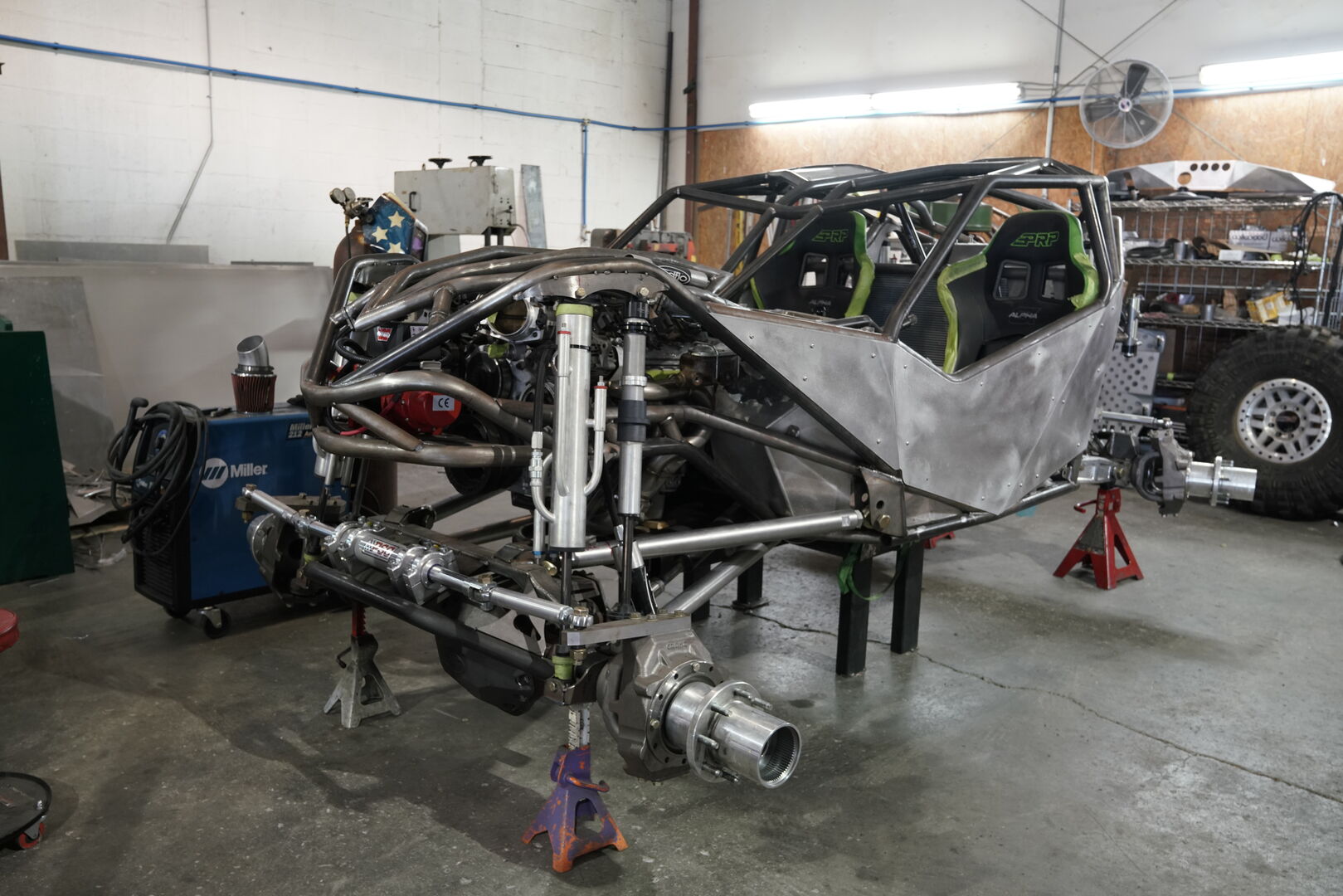

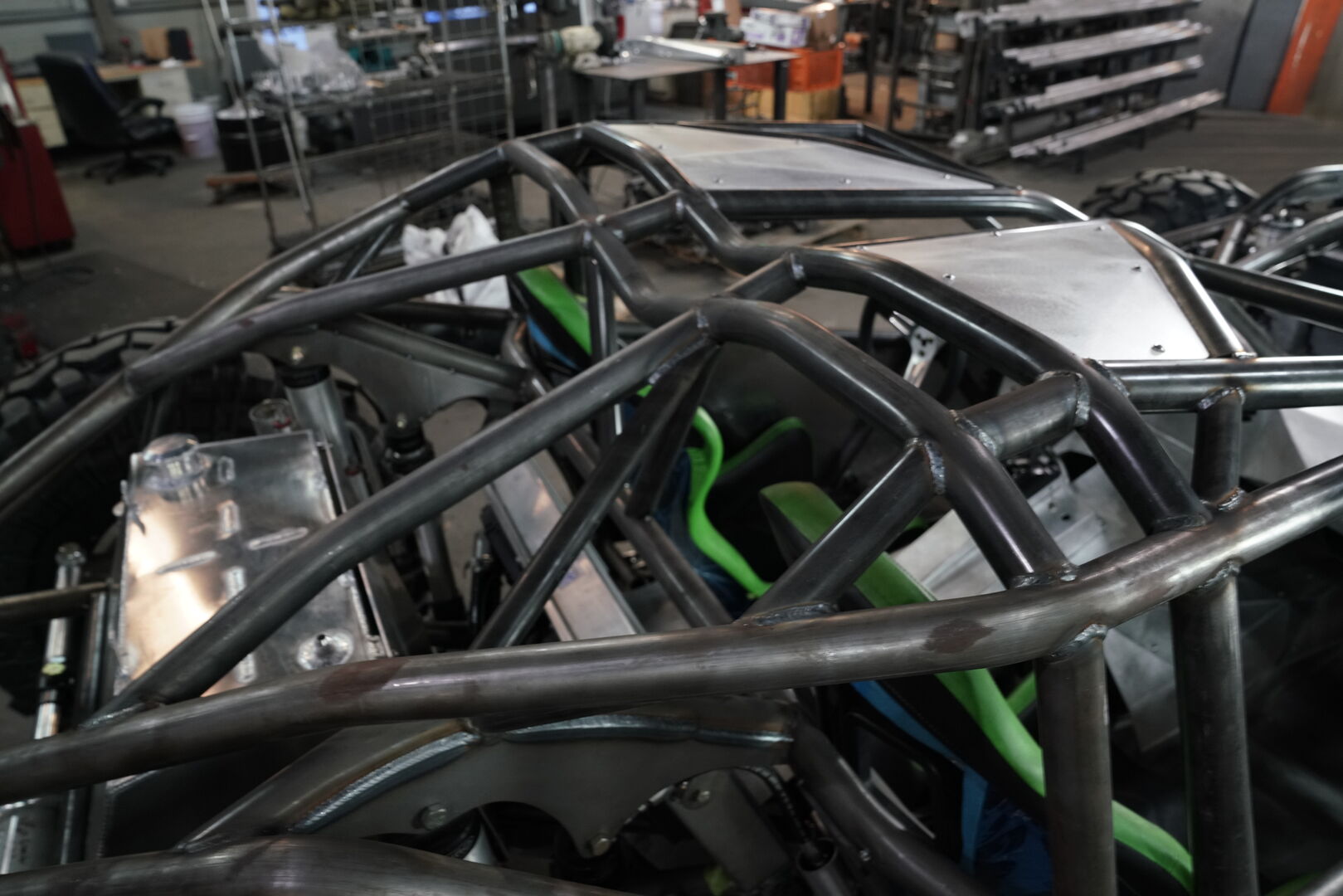

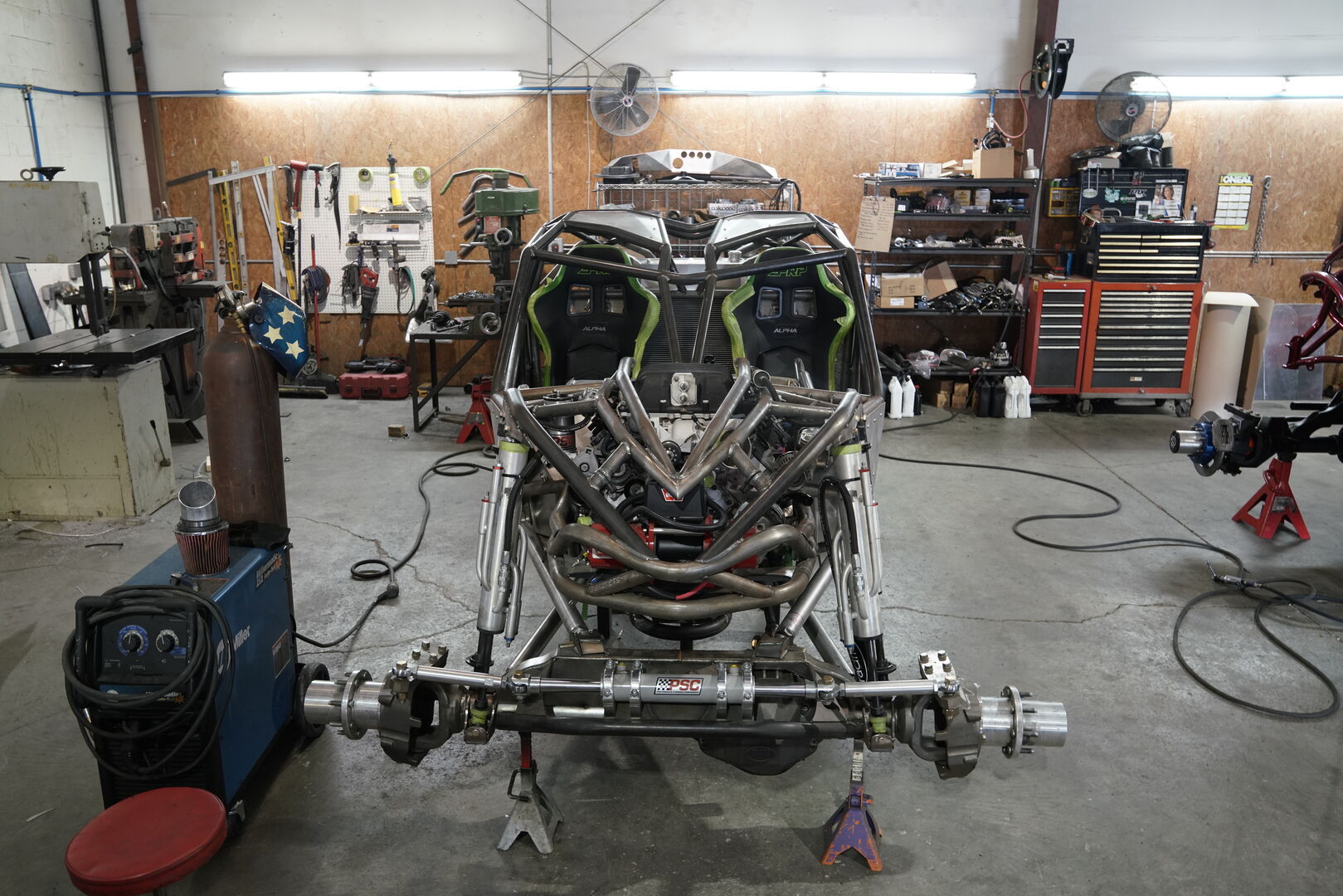

Chassis & Suspension:

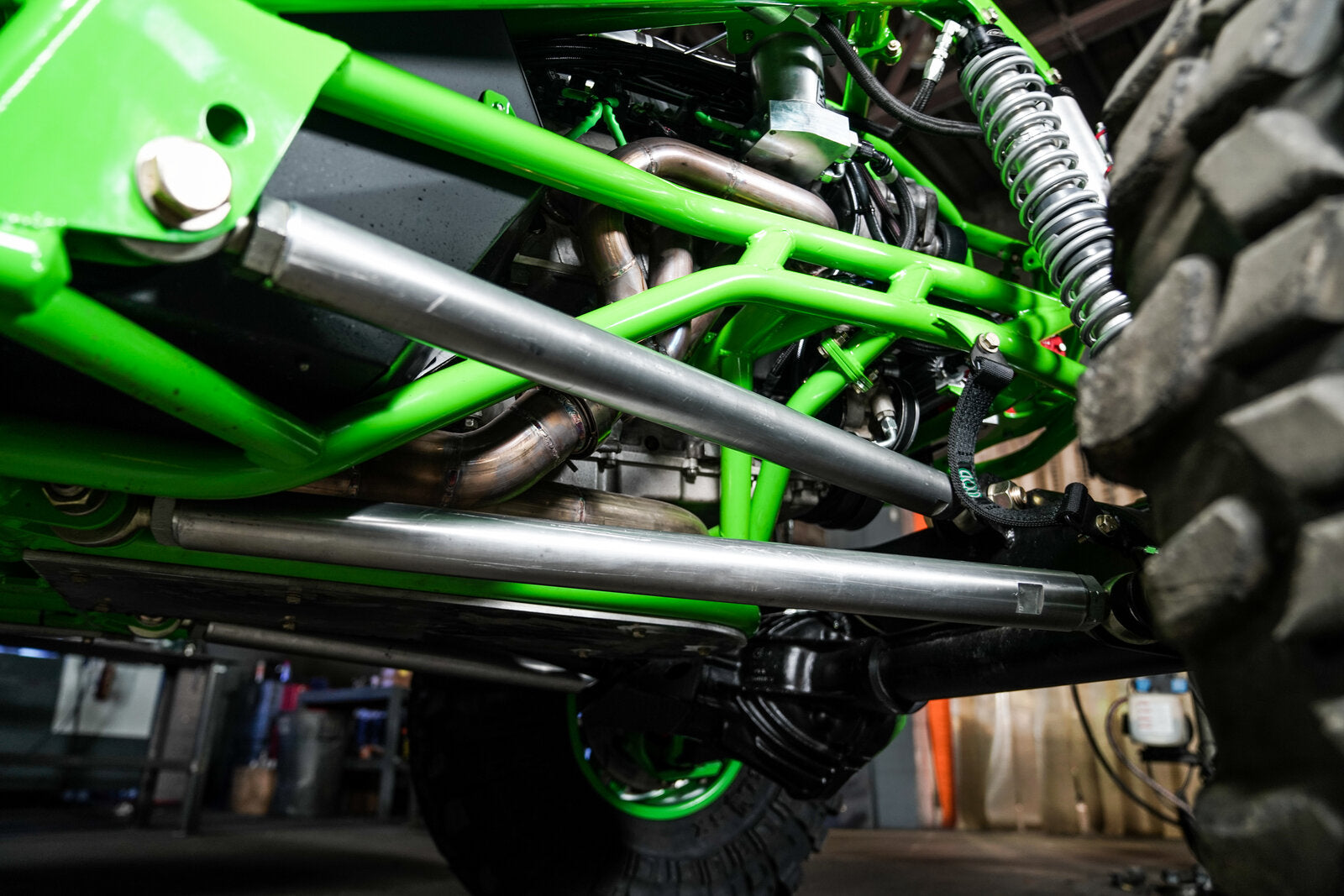

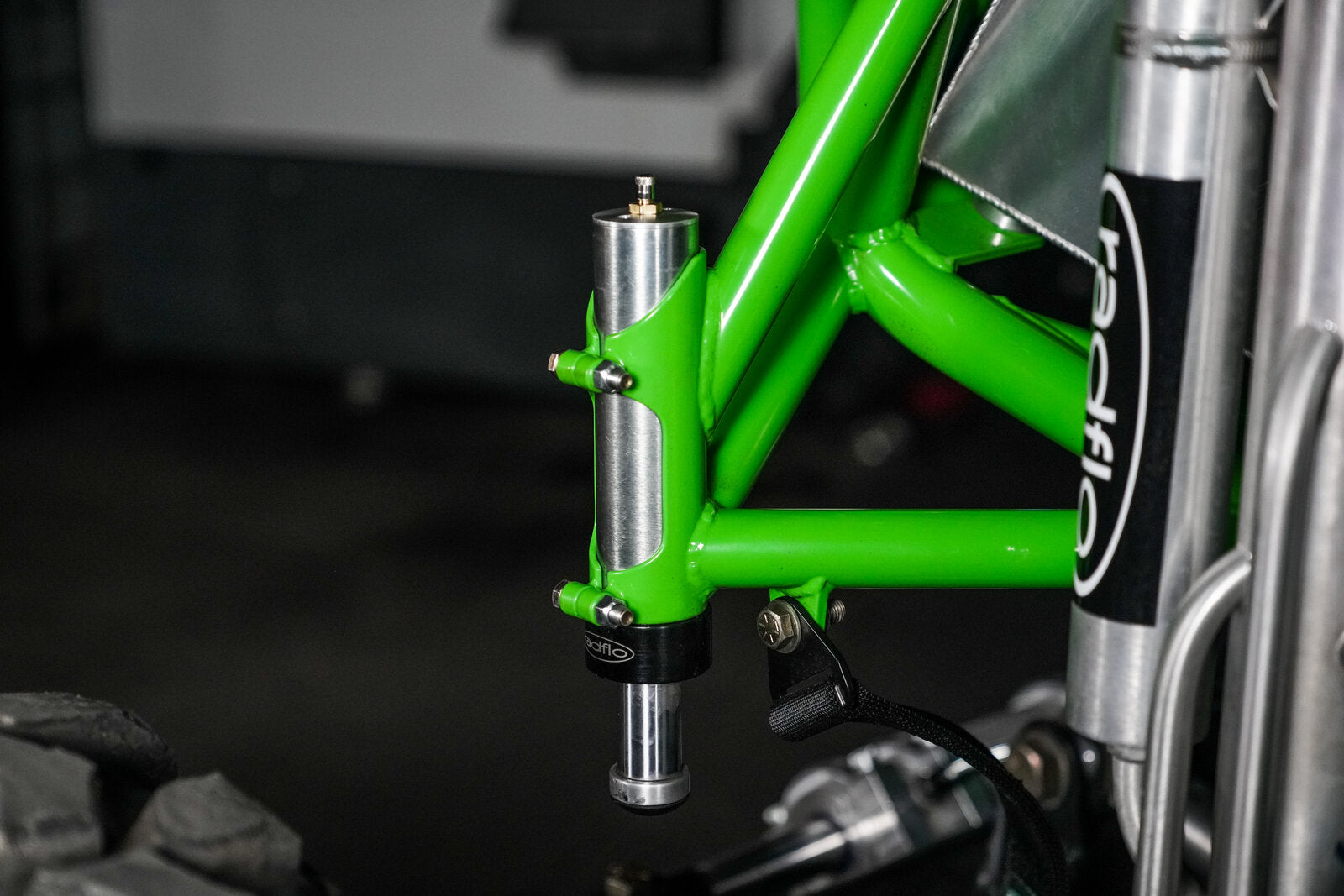

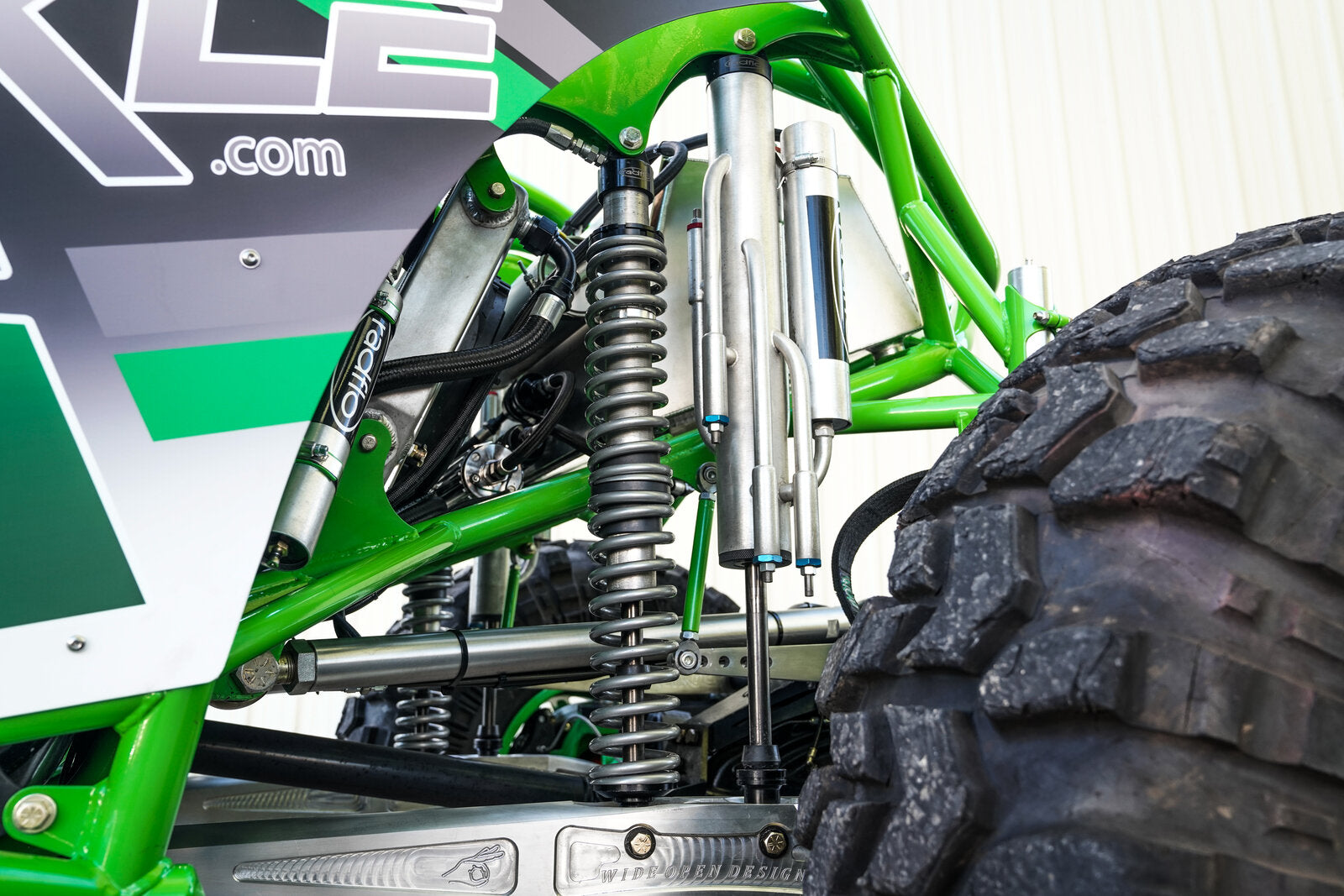

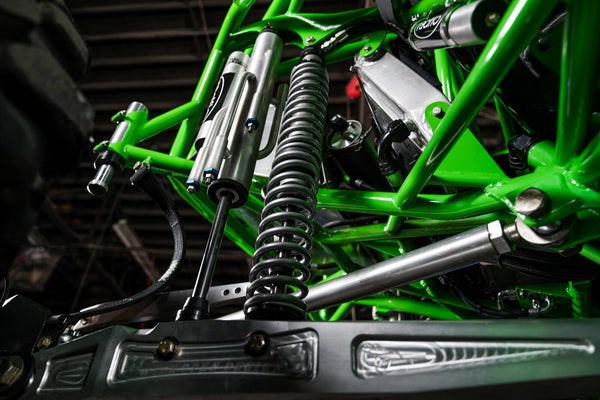

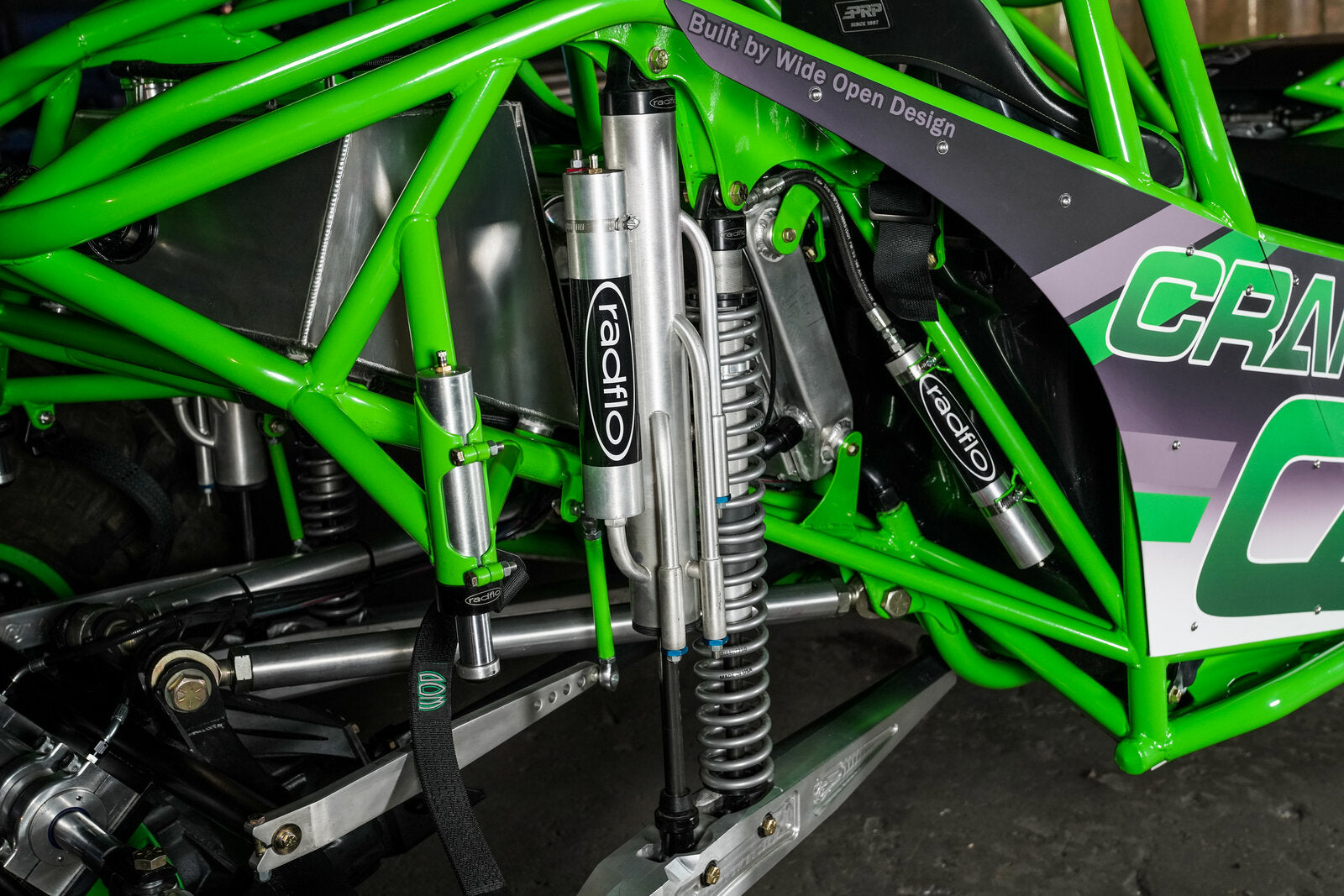

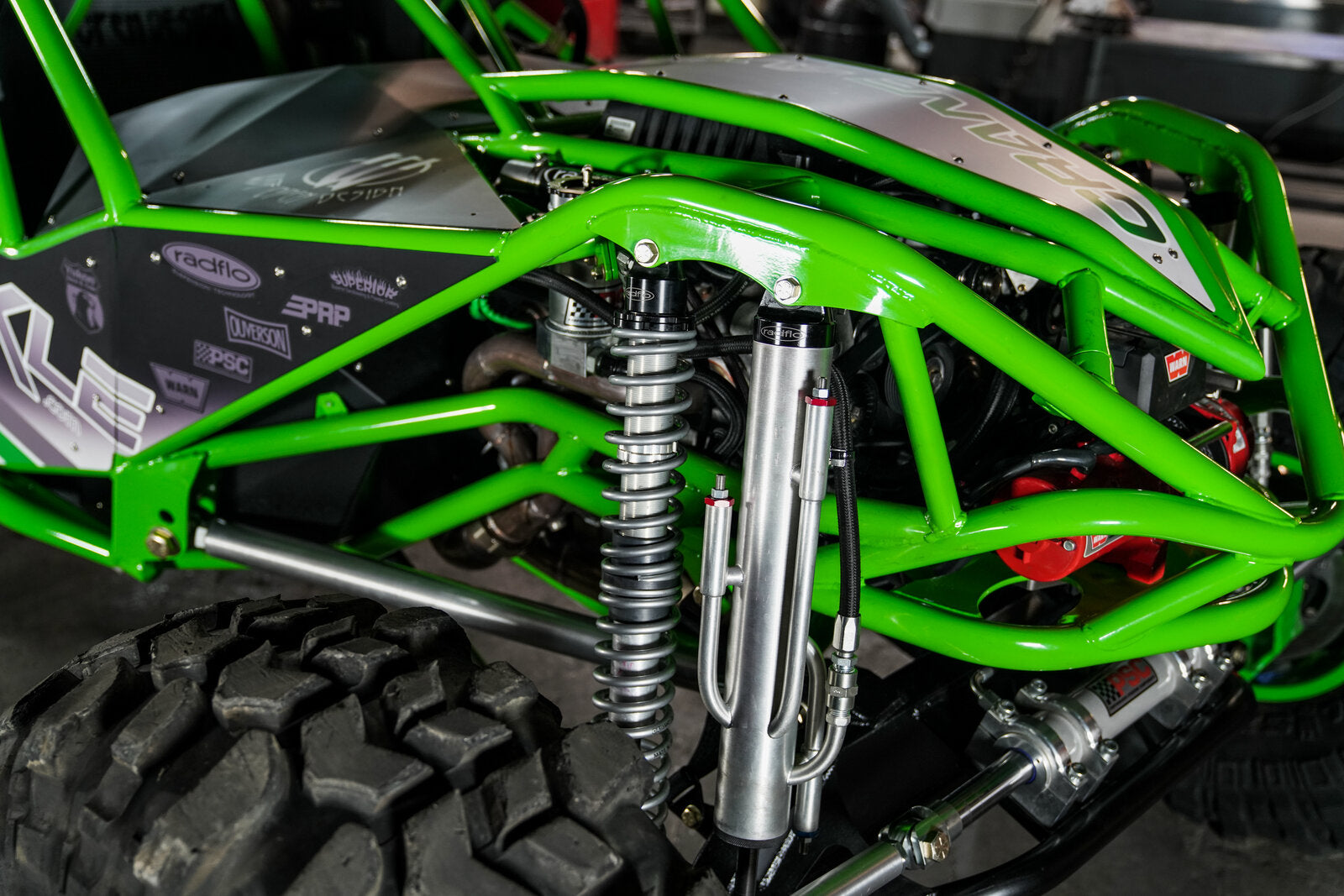

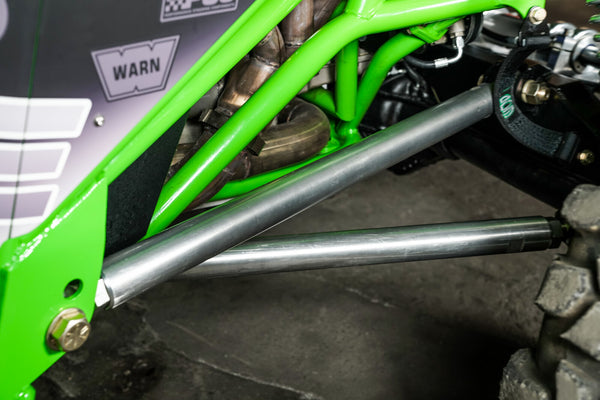

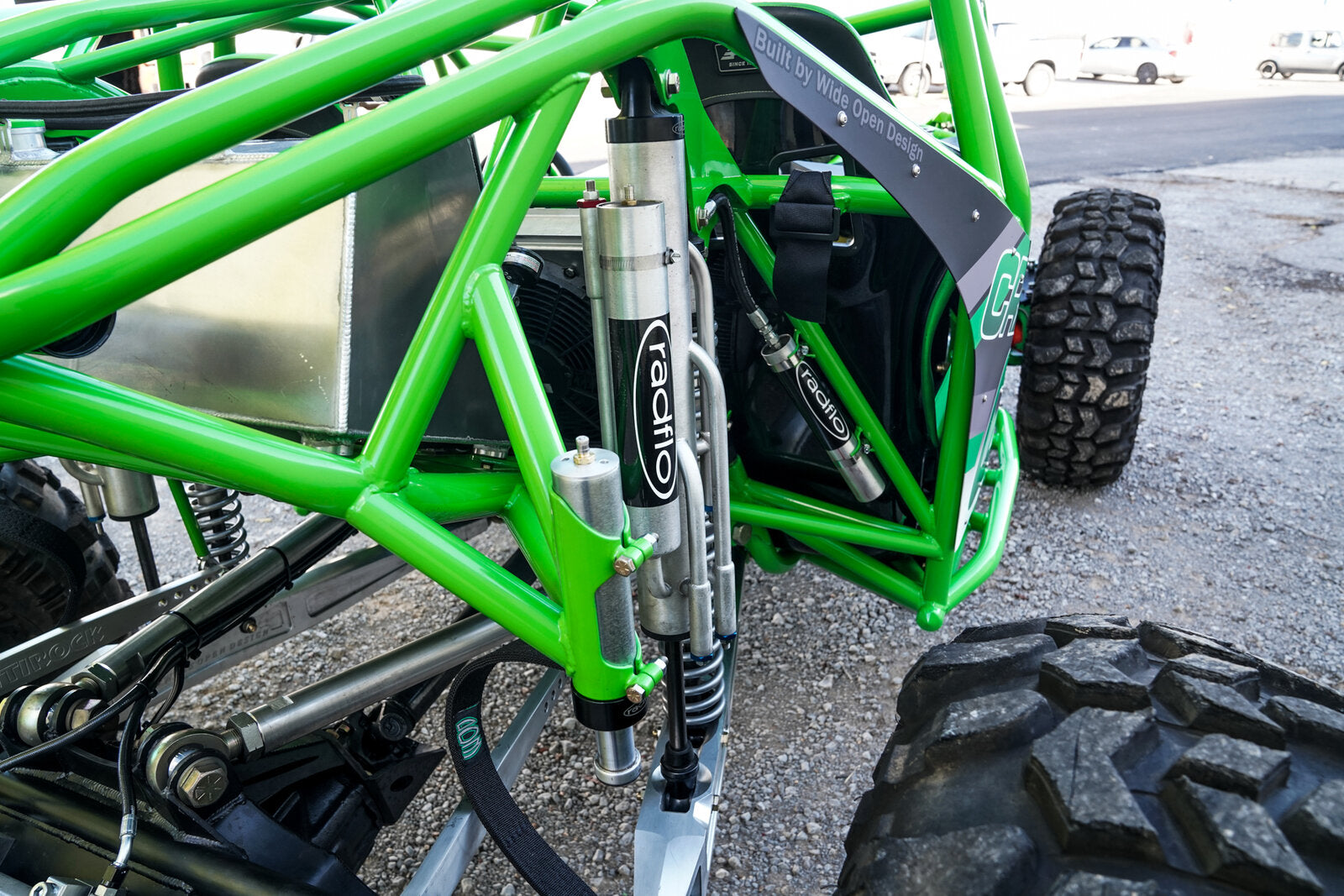

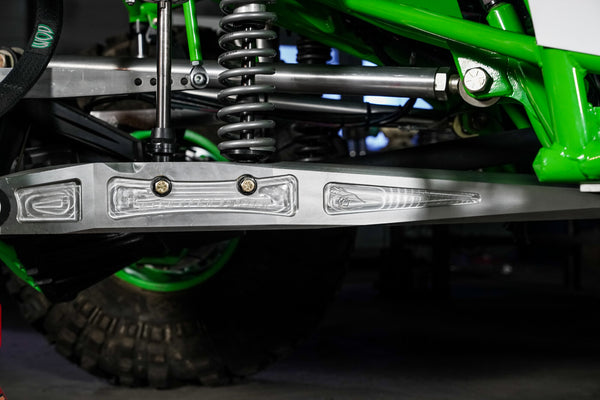

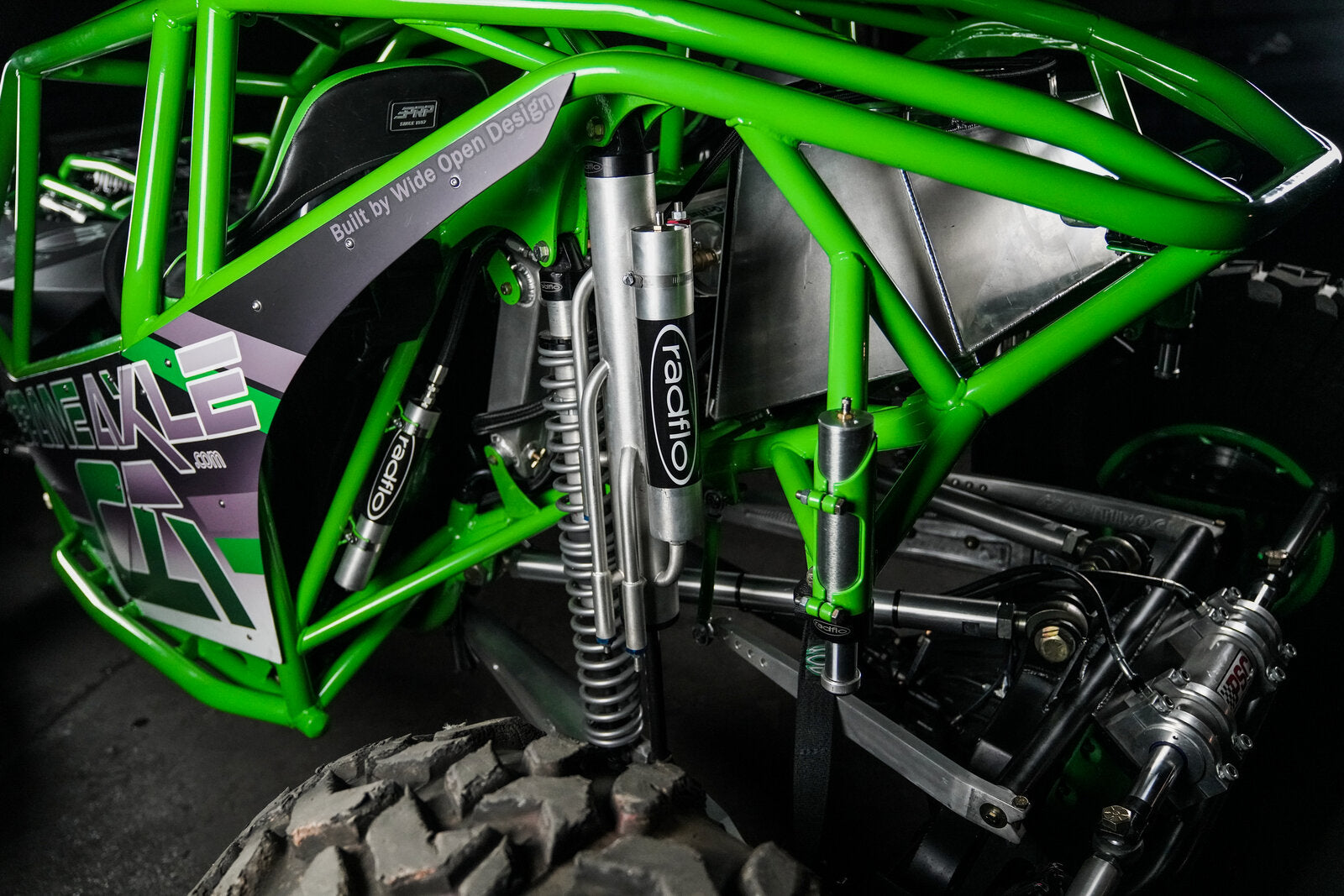

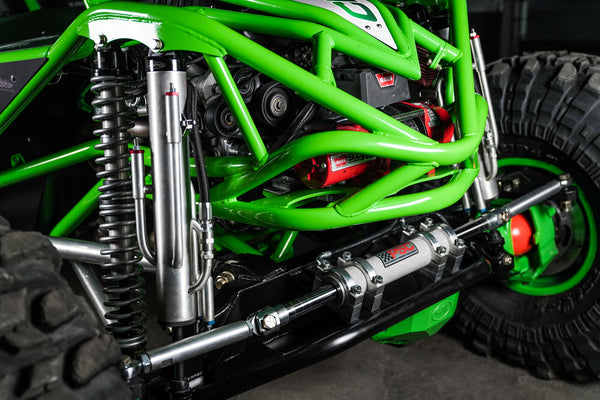

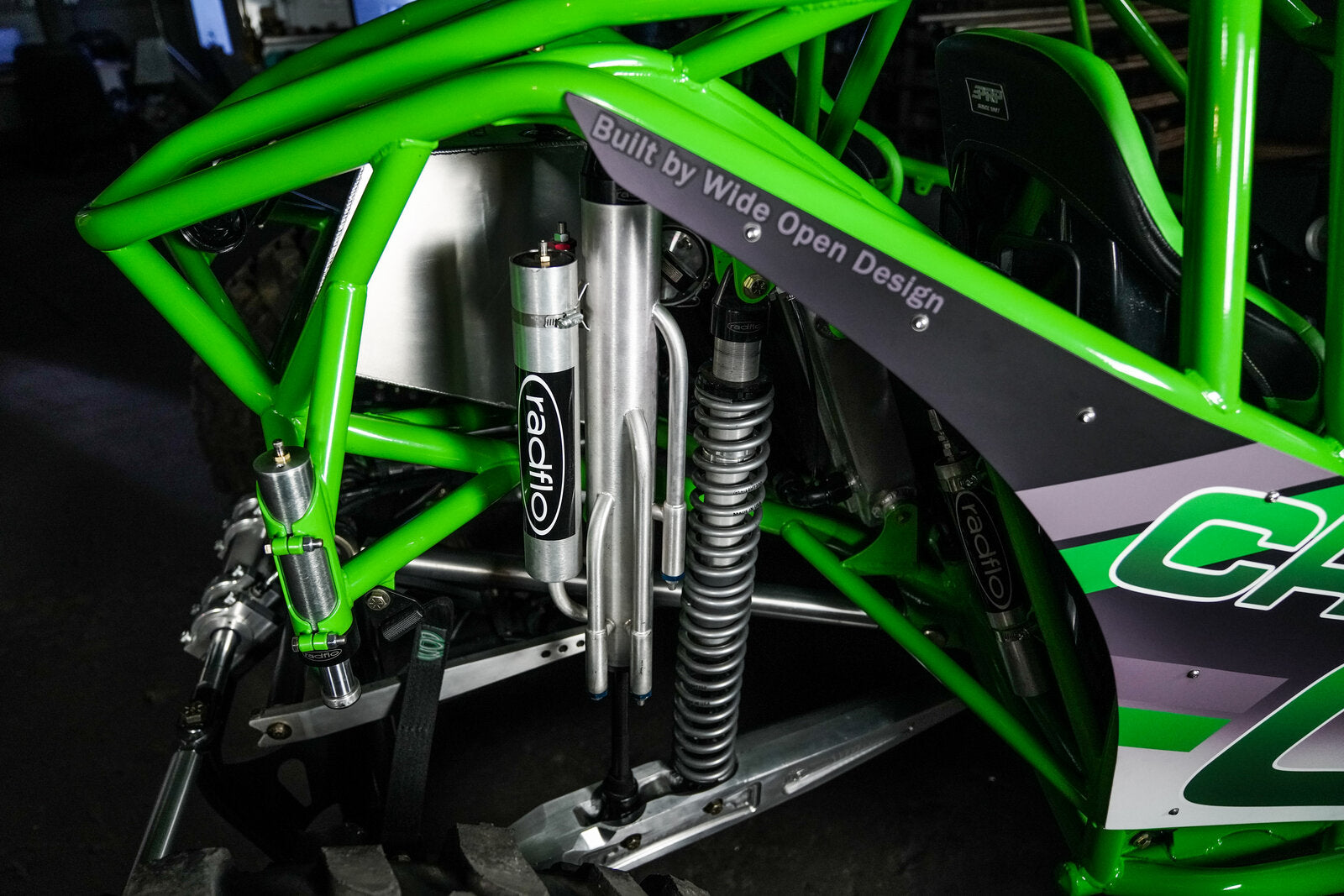

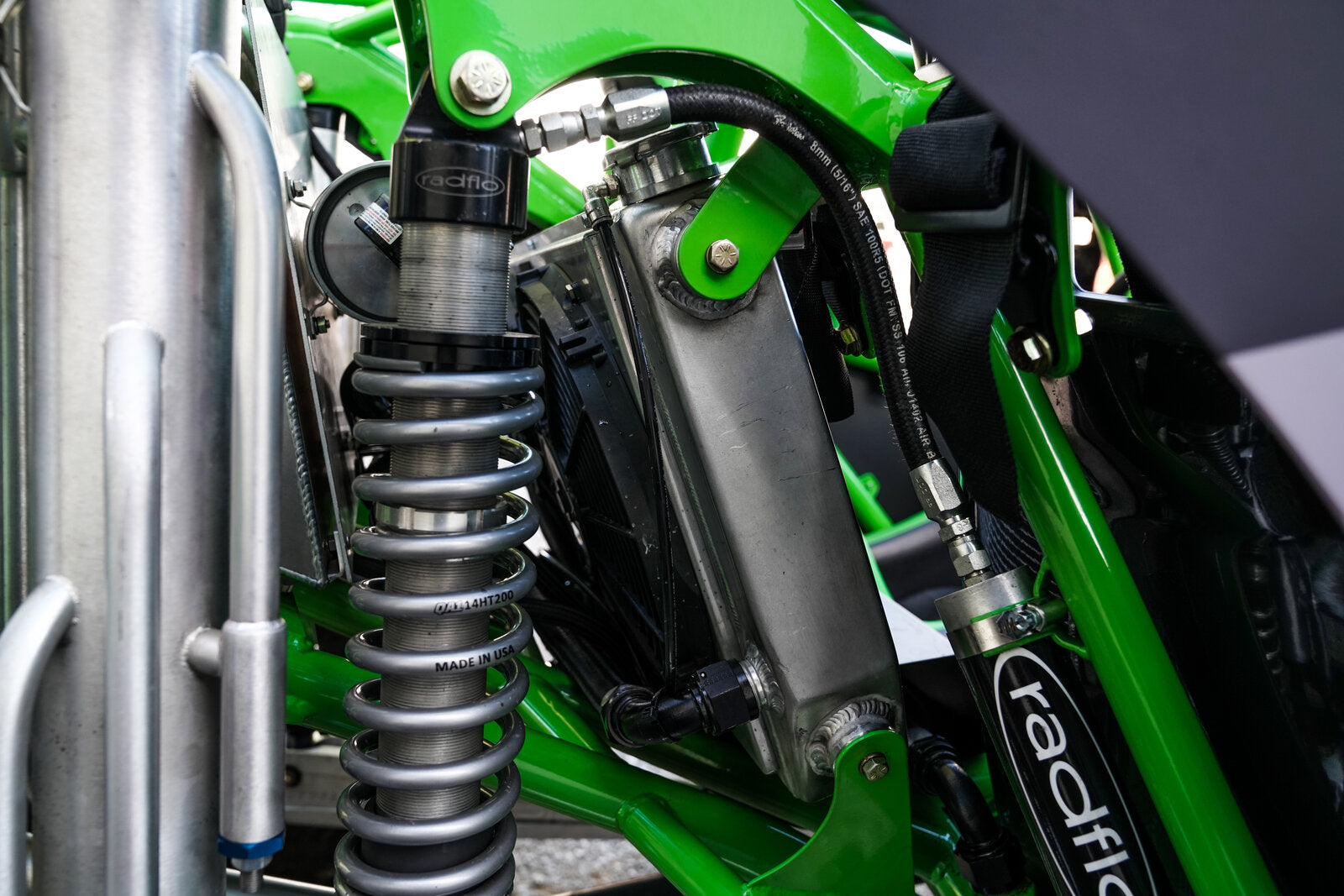

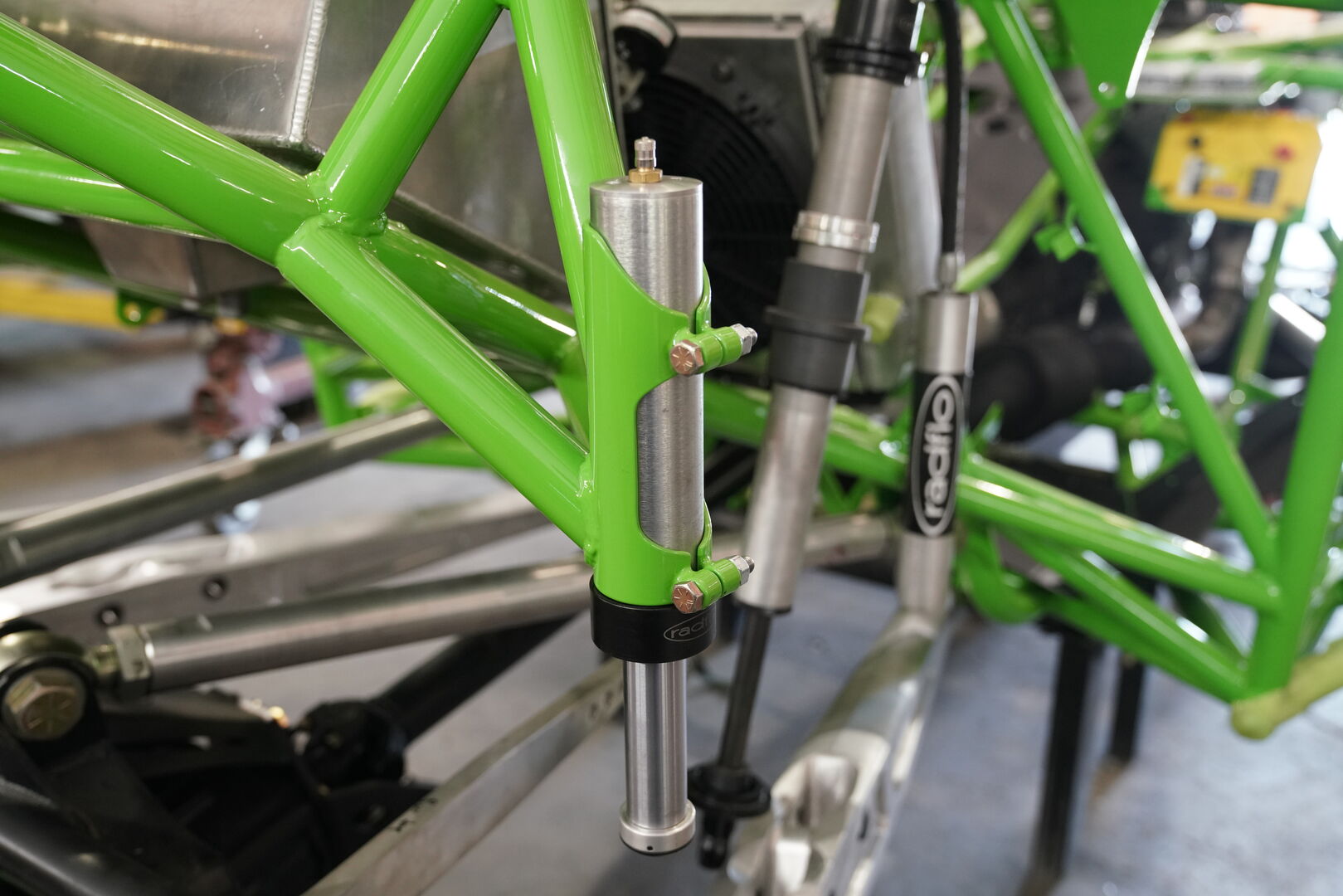

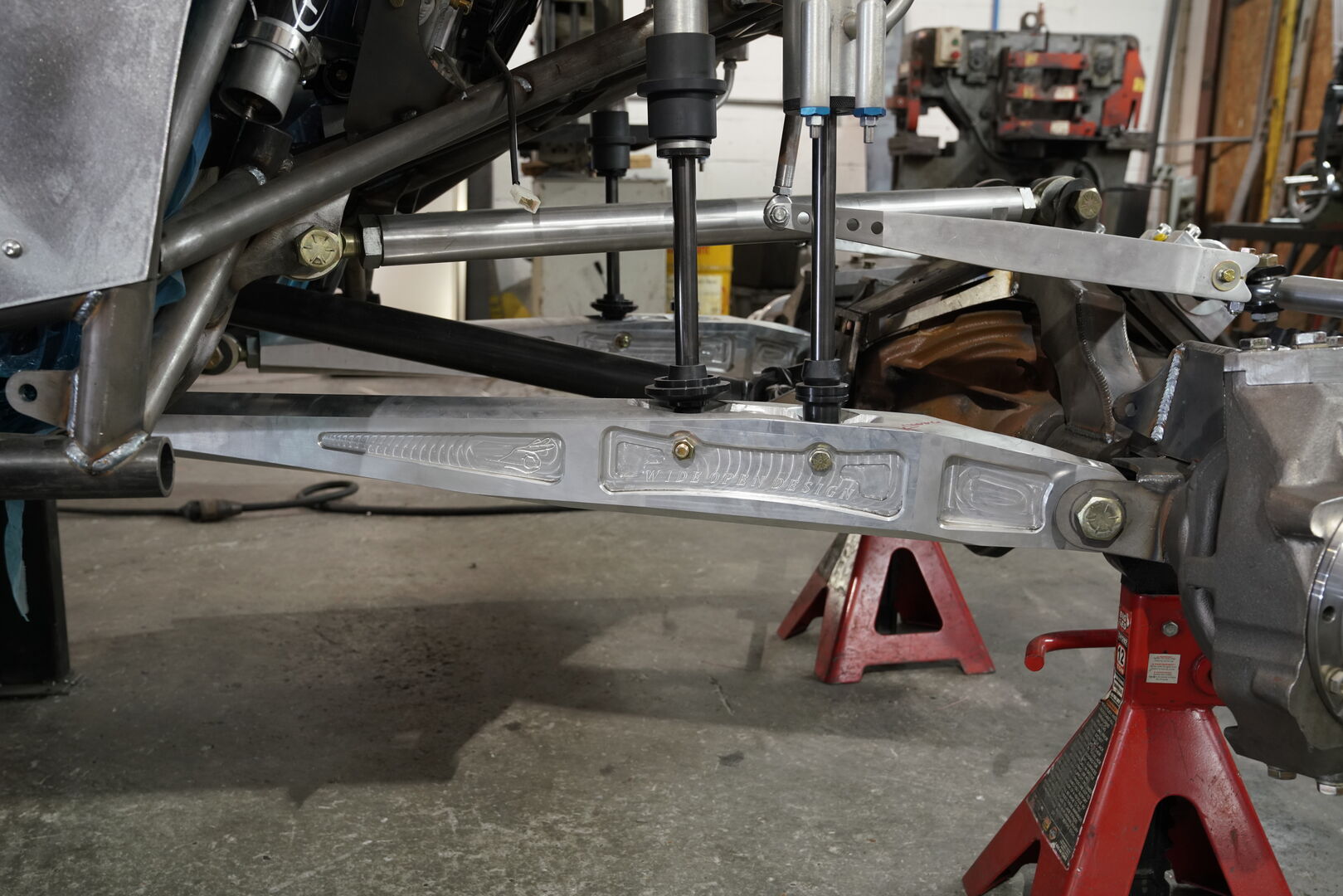

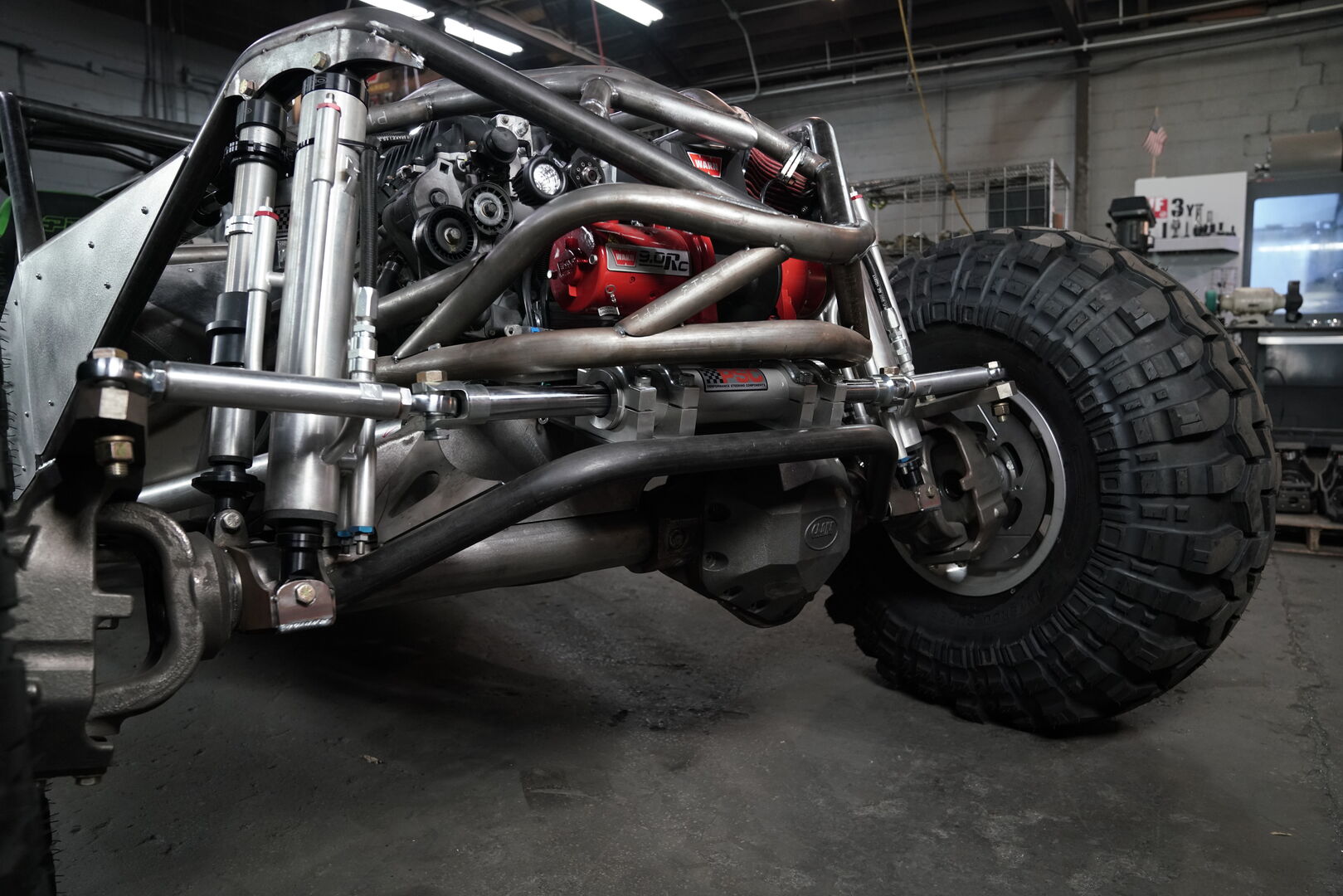

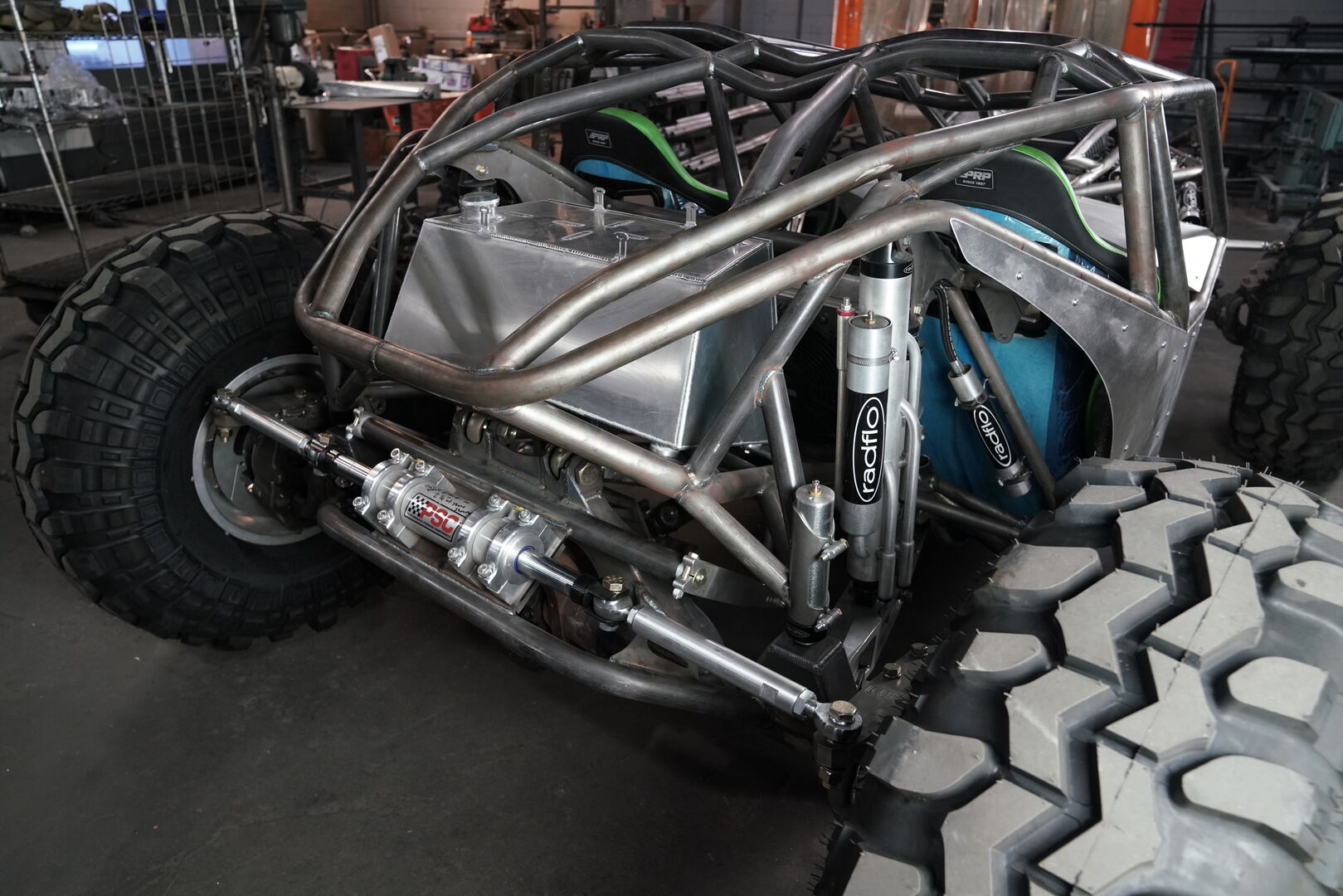

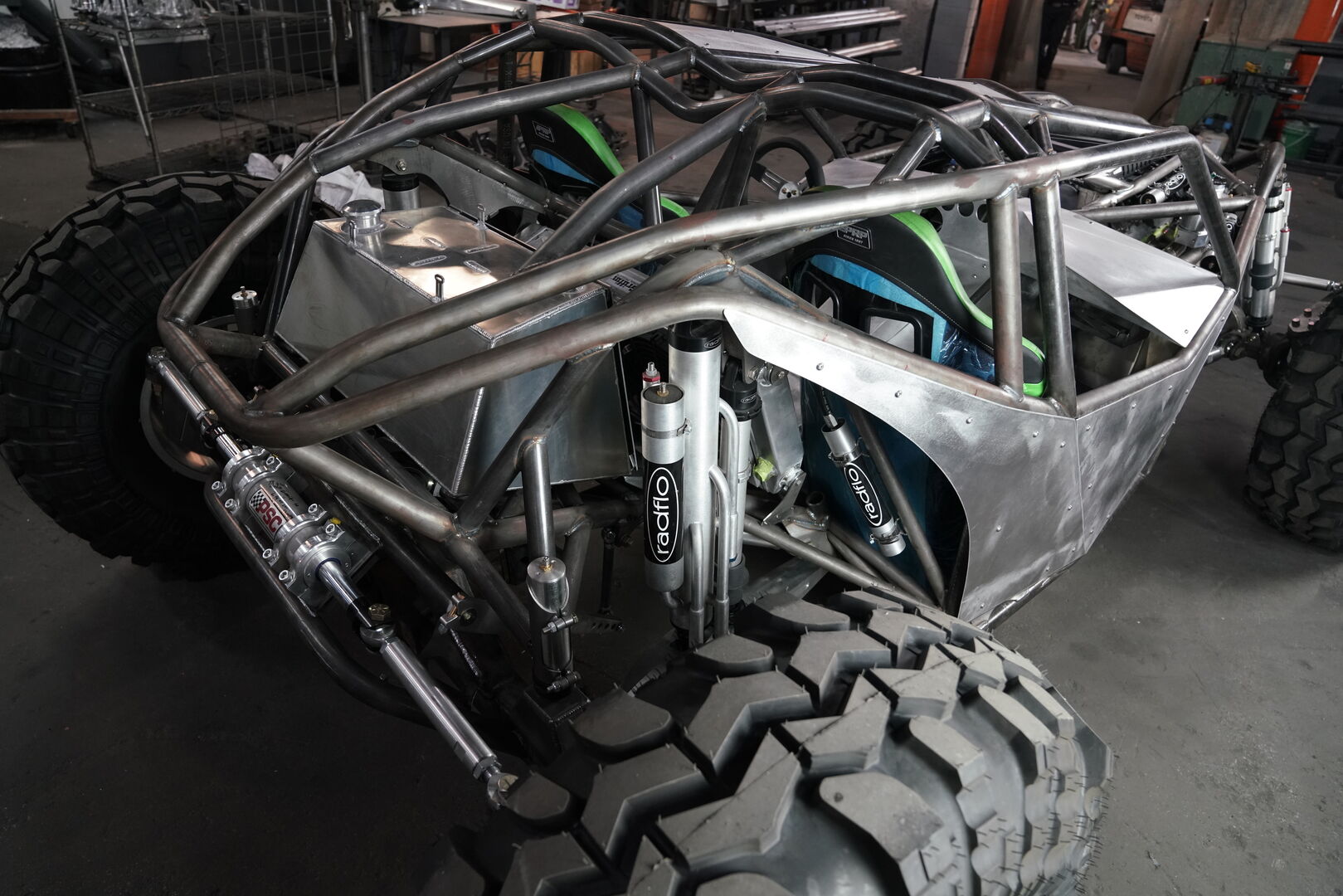

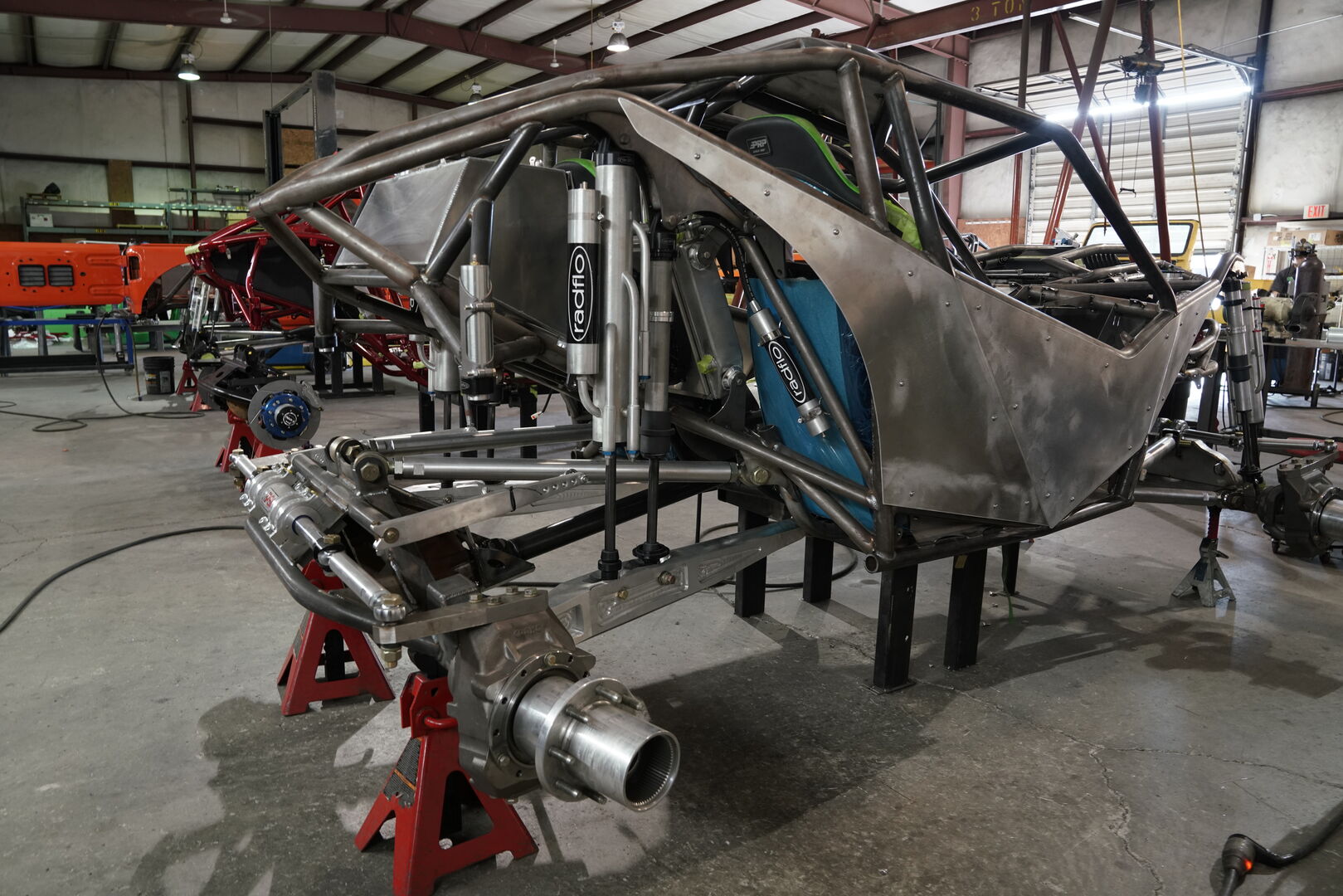

The suspension is a work of art in 7075 Billet Aluminum. Featuring 7075 Billet Trailing Arms and Radflo 3" 5-Tube Bypass shocks, this rig is designed to soak up massive landings without blowing through the travel. Whether it's the QA1 1-1/4" rod ends or the WOD Hydroboost braking, every single component was chosen because it's the absolute best in the business.
| Category | Component | Technical Specifications |
|---|---|---|

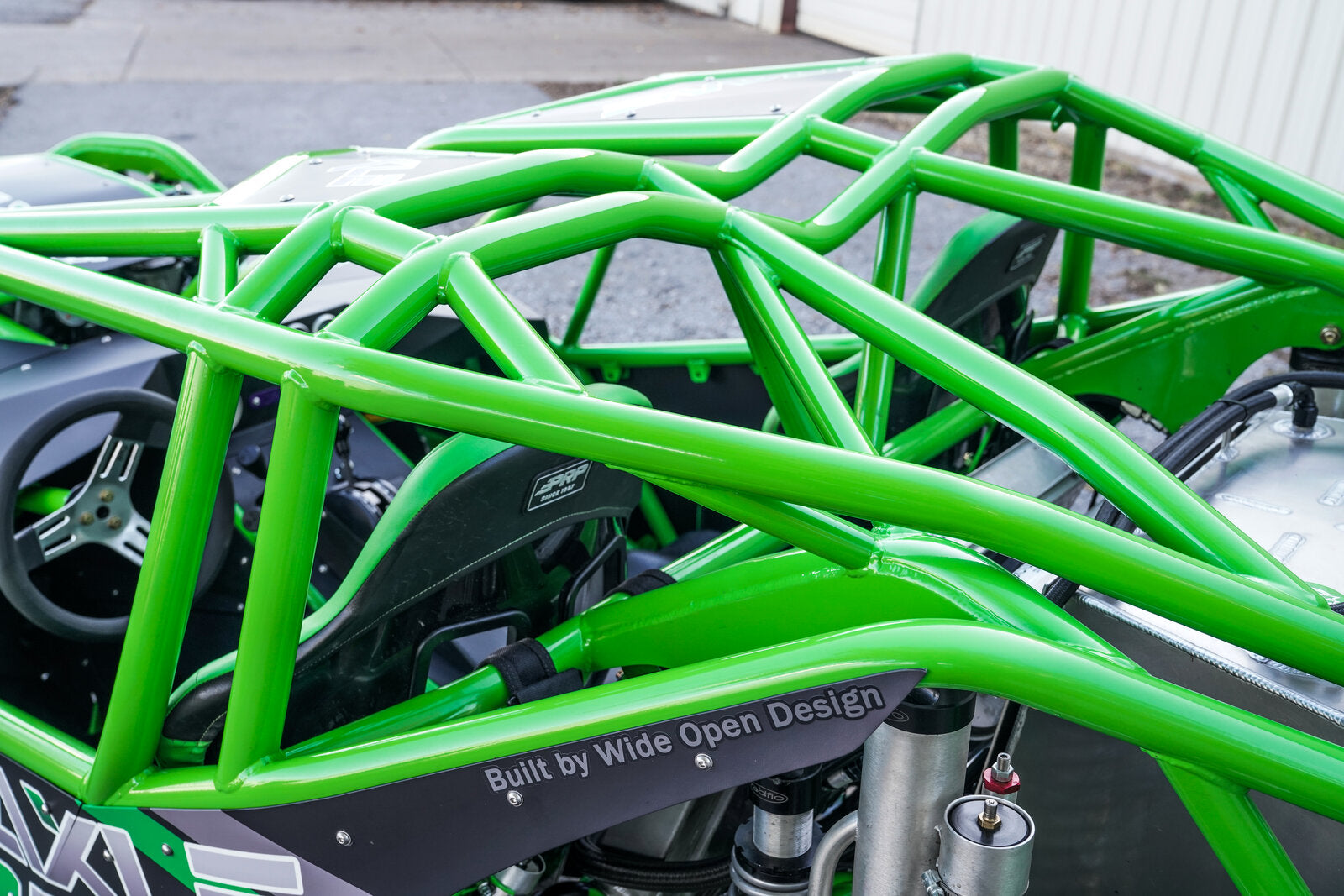

| Chassis | WOD Custom | Redneck Rocket Ship Chassis |
| Engine | Supercharged LS | Forced Induction V8 Performance |
| Exhaust | WOD Stainless | Custom-fabricated high-flow system |
| Transmission | TH400 | With Art Carr / Winters Shifter |
| Transfer Case | Atlas | Gear-driven; high-torque output |

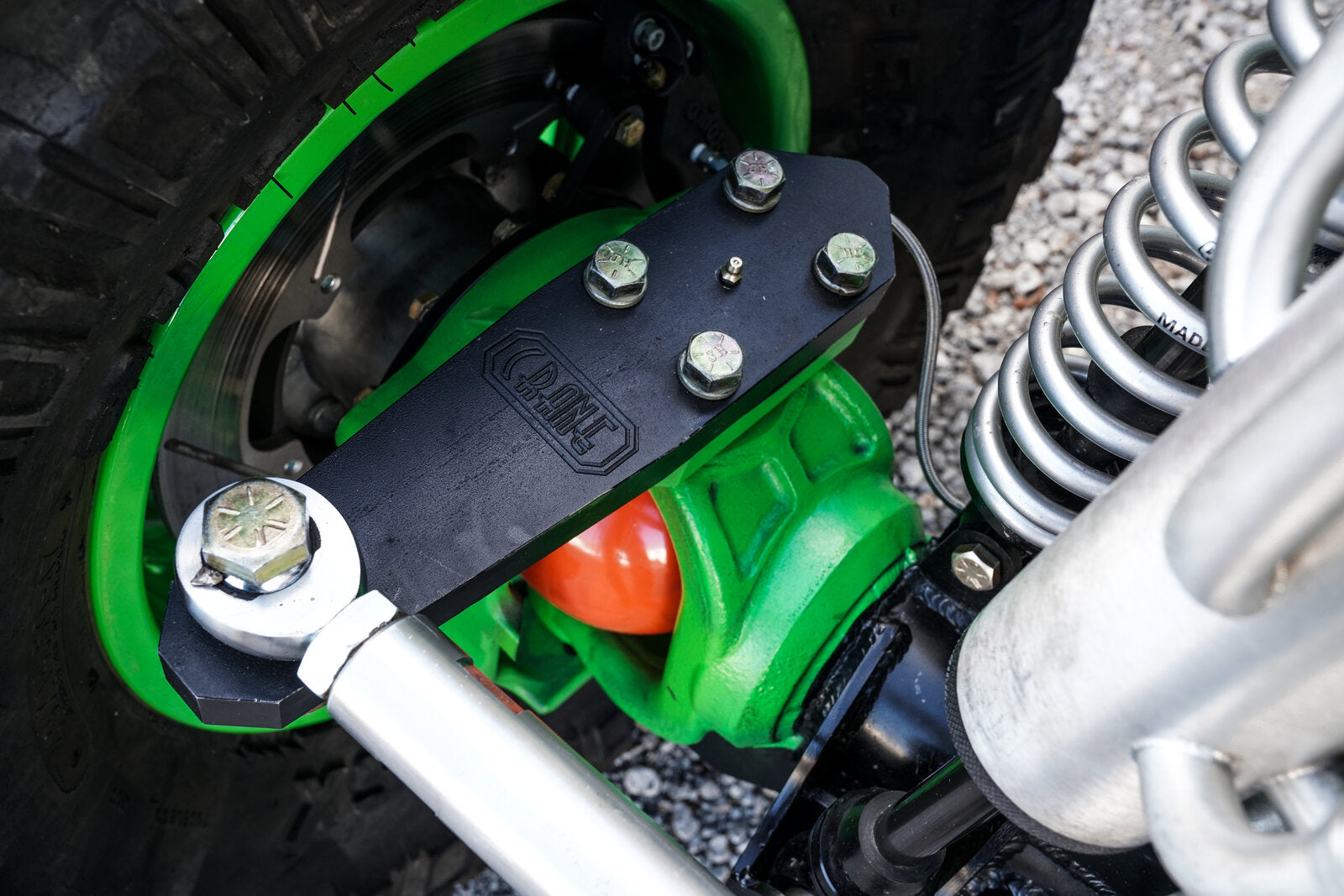

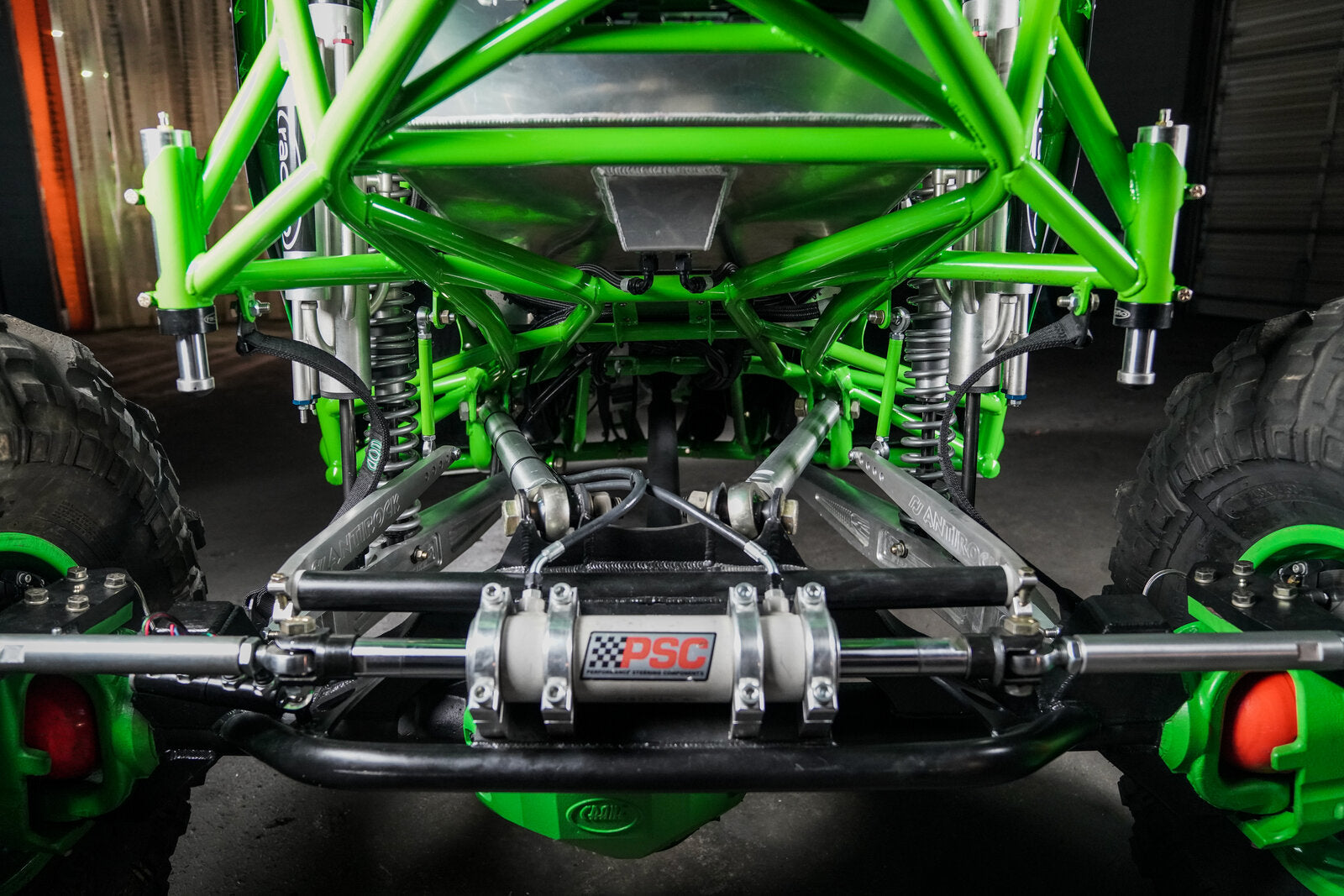

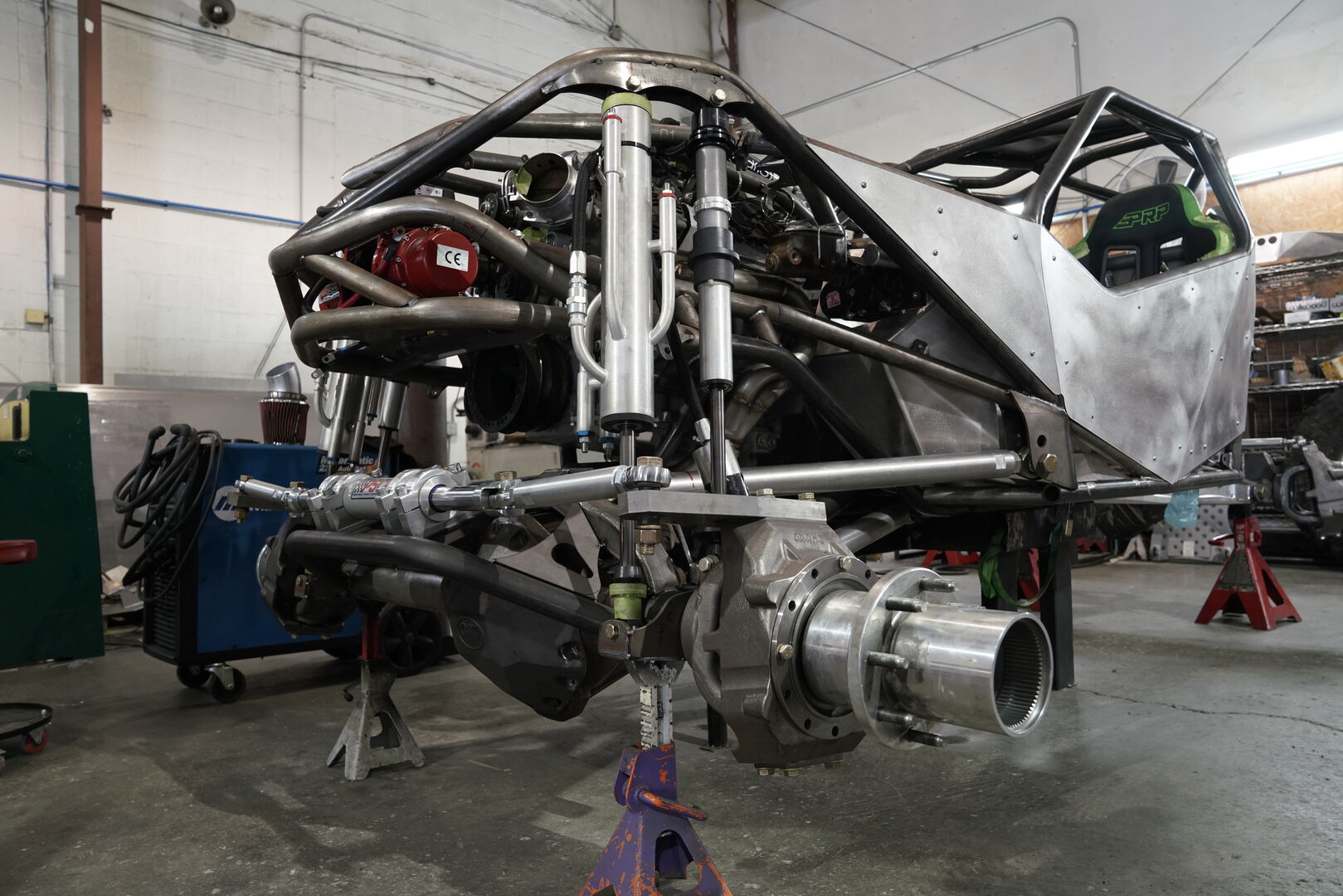

| Front Axle | Crane 14-Bolt | 3.5" Tubes (1/2" Wall); Magnum Knuckles |
| Rear Axle | Crane 14-Bolt | 3.5" Tubes (1/2" Wall); 40-Spline Spool |
| Axle Internals | Ouverson / Yukon | 47-Spline Outers; 5.13 Yukon Gears |

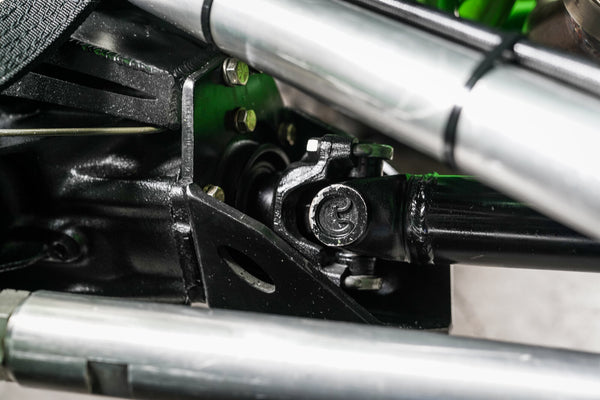

| Driveshafts | WOD 1410 HD | With WOD Carrier Bearing Kit |
| Links | 7075 Billet | Billet Trailing Arms; 7075 Aluminum 4-Link |

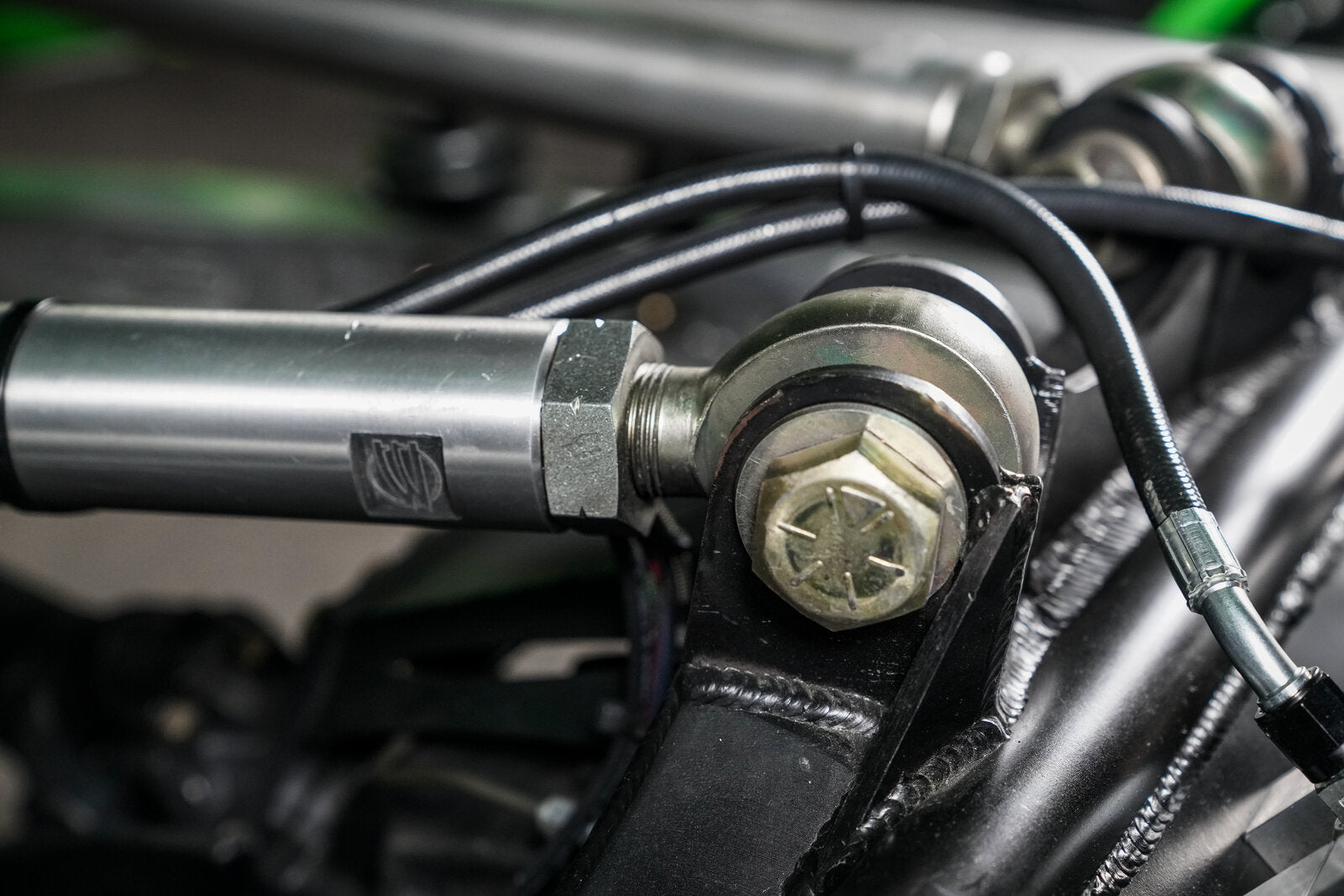

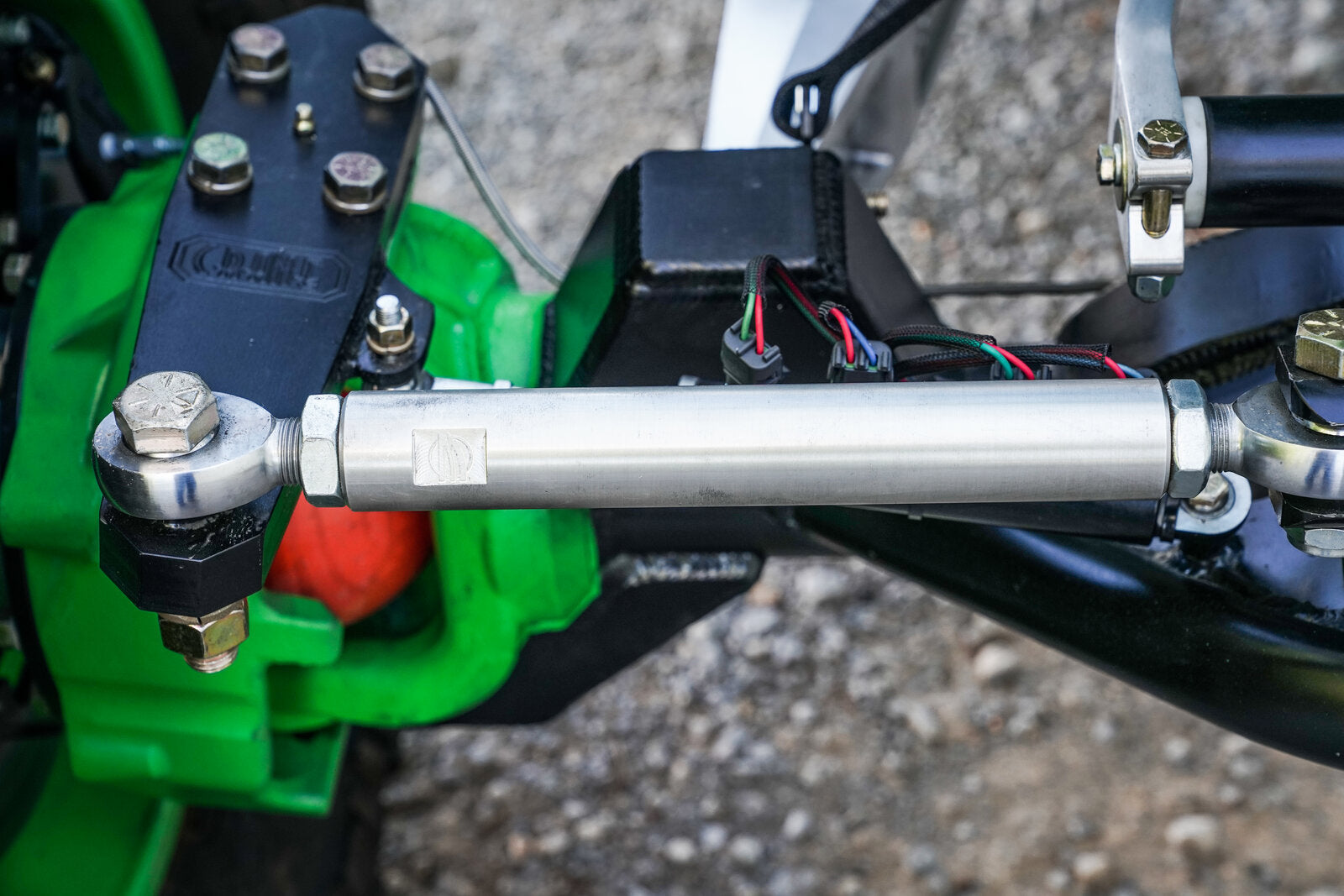

| Rod Ends | QA1 | 1-1/4" Heavy Duty Rod Ends |

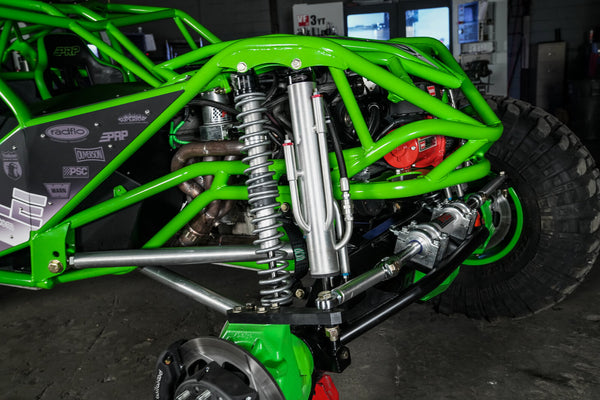

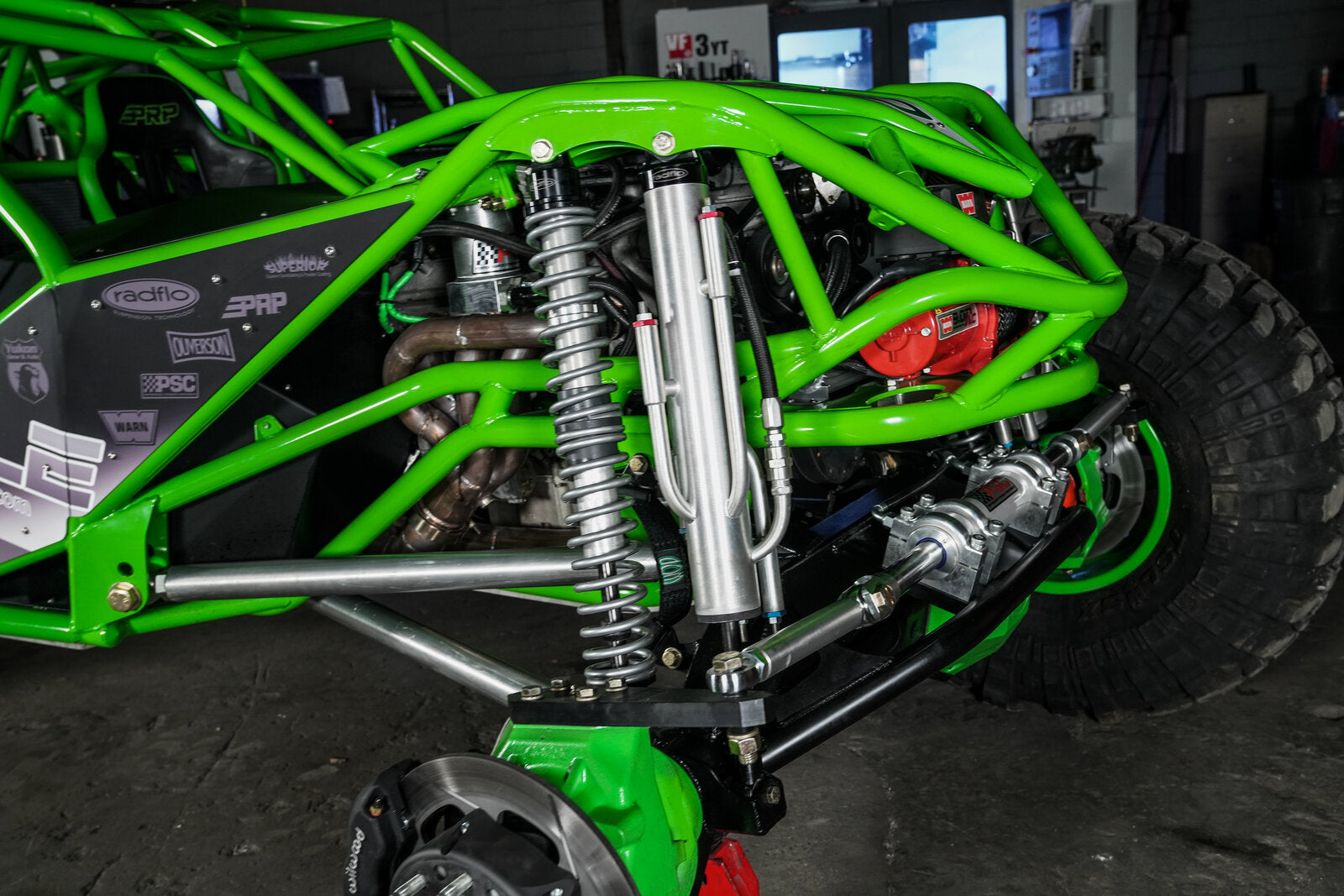

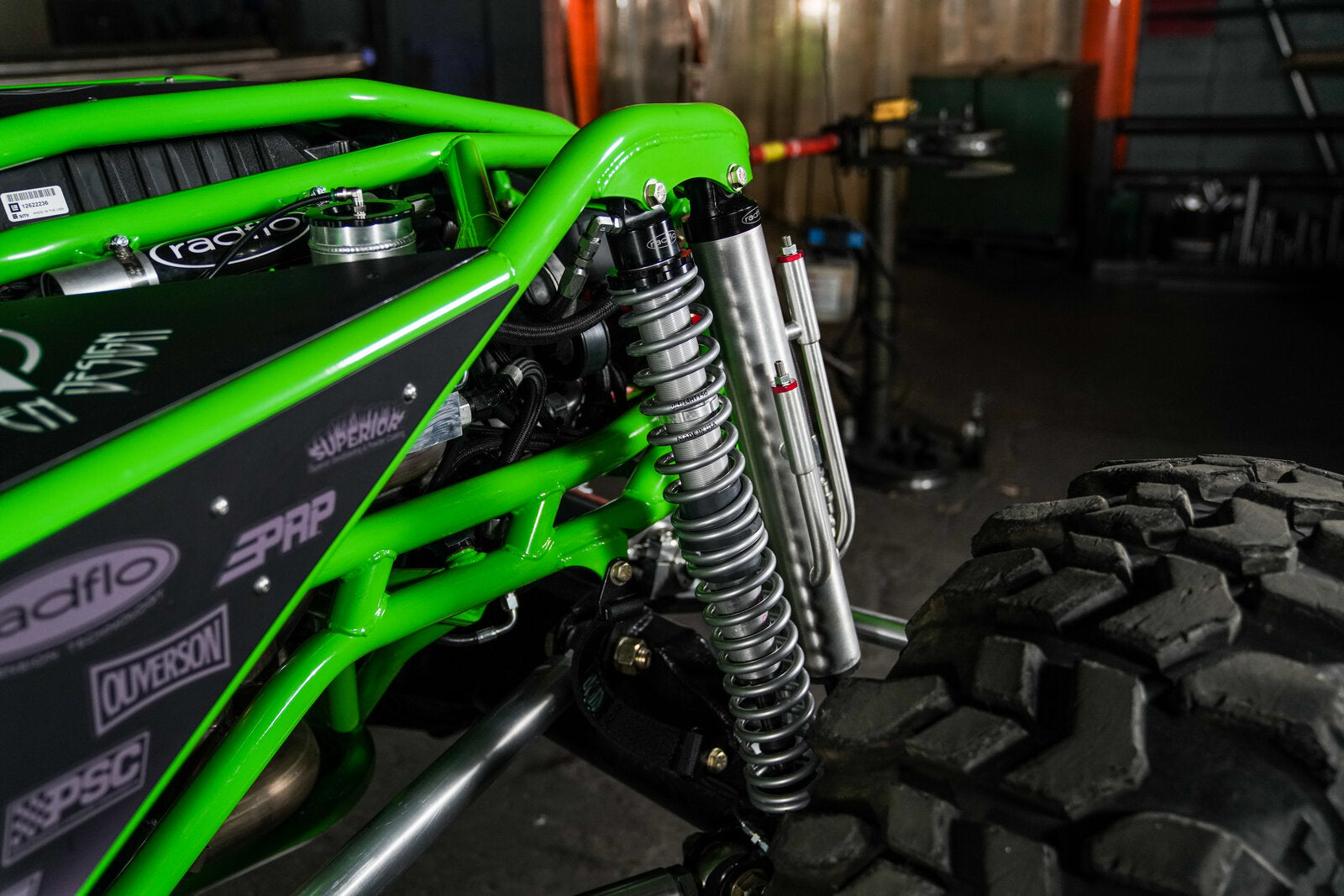

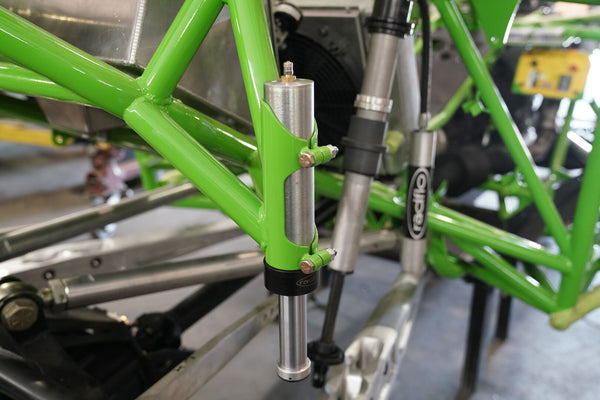

| Shocks (Front) | Radflo 2.0/3.0 | 2.0 Coilovers + 3" 5-Tube Bypass |

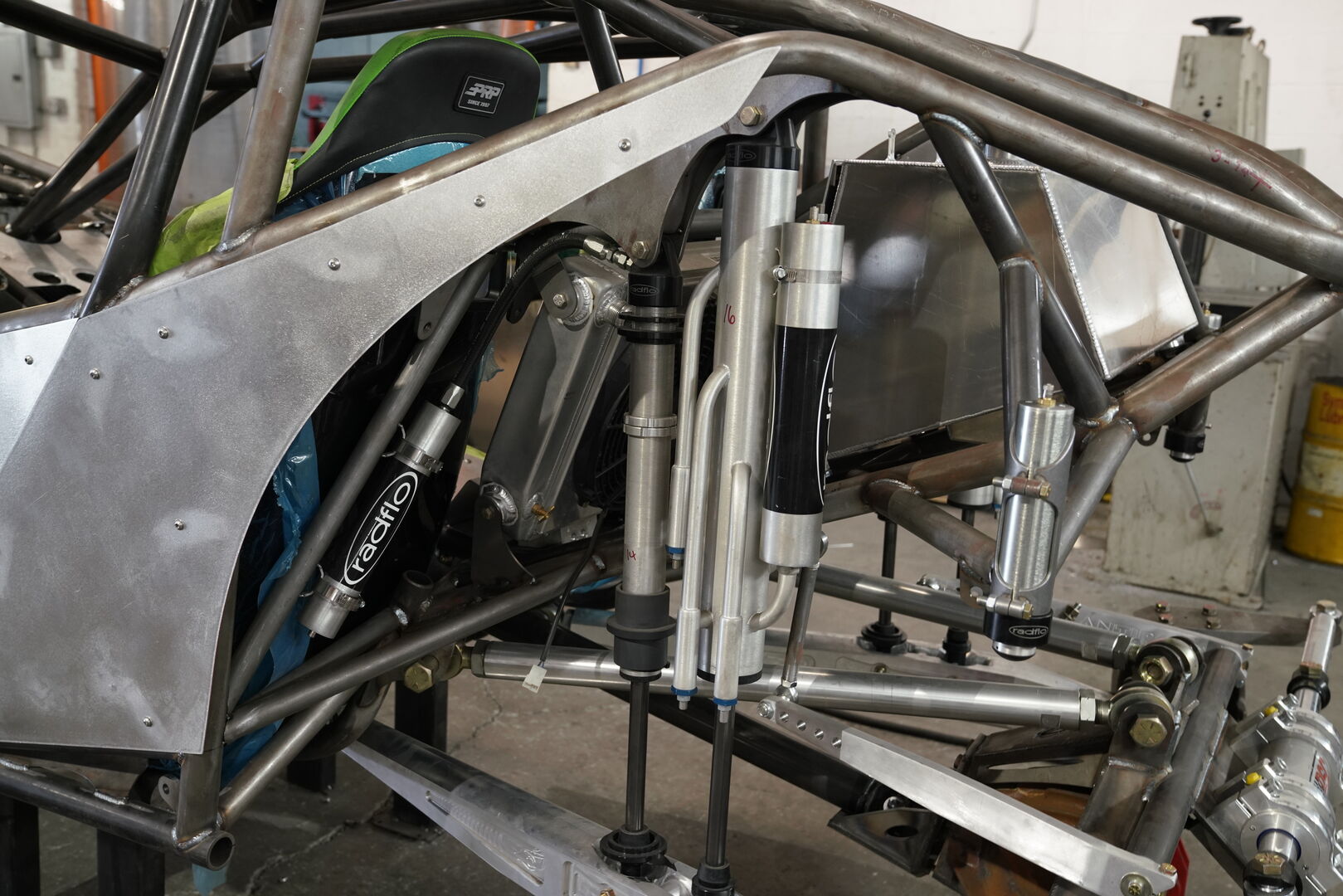

| Shocks (Rear) | Radflo 2.0/3.0 | 2.0 Coilovers + 3" 5-Tube Piggyback Bypass |

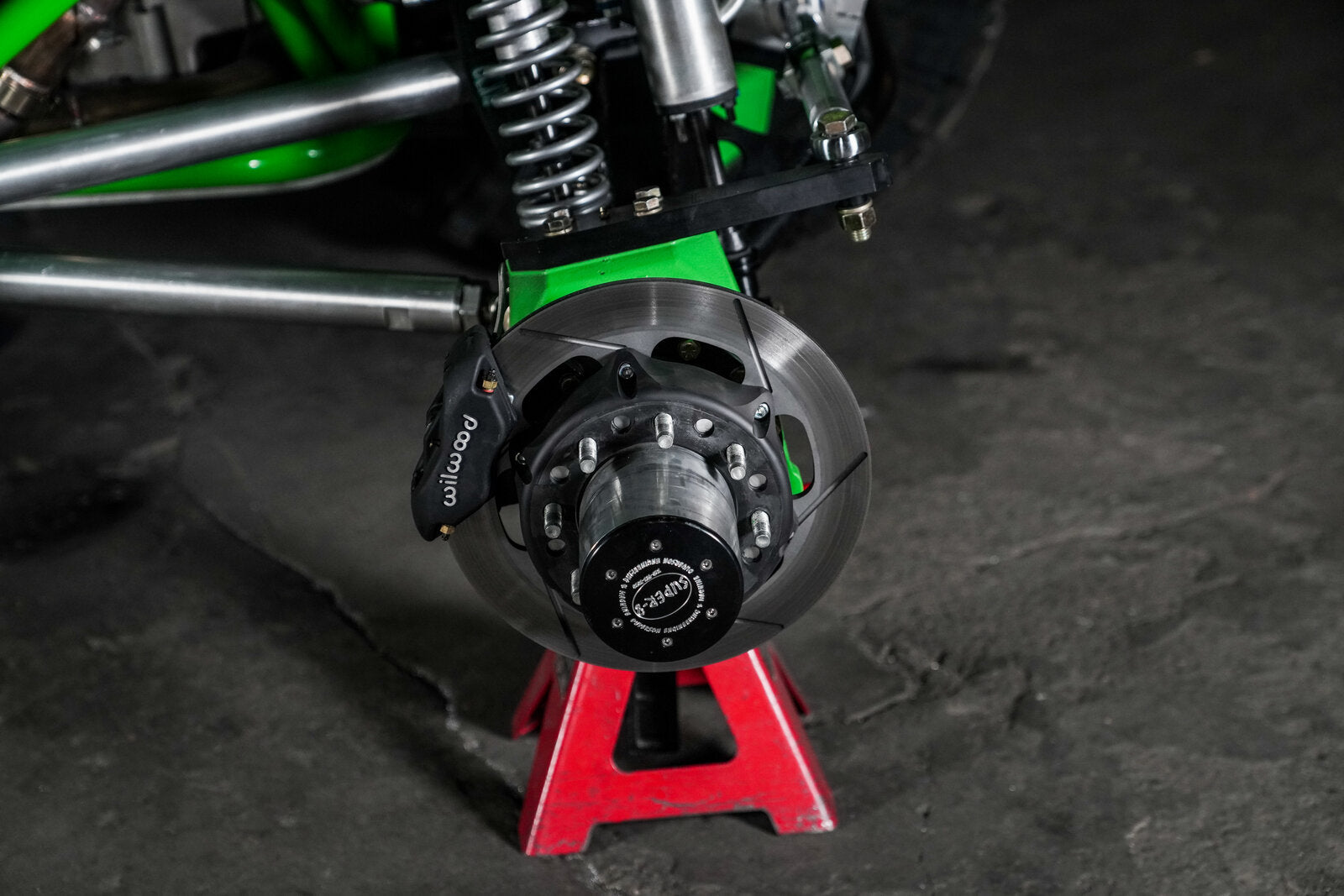

| Brakes | WOD Lightweight | WOD Hydroboost & Lightweight Brake Kit |

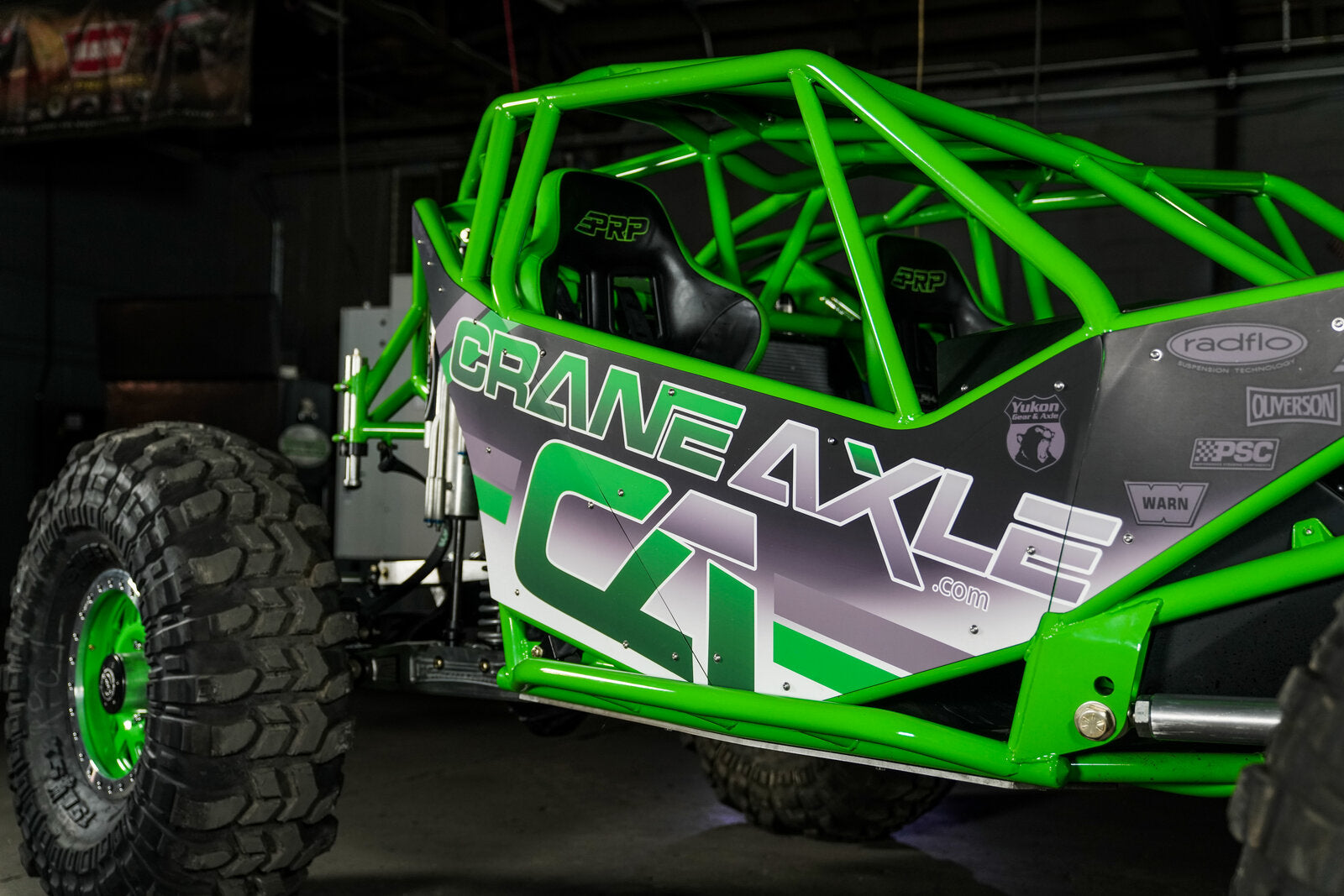

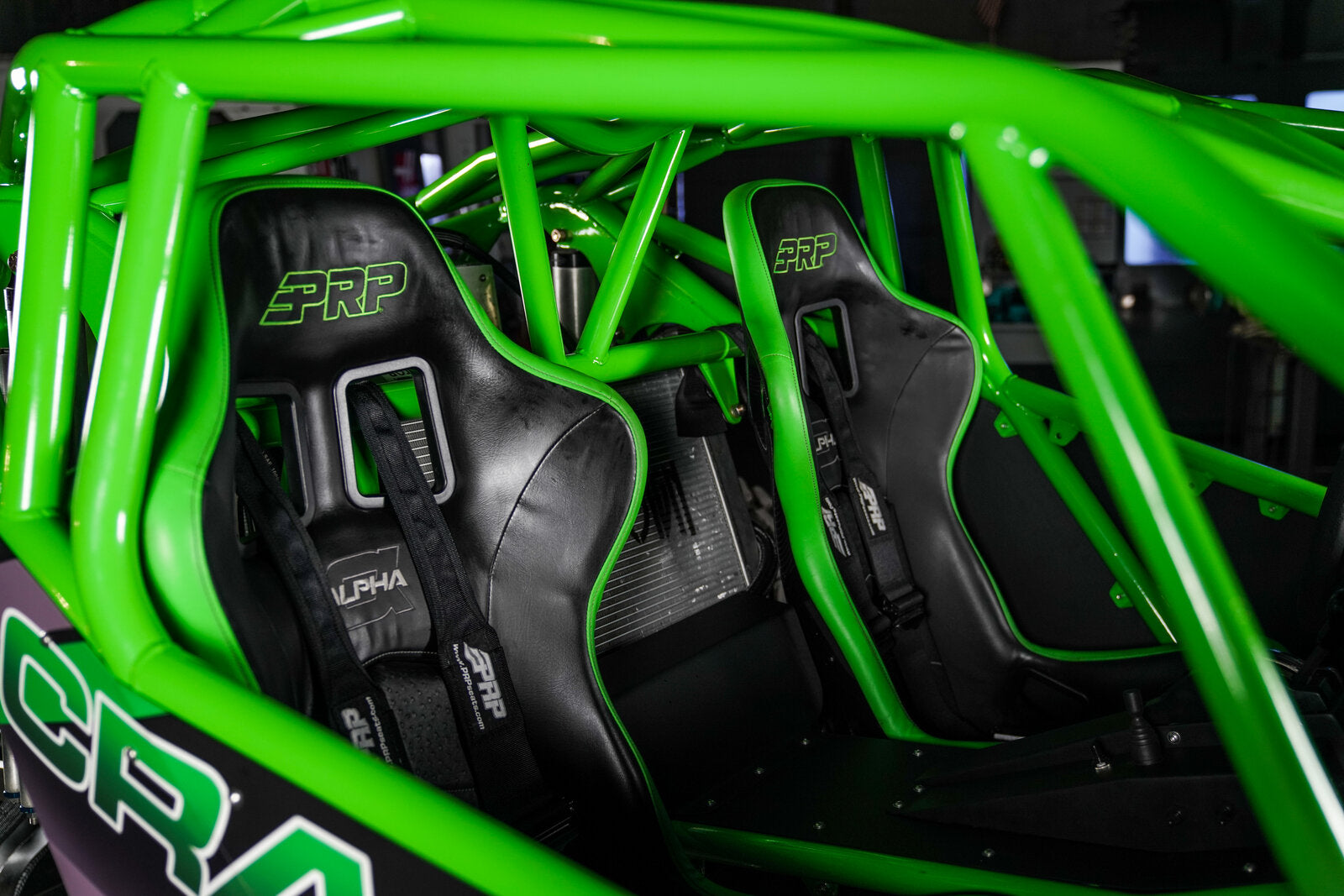

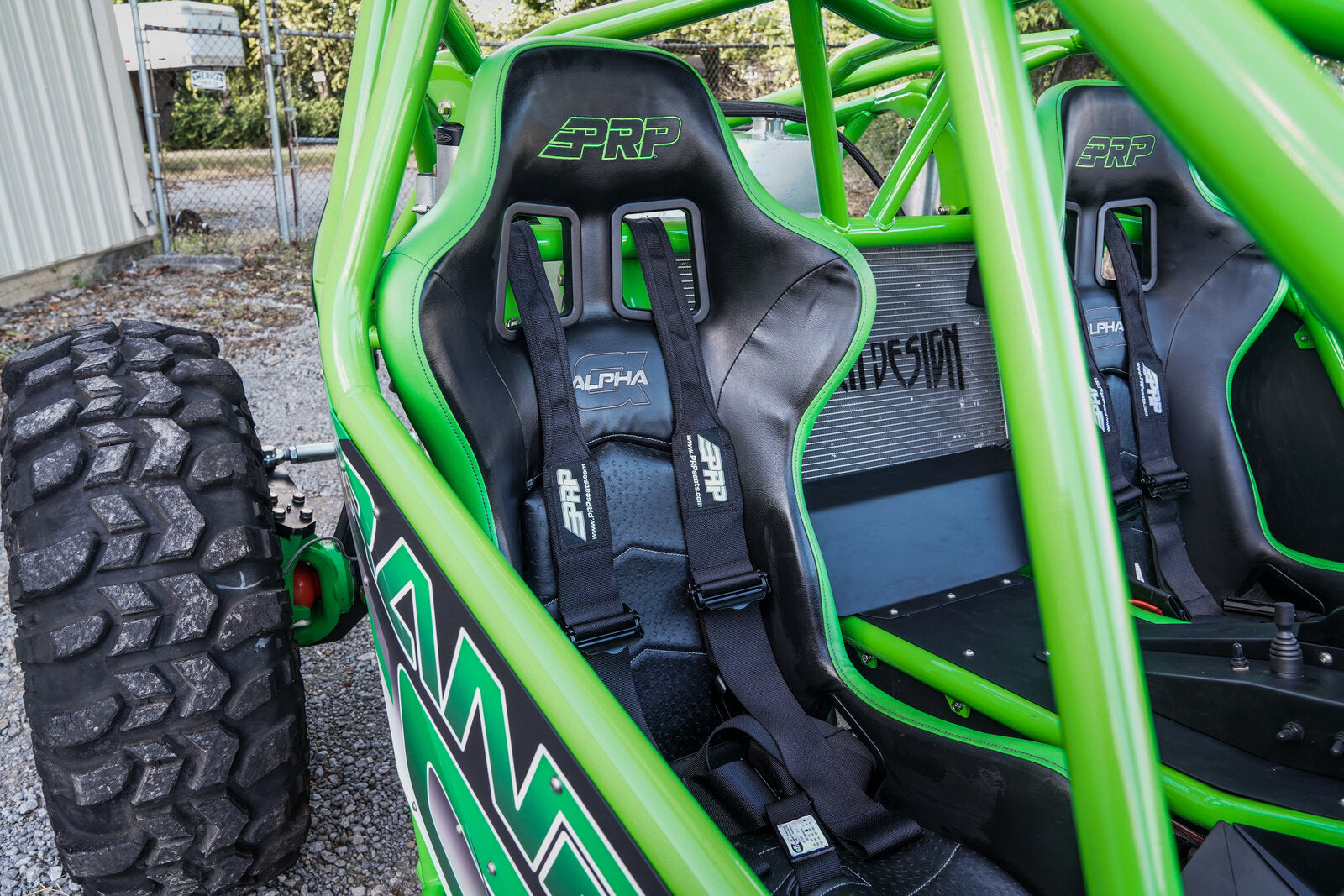

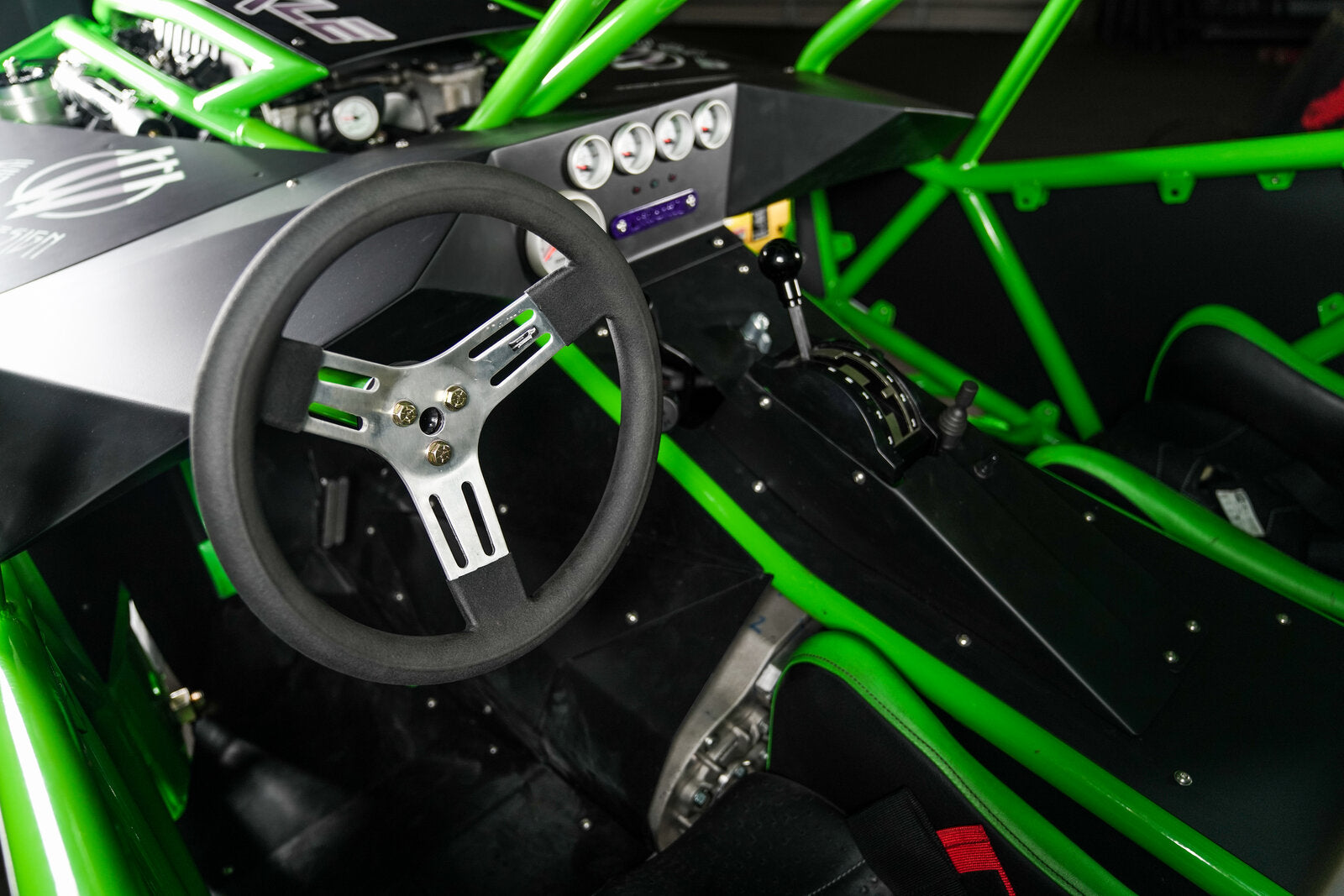

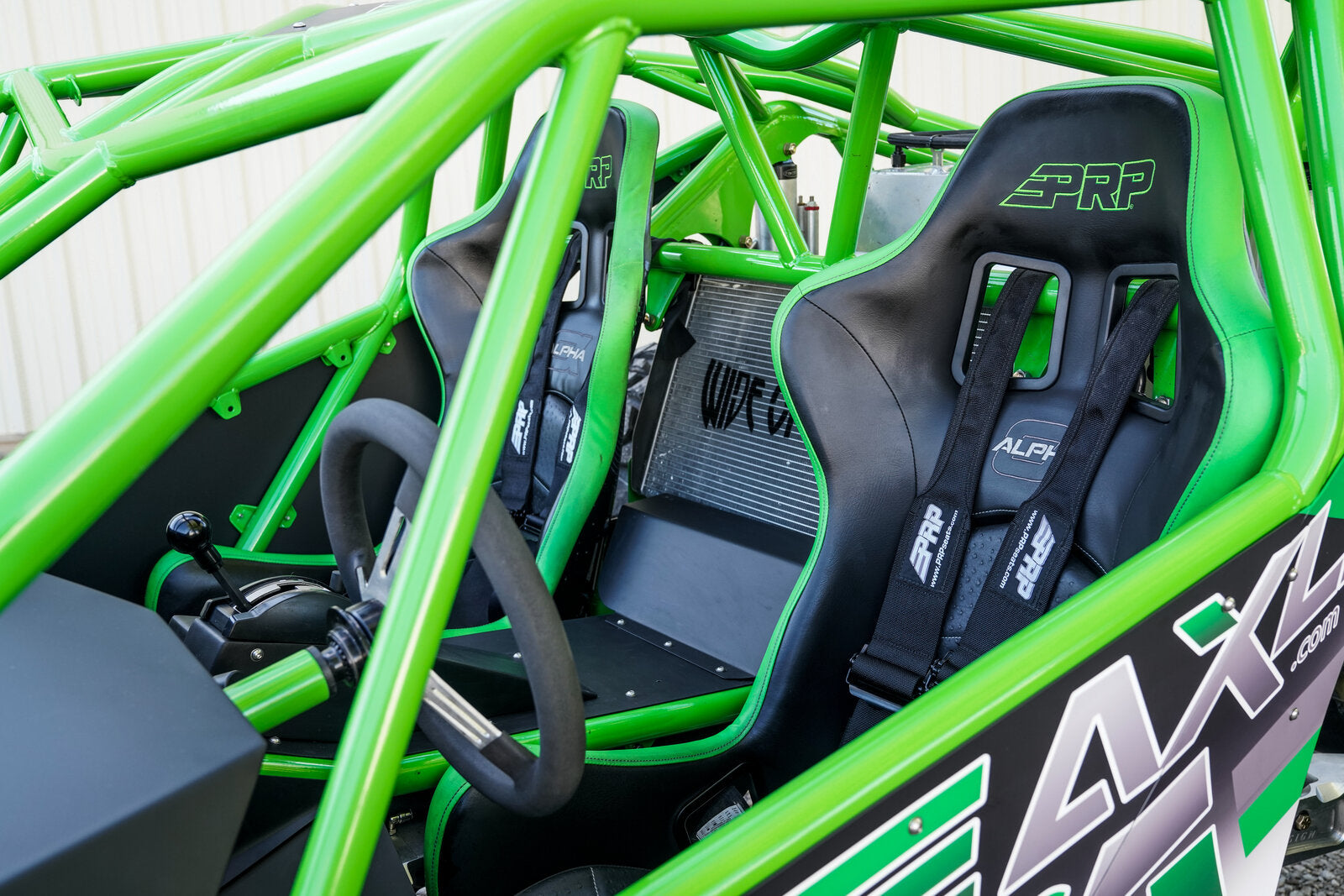

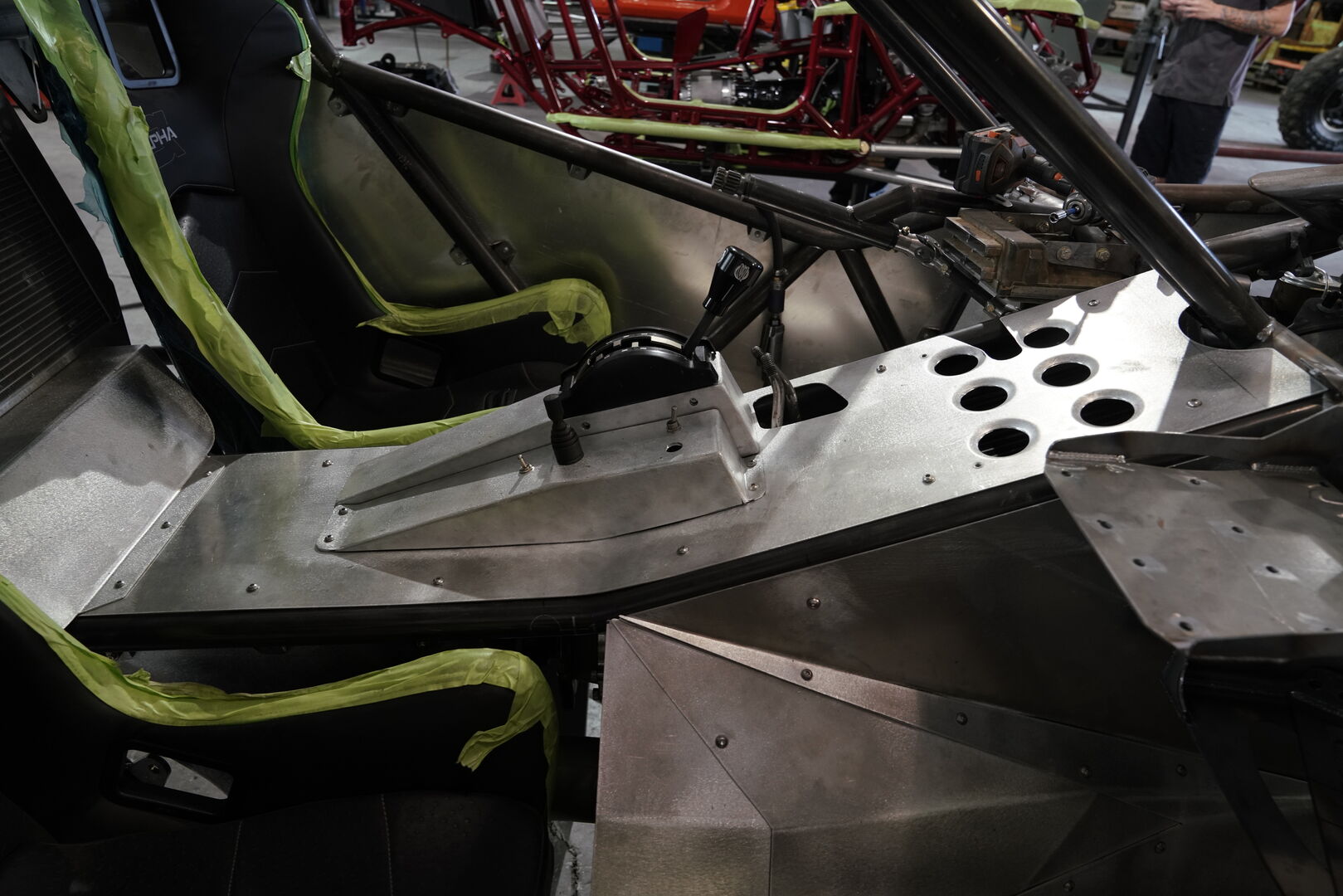

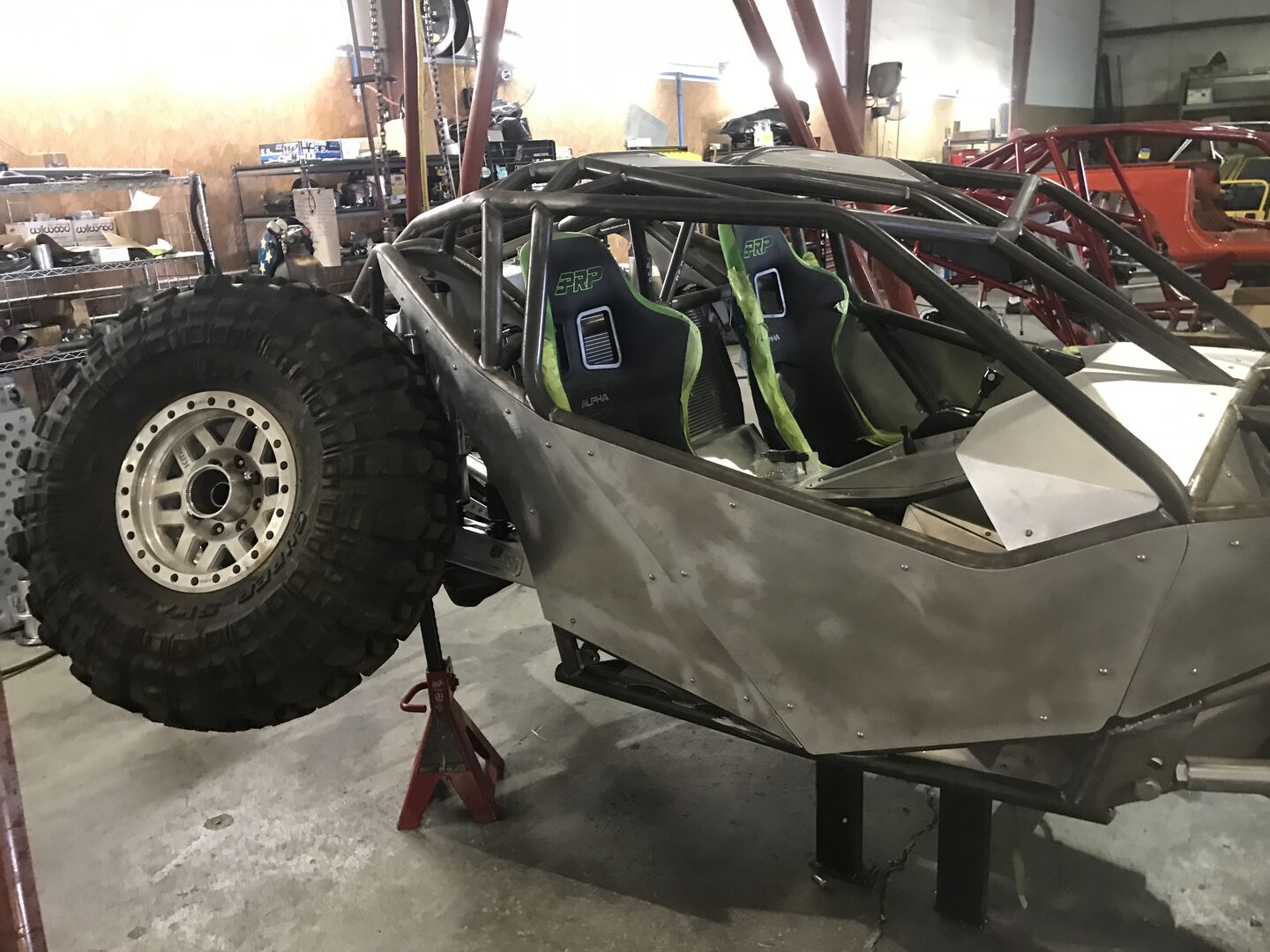

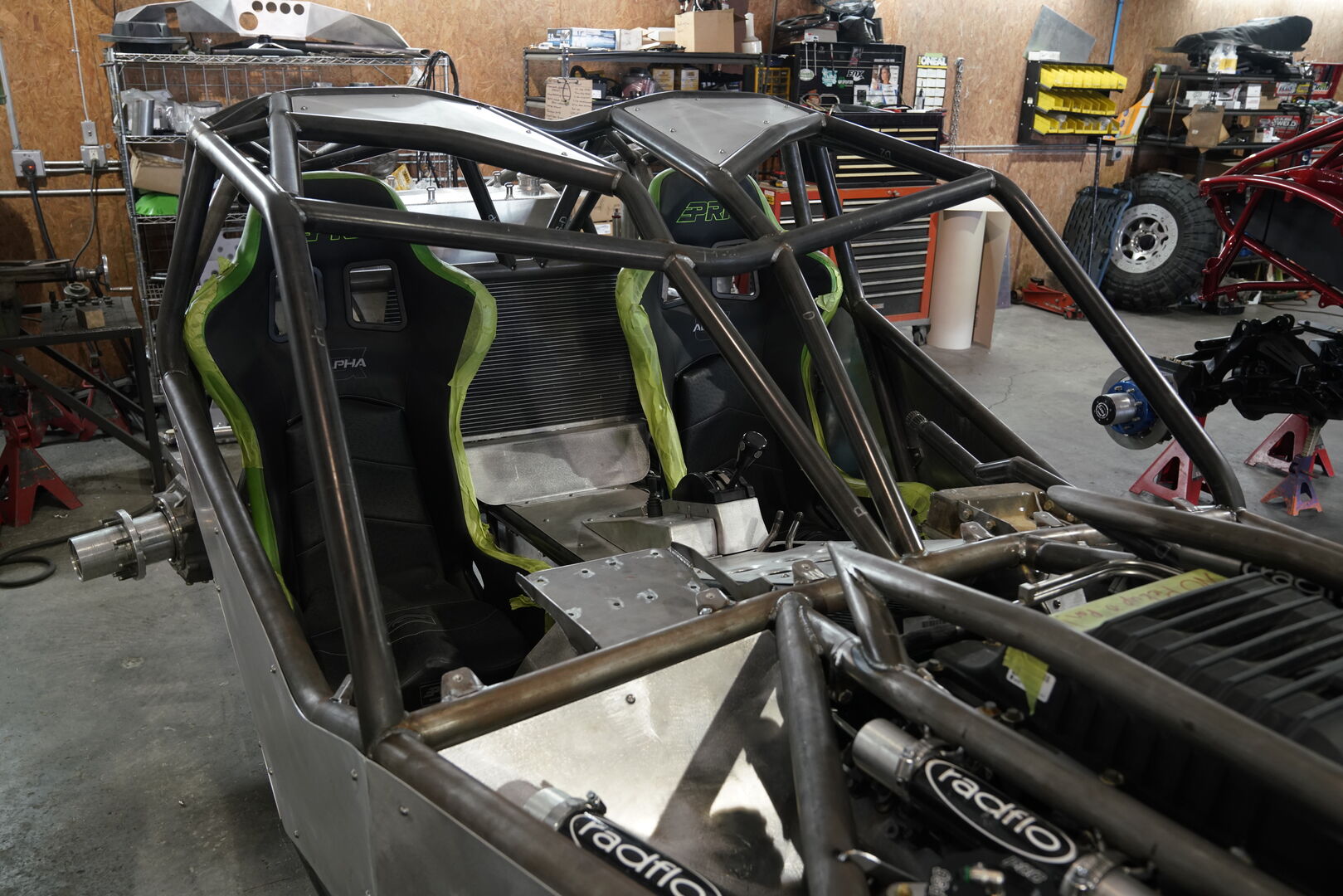

| Interior | PRP Alpha | Alpha Seats; PRP Harnesses; Longacre 13" Wheel |
| Recovery | Warn / H3R | Warn 9.0 RC Winch; HalGuard Fire Safety |
| Armor | 6061 Aluminum | 3/8" Belly Skid Plate |
