Toyota Soul. WOD DNA. 427 Cubic Inches of Attitude.

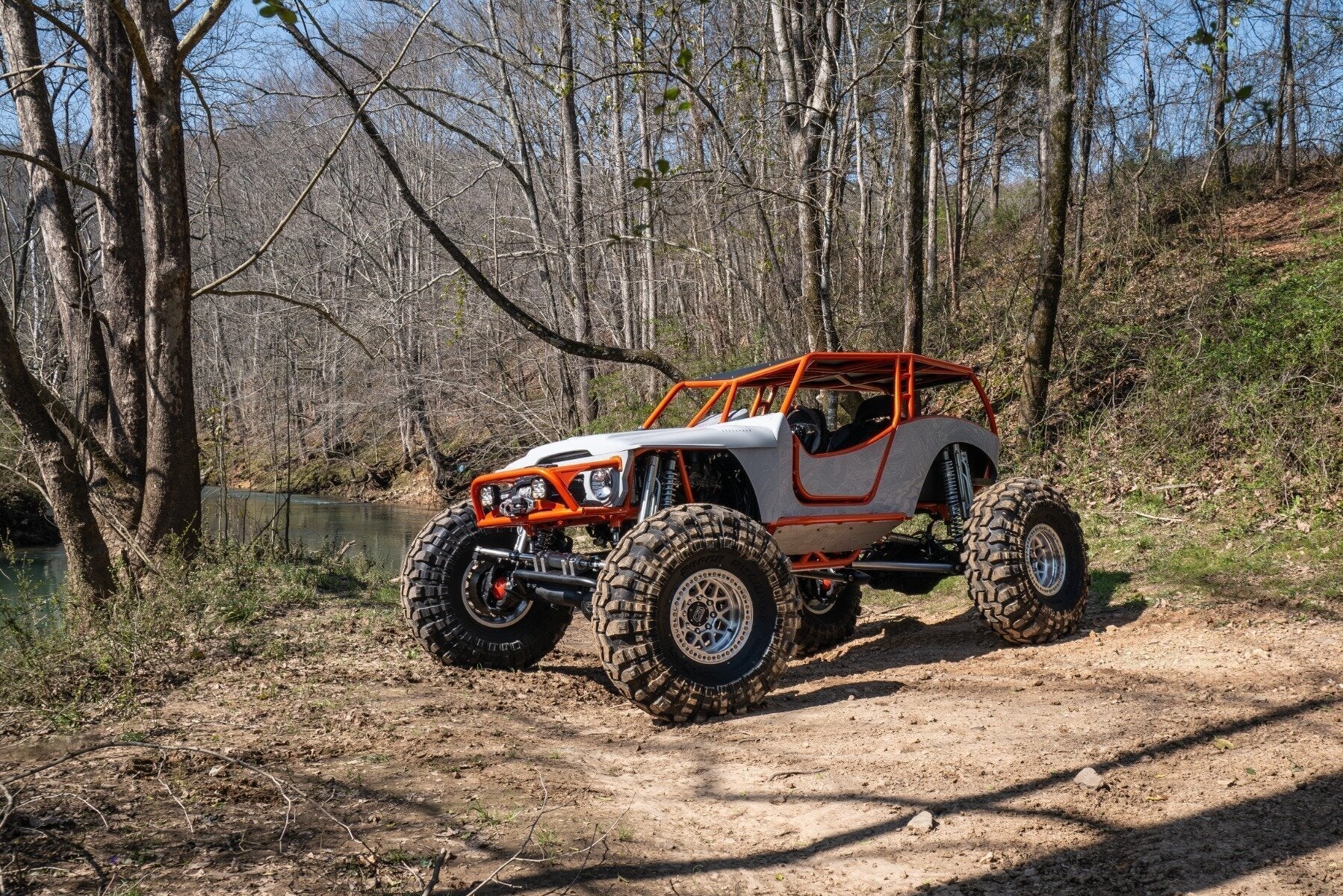

When Zack Roy of Lexington, Kentucky, came to us, he brought more than a vision—he brought a legacy. As a lifelong Toyota fan, Zack wanted his next build to honor the FJ-40s he drove off-road for years. He also needed the proven strength of a Wide Open Design Revolution 3.0 chassis.

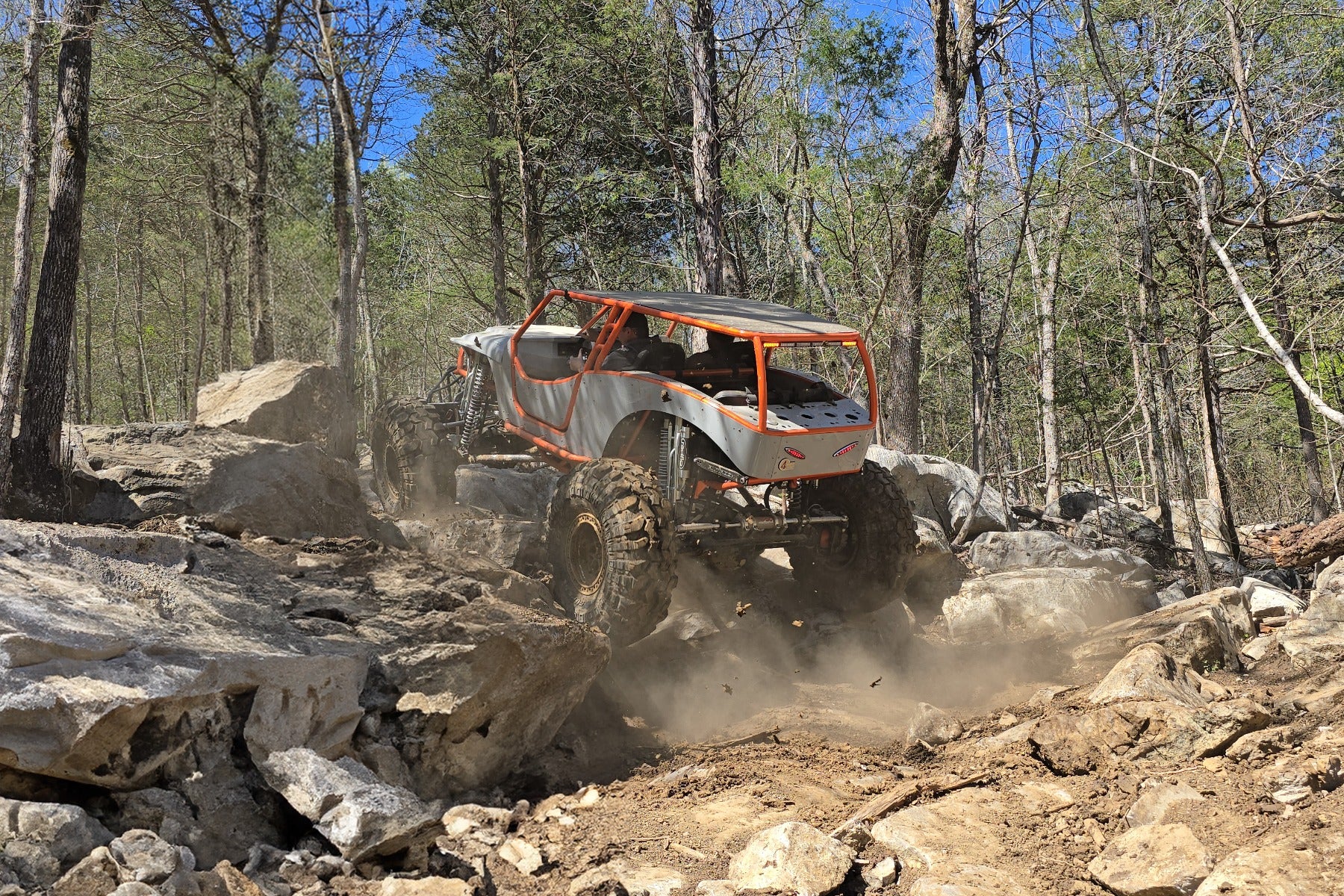

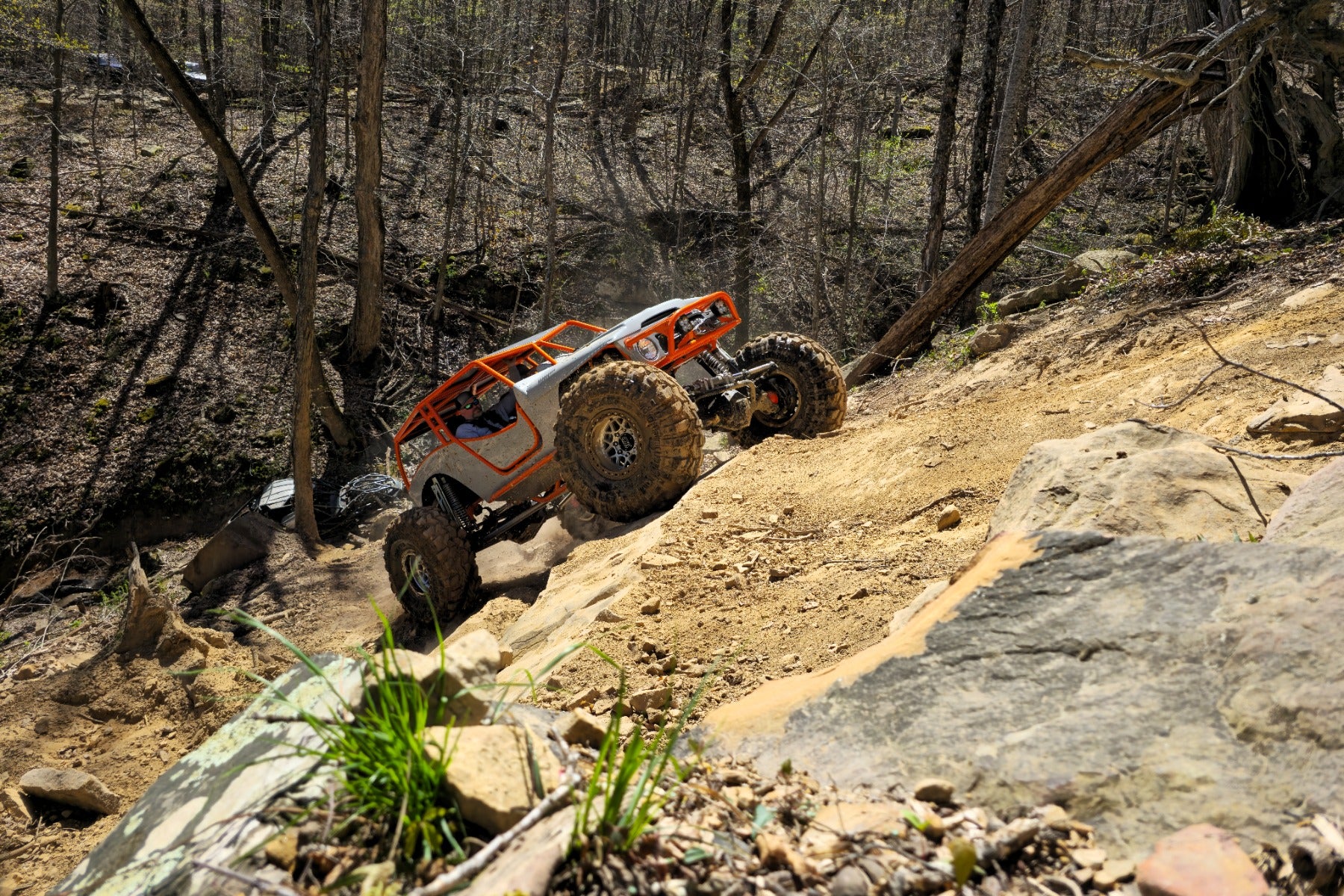

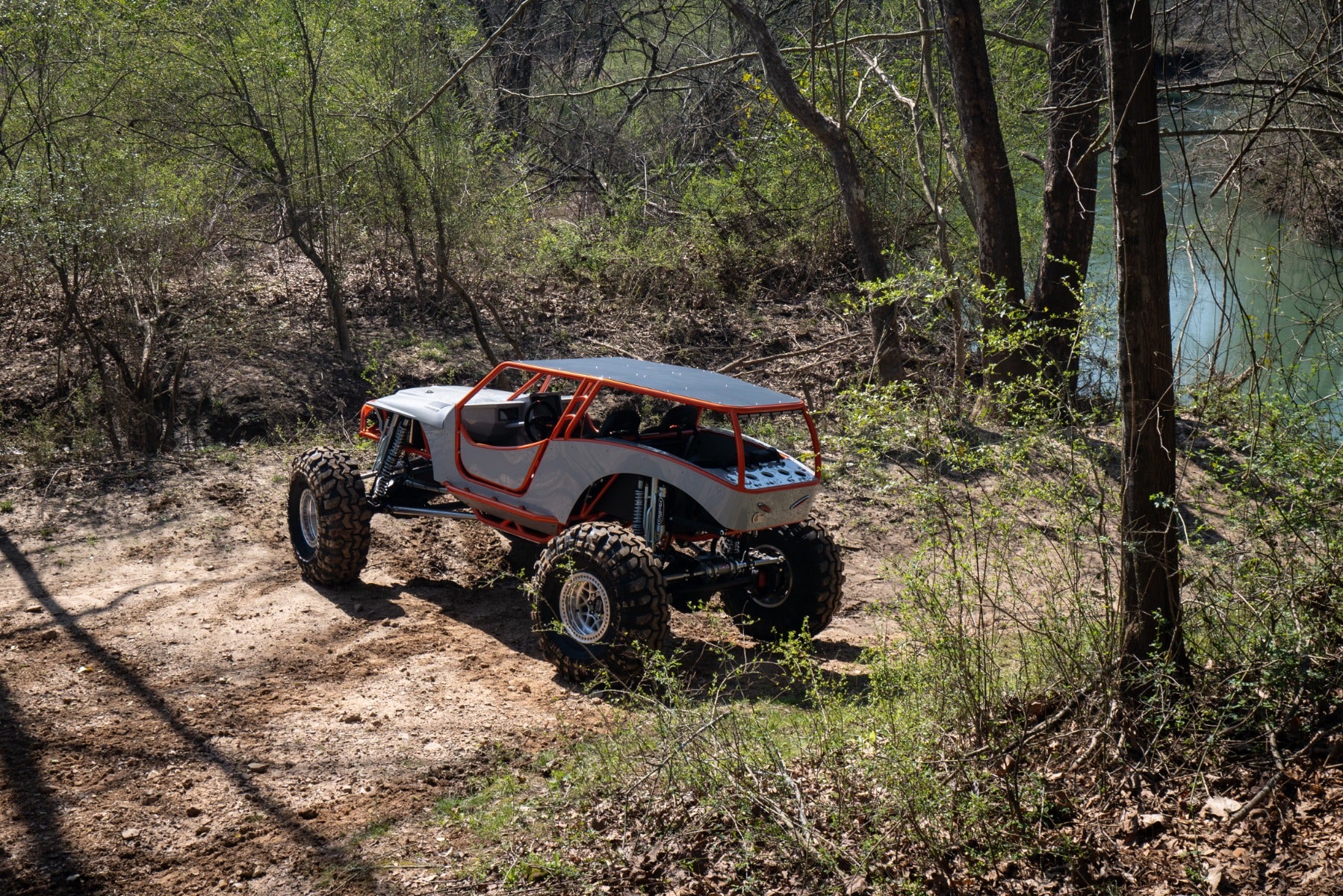

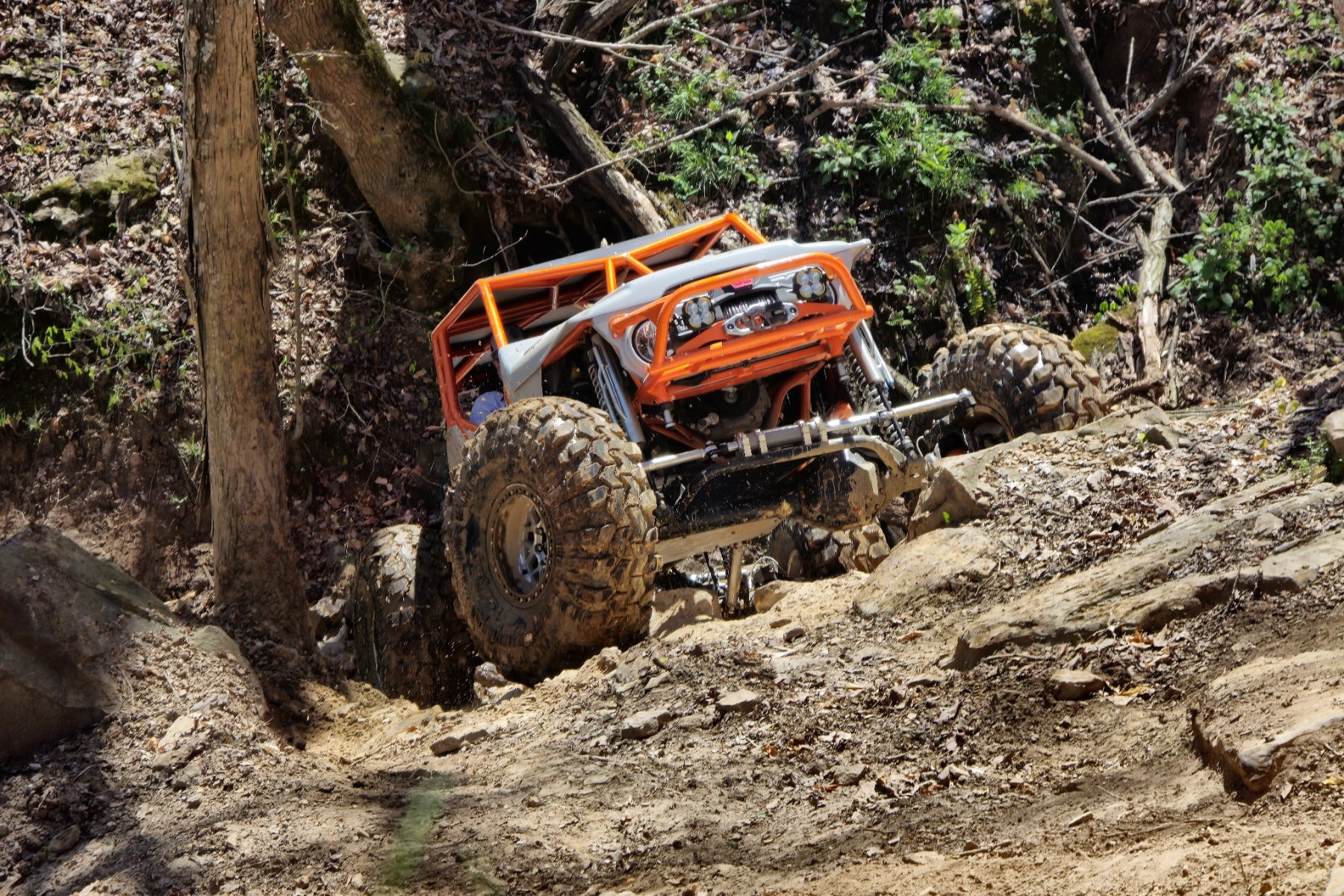

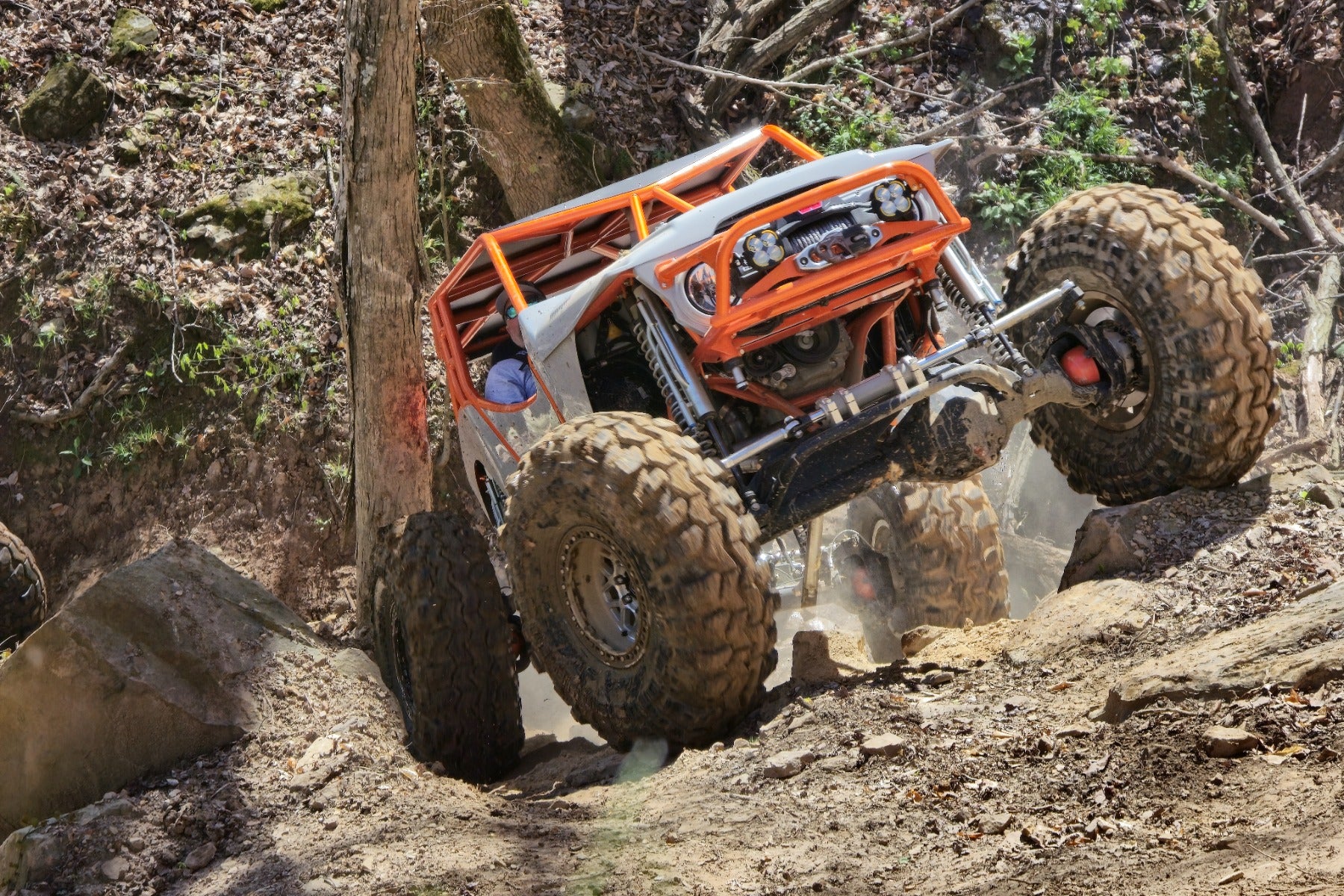

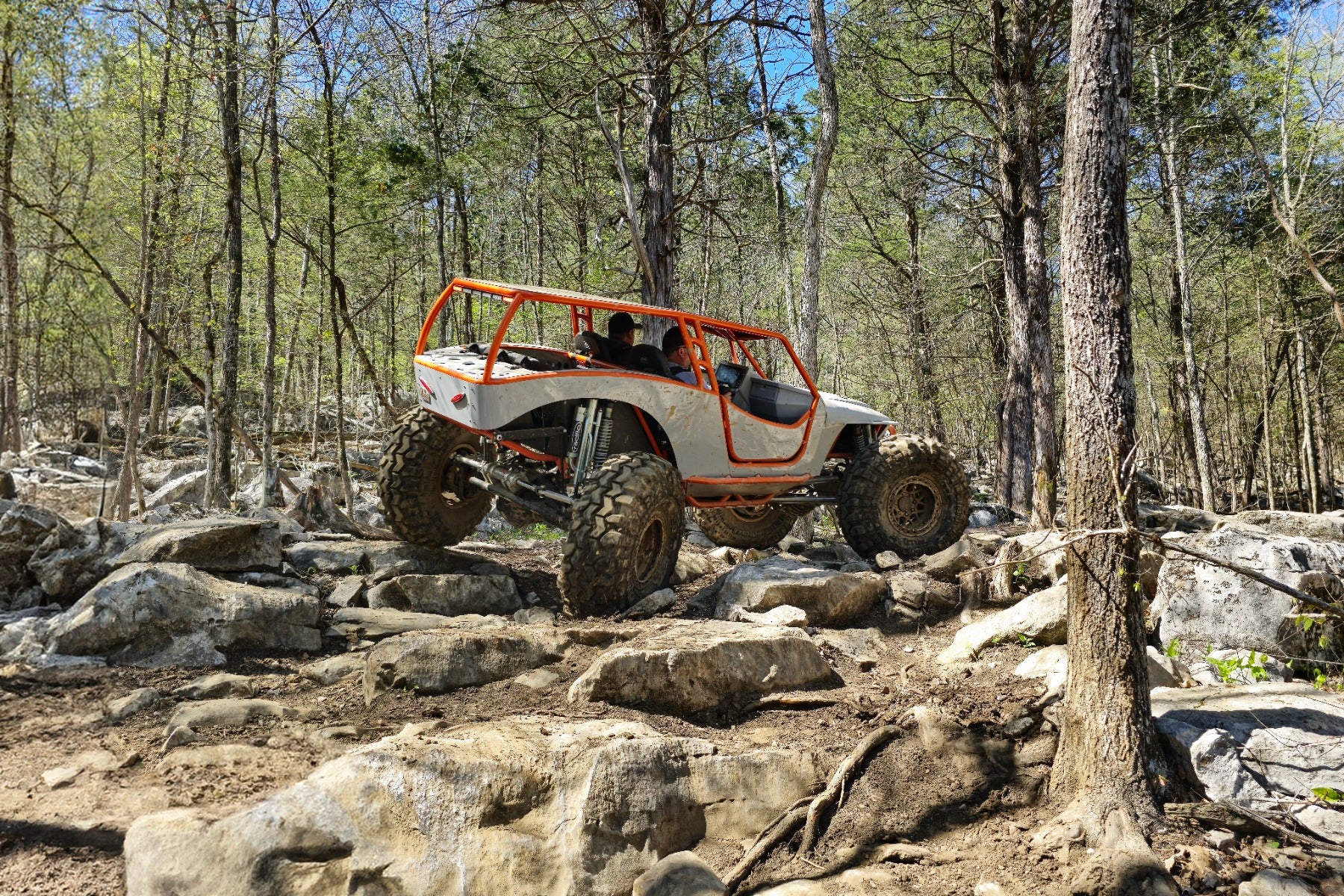

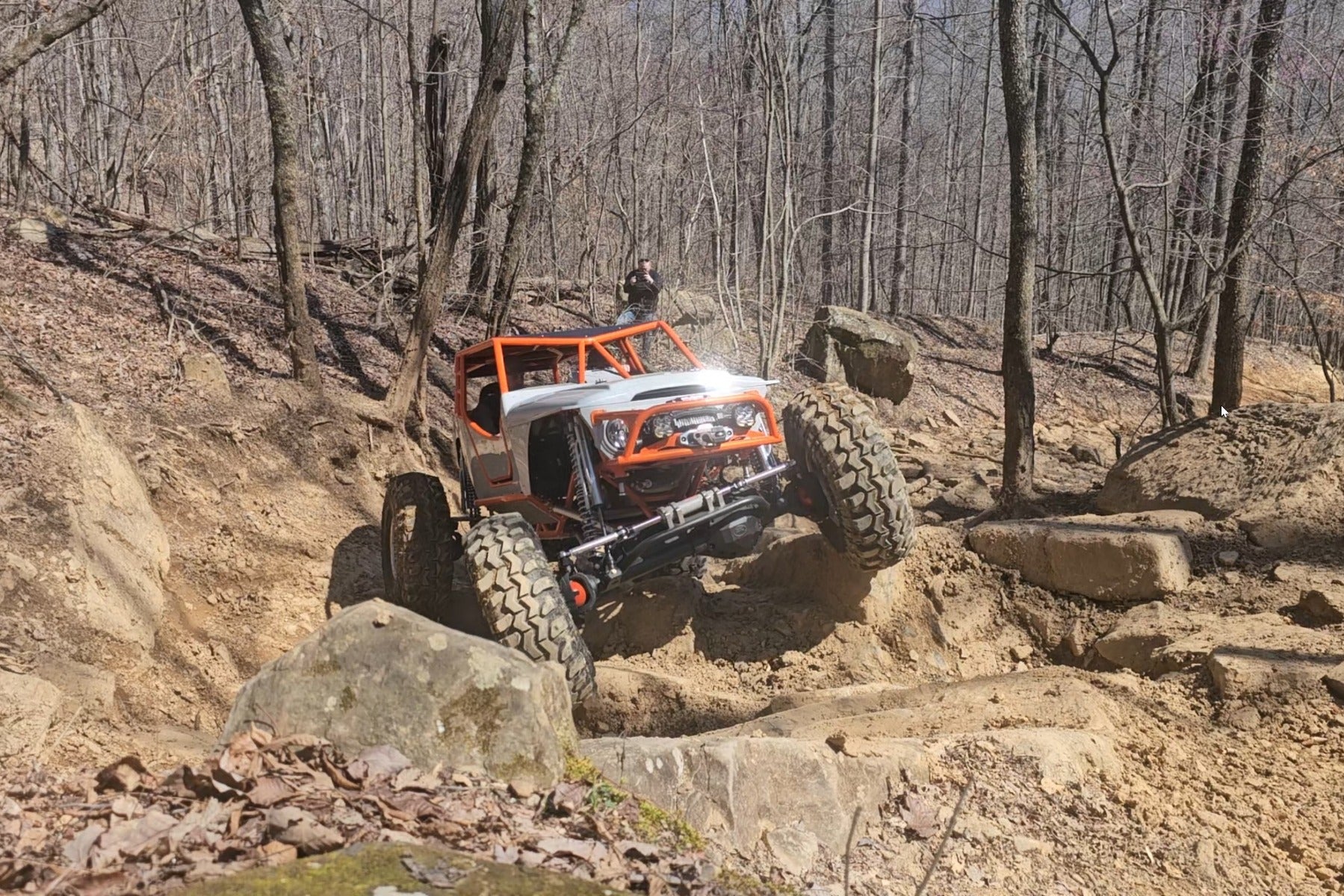

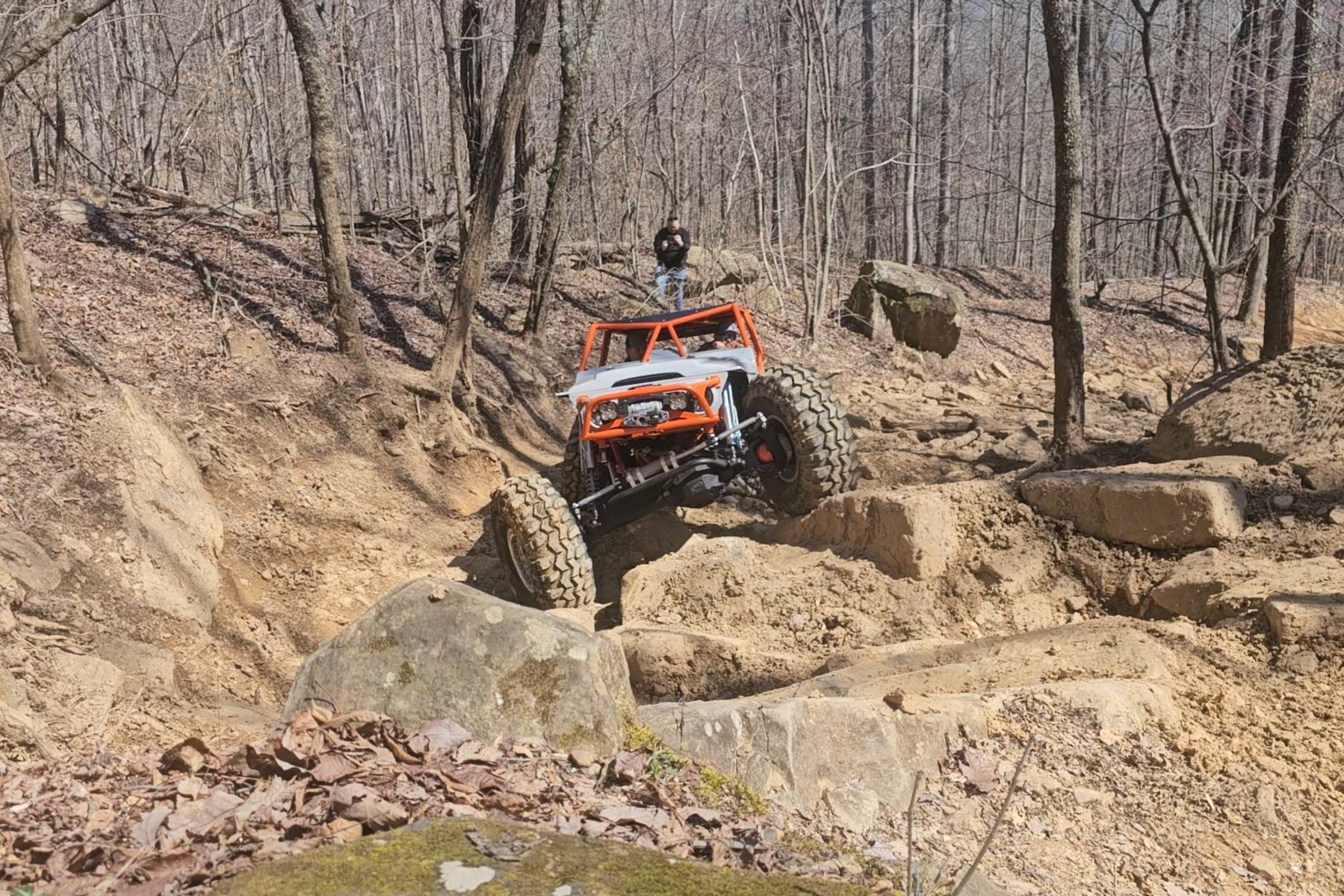

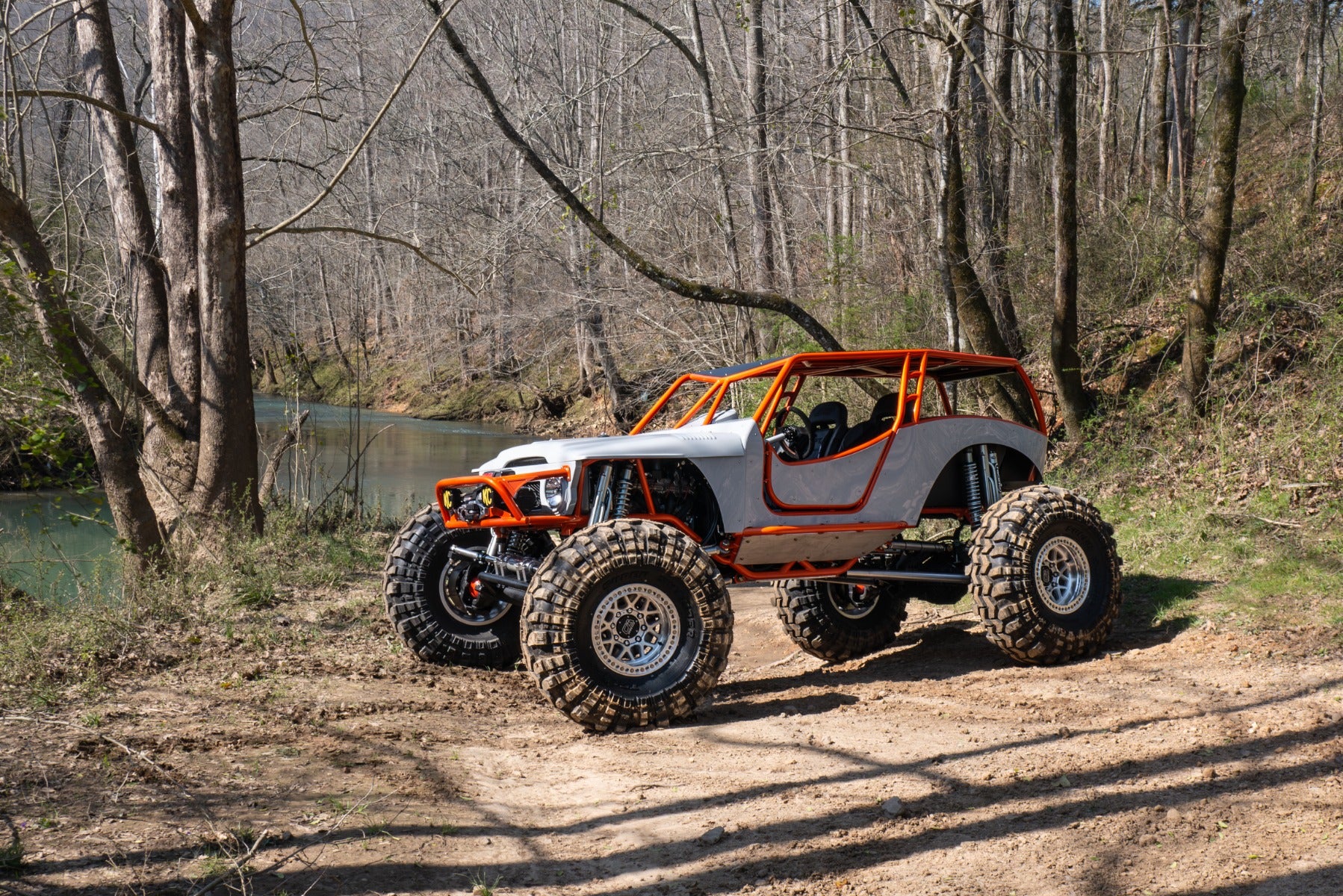

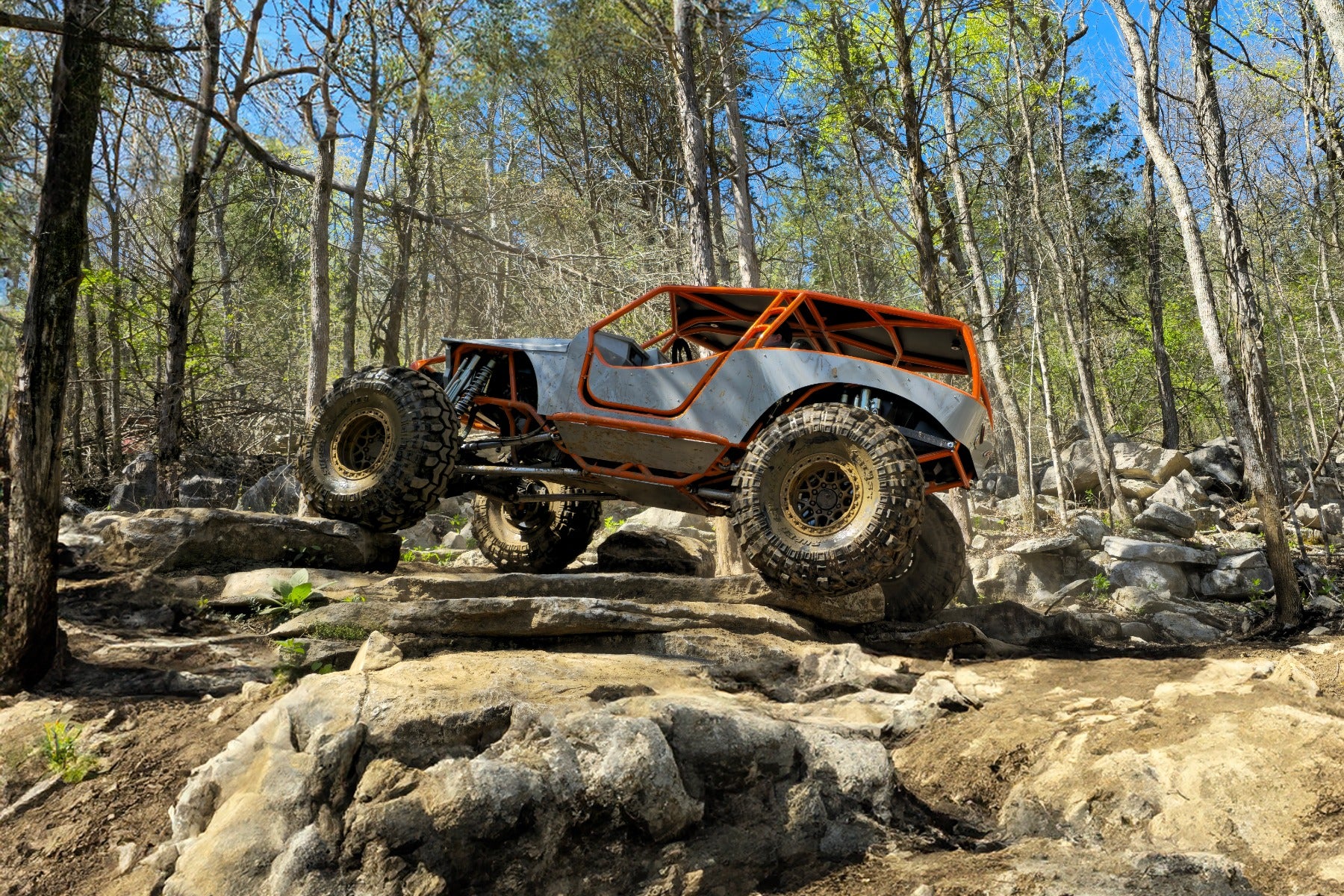

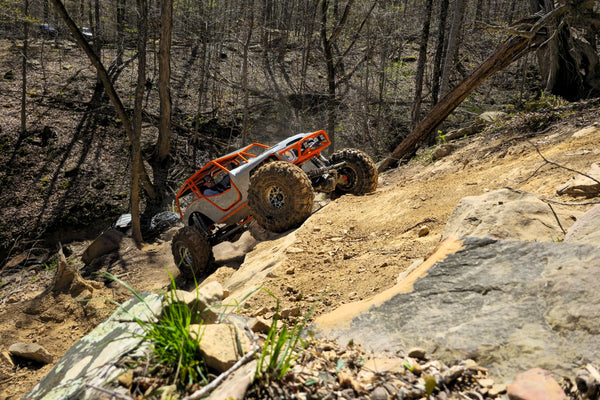

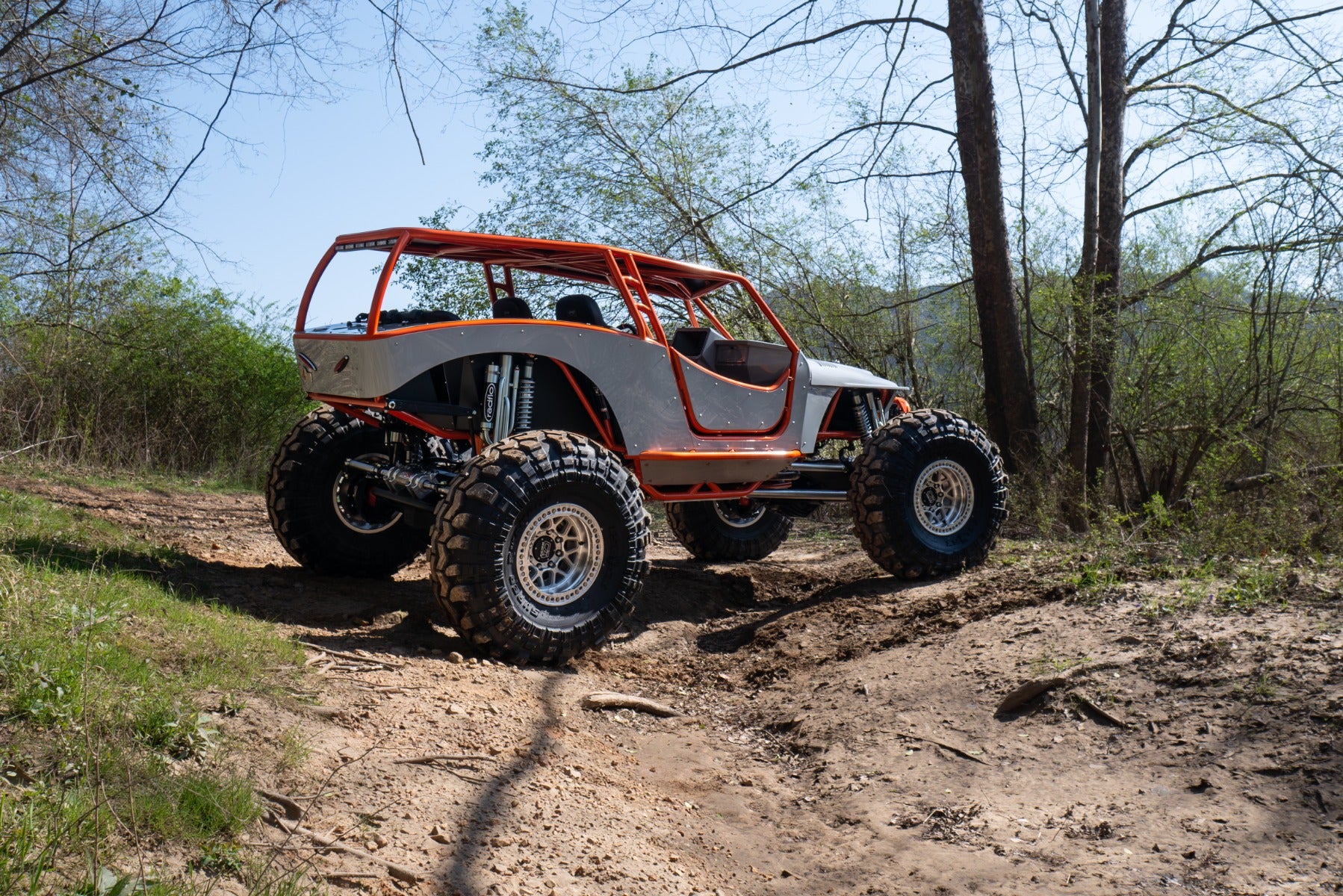

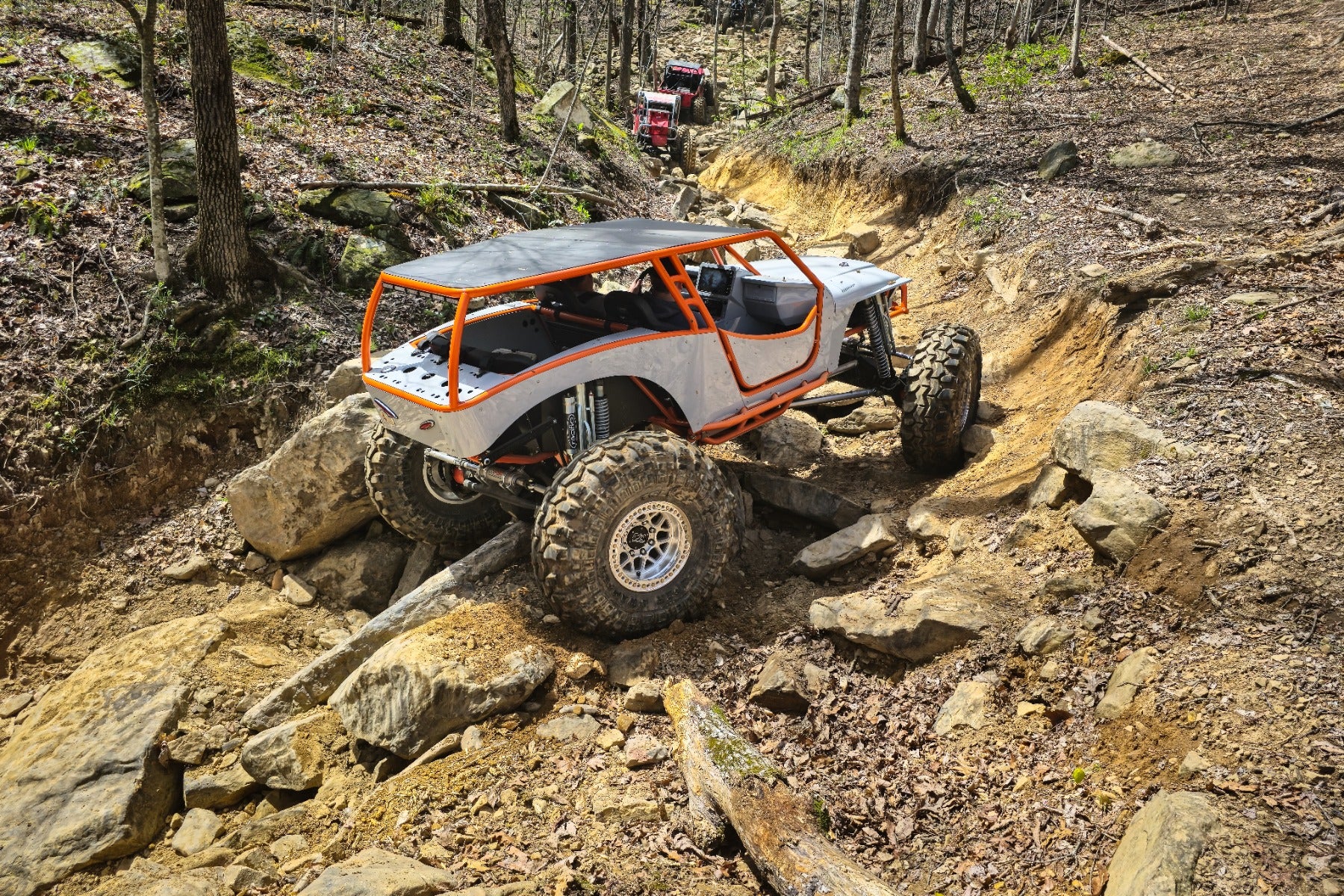

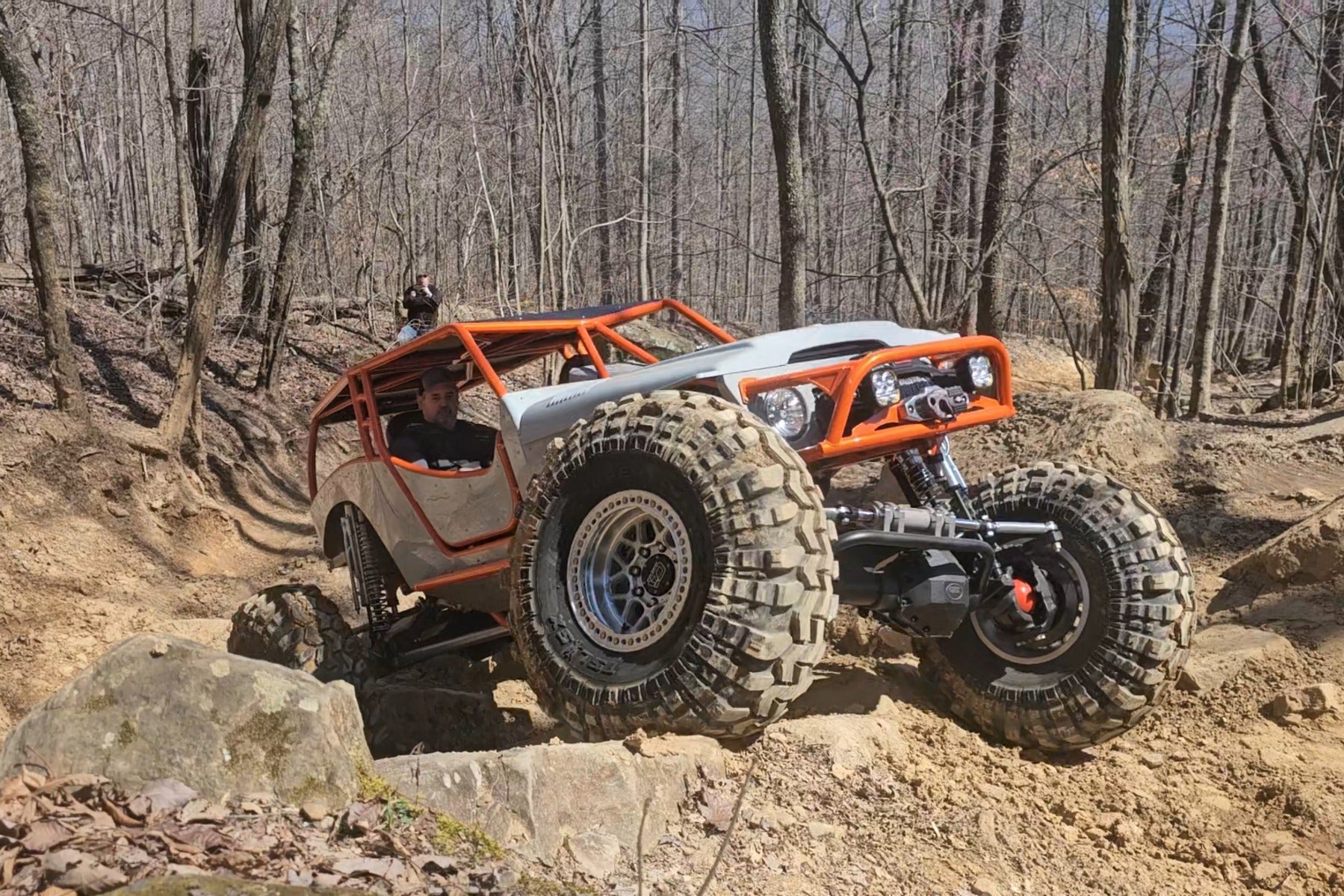

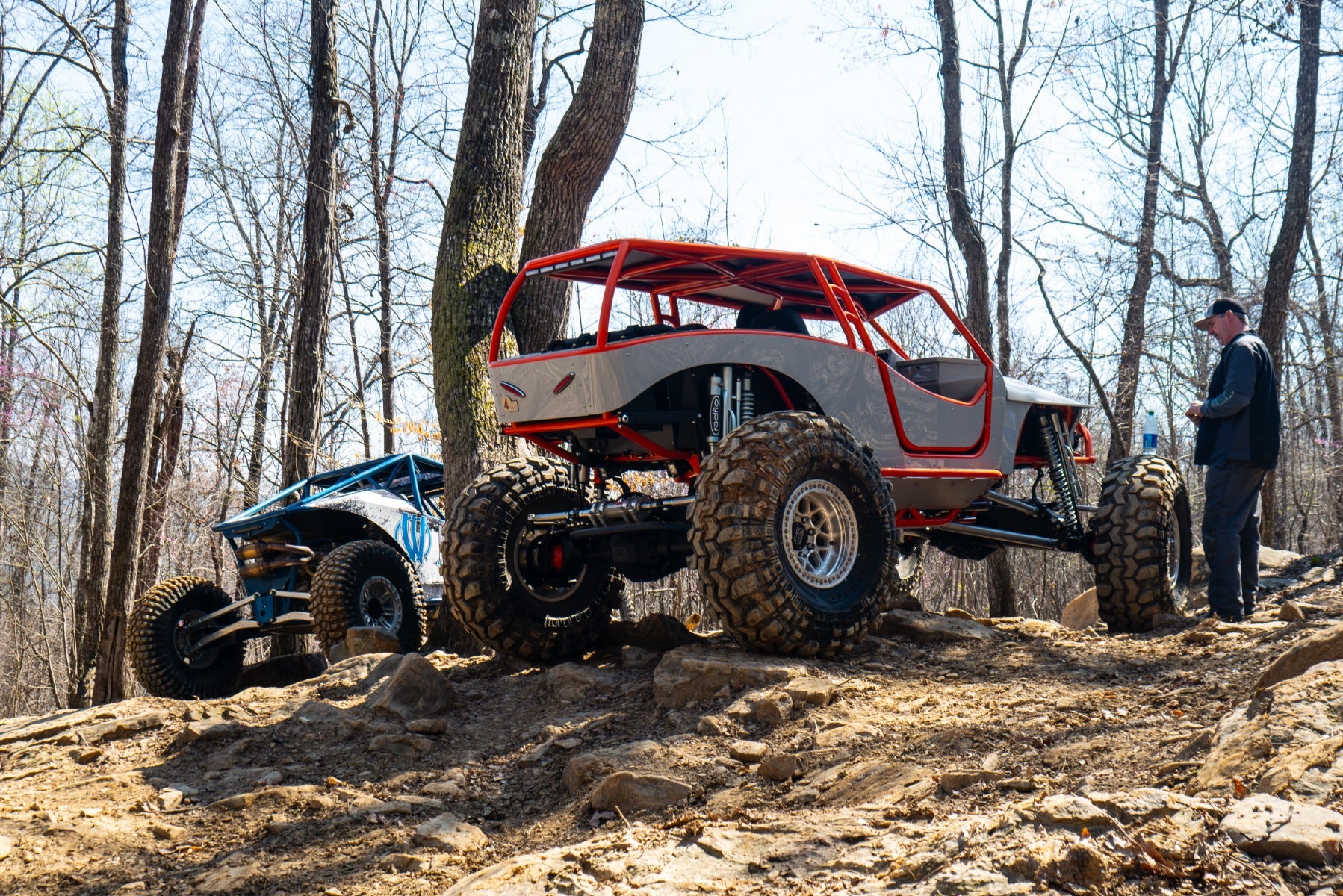

The result is “Dr. “Dirt,” a four-seat surgical tool, built to cut through South Pittsburg woods, powered by a Mast Motorsports 427ci Gen V LT.

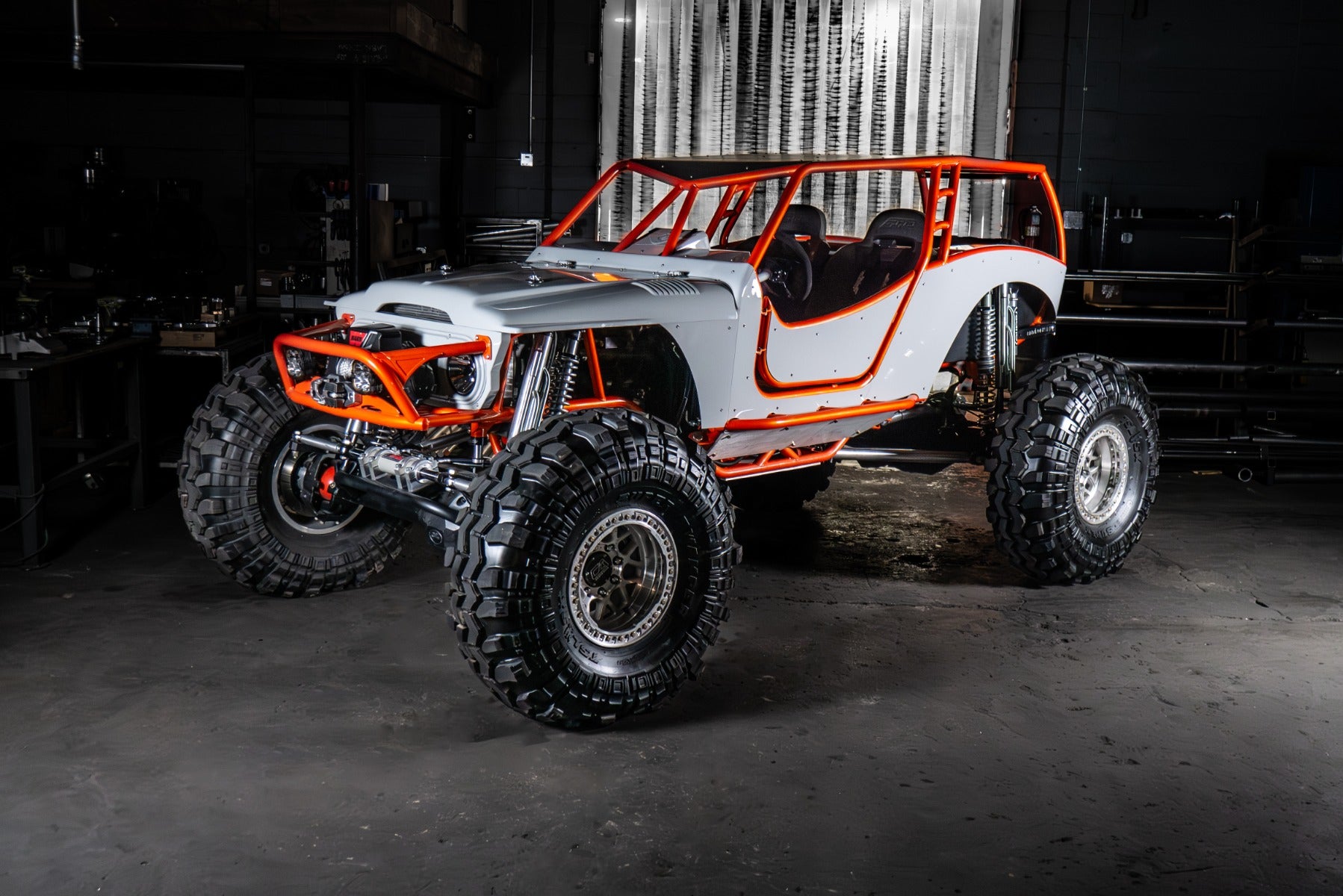

The Custom Craftsmanship: The FJ Reimagined

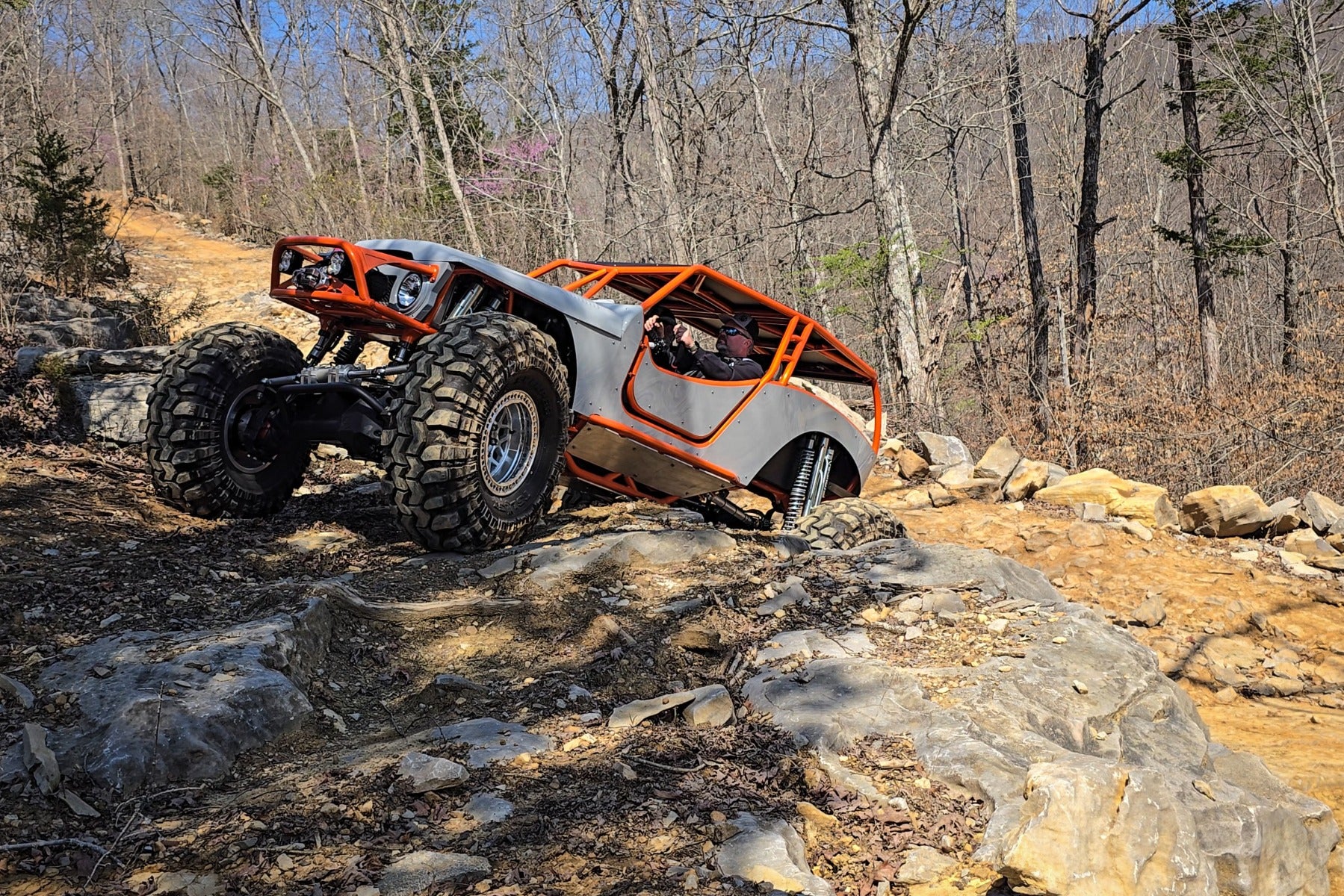

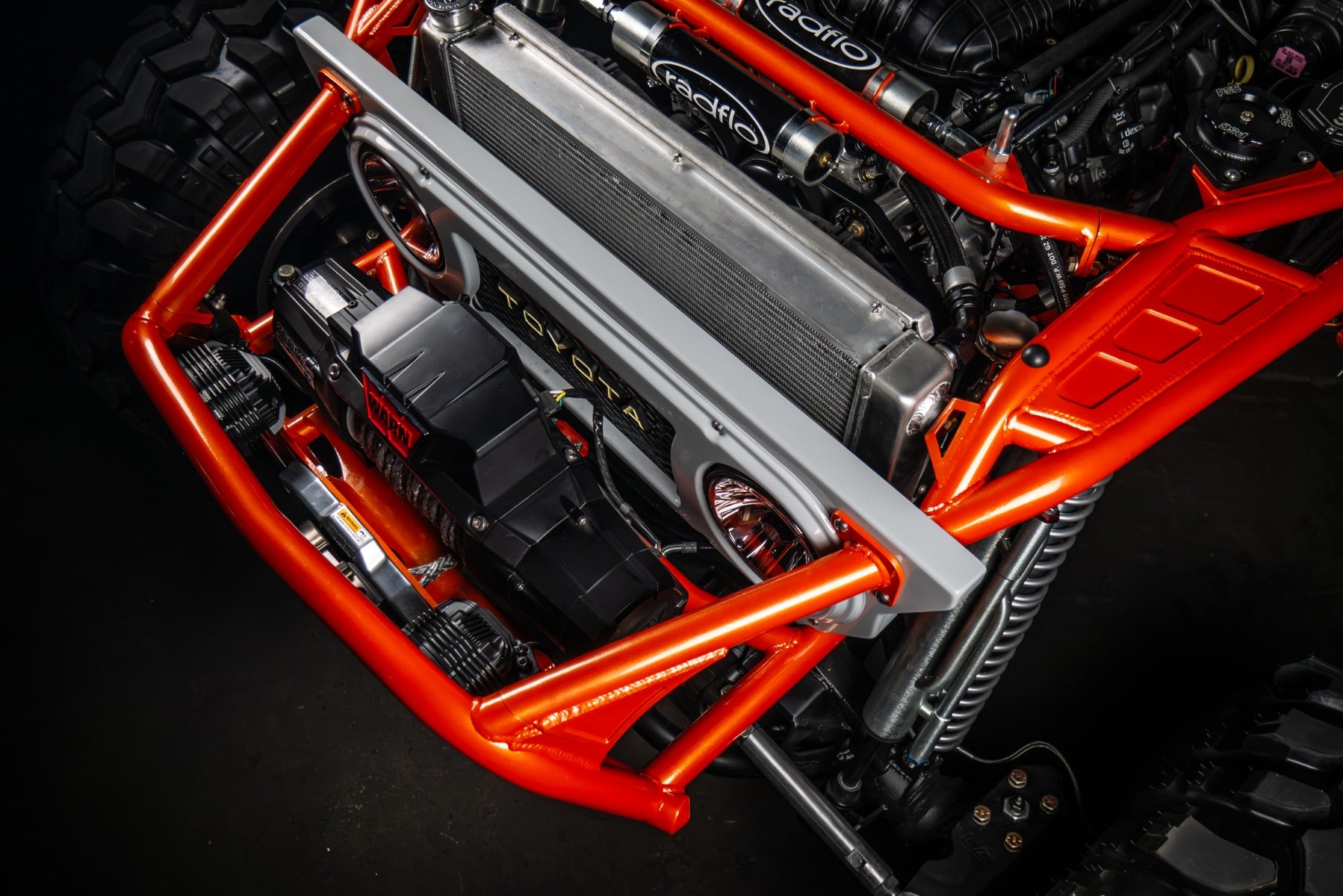

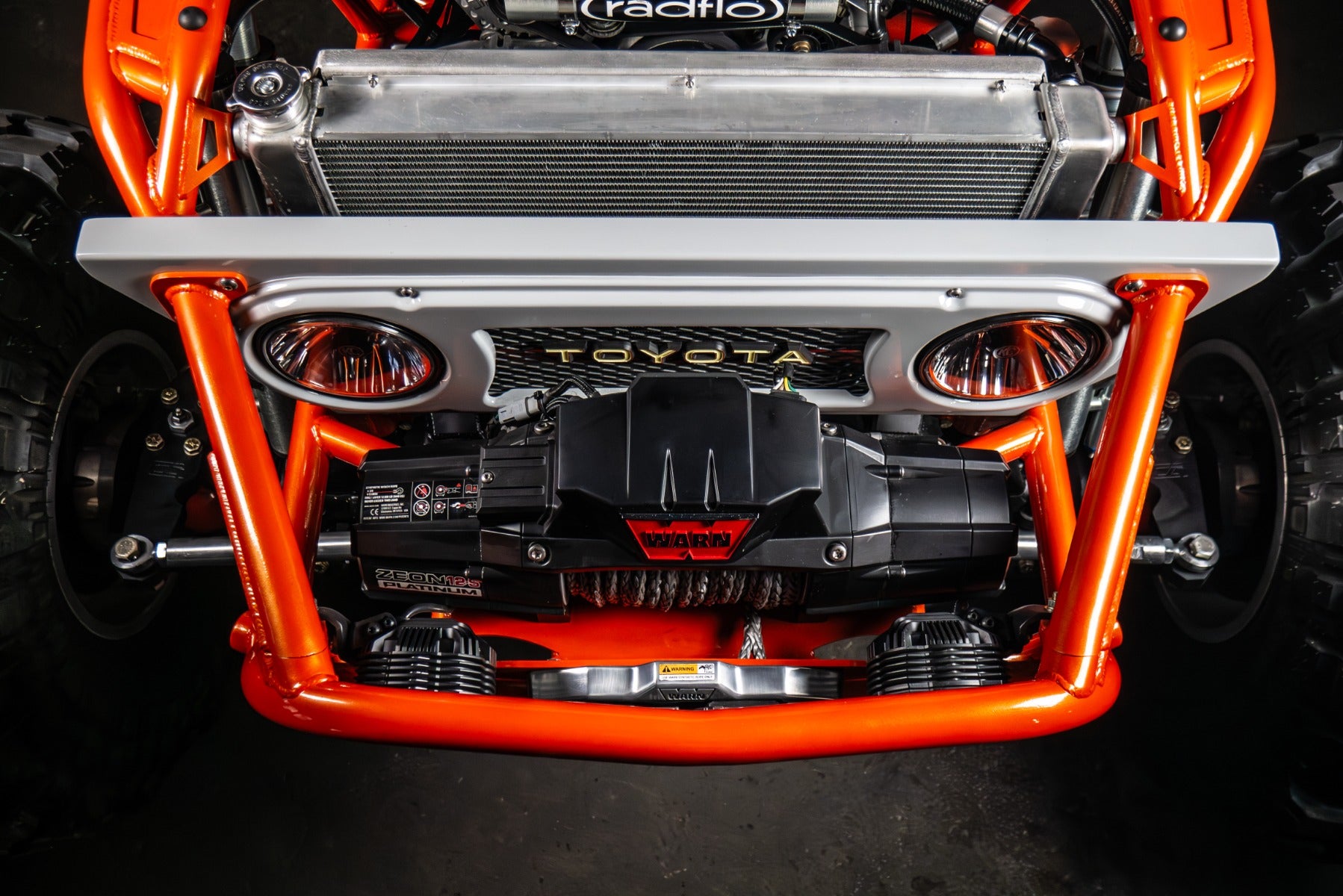

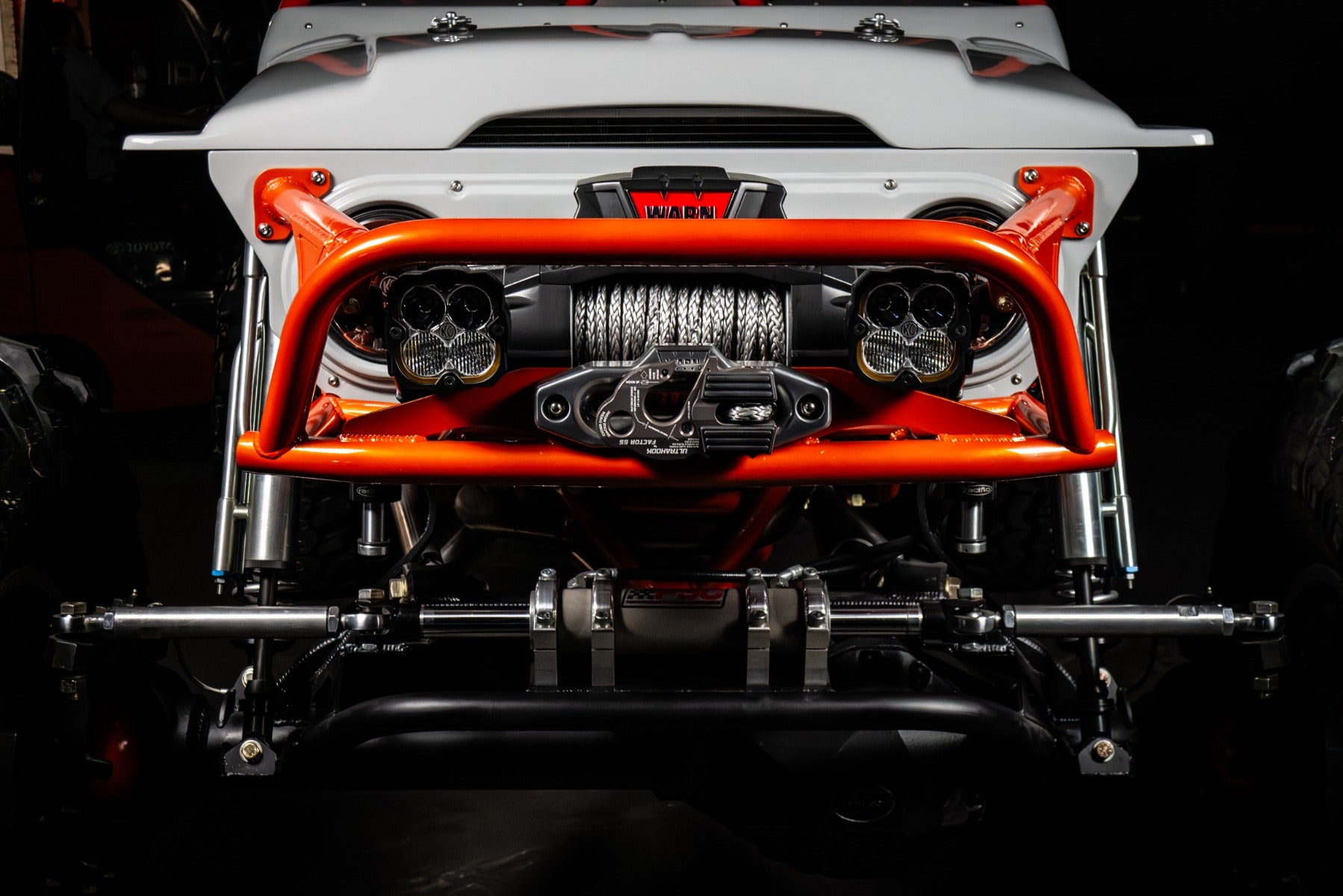

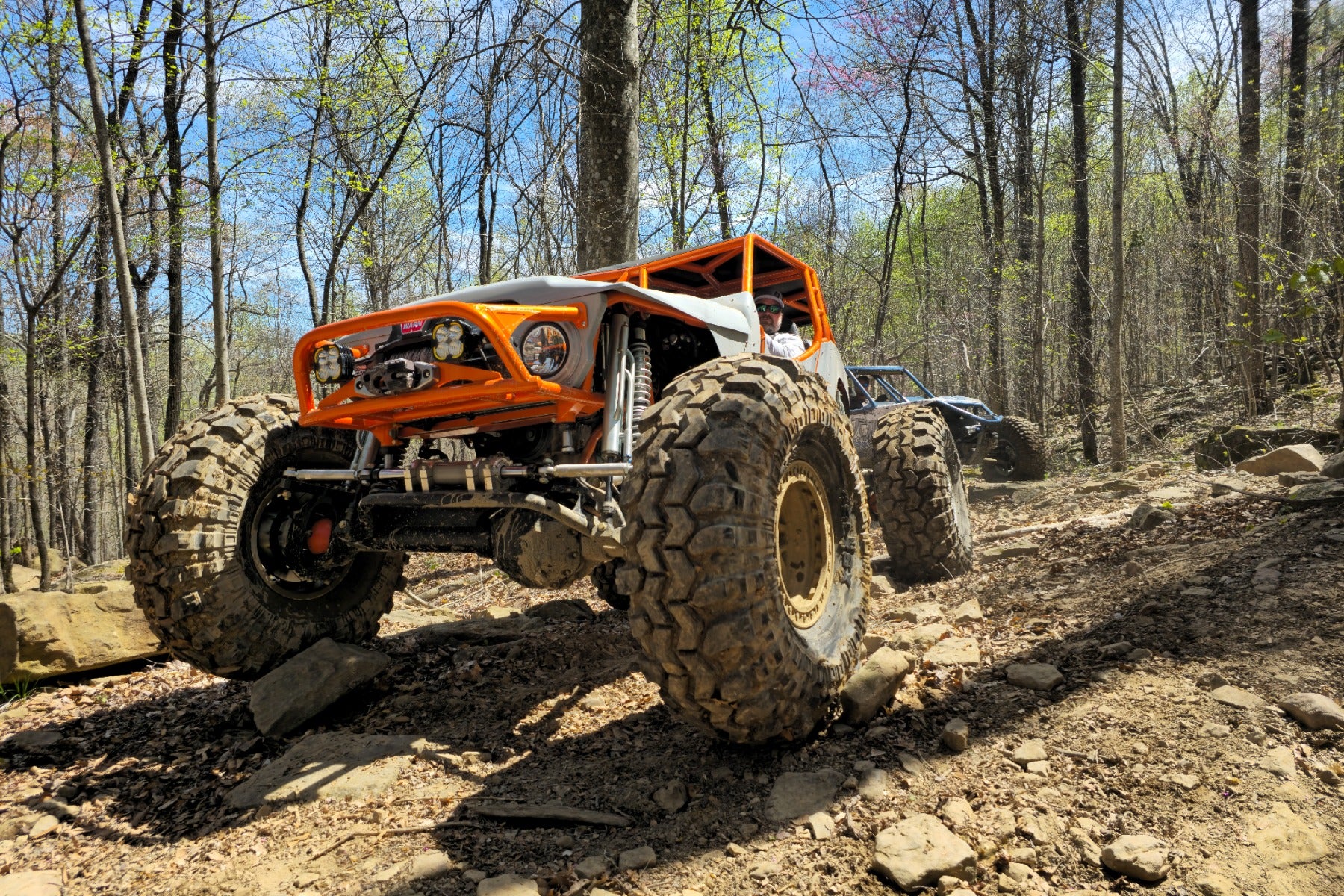

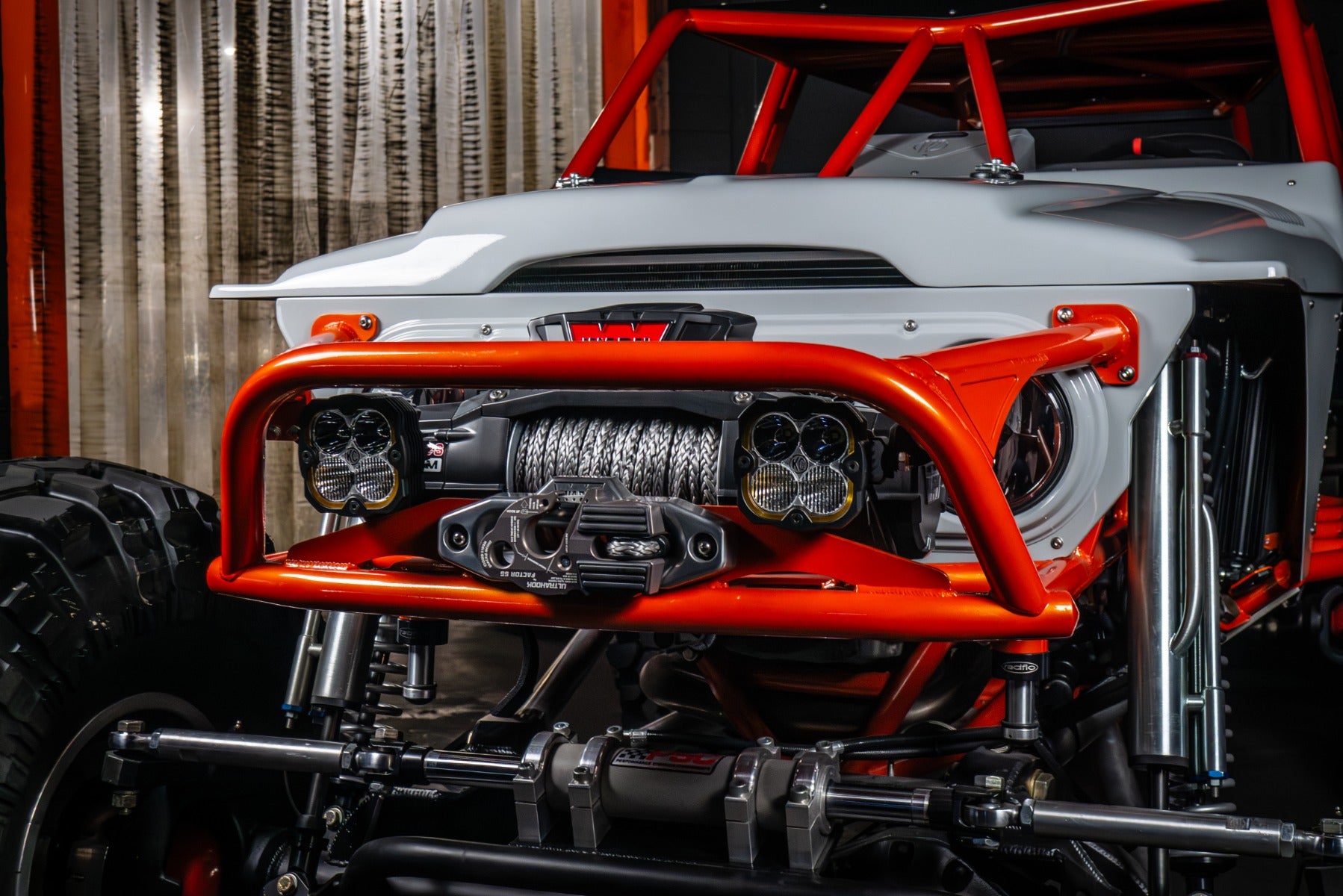

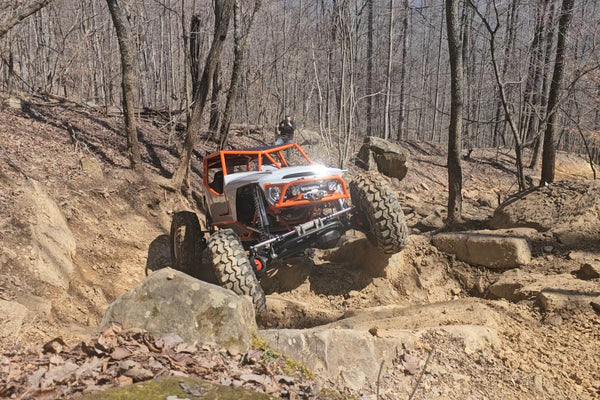

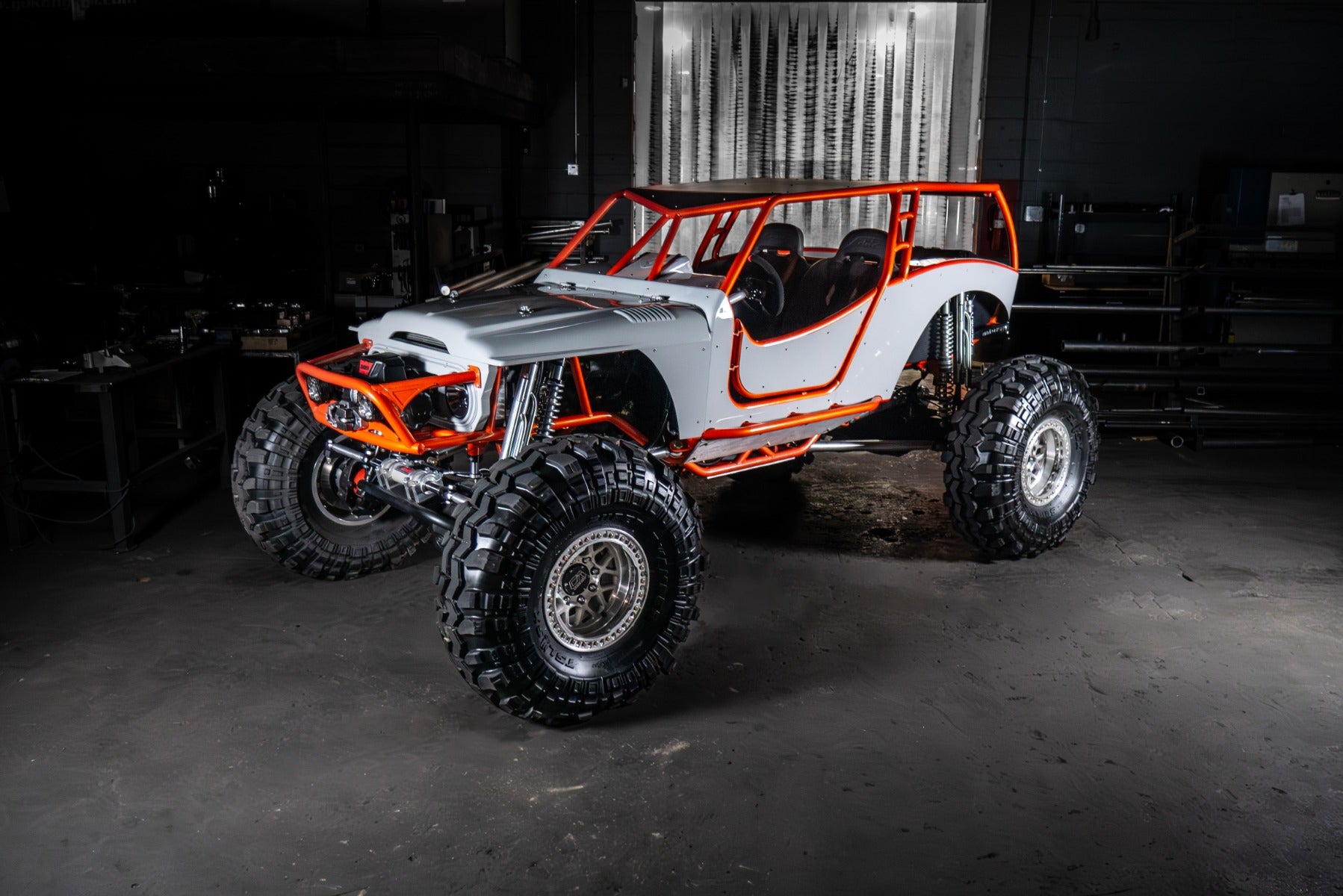

The "face" of Dr. Dirt is a custom-narrowed FJ-40 hood mated to a front bib hand-fabricated from 1/8" 5052 aluminum. We didn't just slap a grill on it; we shortened an original FJ-40 unit to match the aggressive, narrowed lines of the buggy. It’s a look that says "classic" while the performance says "future."
The Drivetrain: No Weak Links

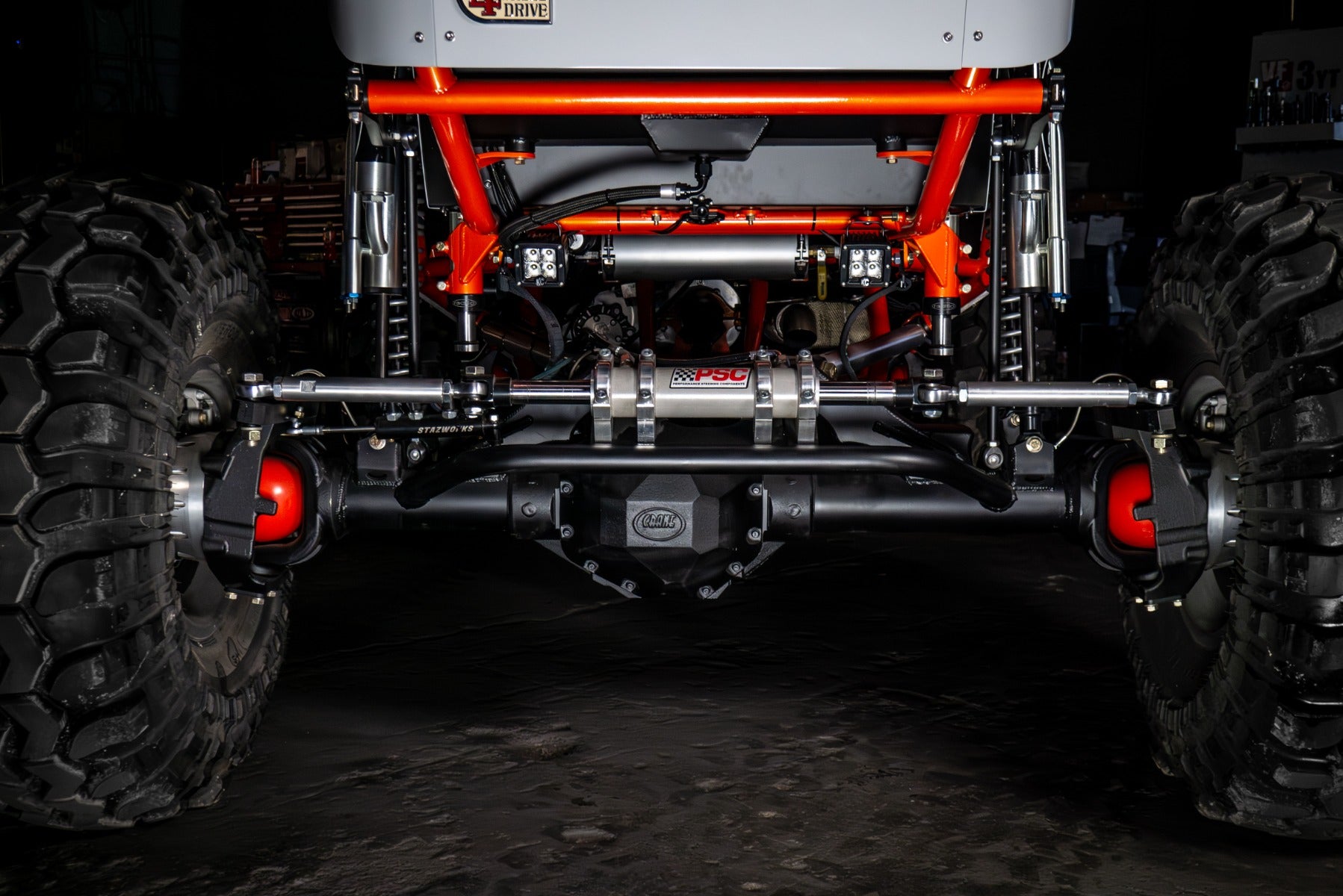

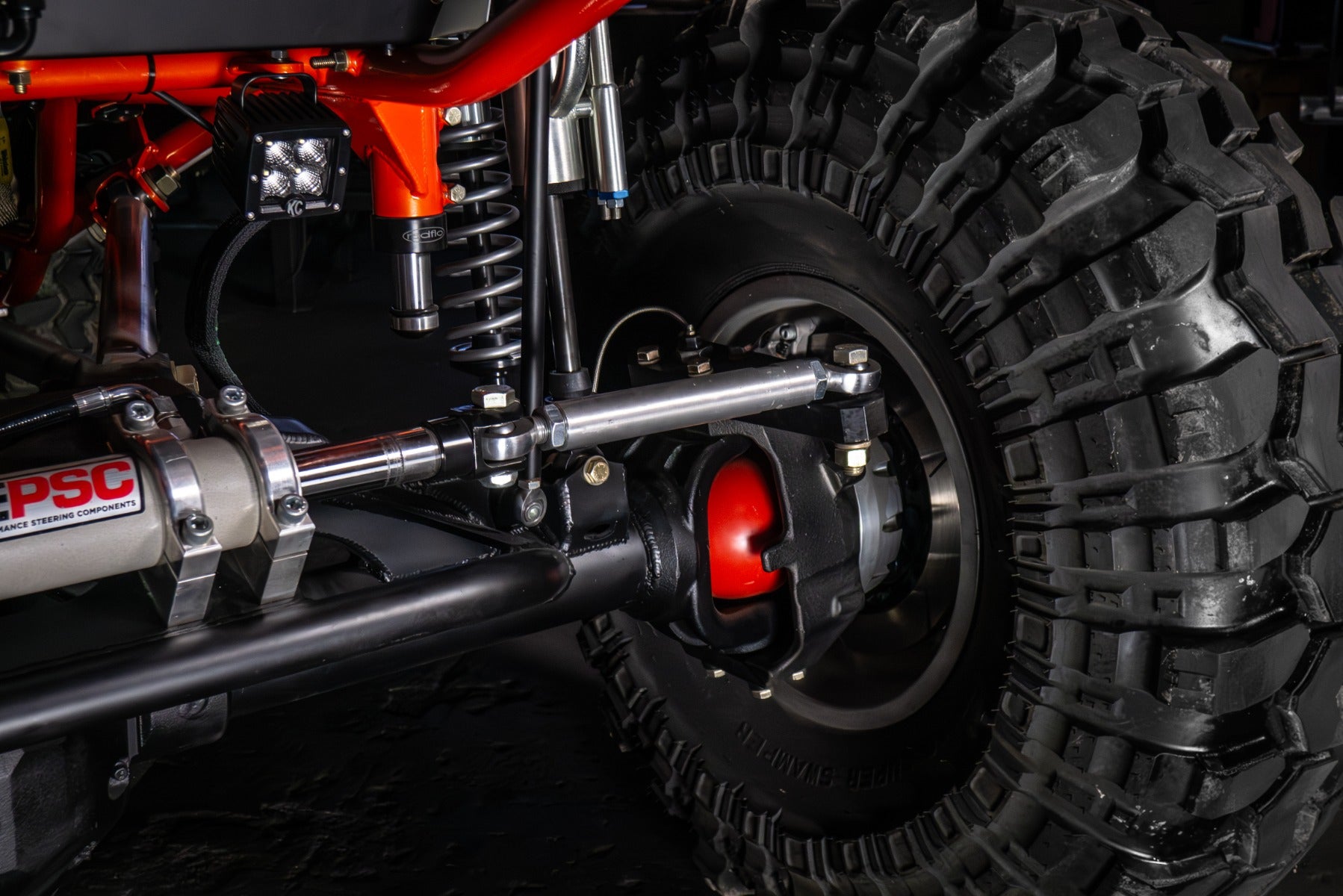

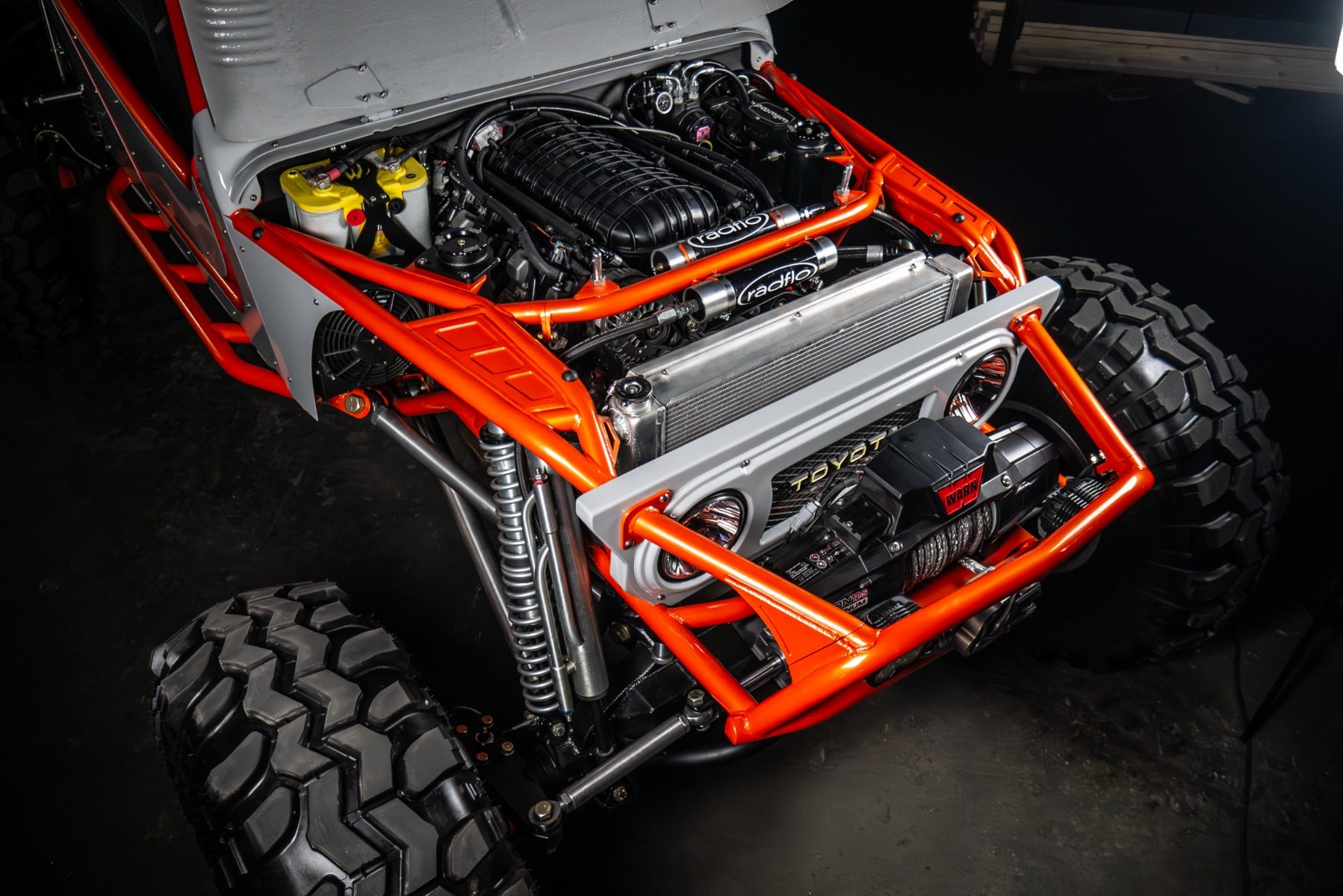

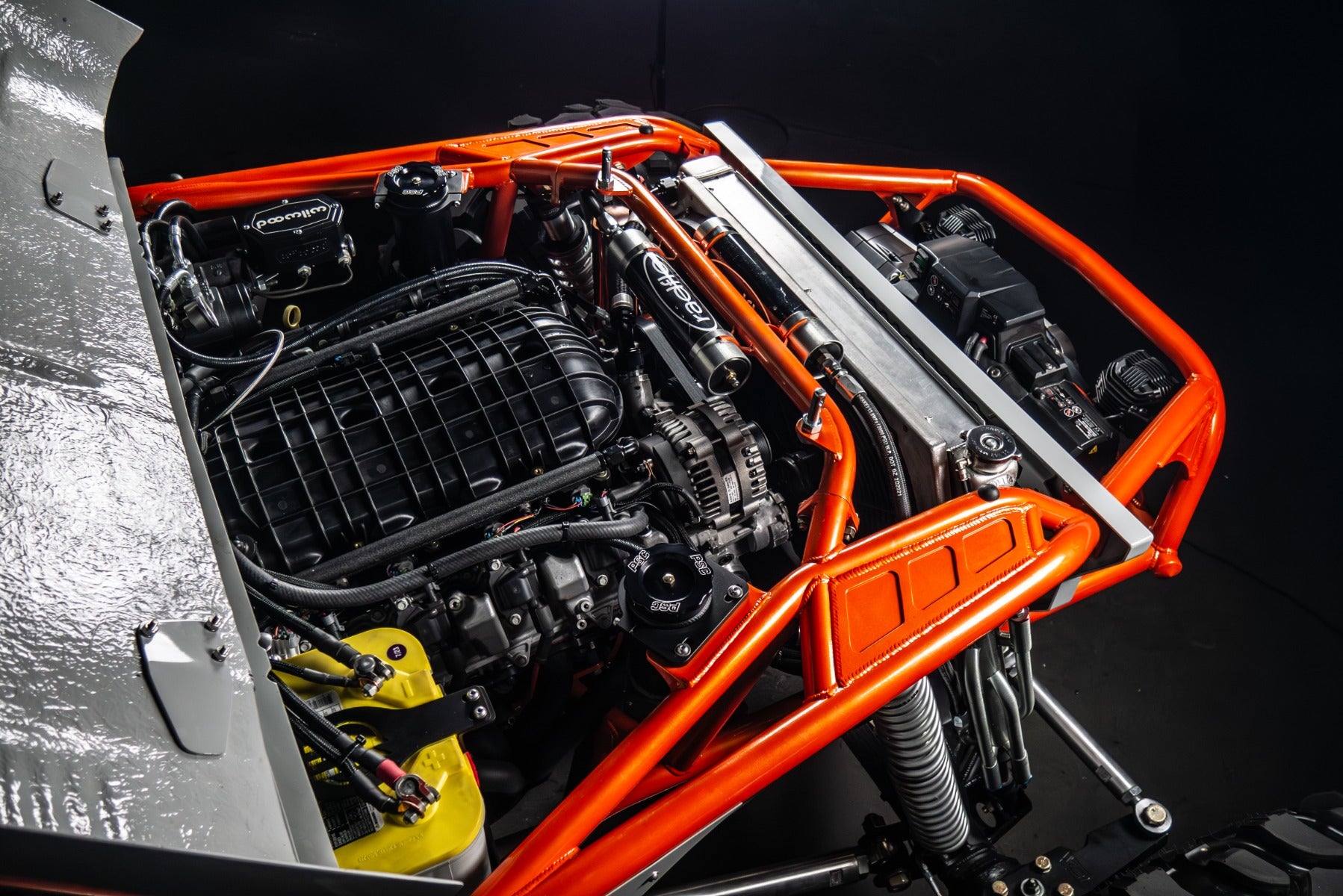

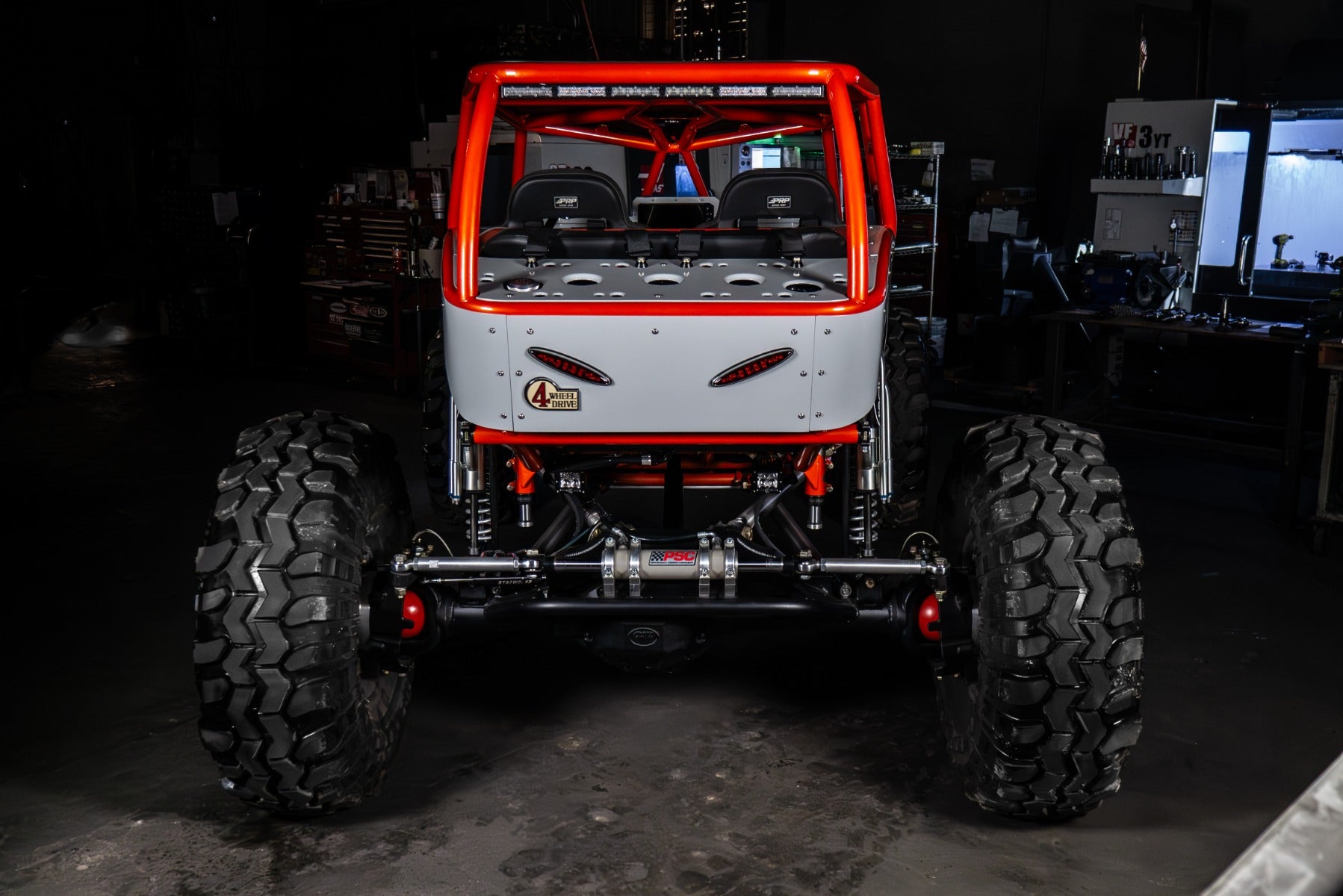

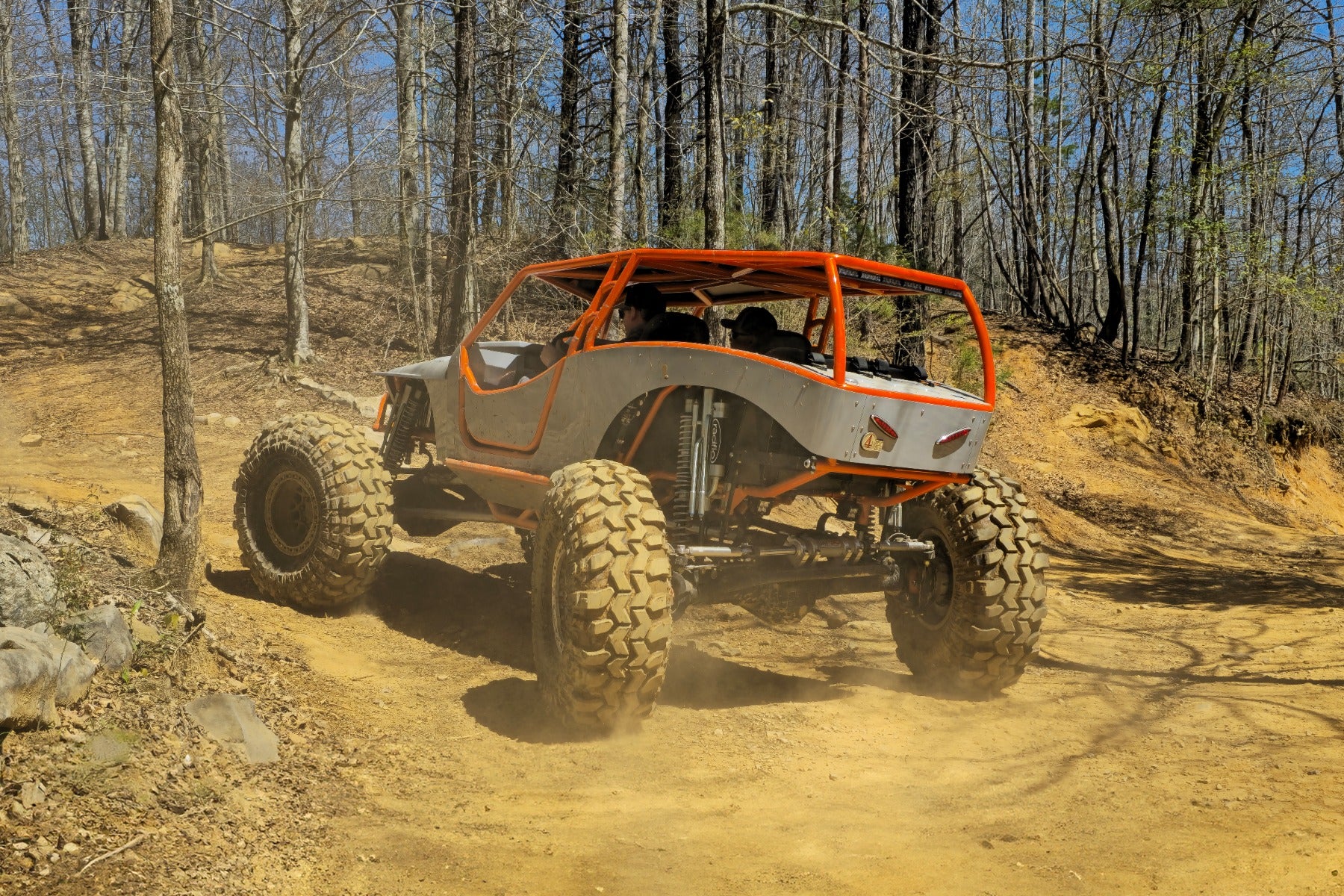

A build this size requires serious muscle to stay agile. We backed the Mast 427 with a TH400 and an Atlas transfer case—a combination that laughs at torque. But the real magic is in the maneuverability. To make a four-seater handle like a short-wheelbase ripper, we equipped Dr. Dirt with Four-Wheel Steering tucked into Crane 14-Bolt axles with 40-spline RCV shafts. If the trail is tight, Zack just steers the rear.

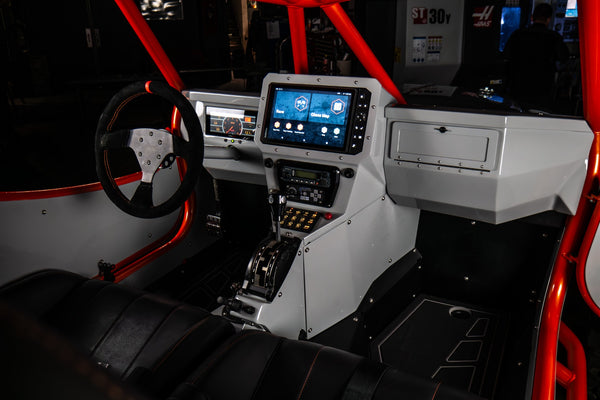

Inside the Cockpit: The Baja Standard

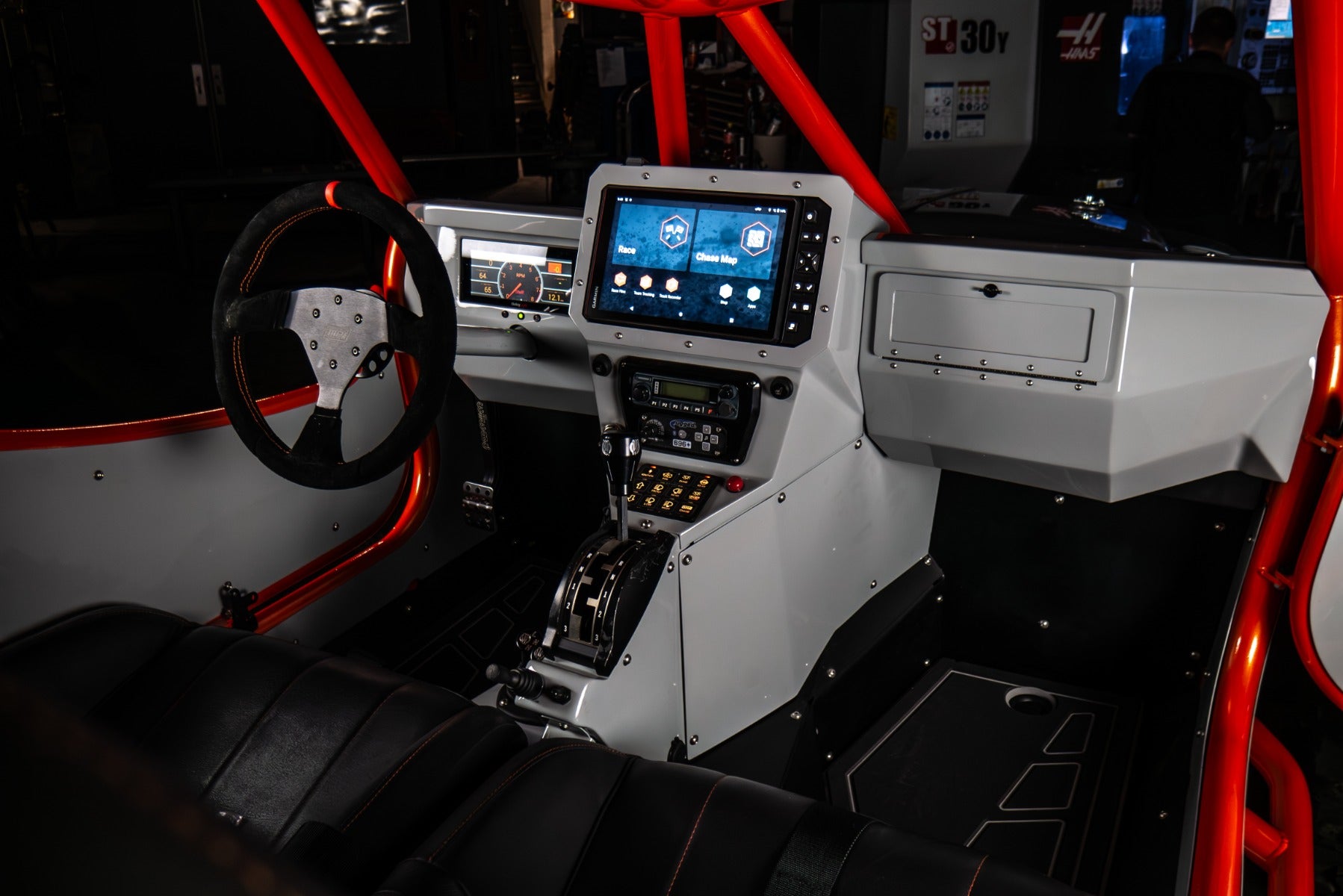

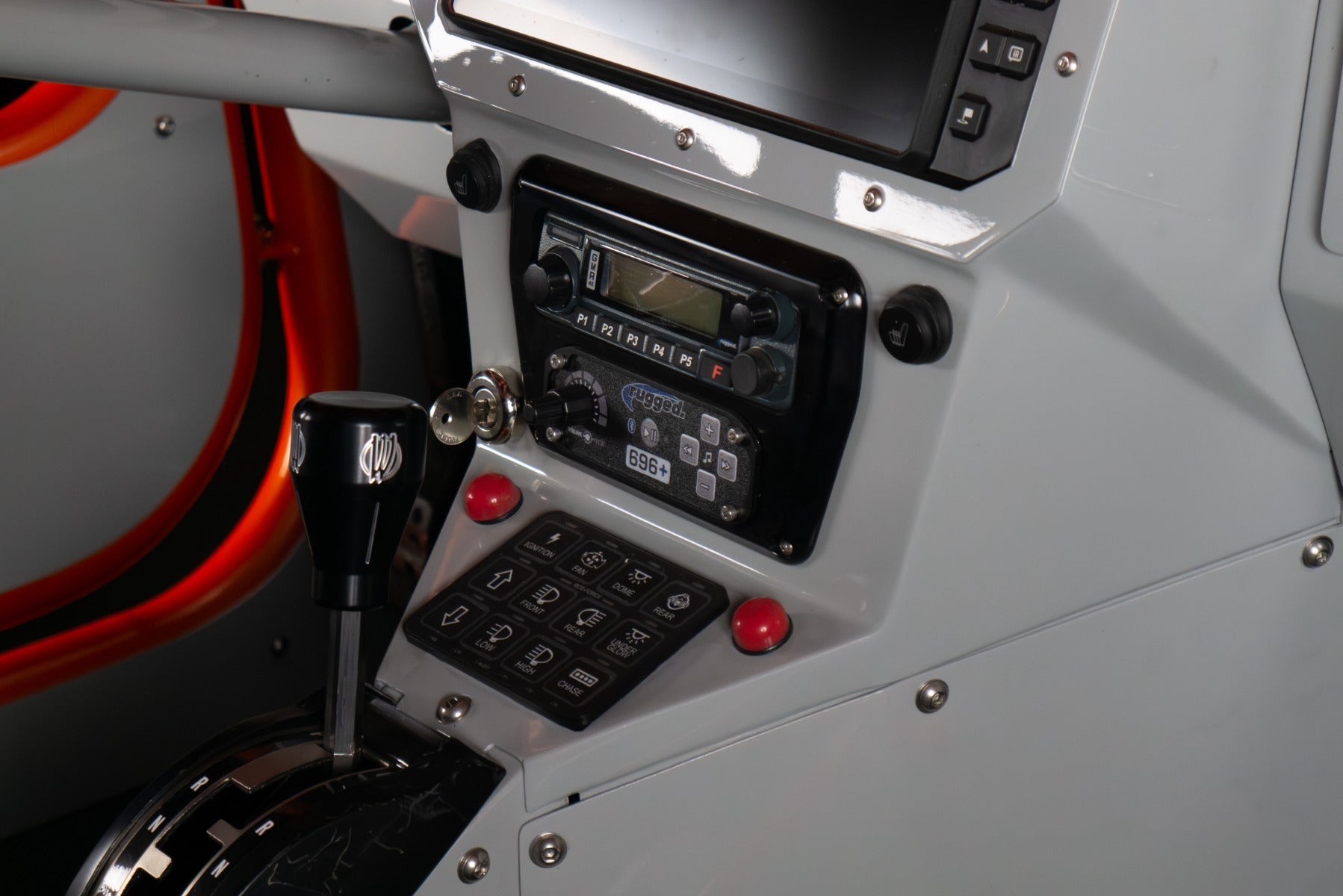

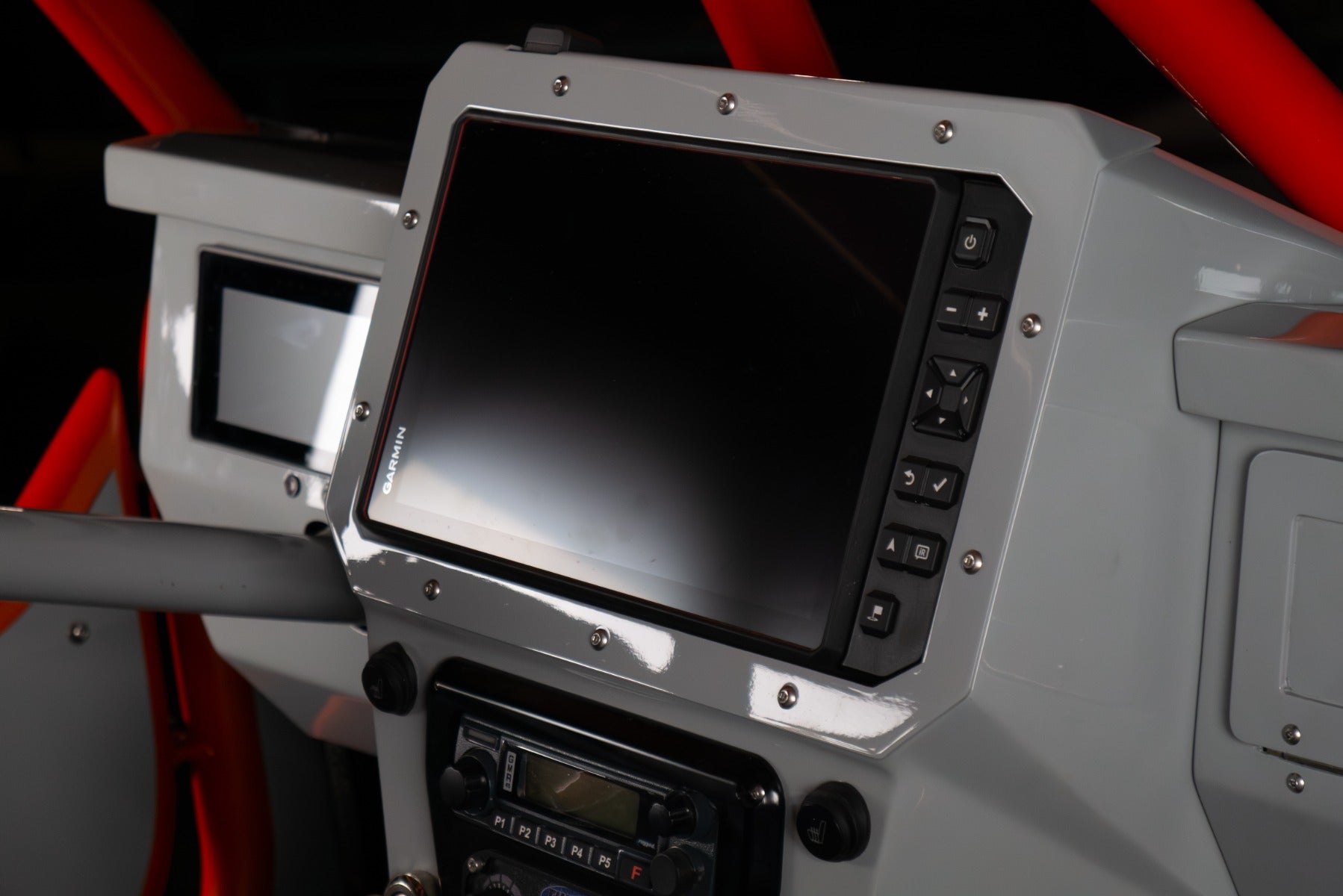

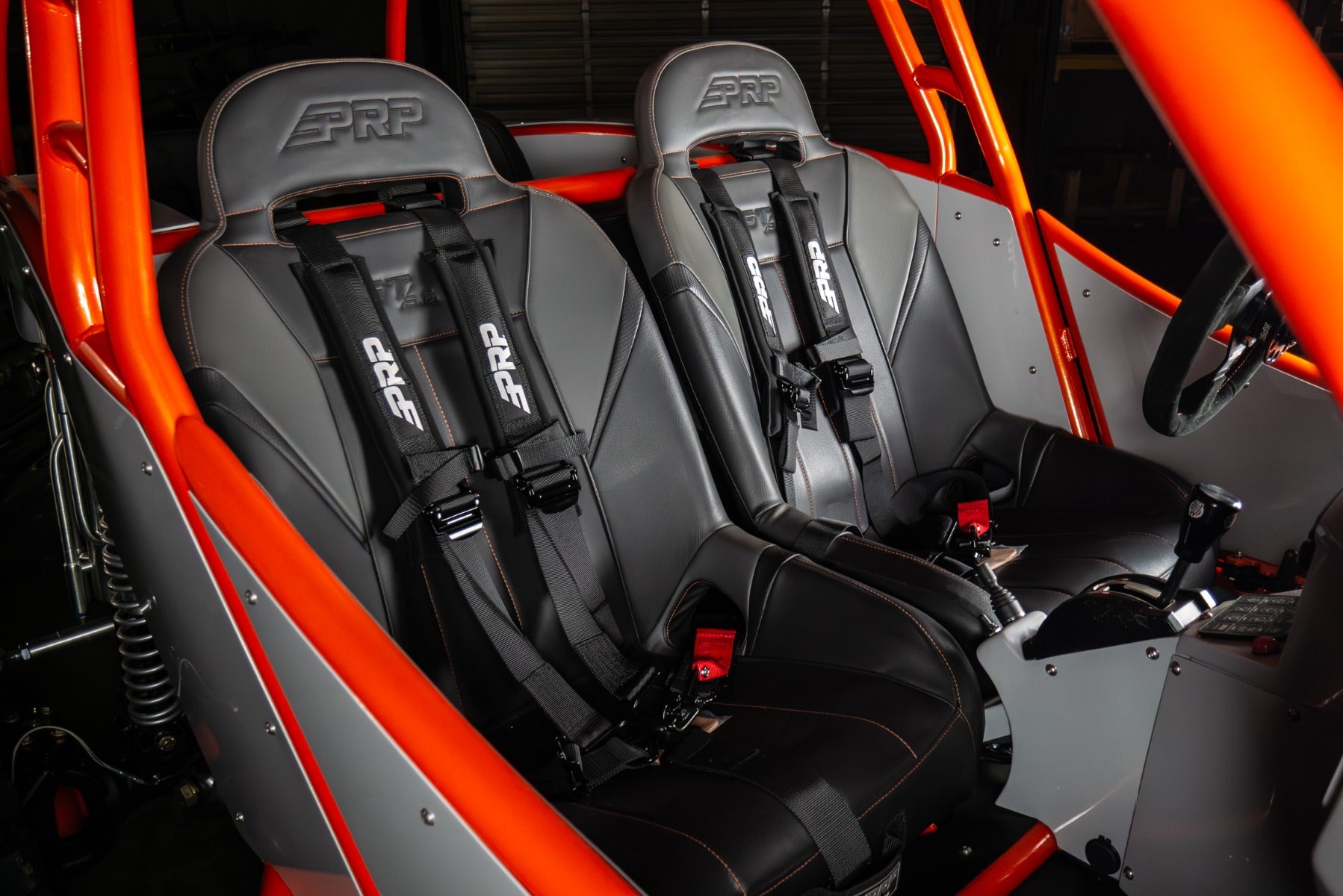

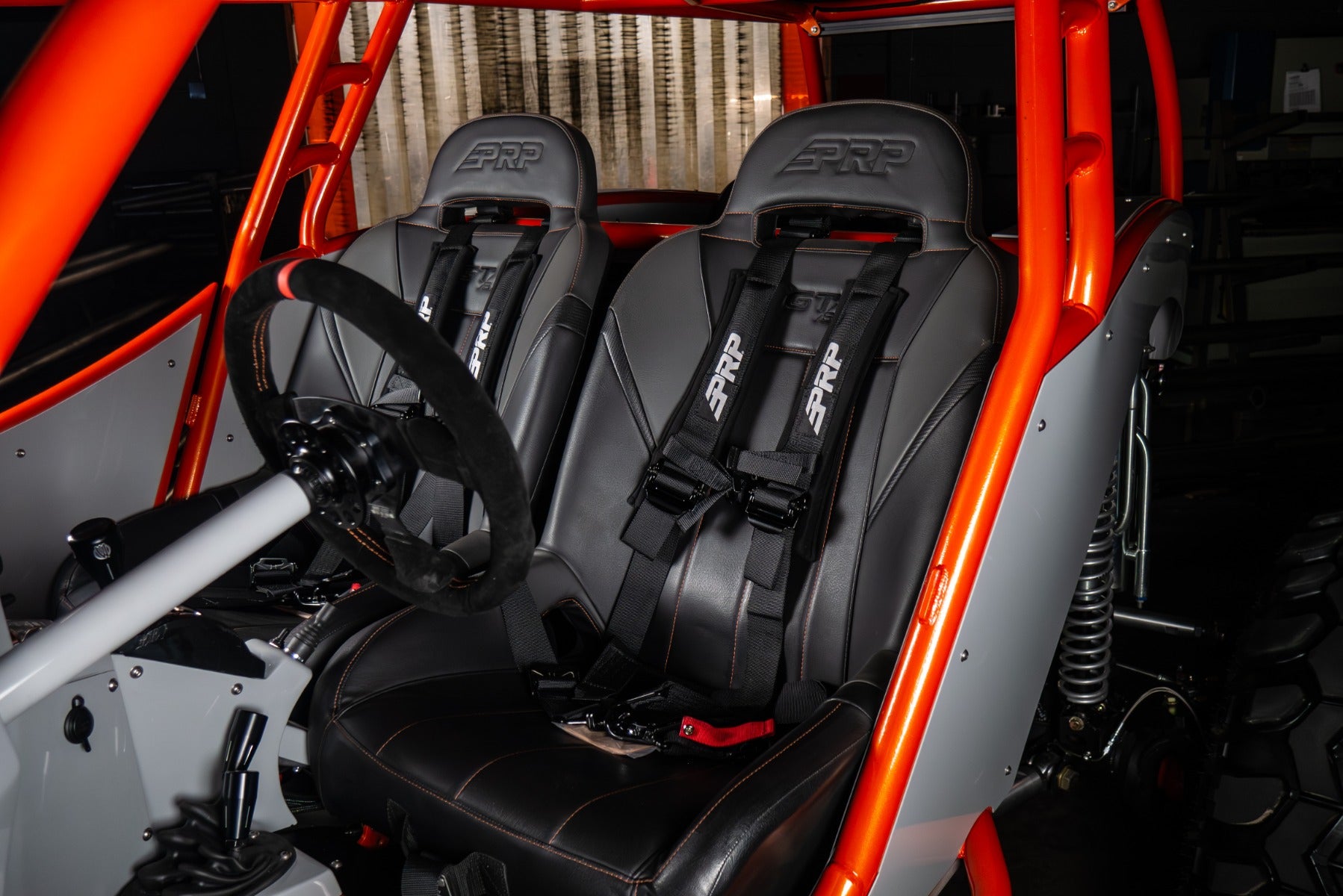

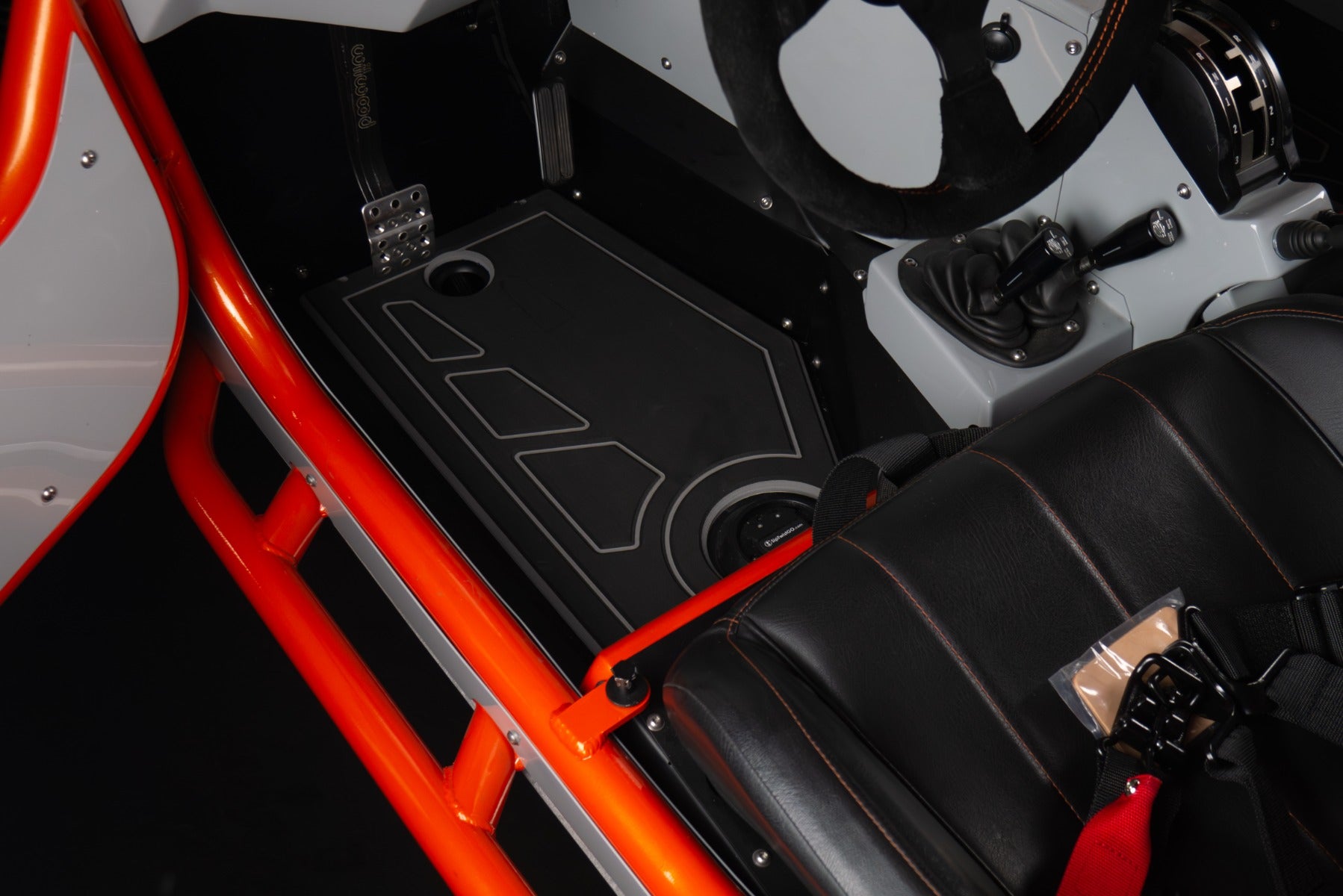

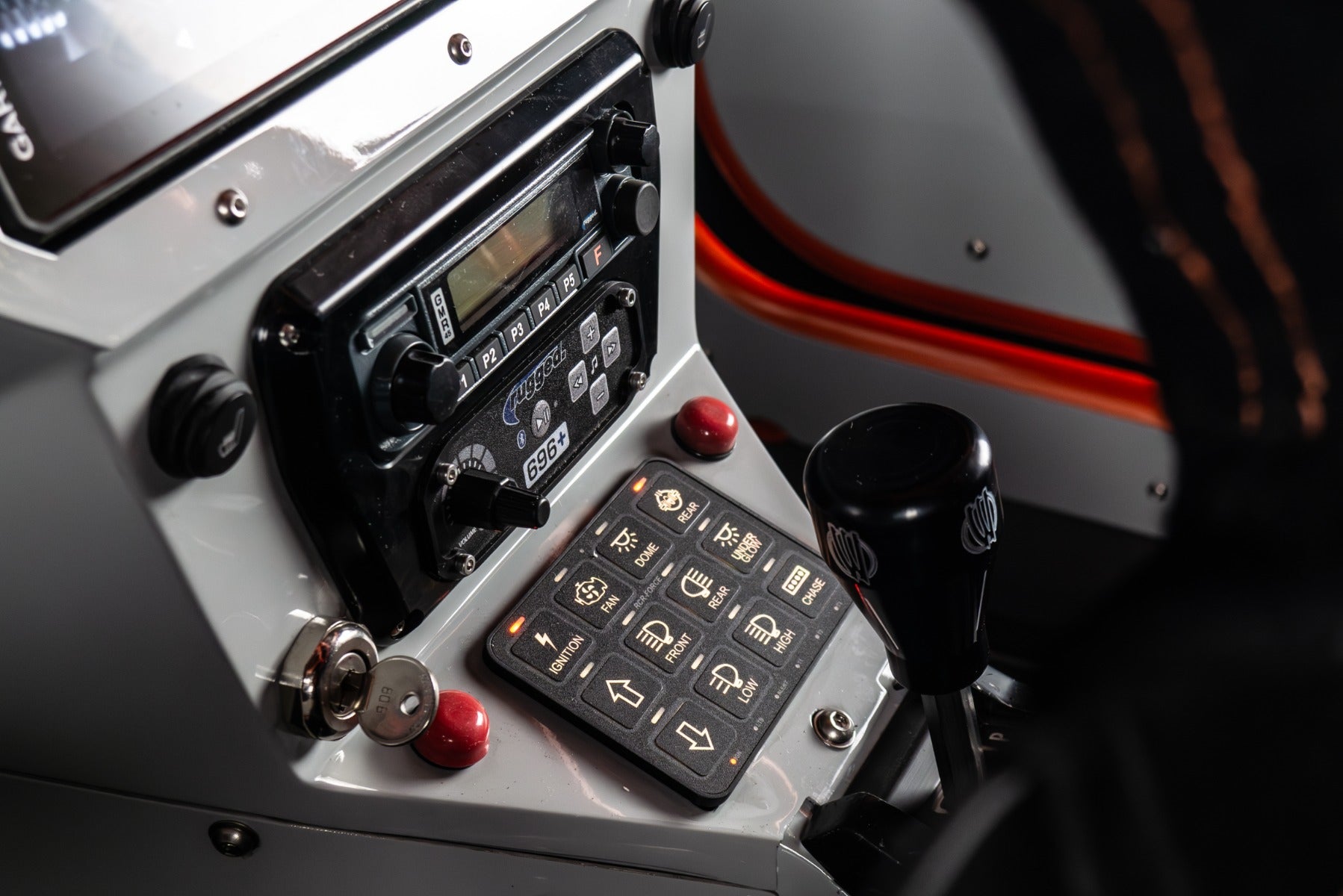

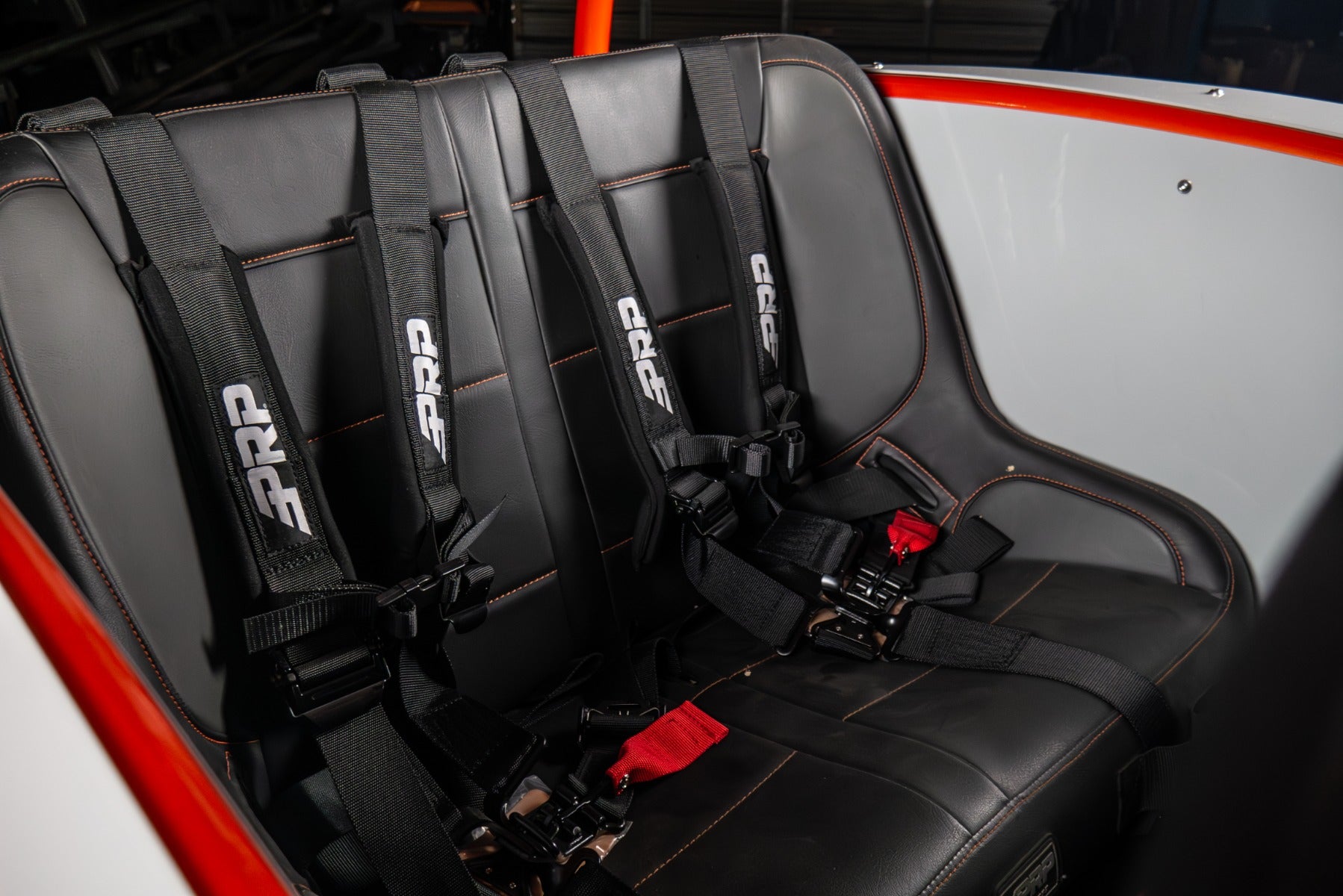

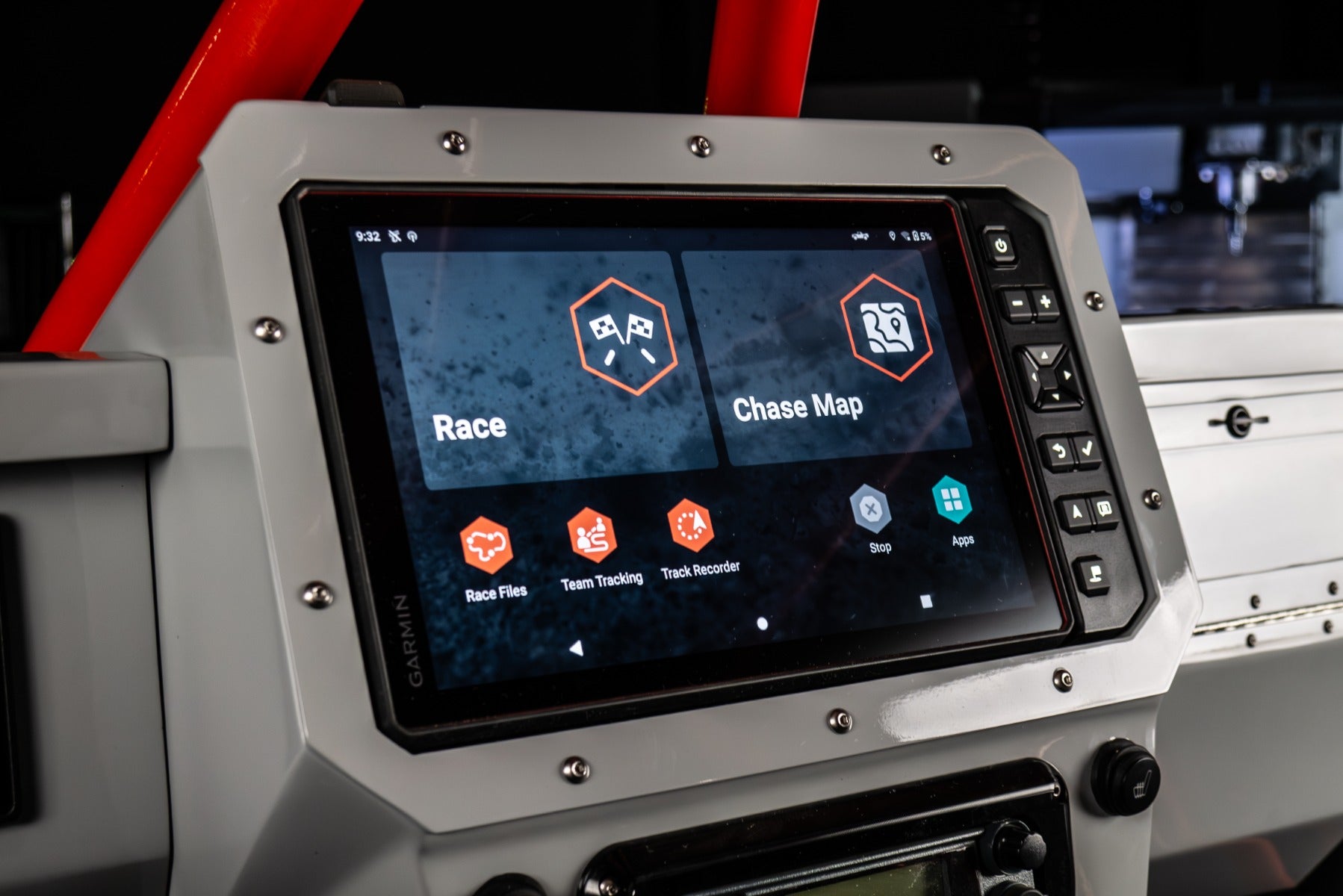

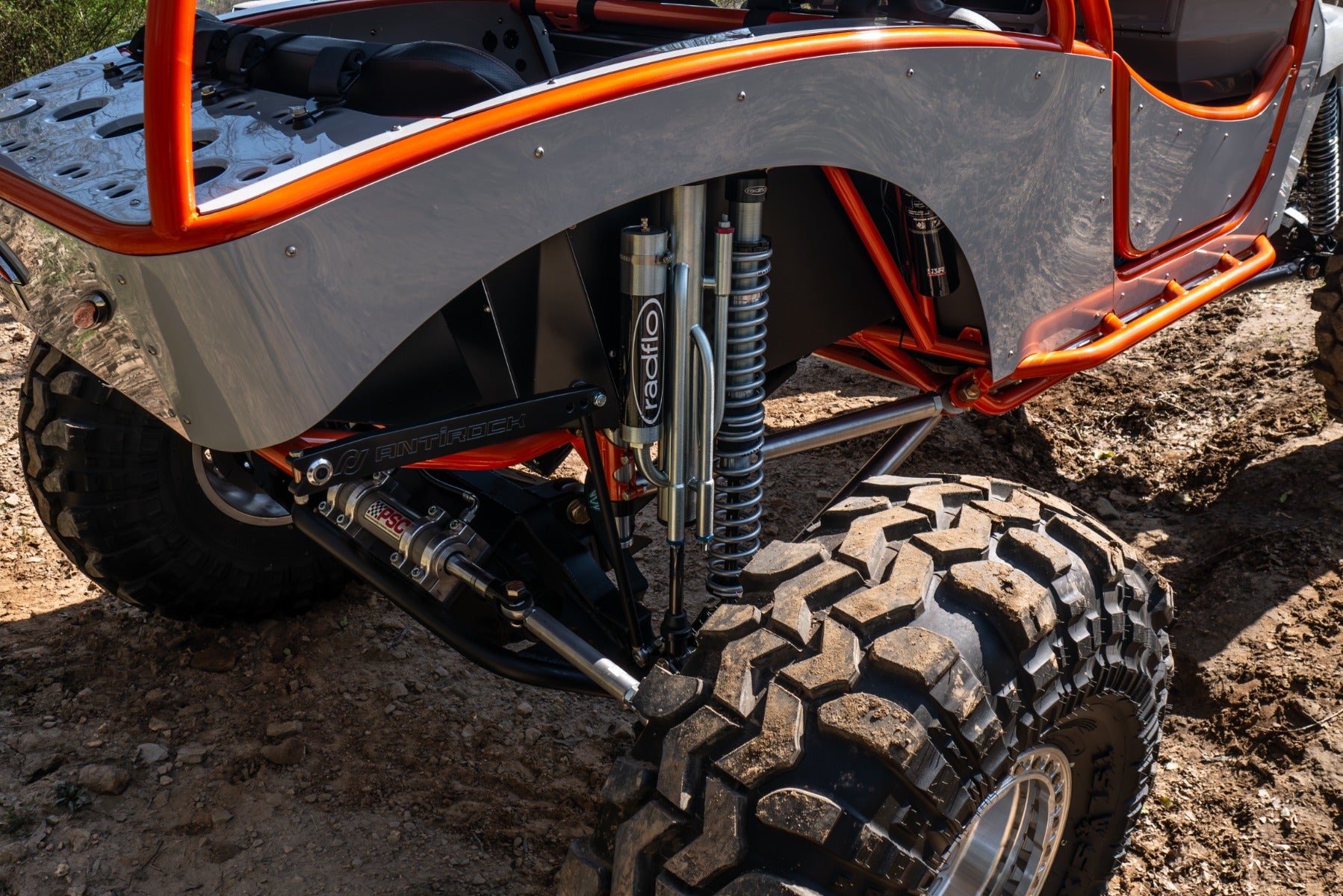

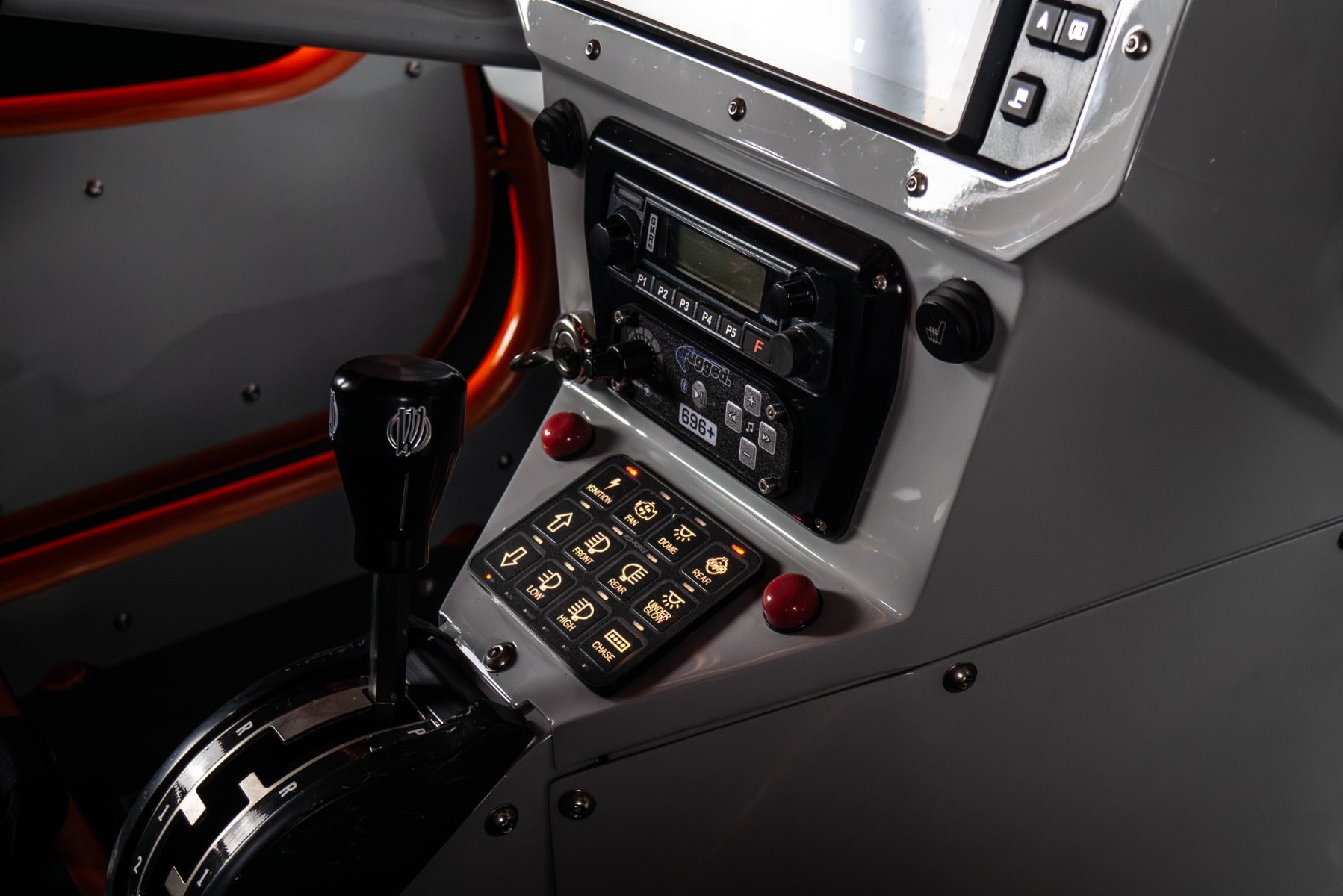

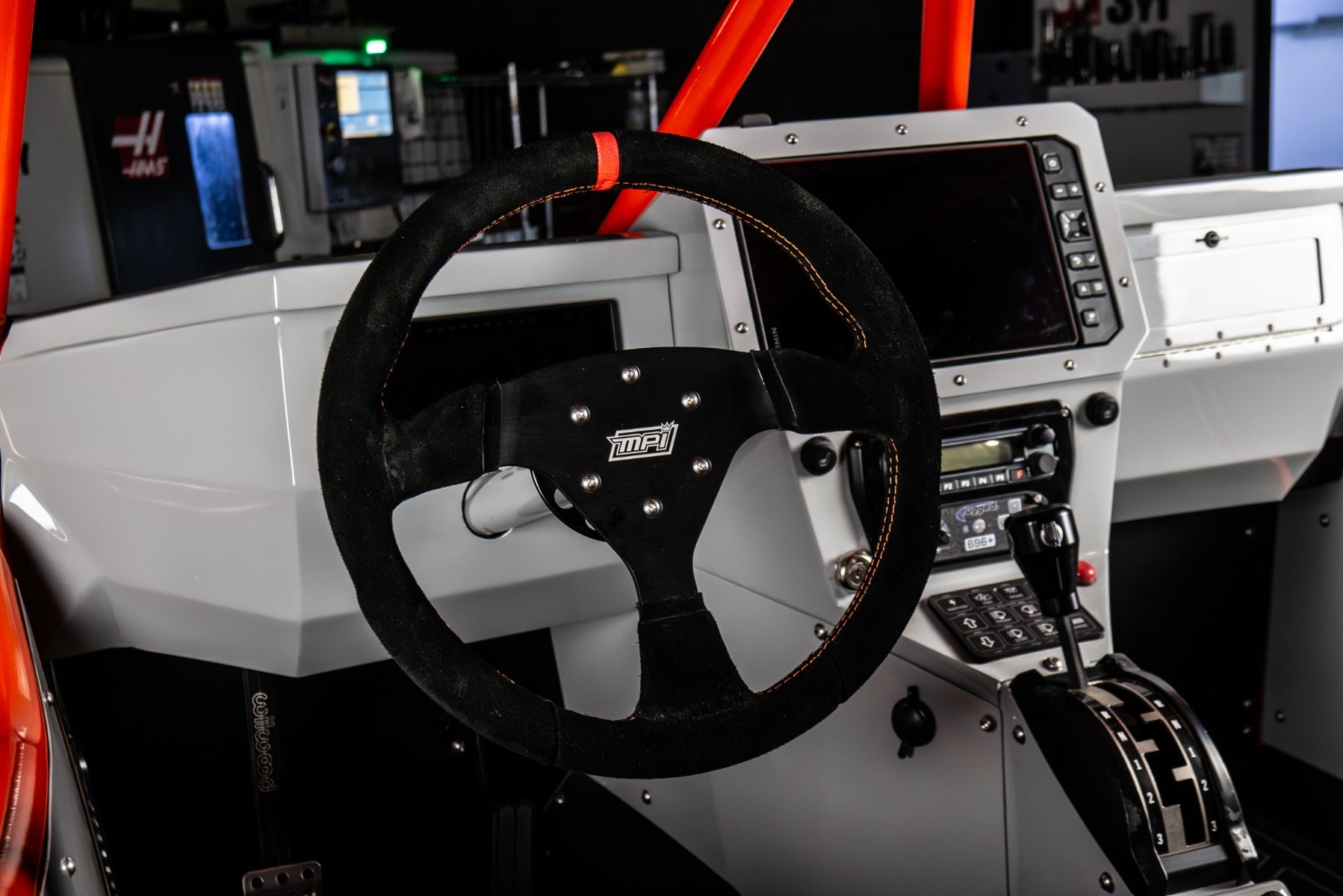

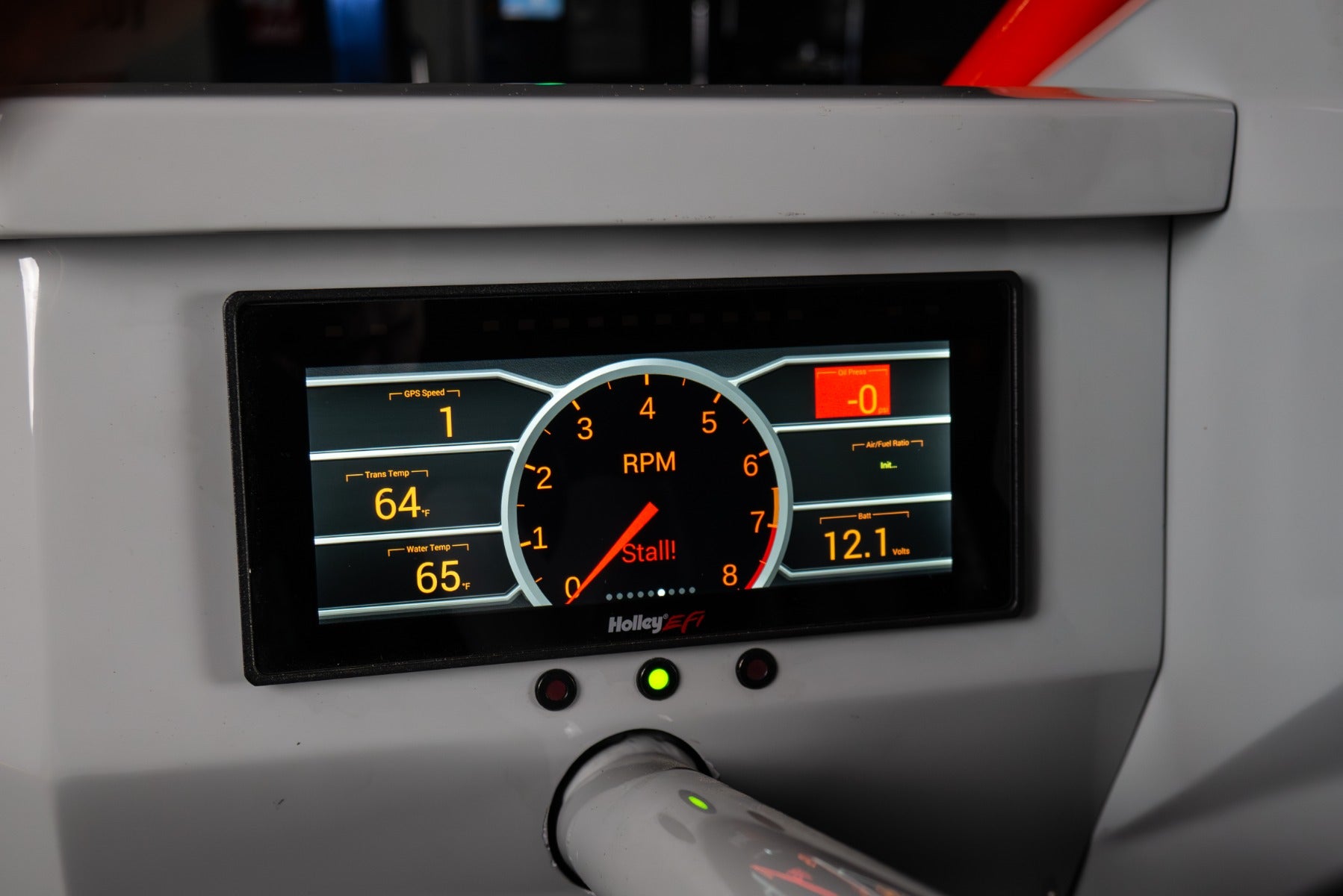

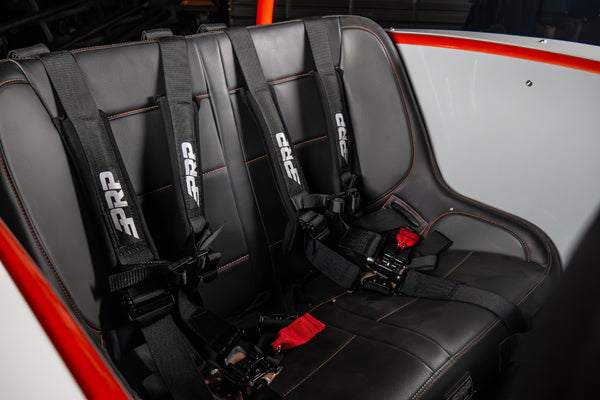

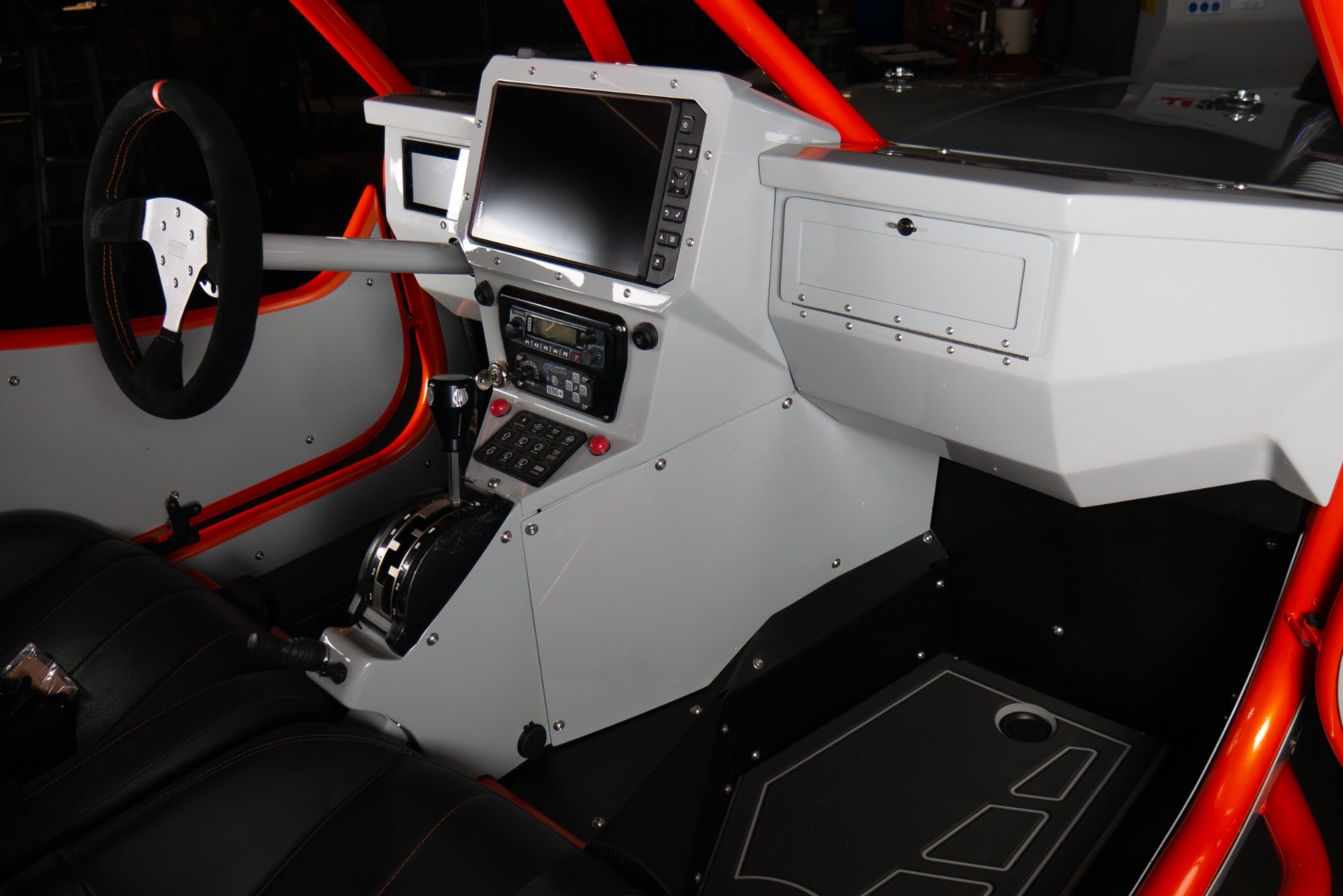

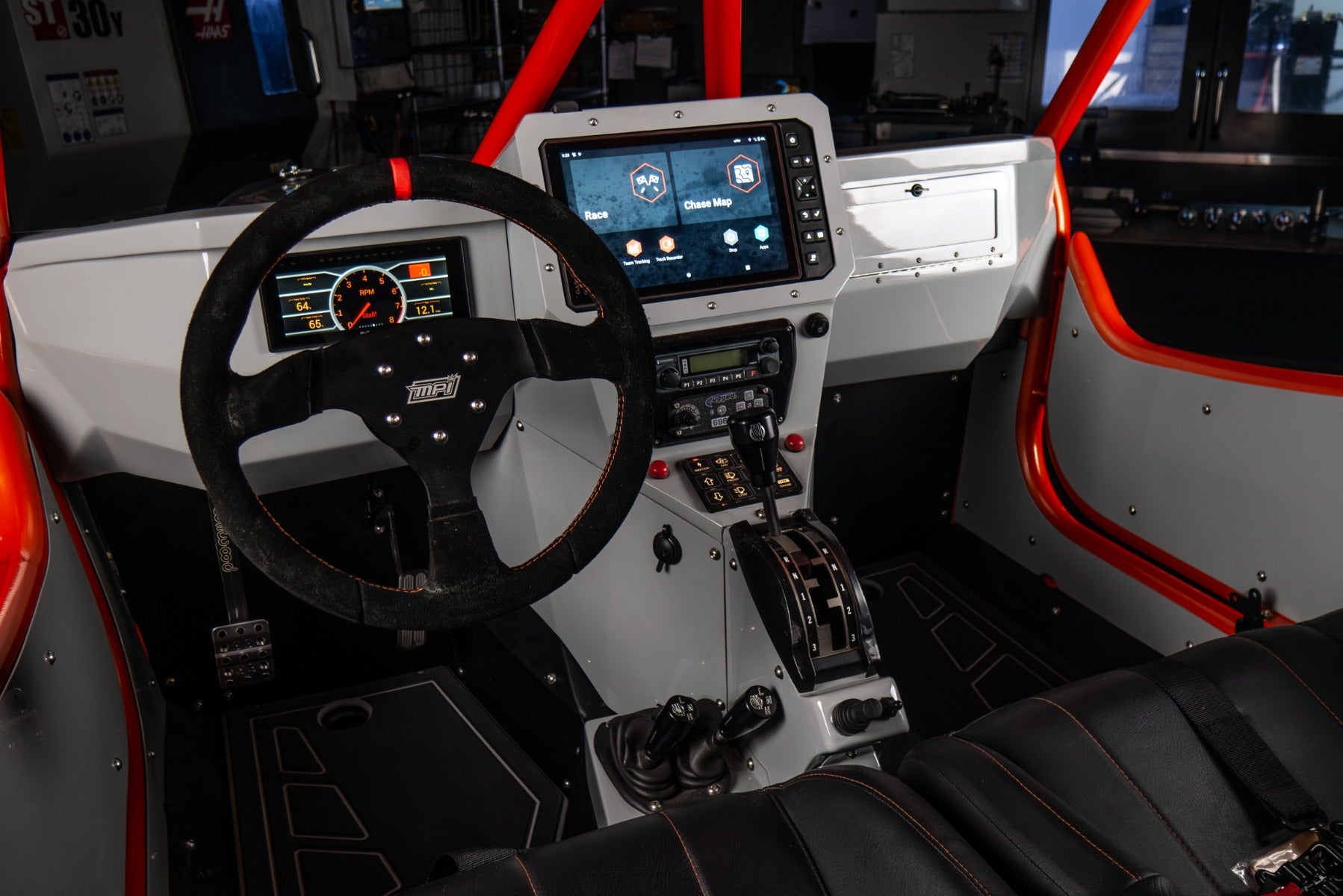

Inside the Revolution 2.0 frame, comfort meets tech. Four heated PRP seats ensure the whole crew stays planted while the Radflo 2.0 coilovers and 2.5" bypass shocks soak up the hits. Navigation is handled by the Garmin Tread Baja Race GPS, giving Zack race-level trail mapping at his fingertips, while a full Rugged Radios suite keeps the conversation going over the roar of the LT.
| Category | Component | Technical Specifications |
|---|---|---|

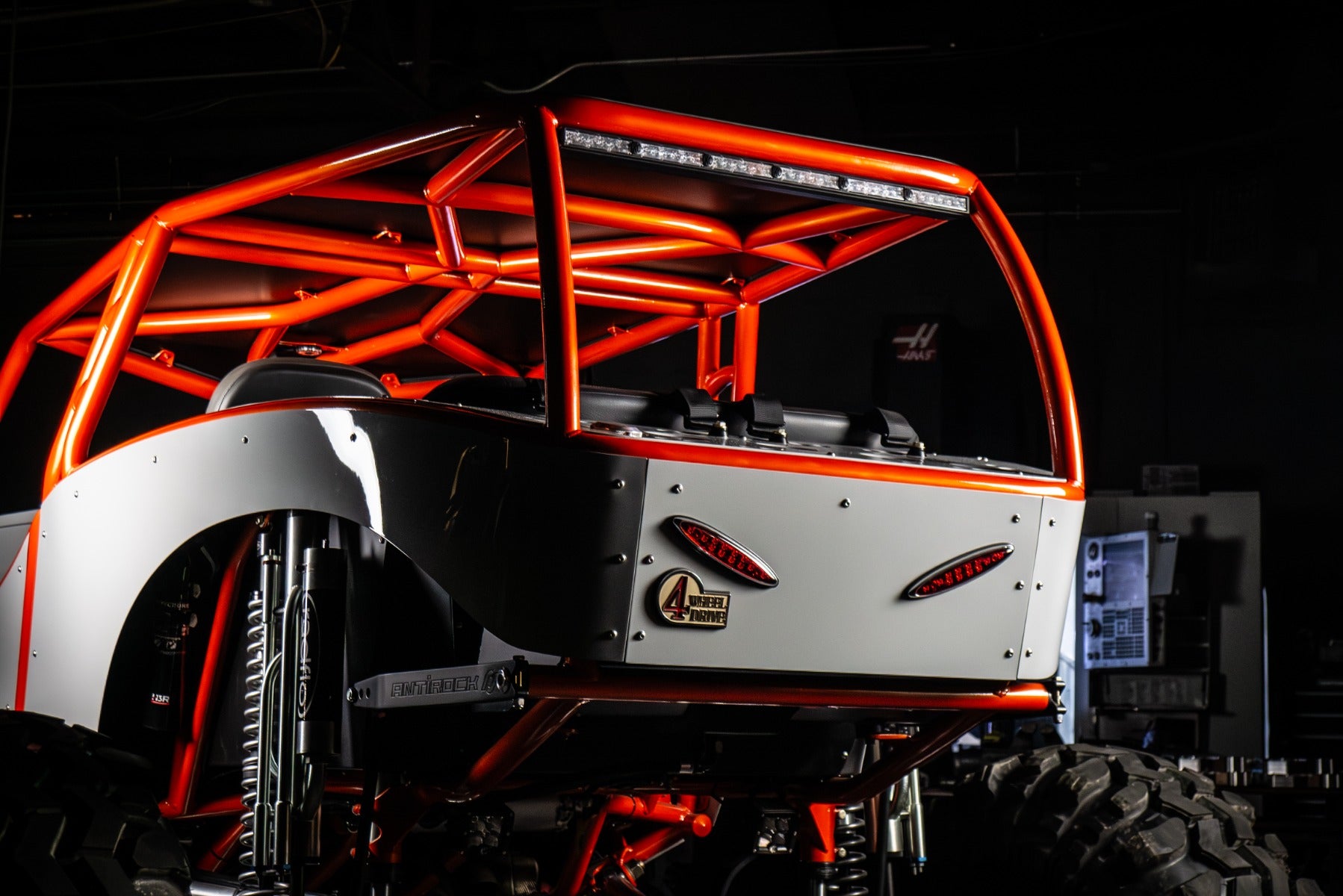

| Chassis | WOD Revolution 3.0 | 4-Seater Platform; Built for 43" Stickies |

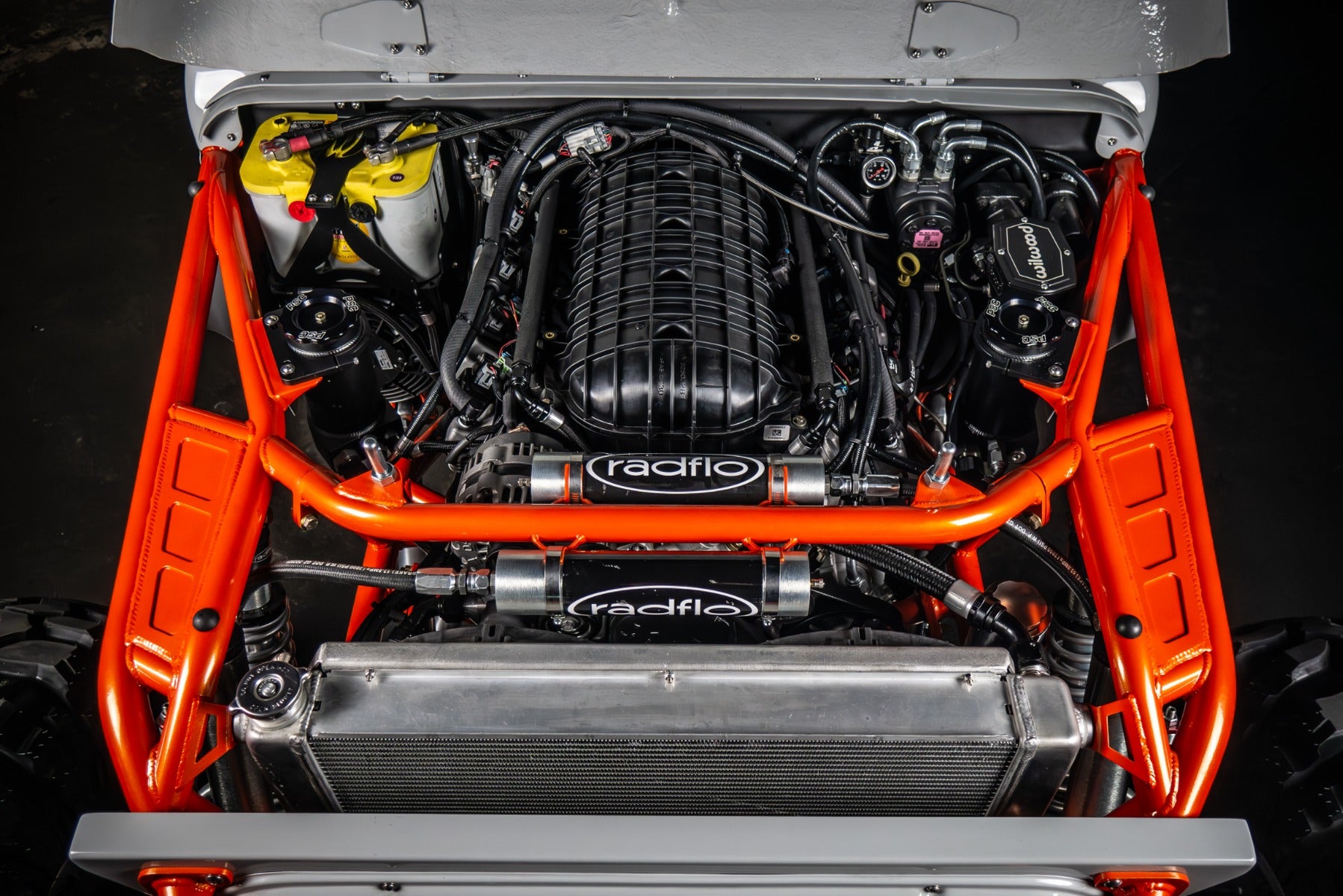

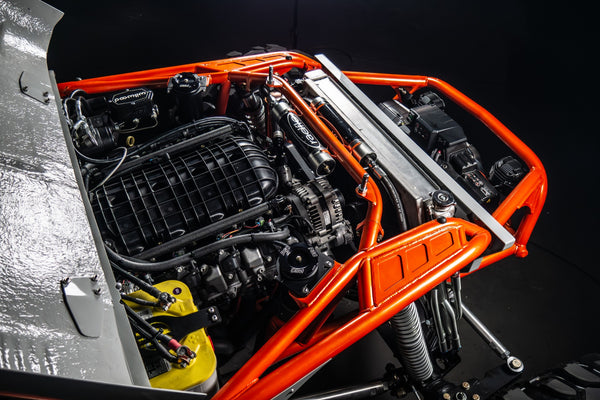

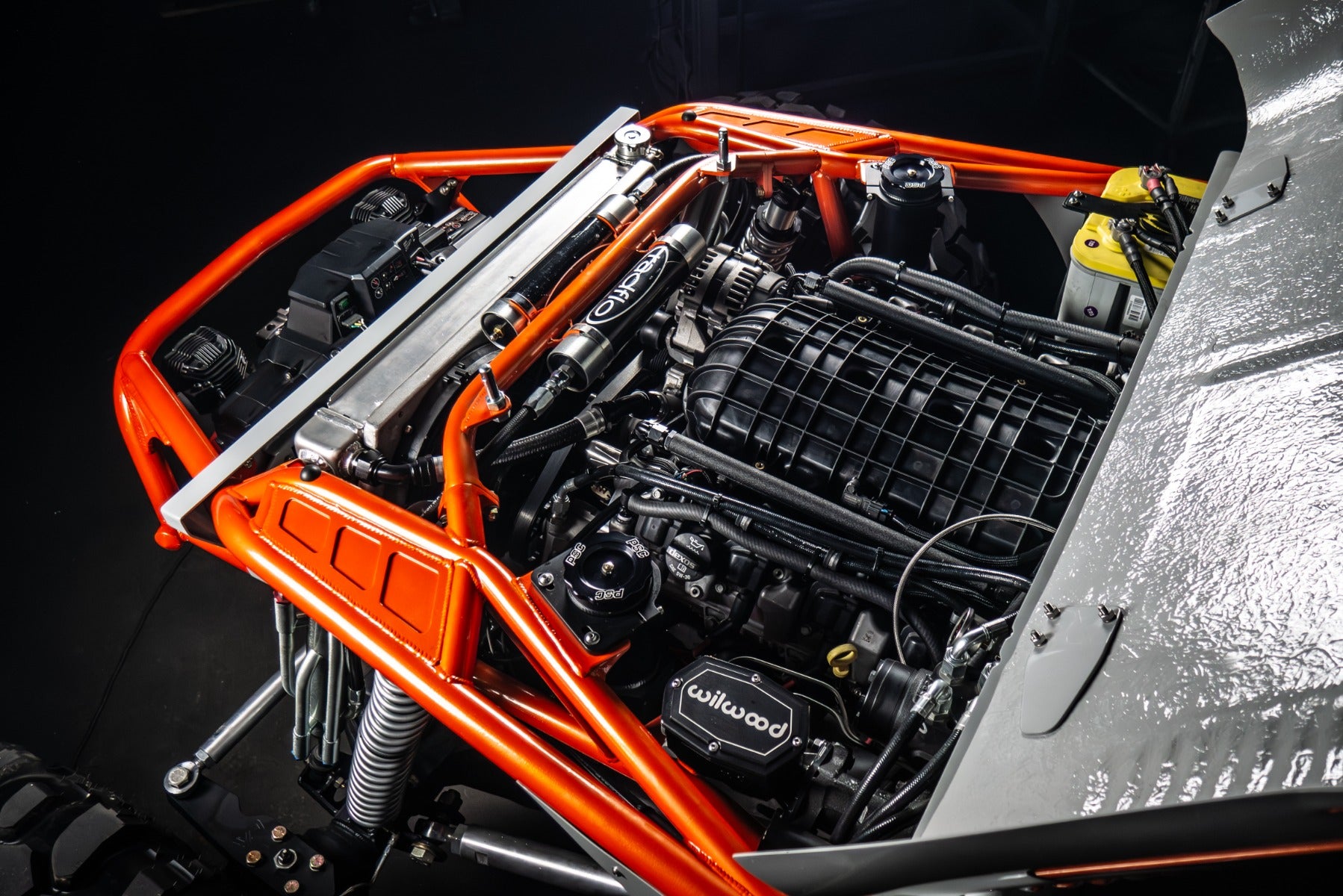

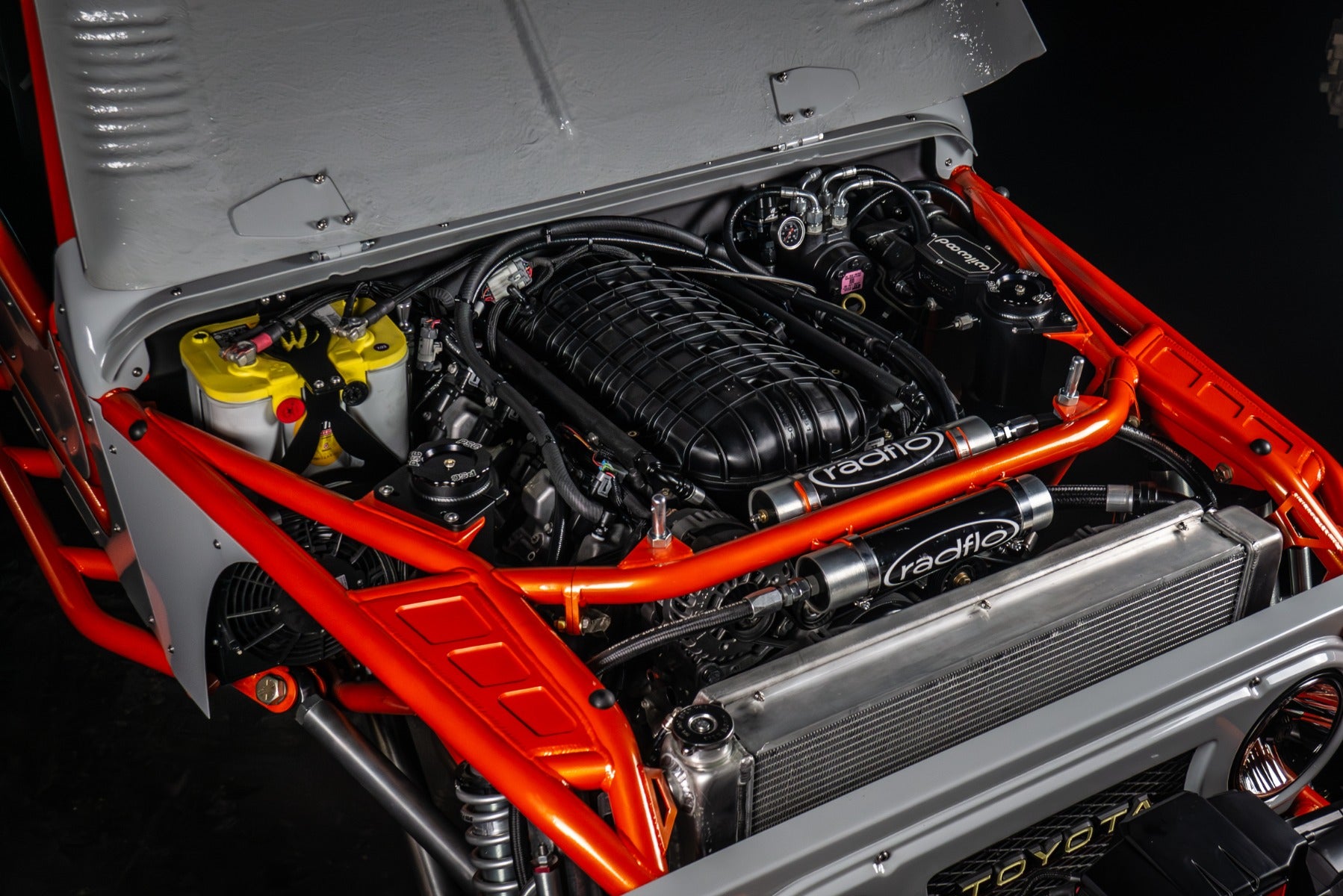

| Engine | Mast Motorsports 427 | Gen V LT; 625 HP |
| Exhaust | WOD & Sanderson | LT Block Huggers; TIG-welded Stainless U-bends |
| Cooling | WOD Combo | WOD 31" x 15.5" Radiator & SPAL Fan Package |

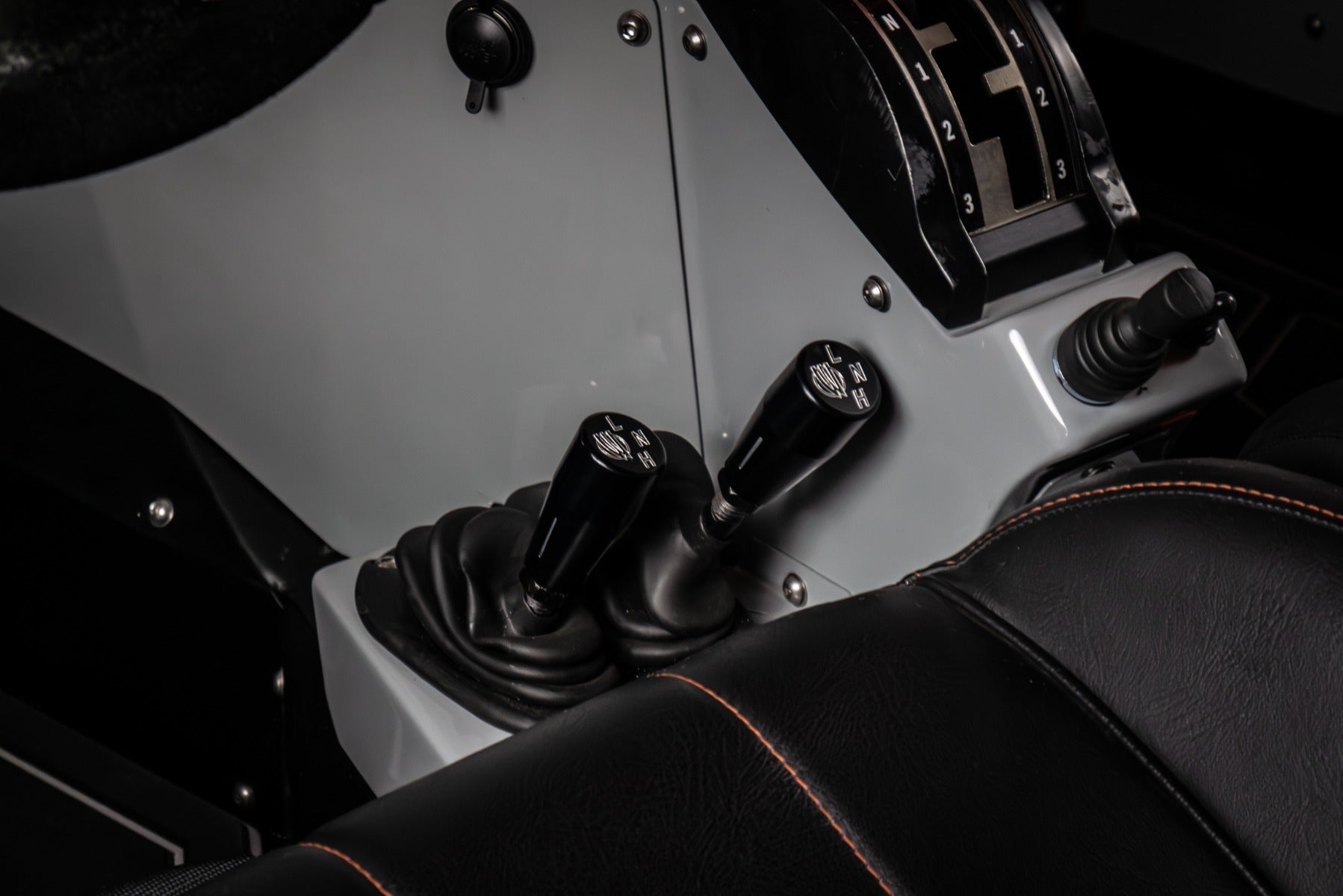

| Transmission | TH400 | With Winters TH400 Shifter |
| Transfer Case | Atlas II | 2-Stick Gear Driven |
| Front Axle | Crane Axle 14-Bolt | 5.13 Gears; Spool; 13-Bolt Cover |
| Rear Axle | Crane Axle 14-Bolt | 5.13 Gears; Spool; 13-Bolt Cover |
| Knuckles/Hubs | Crane Magnum | Unit Bearing Adapters; '05+ Unit Bearings |
| Axle Shafts | RCV Performance | Big Bell with 40-Spline Shafts (F/R) |
| Driveshafts | 1410 Series | WOD 1410 Drive Shaft Kits |

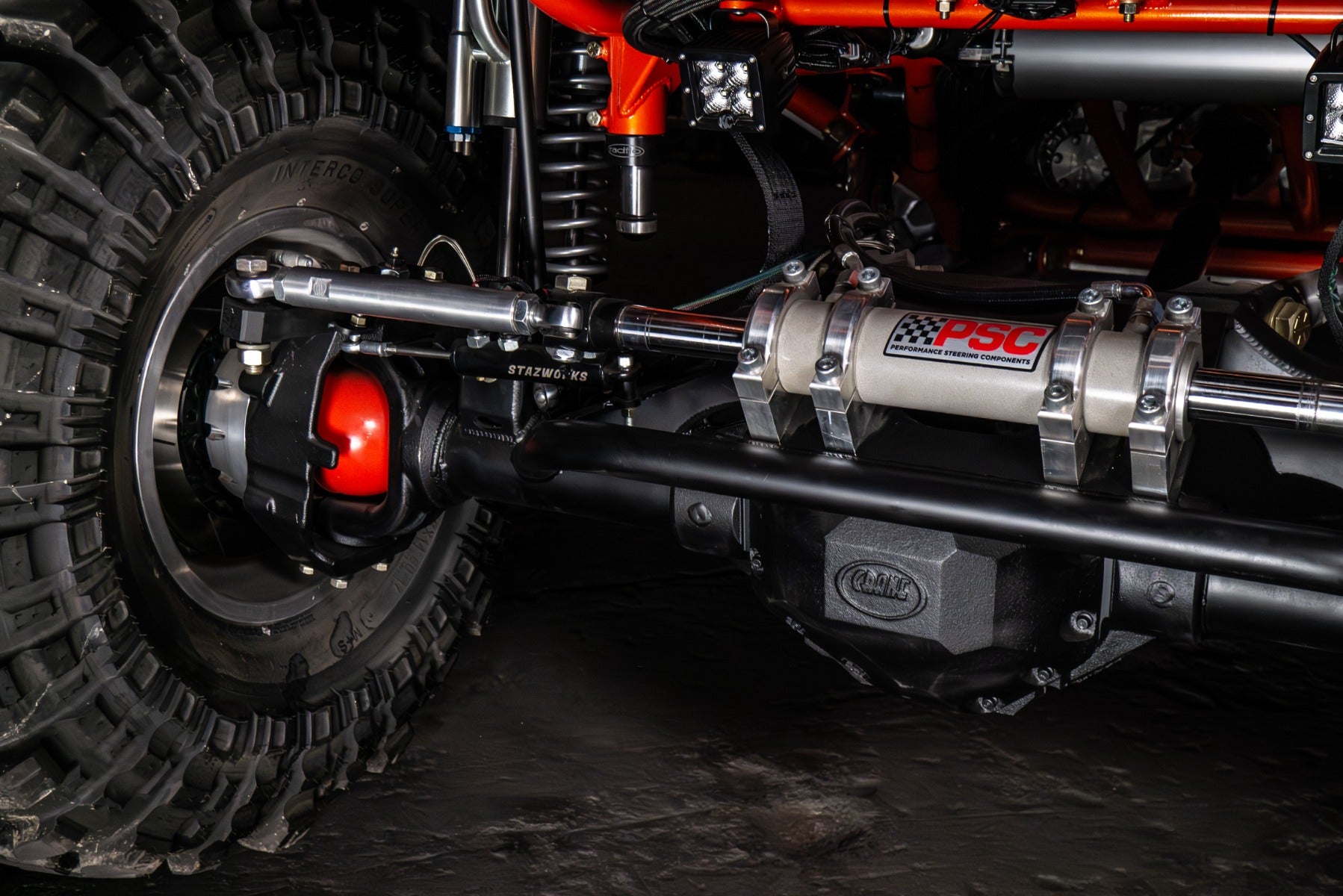

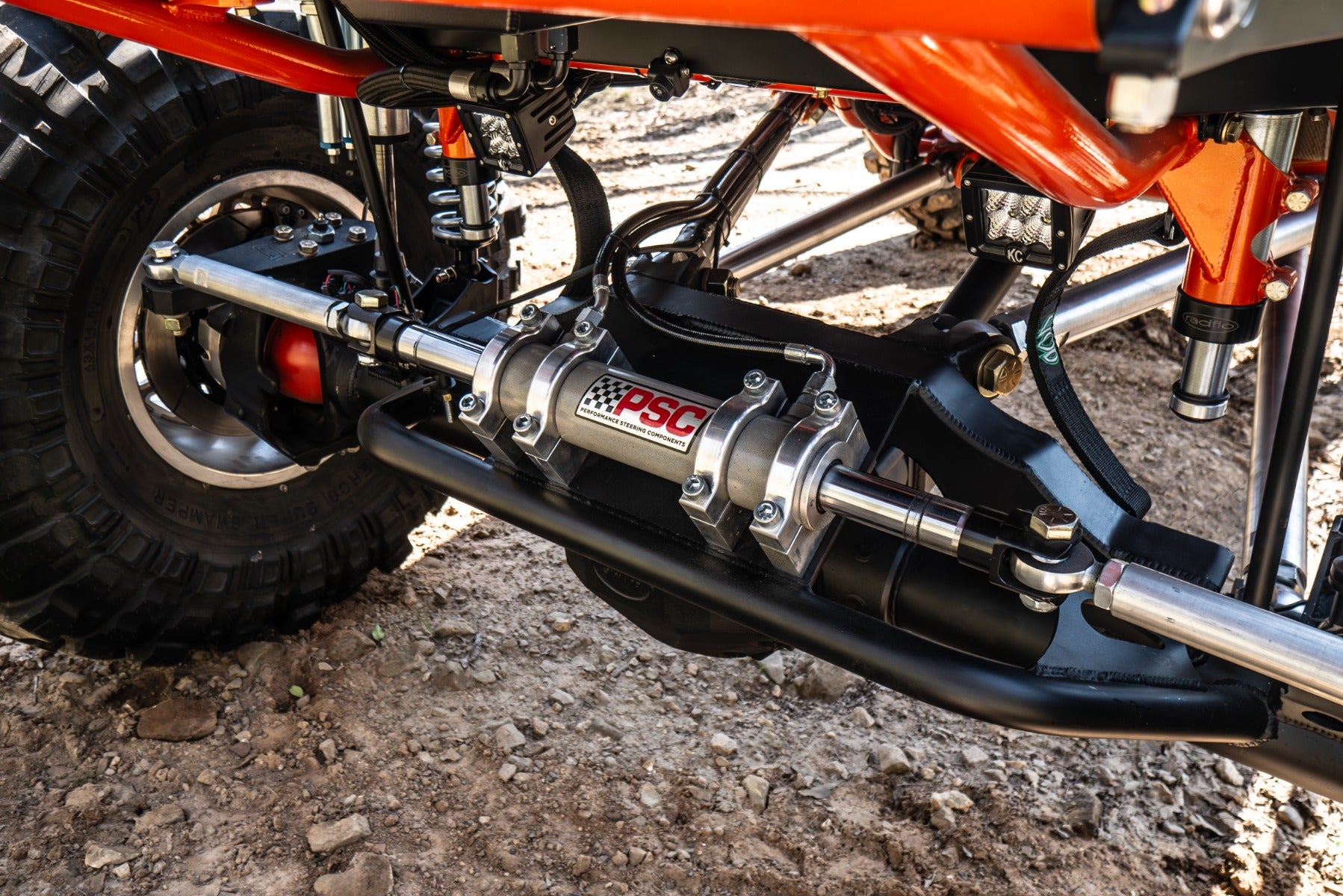

| Steering | PSC / WOD Custom | Full Hydro; WOD 24" Steering Column |
| Links | 7075 Aluminum | 1-1/4" Rod Ends; 7075 Aluminum Link Bars |
| Front Shocks | Radflo Dual-Setup | 2.0 Coilovers (14") + 2.5 3-Tube Bypass |
| Rear Shocks | Radflo Dual-Setup | 2.0 Coilovers (14") + 2.5 3-Tube Bypass |
| Bump Stops | Radflo 2.0 | 2.0" Diameter x 2.0" Travel |
| Sway Bar | Currie Anti-Rock | Rear-mounted for stability |
| Tires | Interco TSL SX | 43" Sticky Compound |
| Wheels | KMC Grenade | 17" Aluminum Beadlocks |
| Brakes | Wilwood / Crane | Hydroboost w/ Wilwood Master Cylinder; Crane Lightweight Kit |

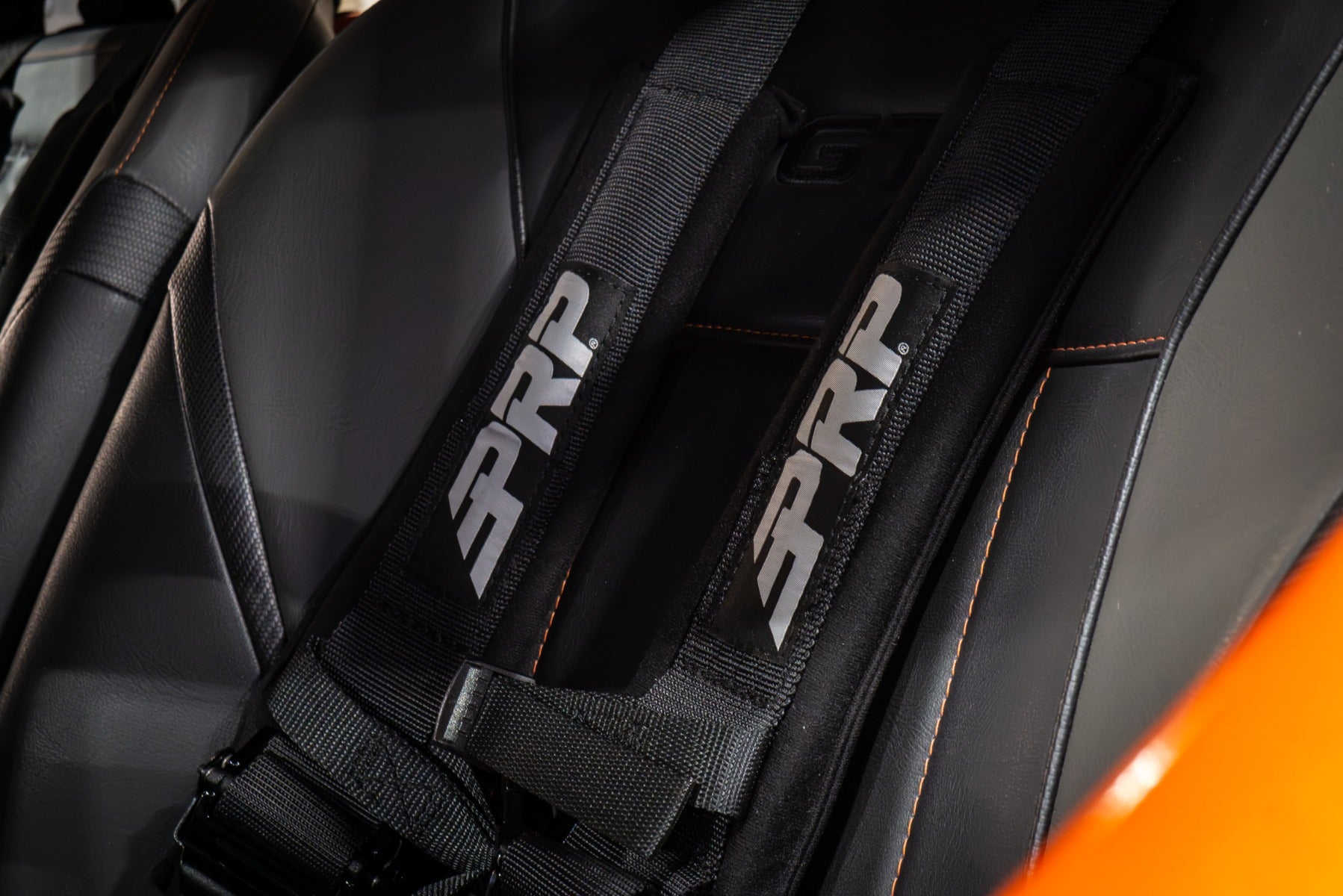

| Interior | PRP Custom | Heated Seats; 5.2 Harnesses |
| Armor | 6061 Aluminum | 3/8" Thick Belly Skid Plate |
| Recovery | Warn / Halon | Warn Winch (Front); (2) Halon Extinguishers |
| Lighting | KC Lights | Full Interior & Exterior LED Package |
